0-14 — CAMSHAFT AND VALVE (#95009) — 98 parça

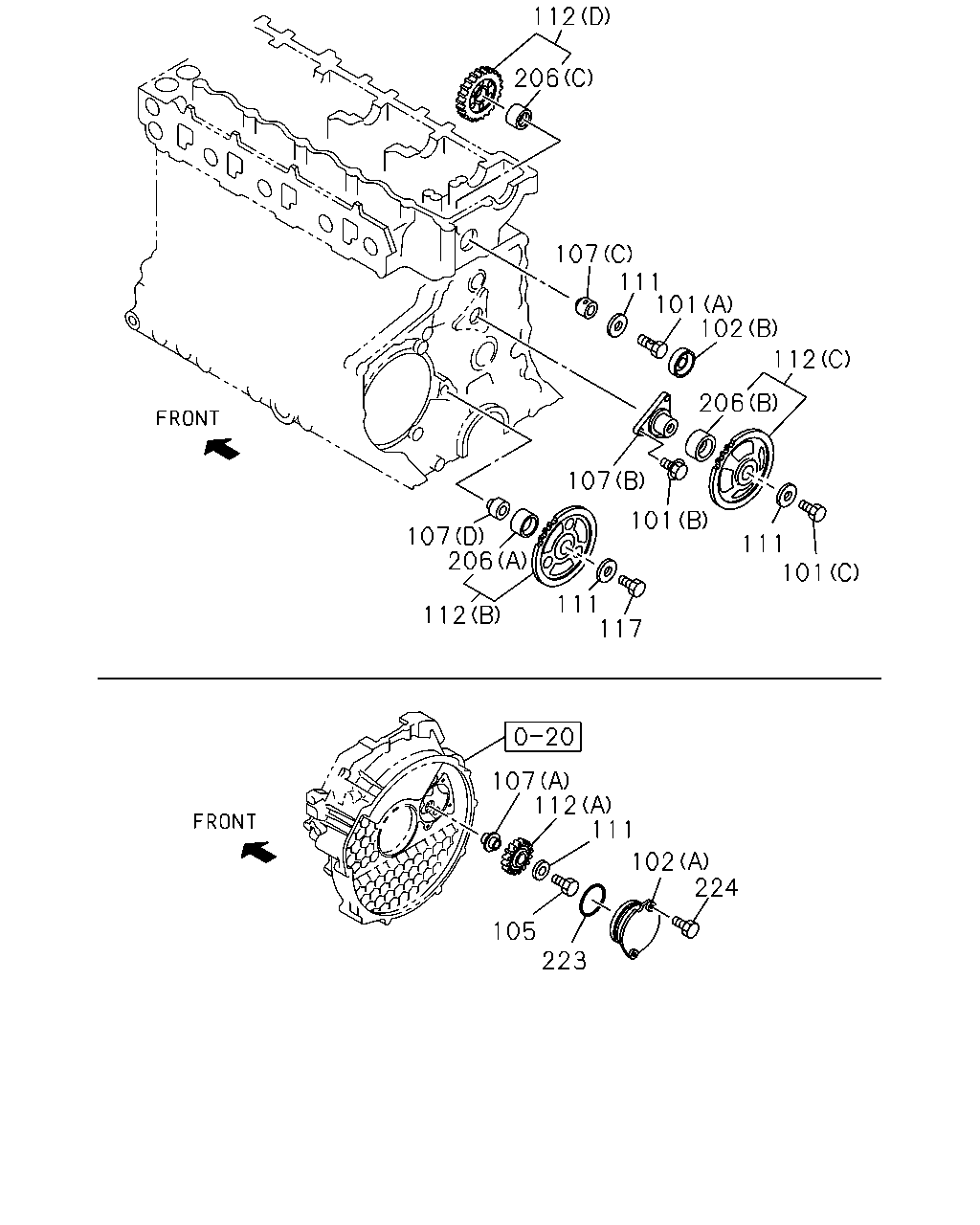

112 206 107 111 101 102 112 206 107 101 111 101 117 111 206 107 112 107 112 111 102 224 223 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	1208-
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	1208-
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	1208-1310
101	00.724 BOLT; THRUST COLLAR (C) M14X25	0-23951-425-0	01	1	1311-
102	00.724 COVER; IDLE GEAR GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) OD=51	8-98209-813-0	01	1	1303-1406
102	00.724 COVER; IDLE GEAR MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> (B) OD=51	8-98209-813-0	01	1	1407-1410
102	00.724 COVER; IDLE GEAR VIN MODEL YEAR 2015<VZF> (B) OD=51	8-98209-813-0	01	1	1407-1410
102	00.724 COVER; IDLE GEAR FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> (B) OD=51	8-98209-813-0	01	1	1411-
102	00.724 COVER; IDLE GEAR GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) (B) OD=51	8-98209-813-0	01	1	1411-
102	00.724 COVER; IDLE GEAR HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B),BIO DIESEL FUEL B10<8NV> (B) OD=51	8-98209-813-0	01	1	1411-
102	00.724 COVER; IDLE GEAR VIN MODEL YEAR 2015<VZF> (B) OD=51	8-98209-813-0	01	1	1411-
102	00.724 COVER; IDLE GEAR (A)	8-94334-681-1	01	1	1208-
102	00.724 COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	1208-1302
102	00.724 COVER; IDLE GEAR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) OD=51	8-97096-826-0	01	1	1303-1406
102	00.724 COVER; IDLE GEAR FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) OD=51	8-97096-826-0	01	1	1303-1406
102	00.724 COVER; IDLE GEAR EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) (B) OD=51	8-97096-826-0	01	1	1407-
105	00.724 BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	1208-
107	00.724 SHAFT; IDLE GEAR GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98209-525-0	01	1	1303-1406
107	00.724 SHAFT; IDLE GEAR MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> (B)	8-98209-525-0	01	1	1407-1410
107	00.724 SHAFT; IDLE GEAR VIN MODEL YEAR 2015<VZF> (B)	8-98209-525-0	01	1	1407-1410
107	00.724 SHAFT; IDLE GEAR FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> (B)	8-98209-525-0	01	1	1411-
107	00.724 SHAFT; IDLE GEAR GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) (B)	8-98209-525-0	01	1	1411-
107	00.724 SHAFT; IDLE GEAR HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B),BIO DIESEL FUEL B10<8NV> (B)	8-98209-525-0	01	1	1411-
107	00.724 SHAFT; IDLE GEAR VIN MODEL YEAR 2015<VZF> (B)	8-98209-525-0	01	1	1411-
107	00.724 SHAFT; IDLE GEAR (A)	8-94334-682-1	01	1	1208-
107	00.724 SHAFT; IDLE GEAR (C)	8-97186-398-1	01	1	1208-
107	00.724 SHAFT; IDLE GEAR (B)	8-97350-021-0	01	1	1208-1302
107	00.724 SHAFT; IDLE GEAR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-97350-021-0	01	1	1303-1406
107	00.724 SHAFT; IDLE GEAR FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-97350-021-0	01	1	1303-1406
107	00.724 SHAFT; IDLE GEAR EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) (B)	8-97350-021-0	01	1	1407-
107	00.724 SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	1208-
111	00.724 COLLAR; THRUST,IDLE GEAR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) ID=14.5 OD=46	8-97209-728-2	03	1	1303-1306
111	00.724 COLLAR; THRUST,IDLE GEAR FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) ID=14.5 OD=46	8-97209-728-2	03	1	1303-1306
111	00.724 COLLAR; THRUST,IDLE GEAR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) ID=14.5 OD=46	8-97209-728-2	04	1	1307-1406
111	00.724 COLLAR; THRUST,IDLE GEAR FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) ID=14.5 OD=46	8-97209-728-2	04	1	1307-1406
111	00.724 COLLAR; THRUST,IDLE GEAR EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) ID=14.5 OD=46	8-97209-728-2	04	1	1407-
111	00.724 COLLAR; THRUST,IDLE GEAR GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65), HIGH ALTITUDE COMPENSATOR(EE2) ID=14.5 OD=46 IDN	8-98209-850-0	03	1	1303-1306
111	00.724 COLLAR; THRUST,IDLE GEAR GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) ID=14.5 OD=46 IDN	8-98209-850-0	04	1	1307-1406
111	00.724 COLLAR; THRUST,IDLE GEAR MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> ID=14.5 OD=46 IDN	8-98209-850-0	04	1	1407-1410
111	00.724 COLLAR; THRUST,IDLE GEAR VIN MODEL YEAR 2015<VZF> ID=14.5 OD=46 IDN	8-98209-850-0	04	1	1407-1410
111	00.724 COLLAR; THRUST,IDLE GEAR FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> ID=14.5 OD=46 IDN	8-98209-850-0	04	1	1411-
111	00.724 COLLAR; THRUST,IDLE GEAR GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) ID=14.5 OD=46 IDN	8-98209-850-0	04	1	1411-
111	00.724 COLLAR; THRUST,IDLE GEAR HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B),BIO DIESEL FUEL B10<8NV> ID=14.5 OD=46 IDN	8-98209-850-0	04	1	1411-
111	00.724 COLLAR; THRUST,IDLE GEAR VIN MODEL YEAR 2015<VZF> ID=14.5 OD=46 IDN	8-98209-850-0	04	1	1411-
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	04	1	1208-1302
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	01	1	1303-1306
112	00.724 GEAR; IDLE (C) Z=61	8-97094-546-2	01	1	1208-
112	00.724 GEAR; IDLE (D) Z=41	8-97112-607-1	01	1	1208-
112	00.724 GEAR; IDLE (A) Z=34	8-97120-005-1	01	1	1208-
112	00.724 GEAR; IDLE (B) Z=72-30	8-97227-074-0	01	1	1208-
117	00.662 BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	1208-
206	00.724 BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	1208-
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	1208-
206	00.724 BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	1208-
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	1208-
224	00.724 BOLT; COVER 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1208-

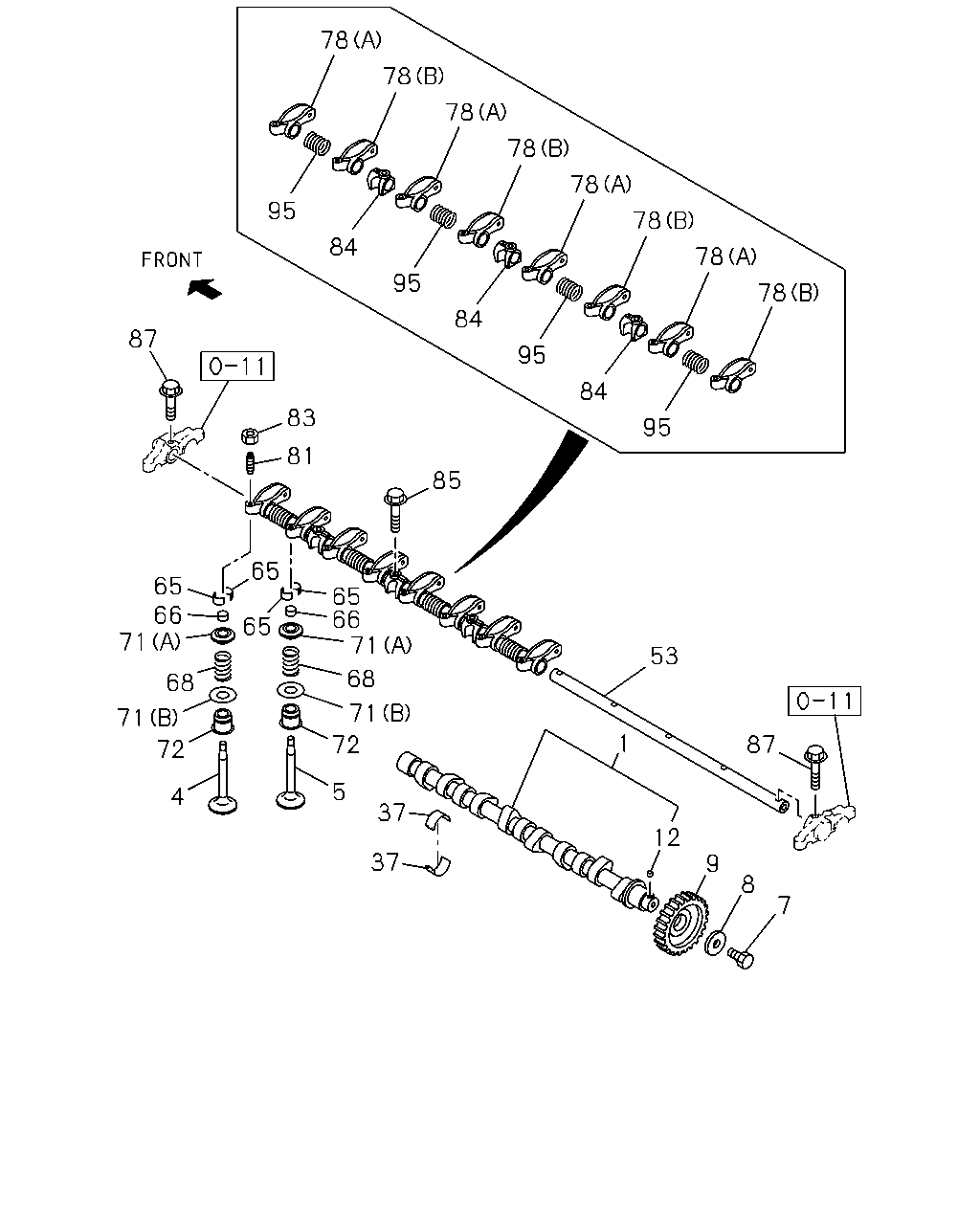

78 78 78 78 78 78 78 78 95 84 95 84 95 84 95 85 83 81 87 65 66 71 68 71 72 4 65 66 71 68 71 72 5 65 65 37 37 1 12 9 8 7 87 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	00.519 CAMSHAFT	8-97077-829-0	01	1	1208-
4	00.296 VALVE; INL	8-97171-398-0	04	1	1208-
5	00.297 VALVE; EXH	8-97171-399-0	04	1	1208-
7	00.738 BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	1208-
8	00.738 WASHER; CM/SHF GEAR GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) ID=14.5	8-98209-848-0	01	1	1303-1406
8	00.738 WASHER; CM/SHF GEAR MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> ID=14.5	8-98209-848-0	01	1	1407-1410
8	00.738 WASHER; CM/SHF GEAR VIN MODEL YEAR 2015<VZF> ID=14.5	8-98209-848-0	01	1	1407-1410
8	00.738 WASHER; CM/SHF GEAR FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> ID=14.5	8-98209-848-0	01	1	1411-
8	00.738 WASHER; CM/SHF GEAR GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) ID=14.5	8-98209-848-0	01	1	1411-
8	00.738 WASHER; CM/SHF GEAR HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B),BIO DIESEL FUEL B10<8NV> ID=14.5	8-98209-848-0	01	1	1411-
8	00.738 WASHER; CM/SHF GEAR VIN MODEL YEAR 2015<VZF> ID=14.5	8-98209-848-0	01	1	1411-
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	1208-1302
8	00.738 WASHER; CM/SHF GEAR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) ID=14.5	9-09851-850-3	01	1	1303-1406
8	00.738 WASHER; CM/SHF GEAR FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) ID=14.5	9-09851-850-3	01	1	1303-1406
8	00.738 WASHER; CM/SHF GEAR EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) ID=14.5	9-09851-850-3	01	1	1407-
9	00.736 GEAR; CM/SHF Z=35	8-97094-440-2	01	1	1208-
12	00.738 KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	01	1	1208-
37	00.539 METAL; CM/SHF B=16	8-97386-189-0	10	1	1208-
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	1208-
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	1208-
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	1208-
66	00.303 CAP; VLV STEM END	8-94396-015-2	08	1	1208-
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	1208-
71	00.309 SEAT; SPR (A) OD=38	8-94385-029-2	08	1	1208-
71	00.309 SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	1208-
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	1208-
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-2	04	1	1208-
78	00.333 ARM; ROCKER (A) JBK	8-97074-614-1	04	1	1208-
78	00.333 ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	1208-
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	1208-
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	1208-1405
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	16	1	1406-
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	1208-1405
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	16	1	1406-
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	1208-
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	1208-
85	00.349 BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	1208-
85	00.349 BOLT; BRKT KEIHIN SEIMITSU M10X62 FLANGE	8-97174-650-0	03	1	1208-
87	00.349 BOLT; ROCKER SHAFT 03.162 M8X35 FLANGE	0-28050-835-0	02	1	1208-1405
87	00.349 BOLT; ROCKER SHAFT 03.162 M8X35 FLANGE	0-28050-835-0	04	1	1406-
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	1208-
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	1208-
