0-12 — CYLINDER BLOCK (#95007) — 46 parça

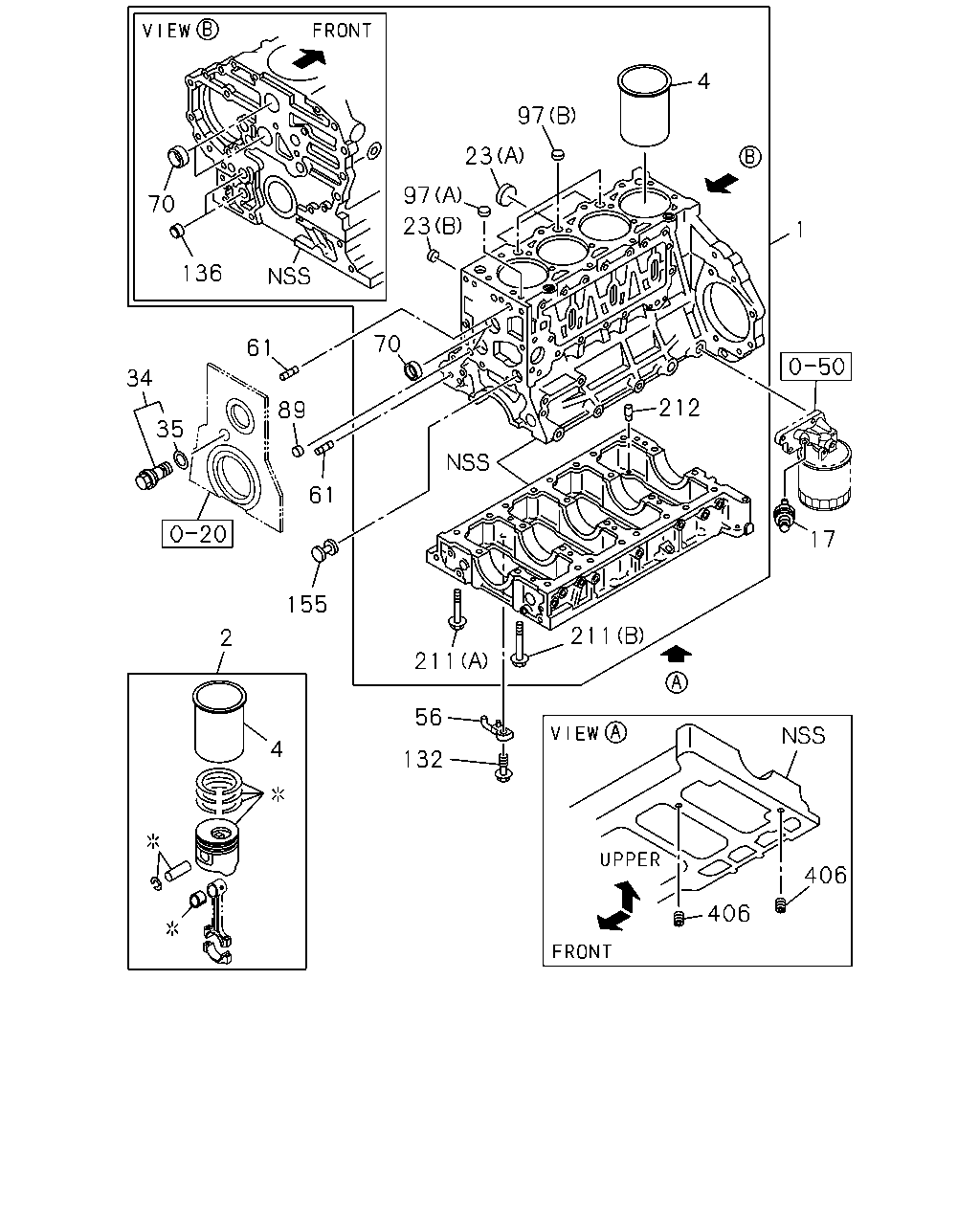

çizim 288017
211 211 56 132 406 406 17 212 1 4 97 23 97 23 70 155 61 89 61 35 34 136 70 2 4
BalonParca AdiParca NoAdetTipApplied Date
1 00.033 BLOCK ASM; CYL 8-98005-434-3 01 1 1208-1209
1 00.033 BLOCK ASM; CYL 8-98204-534-0 01 1 1210-
2 00.030 LINER SET; ENG CYL
OD GRADE=1X,ID GRADE=NON 		5-87816-317-0 04 1 1208-
2 00.030 LINER SET; ENG CYL
OD GRADE=3X,ID GRADE=NON 		5-87816-318-0 04 1 1208-
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-048-1 04 1 1208-
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-049-1 04 1 1208-
17 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 1208-
23 00.034 CUP; SEALING,C/BL FRT & RR
00.293 (B) OD=25 		1-09600-016-0 01 1 1208-
23 00.034 CUP; SEALING,C/BL FRT & RR
(A) OD=45 		8-97036-550-1 03 1 1208-
34 01.609 VALVE; OIL RELIEF
00.213 		8-97328-859-0 01 1 1208-1410
34 01.609 VALVE; OIL RELIEF
FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> 00.213 		8-97328-859-0 01 1 1411-
34 01.609 VALVE; OIL RELIEF
GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF> 00.213 		8-97328-859-0 01 1 1411-
34 01.609 VALVE; OIL RELIEF
HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> 00.213 		8-97328-859-0 01 1 1411-
34 01.609 VALVE; OIL RELIEF
VIN MODEL YEAR 2015<VZF> 00.213 		8-97328-859-0 01 1 1411-
35 01.609 GASKET; RELIEF VLV
ID=23.3 		8-94173-412-0 01 1 1208-1410
35 01.609 GASKET; RELIEF VLV
FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> ID=23.3 		8-94173-412-0 01 1 1411-
35 01.609 GASKET; RELIEF VLV
GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF> ID=23.3 		8-94173-412-0 01 1 1411-
35 01.609 GASKET; RELIEF VLV
HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> ID=23.3 		8-94173-412-0 01 1 1411-
35 01.609 GASKET; RELIEF VLV
VIN MODEL YEAR 2015<VZF> ID=23.3 		8-94173-412-0 01 1 1411-
56 01.519 JET; OIL,PISTON COOLING 8-97213-294-1 04 1 1208-
61 00.206 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 1208-
70 00.034 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 1208-
89 00.034 CUP; SEALING,OIL GALLERY
00.253 OD=20 		9-11129-128-0 03 1 1208-
97 00.034 CUP; SEALING
00.253 (A) OD=16 		5-11129-006-0 01 1 1208-
97 00.034 CUP; SEALING
00.253 (B) OD=22 		8-97209-609-0 03 1 1208-
132 01.519 VALVE; CHECK,OIL
M10X18.5 		8-97329-618-0 04 1 1208-
136 01.639 BUSHING; DRIVE SHAFT,OIL PUMP 8-98091-566-0 02 1 1208-
155 01.531 PLUG; OIL GALLERY END
GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98209-879-0 01 1 1303-1406
155 01.531 PLUG; OIL GALLERY END
MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> 		8-98209-879-0 01 1 1407-1410
155 01.531 PLUG; OIL GALLERY END
VIN MODEL YEAR 2015<VZF> 		8-98209-879-0 01 1 1407-1410
155 01.531 PLUG; OIL GALLERY END
FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> 		8-98209-879-0 01 1 1411-
155 01.531 PLUG; OIL GALLERY END
GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) 		8-98209-879-0 01 1 1411-
155 01.531 PLUG; OIL GALLERY END
HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B),BIO DIESEL FUEL B10<8NV> 		8-98209-879-0 01 1 1411-
155 01.531 PLUG; OIL GALLERY END
VIN MODEL YEAR 2015<VZF> 		8-98209-879-0 01 1 1411-
211 01.428 BOLT; CRANKCASE
(A) M10X82 		8-94399-553-2 17 1 1208-
211 01.428 BOLT; CRANKCASE
00.293 (B) M14X115 W/FLANGE 		8-97077-638-0 10 1 1208-
212 01.428 PIN; CRANKCASE
04.510 OD=10 L=20 		8-97135-423-0 02 1 1208-
406 01.531 PLUG; CRANK CASE
01.073 PT3/8 		5-09605-005-0 02 1 1208-

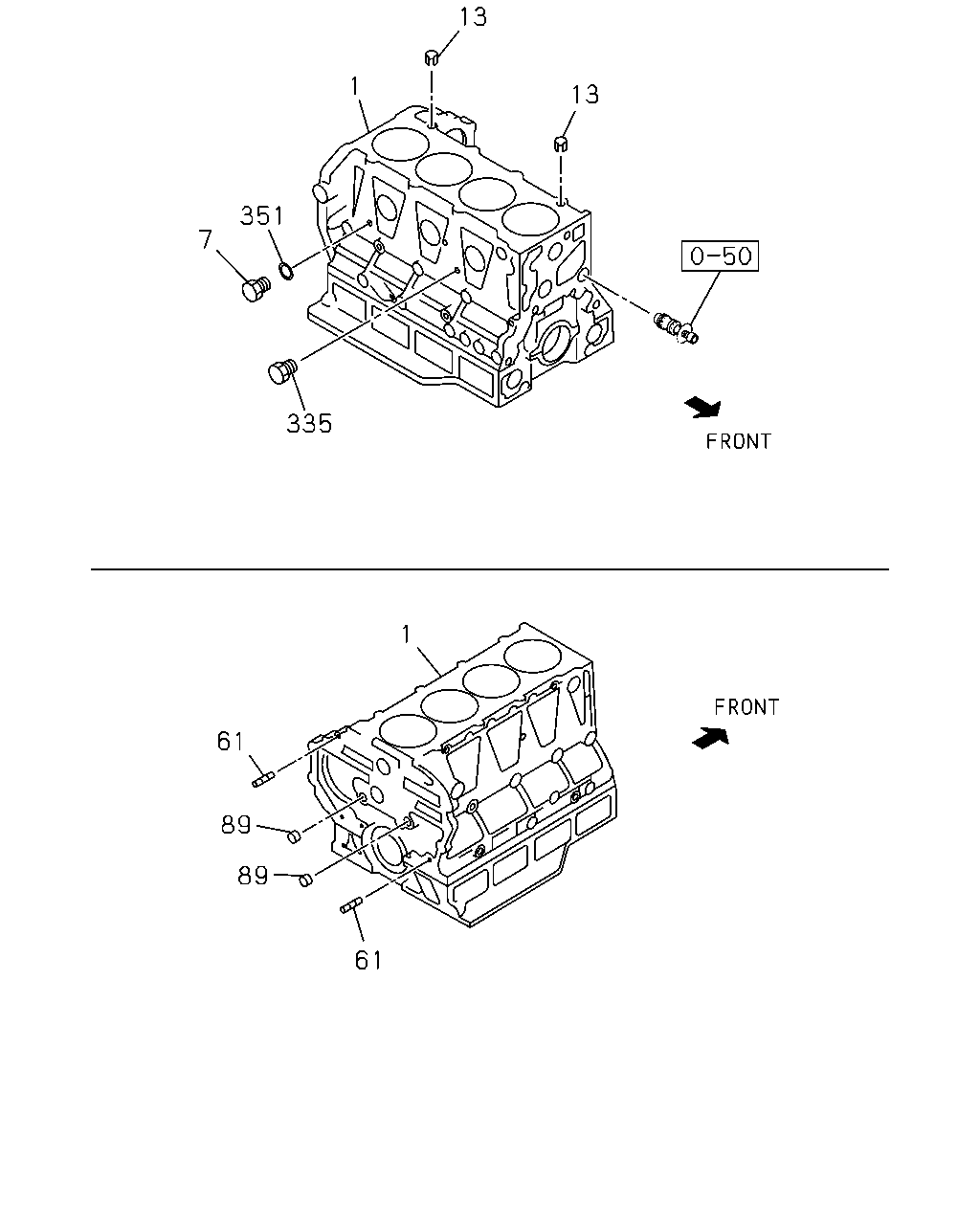

çizim 288020
61 89 89 61 1 335 351 7 13 13 1
BalonParca AdiParca NoAdetTipApplied Date
1 00.033 BLOCK ASM; CYL 8-98005-434-3 01 1 1208-1209
1 00.033 BLOCK ASM; CYL 8-98204-534-0 01 1 1210-
7 00.034 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 1208-
13 00.293 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 1208-
61 00.206 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 1208-
89 00.034 CUP; SEALING,OIL GALLERY
00.253 OD=20 		9-11129-128-0 03 1 1208-
335 01.531 PLUG; C/BL,SIDE
M14X16.5 		8-97329-617-0 01 1 1208-
351 01.531 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 1208-
