0-11 — CYLINDER HEAD (#95006) — 51 parça

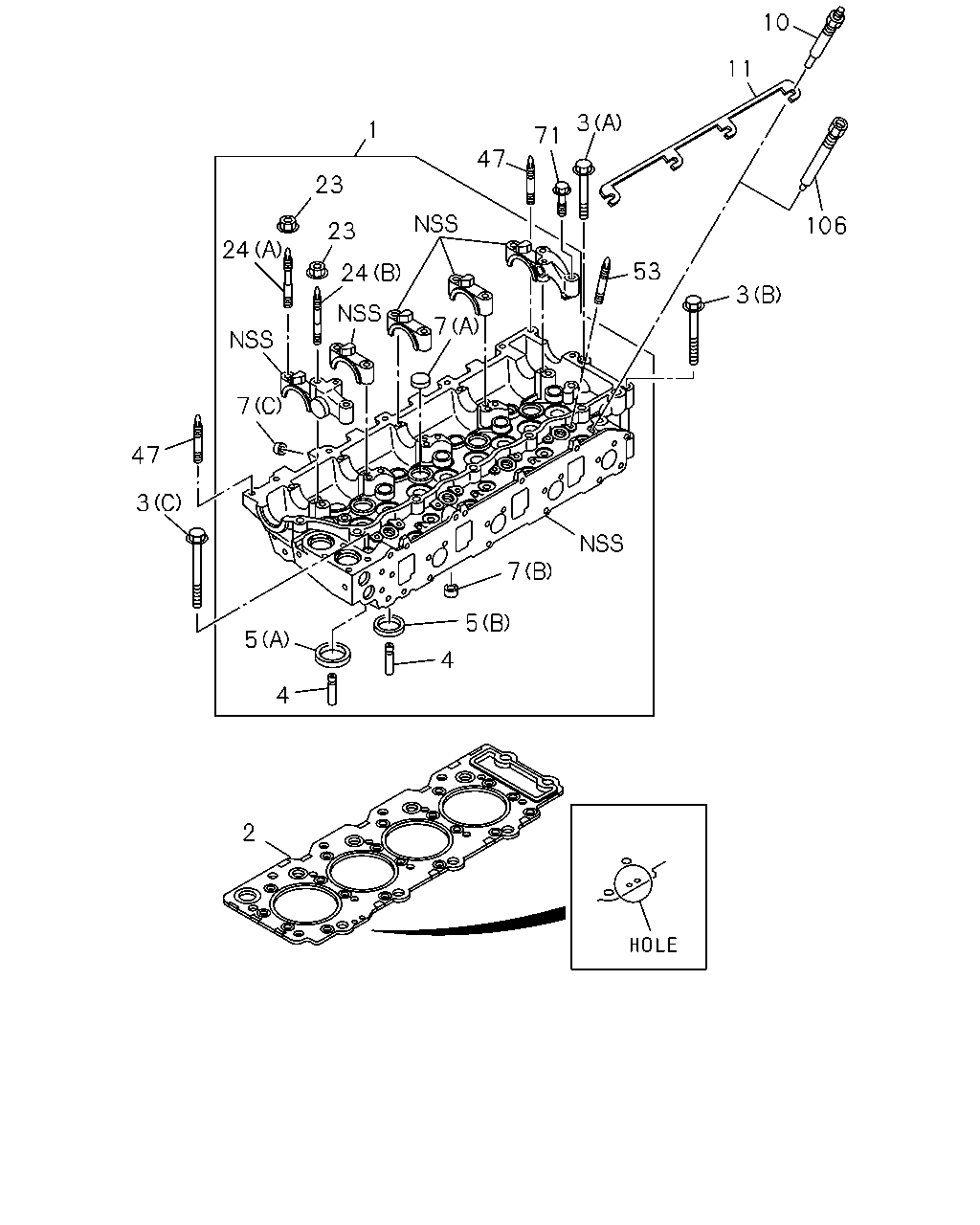

çizim 288013
1 23 24 23 47 71 3 11 10 106 24 53 3 7 47 5 4 4 5 7 7 2 3
BalonParca AdiParca NoAdetTipApplied Date
1 00.269 HEAD ASM; CYL 8-97358-368-2 01 1 1208-
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97349-489-0 01 1 1208-
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97349-490-0 01 1 1208-
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97349-491-0 01 1 1208-
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 1208-
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 1208-
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 1208-1503
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-98260-005-0 18 1 1504-
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 1208-
5 00.253 SEAT; VLV INSERT
(A) INLET OD=52 		8-94394-127-0 04 1 1208-
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 1208-
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 02 1 1208-
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 1208-
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 1208-
10 02.270 PLUG; GLOW
FAST GLOW SYSTEM<KM6> BOSCH 		1-82513-044-3 04 1 1208-
10 02.270 PLUG; GLOW
FAST GLOW SYSTEM<KM6> NGK 		8-97033-761-2 04 1 1208-
11 02.251 CONNECTOR; GLOW PLUG
FAST GLOW SYSTEM<KM6> 		8-97136-565-0 01 1 1208-
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE IDN 		0-91180-208-0 10 1 1208-
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 1208-
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 1208-
47 00.413 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 03 1 1208-
47 00.413 STUD; CYL HD
M8X65 L=76 TORQUES 		8-97167-299-1 02 1 1208-
53 03.332 STUD; INJ NOZZLE
M8X64 L=85 		8-97178-608-0 08 1 1208-
71 00.413 BOLT; CAM BRKT
03.162 M8X35 FLANGE 		0-28050-835-0 02 1 1208-
106 00.293 PLUG; GLOW PLUG HOLE
GLOW SYSTEM DELETE<7RK> 02.270 		1-11119-018-0 04 1 1208-

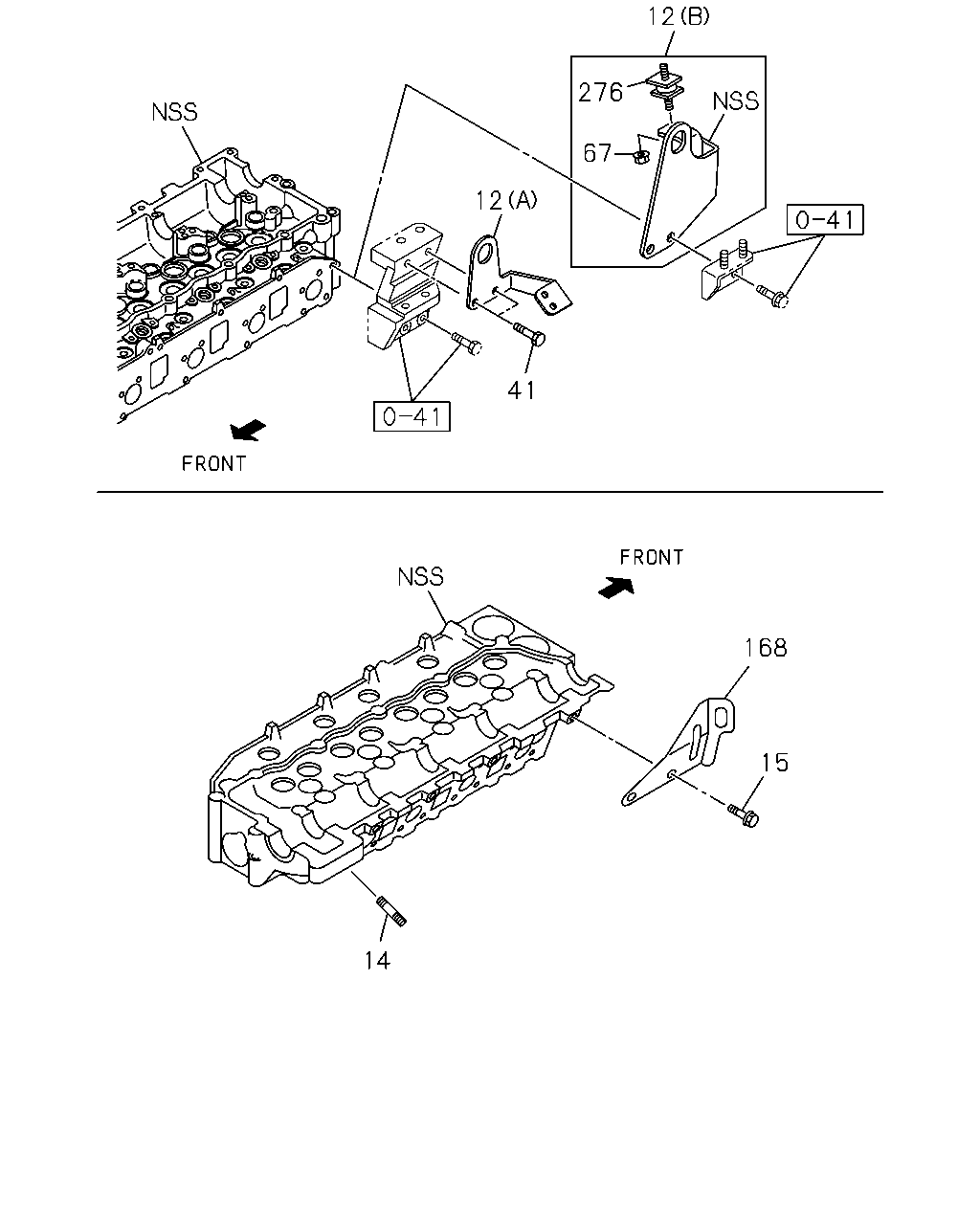

çizim 289688
41 12 67 276 12 168 15 14
BalonParca AdiParca NoAdetTipApplied Date
12 00.004 HANGER; ENG,RR
VIN MODEL YEAR 2015<VZF> (A) 		8-97210-326-0 01 1 1407-1410
12 00.004 HANGER; ENG,RR
VIN MODEL YEAR 2015<VZF> (A) 		8-97210-326-0 01 1 1411-
12 00.004 HANGER; ENG,RR
HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. VIN MODEL YEAR 2015<VZF> (A) 		8-97210-326-0 01 1 1411-
12 00.004 HANGER; ENG,RR
(A) 		8-97210-326-0 01 1 1208-1405
12 00.004 HANGER; ENG,RR
(B) 		8-98219-797-0 01 1 1406-1406
12 00.004 HANGER; ENG,RR
EXC. VIN MODEL YEAR 2015<VZF> (B) 		8-98219-797-0 01 1 1407-1410
12 00.004 HANGER; ENG,RR
FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> (B) 		8-98219-797-0 01 1 1411-
12 00.004 HANGER; ENG,RR
GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF> (B) 		8-98219-797-0 01 1 1411-
12 00.004 HANGER; ENG,RR
HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> (B) 		8-98219-797-0 01 1 1411-
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 1208-
15 00.004 BOLT; HANGER,FRT
02.343 M10X20 FLANGE 		0-28751-020-0 02 1 1208-
41 09.181 BOLT; ENG HANGER
02.343 M10X20 FLANGE 		0-28751-020-0 02 1 1208-1405
41 09.181 BOLT; ENG HANGER
VIN MODEL YEAR 2015<VZF> 02.343 M10X20 FLANGE 		0-28751-020-0 02 1 1407-1410
41 09.181 BOLT; ENG HANGER
VIN MODEL YEAR 2015<VZF> 02.343 M10X20 FLANGE 		0-28751-020-0 02 1 1411-
41 09.181 BOLT; ENG HANGER
HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. VIN MODEL YEAR 2015<VZF> 02.343 M10X20 FLANGE 		0-28751-020-0 02 1 1411-
67 00.349 NUT; BRKT
01.062 M8 FLANGE IDN 		0-91180-108-0 01 1 1406-1406
67 00.349 NUT; BRKT
EXC. VIN MODEL YEAR 2015<VZF> 01.062 M8 FLANGE IDN 		0-91180-108-0 01 1 1407-1410
67 00.349 NUT; BRKT
FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> 01.062 M8 FLANGE IDN 		0-91180-108-0 01 1 1411-
67 00.349 NUT; BRKT
GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF> 01.062 M8 FLANGE IDN 		0-91180-108-0 01 1 1411-
67 00.349 NUT; BRKT
HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> 01.062 M8 FLANGE IDN 		0-91180-108-0 01 1 1411-
168 00.004 HANGER; ENG,FRT 8-97200-618-1 01 1 1208-
276 00.293 RUBBER; MTG
03.463 		8-98219-799-0 01 1 1406-1406
276 00.293 RUBBER; MTG
EXC. VIN MODEL YEAR 2015<VZF> 03.463 		8-98219-799-0 01 1 1407-1410
276 00.293 RUBBER; MTG
FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> 03.463 		8-98219-799-0 01 1 1411-
276 00.293 RUBBER; MTG
GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF> 03.463 		8-98219-799-0 01 1 1411-
276 00.293 RUBBER; MTG
HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> 03.463 		8-98219-799-0 01 1 1411-
