◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51294 - NQR INDONESIA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#95004) — 48 parça

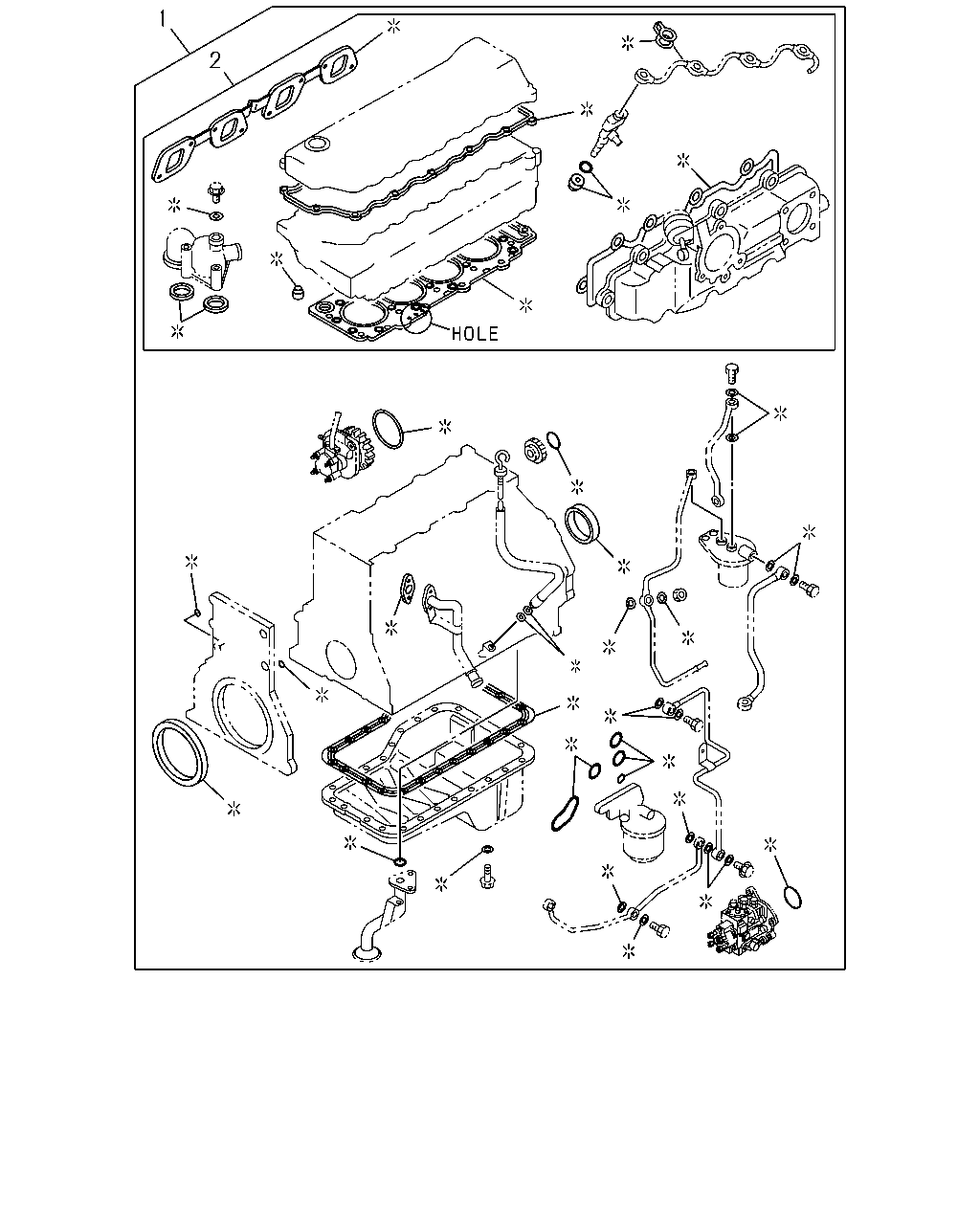

çizim 288001
1 2
BalonParca AdiParca NoAdetTipApplied Date
1 00.010 GASKET SET; ENG OVERHAUL
HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65), VIN MODEL YEAR 2015<VZF> T=1.475 NON-HOLE 		5-87818-116-0 01 1 1411-
1 00.010 GASKET SET; ENG OVERHAUL
HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65), VIN MODEL YEAR 2015<VZF> T=1.525 1-HOLE 		5-87818-117-0 01 1 1411-
1 00.010 GASKET SET; ENG OVERHAUL
HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65), VIN MODEL YEAR 2015<VZF> T=1.575 2-HOLE 		5-87818-118-0 01 1 1411-
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-968-1 01 1 1208-1302
1 00.010 GASKET SET; ENG OVERHAUL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) T=1.475 NON-HOLE 		5-87815-968-1 01 1 1303-1312
1 00.010 GASKET SET; ENG OVERHAUL
FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) T=1.475 NON-HOLE 		5-87815-968-1 01 1 1303-1312
1 00.010 GASKET SET; ENG OVERHAUL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) T=1.475 NON-HOLE 		5-87817-032-0 01 1 1401-1406
1 00.010 GASKET SET; ENG OVERHAUL
FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) T=1.475 NON-HOLE 		5-87817-032-0 01 1 1401-1406
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) T=1.475 NON-HOLE 		5-87817-032-0 01 1 1407-1410
1 00.010 GASKET SET; ENG OVERHAUL
FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> T=1.475 NON-HOLE 		5-87817-032-1 01 1 1411-
1 00.010 GASKET SET; ENG OVERHAUL
GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) T=1.475 NON-HOLE 		5-87817-032-1 01 1 1411-
1 00.010 GASKET SET; ENG OVERHAUL
HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B),BIO DIESEL FUEL B10<8NV> T=1.475 NON-HOLE 		5-87817-032-1 01 1 1411-
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-969-1 01 1 1208-1302
1 00.010 GASKET SET; ENG OVERHAUL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) T=1.525 1-HOLE 		5-87815-969-1 01 1 1303-1312
1 00.010 GASKET SET; ENG OVERHAUL
FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) T=1.525 1-HOLE 		5-87815-969-1 01 1 1303-1312
1 00.010 GASKET SET; ENG OVERHAUL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) T=1.525 1-HOLE 		5-87817-033-0 01 1 1401-1406
1 00.010 GASKET SET; ENG OVERHAUL
FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) T=1.525 1-HOLE 		5-87817-033-0 01 1 1401-1406
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) T=1.525 1-HOLE 		5-87817-033-0 01 1 1407-1410
1 00.010 GASKET SET; ENG OVERHAUL
FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> T=1.525 1-HOLE 		5-87817-033-1 01 1 1411-
1 00.010 GASKET SET; ENG OVERHAUL
GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) T=1.525 1-HOLE 		5-87817-033-1 01 1 1411-
1 00.010 GASKET SET; ENG OVERHAUL
HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B),BIO DIESEL FUEL B10<8NV> T=1.525 1-HOLE 		5-87817-033-1 01 1 1411-
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-970-1 01 1 1208-1302
1 00.010 GASKET SET; ENG OVERHAUL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) T=1.575 2-HOLE 		5-87815-970-1 01 1 1303-1312
1 00.010 GASKET SET; ENG OVERHAUL
FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) T=1.575 2-HOLE 		5-87815-970-1 01 1 1303-1312
1 00.010 GASKET SET; ENG OVERHAUL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) T=1.575 2-HOLE 		5-87817-034-0 01 1 1401-1406
1 00.010 GASKET SET; ENG OVERHAUL
FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) T=1.575 2-HOLE 		5-87817-034-0 01 1 1401-1406
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) T=1.575 2-HOLE 		5-87817-034-0 01 1 1407-1410
1 00.010 GASKET SET; ENG OVERHAUL
FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> T=1.575 2-HOLE 		5-87817-034-1 01 1 1411-
1 00.010 GASKET SET; ENG OVERHAUL
GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) T=1.575 2-HOLE 		5-87817-034-1 01 1 1411-
1 00.010 GASKET SET; ENG OVERHAUL
HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B),BIO DIESEL FUEL B10<8NV> T=1.575 2-HOLE 		5-87817-034-1 01 1 1411-
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-963-4 01 1 1208-1302
2 00.010 GASKET SET; ENG HD OVERHAUL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) T=1.475 NON-HOLE 		5-87813-963-4 01 1 1303-1312
2 00.010 GASKET SET; ENG HD OVERHAUL
FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) T=1.475 NON-HOLE 		5-87813-963-4 01 1 1303-1312
2 00.010 GASKET SET; ENG HD OVERHAUL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) T=1.475 NON-HOLE 		5-87817-038-0 01 1 1401-1406
2 00.010 GASKET SET; ENG HD OVERHAUL
FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) T=1.475 NON-HOLE 		5-87817-038-0 01 1 1401-1406
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) T=1.475 NON-HOLE 		5-87817-038-1 01 1 1407-
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-964-4 01 1 1208-1302
2 00.010 GASKET SET; ENG HD OVERHAUL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) T=1.525 1-HOLE 		5-87813-964-4 01 1 1303-1312
2 00.010 GASKET SET; ENG HD OVERHAUL
FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) T=1.525 1-HOLE 		5-87813-964-4 01 1 1303-1312
2 00.010 GASKET SET; ENG HD OVERHAUL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) T=1.525 1-HOLE 		5-87817-039-0 01 1 1401-1406
2 00.010 GASKET SET; ENG HD OVERHAUL
FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) T=1.525 1-HOLE 		5-87817-039-0 01 1 1401-1406
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) T=1.525 1-HOLE 		5-87817-039-1 01 1 1407-
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-965-4 01 1 1208-1302
2 00.010 GASKET SET; ENG HD OVERHAUL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) T=1.575 2-HOLE 		5-87813-965-4 01 1 1303-1312
2 00.010 GASKET SET; ENG HD OVERHAUL
FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) T=1.575 2-HOLE 		5-87813-965-4 01 1 1303-1312
2 00.010 GASKET SET; ENG HD OVERHAUL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) T=1.575 2-HOLE 		5-87817-040-0 01 1 1401-1406
2 00.010 GASKET SET; ENG HD OVERHAUL
FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) T=1.575 2-HOLE 		5-87817-040-0 01 1 1401-1406
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) T=1.575 2-HOLE 		5-87817-040-1 01 1 1407-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
