◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10624 - FSR-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#95) — 10 parça

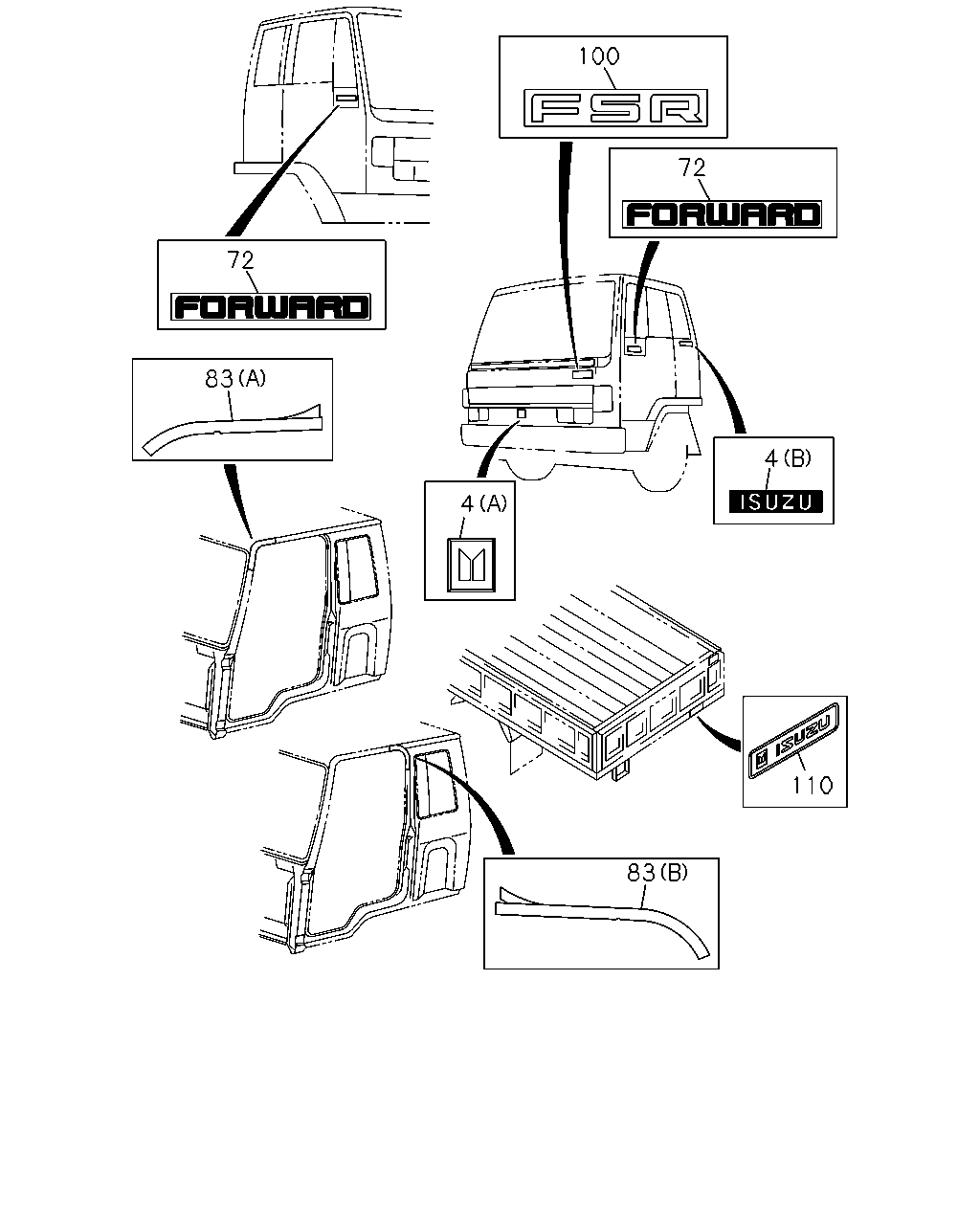

çizim 27560
100 72 72 83 4 4 110 83
BalonParca AdiParca NoAdetTipApplied Date A B
4 EMBLEM; RAD GRILLE
(A) 		1-76210-367-0 01 1 9202- ● ●
4 EMBLEM; RAD GRILLE
AUSTRALIA EQUIPMENT(RR3) (B) 		1-76210-386-0 02 1 9202- ● ●
72 EMBLEM; SIDE
NEW ZEALAND EQUIPMENT(PK5) 		1-76230-162-0 02 1 9202- ● ●
83 PROTECTOR; SUB SEAL,DOOR
THAILAND EQUIPMENT(PM9) (A) CLEAR 		1-65500-225-0 01 1 9202- ●
83 PROTECTOR; SUB SEAL,DOOR
THAILAND EQUIPMENT(PM9) (B) CLEAR 		1-65500-227-0 01 1 9202- ●
83 PROTECTOR; SUB SEAL,DOOR
THAILAND EQUIPMENT(PM9) (A) CLEAR 		1-65500-224-0 01 1 9202- ●
83 PROTECTOR; SUB SEAL,DOOR
THAILAND EQUIPMENT(PM9) (B) CLEAR 		1-65500-226-0 01 1 9202- ●
100 EMBLEM; PET NAME
AUSTRALIA EQUIPMENT(RR3) 		1-76210-357-1 02 1 9202- ● ●
100 EMBLEM; PET NAME
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-76210-357-1 01 1 9202- ● ●
110 EMBLEM; "ISUZU",RR BODY 1-76210-310-0 01 1 9202- ● ●
