0-32 — WATER PIPING; ENGINE (#9496) — 75 parça

91 91 90 90 91 91 91 91 90 91 91 90 89 92 89 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
89	PIPE; WATER,AIR CMPR,IN (C)	8-94395-452-2	01	1	0005-0210	●
89	PIPE; WATER,AIR CMPR,IN (B)	8-94391-114-0	01	1	0211-		●
89	PIPE; WATER,AIR CMPR,IN (A)	8-94395-178-1	01	1	0005-0210			●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	0005-0210	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0211-		●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X25	5-09675-028-2	01	1	0005-0210	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0005-0210			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	0005-0210	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	0211-1312		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	0005-0210	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	0005-0210			●
92	PIPE; WATER,AIR CMPR,OUT (C)	8-94390-070-0	01	1	0005-0210	●
92	PIPE; WATER,AIR CMPR,OUT (A)	8-94395-742-1	01	1	0005-0210			●
92	PIPE; WATER,AIR CMPR,OUT (B)	8-94391-115-0	01	1	0211-0306		●
92	PIPE; WATER,AIR CMPR,OUT (B)	8-97603-477-0	01	1	0307-		●

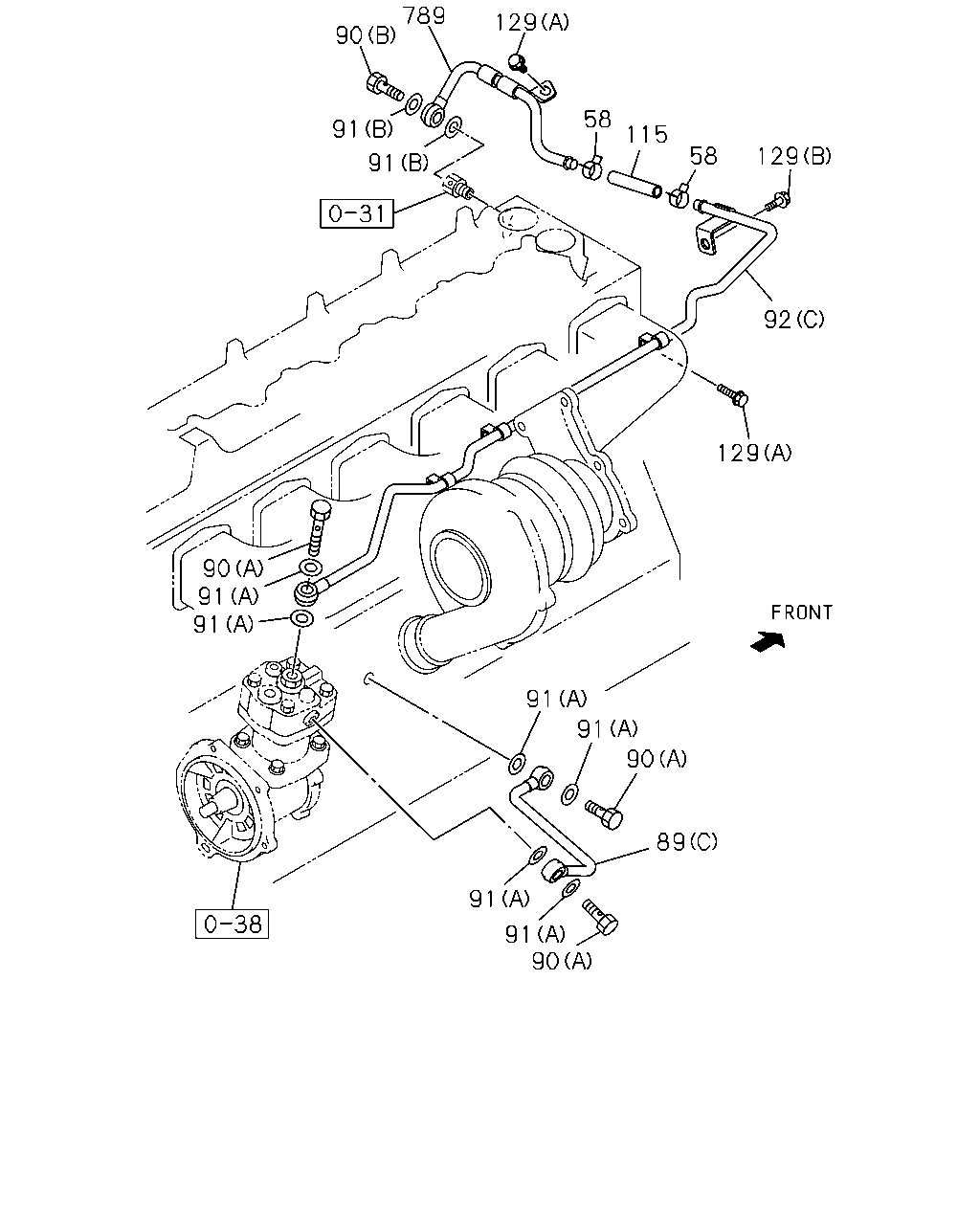

789 90 129 58 91 115 58 129 91 92 129 90 91 91 91 91 90 89 91 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
58	CLIP; RUBBER HOSE ID=16	8-94392-924-0	02	1	0005-0210	●
89	PIPE; WATER,AIR CMPR,IN (C)	8-94395-452-2	01	1	0005-0210	●
89	PIPE; WATER,AIR CMPR,IN (B)	8-94391-114-0	01	1	0211-		●
89	PIPE; WATER,AIR CMPR,IN (A)	8-94395-178-1	01	1	0005-0210			●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	0005-0210	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0211-		●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X25	5-09675-028-2	01	1	0005-0210	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0005-0210			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	0005-0210	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	0211-1312		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	0005-0210	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	0005-0210			●
92	PIPE; WATER,AIR CMPR,OUT (C)	8-94390-070-0	01	1	0005-0210	●
92	PIPE; WATER,AIR CMPR,OUT (A)	8-94395-742-1	01	1	0005-0210			●
92	PIPE; WATER,AIR CMPR,OUT (B)	8-94391-115-0	01	1	0211-0306		●
92	PIPE; WATER,AIR CMPR,OUT (B)	8-97603-477-0	01	1	0307-		●
115	HOSE; RUBBER L=60 SERVICED BY L=3000	0-03711-300-0	01	1	0005-0206	●
115	HOSE; RUBBER L=60 SERVICED BY L=3000	0-03561-300-0	01	1	0207-0210	●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28080-816-0	04	1	0005-0210	●
129	BOLT; WATER PIPE TO BRKT (B) M12X20 W/LK WASHER	0-50051-220-0	01	1	0005-0210	●
789	PIPE; WATER,AIR CMPR TO CYL HD	8-94395-454-4	01	1	0005-0210	●

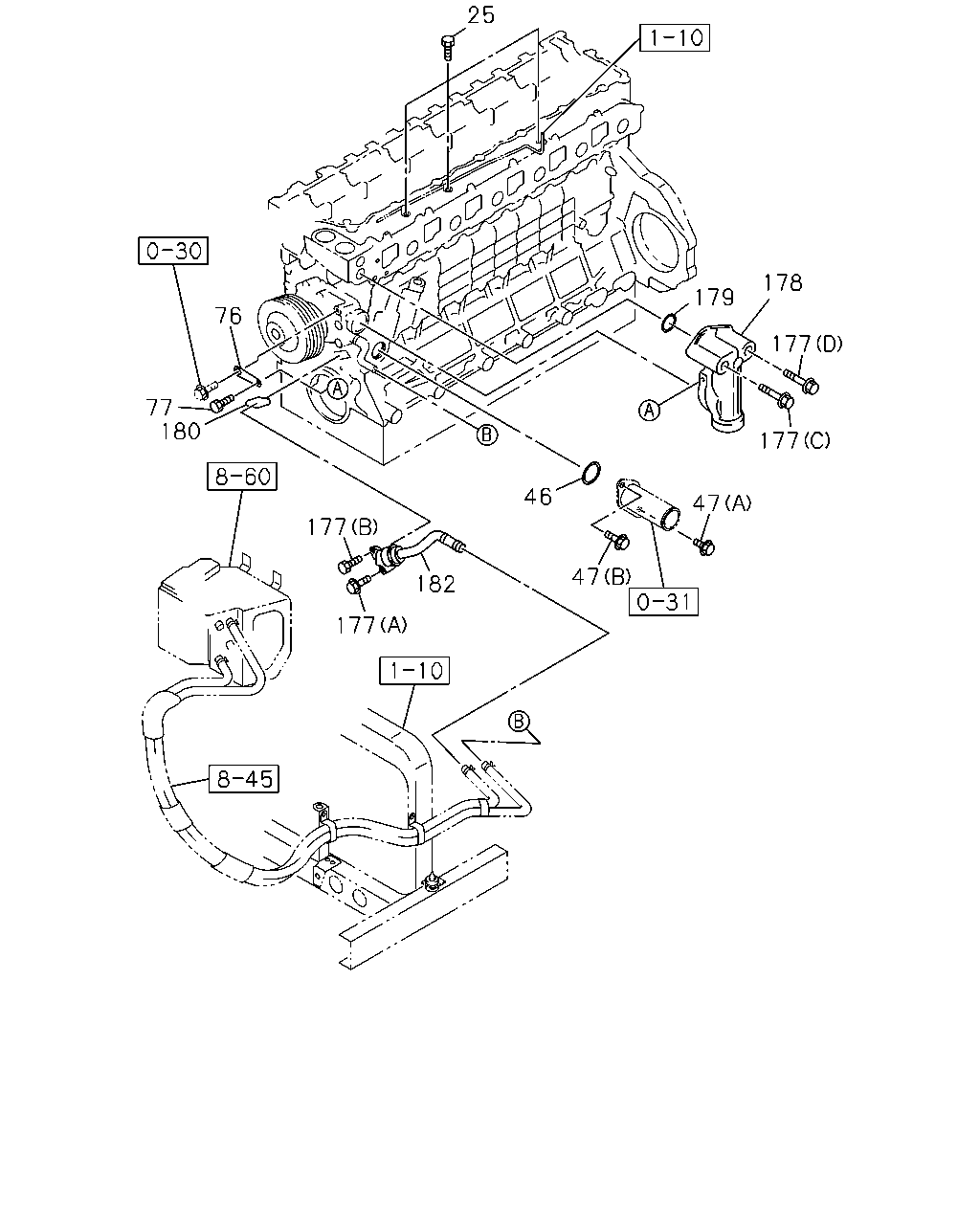

25 178 179 76 177 77 180 177 46 47 177 47 182 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
25	BOLT; WATER PIPE M8X12 FLANGE	0-28080-812-0	03	1	0005-0210			●
25	BOLT; WATER PIPE M8X12 FLANGE	0-28080-812-0	02	1	0211-0512		●
25	BOLT; WATER PIPE M8X12 FLANGE	0-28050-812-0	02	1	0601-		●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	0005-0210	●		●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	0211-		●
47	BOLT; DUCT,TO OIL COOLER (B) M8X45 FLANGE	0-28080-845-0	01	1	0005-0210	●		●
47	BOLT; DUCT,TO OIL COOLER (B) M8X45 FLANGE	0-28080-845-0	01	1	0211-0512		●
47	BOLT; DUCT,TO OIL COOLER (B) M8X45 FLANGE	0-28050-845-0	01	1	0601-		●
47	BOLT; DUCT,TO OIL COOLER (A) M8X25 FLANGE	0-28680-825-0	01	1	0005-0210	●		●
47	BOLT; DUCT,TO OIL COOLER (A) M8X25 FLANGE	0-28680-825-0	01	1	0211-0512		●
47	BOLT; DUCT,TO OIL COOLER (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	0005-0210	●		●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	0211-		●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	02	1	0005-0210	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	0211-0512		●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	0601-		●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	0005-0210			●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28080-880-0	01	1	0005-0210	●		●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28080-880-0	01	1	0211-0512		●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28050-880-0	01	1	0601-		●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28680-825-0	01	1	0005-0210	●		●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28680-825-0	01	1	0211-0512		●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	0005-0210	●		●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	0211-		●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	0005-0210	●		●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	0211-		●
178	DUCT; WATER,BYPASS	8-94396-627-2	01	1	0005-0210	●		●
178	DUCT; WATER,BYPASS	8-94396-627-3	01	1	0211-		●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	0005-0210	●		●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	0211-1408		●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-98276-756-0	01	1	1409-		●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	0005-0210	●		●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	0211-		●
182	DUCT; WATER,HTR	8-97600-236-1	01	1	0005-0210	●
182	DUCT; WATER,HTR	8-94396-724-4	01	1	0005-0210			●
182	DUCT; WATER,HTR	8-94394-348-5	01	1	0211-		●
