0-25 — INLET MANIFOLD (#9491) — 159 parça

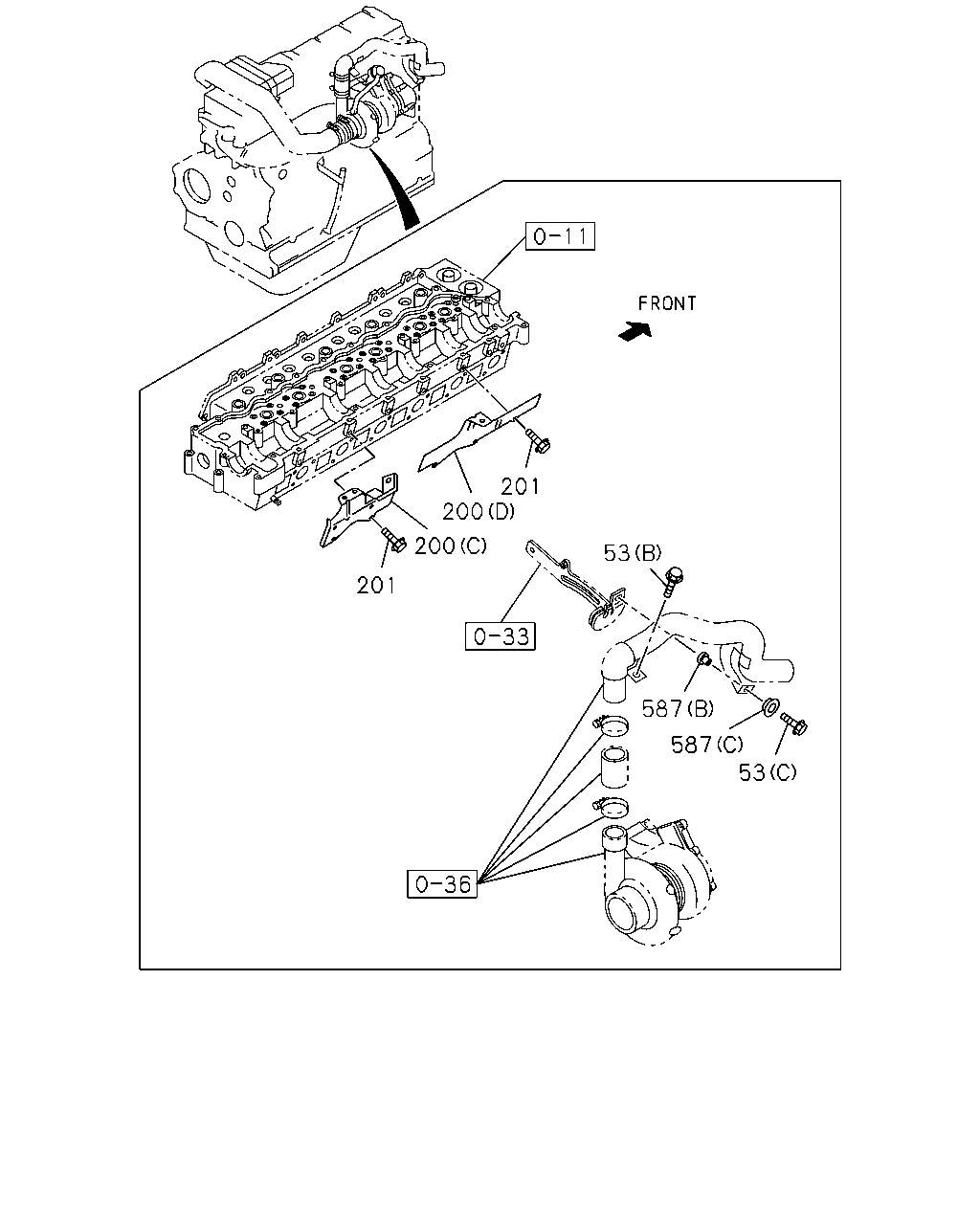

201 200 200 53 201 587 587 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
53	BOLT; INL PIPE (A) M8X22 FLANGE	0-28080-822-0	02	1	0005-0210	●
53	BOLT; INL PIPE (C) M8X35 FLANGE	0-28680-835-0	01	1	0211-0512		●
53	BOLT; INL PIPE (C) M8X35 FLANGE	0-28650-835-0	01	1	0601-		●
53	BOLT; INL PIPE (B) M10X35 FLANGE	0-28681-035-0	01	1	0211-0512		●
53	BOLT; INL PIPE (B) M10X35 FLANGE	0-28651-035-0	01	1	0601-		●
200	BRACKET; AIR DUCT (B)	8-94390-088-0	01	1	0005-0210			●
200	BRACKET; AIR DUCT (C)	8-97601-726-0	01	1	0211-		●
200	BRACKET; AIR DUCT (A)	8-94394-312-1	01	1	0005-0210			●
200	BRACKET; AIR DUCT (D)	8-97601-818-0	01	1	0211-		●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28080-816-0	05	1	0005-0210			●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28080-816-0	05	1	0211-0512		●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28050-816-0	05	1	0601-		●
587	MOUNTING; INTAKE DUCT (A)	8-94395-966-0	13	1	0005-0210			●
587	MOUNTING; INTAKE DUCT (C)	8-94395-766-0	01	1	0211-		●
587	MOUNTING; INTAKE DUCT (B) OD=23	8-97105-689-6	01	1	0211-		●

50 55 372 333 372 324 50 2 32 32 55 496 32 353 75 32 75 32 228 228 7 323

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	COVER; INL	8-94391-106-1	01	1	0005-0108			●
2	COVER; INL	8-97602-255-0	01	1	0109-0210			●
2	COVER; INL	8-94395-825-2	01	1	0211-		●
2	COVER; INL	8-94395-532-2	01	1	0005-0210	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	0005-0210	●		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	0211-		●
32	STUD; INL PIPE (A) M6X25 L=34	9-04110-625-0	03	1	0005-0108			●
32	STUD; INL PIPE (A) M6X30 L=38	9-04110-630-0	03	1	0109-0210			●
32	STUD; INL PIPE (C) M8X25 L=37	9-04110-825-0	05	1	0211-0604		●
32	STUD; INL PIPE (C) M8X25 L=37	0-41010-825-0	05	1	0605-		●
32	STUD; INL PIPE (B) M10X20 L=35	9-04411-020-0	04	1	0005-0210			●
32	STUD; INL PIPE (A) M6X25 L=34	9-04110-625-0	04	1	0005-0210	●
32	STUD; INL PIPE (B) M8X20 L=32	9-04110-820-0	05	1	0005-0210	●
50	PIPE; INL (A)	8-97601-301-0	01	1	0005-0210			●
50	PIPE; INL (B)	8-94390-319-2	01	1	0211-		●
50	PIPE; INL (C)	8-94392-850-2	01	1	0211-		●
55	NUT; INL PIPE (A) M10 FLANGE	0-91150-110-0	04	1	0005-0210			●
55	NUT; INL PIPE (B) M8 FLANGE	0-91150-208-0	01	1	0211-0602		●
55	NUT; INL PIPE (B) M8 FLANGE	0-91180-208-0	01	1	0603-		●
55	NUT; INL PIPE (B) M8	9-09110-408-0	03	1	0005-0210			●
55	NUT; INL PIPE (C) M8 FLANGE	0-91150-108-0	05	1	0005-0210	●
55	NUT; INL PIPE (C) M8 FLANGE	0-91150-108-0	05	1	0211-0602		●
55	NUT; INL PIPE (C) M8 FLANGE	0-91180-108-0	05	1	0603-		●
75	STUD; BRKT,AIR PIPE M10X25 L=40	9-04411-025-0	02	1	0005-0210			●
75	STUD; BRKT,AIR PIPE M10X25 L=40	9-04411-025-0	02	1	0211-0604		●
75	STUD; BRKT,AIR PIPE M10X25 L=40	0-44011-025-0	02	1	0605-		●
228	STUD; INL COVER (A) M8X16 L=28	9-04110-816-0	06	1	0005-0210			●
228	STUD; INL COVER (A) M8X16 L=28	9-04110-816-0	02	1	0211-0604		●
228	STUD; INL COVER (A) M8X16 L=28	0-41010-816-0	02	1	0605-		●
228	STUD; INL COVER (B) M8X25 L=37	9-04110-825-0	01	1	0005-0210			●
228	STUD; INL COVER (C) M8X40 L=52	9-04110-840-0	01	1	0005-0210			●
323	BOLT; DUCT M8X25 FLANGE	0-28680-825-0	14	1	0211-0512		●
323	BOLT; DUCT M8X25 FLANGE	0-28650-825-0	14	1	0601-		●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6	1-09623-505-0	02	1	0005-0210			●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94394-141-0	01	1	0005-0210	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94394-141-0	01	1	0211-		●
333	HOSE; RUBBER,INL PIPE	1-09360-600-0	01	1	0211-		●
353	PIPE; AIR,BOOST PT1/4 ELBOW	8-94221-562-0	01	1	0005-0210			●
353	PIPE; AIR,BOOST	8-97010-495-0	01	1	0211-		●
372	CLIP; HOSE ID=86	9-09915-592-0	02	1	0211-		●
496	PIN; INL MANIF	9-08160-512-0	01	1	0211-		●

55 52 324 53 32 2 458 32 32 457 458 459 7 454 32 458 481 454 280 458 457 452 457

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	COVER; INL	8-94391-106-1	01	1	0005-0108			●
2	COVER; INL	8-97602-255-0	01	1	0109-0210			●
2	COVER; INL	8-94395-825-2	01	1	0211-		●
2	COVER; INL	8-94395-532-2	01	1	0005-0210	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	0005-0210	●		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	0211-		●
32	STUD; INL PIPE (A) M6X25 L=34	9-04110-625-0	03	1	0005-0108			●
32	STUD; INL PIPE (A) M6X30 L=38	9-04110-630-0	03	1	0109-0210			●
32	STUD; INL PIPE (C) M8X25 L=37	9-04110-825-0	05	1	0211-0604		●
32	STUD; INL PIPE (C) M8X25 L=37	0-41010-825-0	05	1	0605-		●
32	STUD; INL PIPE (B) M10X20 L=35	9-04411-020-0	04	1	0005-0210			●
32	STUD; INL PIPE (A) M6X25 L=34	9-04110-625-0	04	1	0005-0210	●
32	STUD; INL PIPE (B) M8X20 L=32	9-04110-820-0	05	1	0005-0210	●
52	PIPE; INL	8-94395-703-0	01	1	0005-0210	●
53	BOLT; INL PIPE (A) M8X22 FLANGE	0-28080-822-0	02	1	0005-0210	●
53	BOLT; INL PIPE (C) M8X35 FLANGE	0-28680-835-0	01	1	0211-0512		●
53	BOLT; INL PIPE (C) M8X35 FLANGE	0-28650-835-0	01	1	0601-		●
53	BOLT; INL PIPE (B) M10X35 FLANGE	0-28681-035-0	01	1	0211-0512		●
53	BOLT; INL PIPE (B) M10X35 FLANGE	0-28651-035-0	01	1	0601-		●
55	NUT; INL PIPE (A) M10 FLANGE	0-91150-110-0	04	1	0005-0210			●
55	NUT; INL PIPE (B) M8 FLANGE	0-91150-208-0	01	1	0211-0602		●
55	NUT; INL PIPE (B) M8 FLANGE	0-91180-208-0	01	1	0603-		●
55	NUT; INL PIPE (B) M8	9-09110-408-0	03	1	0005-0210			●
55	NUT; INL PIPE (C) M8 FLANGE	0-91150-108-0	05	1	0005-0210	●
55	NUT; INL PIPE (C) M8 FLANGE	0-91150-108-0	05	1	0211-0602		●
55	NUT; INL PIPE (C) M8 FLANGE	0-91180-108-0	05	1	0603-		●
280	BOLT; INL COVER M8X28 FLANGE	0-28080-828-0	12	1	0005-0210	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6	1-09623-505-0	02	1	0005-0210			●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94394-141-0	01	1	0005-0210	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94394-141-0	01	1	0211-		●
452	CYLINDER ASM; AIR	1-14370-007-0	06	1	0005-0210	●		●
454	PIPE; AIR,IVES (B) 6-JOINT	8-94394-415-1	01	1	0005-0210	●		●
454	PIPE; AIR,IVES (A) JOINT & NUT W/BRKT	8-94395-743-0	01	1	0005-0210	●		●
457	BOLT; EYE,AIR PIPE,IVES (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	0005-0210	●		●
457	BOLT; EYE,AIR PIPE,IVES (B) M8X19	1-09675-220-0	01	1	0005-0210	●		●
458	GASKET; AIR PIPE,VSS (A) ID=8.2 OD=13.2	1-09630-082-0	02	1	0005-0210	●		●
458	GASKET; AIR PIPE,VSS (B) ID=8.3	8-97600-925-0	06	1	0005-0210	●		●
459	BOLT; CLIP FIX M8X12 FLANGE	0-28080-812-0	01	1	0005-0210	●		●
481	TUBE; DIST,INL COVER OD=22	8-94395-684-0	12	1	0005-0210	●

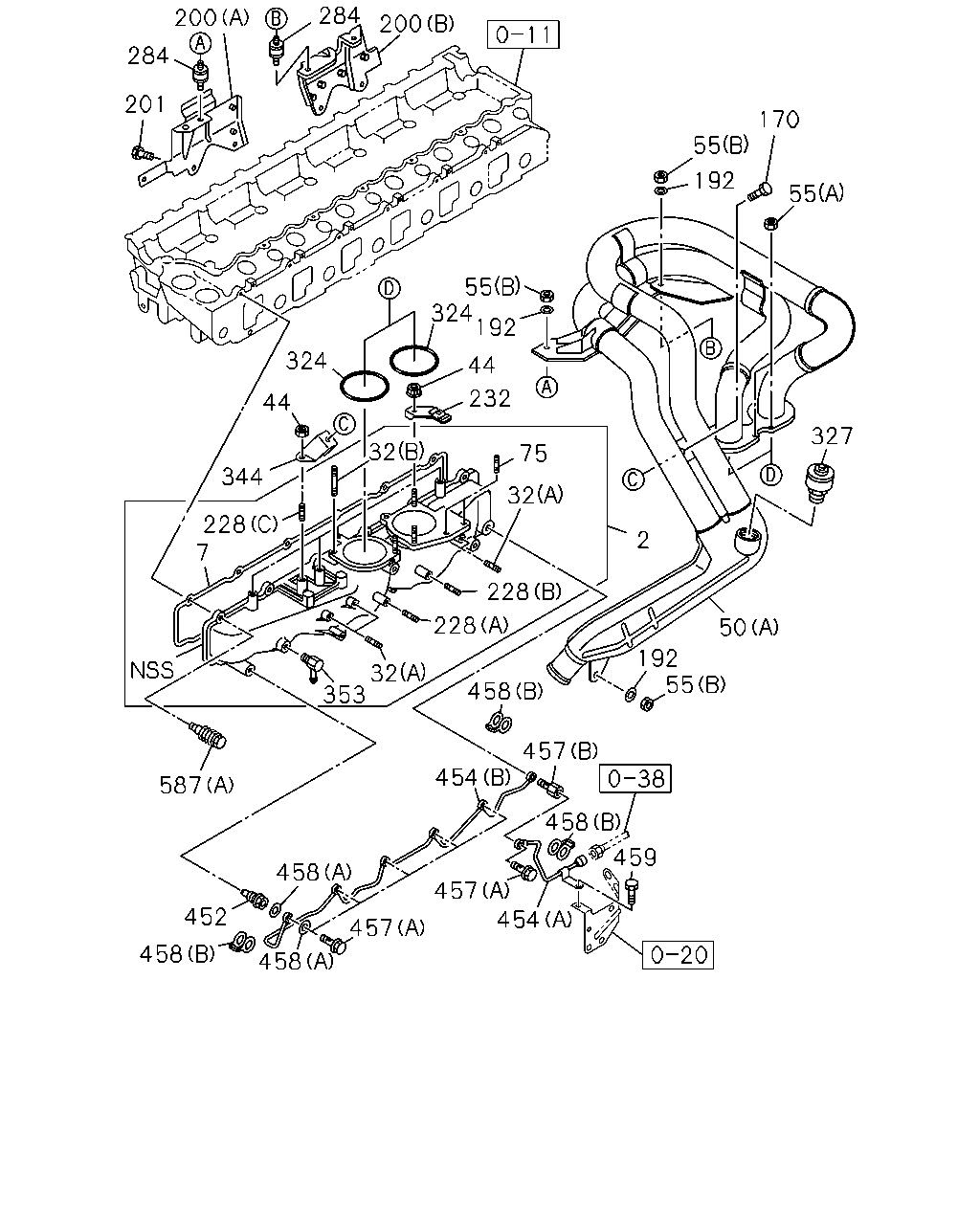

284 200 200 284 201 170 55 192 55 55 324 192 324 44 232 44 32 327 75 344 32 228 7 2 228 228 50 192 55 32 353 458 457 454 587 458 459 458 457 454 452 458 457 458

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	COVER; INL	8-94391-106-1	01	1	0005-0108			●
2	COVER; INL	8-97602-255-0	01	1	0109-0210			●
2	COVER; INL	8-94395-825-2	01	1	0211-		●
2	COVER; INL	8-94395-532-2	01	1	0005-0210	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	0005-0210	●		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	0211-		●
32	STUD; INL PIPE (A) M6X25 L=34	9-04110-625-0	03	1	0005-0108			●
32	STUD; INL PIPE (A) M6X30 L=38	9-04110-630-0	03	1	0109-0210			●
32	STUD; INL PIPE (C) M8X25 L=37	9-04110-825-0	05	1	0211-0604		●
32	STUD; INL PIPE (C) M8X25 L=37	0-41010-825-0	05	1	0605-		●
32	STUD; INL PIPE (B) M10X20 L=35	9-04411-020-0	04	1	0005-0210			●
32	STUD; INL PIPE (A) M6X25 L=34	9-04110-625-0	04	1	0005-0210	●
32	STUD; INL PIPE (B) M8X20 L=32	9-04110-820-0	05	1	0005-0210	●
44	NUT; PIPE BRKT M8 FLANGE	0-91150-108-0	03	1	0005-0210			●
50	PIPE; INL (A)	8-97601-301-0	01	1	0005-0210			●
50	PIPE; INL (B)	8-94390-319-2	01	1	0211-		●
50	PIPE; INL (C)	8-94392-850-2	01	1	0211-		●
55	NUT; INL PIPE (A) M10 FLANGE	0-91150-110-0	04	1	0005-0210			●
55	NUT; INL PIPE (B) M8 FLANGE	0-91150-208-0	01	1	0211-0602		●
55	NUT; INL PIPE (B) M8 FLANGE	0-91180-208-0	01	1	0603-		●
55	NUT; INL PIPE (B) M8	9-09110-408-0	03	1	0005-0210			●
55	NUT; INL PIPE (C) M8 FLANGE	0-91150-108-0	05	1	0005-0210	●
55	NUT; INL PIPE (C) M8 FLANGE	0-91150-108-0	05	1	0211-0602		●
55	NUT; INL PIPE (C) M8 FLANGE	0-91180-108-0	05	1	0603-		●
75	STUD; BRKT,AIR PIPE M10X25 L=40	9-04411-025-0	02	1	0005-0210			●
75	STUD; BRKT,AIR PIPE M10X25 L=40	9-04411-025-0	02	1	0211-0604		●
75	STUD; BRKT,AIR PIPE M10X25 L=40	0-44011-025-0	02	1	0605-		●
170	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	0005-0210			●
170	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	01	1	0005-0210			●
170	BOLT; BRKT M10X25 FLANGE	0-28081-025-0	01	1	0005-0210			●
192	WASHER; PL,INL PIPE ID=8.4 OD=26	9-09164-808-0	03	1	0005-0210			●
200	BRACKET; AIR DUCT (B)	8-94390-088-0	01	1	0005-0210			●
200	BRACKET; AIR DUCT (C)	8-97601-726-0	01	1	0211-		●
200	BRACKET; AIR DUCT (A)	8-94394-312-1	01	1	0005-0210			●
200	BRACKET; AIR DUCT (D)	8-97601-818-0	01	1	0211-		●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28080-816-0	05	1	0005-0210			●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28080-816-0	05	1	0211-0512		●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28050-816-0	05	1	0601-		●
228	STUD; INL COVER (A) M8X16 L=28	9-04110-816-0	06	1	0005-0210			●
228	STUD; INL COVER (A) M8X16 L=28	9-04110-816-0	02	1	0211-0604		●
228	STUD; INL COVER (A) M8X16 L=28	0-41010-816-0	02	1	0605-		●
228	STUD; INL COVER (B) M8X25 L=37	9-04110-825-0	01	1	0005-0210			●
228	STUD; INL COVER (C) M8X40 L=52	9-04110-840-0	01	1	0005-0210			●
232	BRACKET; INJ PIPE	8-94395-027-0	01	1	0005-0108			●
232	BRACKET; INJ PIPE	8-94391-452-0	01	1	0109-0210			●
284	RUBBER; INL PIPE MTG	8-94394-268-1	02	1	0005-0210			●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6	1-09623-505-0	02	1	0005-0210			●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94394-141-0	01	1	0005-0210	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94394-141-0	01	1	0211-		●
327	VALVE; SAFETY,TURBOCHARGER	8-94393-227-0	01	1	0005-0210			●
344	BRACKET; INL PIPE	8-94393-865-0	01	1	0005-0210			●
353	PIPE; AIR,BOOST PT1/4 ELBOW	8-94221-562-0	01	1	0005-0210			●
353	PIPE; AIR,BOOST	8-97010-495-0	01	1	0211-		●
452	CYLINDER ASM; AIR	1-14370-007-0	06	1	0005-0210	●		●
454	PIPE; AIR,IVES (B) 6-JOINT	8-94394-415-1	01	1	0005-0210	●		●
454	PIPE; AIR,IVES (A) JOINT & NUT W/BRKT	8-94395-743-0	01	1	0005-0210	●		●
457	BOLT; EYE,AIR PIPE,IVES (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	0005-0210	●		●
457	BOLT; EYE,AIR PIPE,IVES (B) M8X19	1-09675-220-0	01	1	0005-0210	●		●
458	GASKET; AIR PIPE,VSS (A) ID=8.2 OD=13.2	1-09630-082-0	02	1	0005-0210	●		●
458	GASKET; AIR PIPE,VSS (B) ID=8.3	8-97600-925-0	06	1	0005-0210	●		●
459	BOLT; CLIP FIX M8X12 FLANGE	0-28080-812-0	01	1	0005-0210	●		●
587	MOUNTING; INTAKE DUCT (A)	8-94395-966-0	13	1	0005-0210			●
587	MOUNTING; INTAKE DUCT (C)	8-94395-766-0	01	1	0211-		●
587	MOUNTING; INTAKE DUCT (B) OD=23	8-97105-689-6	01	1	0211-		●
