Sayfa 0-20 - Isuzu EPC

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#9489) — 260 parça

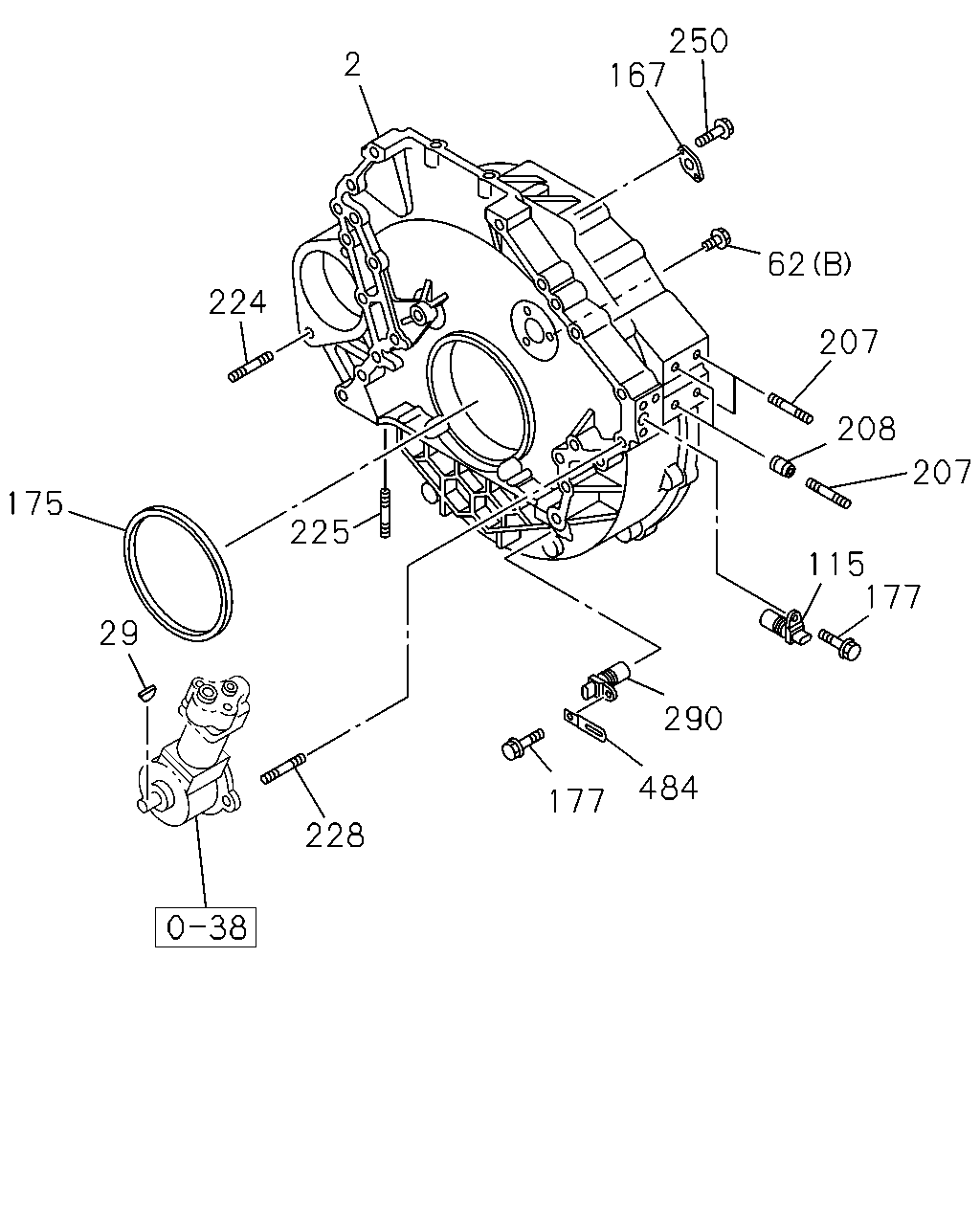

250 167 2 62 224 207 208 207 175 225 115 177 29 290 484 177 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOUSING; FLYWHEEL	8-97600-260-2	01	1	0005-0210	●
2	HOUSING; FLYWHEEL	8-97602-560-1	01	1	0211-		●
2	HOUSING; FLYWHEEL	8-94395-972-5	01	1	0005-0210			●
29	KEY; COUPLING	9-08055-516-0	01	1	0005-0210	●
29	KEY; COUPLING	9-08055-516-0	01	1	0211-		●
29	KEY; COUPLING	9-08055-416-0	01	1	0005-0210			●
62	BOLT; COVER (B) M8X20 FLANGE	0-28080-820-0	03	1	0005-0210	●
62	BOLT; COVER (B) M8X20 FLANGE	0-28080-820-0	03	1	0211-0512		●
62	BOLT; COVER (B) M8X20 FLANGE	0-28050-820-0	03	1	0601-		●
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	0005-0210	●		●
115	SENSOR; REVOLUTION,ENG SPD	8-97601-117-0	01	1	0005-0210	●
115	SENSOR; REVOLUTION,ENG SPD	1-81510-561-0	01	1	0005-0210			●
115	SENSOR; REVOLUTION,ENG SPD	8-94390-279-0	01	1	0211-		●
167	COVER; OIL	1-11219-163-0	01	1	0005-0210	●		●
167	COVER; OIL	1-11219-163-0	01	1	0211-		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	0005-0112	●		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0201-0210	●		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0211-		●
177	BOLT; SENSOR M8X25 FLANGE	0-28680-825-0	02	1	0005-0210	●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	01	1	0005-0210			●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	02	1	0211-0512		●
177	BOLT; SENSOR M6X16 FLANGE	0-28050-616-0	02	1	0601-		●
207	STUD; ENG FOOT M12X24 L=104	8-94390-111-0	02	1	0211-		●
207	STUD; ENG FOOT M12X10 L=55	9-94321-255-0	06	1	0211-0604		●
207	STUD; ENG FOOT M12X10 L=55	0-43211-255-0	06	1	0605-		●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	0005-0210	●		●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	0211-		●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	0005-0210	●		●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	0211-0604		●
224	STUD; STARTER M14X35 L=56	0-44011-435-0	02	1	0605-		●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	0005-0210	●		●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	0211-		●
228	STUD; AIR CMPR M12X35 L=53	9-94411-235-0	01	1	0005-0210	●		●
228	STUD; AIR CMPR M12X60 L=78	9-94411-260-0	01	1	0005-0210			●
228	STUD; AIR CMPR M12X77 L=95	9-09831-161-0	01	1	0211-		●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	0005-0210	●		●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	0211-		●
290	PLUG; SENSOR HOLE	8-97101-974-0	01	1	0211-		●
484	CLIP; BAND L=80	5-09700-307-1	01	1	0211-		●

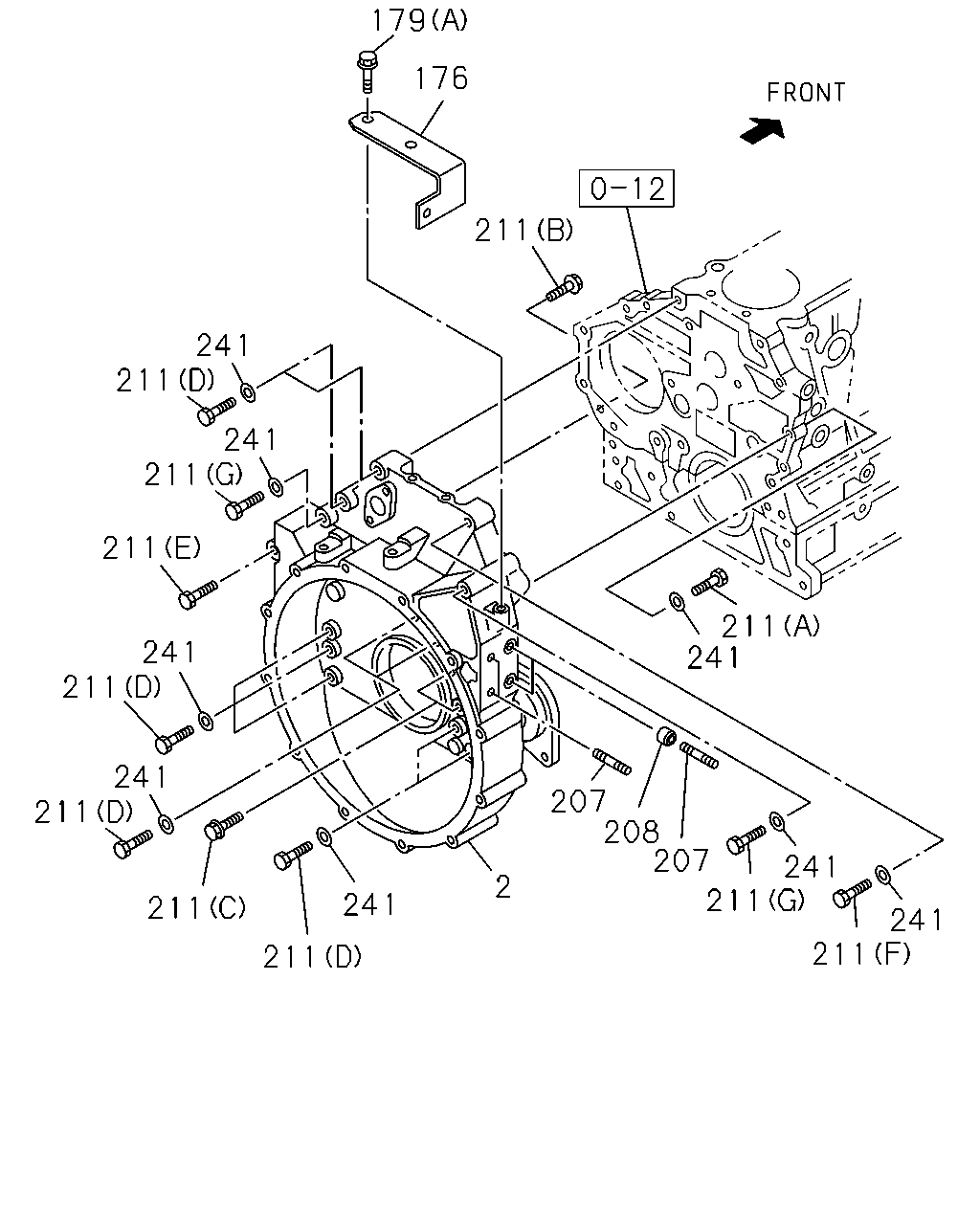

179 176 211 241 211 241 211 211 211 241 241 211 241 211 207 208 207 241 211 2 241 211 241 211 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOUSING; FLYWHEEL	8-97600-260-2	01	1	0005-0210	●
2	HOUSING; FLYWHEEL	8-97602-560-1	01	1	0211-		●
2	HOUSING; FLYWHEEL	8-94395-972-5	01	1	0005-0210			●
176	BRACKET; HARNESS	1-82699-828-1	01	1	0005-0210	●		●
176	BRACKET; HARNESS	1-82698-449-0	01	1	0211-		●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210	●		●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0211-0512		●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0005-0210	●		●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0211-0512		●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-		●
207	STUD; ENG FOOT M12X24 L=104	8-94390-111-0	02	1	0211-		●
207	STUD; ENG FOOT M12X10 L=55	9-94321-255-0	06	1	0211-0604		●
207	STUD; ENG FOOT M12X10 L=55	0-43211-255-0	06	1	0605-		●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	0005-0210	●		●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	0211-		●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	0005-0210	●		●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	0211-0512		●
211	BOLT; HSG (A) M12X60	0-16856-260-0	01	1	0601-		●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	0005-0210	●		●
211	BOLT; HSG (C) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	0211-		●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	0005-0210	●		●
211	BOLT; HSG (E) M12X95 FLANGE	8-94396-485-1	01	1	0211-		●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	0005-0210	●		●
211	BOLT; HSG (D) M12X70	9-01666-270-0	09	1	0211-0512		●
211	BOLT; HSG (D) M12X70	0-16956-270-0	09	1	0601-		●
211	BOLT; HSG (A) M14X40 FLANGE	0-28791-440-0	01	1	0005-0210			●
211	BOLT; HSG (B) M14X40 FLANGE	0-28791-440-0	01	1	0211-0512		●
211	BOLT; HSG (B) M14X40 FLANGE	0-28761-440-0	01	1	0601-		●
211	BOLT; HSG (G) M12X128	8-94399-252-0	02	1	0211-		●
211	BOLT; HSG (F) M12X65	9-01666-265-0	01	1	0211-		●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	0005-0210	●		●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	0211-		●

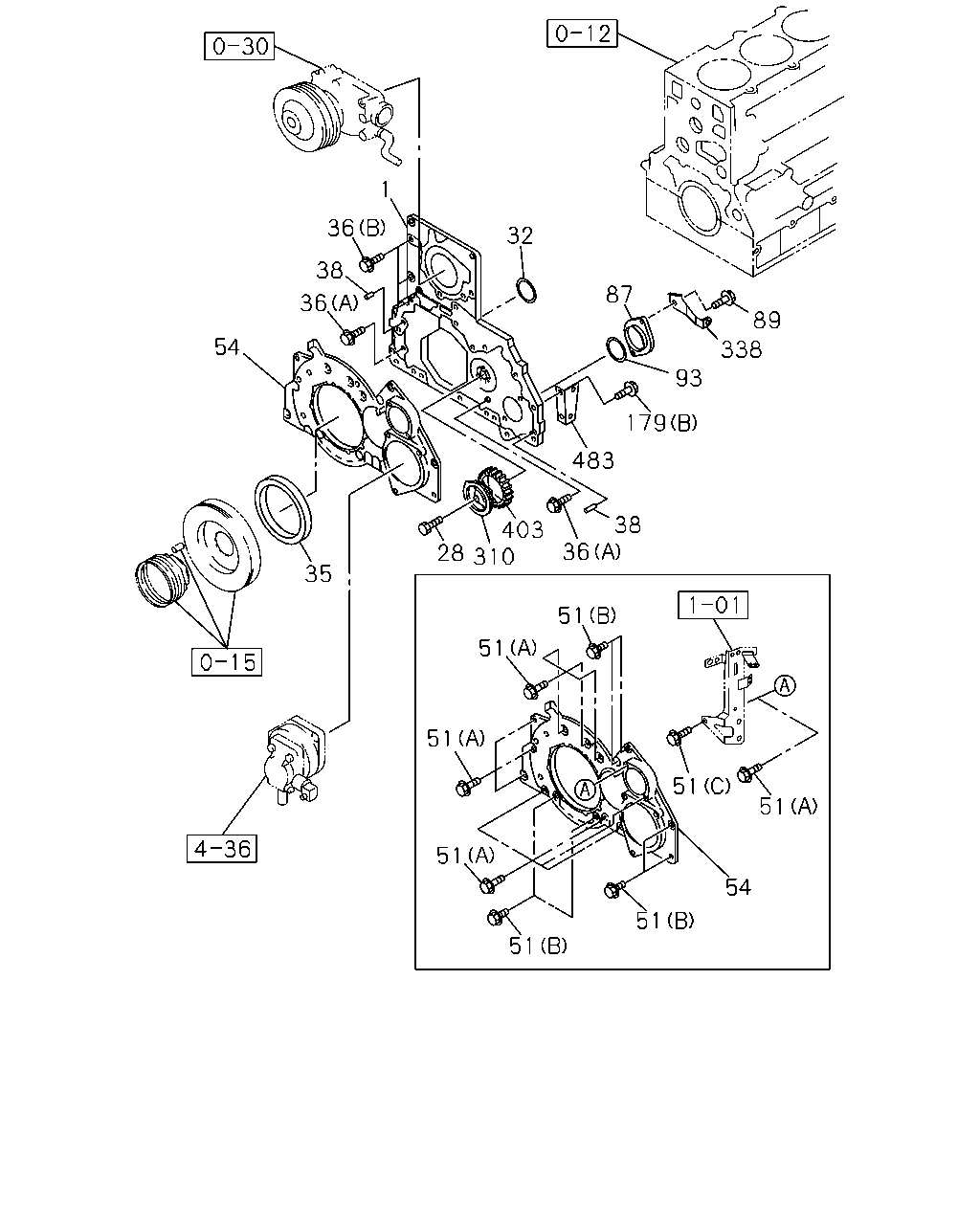

1 36 32 38 87 36 89 54 338 93 179 483 38 403 28 310 36 35 51 51 51 51 51 51 54 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CASE; TIMING GEAR	8-94396-434-6	01	1	0005-0210	●		●
1	CASE; TIMING GEAR	8-94396-434-6	01	1	0211-		●
28	BOLT; DRIVE GEAR M8X28	8-94399-256-0	03	1	0005-0210	●		●
28	BOLT; DRIVE GEAR M8X28	8-94399-256-0	03	1	0211-		●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1	8-97028-748-1	01	1	0005-0210	●		●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1	8-97028-748-1	01	1	0211-		●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-94396-199-1	01	1	0005-0112	●		●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-97602-378-0	01	1	0201-0210	●		●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-97602-378-3	01	1	0211-		●
36	BOLT; GEAR CASE (A) M8X28 FLANGE	0-28080-828-0	02	1	0005-0210	●		●
36	BOLT; GEAR CASE (A) M8X28 FLANGE	0-28080-828-0	02	1	0211-0401		●
36	BOLT; GEAR CASE (B) M8X32 FLANGE	0-28080-832-0	04	1	0005-0210	●		●
36	BOLT; GEAR CASE (B) M8X32 FLANGE	0-28080-832-0	04	1	0211-0801		●
36	BOLT; GEAR CASE (B) M8X35 FLANGE	0-28050-835-0	04	1	0802-		●
38	PIN; GEAR CASE COVER L=22	8-94483-674-0	02	1	0005-0210	●		●
38	PIN; GEAR CASE COVER L=22	8-94483-674-0	02	1	0211-		●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	11	1	0005-0210	●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	11	1	0211-0512		●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28050-840-0	11	1	0601-		●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	0005-0210	●		●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	0211-0512		●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28650-820-0	06	1	0601-		●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	10	1	0005-0210			●
51	BOLT; GEAR CASE COVER (C) M8X45 FLANGE	0-28080-845-0	01	1	0005-0210			●
54	COVER; GEAR CASE	8-94393-304-1	01	1	0005-0210	●		●
54	COVER; GEAR CASE	8-94393-304-1	01	1	0211-		●
87	COVER; TACHOMETER DRIVE	8-94396-370-0	01	1	0005-0210	●		●
87	COVER; TACHOMETER DRIVE	8-94396-370-0	01	1	0211-		●
89	BOLT; ELBOW M8X18 FLANGE	0-28080-818-0	02	1	0005-0210	●		●
89	BOLT; ELBOW M8X18 FLANGE	0-28080-818-0	02	1	0211-		●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7	1-09623-180-0	01	1	0005-0210	●		●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7	1-09623-180-0	01	1	0211-		●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210	●		●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0211-0512		●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0005-0210	●		●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0211-0512		●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-		●
310	SHAFT; IDLE GEAR	8-94394-806-0	01	1	0005-0210	●		●
310	SHAFT; IDLE GEAR	8-94394-806-0	01	1	0211-		●
338	BRACKET; CLIP,HARNESS	1-82699-889-0	01	1	0005-0210	●		●
338	BRACKET; CLIP,HARNESS	1-82699-889-0	01	1	0211-		●
403	GEAR; IDLE,FRONT Z=33	8-94395-943-1	01	1	0005-0210	●		●
403	GEAR; IDLE,FRONT Z=33	8-94395-943-1	01	1	0211-		●
483	BRACKET; WATER DUCT	8-94394-405-1	01	1	0005-0210	●		●
483	BRACKET; WATER DUCT	8-94394-405-1	01	1	0211-		●

179 176 2 19 224 228 224 175 241 208 556 177 211 211 419 225 20 115 404 18 405 29 43 241 211 109 20 241 211 167 250 62 241 211 211 356 487 241 62 2 211 486

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOUSING; FLYWHEEL	8-97600-260-2	01	1	0005-0210	●
2	HOUSING; FLYWHEEL	8-97602-560-1	01	1	0211-		●
2	HOUSING; FLYWHEEL	8-94395-972-5	01	1	0005-0210			●
18	GASKET; BRG CASE,DRIVE SHAFT ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0005-0210	●
19	BOLT; BRG CASE M12X100 FLANGE	0-28181-200-0	01	1	0005-0210	●
20	NUT; BRG CASE (A) M10 FLANGE	0-91150-110-0	02	1	0005-0210	●
20	NUT; BRG CASE (B) M12 FLANGE	0-91150-212-0	01	1	0005-0210	●
29	KEY; COUPLING	9-08055-516-0	01	1	0005-0210	●
29	KEY; COUPLING	9-08055-516-0	01	1	0211-		●
29	KEY; COUPLING	9-08055-416-0	01	1	0005-0210			●
43	STUD; BRG COVER M12X67 L=82	1-09302-112-0	01	1	0005-0210	●
62	BOLT; COVER (B) M8X20 FLANGE	0-28080-820-0	03	1	0005-0210	●
62	BOLT; COVER (B) M8X20 FLANGE	0-28080-820-0	03	1	0211-0512		●
62	BOLT; COVER (B) M8X20 FLANGE	0-28050-820-0	03	1	0601-		●
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	0005-0210	●		●
109	POINTER; TIMING L=21	9-11327-602-0	01	1	0005-0210	●
115	SENSOR; REVOLUTION,ENG SPD	8-97601-117-0	01	1	0005-0210	●
115	SENSOR; REVOLUTION,ENG SPD	1-81510-561-0	01	1	0005-0210			●
115	SENSOR; REVOLUTION,ENG SPD	8-94390-279-0	01	1	0211-		●
167	COVER; OIL	1-11219-163-0	01	1	0005-0210	●		●
167	COVER; OIL	1-11219-163-0	01	1	0211-		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	0005-0112	●		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0201-0210	●		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0211-		●
176	BRACKET; HARNESS	1-82699-828-1	01	1	0005-0210	●		●
176	BRACKET; HARNESS	1-82698-449-0	01	1	0211-		●
177	BOLT; SENSOR M8X25 FLANGE	0-28680-825-0	02	1	0005-0210	●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	01	1	0005-0210			●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	02	1	0211-0512		●
177	BOLT; SENSOR M6X16 FLANGE	0-28050-616-0	02	1	0601-		●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210	●		●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0211-0512		●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0005-0210	●		●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0211-0512		●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-		●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	0005-0210	●		●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	0211-		●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	0005-0210	●		●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	0211-0512		●
211	BOLT; HSG (A) M12X60	0-16856-260-0	01	1	0601-		●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	0005-0210	●		●
211	BOLT; HSG (C) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	0211-		●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	0005-0210	●		●
211	BOLT; HSG (E) M12X95 FLANGE	8-94396-485-1	01	1	0211-		●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	0005-0210	●		●
211	BOLT; HSG (D) M12X70	9-01666-270-0	09	1	0211-0512		●
211	BOLT; HSG (D) M12X70	0-16956-270-0	09	1	0601-		●
211	BOLT; HSG (A) M14X40 FLANGE	0-28791-440-0	01	1	0005-0210			●
211	BOLT; HSG (B) M14X40 FLANGE	0-28791-440-0	01	1	0211-0512		●
211	BOLT; HSG (B) M14X40 FLANGE	0-28761-440-0	01	1	0601-		●
211	BOLT; HSG (G) M12X128	8-94399-252-0	02	1	0211-		●
211	BOLT; HSG (F) M12X65	9-01666-265-0	01	1	0211-		●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	0005-0210	●		●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	0211-0604		●
224	STUD; STARTER M14X35 L=56	0-44011-435-0	02	1	0605-		●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	0005-0210	●		●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	0211-		●
228	STUD; AIR CMPR M12X35 L=53	9-94411-235-0	01	1	0005-0210	●		●
228	STUD; AIR CMPR M12X60 L=78	9-94411-260-0	01	1	0005-0210			●
228	STUD; AIR CMPR M12X77 L=95	9-09831-161-0	01	1	0211-		●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	0005-0210	●		●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	0211-		●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	0005-0210	●		●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	0211-		●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=110	8-94394-186-0	01	1	0005-0210	●		●
404	CASE ASM; BRG,INJ PUMP	8-94391-643-0	01	1	0005-0210	●
405	SEAL; OIL,BRG CASE	1-09625-576-0	01	1	0005-0210	●
419	BRACKET; SENSOR	8-94394-773-1	01	1	0005-0210	●
486	BOLT; AIR CMPR M12X70 FLANGE	0-28181-270-0	03	1	0005-0210	●
487	COVER; HOLE (B)	8-94394-513-1	01	1	0005-0210	●		●
487	COVER; HOLE (A)	8-94394-381-1	01	1	0005-0210			●
556	CLIP; HARNESS,SENSOR ID=18 L=44	8-94225-185-0	01	1	0005-0210	●

176 179 480 2 479 224 228 490 264 487 175 211 224 234 241 485 208 211 193 115 225 177 29 241 211 250 241 167 241 211 211 356 487 211 62 2 241 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOUSING; FLYWHEEL	8-97600-260-2	01	1	0005-0210	●
2	HOUSING; FLYWHEEL	8-97602-560-1	01	1	0211-		●
2	HOUSING; FLYWHEEL	8-94395-972-5	01	1	0005-0210			●
29	KEY; COUPLING	9-08055-516-0	01	1	0005-0210	●
29	KEY; COUPLING	9-08055-516-0	01	1	0211-		●
29	KEY; COUPLING	9-08055-416-0	01	1	0005-0210			●
62	BOLT; COVER (B) M8X20 FLANGE	0-28080-820-0	03	1	0005-0210	●
62	BOLT; COVER (B) M8X20 FLANGE	0-28080-820-0	03	1	0211-0512		●
62	BOLT; COVER (B) M8X20 FLANGE	0-28050-820-0	03	1	0601-		●
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	0005-0210	●		●
115	SENSOR; REVOLUTION,ENG SPD	8-97601-117-0	01	1	0005-0210	●
115	SENSOR; REVOLUTION,ENG SPD	1-81510-561-0	01	1	0005-0210			●
115	SENSOR; REVOLUTION,ENG SPD	8-94390-279-0	01	1	0211-		●
167	COVER; OIL	1-11219-163-0	01	1	0005-0210	●		●
167	COVER; OIL	1-11219-163-0	01	1	0211-		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	0005-0112	●		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0201-0210	●		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0211-		●
176	BRACKET; HARNESS	1-82699-828-1	01	1	0005-0210	●		●
176	BRACKET; HARNESS	1-82698-449-0	01	1	0211-		●
177	BOLT; SENSOR M8X25 FLANGE	0-28680-825-0	02	1	0005-0210	●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	01	1	0005-0210			●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	02	1	0211-0512		●
177	BOLT; SENSOR M6X16 FLANGE	0-28050-616-0	02	1	0601-		●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210	●		●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0211-0512		●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0005-0210	●		●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0211-0512		●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-		●
193	SPACER; STAY TO OIL,PAN	8-94395-674-0	01	1	0005-0210			●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	0005-0210	●		●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	0211-		●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	0005-0210	●		●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	0211-0512		●
211	BOLT; HSG (A) M12X60	0-16856-260-0	01	1	0601-		●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	0005-0210	●		●
211	BOLT; HSG (C) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	0211-		●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	0005-0210	●		●
211	BOLT; HSG (E) M12X95 FLANGE	8-94396-485-1	01	1	0211-		●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	0005-0210	●		●
211	BOLT; HSG (D) M12X70	9-01666-270-0	09	1	0211-0512		●
211	BOLT; HSG (D) M12X70	0-16956-270-0	09	1	0601-		●
211	BOLT; HSG (A) M14X40 FLANGE	0-28791-440-0	01	1	0005-0210			●
211	BOLT; HSG (B) M14X40 FLANGE	0-28791-440-0	01	1	0211-0512		●
211	BOLT; HSG (B) M14X40 FLANGE	0-28761-440-0	01	1	0601-		●
211	BOLT; HSG (G) M12X128	8-94399-252-0	02	1	0211-		●
211	BOLT; HSG (F) M12X65	9-01666-265-0	01	1	0211-		●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	0005-0210	●		●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	0211-0604		●
224	STUD; STARTER M14X35 L=56	0-44011-435-0	02	1	0605-		●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	0005-0210	●		●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	0211-		●
228	STUD; AIR CMPR M12X35 L=53	9-94411-235-0	01	1	0005-0210	●		●
228	STUD; AIR CMPR M12X60 L=78	9-94411-260-0	01	1	0005-0210			●
228	STUD; AIR CMPR M12X77 L=95	9-09831-161-0	01	1	0211-		●
234	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	0005-0210			●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	0005-0210	●		●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	0211-		●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	0005-0210	●		●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	0211-		●
264	NUT; COVER M12 FLANGE	0-91150-212-0	01	1	0005-0210			●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=110	8-94394-186-0	01	1	0005-0210	●		●
479	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0005-0210			●
480	BOLT; COVER M12X70 FLANGE	0-28181-270-0	03	1	0005-0210			●
485	GASKET; SENSOR	9-09565-212-0	01	1	0005-0210			●
487	COVER; HOLE (B)	8-94394-513-1	01	1	0005-0210	●		●
487	COVER; HOLE (A)	8-94394-381-1	01	1	0005-0210			●
490	BRACKET; AIR PIPE,VSS	8-94394-857-0	01	1	0005-0210			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
