0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#9488) — 184 parça

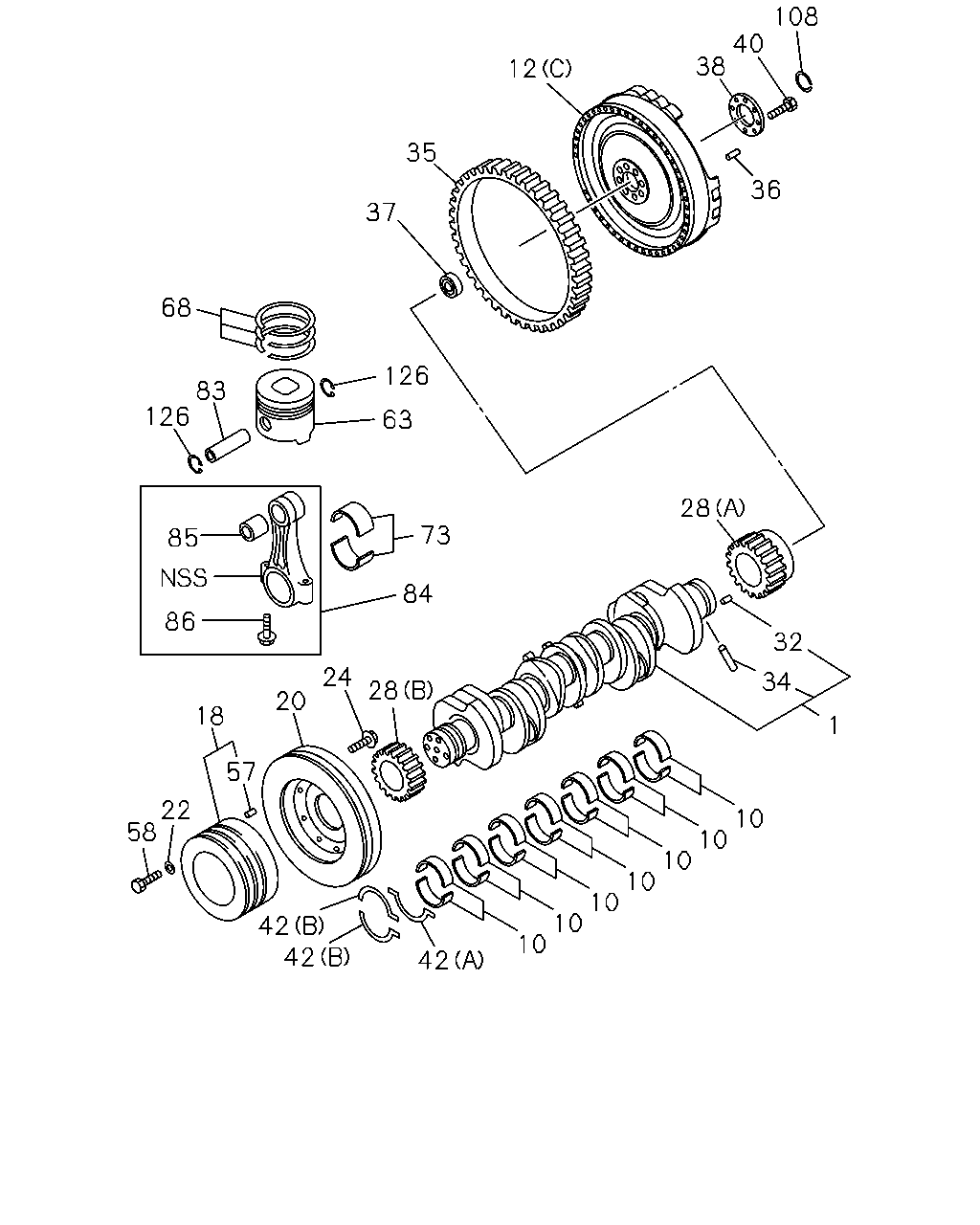

68 126 108 40 38 63 83 126 35 85 73 36 84 37 86 68 126 63 83 126 28 85 73 84 32 86 34 24 28 20 18 1 57 10 22 10 10 58 42 10 10 10 42 10 42 12 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CRANKSHAFT	8-94396-737-4	01	1	0005-0210	●
1	CRANKSHAFT	8-94396-737-4	01	1	0211-0305		●
1	CRANKSHAFT	8-97603-004-0	01	1	0306-		●
1	CRANKSHAFT	8-94393-291-4	01	1	0005-0210			●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	0306-		●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	0306-		●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	0306-		●
10	METAL SET; CRANKSHAFT,STANDARD PINK	8-94391-514-0	07	1	0005-0305	●	●	●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-94391-515-0	07	1	0005-0305	●	●	●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW	8-94391-516-0	07	1	0005-0305	●	●	●
12	FLYWHEEL (A)	8-94395-450-1	01	1	0005-0210	●
12	FLYWHEEL (C)	8-94390-943-1	01	1	0211-		●
12	FLYWHEEL (B)	8-94393-849-1	01	1	0005-0210			●
18	PULLEY; CR/SHF 3-GROOVE	8-94390-166-2	01	1	0005-0210	●
18	PULLEY; CR/SHF 3-GROOVE	8-94390-166-2	01	1	0211-		●
18	PULLEY; CR/SHF 3-GROOVE	8-94394-296-3	01	1	0005-0210			●
20	DAMPER; CR/SHF	8-94394-354-5	01	1	0005-0210	●
20	DAMPER; CR/SHF	8-94394-354-7	01	1	0211-1110		●
20	DAMPER; CR/SHF	8-94392-276-3	01	1	1111-		●
20	DAMPER; CR/SHF	8-94394-354-4	02	1	0005-0210			●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0005-0210	●		●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0211-		●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	0005-0210	●		●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	0211-0512		●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	0601-		●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	0005-0210	●		●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	0211-		●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0005-0210	●		●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0211-		●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	0005-0210	●		●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	0211-		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0005-0210	●		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0211-		●
35	GEAR; RING Z=140	8-94396-784-0	01	1	0005-0210	●		●
35	GEAR; RING Z=140	8-94396-784-1	01	1	0211-		●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0005-0210	●		●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0211-		●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	0005-0210	●		●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	0211-		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0005-0210	●		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0211-		●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	0005-0210	●		●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	0211-		●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0005-0210	●		●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0211-0703		●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0704-		●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0005-0210	●		●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0211-0703		●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0704-		●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0005-0210	●		●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0211-		●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	0005-0210	●		●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	0211-0512		●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	0601-		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-596-1	06	1	0005-0210	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-895-1	06	1	0211-		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-606-1	06	1	0005-0210			●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94395-061-6	06	1	0005-0210	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94391-502-4	06	1	0211-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94390-799-2	06	1	0005-0210			●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-0	06	1	0005-0210	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-1	06	1	0211-0701		●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-0	06	1	0005-0210	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-1	06	1	0211-0701		●
73	METAL SET; CONN ROD,STANDARD	8-94393-328-0	06	1	0005-0210			●
73	METAL SET; CONN ROD,STANDARD GREEN	8-98064-282-0	06	1	0702-0706		●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	0707-		●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-98064-281-0	06	1	0702-0706		●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	0707-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	0005-0210	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	0211-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	06	1	0005-0210			●
84	ROD ASM; CONN	8-94399-661-1	06	1	0005-0108	●
84	ROD ASM; CONN	8-94391-791-1	06	1	0109-0210	●
84	ROD ASM; CONN	8-94391-791-1	06	1	0211-0305		●
84	ROD ASM; CONN	8-94399-661-2	06	1	0306-0706		●
84	ROD ASM; CONN	8-98018-425-2	06	1	0707-		●
84	ROD ASM; CONN	8-94396-394-3	06	1	0005-0210			●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	0005-0108	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-0	06	1	0109-0210	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-0	06	1	0211-0305		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	0306-0706		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	0707-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	06	1	0005-0210			●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0005-0210	●		●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0211-1004		●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1005-		●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	0005-0210	●		●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	0211-		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	0005-0210	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	0211-		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	12	1	0005-0210			●

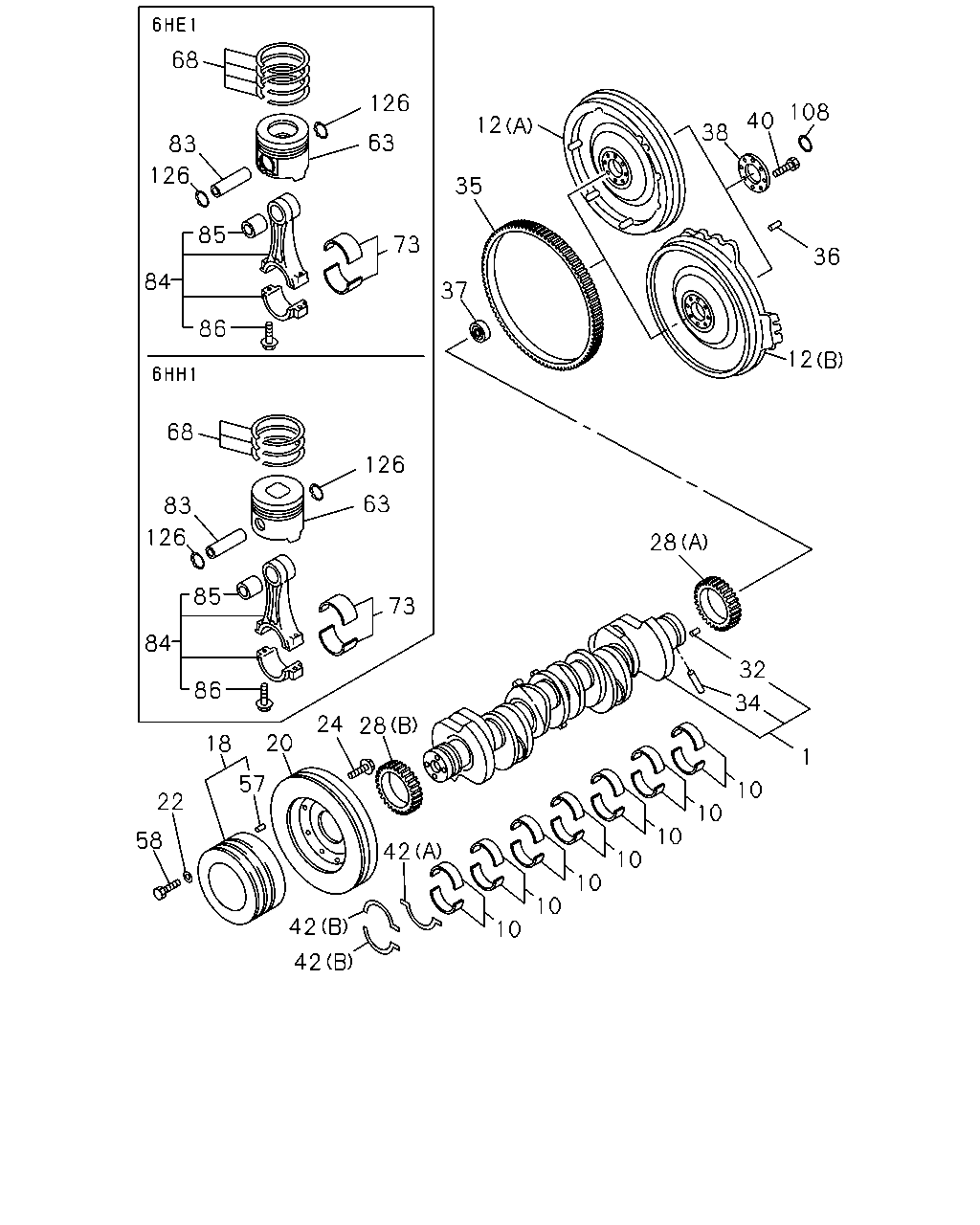

108 40 38 12 35 36 37 68 126 83 126 63 28 73 85 84 86 32 24 34 28 20 18 1 57 22 58 10 10 10 10 10 10 10 42 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CRANKSHAFT	8-94396-737-4	01	1	0005-0210	●
1	CRANKSHAFT	8-94396-737-4	01	1	0211-0305		●
1	CRANKSHAFT	8-97603-004-0	01	1	0306-		●
1	CRANKSHAFT	8-94393-291-4	01	1	0005-0210			●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	0306-		●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	0306-		●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	0306-		●
10	METAL SET; CRANKSHAFT,STANDARD PINK	8-94391-514-0	07	1	0005-0305	●	●	●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-94391-515-0	07	1	0005-0305	●	●	●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW	8-94391-516-0	07	1	0005-0305	●	●	●
12	FLYWHEEL (A)	8-94395-450-1	01	1	0005-0210	●
12	FLYWHEEL (C)	8-94390-943-1	01	1	0211-		●
12	FLYWHEEL (B)	8-94393-849-1	01	1	0005-0210			●
18	PULLEY; CR/SHF 3-GROOVE	8-94390-166-2	01	1	0005-0210	●
18	PULLEY; CR/SHF 3-GROOVE	8-94390-166-2	01	1	0211-		●
18	PULLEY; CR/SHF 3-GROOVE	8-94394-296-3	01	1	0005-0210			●
20	DAMPER; CR/SHF	8-94394-354-5	01	1	0005-0210	●
20	DAMPER; CR/SHF	8-94394-354-7	01	1	0211-1110		●
20	DAMPER; CR/SHF	8-94392-276-3	01	1	1111-		●
20	DAMPER; CR/SHF	8-94394-354-4	02	1	0005-0210			●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0005-0210	●		●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0211-		●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	0005-0210	●		●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	0211-0512		●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	0601-		●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	0005-0210	●		●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	0211-		●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0005-0210	●		●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0211-		●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	0005-0210	●		●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	0211-		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0005-0210	●		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0211-		●
35	GEAR; RING Z=140	8-94396-784-0	01	1	0005-0210	●		●
35	GEAR; RING Z=140	8-94396-784-1	01	1	0211-		●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0005-0210	●		●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0211-		●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	0005-0210	●		●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	0211-		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0005-0210	●		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0211-		●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	0005-0210	●		●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	0211-		●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0005-0210	●		●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0211-0703		●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0704-		●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0005-0210	●		●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0211-0703		●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0704-		●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0005-0210	●		●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0211-		●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	0005-0210	●		●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	0211-0512		●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	0601-		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-596-1	06	1	0005-0210	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-895-1	06	1	0211-		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-606-1	06	1	0005-0210			●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94395-061-6	06	1	0005-0210	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94391-502-4	06	1	0211-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94390-799-2	06	1	0005-0210			●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-0	06	1	0005-0210	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-1	06	1	0211-0701		●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-0	06	1	0005-0210	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-1	06	1	0211-0701		●
73	METAL SET; CONN ROD,STANDARD	8-94393-328-0	06	1	0005-0210			●
73	METAL SET; CONN ROD,STANDARD GREEN	8-98064-282-0	06	1	0702-0706		●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	0707-		●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-98064-281-0	06	1	0702-0706		●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	0707-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	0005-0210	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	0211-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	06	1	0005-0210			●
84	ROD ASM; CONN	8-94399-661-1	06	1	0005-0108	●
84	ROD ASM; CONN	8-94391-791-1	06	1	0109-0210	●
84	ROD ASM; CONN	8-94391-791-1	06	1	0211-0305		●
84	ROD ASM; CONN	8-94399-661-2	06	1	0306-0706		●
84	ROD ASM; CONN	8-98018-425-2	06	1	0707-		●
84	ROD ASM; CONN	8-94396-394-3	06	1	0005-0210			●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	0005-0108	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-0	06	1	0109-0210	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-0	06	1	0211-0305		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	0306-0706		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	0707-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	06	1	0005-0210			●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0005-0210	●		●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0211-1004		●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1005-		●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	0005-0210	●		●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	0211-		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	0005-0210	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	0211-		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	12	1	0005-0210			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
