◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10827 - FTR(AUSTRALIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-14 - CAMSHAFT AND VALVE ▶
0-14 — CAMSHAFT AND VALVE (#9487) — 221 parça

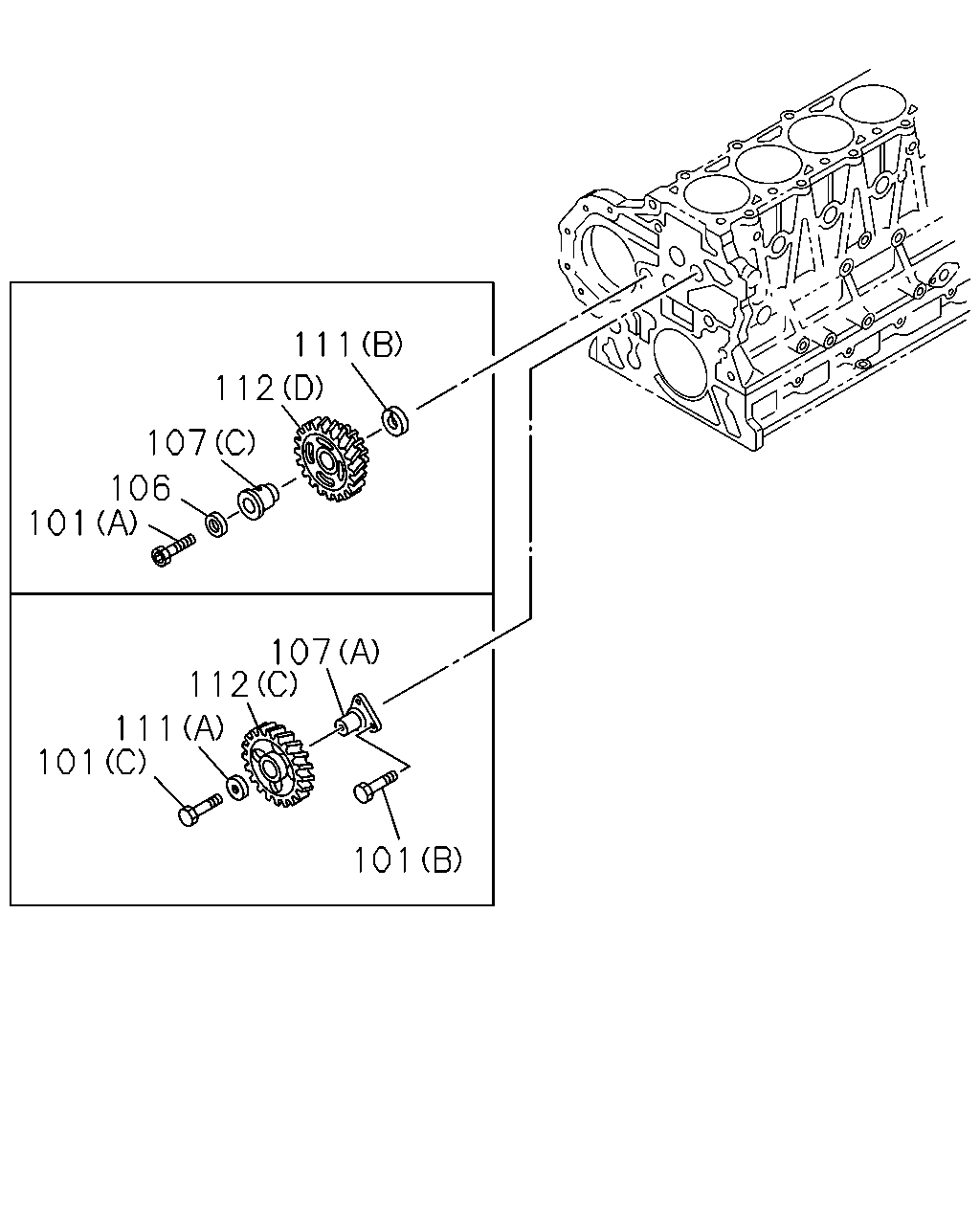

çizim 41390
111 112 107 106 101 107 112 111 101 101
BalonParca AdiParca NoAdetTipApplied Date A B C
101 BOLT; THRUST COLLAR
(A) M14X67 HEX SOCKET 		8-94394-779-2 01 1 0005-0210 ●
101 BOLT; THRUST COLLAR
(A) M14X67 HEX SOCKET 		8-94394-779-2 01 1 0211- ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 0005-0210 ● ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 0211-0512 ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28060-816-0 03 1 0601- ●
101 BOLT; THRUST COLLAR
(C) M14X30 		9-92361-430-0 01 1 0005-0210 ● ●
101 BOLT; THRUST COLLAR
(C) M14X30 		9-92361-430-0 01 1 0211-0512 ●
101 BOLT; THRUST COLLAR
(C) M14X30 		0-23951-430-0 01 1 0601- ●
101 BOLT; THRUST COLLAR
(A) M14X60 		9-91666-460-0 01 1 0005-0210 ●
106 WASHER; IDLE GEAR SHAFT
ID=14.2 OD=23 		1-09503-031-0 01 1 0005-0210 ●
106 WASHER; IDLE GEAR SHAFT
ID=14.2 OD=23 		1-09503-031-0 01 1 0211- ●
107 SHAFT; IDLE GEAR
(C) 		8-94395-073-2 01 1 0005-0205 ●
107 SHAFT; IDLE GEAR
(C) 		8-97602-588-0 01 1 0206-0210 ●
107 SHAFT; IDLE GEAR
(C) 		8-97602-588-0 01 1 0211- ●
107 SHAFT; IDLE GEAR
(D) 		8-94395-096-0 01 1 0005-0210 ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-1 01 1 0005-0204 ● ●
107 SHAFT; IDLE GEAR
(A) 		8-97350-021-0 01 1 0205-0210 ● ●
107 SHAFT; IDLE GEAR
(A) 		8-97350-021-0 01 1 0211- ●
107 SHAFT; IDLE GEAR
(B) 		8-97104-380-0 01 1 0005-0210 ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=24 OD=70 		8-94394-097-1 01 1 0005-0210 ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=24 OD=70 		8-94394-097-1 01 1 0211- ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 02 1 0005-0210 ● ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 01 1 0211-0306 ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-97209-728-2 01 1 0307- ●
112 GEAR; IDLE
(A) Z=61 		8-94393-439-3 01 1 0005-0210 ●
112 GEAR; IDLE
(C) Z=61 		8-94393-439-4 01 1 0211- ●
112 GEAR; IDLE
(B) Z=72-30 		8-94394-092-3 01 1 0005-0210 ●
112 GEAR; IDLE
(D) Z=72-30 		8-94394-092-3 01 1 0211- ●
112 GEAR; IDLE
(C) Z=34 		8-94394-509-2 01 1 0005-0210 ●
112 GEAR; IDLE
(B) Z=72-30 		8-94395-107-1 01 1 0005-0210 ●
112 GEAR; IDLE
(A) Z=61 		8-97094-546-1 01 1 0005-0210 ●

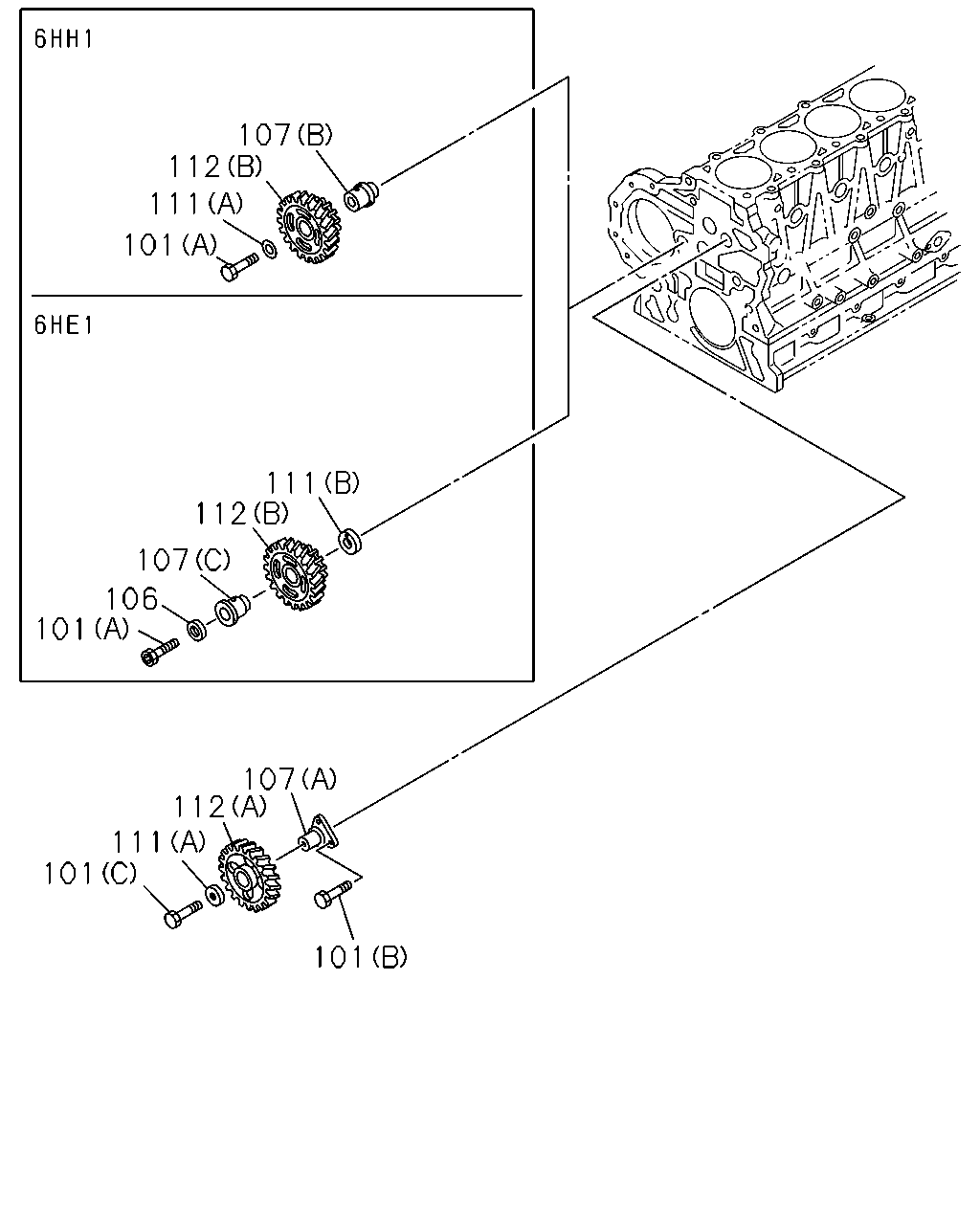

çizim 42189
107 112 111 101 111 112 107 106 101 107 112 111 101 101
BalonParca AdiParca NoAdetTipApplied Date A B C
101 BOLT; THRUST COLLAR
(A) M14X67 HEX SOCKET 		8-94394-779-2 01 1 0005-0210 ●
101 BOLT; THRUST COLLAR
(A) M14X67 HEX SOCKET 		8-94394-779-2 01 1 0211- ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 0005-0210 ● ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 0211-0512 ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28060-816-0 03 1 0601- ●
101 BOLT; THRUST COLLAR
(C) M14X30 		9-92361-430-0 01 1 0005-0210 ● ●
101 BOLT; THRUST COLLAR
(C) M14X30 		9-92361-430-0 01 1 0211-0512 ●
101 BOLT; THRUST COLLAR
(C) M14X30 		0-23951-430-0 01 1 0601- ●
101 BOLT; THRUST COLLAR
(A) M14X60 		9-91666-460-0 01 1 0005-0210 ●
106 WASHER; IDLE GEAR SHAFT
ID=14.2 OD=23 		1-09503-031-0 01 1 0005-0210 ●
106 WASHER; IDLE GEAR SHAFT
ID=14.2 OD=23 		1-09503-031-0 01 1 0211- ●
107 SHAFT; IDLE GEAR
(C) 		8-94395-073-2 01 1 0005-0205 ●
107 SHAFT; IDLE GEAR
(C) 		8-97602-588-0 01 1 0206-0210 ●
107 SHAFT; IDLE GEAR
(C) 		8-97602-588-0 01 1 0211- ●
107 SHAFT; IDLE GEAR
(D) 		8-94395-096-0 01 1 0005-0210 ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-1 01 1 0005-0204 ● ●
107 SHAFT; IDLE GEAR
(A) 		8-97350-021-0 01 1 0205-0210 ● ●
107 SHAFT; IDLE GEAR
(A) 		8-97350-021-0 01 1 0211- ●
107 SHAFT; IDLE GEAR
(B) 		8-97104-380-0 01 1 0005-0210 ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=24 OD=70 		8-94394-097-1 01 1 0005-0210 ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=24 OD=70 		8-94394-097-1 01 1 0211- ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 02 1 0005-0210 ● ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 01 1 0211-0306 ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-97209-728-2 01 1 0307- ●
112 GEAR; IDLE
(A) Z=61 		8-94393-439-3 01 1 0005-0210 ●
112 GEAR; IDLE
(C) Z=61 		8-94393-439-4 01 1 0211- ●
112 GEAR; IDLE
(B) Z=72-30 		8-94394-092-3 01 1 0005-0210 ●
112 GEAR; IDLE
(D) Z=72-30 		8-94394-092-3 01 1 0211- ●
112 GEAR; IDLE
(C) Z=34 		8-94394-509-2 01 1 0005-0210 ●
112 GEAR; IDLE
(B) Z=72-30 		8-94395-107-1 01 1 0005-0210 ●
112 GEAR; IDLE
(A) Z=61 		8-97094-546-1 01 1 0005-0210 ●

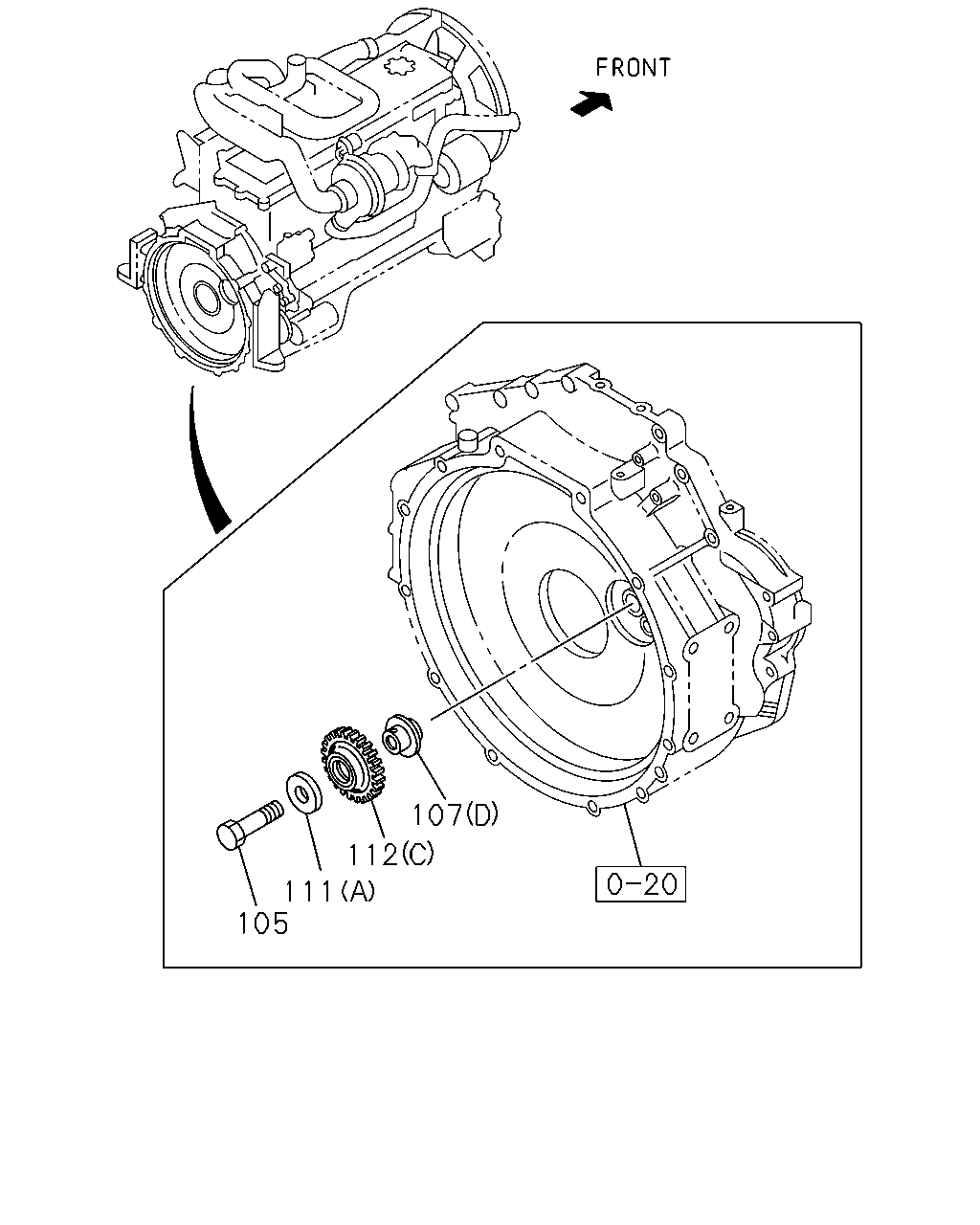

çizim 42221
107 112 111 105
BalonParca AdiParca NoAdetTipApplied Date A B C
105 BOLT; IDLE GEAR SHAFT
M14X65 		8-97066-798-0 01 1 0005-0210 ●
107 SHAFT; IDLE GEAR
(C) 		8-94395-073-2 01 1 0005-0205 ●
107 SHAFT; IDLE GEAR
(C) 		8-97602-588-0 01 1 0206-0210 ●
107 SHAFT; IDLE GEAR
(C) 		8-97602-588-0 01 1 0211- ●
107 SHAFT; IDLE GEAR
(D) 		8-94395-096-0 01 1 0005-0210 ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-1 01 1 0005-0204 ● ●
107 SHAFT; IDLE GEAR
(A) 		8-97350-021-0 01 1 0205-0210 ● ●
107 SHAFT; IDLE GEAR
(A) 		8-97350-021-0 01 1 0211- ●
107 SHAFT; IDLE GEAR
(B) 		8-97104-380-0 01 1 0005-0210 ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=24 OD=70 		8-94394-097-1 01 1 0005-0210 ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=24 OD=70 		8-94394-097-1 01 1 0211- ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 02 1 0005-0210 ● ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 01 1 0211-0306 ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-97209-728-2 01 1 0307- ●
112 GEAR; IDLE
(A) Z=61 		8-94393-439-3 01 1 0005-0210 ●
112 GEAR; IDLE
(C) Z=61 		8-94393-439-4 01 1 0211- ●
112 GEAR; IDLE
(B) Z=72-30 		8-94394-092-3 01 1 0005-0210 ●
112 GEAR; IDLE
(D) Z=72-30 		8-94394-092-3 01 1 0211- ●
112 GEAR; IDLE
(C) Z=34 		8-94394-509-2 01 1 0005-0210 ●
112 GEAR; IDLE
(B) Z=72-30 		8-94395-107-1 01 1 0005-0210 ●
112 GEAR; IDLE
(A) Z=61 		8-97094-546-1 01 1 0005-0210 ●

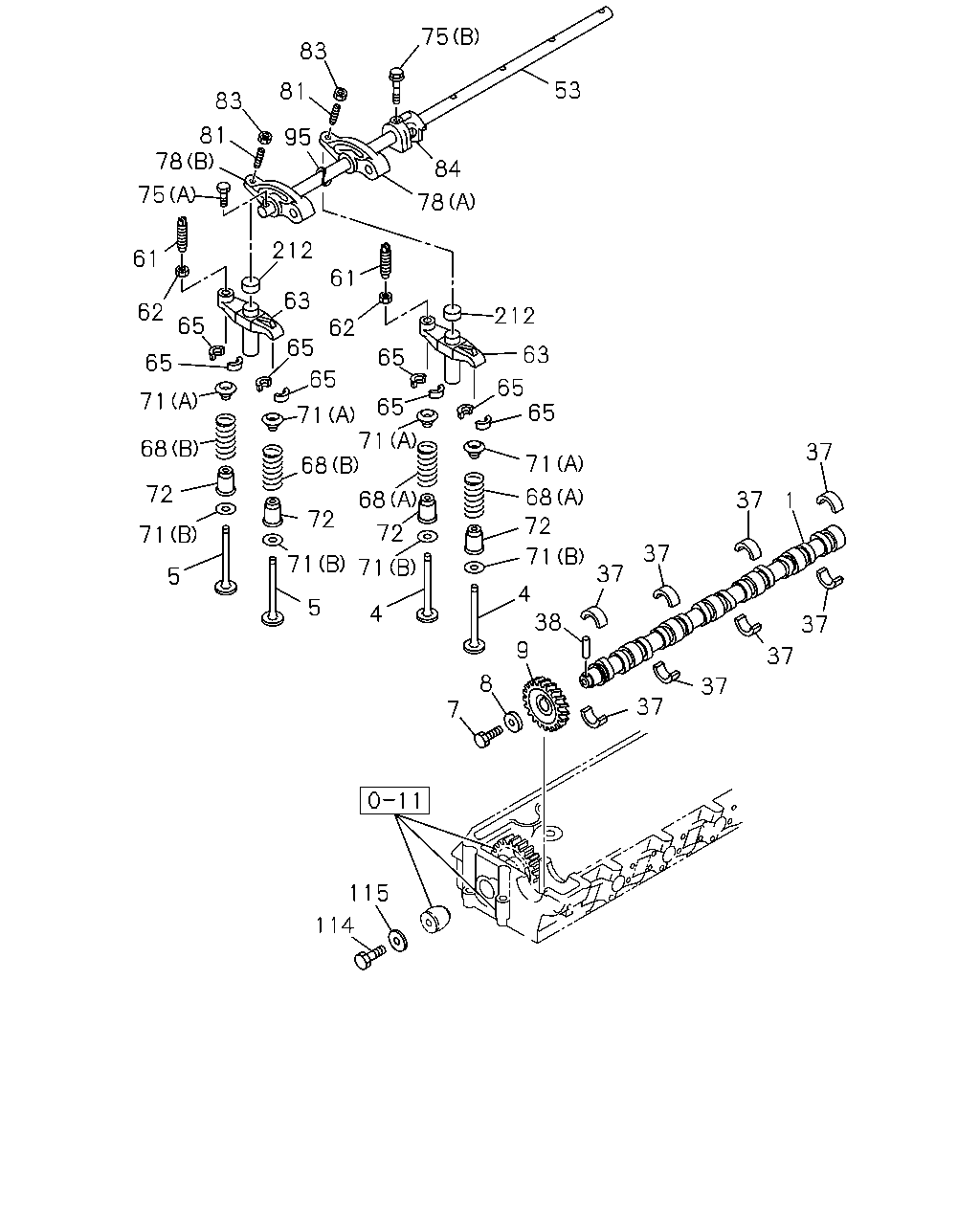

çizim 100388
75 83 53 81 83 81 78 95 84 75 78 212 61 61 63 62 212 65 62 65 63 65 65 65 65 65 71 65 71 71 68 68 37 71 72 68 68 37 1 72 72 72 71 37 71 71 71 37 5 4 38 9 5 4 37 37 8 37 37 7 115 114
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CAMSHAFT 8-94395-758-2 01 1 0005-0210 ●
1 CAMSHAFT 8-94390-469-1 01 1 0211-1311 ●
1 CAMSHAFT 8-98227-260-0 01 1 1312- ●
1 CAMSHAFT 8-94395-576-2 01 1 0005-0210 ●
4 VALVE; INL 8-94395-113-1 06 1 0005-0210 ●
4 VALVE; INL 8-94395-882-2 12 1 0211- ●
4 VALVE; INL 8-94394-160-1 06 1 0005-0210 ●
5 VALVE; EXH 8-94395-462-0 06 1 0005-0210 ● ●
5 VALVE; EXH 8-94395-883-2 12 1 0211-0402 ●
5 VALVE; EXH 8-97209-876-3 12 1 0403- ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 0005-0210 ● ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 0211- ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 0005-0210 ● ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 0211- ●
9 GEAR; CM/SHF
Z=35 		8-97094-440-2 01 1 0005-0210 ● ●
9 GEAR; CM/SHF
Z=35 		8-97094-440-2 01 1 0211- ●
37 METAL; CM/SHF
UPPER B=16 		8-97356-939-0 04 1 0307-0706 ●
37 METAL; CM/SHF
UPPER B=16 		8-97386-189-0 04 1 0707- ●
37 METAL; CM/SHF 8-94363-100-1 08 1 0005-0206 ● ●
37 METAL; CM/SHF
B=22 		8-97602-698-0 08 1 0207-0210 ● ●
37 METAL; CM/SHF
B=26 		8-97602-699-0 08 1 0211-0306 ●
37 METAL; CM/SHF
LOWER B=26 		8-97602-699-0 04 1 0307- ●
38 PIN; CAM BRG SET 8-94399-487-0 01 1 0005-0210 ● ●
38 PIN; CAM BRG SET 8-94399-487-0 01 1 0211- ●
53 SHAFT; ROCKER ARM 8-94393-984-3 01 1 0005-0210 ● ●
53 SHAFT; ROCKER ARM 8-94392-996-1 01 1 0211-0610 ●
53 SHAFT; ROCKER ARM 8-97389-918-0 01 1 0611- ●
61 SCREW; ADJ,BRIDGE
M8X21 		8-94394-803-0 12 1 0211- ●
62 NUT; ADJ SCREW LK BRIDGE
M8 FLANGE 		9-09844-574-0 12 1 0211- ●
63 BRIDGE 8-94392-002-3 12 1 0211- ●
65 COLLAR; SPLIT 5-12565-006-0 24 1 0005-0210 ● ●
65 COLLAR; SPLIT 5-12565-004-0 48 1 0211- ●
68 SPRING; VLV
(A) INLET MARK BLUE 		8-94395-884-0 12 1 0211- ●
68 SPRING; VLV
(B) EXHUAST MARK WHITE 		8-94395-885-1 12 1 0211- ●
71 SEAT; SPR
(B) OD=38 		8-94385-029-2 12 1 0005-0210 ● ●
71 SEAT; SPR
(A) OD=32.8 T=12.75 		8-94390-783-2 24 1 0211- ●
71 SEAT; SPR
(A) ID=14.3 T=0.5 		8-94396-014-0 12 1 0005-0210 ● ●
71 SEAT; SPR
(B) ID=14.3 T=1.0 		8-94391-468-0 24 1 0211- ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-609-2 12 1 0005-0210 ● ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97120-307-0 24 1 0211-0707 ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97376-720-0 24 1 0708- ●
75 BOLT; BRKT
(A) M8X35 FLANGE 		0-28080-835-0 02 1 0005-0210 ● ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28080-840-0 02 1 0211-0512 ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28050-840-0 02 1 0601- ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 0005-0210 ● ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 0211- ●
78 ARM; ROCKER
(B) EXHAUST JBK 		8-97014-258-1 06 1 0005-0210 ● ●
78 ARM; ROCKER
(B) EXHAUST 		8-94392-992-0 06 1 0211-0211 ●
78 ARM; ROCKER
(B) EXHAUST EXHAUST 		8-97306-424-3 06 1 0212- ●
78 ARM; ROCKER
(A) INLET JBK 		8-97074-614-0 06 1 0005-0210 ● ●
78 ARM; ROCKER
(A) INLET 		8-94392-993-0 06 1 0211-0211 ●
78 ARM; ROCKER
(A) INLET INLET 		8-97306-421-3 06 1 0212- ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 0005-0210 ● ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 0211- ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 12 1 0005-0210 ● ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 12 1 0211-0512 ●
83 NUT; ADJ SCREW,LK
M10 		0-91111-510-0 12 1 0601- ●
84 BRACKET; ROCKER SHAFT,INTER
JBK 		8-94388-109-3 05 1 0005-0210 ● ●
84 BRACKET; ROCKER SHAFT,INTER 8-94395-836-2 05 1 0211- ●
95 SPRING; ROCKER SHAFT
JBK 		8-94397-263-0 06 1 0005-0210 ● ●
95 SPRING; ROCKER SHAFT 8-94392-999-0 06 1 0211- ●
114 BOLT; IDLE GEAR
M14X36.5 		8-94372-221-1 01 1 0005-0210 ● ●
114 BOLT; IDLE GEAR
M14X36.5 		8-94372-221-1 01 1 0211- ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 01 1 0005-0210 ● ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 01 1 0211-0306 ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-97209-728-2 01 1 0307- ●
212 CAP; ADJ SCREW 8-94396-015-2 12 1 0005-0210 ● ●
212 CAP; ADJ SCREW 8-94396-015-2 12 1 0211- ●

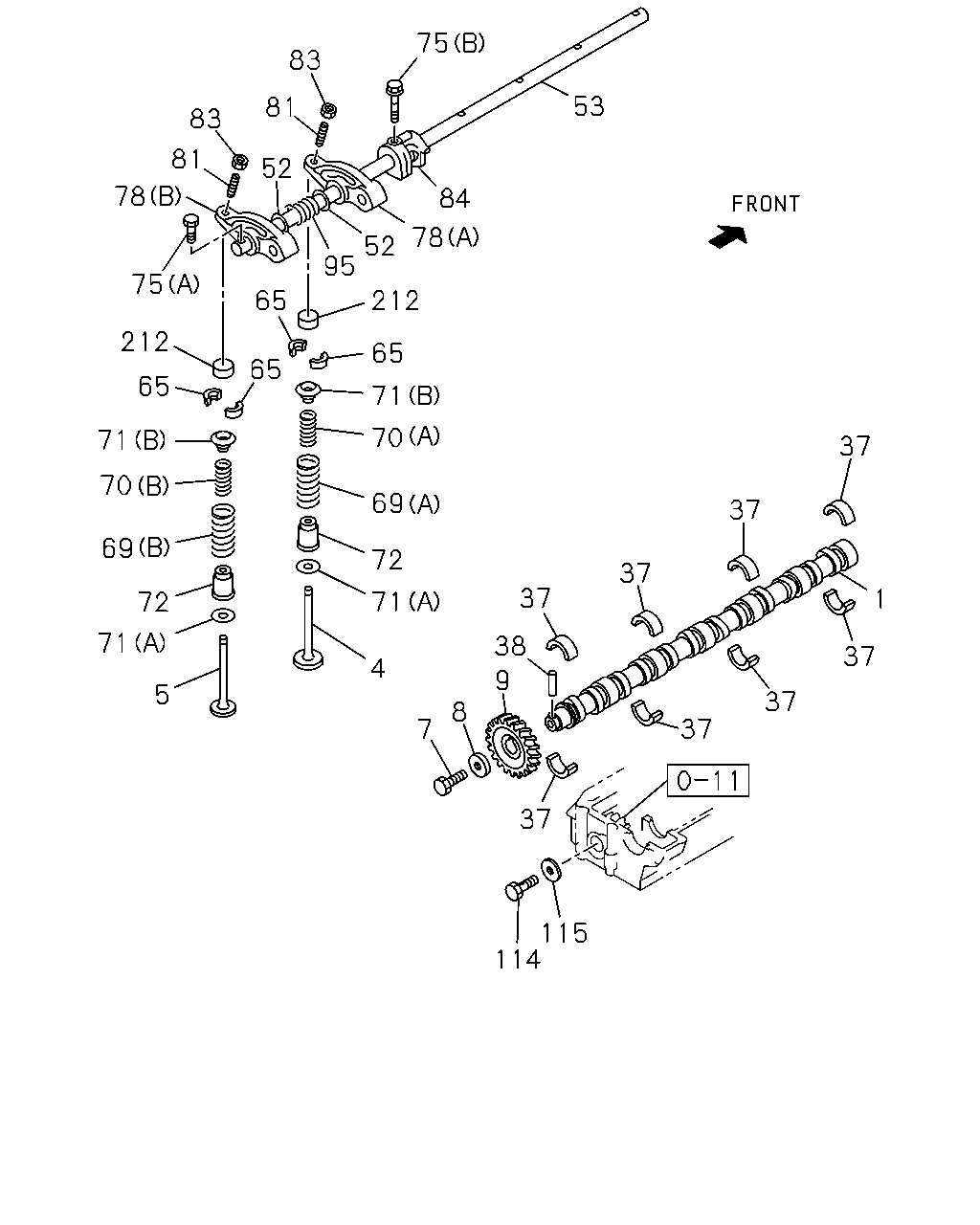

çizim 100532
75 83 53 81 83 81 52 84 78 52 95 75 212 65 212 65 65 65 71 71 37 37 72 37 37 1 71 72 71 38 37 4 9 5 37 8 37 7 37 115 114 70 70 69 69 78
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CAMSHAFT 8-94395-758-2 01 1 0005-0210 ●
1 CAMSHAFT 8-94390-469-1 01 1 0211-1311 ●
1 CAMSHAFT 8-98227-260-0 01 1 1312- ●
1 CAMSHAFT 8-94395-576-2 01 1 0005-0210 ●
4 VALVE; INL 8-94395-113-1 06 1 0005-0210 ●
4 VALVE; INL 8-94395-882-2 12 1 0211- ●
4 VALVE; INL 8-94394-160-1 06 1 0005-0210 ●
5 VALVE; EXH 8-94395-462-0 06 1 0005-0210 ● ●
5 VALVE; EXH 8-94395-883-2 12 1 0211-0402 ●
5 VALVE; EXH 8-97209-876-3 12 1 0403- ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 0005-0210 ● ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 0211- ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 0005-0210 ● ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 0211- ●
9 GEAR; CM/SHF
Z=35 		8-97094-440-2 01 1 0005-0210 ● ●
9 GEAR; CM/SHF
Z=35 		8-97094-440-2 01 1 0211- ●
37 METAL; CM/SHF
UPPER B=16 		8-97356-939-0 04 1 0307-0706 ●
37 METAL; CM/SHF
UPPER B=16 		8-97386-189-0 04 1 0707- ●
37 METAL; CM/SHF 8-94363-100-1 08 1 0005-0206 ● ●
37 METAL; CM/SHF
B=22 		8-97602-698-0 08 1 0207-0210 ● ●
37 METAL; CM/SHF
B=26 		8-97602-699-0 08 1 0211-0306 ●
37 METAL; CM/SHF
LOWER B=26 		8-97602-699-0 04 1 0307- ●
38 PIN; CAM BRG SET 8-94399-487-0 01 1 0005-0210 ● ●
38 PIN; CAM BRG SET 8-94399-487-0 01 1 0211- ●
52 WASHER; ROCKER ARM SHAFT 8-94362-105-0 12 1 0005-0210 ● ●
53 SHAFT; ROCKER ARM 8-94393-984-3 01 1 0005-0210 ● ●
53 SHAFT; ROCKER ARM 8-94392-996-1 01 1 0211-0610 ●
53 SHAFT; ROCKER ARM 8-97389-918-0 01 1 0611- ●
65 COLLAR; SPLIT 5-12565-006-0 24 1 0005-0210 ● ●
65 COLLAR; SPLIT 5-12565-004-0 48 1 0211- ●
69 SPRING; VLV,OUTER
(B) EXHAUST MARK YELLOW 		8-94393-310-0 06 1 0005-0210 ● ●
69 SPRING; VLV,OUTER
(A) INLET 		8-94394-996-0 06 1 0005-0111 ● ●
69 SPRING; VLV,OUTER
(A) INLET MARK PINK 		8-97120-912-0 06 1 0112-0210 ● ●
70 SPRING; VLV,INNER
(A) INLET 		8-94395-266-0 06 1 0005-0111 ● ●
70 SPRING; VLV,INNER
(A) INLET MARK PINK 		8-97120-911-0 06 1 0112-0210 ● ●
70 SPRING; VLV,INNER
(B) EXHAUST MARK YELLOW 		8-94397-500-0 06 1 0005-0210 ● ●
71 SEAT; SPR
(B) OD=38 		8-94385-029-2 12 1 0005-0210 ● ●
71 SEAT; SPR
(A) OD=32.8 T=12.75 		8-94390-783-2 24 1 0211- ●
71 SEAT; SPR
(A) ID=14.3 T=0.5 		8-94396-014-0 12 1 0005-0210 ● ●
71 SEAT; SPR
(B) ID=14.3 T=1.0 		8-94391-468-0 24 1 0211- ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-609-2 12 1 0005-0210 ● ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97120-307-0 24 1 0211-0707 ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97376-720-0 24 1 0708- ●
75 BOLT; BRKT
(A) M8X35 FLANGE 		0-28080-835-0 02 1 0005-0210 ● ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28080-840-0 02 1 0211-0512 ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28050-840-0 02 1 0601- ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 0005-0210 ● ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 0211- ●
78 ARM; ROCKER
(B) EXHAUST JBK 		8-97014-258-1 06 1 0005-0210 ● ●
78 ARM; ROCKER
(B) EXHAUST 		8-94392-992-0 06 1 0211-0211 ●
78 ARM; ROCKER
(B) EXHAUST EXHAUST 		8-97306-424-3 06 1 0212- ●
78 ARM; ROCKER
(A) INLET JBK 		8-97074-614-0 06 1 0005-0210 ● ●
78 ARM; ROCKER
(A) INLET 		8-94392-993-0 06 1 0211-0211 ●
78 ARM; ROCKER
(A) INLET INLET 		8-97306-421-3 06 1 0212- ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 0005-0210 ● ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 0211- ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 12 1 0005-0210 ● ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 12 1 0211-0512 ●
83 NUT; ADJ SCREW,LK
M10 		0-91111-510-0 12 1 0601- ●
84 BRACKET; ROCKER SHAFT,INTER
JBK 		8-94388-109-3 05 1 0005-0210 ● ●
84 BRACKET; ROCKER SHAFT,INTER 8-94395-836-2 05 1 0211- ●
95 SPRING; ROCKER SHAFT
JBK 		8-94397-263-0 06 1 0005-0210 ● ●
95 SPRING; ROCKER SHAFT 8-94392-999-0 06 1 0211- ●
114 BOLT; IDLE GEAR
M14X36.5 		8-94372-221-1 01 1 0005-0210 ● ●
114 BOLT; IDLE GEAR
M14X36.5 		8-94372-221-1 01 1 0211- ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 01 1 0005-0210 ● ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 01 1 0211-0306 ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-97209-728-2 01 1 0307- ●
212 CAP; ADJ SCREW 8-94396-015-2 12 1 0005-0210 ● ●
212 CAP; ADJ SCREW 8-94396-015-2 12 1 0211- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
