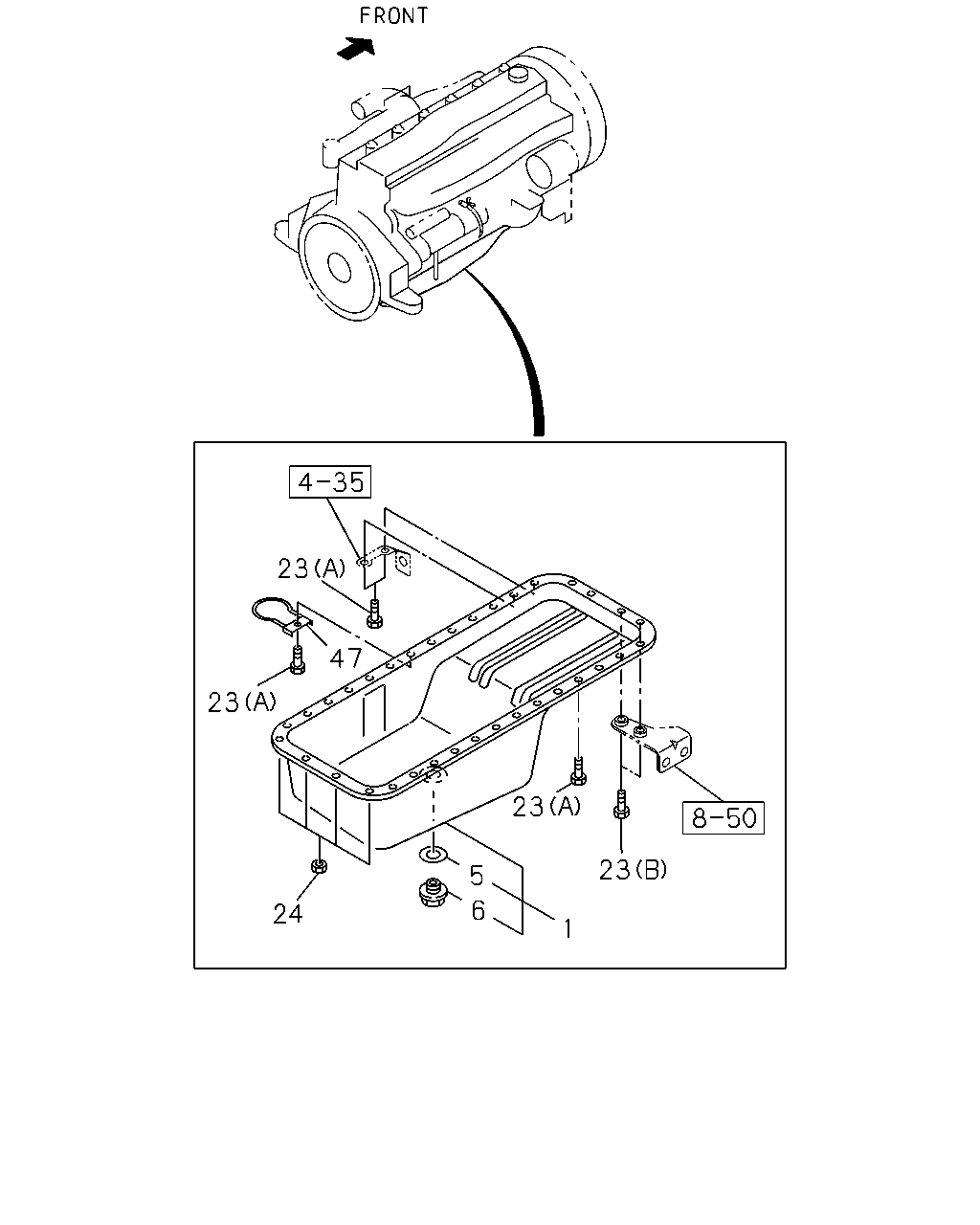

0-13 — OIL PAN AND LEVEL GAUGE (#9486) — 108 parça

23 47 23 23 23 5 6 24 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PAN ASM; OIL	8-94394-711-1	01	1	0005-0210	●
1	PAN ASM; OIL	8-94394-711-2	01	1	0211-		●
1	PAN ASM; OIL	8-94395-608-1	01	1	0005-0210			●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	0005-0210	●		●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	0211-		●
6	PLUG; OIL DRAIN	9-09662-012-0	01	1	0005-0210	●		●
6	PLUG; OIL DRAIN	9-09662-012-0	01	1	0211-		●
23	BOLT; OIL PAN (B) M8X18 FLANGE	0-28080-818-0	30	1	0005-0210	●		●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	28	1	0211-		●
23	BOLT; OIL PAN (B) M8X28 FLANGE	0-28080-828-0	02	1	0211-		●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	04	1	0005-0210	●		●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	04	1	0211-0602		●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	04	1	0603-		●
47	CLIP; HOSE,AIR BREATHER	1-11369-115-0	01	1	0005-0210	●		●
47	CLIP; HOSE,AIR BREATHER	1-11369-115-0	01	1	0211-		●

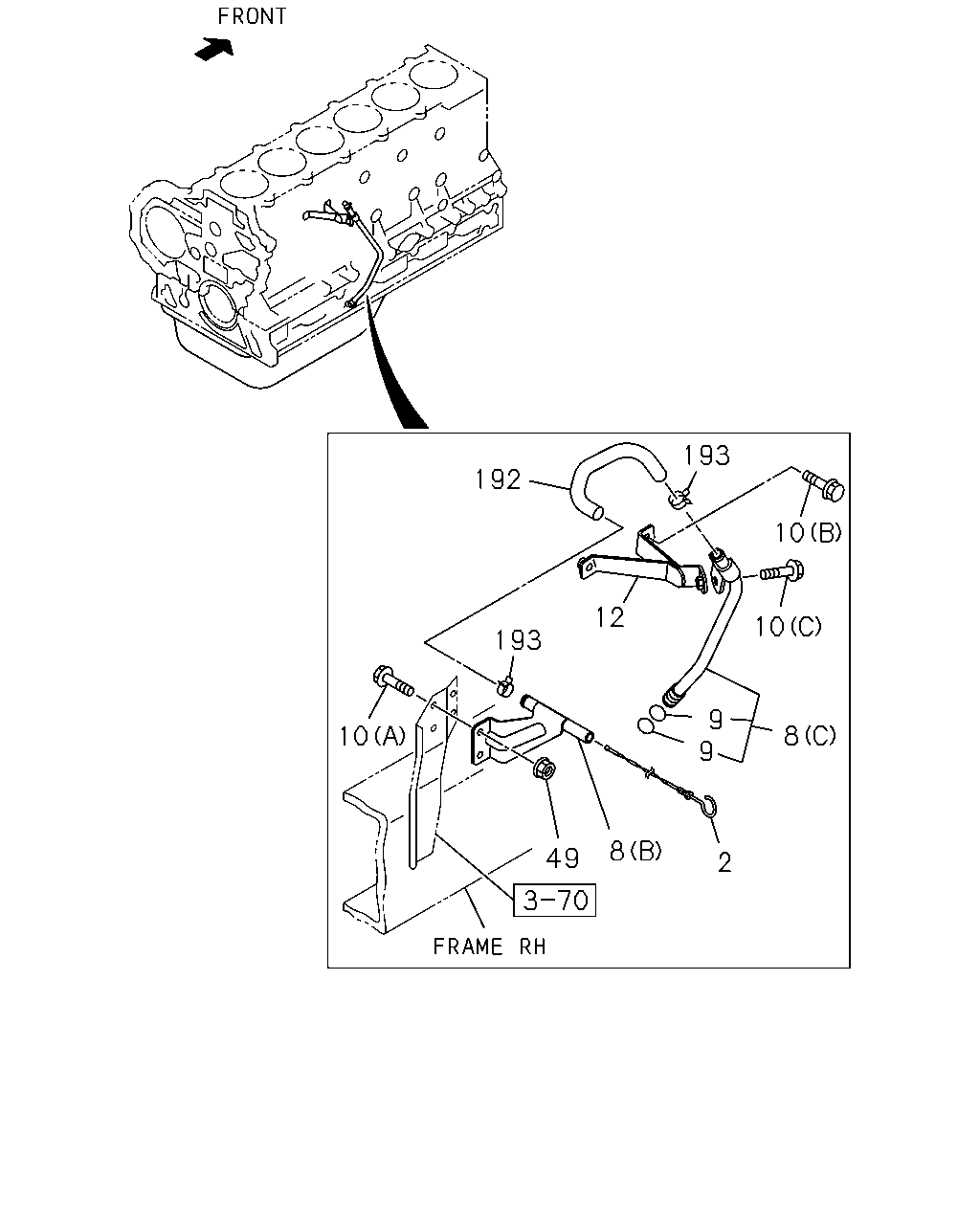

193 192 10 12 10 193 9 9 8 10 8 49 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	GAUGE; OIL LEVEL	1-11760-396-0	01	1	0005-0210	●		●
2	GAUGE; OIL LEVEL	1-11760-396-1	01	1	0211-		●
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	1-11766-453-0	01	1	0005-0210	●
8	TUBE; GUIDE,OIL LEVEL GAUGE STD CAB(FT*M) (B)	1-11766-453-0	01	1	0211-		●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-94395-114-3	01	1	0005-0210	●		●
8	TUBE; GUIDE,OIL LEVEL GAUGE (C)	8-94392-176-1	01	1	0211-		●
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	1-11766-474-0	01	1	0005-0210			●
8	TUBE; GUIDE,OIL LEVEL GAUGE DOUBLE CAB(FT*W) (B)	1-11766-474-0	01	1	0211-		●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0005-0112	●		●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0201-0210	●		●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0211-		●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28080-820-0	02	1	0005-0210	●
10	BOLT; GUIDE TUBE (B) M8X12 FLANGE	0-28080-812-0	01	1	0211-0512		●
10	BOLT; GUIDE TUBE (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-		●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210	●		●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28080-816-0	01	1	0211-0512		●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●		●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0512		●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
10	BOLT; GUIDE TUBE (B) M8X30 FLANGE	0-28080-830-0	02	1	0005-0210			●
10	BOLT; GUIDE TUBE (B) M8X35 FLANGE	0-28680-835-0	01	1	0211-0512		●
10	BOLT; GUIDE TUBE (B) M8X35 FLANGE	0-28650-835-0	01	1	0601-		●
12	BRACKET; TUBE,OIL LEVEL GAUGE	8-94395-843-0	01	1	0005-0210	●
12	BRACKET; TUBE,OIL LEVEL GAUGE	8-94392-600-0	01	1	0211-0212		●
12	BRACKET; TUBE,OIL LEVEL GAUGE	8-94392-547-0	01	1	0301-		●
12	BRACKET; TUBE,OIL LEVEL GAUGE	8-94394-903-0	01	1	0005-0210			●
49	NUT; GUIDE TUBE M8 FLANGE	0-91150-108-0	02	1	0005-0210	●		●
49	NUT; GUIDE TUBE M8 FLANGE	0-91150-108-0	02	1	0211-0602		●
49	NUT; GUIDE TUBE M8 FLANGE	0-91180-108-0	02	1	0603-		●
192	HOSE; GUIDE TUBE L=300	1-09360-945-1	01	1	0005-0210	●		●
192	HOSE; GUIDE TUBE L=300	1-09360-945-1	01	1	0211-0305		●
192	HOSE; GUIDE TUBE L=300	1-09360-978-0	01	1	0306-		●
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	0005-0210	●		●
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	0211-		●

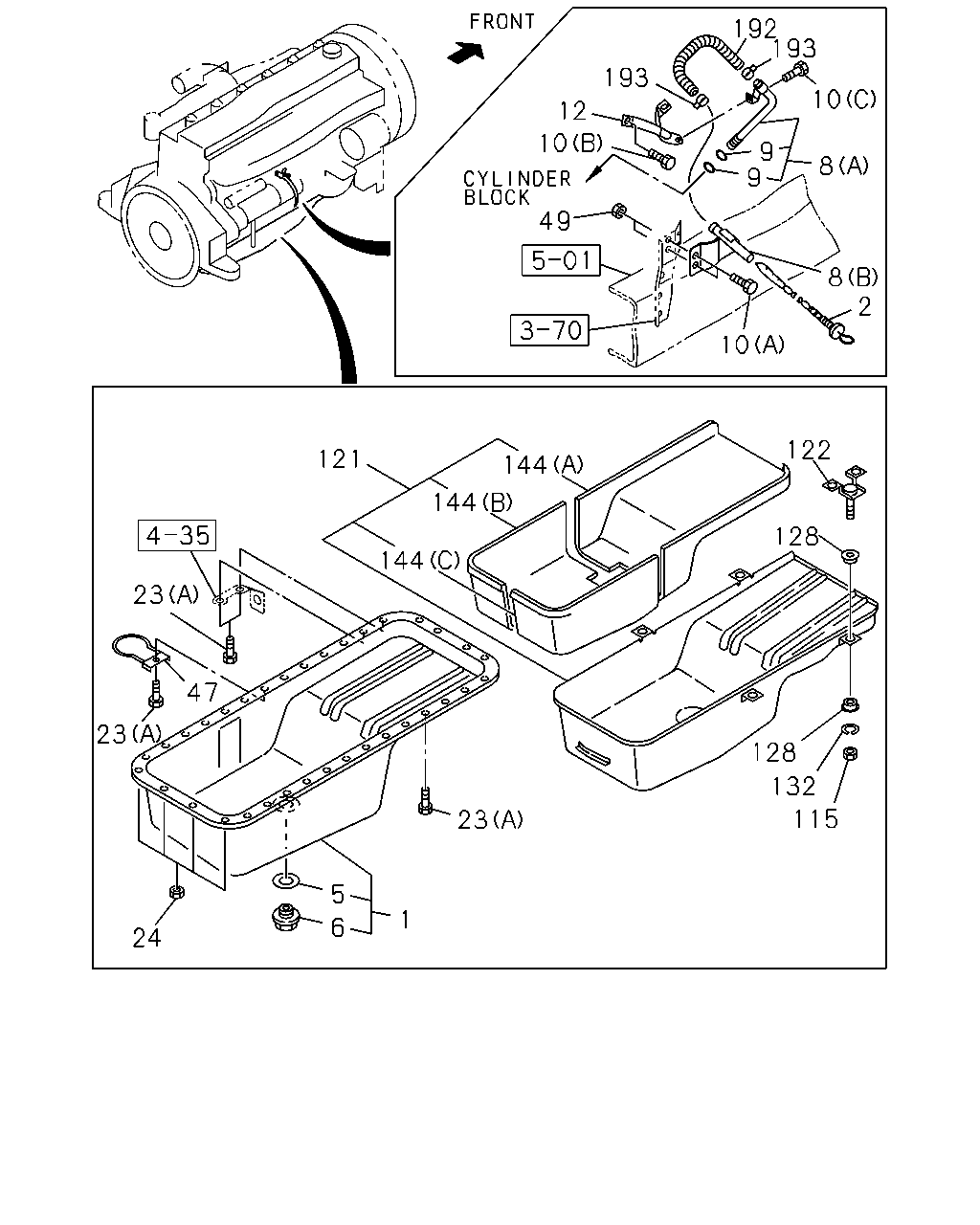

192 193 193 10 12 10 9 9 8 49 8 2 10 122 121 144 144 128 144 23 47 23 128 132 115 23 5 1 6 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PAN ASM; OIL	8-94394-711-1	01	1	0005-0210	●
1	PAN ASM; OIL	8-94394-711-2	01	1	0211-		●
1	PAN ASM; OIL	8-94395-608-1	01	1	0005-0210			●
2	GAUGE; OIL LEVEL	1-11760-396-0	01	1	0005-0210	●		●
2	GAUGE; OIL LEVEL	1-11760-396-1	01	1	0211-		●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	0005-0210	●		●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	0211-		●
6	PLUG; OIL DRAIN	9-09662-012-0	01	1	0005-0210	●		●
6	PLUG; OIL DRAIN	9-09662-012-0	01	1	0211-		●
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	1-11766-453-0	01	1	0005-0210	●
8	TUBE; GUIDE,OIL LEVEL GAUGE STD CAB(FT*M) (B)	1-11766-453-0	01	1	0211-		●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-94395-114-3	01	1	0005-0210	●		●
8	TUBE; GUIDE,OIL LEVEL GAUGE (C)	8-94392-176-1	01	1	0211-		●
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	1-11766-474-0	01	1	0005-0210			●
8	TUBE; GUIDE,OIL LEVEL GAUGE DOUBLE CAB(FT*W) (B)	1-11766-474-0	01	1	0211-		●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0005-0112	●		●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0201-0210	●		●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0211-		●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28080-820-0	02	1	0005-0210	●
10	BOLT; GUIDE TUBE (B) M8X12 FLANGE	0-28080-812-0	01	1	0211-0512		●
10	BOLT; GUIDE TUBE (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-		●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210	●		●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28080-816-0	01	1	0211-0512		●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●		●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0512		●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
10	BOLT; GUIDE TUBE (B) M8X30 FLANGE	0-28080-830-0	02	1	0005-0210			●
10	BOLT; GUIDE TUBE (B) M8X35 FLANGE	0-28680-835-0	01	1	0211-0512		●
10	BOLT; GUIDE TUBE (B) M8X35 FLANGE	0-28650-835-0	01	1	0601-		●
12	BRACKET; TUBE,OIL LEVEL GAUGE	8-94395-843-0	01	1	0005-0210	●
12	BRACKET; TUBE,OIL LEVEL GAUGE	8-94392-600-0	01	1	0211-0212		●
12	BRACKET; TUBE,OIL LEVEL GAUGE	8-94392-547-0	01	1	0301-		●
12	BRACKET; TUBE,OIL LEVEL GAUGE	8-94394-903-0	01	1	0005-0210			●
23	BOLT; OIL PAN (B) M8X18 FLANGE	0-28080-818-0	30	1	0005-0210	●		●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	28	1	0211-		●
23	BOLT; OIL PAN (B) M8X28 FLANGE	0-28080-828-0	02	1	0211-		●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	04	1	0005-0210	●		●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	04	1	0211-0602		●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	04	1	0603-		●
47	CLIP; HOSE,AIR BREATHER	1-11369-115-0	01	1	0005-0210	●		●
47	CLIP; HOSE,AIR BREATHER	1-11369-115-0	01	1	0211-		●
49	NUT; GUIDE TUBE M8 FLANGE	0-91150-108-0	02	1	0005-0210	●		●
49	NUT; GUIDE TUBE M8 FLANGE	0-91150-108-0	02	1	0211-0602		●
49	NUT; GUIDE TUBE M8 FLANGE	0-91180-108-0	02	1	0603-		●
115	NUT; OIL PAN COVER M8 FLANGE	0-91150-108-0	04	1	0005-0210			●
121	COVER; OIL PAN	8-94395-613-2	01	1	0005-0210			●
122	BRACKET; OIL PAN COVER	8-94396-827-0	04	1	0005-0210			●
128	RUBBER; MTG,OIL PAN	1-09337-024-0	08	1	0005-0210			●
132	WASHER; PL,OIL PAN COVER ID=8.4 OD=22	9-09160-708-0	04	1	0005-0210			●
144	INSULATOR; OIL PAN (C)	8-94395-874-0	01	1	0005-0210			●
144	INSULATOR; OIL PAN (A)	8-94395-875-0	01	1	0005-0210			●
144	INSULATOR; OIL PAN (B)	8-94395-876-0	01	1	0005-0210			●
192	HOSE; GUIDE TUBE L=300	1-09360-945-1	01	1	0005-0210	●		●
192	HOSE; GUIDE TUBE L=300	1-09360-945-1	01	1	0211-0305		●
192	HOSE; GUIDE TUBE L=300	1-09360-978-0	01	1	0306-		●
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	0005-0210	●		●
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	0211-		●
