Sayfa 0-12 - Isuzu EPC

0-12 — CYLINDER BLOCK (#9485) — 225 parça

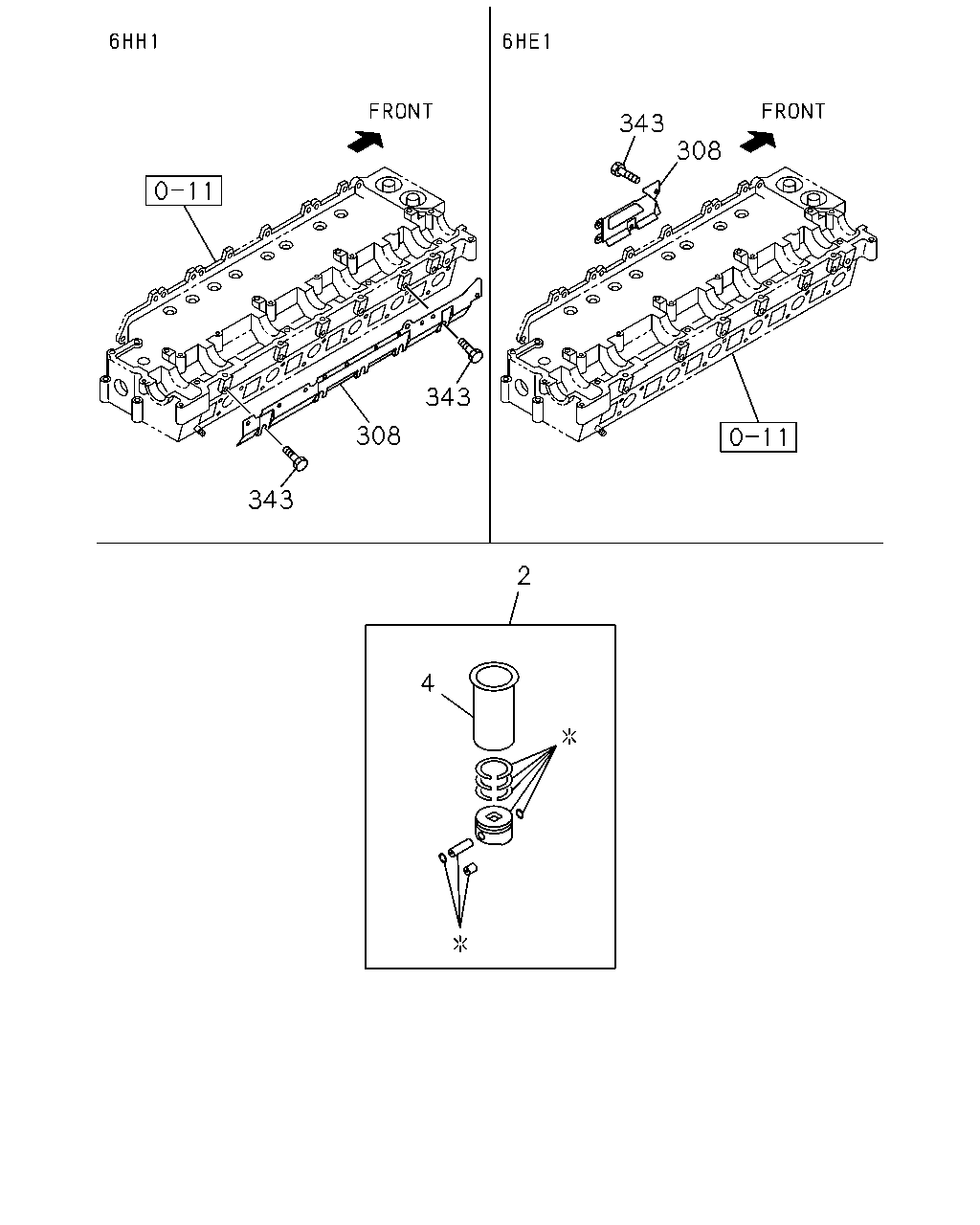

343 308 343 308 343 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	LINER SET; ENG CYL GRADE=1X	1-87811-701-2	06	1	0005-0108	●
2	LINER SET; ENG CYL GRADE=1X	1-87812-203-2	06	1	0109-0210	●
2	LINER SET; ENG CYL GRADE=1X	1-87812-246-2	06	1	0211-0305		●
2	LINER SET; ENG CYL GRADE=1X	1-87811-763-3	06	1	0306-0706		●
2	LINER SET; ENG CYL GRADE=1X	1-87812-246-6	06	1	0707-		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-702-2	06	1	0005-0108	●
2	LINER SET; ENG CYL GRADE=3X	1-87812-204-2	06	1	0109-0210	●
2	LINER SET; ENG CYL GRADE=3X	1-87812-247-2	06	1	0211-0305		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-764-3	06	1	0306-0706		●
2	LINER SET; ENG CYL GRADE=3X	1-87812-247-6	06	1	0707-		●
2	LINER SET; ENG CYL GRADE=1X	1-87811-665-4	06	1	0005-0210			●
2	LINER SET; ENG CYL GRADE=3X	1-87811-666-4	06	1	0005-0210			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-1	06	1	0005-0210	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-1	06	1	0005-0210	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	0005-0210			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	0211-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	0005-0210			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	0211-		●
308	PROTECTOR; HEAT,HD COVER	8-94395-748-0	01	1	0005-0210	●
308	PROTECTOR; HEAT,HD COVER	8-94391-759-2	01	1	0005-0210			●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	04	1	0005-0210	●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	05	1	0005-0210			●

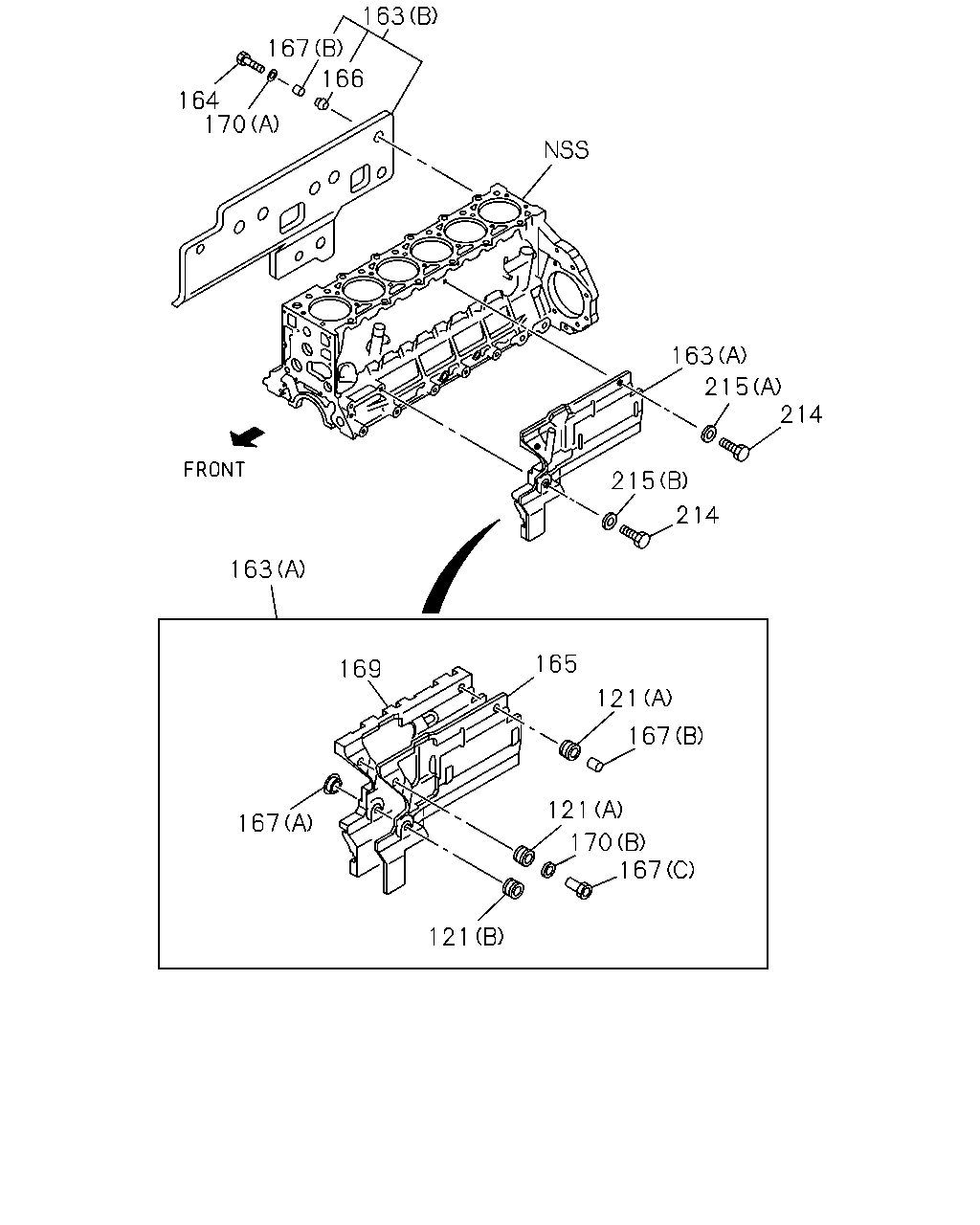

163 167 166 164 170 163 215 214 215 214 163 165 169 121 167 121 167 170 167 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C
121	RUBBER; MTG,COVER (A) OD=22	8-94140-428-1	02	1	0005-0210	●
121	RUBBER; MTG,COVER (B) OD=32	8-94396-221-0	01	1	0005-0210	●
163	COVER ASM; C/BL SKIRT (A)	8-94390-172-0	01	1	0005-0210	●
163	COVER ASM; C/BL SKIRT (B)	8-94395-894-0	01	1	0005-0210	●
164	BOLT; COVER BLOCK SKIRT M8X25 FLANGE	0-28680-825-0	04	1	0005-0210	●
165	COVER; C/BL SKIRT	8-94395-694-1	01	1	0005-0210	●
166	MOUNT; COVER BLOCK SKIRT OD=22	8-94140-428-1	04	1	0005-0210	●
167	TUBE; DIST,SIDE COVER (B) OD=13 T=9.5	8-94140-427-1	05	1	0005-0210	●
167	TUBE; DIST,SIDE COVER (C) M10	8-94393-791-2	01	1	0005-0210	●
167	TUBE; DIST,SIDE COVER (A) OD=32 W/FLANGE	8-94397-356-1	01	1	0005-0210	●
169	INSULATOR; SIDE COVER	8-94390-173-0	01	1	0005-0210	●
170	WASHER; COVER (A) ID=8.4 OD=22	9-09160-708-0	04	1	0005-0210	●
170	WASHER; COVER (B) ID=14 OD=22	9-47515-014-0	01	1	0005-0210	●
214	BOLT; NOISE COVER M10X25 FLANGE	0-28181-025-0	02	1	0005-0210	●
215	WASHER; PL,NOISE COVER (A) ID=10.5 OD=22	9-09164-610-0	01	1	0005-0210	●
215	WASHER; PL,NOISE COVER (B) ID=10.5 OD=32	9-09164-810-0	01	1	0005-0210	●

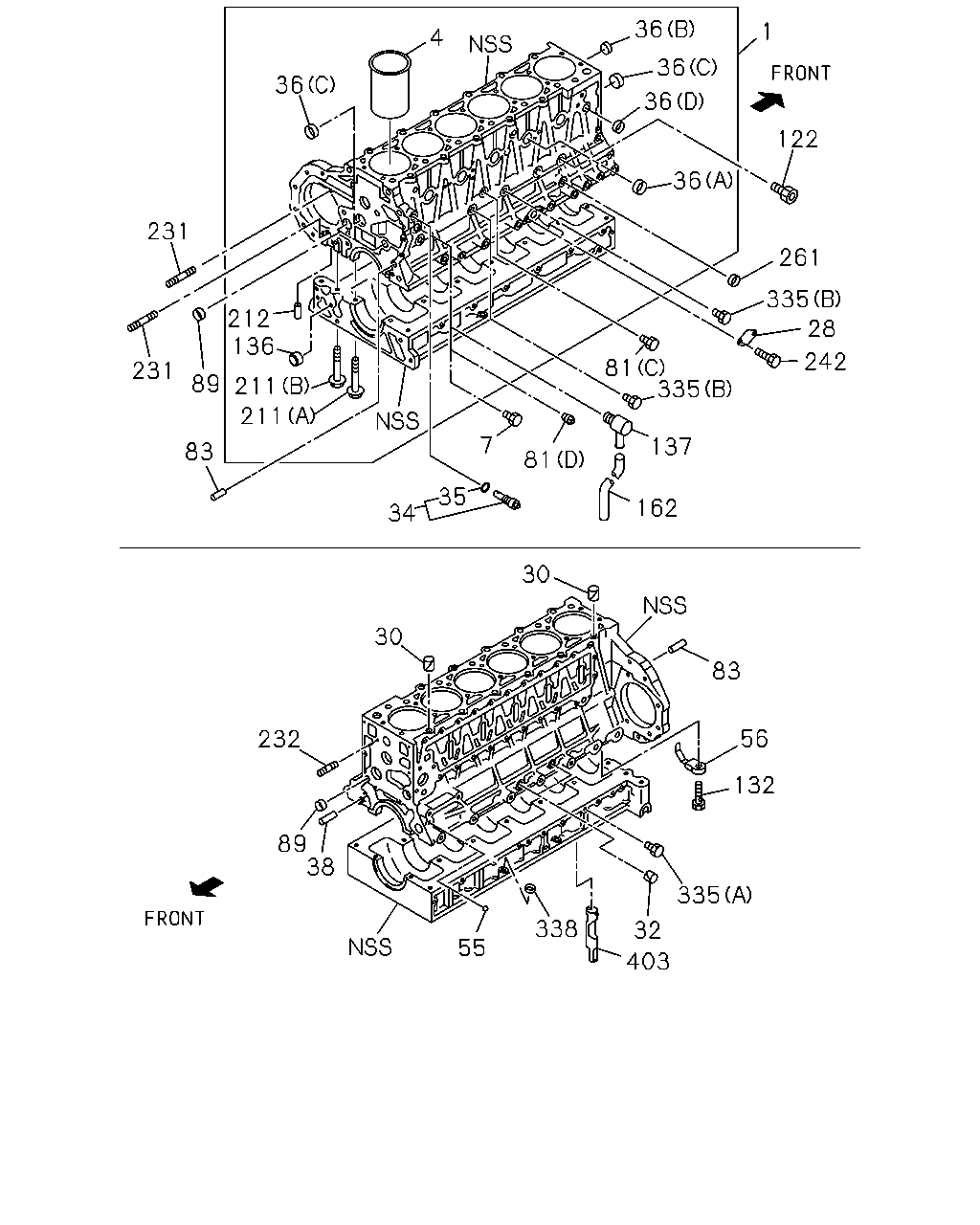

36 1 4 36 36 36 122 36 231 261 335 212 136 28 211 242 81 335 231 89 211 7 137 83 81 35 162 34 30 30 83 56 232 132 89 38 335 338 32 55 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL	8-97601-299-0	01	1	0005-0210	●
1	BLOCK ASM; CYL	8-97600-415-0	01	1	0005-0210			●
1	BLOCK ASM; CYL	8-97602-024-2	01	1	0211-0504		●
1	BLOCK ASM; CYL	8-98005-410-2	01	1	0505-1012		●
1	BLOCK ASM; CYL	8-98180-708-0	01	1	1101-1209		●
1	BLOCK ASM; CYL	8-98206-963-0	01	1	1210-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-1	06	1	0005-0210	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-1	06	1	0005-0210	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	0005-0210			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	0211-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	0005-0210			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	0211-		●
7	PLUG; WATER DRAIN PT3/8	8-94397-338-0	01	1	1101-		●
28	COVER; OIL PORT	1-11219-163-0	01	1	0005-0210			●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0005-0210	●		●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0211-		●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0005-0210	●		●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0211-		●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0005-0210	●		●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0211-		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0005-0210	●		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0211-		●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	04	1	0005-0210	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	0211-		●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0005-0210	●		●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0211-		●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0005-0210	●		●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0211-		●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	0005-0210	●		●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	0211-0502		●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0503-		●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	0005-0210			●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0005-0210	●		●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0211-		●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	0005-0210	●		●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	0211-		●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0005-0210	●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0211-0703		●
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	0704-1007		●
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1008-		●
56	JET; OIL,PISTON COOLING	8-94399-187-0	06	1	0005-0210			●
81	PLUG; WATER JACKET (D) PT3/8	8-94397-338-0	01	1	0212-0212		●
81	PLUG; WATER JACKET (A) NPTF1-11 1/2	1-09605-065-1	01	1	0005-0210	●
81	PLUG; WATER JACKET (B) PT3/8	8-94397-338-0	01	1	0005-0210	●
81	PLUG; WATER JACKET (C) M14	8-94399-225-0	01	1	0005-0210			●
81	PLUG; WATER JACKET (C) M14	8-94399-225-0	01	1	0211-0703		●
81	PLUG; WATER JACKET (C) M14X16.5	8-97329-617-0	01	1	0704-		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0005-0210	●		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0211-0306		●
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	0005-0210	●		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	0211-0908		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	0909-		●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	0005-0210	●		●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	0211-		●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0005-0210	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0211-		●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	0005-0210			●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	0211-0812		●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	0901-		●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	0301-1012		●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	0005-0210	●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	0005-0210			●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	0211-0211		●
162	HOSE; WATER DRAIN,C/BL L=290 SERVICED BY L=3000	0-03559-300-0	01	1	0301-1012		●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03259-300-0	01	1	0005-0206			●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03559-300-0	01	1	0207-0210			●
162	HOSE; WATER DRAIN,C/BL L=290 SERVICED BY L=3000	0-03559-300-0	01	1	0211-0211		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0005-0210	●		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0211-0905		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	0906-		●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0005-0210	●		●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0211-		●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	0005-0210	●		●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	0211-0306		●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0307-		●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	0005-0210			●
231	STUD; AIR CMPR M10X46.5 L=58.5	8-97066-386-1	02	1	0211-0301		●
231	STUD; AIR CMPR M10X46.5 L=58.5	8-97363-237-0	02	1	0302-		●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	0005-0210	●		●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	0211-0604		●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0605-		●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28080-816-0	02	1	0005-0210			●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	0005-0210	●		●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	0211-0307		●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	02	1	0005-0210	●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	03	1	0211-0703		●
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	03	1	0704-		●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0005-0210	●		●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0211-0501		●
335	PLUG; C/BL,SIDE (A) M8X10	8-98003-416-0	01	1	0502-		●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	0005-0210			●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	0005-0210	●		●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	0211-		●
403	GUIDE; GALLERY	8-94395-351-1	01	1	0005-0210			●
403	GUIDE; GALLERY	8-94395-351-1	01	1	0211-		●

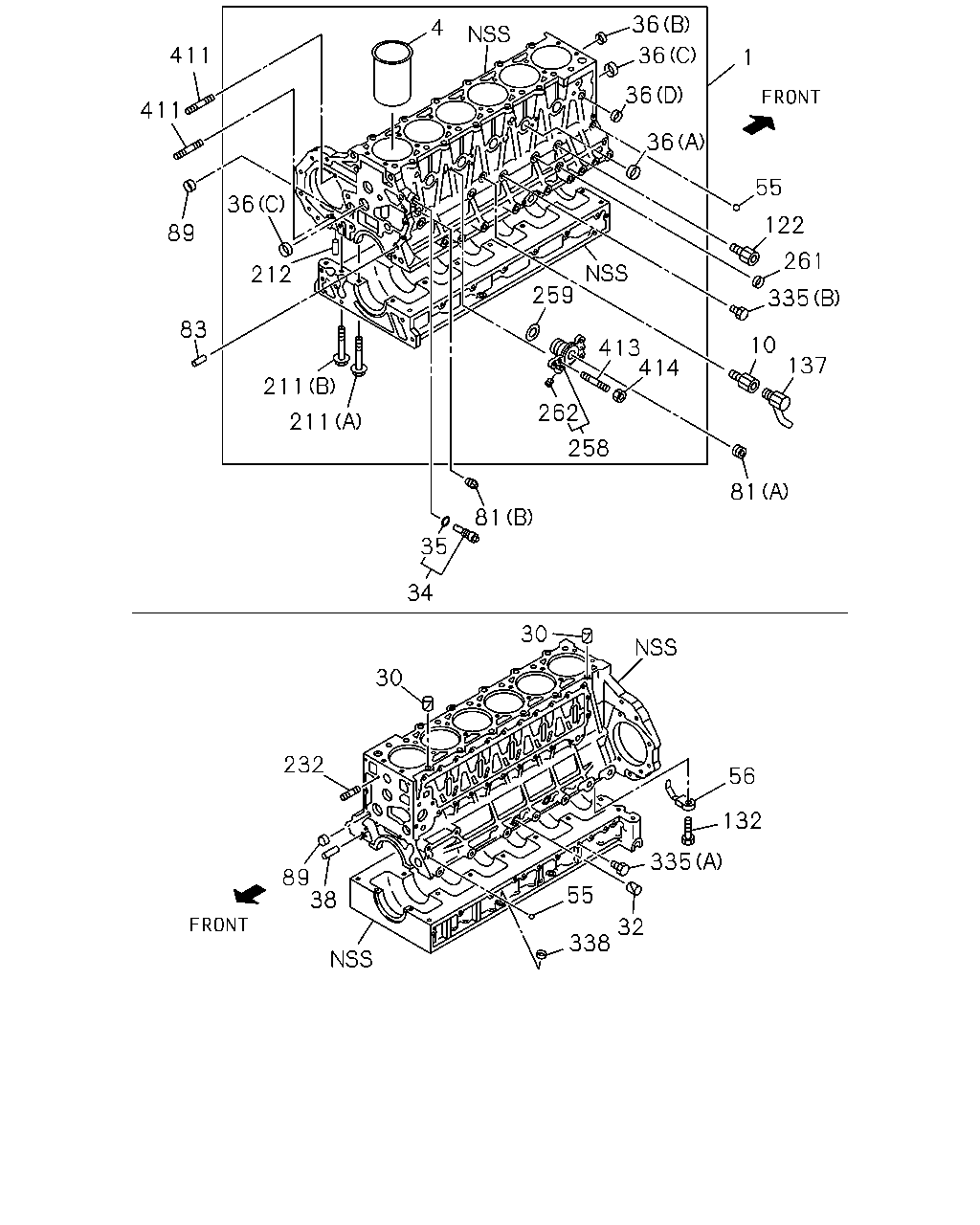

36 4 411 36 1 36 411 36 55 36 122 89 261 259 212 335 83 413 414 10 137 211 262 211 258 81 81 35 34 30 30 232 56 132 335 89 38 55 32 338

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL	8-97601-299-0	01	1	0005-0210	●
1	BLOCK ASM; CYL	8-97600-415-0	01	1	0005-0210			●
1	BLOCK ASM; CYL	8-97602-024-2	01	1	0211-0504		●
1	BLOCK ASM; CYL	8-98005-410-2	01	1	0505-1012		●
1	BLOCK ASM; CYL	8-98180-708-0	01	1	1101-1209		●
1	BLOCK ASM; CYL	8-98206-963-0	01	1	1210-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-1	06	1	0005-0210	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-1	06	1	0005-0210	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	0005-0210			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	0211-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	0005-0210			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	0211-		●
10	CONNECTOR; WATER DRAIN	8-94396-378-0	01	1	0005-0210	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0005-0210	●		●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0211-		●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0005-0210	●		●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0211-		●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0005-0210	●		●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0211-		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0005-0210	●		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0211-		●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	04	1	0005-0210	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	0211-		●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0005-0210	●		●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0211-		●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0005-0210	●		●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0211-		●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	0005-0210	●		●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	0211-0502		●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0503-		●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	0005-0210			●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0005-0210	●		●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0211-		●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	0005-0210	●		●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	0211-		●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0005-0210	●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0211-0703		●
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	0704-1007		●
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1008-		●
56	JET; OIL,PISTON COOLING	8-94399-187-0	06	1	0005-0210			●
81	PLUG; WATER JACKET (D) PT3/8	8-94397-338-0	01	1	0212-0212		●
81	PLUG; WATER JACKET (A) NPTF1-11 1/2	1-09605-065-1	01	1	0005-0210	●
81	PLUG; WATER JACKET (B) PT3/8	8-94397-338-0	01	1	0005-0210	●
81	PLUG; WATER JACKET (C) M14	8-94399-225-0	01	1	0005-0210			●
81	PLUG; WATER JACKET (C) M14	8-94399-225-0	01	1	0211-0703		●
81	PLUG; WATER JACKET (C) M14X16.5	8-97329-617-0	01	1	0704-		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0005-0210	●		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0211-0306		●
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	0005-0210	●		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	0211-0908		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	0909-		●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	0005-0210	●		●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	0211-		●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0005-0210	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0211-		●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	0005-0210			●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	0301-1012		●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	0005-0210	●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	0005-0210			●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	0211-0211		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0005-0210	●		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0211-0905		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	0906-		●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0005-0210	●		●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0211-		●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	0005-0210	●		●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	0211-0306		●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0307-		●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	0005-0210	●		●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	0211-0604		●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0605-		●
258	ADAPTER; BLOCK HTR	8-94395-868-0	01	1	0005-0210	●
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	0005-0210	●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	0005-0210	●		●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	0211-0307		●
262	PLUG; ADAPTER	1-13163-002-0	01	1	0005-0210	●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	02	1	0005-0210	●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	03	1	0211-0703		●
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	03	1	0704-		●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0005-0210	●		●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0211-0501		●
335	PLUG; C/BL,SIDE (A) M8X10	8-98003-416-0	01	1	0502-		●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	0005-0210			●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	0005-0210	●		●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	0211-		●
411	STUD; BRG CASE M10X36.5 L=48.5	8-94396-145-0	02	1	0005-0210	●
413	STUD; ADAPTER M8X30 L=41	9-04110-830-0	02	1	0005-0210	●
414	NUT; ADAPTER M8 FLANGE	0-91150-208-0	02	1	0005-0210	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
