Sayfa 0-11 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10827 - FTR(AUSTRALIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶

0-11 — CYLINDER HEAD (#9484) — 219 parça

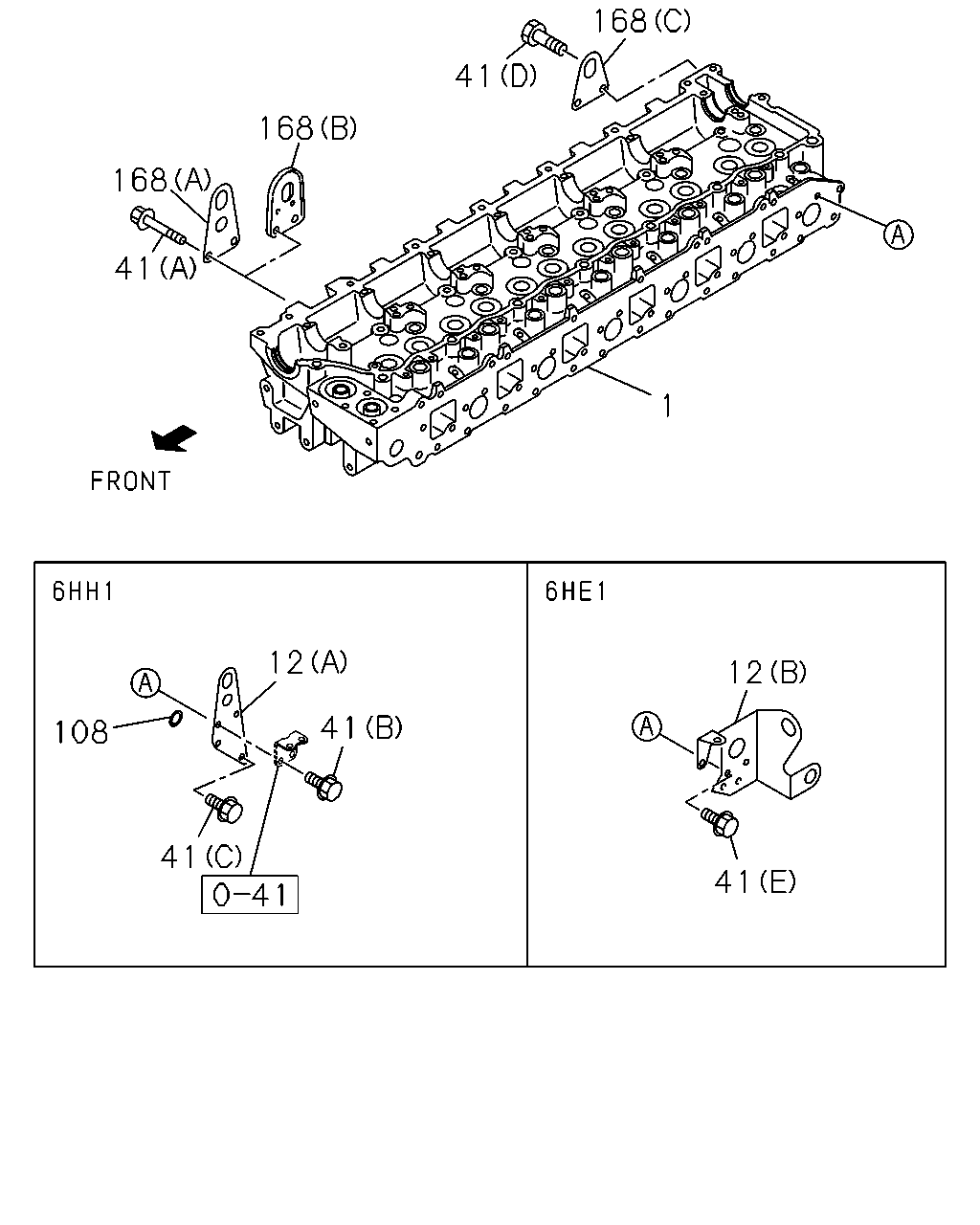

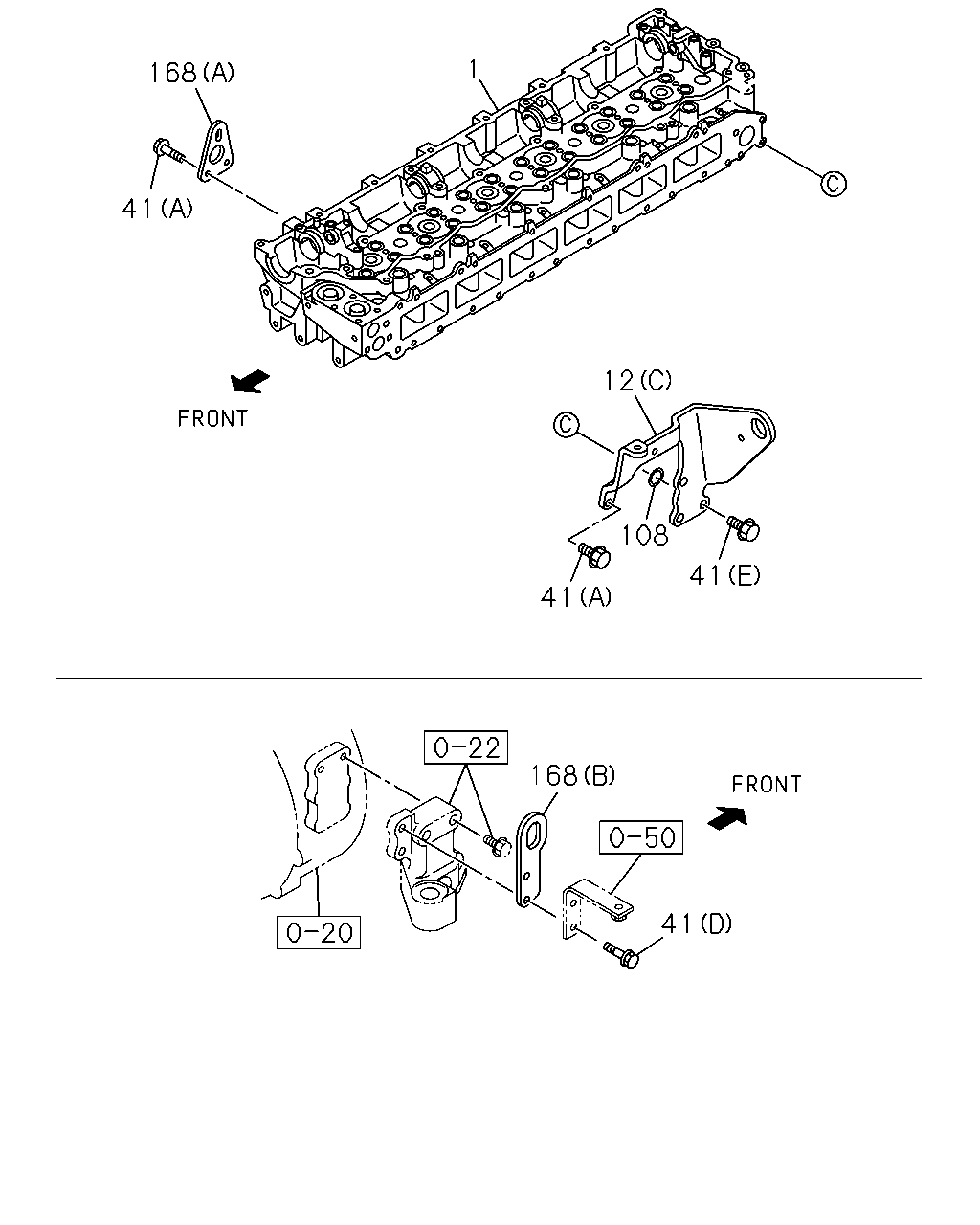

1 168 41 12 108 41 41 168 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HEAD ASM; CYL	8-94391-162-3	01	1	0005-0210	●
1	HEAD ASM; CYL	8-94392-449-9	01	1	0211-0211		●
1	HEAD ASM; CYL	8-97602-686-1	01	1	0212-0406		●
1	HEAD ASM; CYL	8-97605-004-2	01	1	0407-0507		●
1	HEAD ASM; CYL	8-97606-991-6	01	1	0508-1004		●
1	HEAD ASM; CYL	8-98170-622-0	01	1	1005-1012		●
1	HEAD ASM; CYL	8-98180-561-2	01	1	1101-1305		●
1	HEAD ASM; CYL	8-98243-815-0	01	1	1306-		●
1	HEAD ASM; CYL	8-94390-082-3	01	1	0005-0210			●
12	HANGER; ENG,RR (B)	8-94394-337-1	01	1	0005-0210	●
12	HANGER; ENG,RR (A)	8-94399-405-0	01	1	0005-0210			●
12	HANGER; ENG,RR (C)	8-94390-417-2	01	1	0211-		●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28181-020-0	03	1	0005-0210	●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28181-020-0	03	1	0211-0512		●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28151-020-0	03	1	0601-		●
41	BOLT; ENG HANGER (E) M12X22 FLANGE	0-28181-222-0	03	1	0005-0210	●
41	BOLT; ENG HANGER (E) M12X22 FLANGE	0-28181-222-0	03	1	0211-		●
41	BOLT; ENG HANGER (D) M10X25 FLANGE	0-28781-025-0	02	1	0005-0210	●
41	BOLT; ENG HANGER (D) M10X30 FLANGE	0-28181-030-0	02	1	0211-0512		●
41	BOLT; ENG HANGER (D) M10X30 FLANGE	0-28151-030-0	02	1	0601-		●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28181-020-0	02	1	0005-0210			●
41	BOLT; ENG HANGER (C) M12X22 FLANGE	0-28181-222-0	01	1	0005-0210			●
41	BOLT; ENG HANGER (B) M12X28 FLANGE	0-28181-228-0	02	1	0005-0210			●
108	GASKET; HANGER,RR ID=35.2	1-09623-375-0	01	1	0005-0210			●
108	GASKET; HANGER,RR ID=35.2	1-09623-375-0	01	1	0211-		●
168	HANGER; ENG,FRT (B)	8-94391-505-0	01	1	0005-0210	●
168	HANGER; ENG,FRT (C)	8-94394-398-0	01	1	0005-0210	●
168	HANGER; ENG,FRT (B)	8-94393-810-0	01	1	0211-		●
168	HANGER; ENG,FRT (A)	8-94399-403-0	01	1	0005-0210			●
168	HANGER; ENG,FRT (A)	8-94399-403-1	01	1	0211-		●

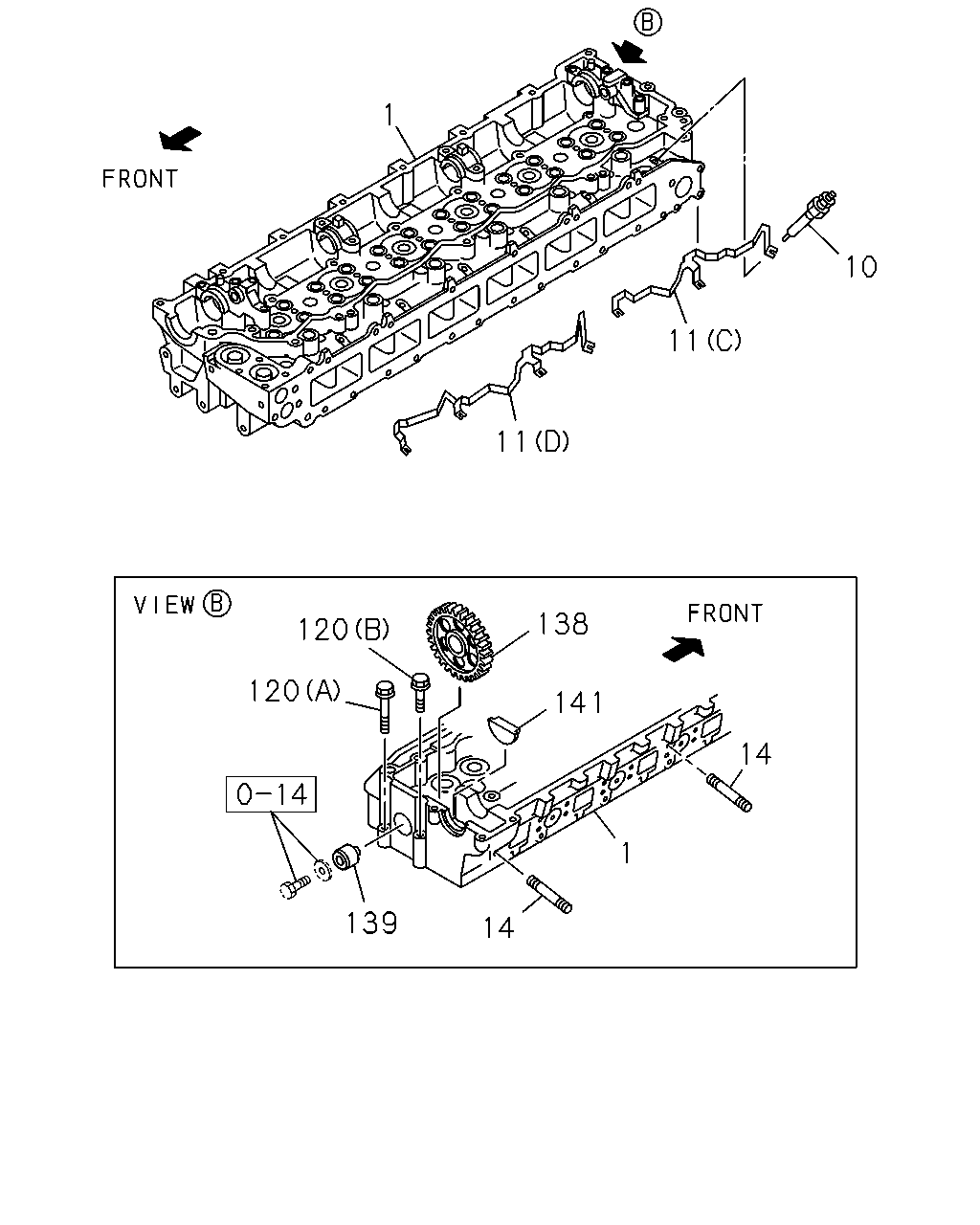

1 10 11 11 138 120 120 141 14 1 139 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HEAD ASM; CYL	8-94391-162-3	01	1	0005-0210	●
1	HEAD ASM; CYL	8-94392-449-9	01	1	0211-0211		●
1	HEAD ASM; CYL	8-97602-686-1	01	1	0212-0406		●
1	HEAD ASM; CYL	8-97605-004-2	01	1	0407-0507		●
1	HEAD ASM; CYL	8-97606-991-6	01	1	0508-1004		●
1	HEAD ASM; CYL	8-98170-622-0	01	1	1005-1012		●
1	HEAD ASM; CYL	8-98180-561-2	01	1	1101-1305		●
1	HEAD ASM; CYL	8-98243-815-0	01	1	1306-		●
1	HEAD ASM; CYL	8-94390-082-3	01	1	0005-0210			●
10	PLUG; GLOW	1-82513-043-1	06	1	0005-0210	●		●
10	PLUG; GLOW	8-94392-815-4	06	1	0211-		●
11	CONNECTOR; GLOW PLUG (A)	8-94399-608-2	01	1	0005-0206	●		●
11	CONNECTOR; GLOW PLUG (A)	8-97136-565-0	01	1	0207-0210	●		●
11	CONNECTOR; GLOW PLUG (D)	8-94392-843-1	01	1	0211-0804		●
11	CONNECTOR; GLOW PLUG (C)	8-98040-649-0	01	1	0805-		●
11	CONNECTOR; GLOW PLUG (B)	8-94399-631-3	01	1	0005-0210	●		●
11	CONNECTOR; GLOW PLUG (C)	8-94391-925-3	01	1	0211-0804		●
11	CONNECTOR; GLOW PLUG (D)	8-98040-648-0	01	1	0805-		●
14	STUD; EXH MANIF M10X60 L=75	8-94397-286-0	12	1	0005-0210	●		●
14	STUD; EXH MANIF M10X60 L=75	8-94397-286-0	12	1	0211-		●
120	BOLT; CYL HD TO HSG (A) M10X73	8-94399-554-0	01	1	0005-0210	●		●
120	BOLT; CYL HD TO HSG (A) M10X73	8-94399-554-0	01	1	0211-		●
120	BOLT; CYL HD TO HSG (B) M10X43	8-94399-555-0	01	1	0005-0210	●		●
120	BOLT; CYL HD TO HSG (B) M10X43	8-94399-555-0	01	1	0211-		●
138	GEAR; IDLE Z=41	8-97112-607-0	01	1	0005-0210	●		●
138	GEAR; IDLE Z=41	8-97112-607-1	01	1	0211-		●
139	SHAFT; IDLE GEAR	8-97186-398-0	01	1	0005-0210	●		●
139	SHAFT; IDLE GEAR	8-97186-398-1	01	1	0211-		●
141	PLUG; RUBBER,CYL HD	8-94399-605-0	02	1	0005-0210	●		●
141	PLUG; RUBBER,CYL HD	8-94399-605-0	02	1	0211-1005		●
141	PLUG; RUBBER,CYL HD	8-98163-813-0	02	1	1006-		●

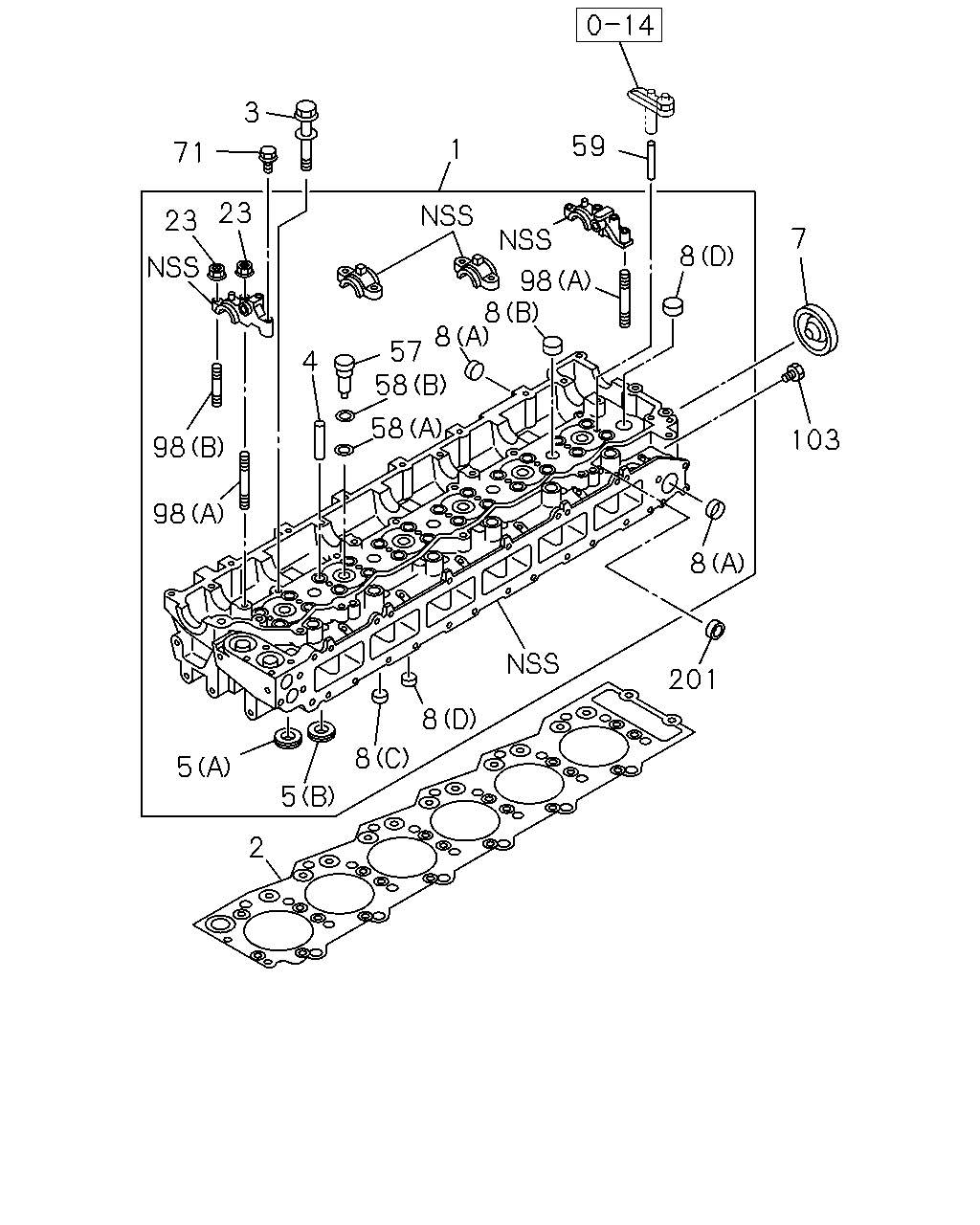

3 59 1 71 23 23 7 8 98 8 8 57 58 4 58 103 98 98 8 201 8 8 5 5 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HEAD ASM; CYL	8-94391-162-3	01	1	0005-0210	●
1	HEAD ASM; CYL	8-94392-449-9	01	1	0211-0211		●
1	HEAD ASM; CYL	8-97602-686-1	01	1	0212-0406		●
1	HEAD ASM; CYL	8-97605-004-2	01	1	0407-0507		●
1	HEAD ASM; CYL	8-97606-991-6	01	1	0508-1004		●
1	HEAD ASM; CYL	8-98170-622-0	01	1	1005-1012		●
1	HEAD ASM; CYL	8-98180-561-2	01	1	1101-1305		●
1	HEAD ASM; CYL	8-98243-815-0	01	1	1306-		●
1	HEAD ASM; CYL	8-94390-082-3	01	1	0005-0210			●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94395-447-1	01	1	0005-0210	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-787-4	01	1	0211-0407		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97605-228-0	01	1	0408-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-346-2	01	1	0005-0210			●
3	BOLT; CYL HD TO BLOCK M14X115 W/FLANGE	8-94396-207-3	26	1	0005-0210	●		●
3	BOLT; CYL HD TO BLOCK M14X115 W/FLANGE	8-94396-207-3	26	1	0211-0901		●
3	BOLT; CYL HD TO BLOCK M14X115 W/FLANGE	8-97077-638-0	26	1	0902-1407		●
3	BOLT; CYL HD TO BLOCK	8-98260-005-0	26	1	1408-		●
4	GUIDE; VLV	8-94396-598-0	12	1	0005-0210	●		●
4	GUIDE; VLV L=57	8-94390-780-0	24	1	0211-0707		●
4	GUIDE; VLV L=57	8-97376-719-2	24	1	0708-		●
5	SEAT; VLV INSERT (B) INLET OD=48	8-94394-462-0	06	1	0005-0210	●
5	SEAT; VLV INSERT (B) INLET OD=38	8-94395-888-2	12	1	0211-		●
5	SEAT; VLV INSERT (A) EXHAUST OD=43	8-94396-172-0	06	1	0005-0210	●		●
5	SEAT; VLV INSERT (A) EXHAUST OD=38	8-97216-511-0	12	1	0211-0703		●
5	SEAT; VLV INSERT (A) EXHAUST ID=31 OD=38	8-98028-875-0	12	1	0704-		●
5	SEAT; VLV INSERT (B) INLET OD=52	8-94394-127-0	06	1	0005-0210			●
7	CUP; SEALING,CYL HEAD OD=51	8-94396-229-0	01	1	0005-0210	●		●
7	CUP; SEALING,CYL HEAD OD=51	8-94396-229-0	01	1	0211-0303		●
7	CUP; SEALING,CYL HEAD OD=51	8-97096-826-0	01	1	0304-		●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	17	1	0005-0210	●		●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-2	06	1	0211-		●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	03	1	0005-0210	●		●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	06	1	0211-		●
8	CUP; SEALING,WATER JACKET (C) OD=12.3	5-09600-013-0	06	1	0005-0210	●		●
8	CUP; SEALING,WATER JACKET (C) OD=16	5-11129-006-0	07	1	0211-		●
8	CUP; SEALING,WATER JACKET (D) OD=20	9-11129-128-0	11	1	0211-		●
23	NUT; CAM BRKT M8 FLANGE	0-91150-208-0	08	1	0005-0210	●		●
23	NUT; CAM BRKT M8 FLANGE	0-91150-208-0	08	1	0211-0602		●
23	NUT; CAM BRKT M8 FLANGE	0-91180-208-0	08	1	0603-		●
57	SLEEVE; NOZZLE HOLDER	8-97602-301-1	06	1	0211-0507		●
57	SLEEVE; NOZZLE HOLDER	8-97606-661-0	06	1	0508-		●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=26.2	8-98004-187-0	06	1	0508-		●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=27	1-09623-355-0	06	1	0211-0406		●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=26.4	8-97604-916-0	06	1	0407-		●
59	GUIDE; BRIDGE	8-94395-889-1	12	1	0211-0409		●
59	GUIDE; BRIDGE	8-97381-603-1	12	1	0410-		●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28080-835-0	02	1	0005-0210	●		●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28080-835-0	02	1	0211-0512		●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28050-835-0	02	1	0601-		●
98	STUD; CAM BRKT (A) M8X54 L=79	8-94322-512-2	02	1	0005-0210	●		●
98	STUD; CAM BRKT (A) M8X54 L=79	8-94322-512-2	02	1	0211-		●
98	STUD; CAM BRKT (B) M8X41 L=66	8-94322-513-2	06	1	0005-0210	●		●
98	STUD; CAM BRKT (B) M8X41 L=66	8-94322-513-2	06	1	0211-		●
103	PLUG; HD M8X6	8-94399-421-0	01	1	0211-0501		●
103	PLUG; HD M8X10	8-98003-416-0	01	1	0502-		●
201	GASKET; SLEEVE,INJ PUMP ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09639-034-0	06	1	0211-		●

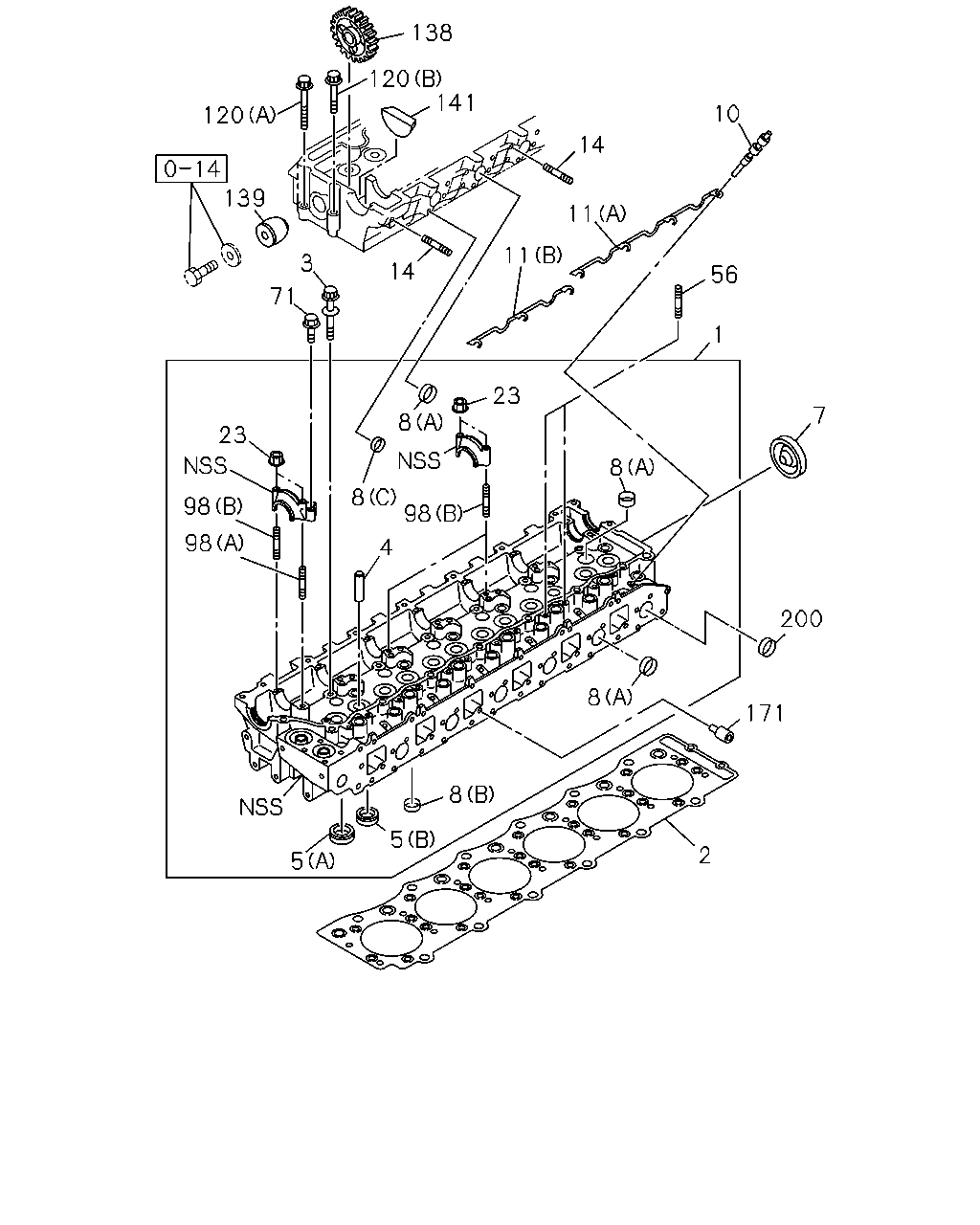

138 120 141 10 120 14 139 11 11 3 14 56 71 1 23 7 8 23 8 8 98 98 98 4 200 8 171 8 5 2 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HEAD ASM; CYL	8-94391-162-3	01	1	0005-0210	●
1	HEAD ASM; CYL	8-94392-449-9	01	1	0211-0211		●
1	HEAD ASM; CYL	8-97602-686-1	01	1	0212-0406		●
1	HEAD ASM; CYL	8-97605-004-2	01	1	0407-0507		●
1	HEAD ASM; CYL	8-97606-991-6	01	1	0508-1004		●
1	HEAD ASM; CYL	8-98170-622-0	01	1	1005-1012		●
1	HEAD ASM; CYL	8-98180-561-2	01	1	1101-1305		●
1	HEAD ASM; CYL	8-98243-815-0	01	1	1306-		●
1	HEAD ASM; CYL	8-94390-082-3	01	1	0005-0210			●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94395-447-1	01	1	0005-0210	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-787-4	01	1	0211-0407		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97605-228-0	01	1	0408-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-346-2	01	1	0005-0210			●
3	BOLT; CYL HD TO BLOCK M14X115 W/FLANGE	8-94396-207-3	26	1	0005-0210	●		●
3	BOLT; CYL HD TO BLOCK M14X115 W/FLANGE	8-94396-207-3	26	1	0211-0901		●
3	BOLT; CYL HD TO BLOCK M14X115 W/FLANGE	8-97077-638-0	26	1	0902-1407		●
3	BOLT; CYL HD TO BLOCK	8-98260-005-0	26	1	1408-		●
4	GUIDE; VLV	8-94396-598-0	12	1	0005-0210	●		●
4	GUIDE; VLV L=57	8-94390-780-0	24	1	0211-0707		●
4	GUIDE; VLV L=57	8-97376-719-2	24	1	0708-		●
5	SEAT; VLV INSERT (B) INLET OD=48	8-94394-462-0	06	1	0005-0210	●
5	SEAT; VLV INSERT (B) INLET OD=38	8-94395-888-2	12	1	0211-		●
5	SEAT; VLV INSERT (A) EXHAUST OD=43	8-94396-172-0	06	1	0005-0210	●		●
5	SEAT; VLV INSERT (A) EXHAUST OD=38	8-97216-511-0	12	1	0211-0703		●
5	SEAT; VLV INSERT (A) EXHAUST ID=31 OD=38	8-98028-875-0	12	1	0704-		●
5	SEAT; VLV INSERT (B) INLET OD=52	8-94394-127-0	06	1	0005-0210			●
7	CUP; SEALING,CYL HEAD OD=51	8-94396-229-0	01	1	0005-0210	●		●
7	CUP; SEALING,CYL HEAD OD=51	8-94396-229-0	01	1	0211-0303		●
7	CUP; SEALING,CYL HEAD OD=51	8-97096-826-0	01	1	0304-		●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	17	1	0005-0210	●		●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-2	06	1	0211-		●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	03	1	0005-0210	●		●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	06	1	0211-		●
8	CUP; SEALING,WATER JACKET (C) OD=12.3	5-09600-013-0	06	1	0005-0210	●		●
8	CUP; SEALING,WATER JACKET (C) OD=16	5-11129-006-0	07	1	0211-		●
8	CUP; SEALING,WATER JACKET (D) OD=20	9-11129-128-0	11	1	0211-		●
10	PLUG; GLOW	1-82513-043-1	06	1	0005-0210	●		●
10	PLUG; GLOW	8-94392-815-4	06	1	0211-		●
11	CONNECTOR; GLOW PLUG (A)	8-94399-608-2	01	1	0005-0206	●		●
11	CONNECTOR; GLOW PLUG (A)	8-97136-565-0	01	1	0207-0210	●		●
11	CONNECTOR; GLOW PLUG (D)	8-94392-843-1	01	1	0211-0804		●
11	CONNECTOR; GLOW PLUG (C)	8-98040-649-0	01	1	0805-		●
11	CONNECTOR; GLOW PLUG (B)	8-94399-631-3	01	1	0005-0210	●		●
11	CONNECTOR; GLOW PLUG (C)	8-94391-925-3	01	1	0211-0804		●
11	CONNECTOR; GLOW PLUG (D)	8-98040-648-0	01	1	0805-		●
14	STUD; EXH MANIF M10X60 L=75	8-94397-286-0	12	1	0005-0210	●		●
14	STUD; EXH MANIF M10X60 L=75	8-94397-286-0	12	1	0211-		●
23	NUT; CAM BRKT M8 FLANGE	0-91150-208-0	08	1	0005-0210	●		●
23	NUT; CAM BRKT M8 FLANGE	0-91150-208-0	08	1	0211-0602		●
23	NUT; CAM BRKT M8 FLANGE	0-91180-208-0	08	1	0603-		●
56	STUD; NOZZLE HOLDER M8X66 L=90	1-09300-014-0	12	1	0005-0210	●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28080-835-0	02	1	0005-0210	●		●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28080-835-0	02	1	0211-0512		●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28050-835-0	02	1	0601-		●
98	STUD; CAM BRKT (A) M8X54 L=79	8-94322-512-2	02	1	0005-0210	●		●
98	STUD; CAM BRKT (A) M8X54 L=79	8-94322-512-2	02	1	0211-		●
98	STUD; CAM BRKT (B) M8X41 L=66	8-94322-513-2	06	1	0005-0210	●		●
98	STUD; CAM BRKT (B) M8X41 L=66	8-94322-513-2	06	1	0211-		●
120	BOLT; CYL HD TO HSG (A) M10X73	8-94399-554-0	01	1	0005-0210	●		●
120	BOLT; CYL HD TO HSG (A) M10X73	8-94399-554-0	01	1	0211-		●
120	BOLT; CYL HD TO HSG (B) M10X43	8-94399-555-0	01	1	0005-0210	●		●
120	BOLT; CYL HD TO HSG (B) M10X43	8-94399-555-0	01	1	0211-		●
138	GEAR; IDLE Z=41	8-97112-607-0	01	1	0005-0210	●		●
138	GEAR; IDLE Z=41	8-97112-607-1	01	1	0211-		●
139	SHAFT; IDLE GEAR	8-97186-398-0	01	1	0005-0210	●		●
139	SHAFT; IDLE GEAR	8-97186-398-1	01	1	0211-		●
141	PLUG; RUBBER,CYL HD	8-94399-605-0	02	1	0005-0210	●		●
141	PLUG; RUBBER,CYL HD	8-94399-605-0	02	1	0211-1005		●
141	PLUG; RUBBER,CYL HD	8-98163-813-0	02	1	1006-		●
171	SEAT; VLV	8-94394-678-1	06	1	0005-0210	●
171	SEAT; VLV ID=5.5 L=35 YELLOW	8-94395-210-0	06	1	0005-0210			●
200	CUP; SEALING,INLET MANIFOLD OD=32	1-09600-012-1	01	1	0005-0210	●

168 41 168 168 41 1 12 12 41 108 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HEAD ASM; CYL	8-94391-162-3	01	1	0005-0210	●
1	HEAD ASM; CYL	8-94392-449-9	01	1	0211-0211		●
1	HEAD ASM; CYL	8-97602-686-1	01	1	0212-0406		●
1	HEAD ASM; CYL	8-97605-004-2	01	1	0407-0507		●
1	HEAD ASM; CYL	8-97606-991-6	01	1	0508-1004		●
1	HEAD ASM; CYL	8-98170-622-0	01	1	1005-1012		●
1	HEAD ASM; CYL	8-98180-561-2	01	1	1101-1305		●
1	HEAD ASM; CYL	8-98243-815-0	01	1	1306-		●
1	HEAD ASM; CYL	8-94390-082-3	01	1	0005-0210			●
12	HANGER; ENG,RR (B)	8-94394-337-1	01	1	0005-0210	●
12	HANGER; ENG,RR (A)	8-94399-405-0	01	1	0005-0210			●
12	HANGER; ENG,RR (C)	8-94390-417-2	01	1	0211-		●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28181-020-0	03	1	0005-0210	●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28181-020-0	03	1	0211-0512		●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28151-020-0	03	1	0601-		●
41	BOLT; ENG HANGER (E) M12X22 FLANGE	0-28181-222-0	03	1	0005-0210	●
41	BOLT; ENG HANGER (E) M12X22 FLANGE	0-28181-222-0	03	1	0211-		●
41	BOLT; ENG HANGER (D) M10X25 FLANGE	0-28781-025-0	02	1	0005-0210	●
41	BOLT; ENG HANGER (D) M10X30 FLANGE	0-28181-030-0	02	1	0211-0512		●
41	BOLT; ENG HANGER (D) M10X30 FLANGE	0-28151-030-0	02	1	0601-		●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28181-020-0	02	1	0005-0210			●
41	BOLT; ENG HANGER (C) M12X22 FLANGE	0-28181-222-0	01	1	0005-0210			●
41	BOLT; ENG HANGER (B) M12X28 FLANGE	0-28181-228-0	02	1	0005-0210			●
108	GASKET; HANGER,RR ID=35.2	1-09623-375-0	01	1	0005-0210			●
108	GASKET; HANGER,RR ID=35.2	1-09623-375-0	01	1	0211-		●
168	HANGER; ENG,FRT (B)	8-94391-505-0	01	1	0005-0210	●
168	HANGER; ENG,FRT (C)	8-94394-398-0	01	1	0005-0210	●
168	HANGER; ENG,FRT (B)	8-94393-810-0	01	1	0211-		●
168	HANGER; ENG,FRT (A)	8-94399-403-0	01	1	0005-0210			●
168	HANGER; ENG,FRT (A)	8-94399-403-1	01	1	0211-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
