◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10826 - FRR/FSR/FRD(AUST) ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#9480) — 251 parça

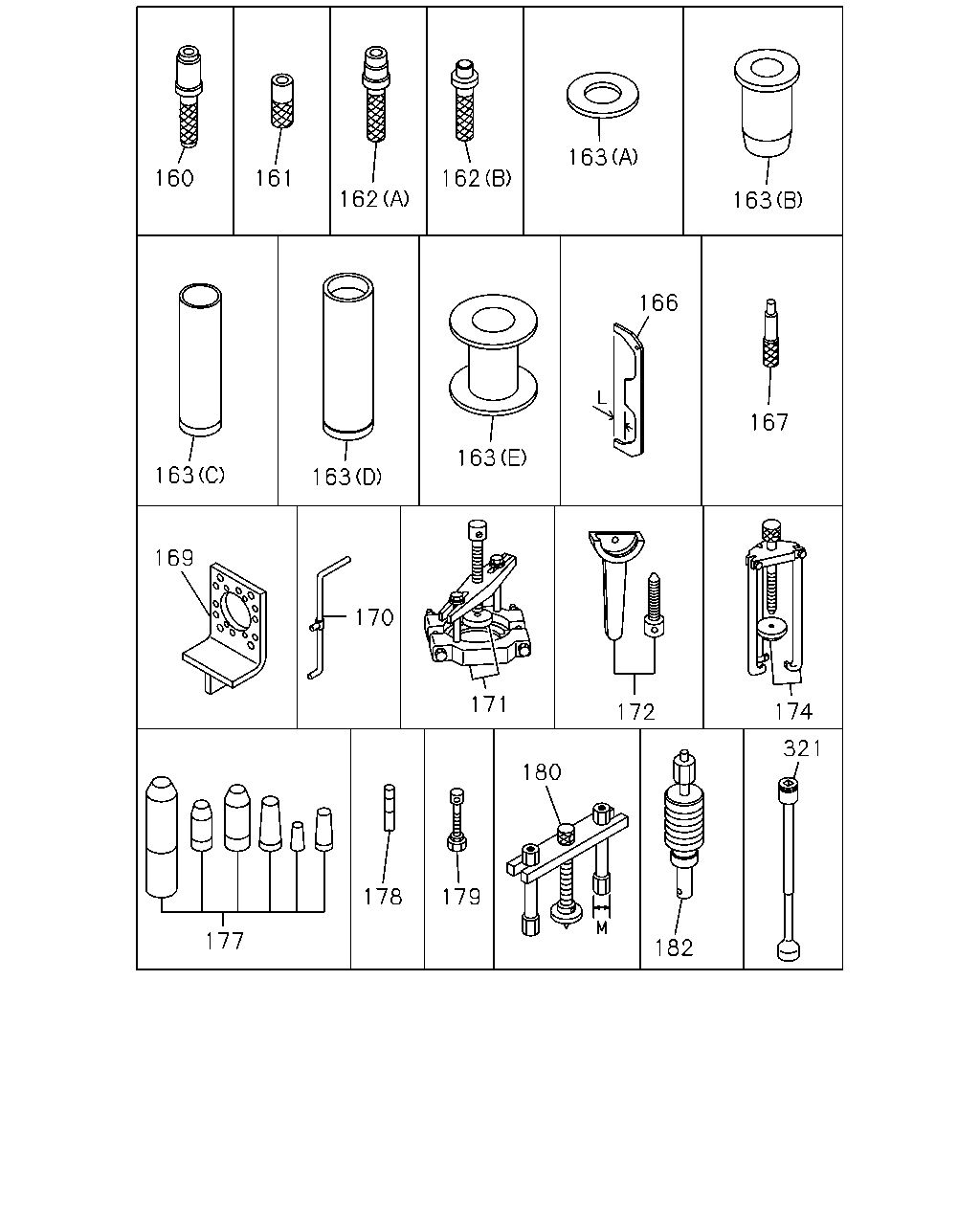

çizim 38570
160 161 162 162 163 163 163 163 163 166 167 169 170 171 172 174 177 178 179 182 321 180
BalonParca AdiParca NoAdetTipApplied Date A B C D
160 REMOVER; NEEDLE BRG
L=215 		1-85238-007-0 01 1 0005-0210 ● ● ●
161 REMOVER; TIE ROD ARM 9-85141-603-0 01 1 0005-0210 ● ● ●
162 SETTING TOOL; NEEDLE BRG
(A) L=200 		1-85238-005-0 01 1 0005-0210 ● ● ●
162 SETTING TOOL; NEEDLE BRG
(B) L=175 		1-85238-006-0 01 1 0005-0210 ● ● ●
163 TOOL; SETTING
MBJ6 M/T<Y9B> (D) L=220 		9-85221-323-0 01 1 0005-0210 ● ●
163 TOOL; SETTING
(D) L=220 		9-85221-323-0 01 1 0005-0210 ●
163 TOOL; SETTING
MLD6 M/T<X9Y>,MBJ6 M/T<Y9B> (A) OD=120 		1-85221-164-0 01 1 0005-0210 ● ●
163 TOOL; SETTING
(A) OD=120 		1-85221-164-0 01 1 0005-0210 ●
163 TOOL; SETTING
MLD6 M/T<X9Y>,MBJ6 M/T<Y9B> (B) L=150 		9-85221-248-0 01 1 0005-0210 ● ●
163 TOOL; SETTING
(B) L=150 		9-85221-248-0 01 1 0005-0210 ●
163 TOOL; SETTING
MLD6 M/T<X9Y>,MBJ6 M/T<Y9B> (C) L=350 		9-85221-310-0 01 1 0005-0210 ● ●
163 TOOL; SETTING
(C) L=350 		9-85221-310-0 01 1 0005-0210 ●
163 TOOL; SETTING
MLD6Q M/T(X5J) (D) L=195 		1-85221-162-1 01 1 0005-0210 ● ●
163 TOOL; SETTING
MLD6Q M/T(X5J) (E) L=150 		1-85221-163-0 01 1 0005-0210 ● ●
166 ALIGNER; CLU RELEASE LEVER
MBJ6T M/T(Y2A) 14" CLUTCH(WF6) 		1-85253-011-0 01 1 0005-0210 ● ●
166 ALIGNER; CLU RELEASE LEVER 1-85253-011-0 01 1 0005-0210 ●
166 ALIGNER; CLU RELEASE LEVER
14" CLUTCH(WF6) MBJ6 M/T<Y9B> 		1-85253-023-0 01 1 0005-0210 ● ●
166 ALIGNER; CLU RELEASE LEVER 1-85253-023-0 01 1 0005-0210 ●
167 ALIGNER; CLU PILOT
14" CLUTCH(WF6) ISUZU M/T<X9A> L=185 		1-85253-008-0 01 1 0005-0210 ●
167 ALIGNER; CLU PILOT
L=185 		1-85253-008-0 01 1 0005-0210 ●
167 ALIGNER; CLU PILOT
14" CLUTCH(WF6) L=185 		1-85253-008-0 01 1 0005-0210 ●
167 ALIGNER; CLU PILOT
14" CLUTCH(WF6) L=185 		1-85253-012-0 01 1 0211-0411 ● ●
167 ALIGNER; CLU PILOT
14" CLUTCH(WF6) ISUZU M/T<X9A> L=185 		1-85253-012-0 01 1 0412- ●
167 ALIGNER; CLU PILOT
14" CLUTCH(WF6) L=185 		1-85253-012-0 01 1 0412- ●
167 ALIGNER; CLU PILOT
L=185 		1-85253-012-0 01 1 0412- ●
169 BRACKET; SPLINE YOKE 9-85221-243-1 01 1 0005-0210 ● ● ●
170 HANDLE; TURNING,FINAL 9-85251-121-0 01 1 0005-0210 ● ● ●
171 PULLER ASM; PINION BRG 9-85210-172-0 01 1 0005-0210 ● ● ●
172 PULLER ASM; BRG DIFF PILOT 9-85210-173-0 01 1 0005-0210 ● ● ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0005-0210 ● ● ●
174 PULLER ASM; MAIN CLU SHAFT
ISUZU M/T<X9A> 		9-85210-148-0 01 1 0211-0306 ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0211-0306 ● ●
174 PULLER ASM; MAIN CLU SHAFT
ISUZU M/T<X9A>,FULLER M/T<X9B> 		9-85210-148-0 01 1 0307-0411 ● ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0307-0411 ●
174 PULLER ASM; MAIN CLU SHAFT
ISUZU M/T<X9A>,FULLER M/T<X9B> 		9-85210-148-0 01 1 0412- ● ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0412- ● ●
177 SETTING TOOL KIT 9-85220-040-0 01 1 0005-0210 ● ● ●
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 0005-0411 ● ● ●
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 0412- ● ● ● ●
179 PULLER; SPD METER GEAR 9-85210-181-0 01 1 0005-0210 ● ● ●
180 PULLER; FRT & RR HUB
M20 		9-85210-187-0 01 1 0005-0210 ● ● ●
180 PULLER; FRT & RR HUB
M24 		1-85210-057-0 01 1 0005-0210 ● ●
182 REMOVER ASM 9-85210-095-0 01 1 0005-0210 ● ● ●
321 SOCKET; PROP SHAFT
6HE1 TC ENG(57L) L=300 		1-85115-024-0 01 1 0005-0210 ●
321 SOCKET; PROP SHAFT
L=300 		1-85115-024-0 01 1 0005-0210 ●
321 SOCKET; PROP SHAFT
6HH1 STD ENG(65L),6HH1 N ENG(66L) L=250 		1-85115-023-0 01 1 0005-0210 ● ●
321 SOCKET; PROP SHAFT
L=250 		1-85115-023-0 01 1 0211-0411 ● ●
321 SOCKET; PROP SHAFT
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) L=250 		1-85115-023-0 01 1 0412- ● ●
321 SOCKET; PROP SHAFT
6HK1 TCN ENG(82L) L=250 		1-85115-023-0 01 1 0412- ●

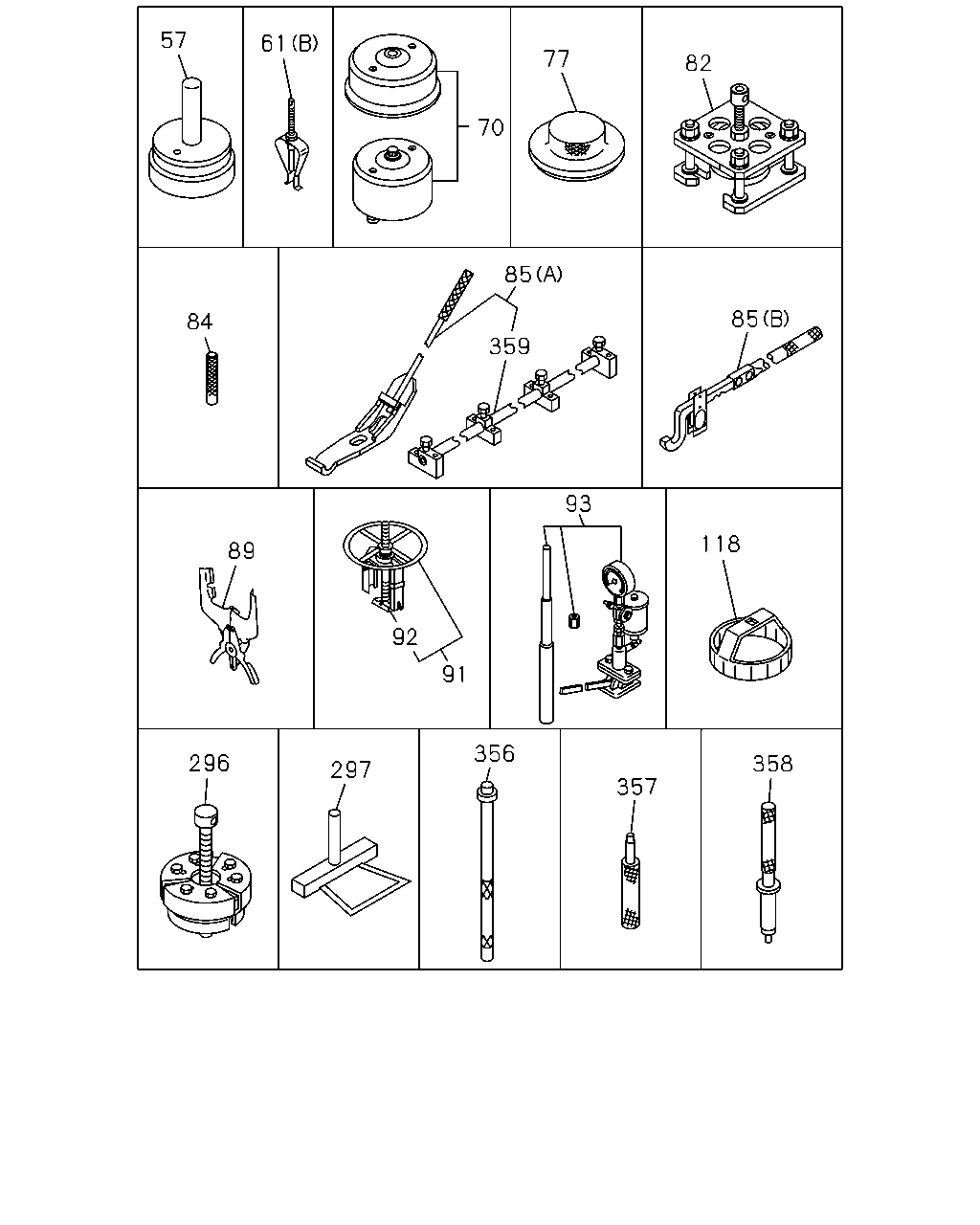

çizim 38588
57 61 70 77 82 84 359 85 85 89 92 91 93 118 296 297 356 357 358
BalonParca AdiParca NoAdetTipApplied Date A B C D
57 TOOL; SETTING CRANK GEAR
ID=134.5 		8-94396-819-0 01 1 0005-0210 ● ● ●
61 PULLER ASM; PILOT BRG
(A) 		1-85210-050-0 01 1 0005-0411 ● ● ●
61 PULLER ASM; PILOT BRG
(A) 		1-85210-050-0 01 1 0412- ● ● ● ●
61 PULLER ASM; PILOT BRG
(B) 		9-85210-157-0 01 1 0005-0210 ● ● ●
70 TOOL; SETTING,OIL SEAL 8-94396-856-0 01 1 0005-0210 ● ● ●
77 TOOL; SETTING,CYL LINER
6HE1 TC ENG(57L) 		8-94396-816-0 01 1 0005-0210 ● ●
82 PULLER ASM; CR/SHF GEAR 8-94396-818-0 01 1 0005-0210 ● ● ●
84 REPLACER; VALVE SEAL
ID=15.9 		8-94396-815-0 01 1 0005-0210 ● ● ●
85 REPLACER ASM; VALVE SPR
(A) 		8-94396-861-0 01 1 0005-0210 ● ● ●
85 REPLACER ASM; VALVE SPR
(B) 		8-94391-528-0 01 1 0211-0411 ● ● ●
85 REPLACER ASM; VALVE SPR
(B) 		8-94391-528-0 01 1 0412- ● ● ● ●
89 TOOL; PISTON RING 1-85221-029-0 01 1 0005-0210 ● ● ●
91 REPLACER ASM; CYL LINER 8-94396-849-0 01 1 0005-0210 ● ● ●
92 ANKLE; REPLACER,CYL LINER 8-94396-821-0 01 1 0005-0210 ● ● ●
93 SETTING KIT; VALVE GUIDE 1-85220-001-0 01 1 0005-0210 ● ● ●
118 WRENCH; OIL FILTER 1-85221-097-0 01 1 0005-0210 ● ● ●
296 REPLACER; SLINGER 8-94396-858-0 01 1 0005-0210 ● ● ●
297 CUTTER; SEAL,OIL PAN 8-94393-112-0 01 1 0005-0210 ● ● ●
356 TOOL; SETTING,OIL SEAL,CYL HEAD 8-94391-527-0 01 1 0211-0411 ● ● ●
356 TOOL; SETTING,OIL SEAL,CYL HEAD 8-94391-527-0 01 1 0412- ● ● ● ●
357 REPLACER; NOZZLE SLEEVE 8-94391-555-0 01 1 0211-0411 ● ● ●
357 REPLACER; NOZZLE SLEEVE 8-94391-555-0 01 1 0412- ● ● ● ●
358 PLACER; NOZZLE SLEEVE 8-94391-556-0 01 1 0211-0411 ● ● ●
358 PLACER; NOZZLE SLEEVE 8-94391-556-0 01 1 0412- ● ● ● ●
359 PIVOT 8-94396-862-0 01 1 0211-0411 ● ● ●
359 PIVOT 8-94396-862-0 01 1 0412- ● ● ● ●

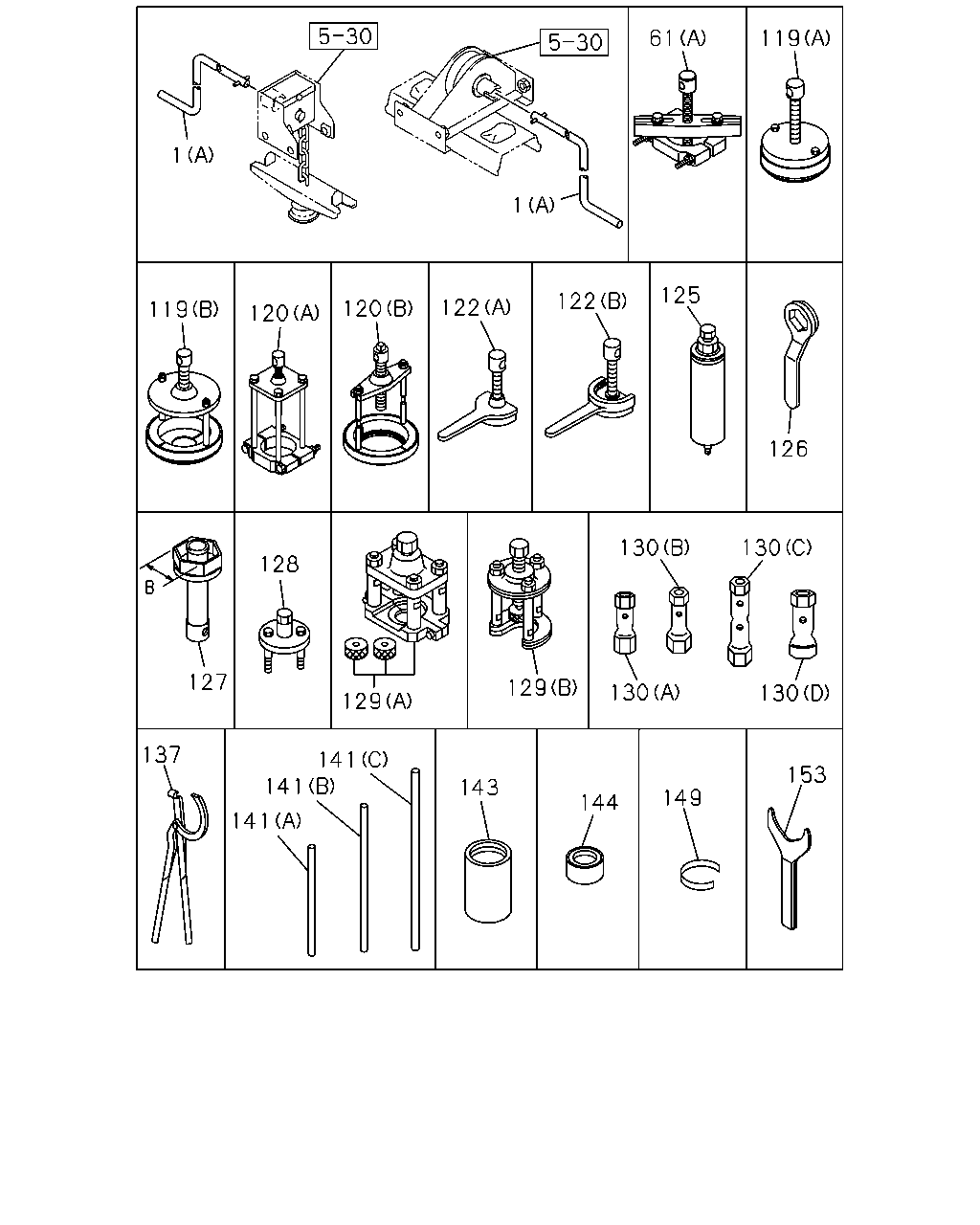

çizim 38590
61 119 1 1 125 122 122 120 119 120 126 130 130 128 127 129 130 130 129 137 141 141 153 143 149 144 141
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HANDLE; SPARE TIRE CARRIER
(B) L=280 		1-85515-007-0 01 1 0005-0208 ● ●
1 HANDLE; SPARE TIRE CARRIER
TOOL A KIT<SK9>,TOOL B KIT<SL1> (B) L=280 		1-85515-007-0 01 1 0209-0411 ● ●
1 HANDLE; SPARE TIRE CARRIER
TOOL A KIT<SK9>,TOOL B KIT<SL1> (B) L=280 		1-85515-007-0 01 1 0412-1107 ● ●
1 HANDLE; SPARE TIRE CARRIER
TOOL B KIT<SL1> (B) L=280 		1-85515-007-0 01 1 0412-1107 ●
1 HANDLE; SPARE TIRE CARRIER
TOOL A KIT<SK9>,TOOL B KIT<SL1> (B) L=280 		8-98181-251-0 01 1 1108- ● ●
1 HANDLE; SPARE TIRE CARRIER
TOOL B KIT<SL1> (B) L=280 		8-98181-251-0 01 1 1108- ●
1 HANDLE; SPARE TIRE CARRIER
(A) 		9-23110-018-0 01 1 0005- ●
61 PULLER ASM; PILOT BRG
(A) 		1-85210-050-0 01 1 0005-0411 ● ● ●
61 PULLER ASM; PILOT BRG
(A) 		1-85210-050-0 01 1 0412- ● ● ● ●
61 PULLER ASM; PILOT BRG
(B) 		9-85210-157-0 01 1 0005-0210 ● ● ●
119 PULLER ASM; TOP GEAR BRG
MLD6 M/T<X9Y>,MBJ6 M/T<Y9B> (A) 		9-85210-186-0 01 1 0005-0210 ● ●
119 PULLER ASM; TOP GEAR BRG
(A) 		9-85210-186-0 01 1 0005-0210 ●
119 PULLER ASM; TOP GEAR BRG
MLD6Q M/T(X5J) (B) 		9-85210-185-0 01 1 0005-0210 ● ●
120 PULLER ASM; MAIN REAR BRG
MBJ6 M/T<Y9B> (A) 		9-85210-169-0 01 1 0005-0210 ● ●
120 PULLER ASM; MAIN REAR BRG
(A) 		9-85210-169-0 01 1 0005-0210 ●
120 PULLER ASM; MAIN REAR BRG
MLD6Q M/T(X5J) (B) 		9-85210-192-0 01 1 0005-0210 ● ●
122 PULLER ASM; COUNTER FRT
MBJ6 M/T<Y9B> (A) 		9-85210-168-0 01 1 0005-0210 ● ●
122 PULLER ASM; COUNTER FRT
(A) 		9-85210-168-0 01 1 0005-0210 ●
122 PULLER ASM; COUNTER FRT
MLD6Q M/T(X5J) (B) 		9-85210-129-1 01 1 0005-0210 ● ●
125 PULLER ASM; KING PIN
L=360 		9-85210-151-0 01 1 0005-0210 ● ● ●
126 WRENCH; FRT HUB BRG NUT
L=257 B=63 		9-85111-373-0 01 1 0005-0210 ● ● ●
127 WRENCH ASM; HUB BRG NUT
L=260 B=90 		9-85113-534-0 01 1 0005-0210 ● ● ●
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 0005-0411 ● ● ●
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 0412- ● ● ● ●
129 PULLER ASM; PITMAN ARM
(A) 		9-85210-147-0 01 1 0005-0210 ● ● ●
129 PULLER ASM; PITMAN ARM
(B) 		9-85210-170-0 01 1 0005-0411 ● ● ●
129 PULLER ASM; PITMAN ARM
(B) 		9-85210-170-0 01 1 0412- ● ● ● ●
130 WRENCH; BOX
(D) B=46 & 54 L=165 		9-85112-320-0 01 1 0005-0210 ● ● ●
130 WRENCH; BOX
(A) B=32 & 41 L=150 		9-85112-322-0 01 1 0005-0210 ● ● ●
130 WRENCH; BOX
(C) B=36 & 41 L=200 		9-85112-330-0 01 1 0005-0210 ● ● ●
130 WRENCH; BOX
(B) B=41 & 46 L=165 		9-85113-401-0 01 1 0005-0210 ● ● ●
137 PLIER; SHOE,RETURN SPRING 9-85220-026-0 01 1 0005-0210 ● ● ●
141 HANDLE; WRENCH
(C) OD=25 L=480 		1-85116-011-0 01 1 0005-0210 ● ● ●
141 HANDLE; WRENCH
(C) OD=25 L=480 		1-85116-011-0 01 1 0211-0411 ● ● ●
141 HANDLE; WRENCH
(C) OD=25 L=480 		1-85116-011-0 01 1 0412-1409 ● ● ● ●
141 HANDLE; WRENCH
(C) OD=25 L=480 		8-98257-407-0 01 1 1410- ● ● ● ●
141 HANDLE; WRENCH
(B) OD=19 L=400 		9-85114-306-0 01 1 0005-0210 ● ● ●
141 HANDLE; WRENCH
(A) OD=16 L=300 		9-85114-307-0 01 1 0005-0210 ● ● ●
143 GUIDE; BOOT,TIE ROD END 1-85229-011-0 01 1 0005-0411 ● ● ●
143 GUIDE; BOOT,TIE ROD END 1-85229-011-0 01 1 0412- ● ● ● ●
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-012-0 01 1 0005-0411 ● ● ●
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-012-0 01 1 0412- ● ● ● ●
149 PLATE; PILOT BRG PULLER 1-85219-009-0 01 1 0005-0210 ● ● ●
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 0005-0411 ● ● ●
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 0412- ● ● ● ●

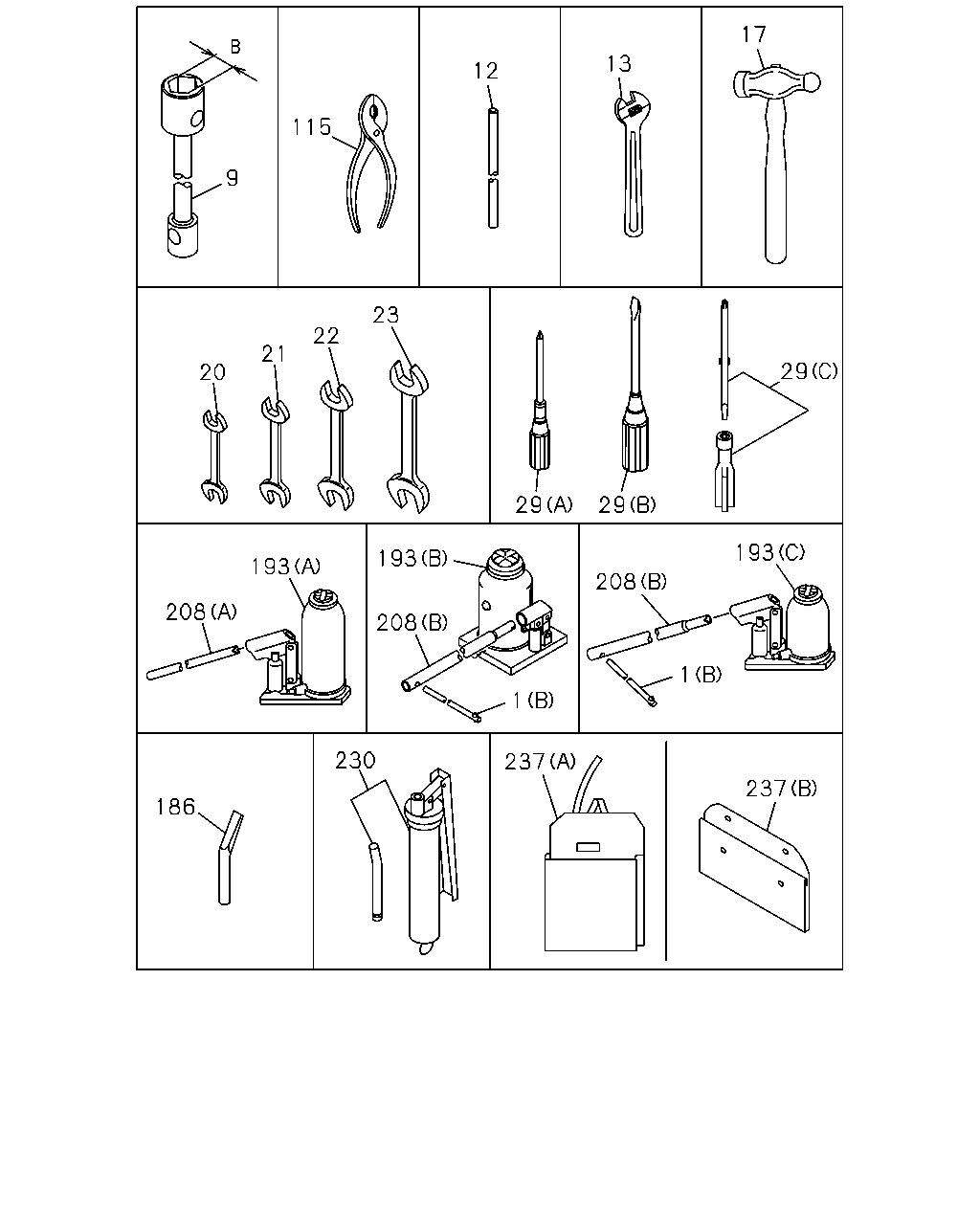

çizim 38725
17 13 12 115 9 23 22 21 29 20 29 29 193 193 193 208 208 208 1 1 230 237 237 186
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HANDLE; SPARE TIRE CARRIER
(B) L=280 		1-85515-007-0 01 1 0005-0208 ● ●
1 HANDLE; SPARE TIRE CARRIER
TOOL A KIT<SK9>,TOOL B KIT<SL1> (B) L=280 		1-85515-007-0 01 1 0209-0411 ● ●
1 HANDLE; SPARE TIRE CARRIER
TOOL A KIT<SK9>,TOOL B KIT<SL1> (B) L=280 		1-85515-007-0 01 1 0412-1107 ● ●
1 HANDLE; SPARE TIRE CARRIER
TOOL B KIT<SL1> (B) L=280 		1-85515-007-0 01 1 0412-1107 ●
1 HANDLE; SPARE TIRE CARRIER
TOOL A KIT<SK9>,TOOL B KIT<SL1> (B) L=280 		8-98181-251-0 01 1 1108- ● ●
1 HANDLE; SPARE TIRE CARRIER
TOOL B KIT<SL1> (B) L=280 		8-98181-251-0 01 1 1108- ●
1 HANDLE; SPARE TIRE CARRIER
(A) 		9-23110-018-0 01 1 0005- ●
9 WRENCH; WHEEL PIN
TOOL A KIT<SK9> 41X21 L=330 		8-94340-033-2 01 1 0209- ● ●
9 WRENCH; WHEEL PIN
B=41X21 L=440 		1-85113-015-1 01 1 0005-0208 ● ● ●
9 WRENCH; WHEEL PIN
TOOL B KIT<SL1> B=41X21 L=440 		1-85113-015-1 01 1 0209-0210 ● ●
9 WRENCH; WHEEL PIN
B=41X21 L=440 		1-85113-015-1 01 1 0209-0210 ●
9 WRENCH; WHEEL PIN
TOOL B KIT<SL1> B=41X21 L=440 		1-85113-015-1 01 1 0211-0411 ● ●
9 WRENCH; WHEEL PIN
TOOL A KIT<SK9>,TOOL B KIT<SL1> B=41X21 L=440 		1-85113-015-1 01 1 0211-0411 ●
9 WRENCH; WHEEL PIN
TOOL B KIT<SL1> B=41X21 L=440 		1-85113-015-1 01 1 0412- ● ● ●
9 WRENCH; WHEEL PIN
TOOL A KIT<SK9>,TOOL B KIT<SL1> B=41X21 L=440 		1-85113-015-1 01 1 0412- ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 0005-0210 ●
12 HANDLE; WRENCH,WHEEL PIN
TOOL A KIT<SK9>,TOOL B KIT<SL1> OD=25 L=480 		1-85116-011-0 01 1 0211-1409 ●
12 HANDLE; WRENCH,WHEEL PIN
TOOL A KIT<SK9>,TOOL B KIT<SL1> OD=25 L=480 		8-98257-407-0 01 1 1410- ●
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 0005-0208 ● ● ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=255 		1-85117-002-1 01 1 0209-0211 ● ● ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=247 		1-85117-006-0 01 1 0212-0411 ● ● ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=247 		1-85117-006-0 01 1 0412-1407 ● ● ● ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=255 		8-98270-303-0 01 1 1408- ● ● ● ●
17 HAMMER 9-85121-406-0 01 1 0005-0208 ● ● ●
17 HAMMER
TOOL B KIT<SL1> 		9-85121-406-0 01 1 0209-0411 ● ● ●
17 HAMMER
TOOL B KIT<SL1> 		9-85121-406-0 01 1 0412- ● ● ● ●
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 0005-0208 ● ● ●
20 WRENCH; 10X12
TOOL B KIT<SL1> 10X12 		9-09592-110-0 01 1 0209-0411 ● ● ●
20 WRENCH; 10X12
TOOL B KIT<SL1> 10X12 		9-09592-110-0 01 1 0412-0607 ● ● ● ●
20 WRENCH; 10X12
TOOL B KIT<SL1> 10X12 		0-95902-510-0 01 1 0608- ● ● ● ●
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 0005-0208 ● ● ●
21 WRENCH; 14X17
TOOL B KIT<SL1> 14X17 		9-09592-114-0 01 1 0209-0411 ● ● ●
21 WRENCH; 14X17
TOOL B KIT<SL1> 14X17 		9-09592-114-0 01 1 0412-0607 ● ● ● ●
21 WRENCH; 14X17
TOOL B KIT<SL1> 14X17 		0-95902-514-0 01 1 0608- ● ● ● ●
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 0005-0208 ● ● ●
22 WRENCH; 19X22
TOOL B KIT<SL1> 19X22 		9-99592-119-0 01 1 0209-0411 ● ● ●
22 WRENCH; 19X22
TOOL B KIT<SL1> 19X22 		9-99592-119-0 01 1 0412-0607 ● ● ● ●
22 WRENCH; 19X22
TOOL B KIT<SL1> 19X22 		0-95902-519-0 01 1 0608- ● ● ● ●
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 0005-0208 ● ● ●
23 WRENCH; 24X27
TOOL B KIT<SL1> 24X27 		9-09592-124-0 01 1 0209-0304 ● ● ●
29 DRIVER; SCREW
(B) <-> L=285 		1-85151-004-0 01 1 0005-0208 ● ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (B) <-> L=285 		1-85151-004-0 01 1 0209-0411 ● ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (B) <-> L=285 		1-85151-004-0 01 1 0412- ● ● ● ●
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 0005-0210 ● ● ●
29 DRIVER; SCREW
TOOL A KIT<SK9>,TOOL B KIT<SL1> (C) <+>,<-> L=160 		8-94242-798-1 01 1 0211-0411 ● ● ●
29 DRIVER; SCREW
TOOL A KIT<SK9>,TOOL B KIT<SL1> (C) <+>,<-> L=160 		8-94242-798-1 01 1 0412- ● ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (C) <+>,<-> L=160 		8-94242-798-1 01 1 0412- ●
29 DRIVER; SCREW
(A) <+> L=190 		9-09595-522-0 01 1 0005-0208 ● ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (A) <+> L=190 		9-09595-522-0 01 1 0209-0411 ● ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (A) <+> L=190 		9-09595-522-0 01 1 0412- ● ● ● ●
115 PLIER 5-85171-002-0 01 1 0005-0208 ● ● ●
115 PLIER
TOOL B KIT<SL1> 		5-85171-002-0 01 1 0209-0411 ● ● ●
115 PLIER
TOOL B KIT<SL1> 		5-85171-002-0 01 1 0412- ● ● ● ●
186 ADJUSTER; BRAKE 1-85269-008-0 01 1 0005-0208 ● ●
186 ADJUSTER; BRAKE
TOOL B KIT<SL1> 		1-85269-008-0 01 1 0209-0411 ● ●
186 ADJUSTER; BRAKE
TOOL B KIT<SL1> 		1-85269-008-0 01 1 0412- ● ● ●
193 JACK ASM
TOOL B KIT<SL1> (C) 10TON 		8-97606-257-0 01 1 0412-0505 ●
193 JACK ASM
TOOL B KIT<SL1> (C) 10TON 		8-97607-465-0 01 1 0506-0605 ●
193 JACK ASM
TOOL B KIT<SL1> (C) 10TON 		8-98036-366-0 01 1 0606-0910 ●
193 JACK ASM
TOOL B KIT<SL1> (C) 10TON 		8-98145-864-0 01 1 0911- ●
193 JACK ASM
TOOL A KIT<SK9> (B) 7TON 		1-85510-017-0 01 1 0209- ● ●
193 JACK ASM
(A) 7TON 		1-85510-005-2 01 1 0005-0208 ● ● ●
193 JACK ASM
TOOL B KIT<SL1> (A) 7TON 		1-85510-005-2 01 1 0209-0210 ● ●
193 JACK ASM
(A) 7TON 		1-85510-005-2 01 1 0209-0210 ●
193 JACK ASM
TOOL B KIT<SL1> (A) 7TON 		1-85510-005-2 01 1 0211-0411 ● ●
193 JACK ASM
TOOL A KIT<SK9>,TOOL B KIT<SL1> (A) 7TON 		1-85510-005-2 01 1 0211-0411 ●
193 JACK ASM
TOOL B KIT<SL1> (A) 7TON 		1-85510-005-2 01 1 0412- ● ● ●
193 JACK ASM
TOOL A KIT<SK9>,TOOL B KIT<SL1> (A) 7TON 		1-85510-005-2 01 1 0412- ●
208 HANDLE; JACK
(B) L=580 		1-85515-005-1 01 1 0005-0208 ● ●
208 HANDLE; JACK
(B) L=580 		1-85515-005-1 01 1 0209-0411 ● ●
208 HANDLE; JACK
TOOL A KIT<SK9> (B) L=580 		1-85515-005-1 01 1 0209-0411 ● ●
208 HANDLE; JACK
(B) L=580 		1-85515-005-1 01 1 0412-1107 ● ● ●
208 HANDLE; JACK
TOOL A KIT<SK9> (B) L=580 		1-85515-005-1 01 1 0412-1107 ● ●
208 HANDLE; JACK
(B) L=580 		8-98181-249-0 01 1 1108- ● ● ●
208 HANDLE; JACK
TOOL A KIT<SK9> (B) L=580 		8-98181-249-0 01 1 1108- ● ●
208 HANDLE; JACK
(A) L=600 		1-85515-008-0 01 1 0005-0105 ●
208 HANDLE; JACK
(A) L=600 		1-85515-009-0 01 1 0106-1107 ●
208 HANDLE; JACK
(A) L=600 		8-98181-437-0 01 1 1108- ●
230 PUMP; GREASE 1-85556-007-2 01 1 0005-0208 ● ● ●
230 PUMP; GREASE
TOOL B KIT<SL1> 		1-85556-007-2 01 1 0209-0411 ● ● ●
230 PUMP; GREASE
TOOL B KIT<SL1> 		1-85556-007-5 01 1 0412- ● ● ● ●
237 BAG; TOOL
TOOL A KIT<SK9> (B) 		8-97312-893-0 01 1 0209- ● ●
237 BAG; TOOL
(A) 		8-97130-902-0 01 1 0005-0208 ● ● ●
237 BAG; TOOL
TOOL B KIT<SL1> (A) 		8-97130-902-0 01 1 0209-0210 ● ●
237 BAG; TOOL
(A) 		8-97130-902-0 01 1 0209-0210 ●
237 BAG; TOOL
TOOL B KIT<SL1> (A) 		8-97130-902-0 01 1 0211-0411 ● ●
237 BAG; TOOL
TOOL A KIT<SK9>,TOOL B KIT<SL1> (A) 		8-97130-902-0 01 1 0211-0411 ●
237 BAG; TOOL
TOOL B KIT<SL1> (A) 		8-97130-902-1 01 1 0412- ● ● ●
237 BAG; TOOL
TOOL A KIT<SK9>,TOOL B KIT<SL1> (A) 		8-97130-902-1 01 1 0412- ●
çizim 100032
274 271 268 209 285 281 280 283 282 284
BalonParca AdiParca NoAdetTipApplied Date A B C D
209 CLIP; JACK HANDLE 1-73638-011-1 02 1 0005-0411 ● ● ●
209 CLIP; JACK HANDLE 1-73638-011-1 02 1 0412-0708 ● ● ● ●
209 CLIP; JACK HANDLE 8-98053-799-0 02 1 0709- ● ● ● ●
268 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 0005-0411 ● ●
268 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 0412-0604 ● ● ●
268 SCREW; CLIP
M6X12 W/LK WASHER 		0-36220-612-0 02 1 0605- ● ● ●
268 SCREW; CLIP
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 0005- ●
271 CLIP; TIRE HANGER 1-73638-012-1 02 1 0005-0411 ● ● ●
271 CLIP; TIRE HANGER 1-73638-012-1 02 1 0412-0708 ● ● ● ●
271 CLIP; TIRE HANGER 8-98053-800-0 02 1 0709- ● ● ● ●
274 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 0005-0411 ● ●
274 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 0412-0604 ● ● ●
274 SCREW; CLIP
M6X12 W/LK WASHER 		0-36220-612-0 02 1 0605- ● ● ●
274 SCREW; CLIP
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 0005- ●
280 BOX; TOOL 1-85561-006-3 01 1 0005-0411 ● ● ●
280 BOX; TOOL 1-85561-006-3 01 1 0412-0612 ● ● ● ●
280 BOX; TOOL
KEY LOCK TOOL BOX<RC5> 		1-85561-006-3 01 1 0701- ●
280 BOX; TOOL 1-85561-006-3 01 1 0701- ● ● ●
281 BRACKET; TOOL BOX 1-53459-665-2 02 1 0005-0411 ● ● ●
281 BRACKET; TOOL BOX 1-53459-665-2 02 1 0412-0612 ● ● ● ●
281 BRACKET; TOOL BOX
KEY LOCK TOOL BOX<RC5> 		1-53459-665-2 02 1 0701- ●
281 BRACKET; TOOL BOX 1-53459-665-2 02 1 0701- ● ● ●
282 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0411 ● ● ●
282 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0412-0602 ● ● ● ●
282 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603-0612 ● ● ● ●
282 NUT; BRKT
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91180-210-0 04 1 0701- ●
282 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0701- ● ● ●
283 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 04 1 0005-0411 ● ● ●
283 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 04 1 0412-0603 ● ● ● ●
283 WASHER; LK,BRKT
ID=10.2 		0-91510-510-0 04 1 0604-0612 ● ● ● ●
283 WASHER; LK,BRKT
KEY LOCK TOOL BOX<RC5> ID=10.2 		0-91510-510-0 04 1 0701- ●
283 WASHER; LK,BRKT
ID=10.2 		0-91510-510-0 04 1 0701- ● ● ●
284 BOLT; TOOL BOX
M10X20 FLANGE 		0-28681-020-0 04 1 0005-0411 ● ● ●
284 BOLT; TOOL BOX
M10X20 FLANGE 		0-28681-020-0 04 1 0412-0512 ● ● ● ●
284 BOLT; TOOL BOX
M10X20 FLANGE 		0-28651-020-0 04 1 0601-0612 ● ● ● ●
284 BOLT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10X20 FLANGE 		0-28651-020-0 04 1 0701- ●
284 BOLT; TOOL BOX
M10X20 FLANGE 		0-28651-020-0 04 1 0701- ● ● ●
285 NUT; TOOL BOX
M10 FLANGE 		0-91150-210-0 04 1 0005-0411 ● ● ●
285 NUT; TOOL BOX
M10 FLANGE 		0-91150-210-0 04 1 0412-0602 ● ● ● ●
285 NUT; TOOL BOX
M10 FLANGE 		0-91180-210-0 04 1 0603-0612 ● ● ● ●
285 NUT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91180-210-0 04 1 0701- ●
285 NUT; TOOL BOX
M10 FLANGE 		0-91180-210-0 04 1 0701- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
