4-50 — FRONT SUSPENSION (#948) — 86 parça

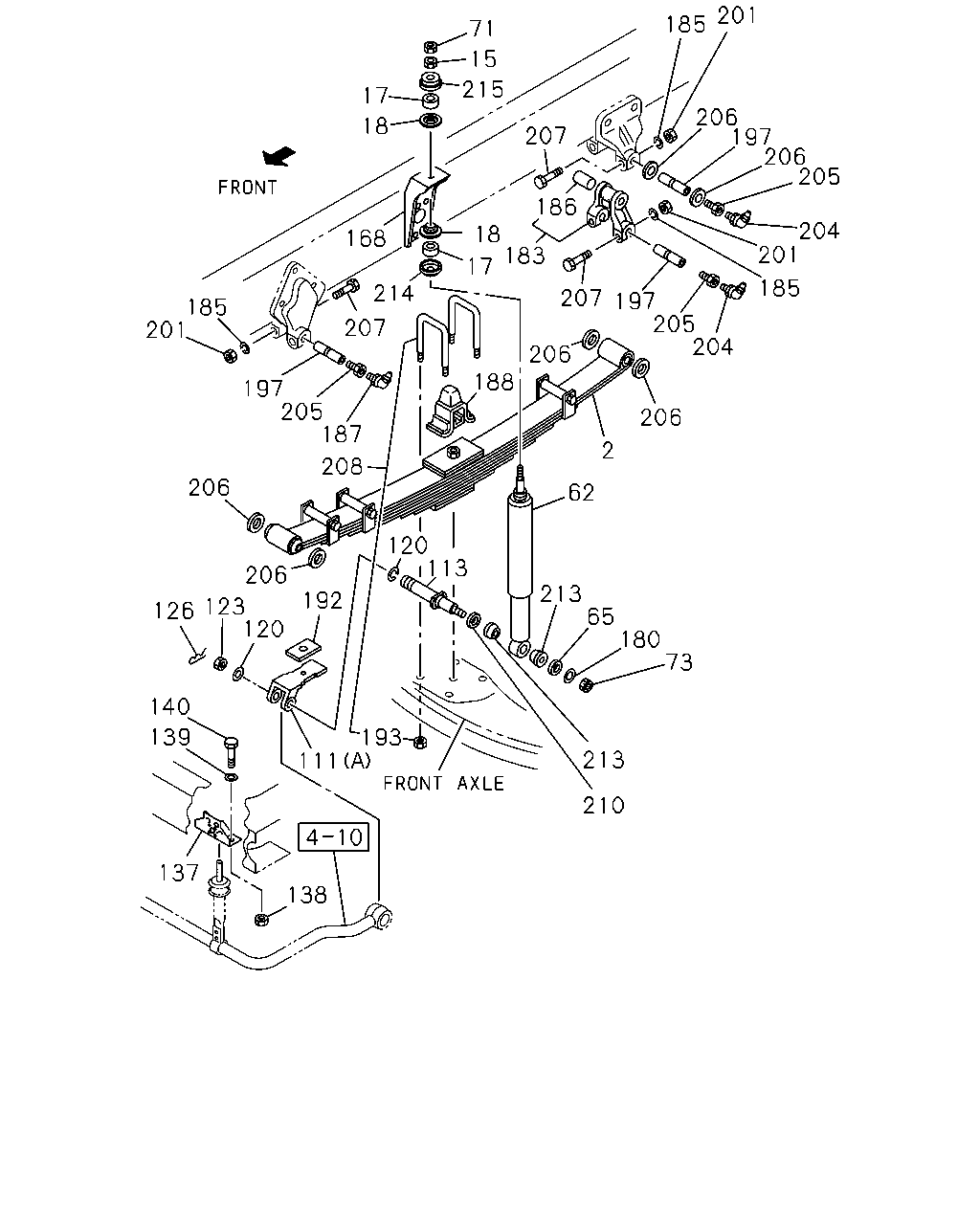

201 185 71 15 215 17 206 197 206 205 207 18 186 204 201 18 183 168 17 185 214 207 197 205 204 185 201 207 206 188 197 205 187 206 2 208 206 62 120 113 206 213 65 180 73 192 123 120 126 140 139 193 213 111 210 137 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), SUSPENSION HEAVY DUTY VAR2(F41)	1-51130-180-0	02	1	9202-	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), SUSPENSION HEAVY DUTY VAR2(F41),FRT TAPER LEAF SUSPENSION<SAR>	1-51130-179-0	02	1	9202-	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR>	1-51130-069-0	02	1	9202-	●	●
15	NUT; S/ABS,UPR M12	1-09400-006-0	02	1	9202-	●	●
17	BUSHING; RUBBER,S/ABS	9-51631-050-0	04	1	9202-	●	●
18	WASHER; CENTERING,S/ABS ID=16.8	1-51631-022-0	04	1	9202-	●	●
62	ABSORBER ASM; SHOCK,FRT FRT TAPER LEAF SUSPENSION<SAR>	1-51630-160-0	02	1	9202-	●	●
62	ABSORBER ASM; SHOCK,FRT EXC. FRT TAPER LEAF SUSPENSION<SAR>	1-51630-180-3	02	1	9202-	●	●
65	WASHER; S/ABS ID=23	1-51631-019-0	02	1	9202-	●	●
71	NUT; LK,S/ABS,UPR M12	1-09400-006-0	02	1	9202-	●	●
73	NUT; BRKT,SHOCK M16	9-99110-416-0	02	1	9202-	●	●
111	SUPPORTER; S/ABS,FRT SUSP FRONT AXLE F063(FS7) FRONT STABILIZER SHAFT<F59> (A)	1-51681-633-1	01	1	9202-	●	●
111	SUPPORTER; S/ABS,FRT SUSP FRONT AXLE F063(FS7) FRONT STABILIZER SHAFT<F59> (A)	1-51681-632-1	01	1	9202-	●	●
111	SUPPORTER; S/ABS,FRT SUSP FRONT AXLE F063(FS7) EXC. FRONT STABILIZER SHAFT<F59> (B)	1-51681-667-1	01	1	9202-	●	●
111	SUPPORTER; S/ABS,FRT SUSP FRONT AXLE F063(FS7) EXC. FRONT STABILIZER SHAFT<F59> (B)	1-51681-666-1	01	1	9202-	●	●
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT AXLE F063(FS7),FRONT STABILIZER SHAFT<F59> (B)	1-51681-559-1	01	1	9202-	●	●
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT AXLE F063(FS7),FRONT STABILIZER SHAFT<F59> (B)	1-51681-558-1	01	1	9202-	●	●
113	PIN; SUPPORTER FRONT STABILIZER SHAFT<F59>	1-51682-127-1	02	1	9202-	●	●
120	WASHER; PL,SUPPORT BRKT TO BODY FRONT STABILIZER SHAFT<F59>	9-09160-522-0	02	1	9202-	●	●
123	NUT; PIN TO SUPPORTER FRONT STABILIZER SHAFT<F59> M22	9-09116-522-0	02	1	9202-	●	●
126	PIN; SPLIT,STAB FRONT STABILIZER SHAFT<F59> OD=4.6 L=45	9-08115-045-0	02	1	9202-	●	●
137	BRACKET; STAB BAR TO FRAME FRONT STABILIZER SHAFT<F59>	1-51781-046-2	02	1	9202-	●	●
138	NUT; BRKT FRONT STABILIZER SHAFT<F59> M10	9-09110-510-0	08	1	9202-	●	●
139	WASHER; PL,BRKT FRONT STABILIZER SHAFT<F59> ID=10.5 OD=26	9-09160-710-0	08	1	9202-	●	●
140	BOLT; BRKT FRONT STABILIZER SHAFT<F59> M10X30 W/LK WASHER	0-50041-030-0	08	1	9202-	●	●
168	BRACKET; S/ABS,FRT SUSP EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-51681-306-0	02	1	9202-	●	●
168	BRACKET; S/ABS,FRT SUSP HEAVY DUTY PACKAGE TRUCK<RD2> EXC. FIRE TRUCK<RA9>	1-51681-306-0	02	1	9202-		●
180	WASHER; PL,PIN ID=17	9-09160-516-0	02	1	9202-	●	●
183	SHACKLE; FRT SUSP	1-51162-029-4	02	1	9202-	●	●
185	WASHER; LK,PIN ID=12.2	9-09150-512-0	12	1	9202-9209	●	●
185	WASHER; LK,PIN ID=12.2	9-09150-612-0	12	1	9210-	●	●
186	BUSHING; SHACKLE OD=38	1-51351-009-0	02	1	9202-	●	●
187	NIPPLE; GREASE,FRT PT1/8 ELBOW	9-09031-210-0	02	1	9202-	●	●
188	RUBBER; CLAMP,U-BOLT,FRT SPR	1-51172-081-0	02	1	9202-	●	●
192	PIECE; DIST 80X144 ID=17.5	1-51177-284-1	01	1	9202-	●	●
193	NUT; U BOLT M22	9-09112-822-0	08	1	9202-	●	●
197	PIN; FRT SPR,FRT	1-51161-031-0	06	1	9202-	●	●
201	NUT; PIN LK M12	9-99110-512-0	12	1	9202-	●	●
204	NIPPLE; GREASE,RR PT1/8 STRAIGHT	9-09031-010-0	04	1	9202-	●	●
205	ATTACHMENT; GREASE NIPPLE	9-43165-001-0	06	1	9202-	●	●
206	WASHER; LK,SPRING PIN ID=32.4	1-51169-018-0	12	1	9202-	●	●
207	BOLT; SPR TO SHACKLE M12X80	0-10806-280-0	12	1	9202-	●	●
208	U-BOLT SET; FRT SPRING L=190	1-87870-163-2	04	1	9202-	●	●
210	WASHER; S/ABS,OUTER ID=17	1-51631-020-0	02	1	9202-	●	●
213	BUSHING; RUBBER,LWR	1-51631-009-1	04	1	9202-	●	●
214	WASHER; S/ABS,UPR,INNER ID=14.5	9-51631-051-0	02	1	9202-	●	●
215	WASHER; S/ABS,UPR,OUTER ID=14.5	9-51631-051-0	02	1	9202-	●	●

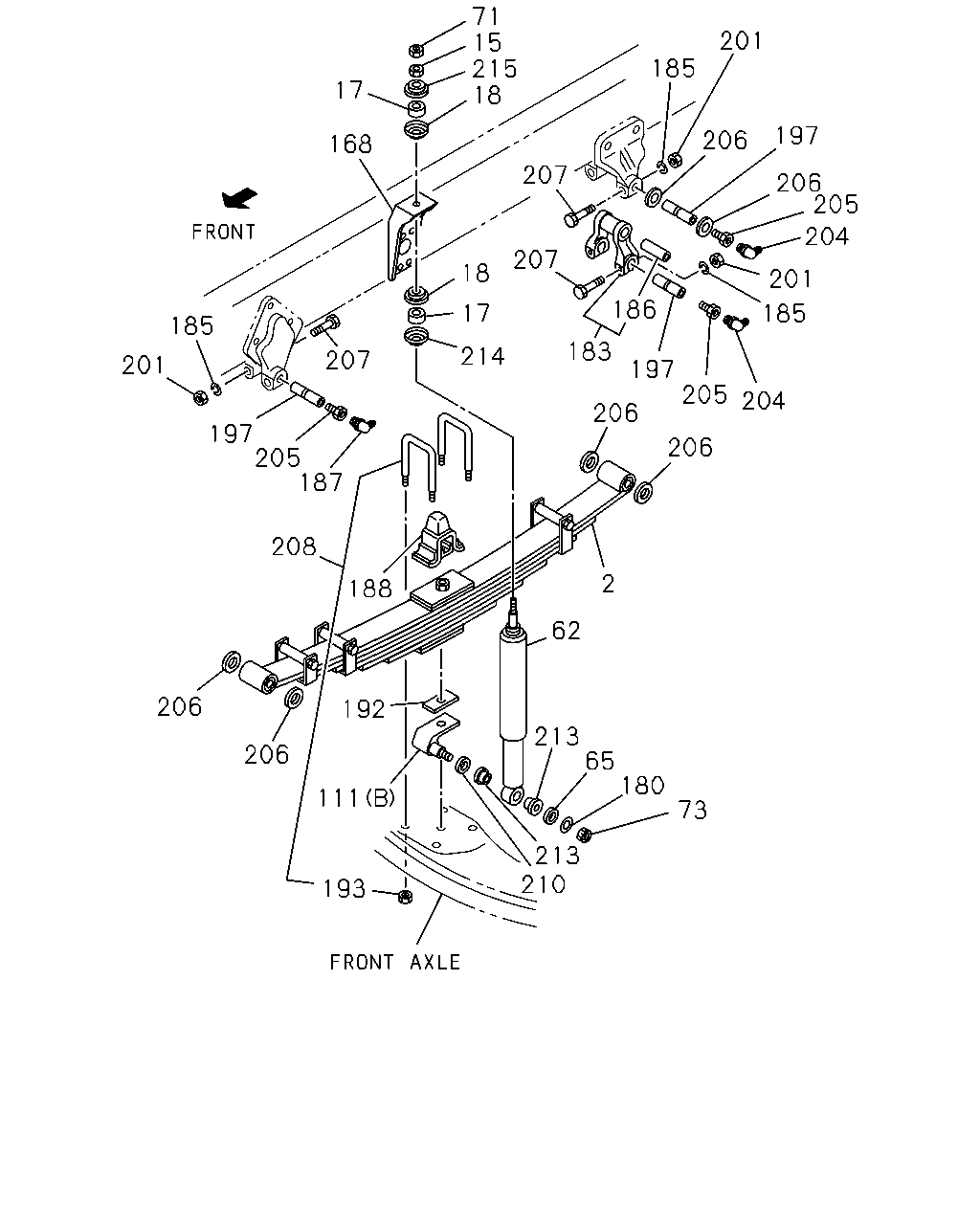

71 15 215 18 201 185 17 197 206 168 207 206 205 204 207 18 201 186 185 17 185 183 214 207 201 197 205 204 206 197 205 187 206 208 2 188 62 206 192 213 65 180 206 111 73 213 210 193

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), SUSPENSION HEAVY DUTY VAR2(F41)	1-51130-180-0	02	1	9202-	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), SUSPENSION HEAVY DUTY VAR2(F41),FRT TAPER LEAF SUSPENSION<SAR>	1-51130-179-0	02	1	9202-	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR>	1-51130-069-0	02	1	9202-	●	●
15	NUT; S/ABS,UPR M12	1-09400-006-0	02	1	9202-	●	●
17	BUSHING; RUBBER,S/ABS	9-51631-050-0	04	1	9202-	●	●
18	WASHER; CENTERING,S/ABS ID=16.8	1-51631-022-0	04	1	9202-	●	●
62	ABSORBER ASM; SHOCK,FRT FRT TAPER LEAF SUSPENSION<SAR>	1-51630-160-0	02	1	9202-	●	●
62	ABSORBER ASM; SHOCK,FRT EXC. FRT TAPER LEAF SUSPENSION<SAR>	1-51630-180-3	02	1	9202-	●	●
65	WASHER; S/ABS ID=23	1-51631-019-0	02	1	9202-	●	●
71	NUT; LK,S/ABS,UPR M12	1-09400-006-0	02	1	9202-	●	●
73	NUT; BRKT,SHOCK M16	9-99110-416-0	02	1	9202-	●	●
111	SUPPORTER; S/ABS,FRT SUSP FRONT AXLE F063(FS7) FRONT STABILIZER SHAFT<F59> (A)	1-51681-633-1	01	1	9202-	●	●
111	SUPPORTER; S/ABS,FRT SUSP FRONT AXLE F063(FS7) FRONT STABILIZER SHAFT<F59> (A)	1-51681-632-1	01	1	9202-	●	●
111	SUPPORTER; S/ABS,FRT SUSP FRONT AXLE F063(FS7) EXC. FRONT STABILIZER SHAFT<F59> (B)	1-51681-667-1	01	1	9202-	●	●
111	SUPPORTER; S/ABS,FRT SUSP FRONT AXLE F063(FS7) EXC. FRONT STABILIZER SHAFT<F59> (B)	1-51681-666-1	01	1	9202-	●	●
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT AXLE F063(FS7),FRONT STABILIZER SHAFT<F59> (B)	1-51681-559-1	01	1	9202-	●	●
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT AXLE F063(FS7),FRONT STABILIZER SHAFT<F59> (B)	1-51681-558-1	01	1	9202-	●	●
168	BRACKET; S/ABS,FRT SUSP EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-51681-306-0	02	1	9202-	●	●
168	BRACKET; S/ABS,FRT SUSP HEAVY DUTY PACKAGE TRUCK<RD2> EXC. FIRE TRUCK<RA9>	1-51681-306-0	02	1	9202-		●
180	WASHER; PL,PIN ID=17	9-09160-516-0	02	1	9202-	●	●
183	SHACKLE; FRT SUSP	1-51162-029-4	02	1	9202-	●	●
185	WASHER; LK,PIN ID=12.2	9-09150-512-0	12	1	9202-9209	●	●
185	WASHER; LK,PIN ID=12.2	9-09150-612-0	12	1	9210-	●	●
186	BUSHING; SHACKLE OD=38	1-51351-009-0	02	1	9202-	●	●
187	NIPPLE; GREASE,FRT PT1/8 ELBOW	9-09031-210-0	02	1	9202-	●	●
188	RUBBER; CLAMP,U-BOLT,FRT SPR	1-51172-081-0	02	1	9202-	●	●
192	PIECE; DIST 80X144 ID=17.5	1-51177-284-1	01	1	9202-	●	●
193	NUT; U BOLT M22	9-09112-822-0	08	1	9202-	●	●
197	PIN; FRT SPR,FRT	1-51161-031-0	06	1	9202-	●	●
201	NUT; PIN LK M12	9-99110-512-0	12	1	9202-	●	●
204	NIPPLE; GREASE,RR PT1/8 STRAIGHT	9-09031-010-0	04	1	9202-	●	●
205	ATTACHMENT; GREASE NIPPLE	9-43165-001-0	06	1	9202-	●	●
206	WASHER; LK,SPRING PIN ID=32.4	1-51169-018-0	12	1	9202-	●	●
207	BOLT; SPR TO SHACKLE M12X80	0-10806-280-0	12	1	9202-	●	●
208	U-BOLT SET; FRT SPRING L=190	1-87870-163-2	04	1	9202-	●	●
210	WASHER; S/ABS,OUTER ID=17	1-51631-020-0	02	1	9202-	●	●
213	BUSHING; RUBBER,LWR	1-51631-009-1	04	1	9202-	●	●
214	WASHER; S/ABS,UPR,INNER ID=14.5	9-51631-051-0	02	1	9202-	●	●
215	WASHER; S/ABS,UPR,OUTER ID=14.5	9-51631-051-0	02	1	9202-	●	●
