8-90 — RADIO AND TV (#9479) — 42 parça

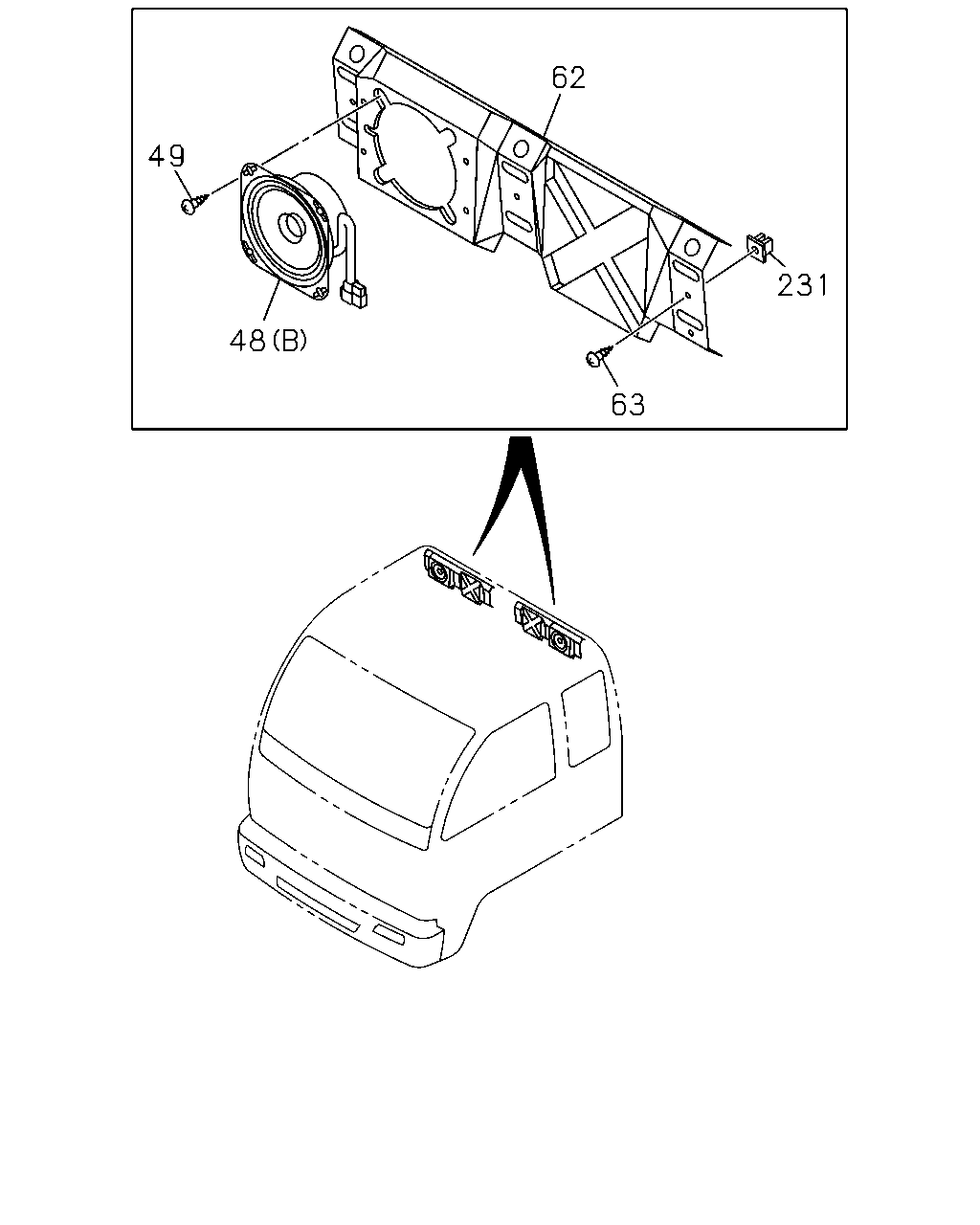

çizim 38587
62 49 231 48 63
BalonParca AdiParca NoAdetTipApplied Date A B C D
48 SPEAKER; AUDIO
(B) 		1-84114-057-0 02 1 0005-0310 ● ●
48 SPEAKER; AUDIO
(B) 		1-84114-075-0 02 1 0311-0411 ● ●
48 SPEAKER; AUDIO
(B) 		1-84114-075-0 02 1 0412- ● ● ●
48 SPEAKER; AUDIO
(A) 		1-84114-050-0 02 1 0005-0308 ●
48 SPEAKER; AUDIO
(A) 		1-84114-073-0 02 1 0309-0905 ●
48 SPEAKER; AUDIO
(A) 		8-98140-326-0 02 1 0906- ●
49 SCREW; SPEAKER
M5X16 W/LK&PL WASHER 		8-94279-400-0 08 1 0005-0411 ● ●
49 SCREW; SPEAKER
M5X16 W/LK&PL WASHER 		8-94279-400-0 08 1 0412- ● ● ●
62 BOX; RR SPEAKER 1-73996-197-6 01 1 0005-0411 ● ●
62 BOX; RR SPEAKER 1-73996-197-6 01 1 0412- ● ● ●
62 BOX; RR SPEAKER 1-73996-196-6 01 1 0005-0411 ● ●
62 BOX; RR SPEAKER 1-73996-196-6 01 1 0412- ● ● ●
63 SCREW; RR SPEAKER BOX
M5X20 		5-09981-059-0 12 1 0005-0411 ● ●
63 SCREW; RR SPEAKER BOX
M5X20 		5-09981-059-0 12 1 0412- ● ● ●
231 GROMMET; SCREW,SPEAKER BOX
D=8.6X7.7 L=7.5 		8-94279-078-0 12 1 0005-0411 ● ●
231 GROMMET; SCREW,SPEAKER BOX
D=8.6X7.7 L=7.5 		8-94279-078-0 12 1 0412- ● ● ●

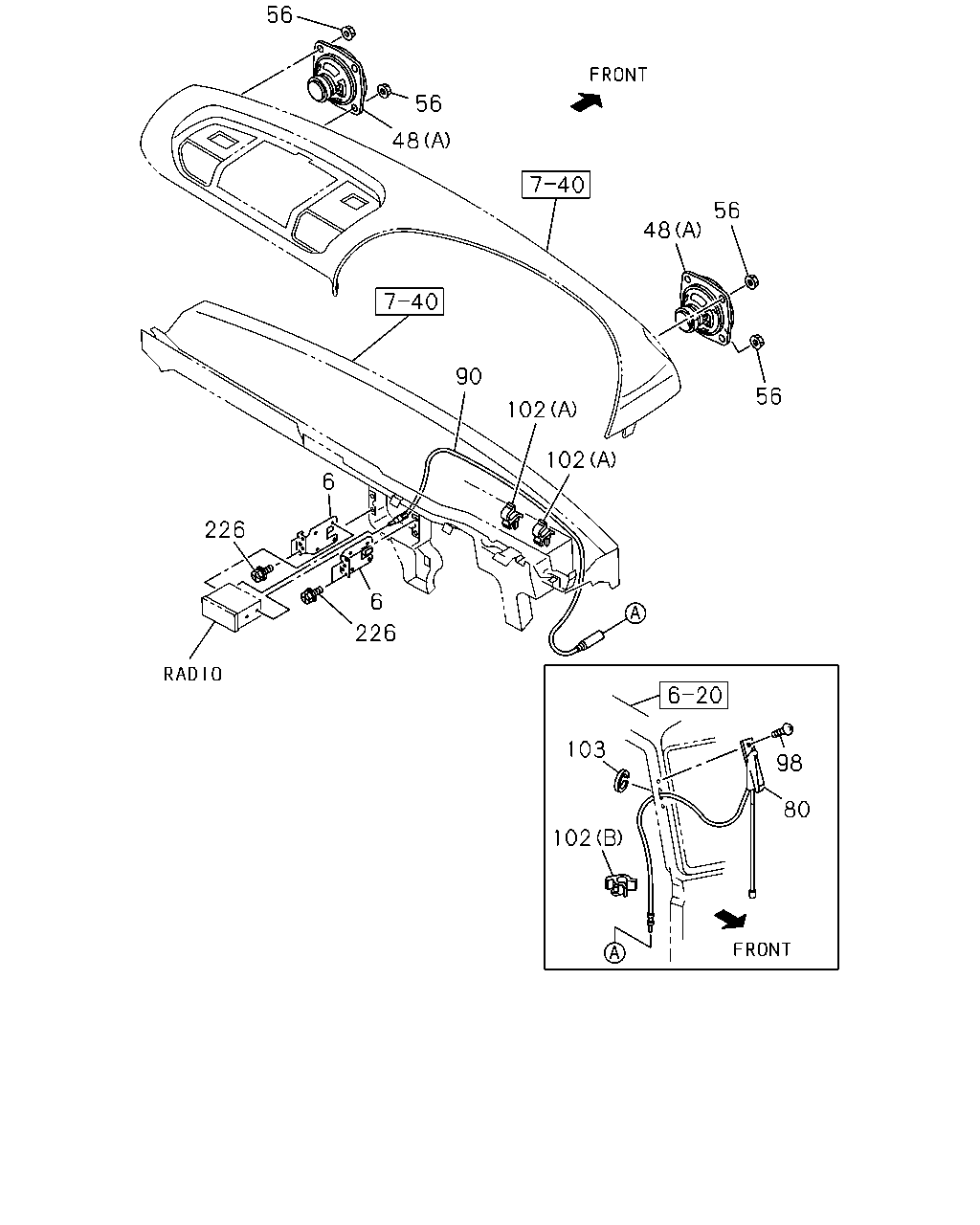

çizim 38589
56 56 48 56 48 90 56 102 102 6 226 6 226 103 98 80 102
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 BRACKET; RADIO TO PANEL 1-65671-551-4 02 1 0005-0411 ● ● ●
6 BRACKET; RADIO TO PANEL 1-65671-551-4 02 1 0412-0612 ● ● ● ●
6 BRACKET; RADIO TO PANEL 1-65671-822-1 02 1 0701- ● ● ● ●
48 SPEAKER; AUDIO
(B) 		1-84114-057-0 02 1 0005-0310 ● ●
48 SPEAKER; AUDIO
(B) 		1-84114-075-0 02 1 0311-0411 ● ●
48 SPEAKER; AUDIO
(B) 		1-84114-075-0 02 1 0412- ● ● ●
48 SPEAKER; AUDIO
(A) 		1-84114-050-0 02 1 0005-0308 ●
48 SPEAKER; AUDIO
(A) 		1-84114-073-0 02 1 0309-0905 ●
48 SPEAKER; AUDIO
(A) 		8-98140-326-0 02 1 0906- ●
56 NUT; SPEAKER,RADIO OR STEREO
M5 FLANGE 		1-09984-170-0 04 1 0005-0411 ● ● ●
56 NUT; SPEAKER,RADIO OR STEREO
M5 FLANGE 		1-09984-170-0 04 1 0412- ● ● ● ●
80 ANTENNA 1-84115-055-2 01 1 0005-0411 ● ● ●
80 ANTENNA 1-84115-055-2 01 1 0412-1203 ● ● ● ●
80 ANTENNA 8-98210-874-1 01 1 1204- ● ● ● ●
90 CABLE; ANTENNA,FEEDER 1-84113-011-2 01 1 0005-0411 ● ● ●
90 CABLE; ANTENNA,FEEDER 1-84113-011-2 01 1 0412- ● ● ● ●
98 SCREW; TAP,ANTENNA
M5X11 		1-09981-536-1 02 1 0005-0411 ● ● ●
98 SCREW; TAP,ANTENNA
M5X11 		1-09981-536-1 02 1 0412- ● ● ● ●
102 CLIP; CABLE
(B) W/PACKING ID=4.8 		1-73907-618-0 05 1 0005-0411 ● ● ●
102 CLIP; CABLE
(B) W/PACKING ID=4.8 		1-73907-618-0 05 1 0412- ● ● ● ●
102 CLIP; CABLE
(A) WO/PACKING ID=4.8 		8-94128-483-0 02 1 0005-0411 ● ● ●
102 CLIP; CABLE
(A) WO/PACKING ID=4.8 		8-94128-483-0 02 1 0412- ● ● ● ●
103 GROMMET; ANTENNA HOLE,FRT 8-97027-381-0 01 1 0005-0411 ● ● ●
103 GROMMET; ANTENNA HOLE,FRT 8-97027-381-0 01 1 0412- ● ● ● ●
226 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0005-0411 ● ● ●
226 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0412- ● ● ● ●
