◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10826 - FRR/FSR/FRD(AUST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-73 - BLOWER UNIT ▶
8-73 — BLOWER UNIT (#9477) — 84 parça

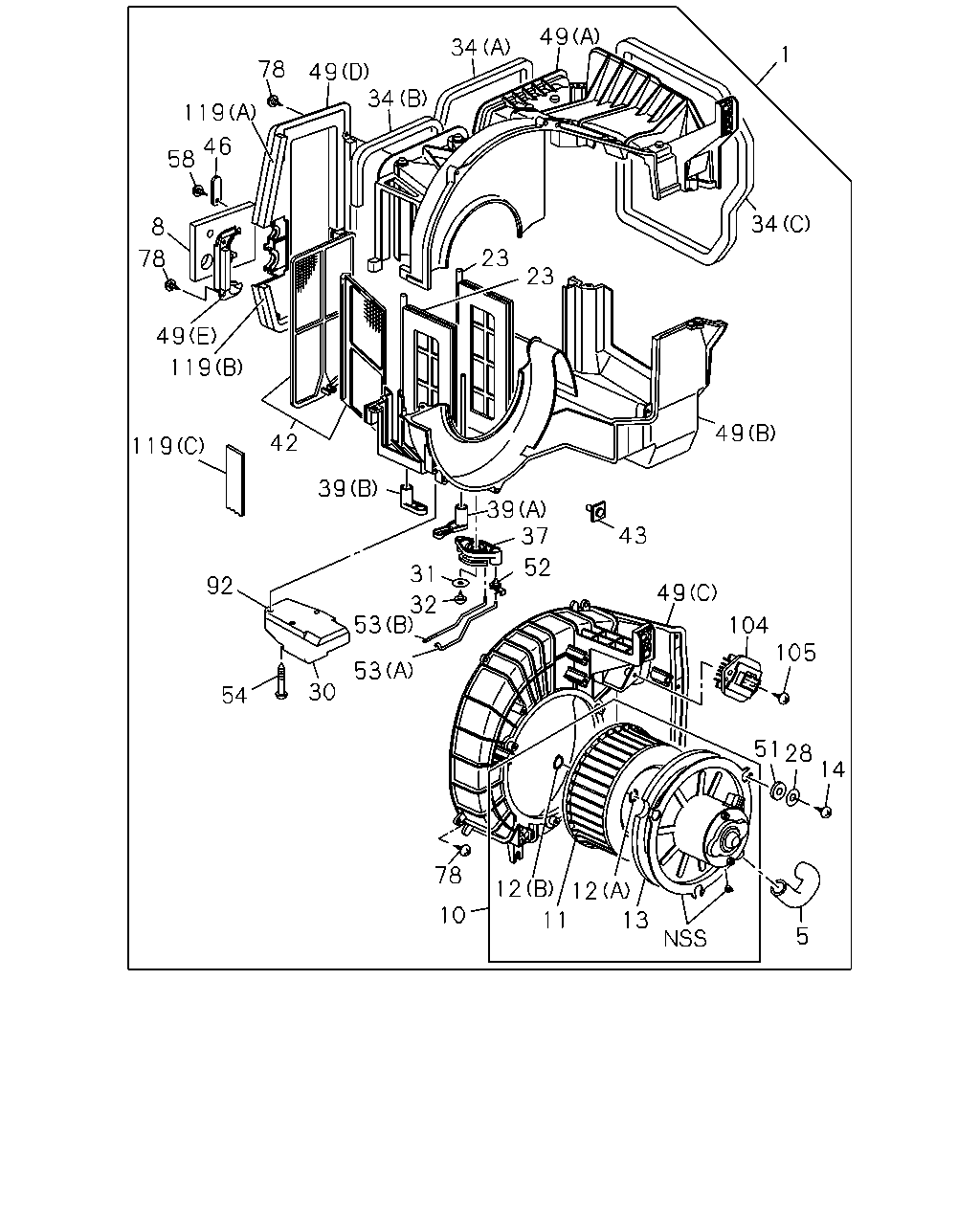

çizim 100522
49 34 1 78 49 34 119 46 58 34 8 23 78 23 49 119 49 42 119 39 39 37 43 52 31 92 49 32 53 104 105 53 30 54 51 28 14 78 12 12 10 13 11 5
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 BLOWER ASM 1-83561-105-9 01 1 0005-0411 ● ● ●
1 BLOWER ASM 1-83561-105-9 01 1 0412-0703 ● ● ● ●
1 BLOWER ASM 8-98065-903-0 01 1 0704- ● ● ● ●
5 HOSE; AIR 1-83563-140-0 01 1 0005-0411 ● ● ●
5 HOSE; AIR 1-83563-140-0 01 1 0412- ● ● ● ●
8 SEAL; BLOWER UNIT 1-83579-801-1 01 1 0005-0411 ● ● ●
8 SEAL; BLOWER UNIT 1-83579-801-1 01 1 0412- ● ● ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-161-0 01 1 0005-0411 ● ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-161-0 01 1 0412- ● ● ● ●
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 0005-0411 ● ● ●
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 0412- ● ● ● ●
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 0005-0411 ● ● ●
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 0412- ● ● ● ●
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 0005-0411 ● ● ●
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 0412- ● ● ● ●
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 0005-0411 ● ● ●
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 0412- ● ● ● ●
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 0005-0411 ● ● ●
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 0412- ● ● ● ●
23 SHUTTER; BLOWER UNIT 1-83579-637-0 02 1 0005-0411 ● ● ●
23 SHUTTER; BLOWER UNIT 1-83579-637-0 02 1 0412- ● ● ● ●
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 0005-0411 ● ● ●
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 0412- ● ● ● ●
30 LEVER; ACTUATOR 1-83564-345-1 01 1 0005-0411 ● ● ●
30 LEVER; ACTUATOR 1-83564-345-1 01 1 0412- ● ● ● ●
31 WASHER; LEVER 1-83579-095-0 01 1 0005-0411 ● ● ●
31 WASHER; LEVER 1-83579-095-0 01 1 0412- ● ● ● ●
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 0005-0411 ● ● ●
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 0412- ● ● ● ●
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 0005-0411 ● ● ●
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 0412- ● ● ● ●
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 0005-0411 ● ● ●
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 0412- ● ● ● ●
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 0005-0411 ● ● ●
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 0412- ● ● ● ●
37 LEVER; MODE LEVER 1-83564-344-0 01 1 0005-0411 ● ● ●
37 LEVER; MODE LEVER 1-83564-344-0 01 1 0412- ● ● ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 0005-0411 ● ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 0412- ● ● ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 0005-0411 ● ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 0412- ● ● ● ●
42 FILTER; BLOWER UNIT 1-83579-643-3 01 1 0005-0411 ● ● ●
42 FILTER; BLOWER UNIT 1-83579-643-3 01 1 0412- ● ● ● ●
43 BOLT; CASE 1-83579-657-2 04 1 0005-0411 ● ● ●
43 BOLT; CASE 1-83579-657-2 04 1 0412- ● ● ● ●
46 PLATE; BLOWER UNIT 1-83571-870-1 01 1 0005-0411 ● ● ●
46 PLATE; BLOWER UNIT 1-83571-870-1 01 1 0412- ● ● ● ●
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 0005-0411 ● ● ●
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 0412- ● ● ● ●
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 0005-0411 ● ● ●
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 0412- ● ● ● ●
49 CASE; BLOWER UNIT
(A) 		1-83564-351-1 01 1 0005-0411 ● ● ●
49 CASE; BLOWER UNIT
(A) 		1-83564-351-1 01 1 0412- ● ● ● ●
49 CASE; BLOWER UNIT
(B) 		1-83564-352-5 01 1 0005-0411 ● ● ●
49 CASE; BLOWER UNIT
(B) 		1-83564-352-5 01 1 0412- ● ● ● ●
49 CASE; BLOWER UNIT
(D) 		1-83564-353-1 01 1 0005-0411 ● ● ●
49 CASE; BLOWER UNIT
(D) 		1-83564-353-1 01 1 0412- ● ● ● ●
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 0005-0411 ● ● ●
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 0412- ● ● ● ●
52 CLIP; LEVER TO CASE 8-94248-794-0 02 1 0005-0411 ● ● ●
52 CLIP; LEVER TO CASE 8-94248-794-0 02 1 0412- ● ● ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 0005-0411 ● ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 0412- ● ● ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 0005-0411 ● ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 0412- ● ● ● ●
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 0005-0411 ● ● ●
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 0412- ● ● ● ●
58 SCREW; PLATE TO CASE
M4X16 		8-94324-850-0 01 1 0005-0411 ● ● ●
58 SCREW; PLATE TO CASE
M4X16 		8-94324-850-0 01 1 0412- ● ● ● ●
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 17 1 0005-0411 ● ● ●
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 17 1 0412- ● ● ● ●
92 ACTUATOR; BLOWER UNIT 1-83579-640-1 01 1 0005-0411 ● ● ●
92 ACTUATOR; BLOWER UNIT 1-83579-640-1 01 1 0412- ● ● ● ●
104 RESISTOR; BLOWER UNIT 1-83519-073-1 01 1 0005-0411 ● ● ●
104 RESISTOR; BLOWER UNIT 1-83519-073-1 01 1 0412-0703 ● ● ● ●
104 RESISTOR; BLOWER UNIT 1-83519-092-0 01 1 0704- ● ● ● ●
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 0005-0411 ● ● ●
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 0412- ● ● ● ●
119 LINING; CASE
(A) 		1-83579-670-1 01 1 0005-0411 ● ● ●
119 LINING; CASE
(A) 		1-83579-670-1 01 1 0412- ● ● ● ●
119 LINING; CASE
(B) 		1-83579-671-1 01 1 0005-0411 ● ● ●
119 LINING; CASE
(B) 		1-83579-671-1 01 1 0412- ● ● ● ●
119 LINING; CASE
(C) 		1-83579-839-0 02 1 0005-0411 ● ● ●
119 LINING; CASE
(C) 		1-83579-839-0 02 1 0412- ● ● ● ●
