8-45 — HEATER PIPING (#9473) — 47 parça

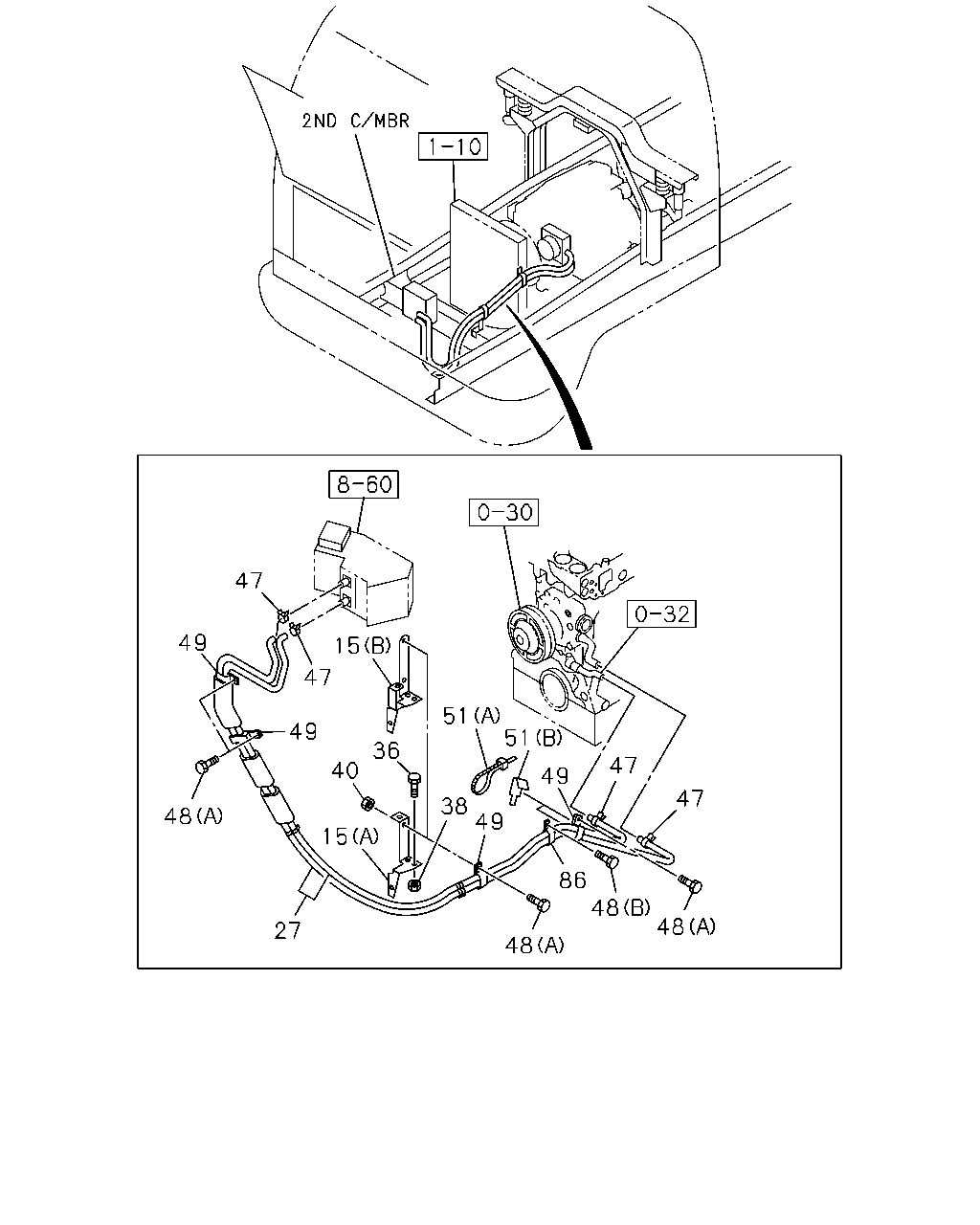

çizim 39191
47 49 15 47 51 51 49 36 47 40 49 47 38 49 48 15 86 48 48 27 48
BalonParca AdiParca NoAdetTipApplied Date A B C D
15 BRACKET; WATER HOSE
(A) 		1-83571-844-2 01 1 0005-0210 ● ● ●
15 BRACKET; WATER HOSE
(B) 		1-83573-252-0 01 1 0211-0411 ● ● ●
15 BRACKET; WATER HOSE
(B) 		1-83573-252-0 01 1 0412- ● ● ● ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
6HK1 TCS ENG(80L) 		1-83565-798-0 01 1 0307- ● ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE 1-83565-748-0 01 1 0005-0210 ● ● ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE 1-83565-790-0 01 1 0211-0305 ● ● ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) 		1-83565-790-0 01 1 0306-0411 ● ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
6HK1 TCC ENG(81L) 		1-83565-790-0 01 1 0306-0411 ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) 		1-83565-790-0 01 1 0412- ● ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
6HK1 TCC ENG(81L) 		1-83565-790-0 01 1 0412- ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
6HK1 TCN ENG(82L) 		1-83565-790-0 01 1 0412- ●
36 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0411 ● ● ●
36 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0412-0512 ● ● ● ●
36 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ●
38 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0005-0411 ● ● ●
38 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0412-0602 ● ● ● ●
38 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ●
40 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0005-0411 ● ● ●
40 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0412-0602 ● ● ● ●
40 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ● ●
47 CLAMP; WATER HOSE,HTR
ID=22 		8-94382-401-0 04 1 0005-0411 ● ● ●
47 CLAMP; WATER HOSE,HTR
ID=22 		8-94382-401-0 04 1 0412-0611 ● ● ● ●
47 CLAMP; WATER HOSE,HTR
ID=22 		8-97359-141-0 04 1 0612- ● ● ● ●
48 BOLT; CLIP FIX
(A) M8X20 FLANGE 		0-28680-820-0 03 1 0005-0210 ● ● ●
48 BOLT; CLIP FIX
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0211-0305 ● ● ●
48 BOLT; CLIP FIX
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0306-0411 ● ● ●
48 BOLT; CLIP FIX
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0306-0411 ● ● ●
48 BOLT; CLIP FIX
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0412-0512 ● ● ● ●
48 BOLT; CLIP FIX
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0412-0512 ● ● ● ●
48 BOLT; CLIP FIX
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ●
48 BOLT; CLIP FIX
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ●
48 BOLT; CLIP FIX
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 0005-0411 ● ● ●
48 BOLT; CLIP FIX
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 0412- ● ● ● ●
49 CLIP; WATER HOSE,HTR
ID=24X2 L=25 		1-09700-710-0 03 1 0005-0210 ● ● ●
49 CLIP; WATER HOSE,HTR
ID=24X2 L=25 		1-09700-710-0 04 1 0211-0305 ● ● ●
49 CLIP; WATER HOSE,HTR
ID=24X2 L=25 		1-09700-710-0 02 1 0306-0411 ● ● ●
49 CLIP; WATER HOSE,HTR
ID=24X2 L=25 		1-09700-710-0 02 1 0306-0411 ● ● ●
49 CLIP; WATER HOSE,HTR
ID=24X2 L=25 		1-09700-710-0 02 1 0412- ● ● ● ●
49 CLIP; WATER HOSE,HTR
ID=24X2 L=25 		1-09700-710-0 02 1 0412- ● ● ● ●
51 CLIP; WATER HOSE,HTR
(B) L=170 		1-83574-139-0 01 1 0005-0210 ● ● ●
51 CLIP; WATER HOSE,HTR
6HE1 TC ENG(57L) (B) L=170 		1-83574-139-0 01 1 0005-0210 ● ●
51 CLIP; WATER HOSE,HTR
6HE1 TC ENG(57L) (A) L=500 		1-09707-082-1 01 1 0005-0210 ● ●
51 CLIP; WATER HOSE,HTR
(B) L=170 		1-83574-139-0 02 1 0211-0411 ● ● ●
51 CLIP; WATER HOSE,HTR
(B) L=170 		1-83574-139-0 02 1 0412-1205 ● ● ● ●
51 CLIP; WATER HOSE,HTR
(B) L=170 		8-98166-021-0 02 1 1206- ● ● ● ●
86 CLIP; HTR HOSE 1-83571-049-1 01 1 0005-0411 ● ● ●
86 CLIP; HTR HOSE 1-83571-049-1 01 1 0412- ● ● ● ●
