8-28 — CHASSIS ELECTRICAL (#9471) — 194 parça

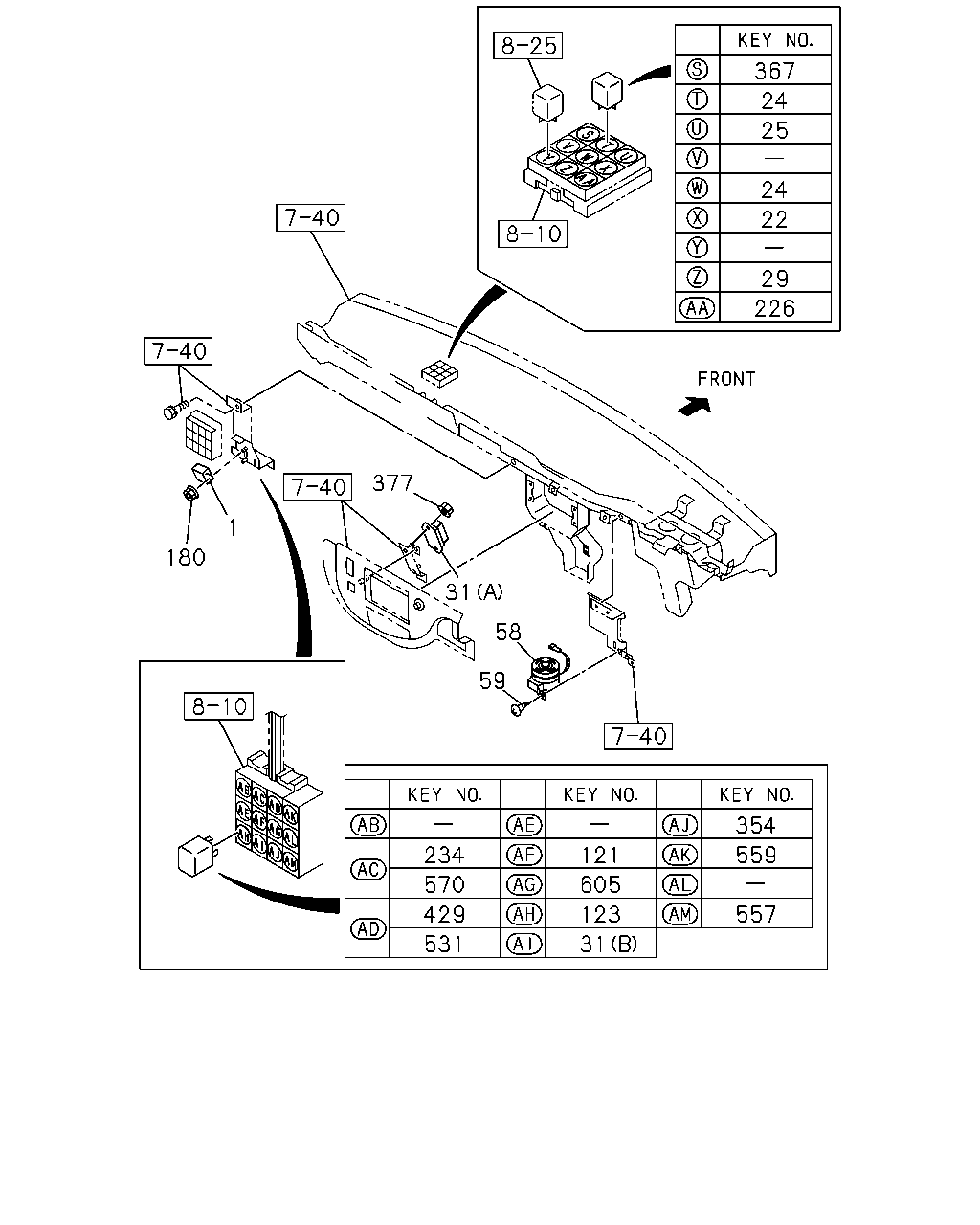

çizim 38305
367 24 25 24 22 29 226 377 1 180 31 58 59 354 234 121 559 570 605 429 123 557 531 31
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 UNIT; FLASHER 1-83470-060-1 01 1 0005-0411 ● ● ●
1 UNIT; FLASHER 1-83470-060-1 01 1 0412- ● ● ● ●
22 RELAY; STOP LAMP
24V 12.5A JIDECO 		8-97062-815-1 01 1 0005-0111 ● ● ●
22 RELAY; STOP LAMP
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-0411 ● ● ●
22 RELAY; STOP LAMP
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0412- ● ● ● ●
24 RELAY; LIGHTING
24V 12.5A JIDECO 		8-97062-815-1 02 1 0005-0111 ● ● ●
24 RELAY; LIGHTING
24V 12.5A MATSUSHITA 		8-97262-933-0 02 1 0112-0411 ● ● ●
24 RELAY; LIGHTING
24V 12.5A MATSUSHITA 		8-97262-933-0 02 1 0412- ● ● ● ●
25 RELAY; TAIL LAMP
24V 12.5A JIDECO 		8-97062-815-1 01 1 0005-0111 ● ● ●
25 RELAY; TAIL LAMP
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-0411 ● ● ●
25 RELAY; TAIL LAMP
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0412- ● ● ● ●
29 RELAY; HORN
24V 12.5A JIDECO 		8-97062-815-1 01 1 0005-0111 ● ● ●
29 RELAY; HORN
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-0405 ● ● ●
29 RELAY; HORN
EXC. AIR HORN<WB8> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0406-0411 ● ●
29 RELAY; HORN
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0406-0411 ●
29 RELAY; HORN
EXC. AIR HORN<WB8> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0412- ● ●
29 RELAY; HORN
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0412- ● ●
31 RELAY; PTO CONT
PTO CONTROL<SV6> (A) 24V 		1-82550-187-1 01 1 0612- ●
31 RELAY; PTO CONT
PTO CONTROL<SV6> (B) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0612- ●
58 BUZZER; AIR PRESSURE WARNING
METRO 		1-83460-074-1 01 1 0005-0210 ● ● ●
58 BUZZER; AIR PRESSURE WARNING
METRO 		1-83460-075-0 01 1 0211-0411 ● ● ●
58 BUZZER; AIR PRESSURE WARNING
METRO 		1-83460-075-0 01 1 0412-0612 ● ● ● ●
58 BUZZER; AIR PRESSURE WARNING
METRO 		8-98069-859-0 01 1 0701- ● ● ● ●
59 SCREW; BUZZER
M5X14 		8-94279-325-0 01 1 0005-0411 ● ● ●
59 SCREW; BUZZER
M5X14 		8-94279-325-0 01 1 0412- ● ● ● ●
121 RELAY; PARKING BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 24V 12.5A JIDECO 		8-97062-815-1 01 1 0005-0111 ●
121 RELAY; PARKING BRK
24V 12.5A JIDECO 		8-97062-815-1 01 1 0005-0111 ● ●
121 RELAY; PARKING BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112- ●
121 RELAY; PARKING BRK
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112- ● ●
123 RELAY; HTR
24V 12.5A JIDECO 		8-97062-815-1 01 1 0005-0111 ● ● ●
123 RELAY; HTR
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-0411 ● ● ●
123 RELAY; HTR
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0412- ● ● ● ●
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91150-106-0 01 1 0005-0411 ● ● ●
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91150-106-0 01 1 0412-0602 ● ● ● ●
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ● ● ●
226 RELAY; EXH BRK
EXHAUST BRAKE<NF8> 24V 12.5A JIDECO 		8-97062-815-1 01 1 0005-0111 ●
226 RELAY; EXH BRK
24V 12.5A JIDECO 		8-97062-815-1 01 1 0005-0111 ● ●
226 RELAY; EXH BRK
EXHAUST BRAKE<NF8> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-0411 ●
226 RELAY; EXH BRK
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-0411 ● ●
226 RELAY; EXH BRK
EXHAUST BRAKE<NF8> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0412- ●
226 RELAY; EXH BRK
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0412- ● ● ●
234 RELAY; AIR SUSPENSION
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0412- ●
354 RELAY; BRAKE FLUID CHECK
24V 12.5A JIDECO 		8-97062-815-1 01 1 0005-0111 ● ● ●
354 RELAY; BRAKE FLUID CHECK
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-0411 ● ● ●
354 RELAY; BRAKE FLUID CHECK
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0412- ● ● ● ●
367 RELAY; NEUTRAL
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0211-0411 ● ● ●
367 RELAY; NEUTRAL
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0412- ● ● ● ●
377 NUT; RELAY
PTO CONTROL<SV6> M6 FLANGE 		0-91180-106-0 02 1 0612- ●
429 RELAY; POWER CUT
6HK1 TCS ENG(80L) EURO3 SPECIFICATION<NJX> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0307- ● ●
429 RELAY; POWER CUT
EURO2 SPECIFICATION<THN> 24V 12.5A JIDECO 		8-97062-815-1 01 1 0005-0111 ● ●
429 RELAY; POWER CUT
EURO2 SPECIFICATION<THN> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-0210 ● ●
531 RELAY; MAIN
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0211-0305 ● ● ●
531 RELAY; MAIN
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0306-0411 ● ●
531 RELAY; MAIN
6HK1 TCC ENG(81L) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0306-0411 ●
531 RELAY; MAIN
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0412- ● ●
531 RELAY; MAIN
6HK1 TCC ENG(81L) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0412- ●
531 RELAY; MAIN
6HK1 TCN ENG(82L) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0412- ●
557 RELAY; WASHER
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0211-0411 ● ● ●
557 RELAY; WASHER
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0412- ● ● ● ●
559 RELAY; MAG VLV
6HK1 TCS ENG(80L) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0307- ● ●
570 RELAY; A/T MODULATOR
A/T<X9D> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0211- ●
605 RELAY; PCV
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0211-0305 ● ● ●
605 RELAY; PCV
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0306-0411 ● ●
605 RELAY; PCV
6HK1 TCC ENG(81L) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0306-0411 ●
605 RELAY; PCV
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0412- ● ●
605 RELAY; PCV
6HK1 TCC ENG(81L) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0412- ●
605 RELAY; PCV
6HK1 TCN ENG(82L) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0412- ●

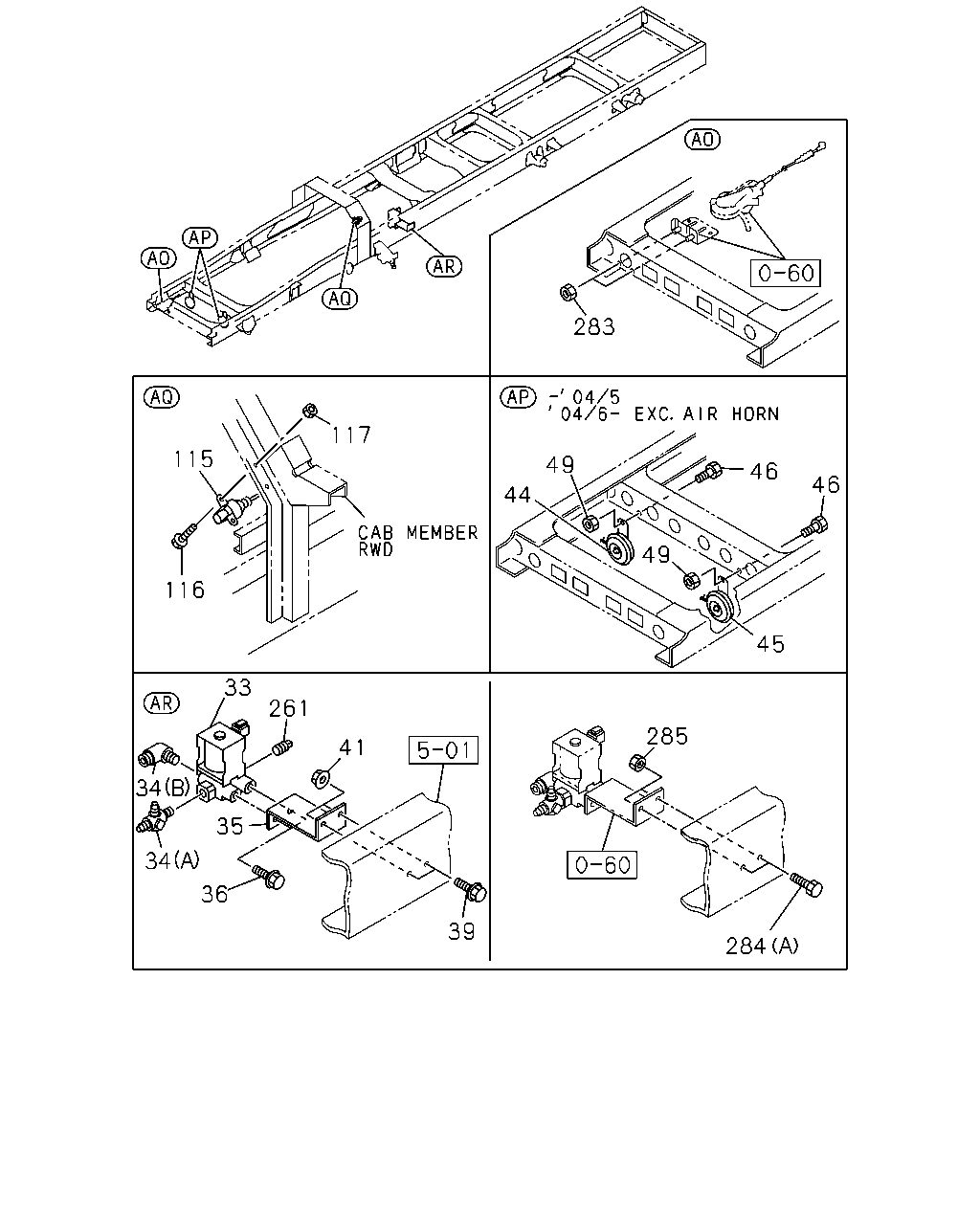

çizim 38309
283 117 115 49 46 46 44 49 116 45 33 261 285 41 34 35 34 36 39 284
BalonParca AdiParca NoAdetTipApplied Date A B C D
33 VALVE; MAG,PTO CONT
PTO CONTROL<SV6> 		1-82563-600-5 01 1 0612- ●
34 CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0612- ●
34 CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (A) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0612- ●
35 BRACKET; MAG VLV,PTO CONT
PTO CONTROL<SV6> 		1-47477-953-1 01 1 0612- ●
36 BOLT; MAG VLV,PTO CONT
PTO CONTROL<SV6> M8X20 FLANGE 		0-28650-820-0 02 1 0612- ●
39 BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M8X30 FLANGE 		0-28650-830-0 02 1 0612- ●
41 NUT; BRKT,MAG VLV
PTO CONTROL<SV6> M8 FLANGE 		0-91180-108-0 02 1 0612- ●
44 HORN; HIGH NOTE 1-83410-057-1 01 1 0005-0210 ● ● ●
44 HORN; HIGH NOTE 1-83410-065-0 01 1 0211-0405 ● ● ●
44 HORN; HIGH NOTE
EXC. AIR HORN<WB8> 		1-83410-065-1 01 1 0406-0411 ● ●
44 HORN; HIGH NOTE 1-83410-065-1 01 1 0406-0411 ●
44 HORN; HIGH NOTE
EXC. AIR HORN<WB8> 		1-83410-065-1 01 1 0412- ● ●
44 HORN; HIGH NOTE 1-83410-065-1 01 1 0412- ● ●
45 HORN; LOW NOTE 1-83410-058-1 01 1 0005-0210 ● ● ●
45 HORN; LOW NOTE 1-83410-064-0 01 1 0211-0405 ● ● ●
45 HORN; LOW NOTE
EXC. AIR HORN<WB8> 		1-83410-064-1 01 1 0406-0411 ● ●
45 HORN; LOW NOTE 1-83410-064-1 01 1 0406-0411 ●
45 HORN; LOW NOTE
EXC. AIR HORN<WB8> 		1-83410-064-1 01 1 0412- ● ●
45 HORN; LOW NOTE 1-83410-064-1 01 1 0412- ● ●
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0405 ● ● ●
46 BOLT; HORN TO BODY
EXC. AIR HORN<WB8> M8X25 FLANGE 		0-28680-825-0 02 1 0406-0411 ● ●
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28680-825-0 02 1 0406-0411 ●
46 BOLT; HORN TO BODY
EXC. AIR HORN<WB8> M8X25 FLANGE 		0-28680-825-0 02 1 0412-0512 ● ●
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28680-825-0 02 1 0412-0512 ● ●
46 BOLT; HORN TO BODY
EXC. AIR HORN<WB8> M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
49 NUT; HORN TO BODY
M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ● ● ●
49 NUT; HORN TO BODY
EXC. FRONT STABILIZER SHAFT<F59> M8 FLANGE 		0-91150-108-0 02 1 0211-0405 ●
49 NUT; HORN TO BODY
M8 FLANGE 		0-91150-108-0 02 1 0211-0405 ●
49 NUT; HORN TO BODY
EXC. FRONT STABILIZER SHAFT<F59>,AIR HORN<WB8> M8 FLANGE 		0-91150-108-0 02 1 0406-0411 ●
49 NUT; HORN TO BODY
M8 FLANGE 		0-91150-108-0 02 1 0406-0411 ●
49 NUT; HORN TO BODY
EXC. FRONT STABILIZER SHAFT<F59>,AIR HORN<WB8> M8 FLANGE 		0-91150-108-0 02 1 0412-0512 ●
49 NUT; HORN TO BODY
M8 FLANGE 		0-91150-108-0 02 1 0412-0512 ● ●
49 NUT; HORN TO BODY
EXC. FRONT STABILIZER SHAFT<F59>,AIR HORN<WB8> M8 FLANGE 		0-91150-108-0 02 1 0601-0602 ●
49 NUT; HORN TO BODY
M8 FLANGE 		0-91150-108-0 02 1 0601-0602 ●
49 NUT; HORN TO BODY
EXC. FRONT STABILIZER SHAFT<F59> M8 FLANGE 		0-91150-108-0 02 1 0601-0602 ●
49 NUT; HORN TO BODY
EXC. FRONT STABILIZER SHAFT<F59>,AIR HORN<WB8> M8 FLANGE 		0-91180-108-0 02 1 0603- ●
49 NUT; HORN TO BODY
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
49 NUT; HORN TO BODY
EXC. FRONT STABILIZER SHAFT<F59> M8 FLANGE 		0-91180-108-0 02 1 0603- ●
115 RELAY; POWER CAB TILT UNIT
HITACHI 		1-81171-086-0 01 1 0005- ●
116 BOLT; RELAY FIX
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ●
116 BOLT; RELAY FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
117 NUT; RELAY FIX
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ●
117 NUT; RELAY FIX
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
261 PLUG; MAG VLV
PTO CONTROL<SV6> PT1/4 		9-99204-513-0 01 1 0612- ●
283 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ● ● ●
284 BOLT; MAG VLV
(B) M8X70 		0-10805-870-0 02 1 0412-0512 ●
284 BOLT; MAG VLV
(B) M8X70 		0-10855-870-0 02 1 0601- ●
284 BOLT; MAG VLV
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0005-0210 ● ● ●
285 NUT; MAG VLV
M8 FLANGE 		0-91150-108-0 02 1 0412-0602 ●
285 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
285 NUT; MAG VLV
M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ● ● ●

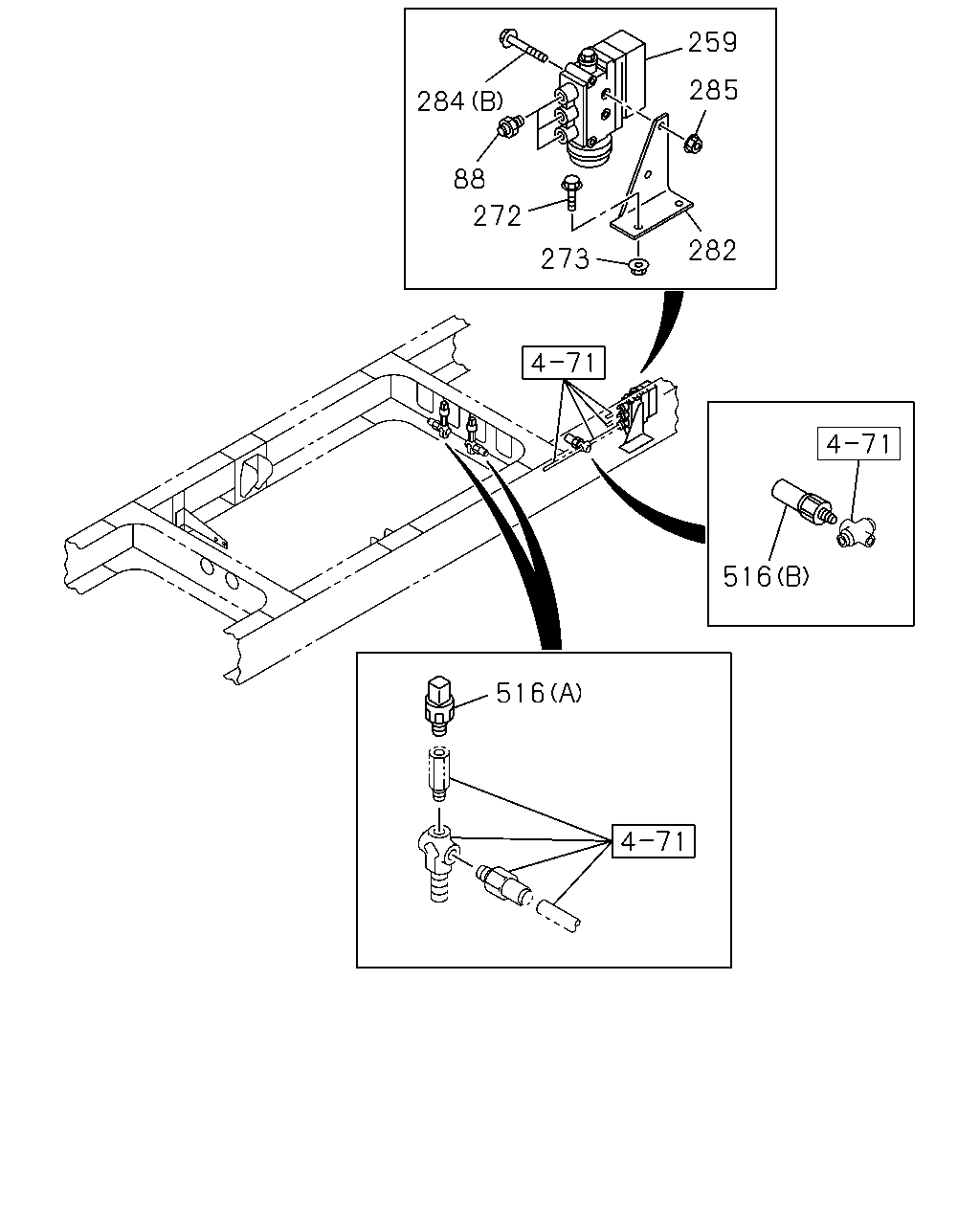

çizim 38384
259 285 284 88 272 282 273 516 516
BalonParca AdiParca NoAdetTipApplied Date A B C D
88 CONNECTOR; MAG VLV
DIN8 & M22 STRAIGHT 		1-09661-091-0 03 1 0412- ●
259 VALVE; MAG,AIR SUSP CONT 1-82563-713-0 01 1 0412- ●
272 BOLT; MAG VLV
M10X30 FLANGE 		0-28681-030-0 02 1 0412-0512 ●
272 BOLT; MAG VLV
M10X30 FLANGE 		0-28651-030-0 02 1 0601- ●
273 NUT; MAG VLV
M10 FLANGE 		0-91150-210-0 02 1 0412-0602 ●
273 NUT; MAG VLV
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
282 BRACKET; MAG VLV 1-47478-319-0 01 1 0412- ●
284 BOLT; MAG VLV
(B) M8X70 		0-10805-870-0 02 1 0412-0512 ●
284 BOLT; MAG VLV
(B) M8X70 		0-10855-870-0 02 1 0601- ●
284 BOLT; MAG VLV
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0005-0210 ● ● ●
285 NUT; MAG VLV
M8 FLANGE 		0-91150-108-0 02 1 0412-0602 ●
285 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
285 NUT; MAG VLV
M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ● ● ●
516 SWITCH; PRESS
(B) 650KPA 		1-48340-059-1 01 1 0412- ●
516 SWITCH; PRESS
(A) THREAD R1/8 		1-80220-025-0 02 1 0412- ●

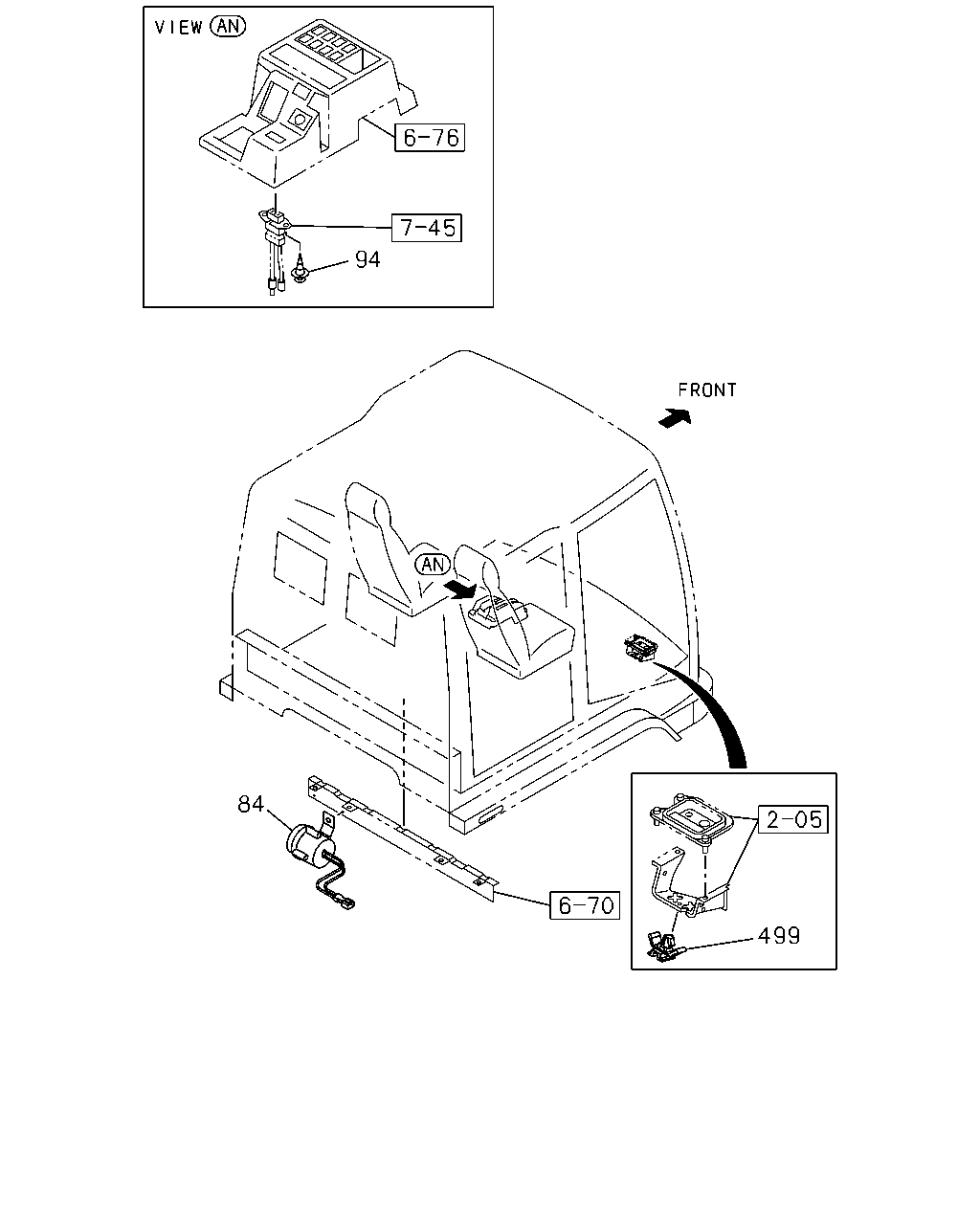

çizim 38585
94 84 499
BalonParca AdiParca NoAdetTipApplied Date A B C D
84 BUZZER; POWER CAB TILT
METRO 		1-83460-096-2 01 1 0005-0210 ●
84 BUZZER; POWER CAB TILT
METRO 		1-83460-097-0 01 1 0211-0612 ●
84 BUZZER; POWER CAB TILT
METRO 		8-98069-860-0 01 1 0701- ●
94 SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER 		0-74110-510-0 02 1 0005-0310 ● ● ●
499 CLIP; SWITCH
OD=9 H=6 		1-09709-178-0 01 1 0304-0411 ● ● ●
499 CLIP; SWITCH
OD=9 H=6 		1-09709-178-0 01 1 0412- ● ● ● ●

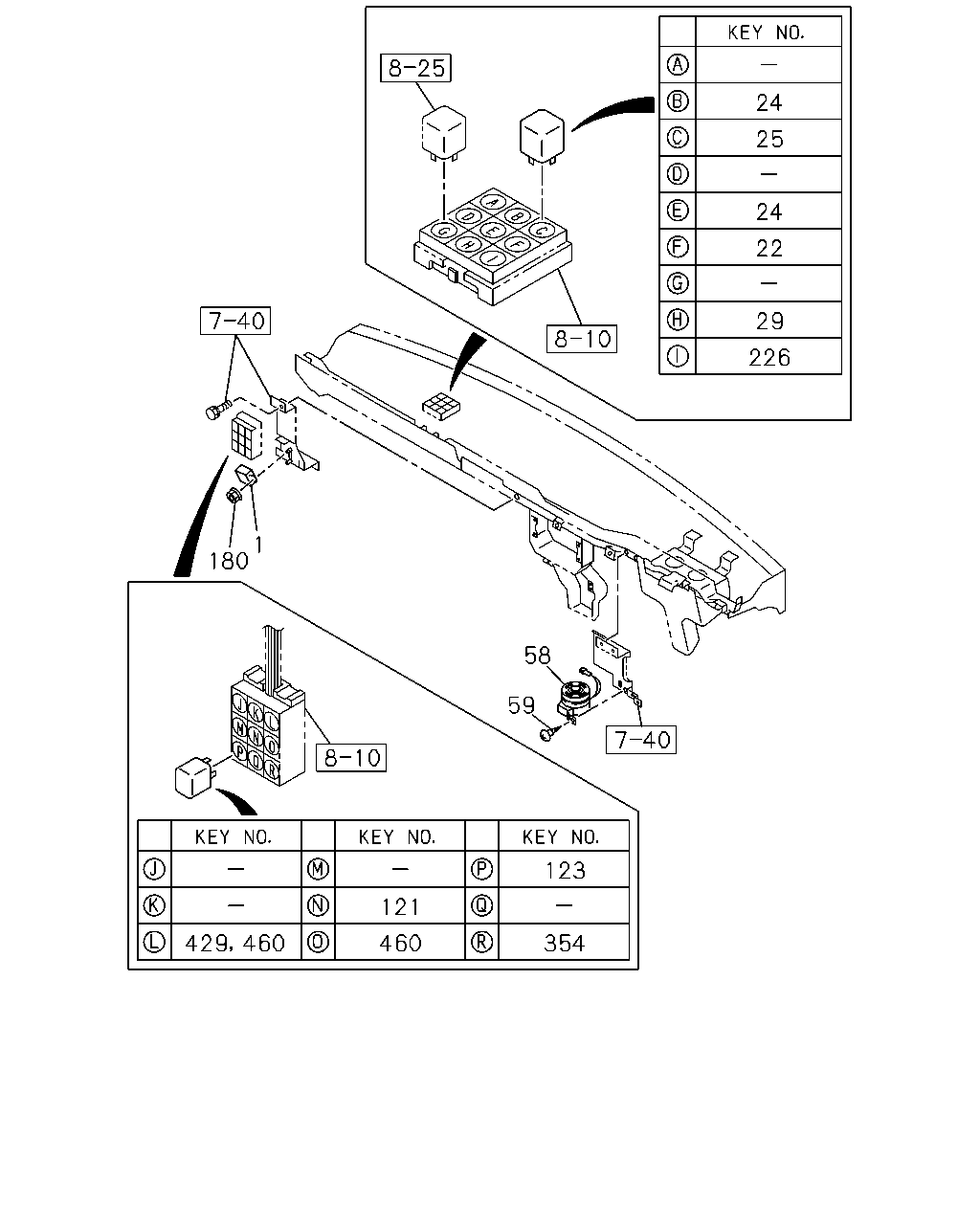

çizim 38586
24 25 24 22 29 226 1 180 58 59 123 121 460 354 429 460
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 UNIT; FLASHER 1-83470-060-1 01 1 0005-0411 ● ● ●
1 UNIT; FLASHER 1-83470-060-1 01 1 0412- ● ● ● ●
22 RELAY; STOP LAMP
24V 12.5A JIDECO 		8-97062-815-1 01 1 0005-0111 ● ● ●
22 RELAY; STOP LAMP
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-0411 ● ● ●
22 RELAY; STOP LAMP
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0412- ● ● ● ●
24 RELAY; LIGHTING
24V 12.5A JIDECO 		8-97062-815-1 02 1 0005-0111 ● ● ●
24 RELAY; LIGHTING
24V 12.5A MATSUSHITA 		8-97262-933-0 02 1 0112-0411 ● ● ●
24 RELAY; LIGHTING
24V 12.5A MATSUSHITA 		8-97262-933-0 02 1 0412- ● ● ● ●
25 RELAY; TAIL LAMP
24V 12.5A JIDECO 		8-97062-815-1 01 1 0005-0111 ● ● ●
25 RELAY; TAIL LAMP
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-0411 ● ● ●
25 RELAY; TAIL LAMP
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0412- ● ● ● ●
29 RELAY; HORN
24V 12.5A JIDECO 		8-97062-815-1 01 1 0005-0111 ● ● ●
29 RELAY; HORN
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-0405 ● ● ●
29 RELAY; HORN
EXC. AIR HORN<WB8> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0406-0411 ● ●
29 RELAY; HORN
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0406-0411 ●
29 RELAY; HORN
EXC. AIR HORN<WB8> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0412- ● ●
29 RELAY; HORN
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0412- ● ●
58 BUZZER; AIR PRESSURE WARNING
METRO 		1-83460-074-1 01 1 0005-0210 ● ● ●
58 BUZZER; AIR PRESSURE WARNING
METRO 		1-83460-075-0 01 1 0211-0411 ● ● ●
58 BUZZER; AIR PRESSURE WARNING
METRO 		1-83460-075-0 01 1 0412-0612 ● ● ● ●
58 BUZZER; AIR PRESSURE WARNING
METRO 		8-98069-859-0 01 1 0701- ● ● ● ●
59 SCREW; BUZZER
M5X14 		8-94279-325-0 01 1 0005-0411 ● ● ●
59 SCREW; BUZZER
M5X14 		8-94279-325-0 01 1 0412- ● ● ● ●
121 RELAY; PARKING BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 24V 12.5A JIDECO 		8-97062-815-1 01 1 0005-0111 ●
121 RELAY; PARKING BRK
24V 12.5A JIDECO 		8-97062-815-1 01 1 0005-0111 ● ●
121 RELAY; PARKING BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112- ●
121 RELAY; PARKING BRK
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112- ● ●
123 RELAY; HTR
24V 12.5A JIDECO 		8-97062-815-1 01 1 0005-0111 ● ● ●
123 RELAY; HTR
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-0411 ● ● ●
123 RELAY; HTR
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0412- ● ● ● ●
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91150-106-0 01 1 0005-0411 ● ● ●
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91150-106-0 01 1 0412-0602 ● ● ● ●
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ● ● ●
226 RELAY; EXH BRK
EXHAUST BRAKE<NF8> 24V 12.5A JIDECO 		8-97062-815-1 01 1 0005-0111 ●
226 RELAY; EXH BRK
24V 12.5A JIDECO 		8-97062-815-1 01 1 0005-0111 ● ●
226 RELAY; EXH BRK
EXHAUST BRAKE<NF8> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-0411 ●
226 RELAY; EXH BRK
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-0411 ● ●
226 RELAY; EXH BRK
EXHAUST BRAKE<NF8> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0412- ●
226 RELAY; EXH BRK
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0412- ● ● ●
354 RELAY; BRAKE FLUID CHECK
24V 12.5A JIDECO 		8-97062-815-1 01 1 0005-0111 ● ● ●
354 RELAY; BRAKE FLUID CHECK
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-0411 ● ● ●
354 RELAY; BRAKE FLUID CHECK
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0412- ● ● ● ●
429 RELAY; POWER CUT
6HK1 TCS ENG(80L) EURO3 SPECIFICATION<NJX> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0307- ● ●
429 RELAY; POWER CUT
EURO2 SPECIFICATION<THN> 24V 12.5A JIDECO 		8-97062-815-1 01 1 0005-0111 ● ●
429 RELAY; POWER CUT
EURO2 SPECIFICATION<THN> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-0210 ● ●
460 RELAY; IVES
EXC. EURO2 SPECIFICATION<THN> 24V 12.5A JIDECO 		8-97062-815-1 02 1 0005-0111 ● ●
460 RELAY; IVES
24V 12.5A JIDECO 		8-97062-815-1 02 1 0005-0111 ●
460 RELAY; IVES
EXC. EURO2 SPECIFICATION<THN> 24V 12.5A MATSUSHITA 		8-97262-933-0 02 1 0112-0210 ● ●
460 RELAY; IVES
24V 12.5A MATSUSHITA 		8-97262-933-0 02 1 0112-0210 ●
çizim 99799
77 505 51 494
BalonParca AdiParca NoAdetTipApplied Date A B C D
51 BOLT; HORN TO BRKT
AIR HORN<WB8> M8X20 FLANGE 		0-28680-820-0 02 1 0406-0512 ● ●
51 BOLT; HORN TO BRKT
AIR HORN<WB8> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
77 HORN ASM
AIR HORN<WB8> 		1-83430-041-2 01 1 0406- ● ●
494 PIPE; AIR,UNION TO HORN
AIR HORN<WB8> 		1-49115-750-0 01 1 0406- ● ●
505 JOINT; AIR HORN
AIR HORN<WB8> 		1-83439-006-0 01 1 0406- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
