◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10826 - FRR/FSR/FRD(AUST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#9470) — 124 parça

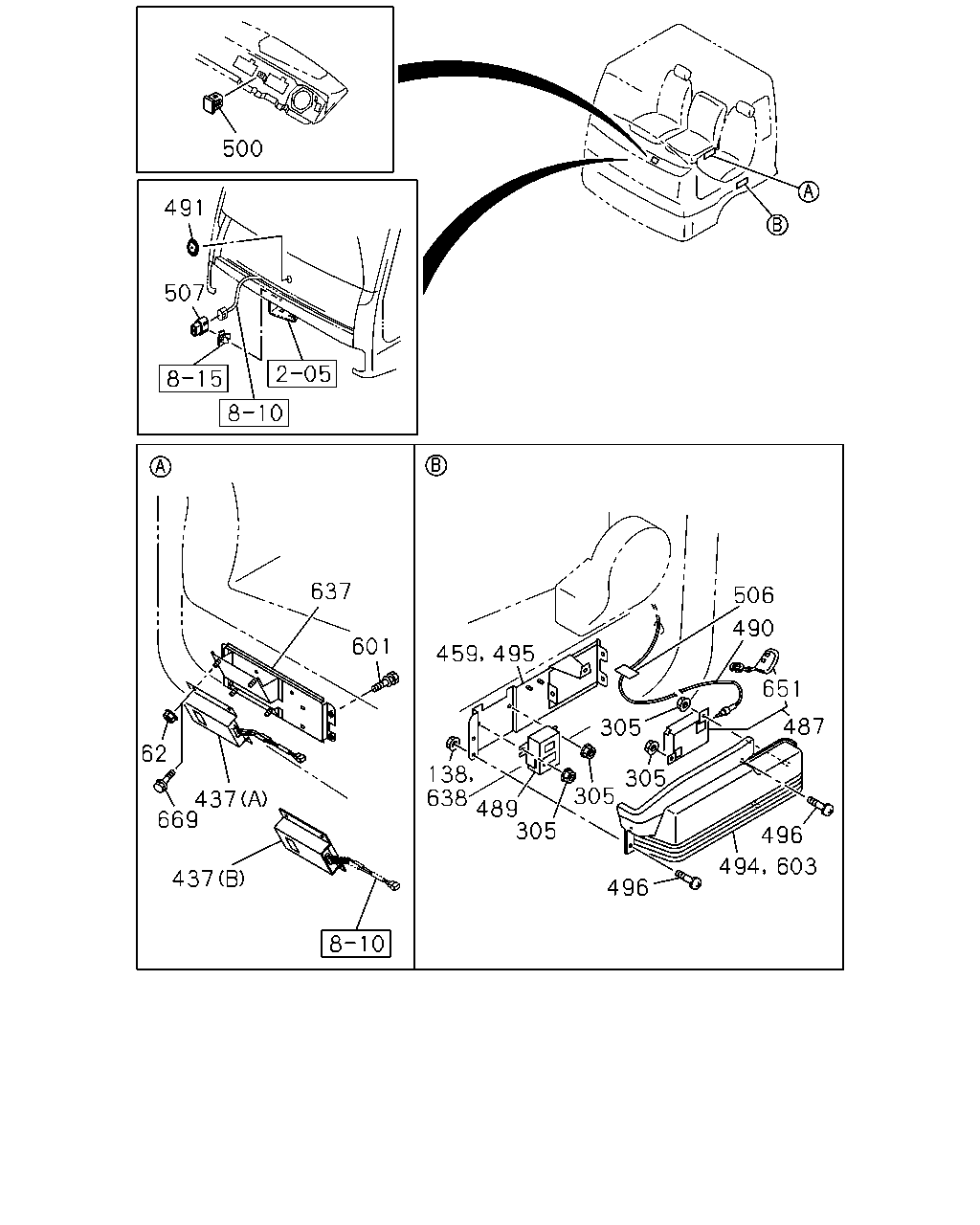

çizim 38160
500 491 507 637 506 490 601 459 651 487 305 62 138 638 489 305 305 305 437 669 496 494 603 437 496 495
BalonParca AdiParca NoAdetTipApplied Date A B C D
62 NUT; BRKT
M6 FLANGE 		0-91150-106-0 02 1 0005-0210 ● ● ●
138 NUT; BRKT
M6 FLANGE 		0-91150-106-0 02 1 0211-0411 ● ●
138 NUT; BRKT
M6 FLANGE 		0-91150-106-0 02 1 0412-0602 ● ● ●
138 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 0603- ● ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91150-106-0 02 1 0412-0602 ● ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0603-0809 ● ● ●
305 NUT; CONT UNIT
CUSTOM CAB(SR5) M6 FLANGE 		0-91150-106-0 02 1 0005-0210 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91150-106-0 02 1 0211-0411 ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91150-106-0 04 1 0412-0602 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0603- ●
437 CONVERTER; DC
(A) 		1-84122-037-1 01 1 0005-0008 ● ● ●
437 CONVERTER; DC
(B) MITSUBISHI 		1-84122-034-1 01 1 0009-0411 ● ● ●
437 CONVERTER; DC
(B) MITSUBISHI 		1-84122-034-1 01 1 0412-0603 ● ● ● ●
437 CONVERTER; DC
(B) METRO 		8-98046-423-0 01 1 0604- ● ● ● ●
459 BRACKET; CONTROL BOX 1-75558-488-5 01 1 0005-0210 ● ● ●
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE
CUSTOM CAB(SR5) 		1-86855-006-1 01 1 0005-0106 ●
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE
CUSTOM CAB(SR5) 		1-86855-033-0 01 1 0107-0210 ●
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE 1-86855-033-2 01 1 0211-0411 ● ●
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE 1-86855-033-2 01 1 0412-0809 ● ● ●
489 CONTROL UNIT; AUTO LIGHT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82540-049-1 01 1 0005- ●
490 ANTENNA; AUTO REMOTE DOOR LOCK
CUSTOM CAB(SR5) 		1-86855-023-1 01 1 0005-0210 ●
490 ANTENNA; AUTO REMOTE DOOR LOCK 1-86855-023-1 01 1 0211-0411 ● ●
490 ANTENNA; AUTO REMOTE DOOR LOCK 1-86855-023-1 01 1 0412-0809 ● ● ●
491 PLUG; HOLE,CONT UNIT
EXC. EURO2 SPECIFICATION<THN> OD=54.5 		1-73907-309-0 01 1 0005-0210 ● ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 0005-0210 ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 0211-0411 ● ● ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 0412- ● ● ● ●
494 COVER; ELEC BOX 1-72538-160-3 01 1 0211-0411 ● ●
494 COVER; ELEC BOX 1-72538-160-3 01 1 0412-0810 ● ● ●
494 COVER; ELEC BOX 8-97589-725-0 01 1 0811- ● ● ●
495 BRACKET; ELEC BOX 1-75558-488-5 01 1 0211-0411 ● ●
495 BRACKET; ELEC BOX 1-75558-488-5 01 1 0412- ● ● ●
496 SCREW; COVER
M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 0005-0210 ● ● ●
496 SCREW; COVER
M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 0211-0411 ● ●
496 SCREW; COVER
M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 0412-0703 ● ● ●
496 SCREW; COVER
M6X12 W/LK&PL WASHER 		0-36230-612-0 03 1 0704- ● ● ●
500 SENSOR; AUTO LIGHT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82486-002-1 01 1 0005- ●
506 TAPE; ANTENNA
CUSTOM CAB(SR5) 100X30 		1-74998-068-0 06 1 0005-0210 ●
506 TAPE; ANTENNA
100X30 		1-74998-068-0 06 1 0211-0302 ●
506 TAPE; ANTENNA
100X30 		1-74998-068-0 06 1 0303-0411 ● ●
506 TAPE; ANTENNA
100X30 		1-74998-068-0 06 1 0412-0809 ● ● ●
507 CONNECTOR
AIR HORN<WB8> 		1-82690-666-0 01 1 0705- ● ●
601 BOLT; DC-DC CONVERTER
M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0005-0411 ● ● ●
601 BOLT; DC-DC CONVERTER
M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0412-0703 ● ● ● ●
601 BOLT; DC-DC CONVERTER
M6X12 W/LK&PL WASHER 		0-36230-612-0 02 1 0704- ● ● ● ●
603 COVER; CONT UNIT,SEAT STAND 1-72538-160-2 01 1 0005-0210 ● ● ●
637 BRACKET; DC-DC CONVERTER 1-75557-483-1 01 1 0005-0411 ● ● ●
637 BRACKET; DC-DC CONVERTER 1-75557-483-1 01 1 0412- ● ● ● ●
638 NUT; DC-DC CONVERTER
M6 FLANGE 		0-91150-106-0 04 1 0005-0210 ● ● ●
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE
CUSTOM CAB(SR5) 		1-86855-017-0 01 1 0005-0106 ●
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE
CUSTOM CAB(SR5) 		1-86860-008-0 01 1 0107-0210 ●
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE 1-86860-008-0 01 1 0211-0411 ● ●
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE 1-86860-008-0 01 1 0412-0809 ● ● ●
669 SCREW; DC-DC CONVERTER
M6X12 W/PL WASHER 		1-09981-380-0 04 1 0005-0411 ● ● ●
669 SCREW; DC-DC CONVERTER
M6X12 W/PL WASHER 		1-09981-380-0 04 1 0412- ● ● ● ●

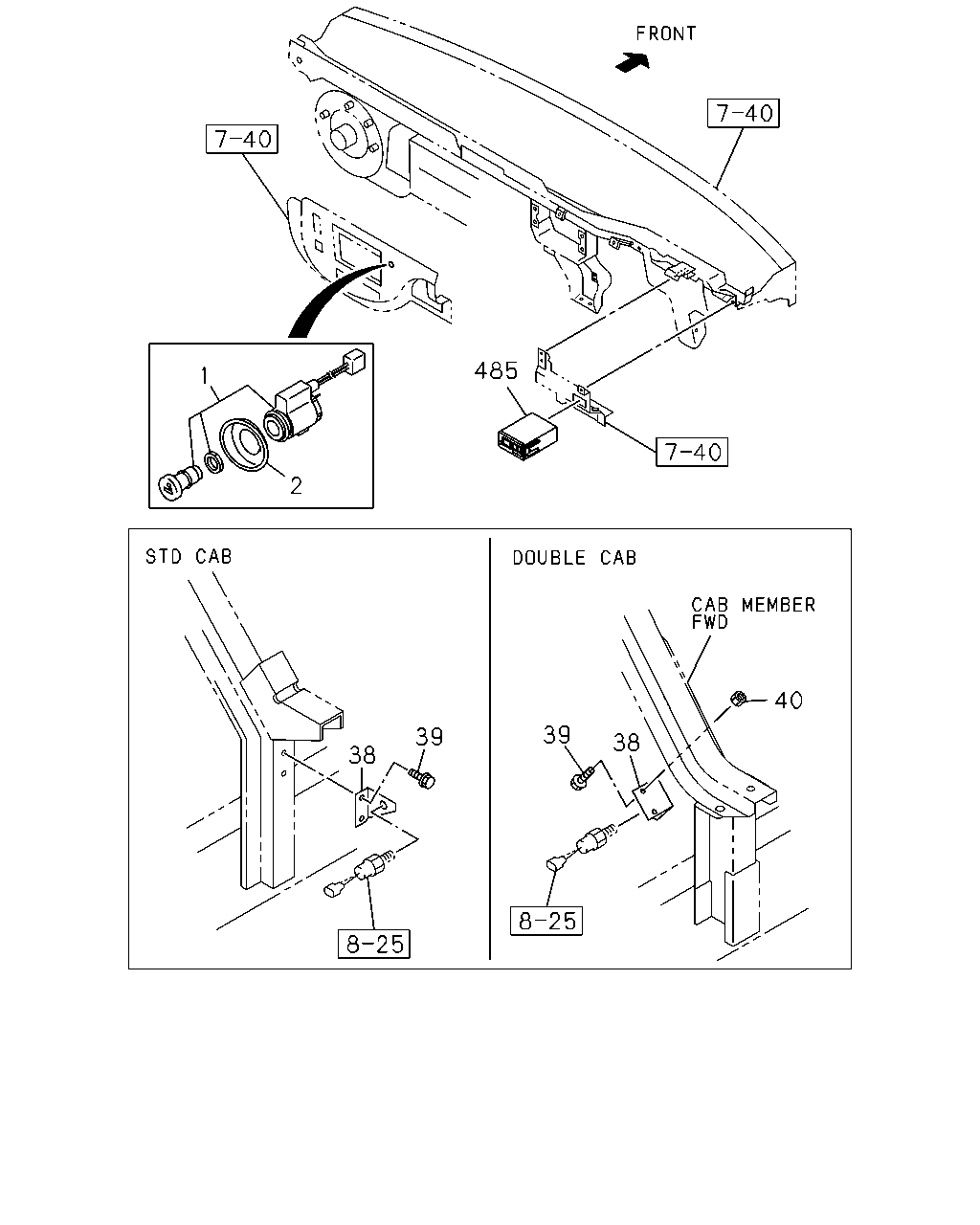

çizim 38209
485 1 2 40 39 39 38 38
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LIGHTER; CIGAR 8-97064-970-1 01 1 0005-0108 ● ● ●
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0109-0411 ● ● ●
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0412- ● ● ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0005-0411 ● ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0412- ● ● ● ●
38 BRACKET; SW,STARTER SUB 1-82699-351-0 01 1 0005-0210 ● ●
38 BRACKET; SW,STARTER SUB 1-82699-351-0 01 1 0211-0211 ●
38 BRACKET; SW,STARTER SUB
EXC. STARTER SWITCH DELETION<E5D> 		1-82699-351-0 01 1 0212-0411 ●
38 BRACKET; SW,STARTER SUB
EXC. STARTER SWITCH DELETION<E5D> 		1-82699-351-0 01 1 0412- ● ●
38 BRACKET; SW,STARTER SUB 1-82699-370-0 01 1 0005-0211 ●
38 BRACKET; SW,STARTER SUB
EXC. STARTER SWITCH DELETION<E5D> 		1-82699-370-0 01 1 0212- ●
38 BRACKET; SW,STARTER SUB 1-82698-232-0 01 1 0211-0211 ●
38 BRACKET; SW,STARTER SUB
EXC. STARTER SWITCH DELETION<E5D> 		1-82698-232-0 01 1 0212- ●
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0211 ● ● ●
39 BOLT; BRKT,STARTER SUB SW
EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE 		0-28680-820-0 02 1 0212-0411 ● ● ●
39 BOLT; BRKT,STARTER SUB SW
EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE 		0-28680-820-0 02 1 0412-0512 ● ● ● ●
39 BOLT; BRKT,STARTER SUB SW
EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ●
40 NUT; BRKT,STARTER SUB SWITCH
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ●
40 NUT; BRKT,STARTER SUB SWITCH
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 0005-0210 ● ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 0211-0411 ● ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 0412-1008 ● ● ● ●
485 CONTROL UNIT; SPEED SENSOR 8-98140-862-0 01 1 1009-1109 ● ● ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 1110- ● ● ● ●

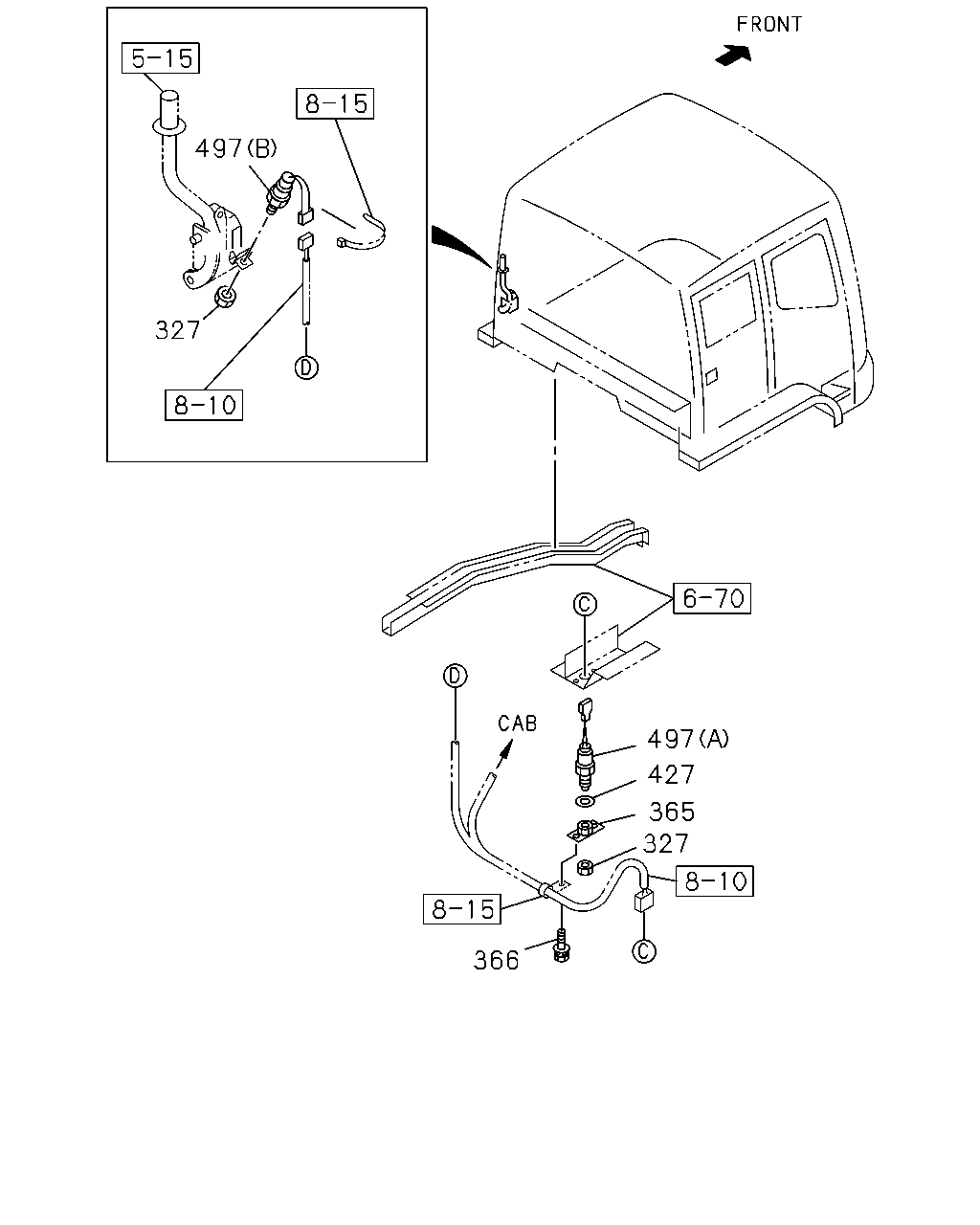

çizim 38591
497 327 497 427 365 327 366
BalonParca AdiParca NoAdetTipApplied Date A B C D
327 NUT; SWITCH
M16 		9-99111-416-0 02 1 0005-0512 ●
327 NUT; SWITCH
M16 		0-91111-516-0 02 1 0601- ●
365 PLATE ASM; SW,CAB TILT 1-71998-393-1 01 1 0005- ●
366 BOLT; PLATE,SW,CAB TILT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005- ●
427 WASHER; PL,SWITCH
ID=17 		9-09160-516-0 01 1 0005-0605 ●
427 WASHER; PL,SWITCH
ID=17 OD=30 		0-91610-516-0 01 1 0606- ●
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 0005- ●
497 SWITCH; CAB TILT
(B) STAMP NO 		1-82380-126-0 01 1 0005- ●

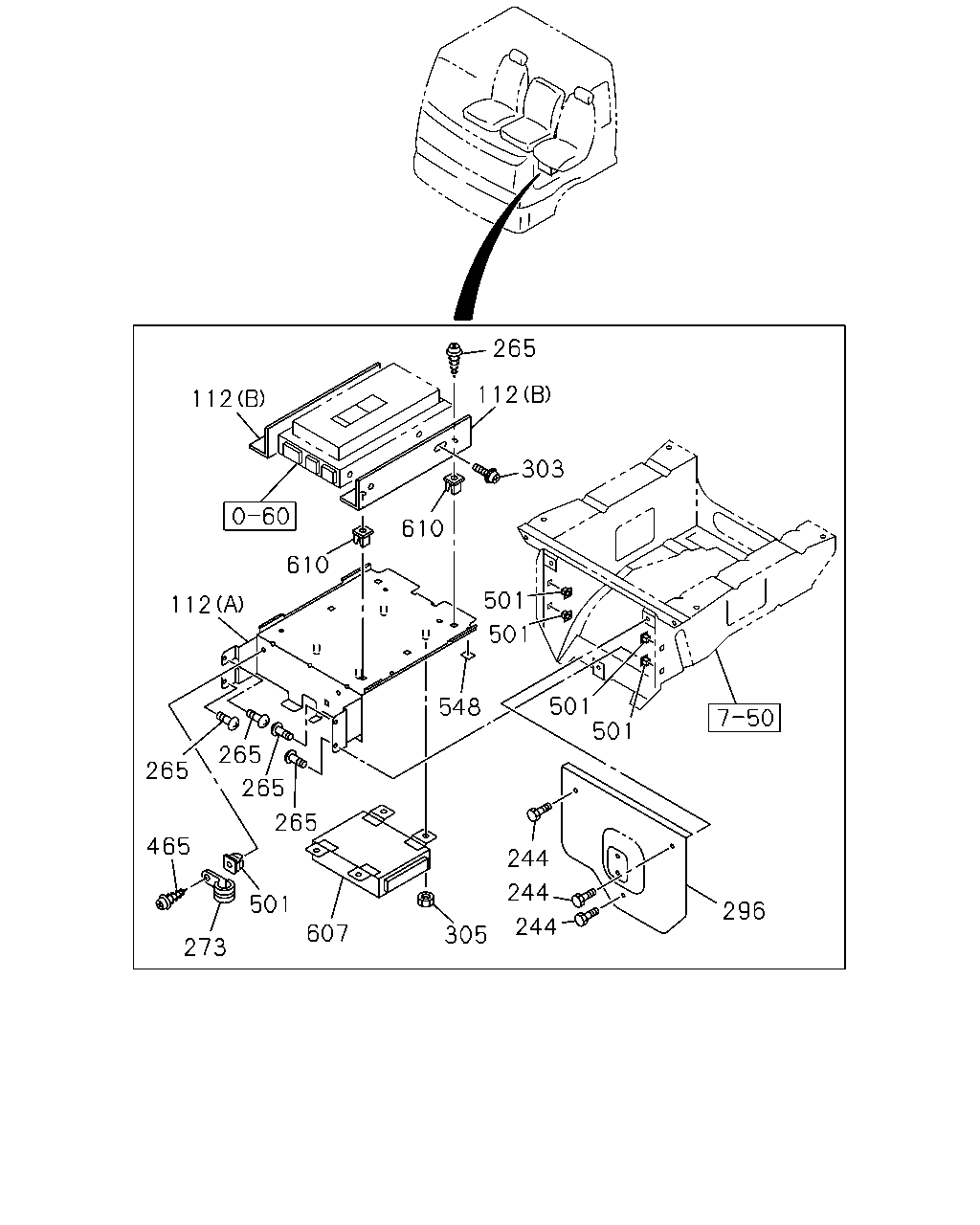

çizim 38688
265 112 112 303 610 610 501 112 501 501 501 548 265 265 265 265 465 244 244 501 296 244 607 305 273
BalonParca AdiParca NoAdetTipApplied Date A B C D
112 BRACKET; CONT UNIT
(A) 		1-75557-511-5 01 1 0412- ●
112 BRACKET; CONT UNIT
(B) 		1-75558-566-0 02 1 0211-0411 ● ● ●
112 BRACKET; CONT UNIT
(B) 		1-75558-566-0 02 1 0412- ● ● ● ●
112 BRACKET; CONT UNIT
(A) 		1-75558-614-2 01 1 0211- ● ● ●
244 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0211-0411 ● ● ●
244 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0412-0703 ● ● ● ●
244 BOLT; COVER
M6X16 		0-52000-616-0 03 1 0704- ● ● ● ●
265 SCREW; BRKT,CONT UNIT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 08 1 0211-0411 ● ● ●
265 SCREW; BRKT,CONT UNIT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 08 1 0412- ● ● ● ●
273 CLIP; HARNESS
ID=35 L=35 		1-09700-726-0 01 1 0211-0411 ● ● ●
273 CLIP; HARNESS
ID=35 L=35 		1-09700-726-0 01 1 0412- ● ● ● ●
296 COVER; CONT UNIT 1-75558-556-1 01 1 0211-0411 ● ● ●
296 COVER; CONT UNIT 1-75558-556-1 01 1 0412- ● ● ● ●
303 SCREW; CONT UNIT
M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 0211-0411 ● ● ●
303 SCREW; CONT UNIT
M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 0412-0604 ● ● ● ●
303 SCREW; CONT UNIT
M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 0605- ● ● ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91150-106-0 02 1 0412-0602 ● ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0603-0809 ● ● ●
305 NUT; CONT UNIT
CUSTOM CAB(SR5) M6 FLANGE 		0-91150-106-0 02 1 0005-0210 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91150-106-0 02 1 0211-0411 ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91150-106-0 04 1 0412-0602 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0603- ●
465 BOLT; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0211-0411 ● ● ●
465 BOLT; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0412- ● ● ● ●
501 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 05 1 0211-0411 ● ● ●
501 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 05 1 0412- ● ● ● ●
548 SEAL; NOISE
30X30 		8-97866-626-0 03 1 0211-0309 ● ● ●
548 SEAL; NOISE
30X30 		1-74998-128-1 03 1 0310-0411 ● ● ●
548 SEAL; NOISE
30X30 		1-74998-128-1 03 1 0412-0908 ● ● ● ●
548 SEAL; NOISE
30X30 		8-98142-344-0 03 1 0909-1305 ● ● ● ●
548 SEAL; NOISE
30X30 		8-98142-344-0 01 1 1306- ● ● ● ●
607 CONTROL UNIT; AIR SUSPENSION 1-80159-021-0 01 1 0412- ●
610 GROMMET; SCREW,BRKT ELEC UNIT
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0211-0411 ● ● ●
610 GROMMET; SCREW,BRKT ELEC UNIT
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0412- ● ● ● ●

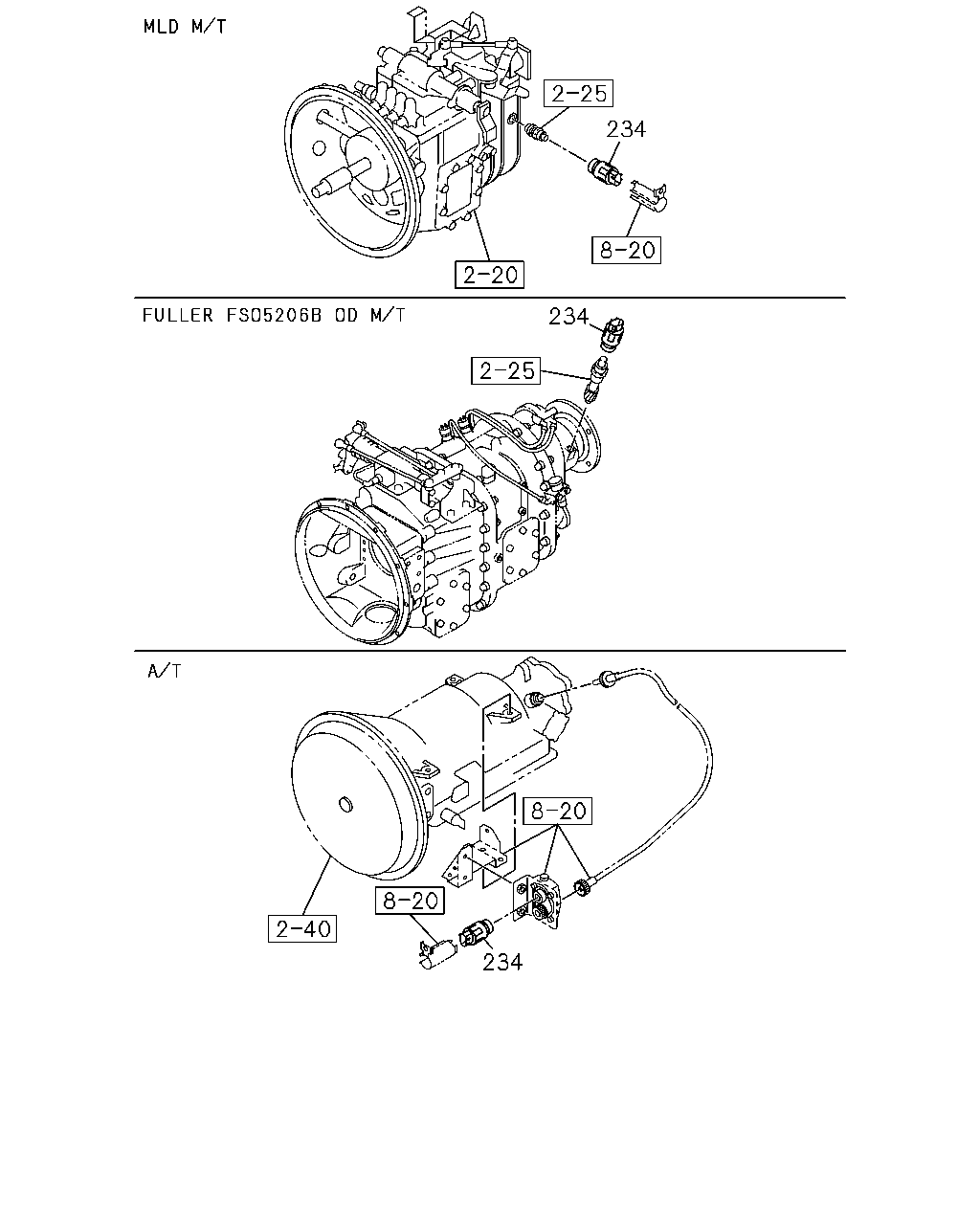

çizim 100035
234 234 234
BalonParca AdiParca NoAdetTipApplied Date A B C D
234 SENSOR; VEHICLE SPD 1-80240-001-1 01 1 0005-0202 ● ● ●
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0203-0411 ● ● ●
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0412- ● ● ● ●
