◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10826 - FRR/FSR/FRD(AUST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#9469) — 115 parça

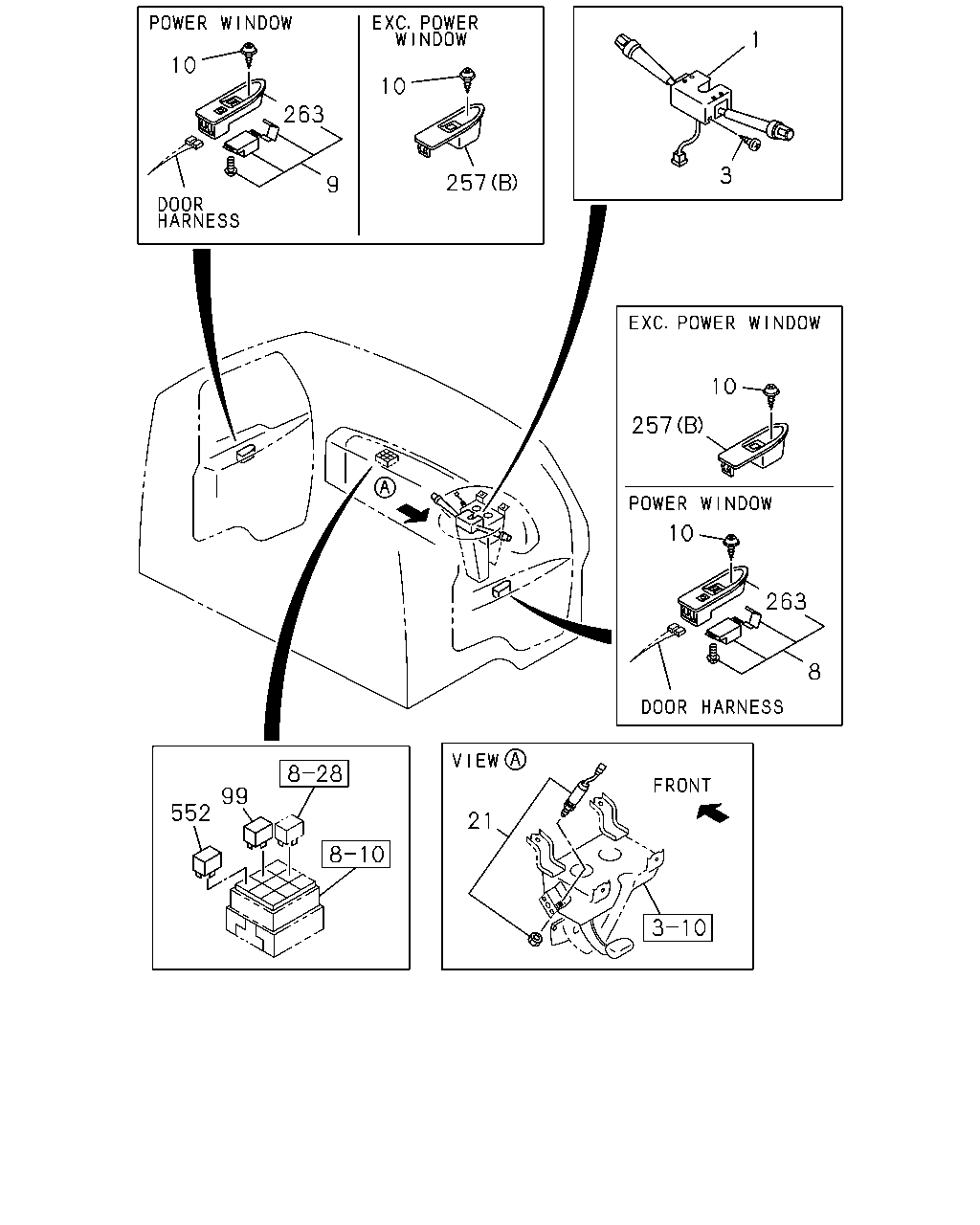

çizim 38212
1 10 10 263 3 257 9 10 257 10 263 8 99 552 21
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SWITCH; COMB
EXHAUST BRAKE<NF8> FOG LAMP<T96> EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82360-715-0 01 1 0601- ●
1 SWITCH; COMB
FOG LAMP<T96> 		1-82360-715-0 01 1 0601- ● ● ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> FOG LAMP<T96> 		1-82360-763-0 01 1 0601- ●
1 SWITCH; COMB
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> FOG LAMP<T96> EXC. EXHAUST BRAKE<NF8> 		1-82360-764-0 01 1 0601- ●
1 SWITCH; COMB
FOG LAMP<T96> EXC. EXHAUST BRAKE<NF8>,AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82360-718-0 01 1 0601- ●
1 SWITCH; COMB
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> EXC. EXHAUST BRAKE<NF8> 		1-82360-533-0 01 1 0005-0103 ●
1 SWITCH; COMB
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> EXC. EXHAUST BRAKE<NF8> 		1-82360-637-0 01 1 0104-0312 ●
1 SWITCH; COMB
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> EXC. EXHAUST BRAKE<NF8> 		1-82360-722-0 01 1 0401-0512 ●
1 SWITCH; COMB
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> EXC. EXHAUST BRAKE<NF8>,FOG LAMP<T96> 		1-82360-722-0 01 1 0601- ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82360-532-0 01 1 0005-0103 ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82360-636-0 01 1 0104-0312 ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82360-721-0 01 1 0401-0512 ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> EXC. FOG LAMP<T96> 		1-82360-721-0 01 1 0601- ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82360-403-4 01 1 0005-0103 ●
1 SWITCH; COMB 1-82360-403-4 01 1 0005-0103 ● ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82360-618-0 01 1 0104-0312 ●
1 SWITCH; COMB 1-82360-618-0 01 1 0104-0312 ● ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82360-714-0 01 1 0401-0411 ●
1 SWITCH; COMB 1-82360-714-0 01 1 0401-0411 ● ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82360-714-0 01 1 0412-0512 ●
1 SWITCH; COMB 1-82360-714-0 01 1 0412-0512 ● ● ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT>, FOG LAMP<T96> 		1-82360-714-0 01 1 0601- ●
1 SWITCH; COMB
EXC. FOG LAMP<T96> 		1-82360-714-0 01 1 0601- ● ● ●
1 SWITCH; COMB
EXC. EXHAUST BRAKE<NF8>,AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82360-404-4 01 1 0005-0103 ●
1 SWITCH; COMB
EXC. EXHAUST BRAKE<NF8>,AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82360-599-0 01 1 0104-0312 ●
1 SWITCH; COMB
EXC. EXHAUST BRAKE<NF8>,AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82360-710-0 01 1 0401-0512 ●
1 SWITCH; COMB
EXC. EXHAUST BRAKE<NF8>,AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT>,FOG LAMP<T96> 		1-82360-710-0 01 1 0601- ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 0005-0411 ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 0412-0604 ● ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 0605- ● ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER 		1-82380-155-3 01 1 0005-0210 ●
8 SWITCH; POWER WINDOW
DRIVER 		1-82380-155-4 01 1 0211-0411 ● ●
8 SWITCH; POWER WINDOW
DRIVER 		1-82380-155-4 01 1 0412- ● ● ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER 		1-82380-154-3 01 1 0005-0210 ●
9 SWITCH; POWER WINDOW
PASSENGER 		1-82380-154-3 01 1 0211-0411 ● ●
9 SWITCH; POWER WINDOW
PASSENGER 		1-82380-154-3 01 1 0412- ● ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0005-0411 ● ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0412-0604 ● ● ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605- ● ● ● ●
21 SWITCH; CLU
ISUZU M/T<X9A> 		1-82380-114-2 01 1 0005-0210 ●
21 SWITCH; CLU 1-82380-114-2 01 1 0005-0210 ● ●
21 SWITCH; CLU
ISUZU M/T<X9A> 		1-82440-116-0 01 1 0211-0306 ●
21 SWITCH; CLU 1-82440-116-0 01 1 0211-0306 ● ●
21 SWITCH; CLU
ISUZU M/T<X9A>,FULLER M/T<X9B> 		1-82440-116-1 01 1 0307-0411 ● ●
21 SWITCH; CLU 1-82440-116-1 01 1 0307-0411 ●
21 SWITCH; CLU
ISUZU M/T<X9A>,FULLER M/T<X9B> 		1-82440-116-1 01 1 0412-0608 ● ●
21 SWITCH; CLU 1-82440-116-1 01 1 0412-0608 ● ●
21 SWITCH; CLU
ISUZU M/T<X9A>,FULLER M/T<X9B> 		1-82440-126-1 01 1 0609- ● ●
21 SWITCH; CLU 1-82440-126-1 01 1 0609- ● ●
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0601- ● ● ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-012-2 01 1 0005-0210 ●
257 COVER; HOLE,SW
(B) 		1-82389-012-2 01 1 0005-0210 ● ●
257 COVER; HOLE,SW
(B) 		1-82389-012-2 01 1 0211- ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-011-2 01 1 0005-0210 ●
257 COVER; HOLE,SW
(B) 		1-82389-011-2 01 1 0005-0210 ● ●
257 COVER; HOLE,SW
(B) 		1-82389-011-2 01 1 0211- ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 0005-0210 ● ● ●
263 COVER; SW
POWER WINDOW<A30> 		1-82385-006-3 01 1 0005-0210 ●
263 COVER; SW 1-82385-006-3 01 1 0211-0411 ● ●
263 COVER; SW 1-82385-006-3 01 1 0412- ● ● ●
263 COVER; SW
POWER WINDOW<A30> 		1-82385-005-2 01 1 0005-0210 ●
263 COVER; SW 1-82385-005-2 01 1 0211-0411 ● ●
263 COVER; SW 1-82385-005-2 01 1 0412- ● ● ●
552 RELAY; CIGAR LIGHTER
24V 12.5A JIDECO 		8-97062-815-1 01 1 0005-0111 ● ● ●
552 RELAY; CIGAR LIGHTER
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-0411 ● ● ●
552 RELAY; CIGAR LIGHTER
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0412- ● ● ● ●

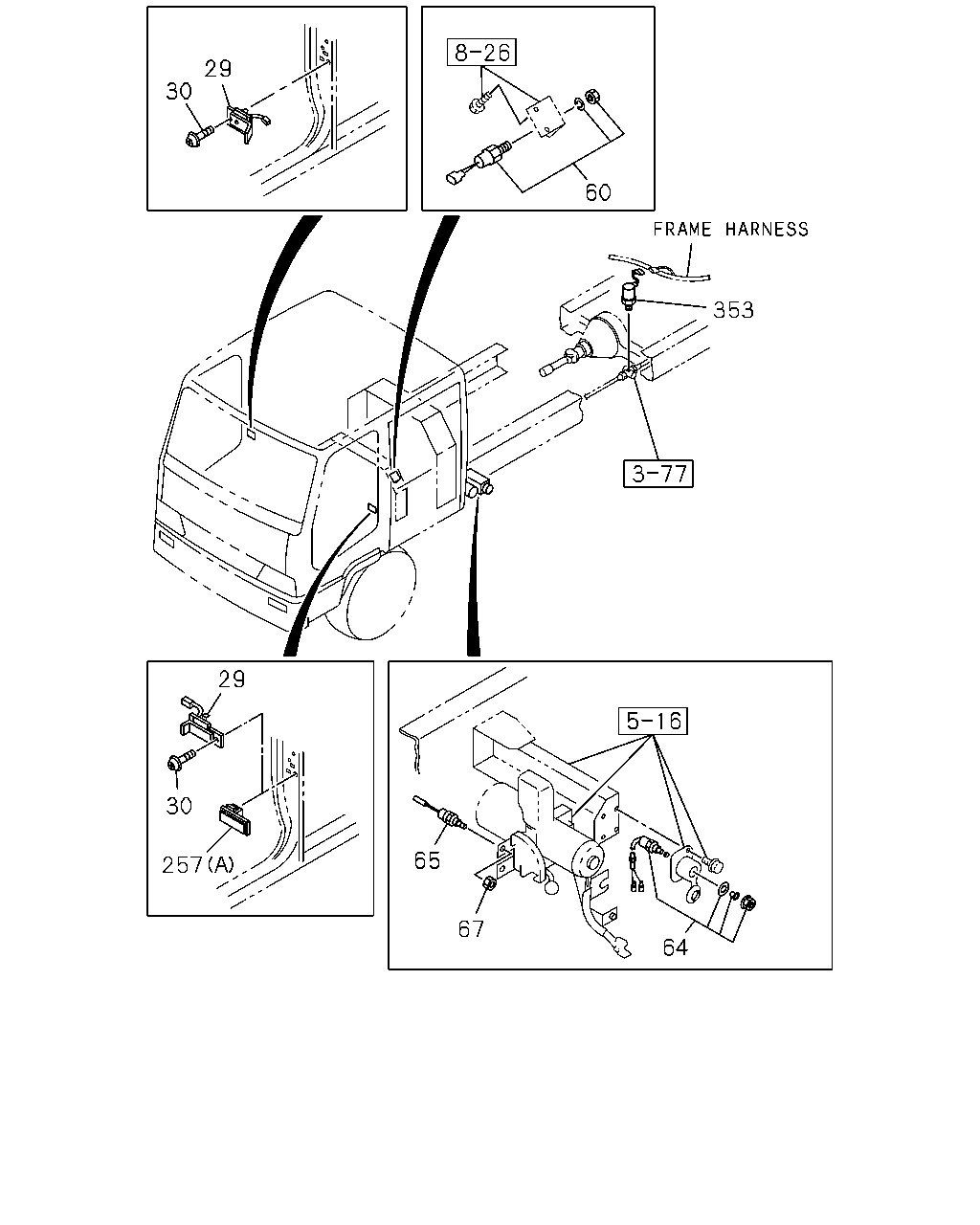

çizim 38548
29 30 60 353 29 30 65 257 67 64
BalonParca AdiParca NoAdetTipApplied Date A B C D
29 SWITCH; DOOR 8-97855-032-3 01 1 0005-0210 ● ● ●
29 SWITCH; DOOR 8-97855-032-3 02 1 0211-0411 ● ● ●
29 SWITCH; DOOR 8-97855-032-3 02 1 0412- ● ● ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 0005-0210 ● ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 02 1 0211-0411 ● ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 02 1 0412- ● ● ● ●
60 SWITCH; STARTER SUB 1-82380-107-1 01 1 0005-0211 ● ● ●
60 SWITCH; STARTER SUB
EXC. STARTER SWITCH DELETION<E5D> 		1-82380-107-1 01 1 0212-0411 ● ● ●
60 SWITCH; STARTER SUB
EXC. STARTER SWITCH DELETION<E5D> 		1-82380-107-1 01 1 0412- ● ● ● ●
64 SWITCH; CAB TILT MAIN 1-82380-108-0 01 1 0005- ●
65 SWITCH; CAB TILT LK
STAMP NO 		1-82380-126-0 01 1 0005- ●
67 NUT; SW,CAB TILT
M16 		9-99111-416-0 01 1 0005-0512 ●
67 NUT; SW,CAB TILT
M16 		0-91111-516-0 01 1 0601- ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-012-2 01 1 0005-0210 ●
257 COVER; HOLE,SW
(B) 		1-82389-012-2 01 1 0005-0210 ● ●
257 COVER; HOLE,SW
(B) 		1-82389-012-2 01 1 0211- ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-011-2 01 1 0005-0210 ●
257 COVER; HOLE,SW
(B) 		1-82389-011-2 01 1 0005-0210 ● ●
257 COVER; HOLE,SW
(B) 		1-82389-011-2 01 1 0211- ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 0005-0210 ● ● ●
353 SWITCH ASM; PARKING BRAKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82410-163-0 01 1 0005-0210 ●
353 SWITCH ASM; PARKING BRAKE 1-82410-163-0 01 1 0005-0210 ● ●
353 SWITCH ASM; PARKING BRAKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82410-163-1 01 1 0211- ●
353 SWITCH ASM; PARKING BRAKE 1-82410-163-1 01 1 0211- ● ●

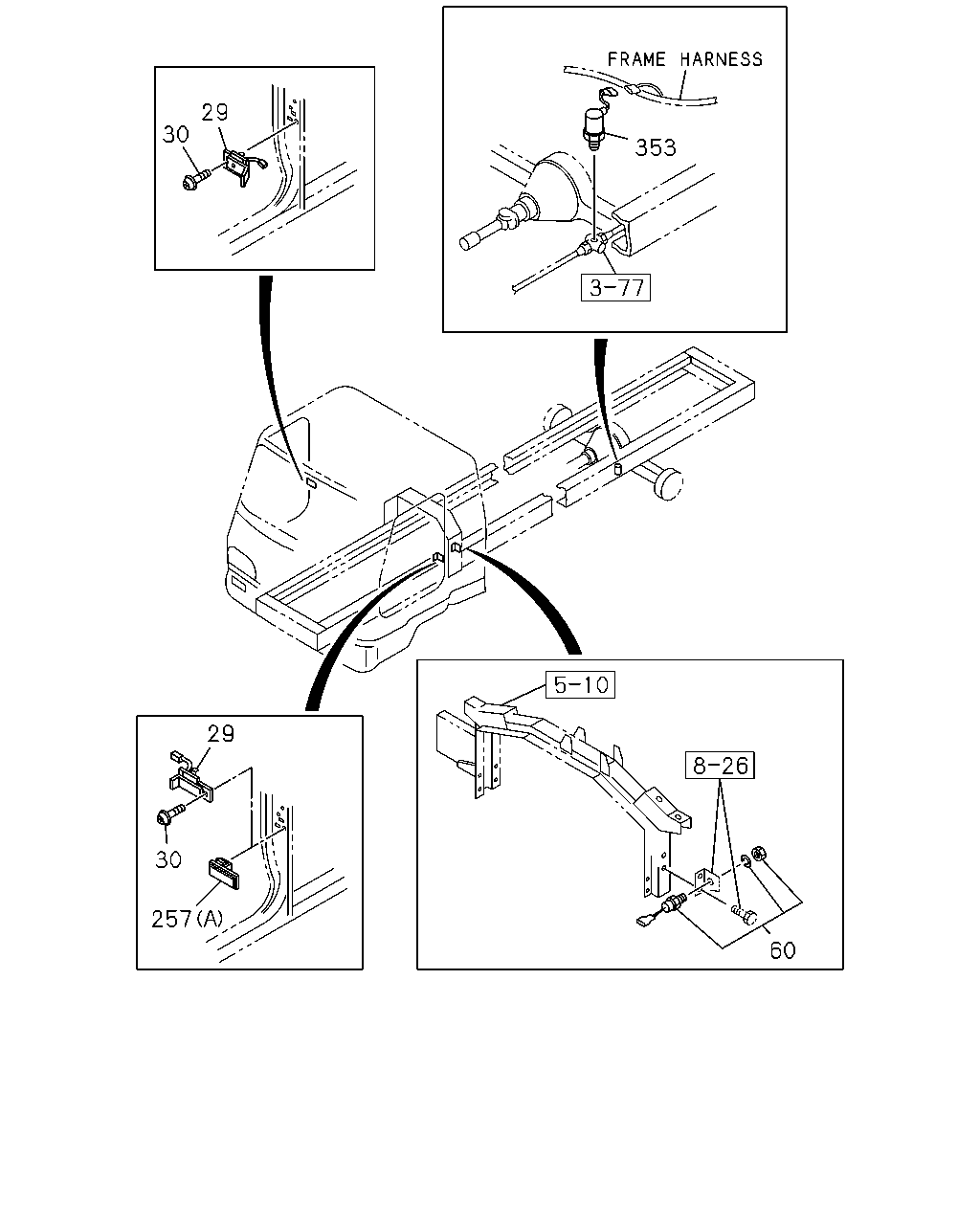

çizim 38613
29 30 353 29 30 257 60
BalonParca AdiParca NoAdetTipApplied Date A B C D
29 SWITCH; DOOR 8-97855-032-3 01 1 0005-0210 ● ● ●
29 SWITCH; DOOR 8-97855-032-3 02 1 0211-0411 ● ● ●
29 SWITCH; DOOR 8-97855-032-3 02 1 0412- ● ● ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 0005-0210 ● ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 02 1 0211-0411 ● ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 02 1 0412- ● ● ● ●
60 SWITCH; STARTER SUB 1-82380-107-1 01 1 0005-0211 ● ● ●
60 SWITCH; STARTER SUB
EXC. STARTER SWITCH DELETION<E5D> 		1-82380-107-1 01 1 0212-0411 ● ● ●
60 SWITCH; STARTER SUB
EXC. STARTER SWITCH DELETION<E5D> 		1-82380-107-1 01 1 0412- ● ● ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-012-2 01 1 0005-0210 ●
257 COVER; HOLE,SW
(B) 		1-82389-012-2 01 1 0005-0210 ● ●
257 COVER; HOLE,SW
(B) 		1-82389-012-2 01 1 0211- ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-011-2 01 1 0005-0210 ●
257 COVER; HOLE,SW
(B) 		1-82389-011-2 01 1 0005-0210 ● ●
257 COVER; HOLE,SW
(B) 		1-82389-011-2 01 1 0211- ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 0005-0210 ● ● ●
353 SWITCH ASM; PARKING BRAKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82410-163-0 01 1 0005-0210 ●
353 SWITCH ASM; PARKING BRAKE 1-82410-163-0 01 1 0005-0210 ● ●
353 SWITCH ASM; PARKING BRAKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82410-163-1 01 1 0211- ●
353 SWITCH ASM; PARKING BRAKE 1-82410-163-1 01 1 0211- ● ●
çizim 99612
77 384 518
BalonParca AdiParca NoAdetTipApplied Date A B C D
77 SWITCH; PTO
PTO CONTROL<SV6> 		1-82340-403-0 01 1 0612- ●
384 SWITCH; IDLING CONT,ELEC 1-82350-213-1 01 1 0211-0411 ● ● ●
384 SWITCH; IDLING CONT,ELEC 1-82350-213-1 01 1 0412- ● ● ● ●
518 SWITCH; RADIO TUNE 1-82350-231-0 01 1 0005-0411 ● ● ●
518 SWITCH; RADIO TUNE 1-82350-231-0 01 1 0412- ● ● ● ●
