◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10826 - FRR/FSR/FRD(AUST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#9468) — 122 parça

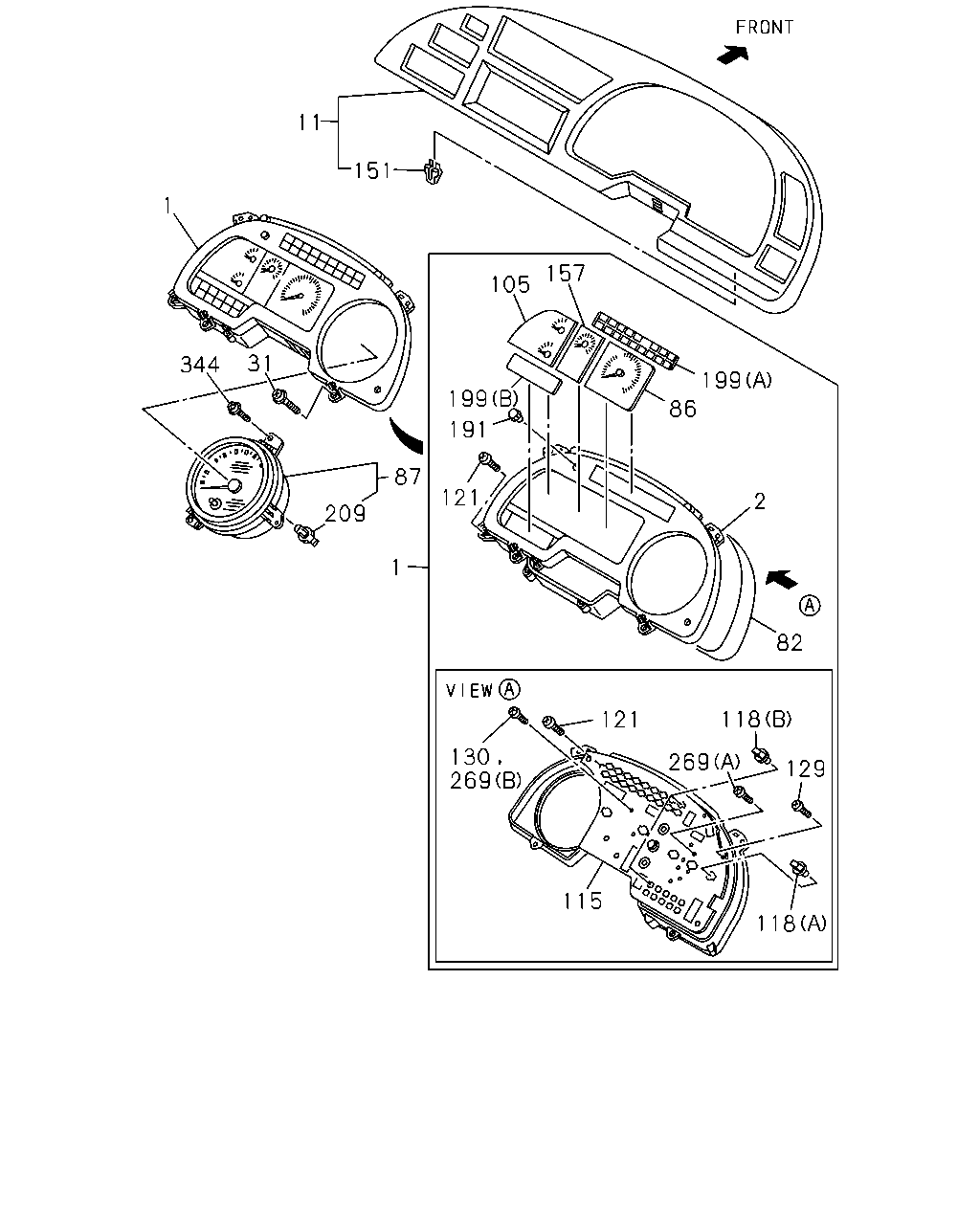

çizim 38612
11 151 1 157 105 31 344 199 199 86 191 87 121 2 209 1 82 118 121 130 269 269 129 115 118
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 METER COMPL; CLUSTER 1-83116-268-0 01 1 0412- ●
1 METER COMPL; CLUSTER
6HK1 TCS ENG(80L) 		1-83115-794-1 01 1 0307- ● ●
1 METER COMPL; CLUSTER
6HH1 N ENG(66L) A/T<X9D> 		1-83114-968-0 01 1 0005-0210 ●
1 METER COMPL; CLUSTER
A/T<X9D> 		1-83115-549-0 01 1 0211- ●
1 METER COMPL; CLUSTER
6HH1 N ENG(66L) ISUZU M/T<X9A> 		1-83114-967-0 01 1 0005-0210 ●
1 METER COMPL; CLUSTER
6HH1 N ENG(66L) 		1-83114-967-0 01 1 0005-0210 ●
1 METER COMPL; CLUSTER
6HH1 STD ENG(65L) 		1-83114-966-0 01 1 0005-0210 ● ● ●
1 METER COMPL; CLUSTER
ISUZU M/T<X9A> 		1-83114-994-0 01 1 0211-0306 ●
1 METER COMPL; CLUSTER 1-83114-994-0 01 1 0211-0306 ● ●
1 METER COMPL; CLUSTER
ISUZU M/T<X9A> 		1-83114-994-0 01 1 0307- ● ●
1 METER COMPL; CLUSTER 1-83114-994-0 01 1 0307- ●
1 METER COMPL; CLUSTER
6HE1 TC ENG(57L) 		1-83114-994-0 01 1 0005-0210 ● ●
2 PANEL; CLUSTER 1-83119-499-0 01 1 0005-0411 ● ● ●
2 PANEL; CLUSTER 1-83119-499-0 01 1 0412- ● ● ● ●
11 CLUSTER ASM; METER
CUSTOM CAB(SR5) 		1-72418-014-9 01 1 0005- ●
11 CLUSTER ASM; METER
EXC. CUSTOM CAB(SR5) 		1-72418-012-9 01 1 0005-0411 ●
11 CLUSTER ASM; METER 1-72418-012-9 01 1 0005-0411 ● ●
11 CLUSTER ASM; METER
EXC. CUSTOM CAB(SR5) 		1-72418-012-9 01 1 0412- ●
11 CLUSTER ASM; METER 1-72418-012-9 01 1 0412- ● ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 0005-0411 ● ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 0412-0604 ● ● ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0605- ● ● ● ●
82 CASE ASM; CLUSTER METER 1-83119-432-0 01 1 0005-0411 ● ● ●
82 CASE ASM; CLUSTER METER 1-83119-432-0 01 1 0412- ● ● ● ●
86 TACHOMETER; CLUSTER METER
6HK1 TCS ENG(80L) 		1-83120-922-0 01 1 0307- ● ●
86 TACHOMETER; CLUSTER METER
6HH1 N ENG(66L) 		1-83120-609-0 01 1 0005-0210 ● ●
86 TACHOMETER; CLUSTER METER
6HH1 STD ENG(65L) 		1-83120-832-0 01 1 0005-0210 ● ● ●
86 TACHOMETER; CLUSTER METER
6HE1 TC ENG(57L) 		1-83120-836-0 01 1 0005-0210 ● ●
86 TACHOMETER; CLUSTER METER 1-83120-836-0 01 1 0211-0306 ● ● ●
86 TACHOMETER; CLUSTER METER
ISUZU M/T<X9A>,A/T<X9D> 		1-83120-836-0 01 1 0307-0411 ●
86 TACHOMETER; CLUSTER METER 1-83120-836-0 01 1 0307-0411 ●
86 TACHOMETER; CLUSTER METER
ISUZU M/T<X9A> 		1-83120-836-0 01 1 0307-0411 ●
86 TACHOMETER; CLUSTER METER
ISUZU M/T<X9A>,A/T<X9D> 		1-83120-836-0 01 1 0412- ●
86 TACHOMETER; CLUSTER METER 1-83120-836-0 01 1 0412- ● ●
86 TACHOMETER; CLUSTER METER
ISUZU M/T<X9A> 		1-83120-836-0 01 1 0412- ●
87 SPEEDOMETER 1-83120-490-1 01 1 0005-0411 ● ● ●
87 SPEEDOMETER 1-83120-490-1 01 1 0412- ● ● ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-274-0 01 1 0005-0411 ● ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-274-0 01 1 0412- ● ● ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
6HK1 TCS ENG(80L) 		1-83189-446-0 01 1 0307-0411 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
6HK1 TCS ENG(80L) 		1-83189-446-0 01 1 0412- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER 1-83189-446-0 01 1 0412- ●
115 CIRCUIT; PRINTED,CLUSTER METER
6HH1 N ENG(66L) A/T<X9D> 		1-83189-305-0 01 1 0005-0210 ●
115 CIRCUIT; PRINTED,CLUSTER METER
A/T<X9D> 		1-83189-305-0 01 1 0211- ●
115 CIRCUIT; PRINTED,CLUSTER METER
6HH1 N ENG(66L) ISUZU M/T<X9A> 		1-83189-304-0 01 1 0005-0210 ●
115 CIRCUIT; PRINTED,CLUSTER METER
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-83189-304-0 01 1 0005-0210 ●
115 CIRCUIT; PRINTED,CLUSTER METER 1-83189-304-0 01 1 0005-0210 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
ISUZU M/T<X9A> 		1-83189-304-0 01 1 0211-0306 ●
115 CIRCUIT; PRINTED,CLUSTER METER 1-83189-304-0 01 1 0211-0306 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
ISUZU M/T<X9A> 		1-83189-304-0 01 1 0307- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER 1-83189-304-0 01 1 0307- ●
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET 		1-82194-061-0 AR 1 0005- ● ● ●
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 AR 1 0005- ● ● ●
121 SCREW; PANEL FIX,CLUSTER METER
M4 TAPPING 		1-83119-442-0 08 1 0005-0411 ● ● ●
121 SCREW; PANEL FIX,CLUSTER METER
M4 TAPPING 		1-83119-442-0 08 1 0412- ● ● ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
M3 TAPPING 		1-83119-052-0 10 1 0005-0411 ● ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
M3 TAPPING 		1-83119-052-0 10 1 0412- ● ● ● ●
130 COVER; METER HOLE,CLUSTER METER
M3 TAPPING 		1-83119-439-0 03 1 0412- ●
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 0005-0411 ● ● ●
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 0412- ● ● ● ●
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-187-0 01 1 0005-0411 ● ● ●
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-187-0 01 1 0412- ● ● ● ●
191 KNOB; BULB CHECK 1-83119-500-0 01 1 0005-0411 ● ● ●
191 KNOB; BULB CHECK 1-83119-500-0 01 1 0412- ● ● ● ●
199 LENS; WARNING LAMP
(B) 		1-83119-884-0 01 1 0412- ●
199 LENS; WARNING LAMP
6HK1 TCS ENG(80L) (B) 		1-83119-805-0 01 1 0307- ● ●
199 LENS; WARNING LAMP
(B) 		1-83119-435-0 01 1 0005-0306 ● ● ●
199 LENS; WARNING LAMP
ISUZU M/T<X9A>,A/T<X9D> (B) 		1-83119-435-0 01 1 0307- ●
199 LENS; WARNING LAMP
(B) 		1-83119-435-0 01 1 0307- ●
199 LENS; WARNING LAMP
ISUZU M/T<X9A> (B) 		1-83119-435-0 01 1 0307- ●
199 LENS; WARNING LAMP
(A) 		1-83119-526-0 01 1 0005-0411 ● ● ●
199 LENS; WARNING LAMP
(A) 		1-83119-526-0 01 1 0412- ● ● ● ●
209 BULB; SPEEDOMETER
24V 3W GREEN SOCKET 		1-82194-061-0 02 1 0005-0411 ● ● ●
209 BULB; SPEEDOMETER
24V 3W GREEN SOCKET 		1-82194-061-0 02 1 0412- ● ● ● ●
269 SCREW; METER CLUSTER
6HK1 TCS ENG(80L) (B) M3 TAPPING 		1-83119-439-0 04 1 0307- ● ●
269 SCREW; METER CLUSTER
(A) M3 TAPPING 		1-83119-441-0 06 1 0005-0411 ● ● ●
269 SCREW; METER CLUSTER
(A) M3 TAPPING 		1-83119-441-0 06 1 0412- ● ● ● ●
269 SCREW; METER CLUSTER
6HH1 STD ENG(65L),6HH1 N ENG(66L) (B) M3 TAPPING 		1-83119-439-0 05 1 0005-0210 ● ● ●
269 SCREW; METER CLUSTER
6HE1 TC ENG(57L) (B) M3 TAPPING 		1-83119-439-0 03 1 0005-0210 ● ●
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-439-0 03 1 0211-0306 ● ● ●
269 SCREW; METER CLUSTER
ISUZU M/T<X9A>,A/T<X9D> (B) M3 TAPPING 		1-83119-439-0 03 1 0307- ●
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-439-0 03 1 0307- ●
269 SCREW; METER CLUSTER
ISUZU M/T<X9A> (B) M3 TAPPING 		1-83119-439-0 03 1 0307- ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 0005-0411 ● ● ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 0412-0604 ● ● ● ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0605- ● ● ● ●

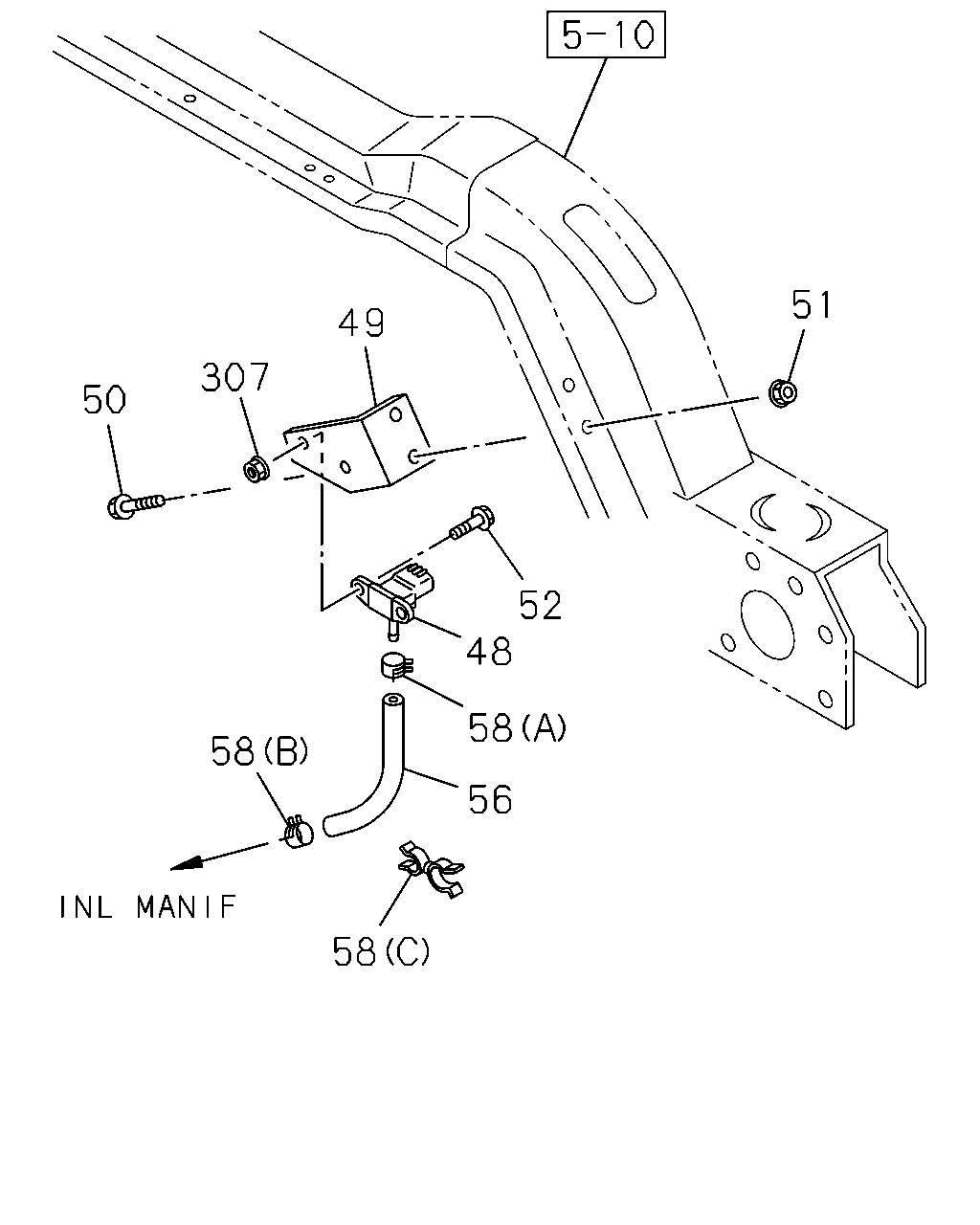

çizim 38715
51 49 307 50 52 48 58 58 56 58
BalonParca AdiParca NoAdetTipApplied Date A B C D
48 SENSOR; BOOST 1-80220-014-0 01 1 0211-0411 ● ● ●
48 SENSOR; BOOST 1-80220-014-0 01 1 0412- ● ● ● ●
49 BRACKET; SENSOR
6HK1 TCS ENG(80L) 		1-47479-242-1 01 1 0307- ● ●
49 BRACKET; SENSOR 1-47479-423-0 01 1 0211-0305 ● ●
49 BRACKET; SENSOR
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) 		1-47479-423-0 01 1 0306-0411 ●
49 BRACKET; SENSOR
6HK1 TCC ENG(81L) 		1-47479-423-0 01 1 0306-0411 ●
49 BRACKET; SENSOR
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) 		1-47479-423-0 01 1 0412- ●
49 BRACKET; SENSOR
6HK1 TCC ENG(81L) 		1-47479-423-0 01 1 0412- ●
49 BRACKET; SENSOR
6HK1 TCN ENG(82L) 		1-47479-423-0 01 1 0412- ●
49 BRACKET; SENSOR 1-47479-399-0 01 1 0211- ●
50 BOLT; FIX
M8X20 FLANGE 		0-28680-820-0 02 1 0211-0411 ● ● ●
50 BOLT; FIX
M8X20 FLANGE 		0-28680-820-0 02 1 0412-0512 ● ● ● ●
50 BOLT; FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ●
51 NUT; FIX
M8 FLANGE 		0-91150-108-0 02 1 0211-0411 ● ● ●
51 NUT; FIX
M8 FLANGE 		0-91150-108-0 02 1 0412-0602 ● ● ● ●
51 NUT; FIX
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ●
52 BOLT; SENSOR
M6X16 FLANGE 		0-28680-616-0 02 1 0211-0411 ● ● ●
52 BOLT; SENSOR
M6X16 FLANGE 		0-28680-616-0 02 1 0412-0512 ● ● ● ●
52 BOLT; SENSOR
M6X16 FLANGE 		0-28650-616-0 02 1 0601- ● ● ● ●
56 HOSE; NIPPLE TO SENSOR
6HK1 TCS ENG(80L) 		8-97602-583-1 01 1 0307- ● ●
56 HOSE; NIPPLE TO SENSOR 8-97602-566-1 01 1 0211-0305 ● ●
56 HOSE; NIPPLE TO SENSOR
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) 		8-97602-566-1 01 1 0306-0411 ●
56 HOSE; NIPPLE TO SENSOR
6HK1 TCC ENG(81L) 		8-97602-566-1 01 1 0306-0411 ●
56 HOSE; NIPPLE TO SENSOR
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) 		8-97602-566-1 01 1 0412- ●
56 HOSE; NIPPLE TO SENSOR
6HK1 TCC ENG(81L) 		8-97602-566-1 01 1 0412- ●
56 HOSE; NIPPLE TO SENSOR
6HK1 TCN ENG(82L) 		8-97602-566-1 01 1 0412- ●
56 HOSE; NIPPLE TO SENSOR 8-97602-568-1 01 1 0211- ●
58 CLIP; HOSE
6HK1 TCS ENG(80L) (C) ID=10 & 12 		1-09709-278-1 01 1 0307- ● ●
58 CLIP; HOSE
(A) ID=13 		8-94238-571-0 01 1 0211-0212 ● ● ●
58 CLIP; HOSE
(A) ID=11 		8-94238-570-0 01 1 0301-0411 ● ● ●
58 CLIP; HOSE
(A) ID=11 		8-94238-570-0 01 1 0412- ● ● ● ●
58 CLIP; HOSE
(B) ID=12 		8-94238-610-0 01 1 0211-0411 ● ● ●
58 CLIP; HOSE
(B) ID=12 		8-94238-610-0 01 1 0412- ● ● ● ●
307 NUT
M6 FLANGE 		0-91150-106-0 02 1 0211-0411 ● ● ●
307 NUT
M6 FLANGE 		0-91150-106-0 02 1 0412-0602 ● ● ● ●
307 NUT
M6 FLANGE 		0-91180-106-0 02 1 0603- ● ● ● ●
