◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10826 - FRR/FSR/FRD(AUST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#9466) — 1223 parça

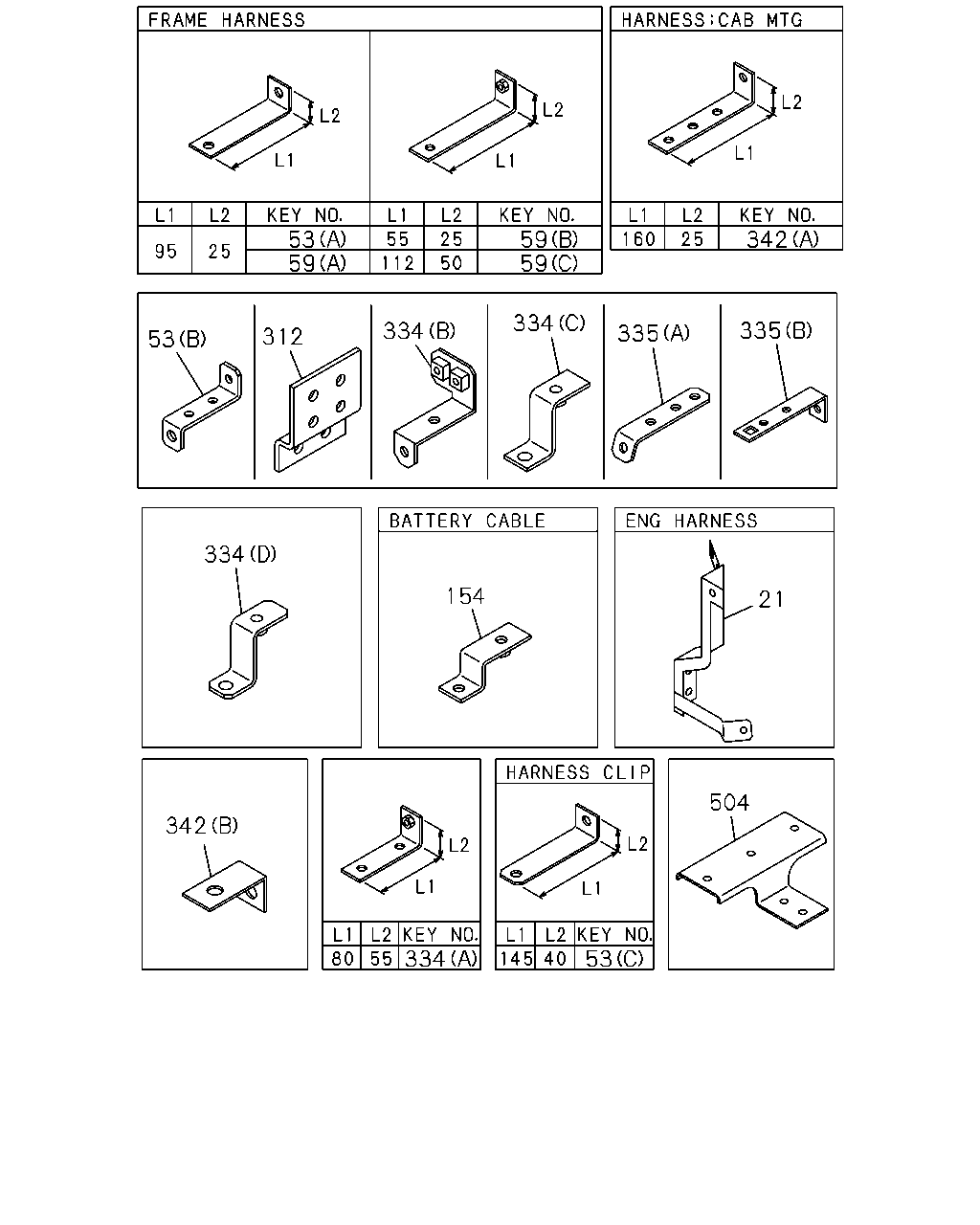

çizim 38307
53 59 59 59 342 334 335 334 335 312 53 334 154 21 504 342 334 53
BalonParca AdiParca NoAdetTipApplied Date A B C D
21 BRACKET; ENG HARNESS
6HK1 TCC ENG(81L) 		8-94391-071-3 01 1 0211-0302 ● ● ●
21 BRACKET; ENG HARNESS
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) 		8-94391-071-3 01 1 0211-0302 ● ●
21 BRACKET; ENG HARNESS
6HK1 TCC ENG(81L) 		8-94391-071-3 01 1 0303-0410 ●
21 BRACKET; ENG HARNESS
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) 		8-94391-071-3 01 1 0303-0410 ●
21 BRACKET; ENG HARNESS 8-94391-071-3 01 1 0303-0410 ● ●
21 BRACKET; ENG HARNESS
6HK1 TCC ENG(81L) 		8-94391-071-3 01 1 0411-0411 ● ● ●
21 BRACKET; ENG HARNESS
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) 		8-94391-071-3 01 1 0411-0411 ● ●
21 BRACKET; ENG HARNESS
6HK1 TCC ENG(81L) 		8-94391-071-3 01 1 0412- ● ● ●
21 BRACKET; ENG HARNESS
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) 		8-94391-071-3 01 1 0412- ● ●
21 BRACKET; ENG HARNESS 8-94391-071-3 01 1 0412- ●
53 BRACKET; HARNESS
(C) L=145 		1-47475-655-0 05 1 0412- ●
53 BRACKET; HARNESS
(A) L=95 		1-82699-085-0 01 1 0412- ●
53 BRACKET; HARNESS
EURO2 SPECIFICATION<THN> (B) 		1-47476-812-1 01 1 0005-0210 ● ●
59 BRACKET; FRAME HARNESS
(A) L=95 		1-82699-085-0 01 1 0005-0411 ● ● ●
59 BRACKET; FRAME HARNESS
(A) L=95 		1-82699-085-0 01 1 0412- ● ● ● ●
59 BRACKET; FRAME HARNESS
(B) 		1-82698-423-0 01 1 0211- ●
59 BRACKET; FRAME HARNESS
(C) 		1-82699-745-1 01 1 0211-0303 ●
59 BRACKET; FRAME HARNESS
(C) 		1-82698-489-0 01 1 0304- ●
154 BRACKET; STARTER EARTH CABLE
6HH1 STD ENG(65L),6HH1 N ENG(66L) 		1-47465-518-0 01 1 0005-0210 ● ●
154 BRACKET; STARTER EARTH CABLE 1-47465-518-0 01 1 0005-0210 ●
312 BRACKET; CLIP HARNESS 1-82699-557-0 01 1 0005- ●
334 BRACKET
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (C) T=3.2 		1-46147-083-0 01 1 0307-0309 ● ●
334 BRACKET
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (B) 		1-82699-639-1 01 1 0310- ● ●
334 BRACKET
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (A) 		1-47477-698-0 02 1 0307- ● ●
334 BRACKET
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (B) 		1-82699-639-1 01 1 0307-0309 ● ●
334 BRACKET
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (D) 		1-47475-868-0 01 1 0310- ● ●
335 BRACKET; CONNECTOR
FULLER FSO5206B OD M/T(Y4V) (B) 		1-82699-963-0 01 1 0307- ● ●
335 BRACKET; CONNECTOR
(A) 		1-82698-167-0 01 1 0005-0411 ● ● ●
335 BRACKET; CONNECTOR
(A) 		1-82698-167-0 01 1 0412- ● ● ● ●
342 BRACKET; HARNESS CAB MTG
6HK1 TCS ENG(80L) (B) L=40 		1-47478-410-0 01 1 0307- ● ●
342 BRACKET; HARNESS CAB MTG
(A) 		1-82698-231-0 01 1 0211- ●
504 PROTECTOR; HARNESS 1-53497-635-0 01 1 0412- ●

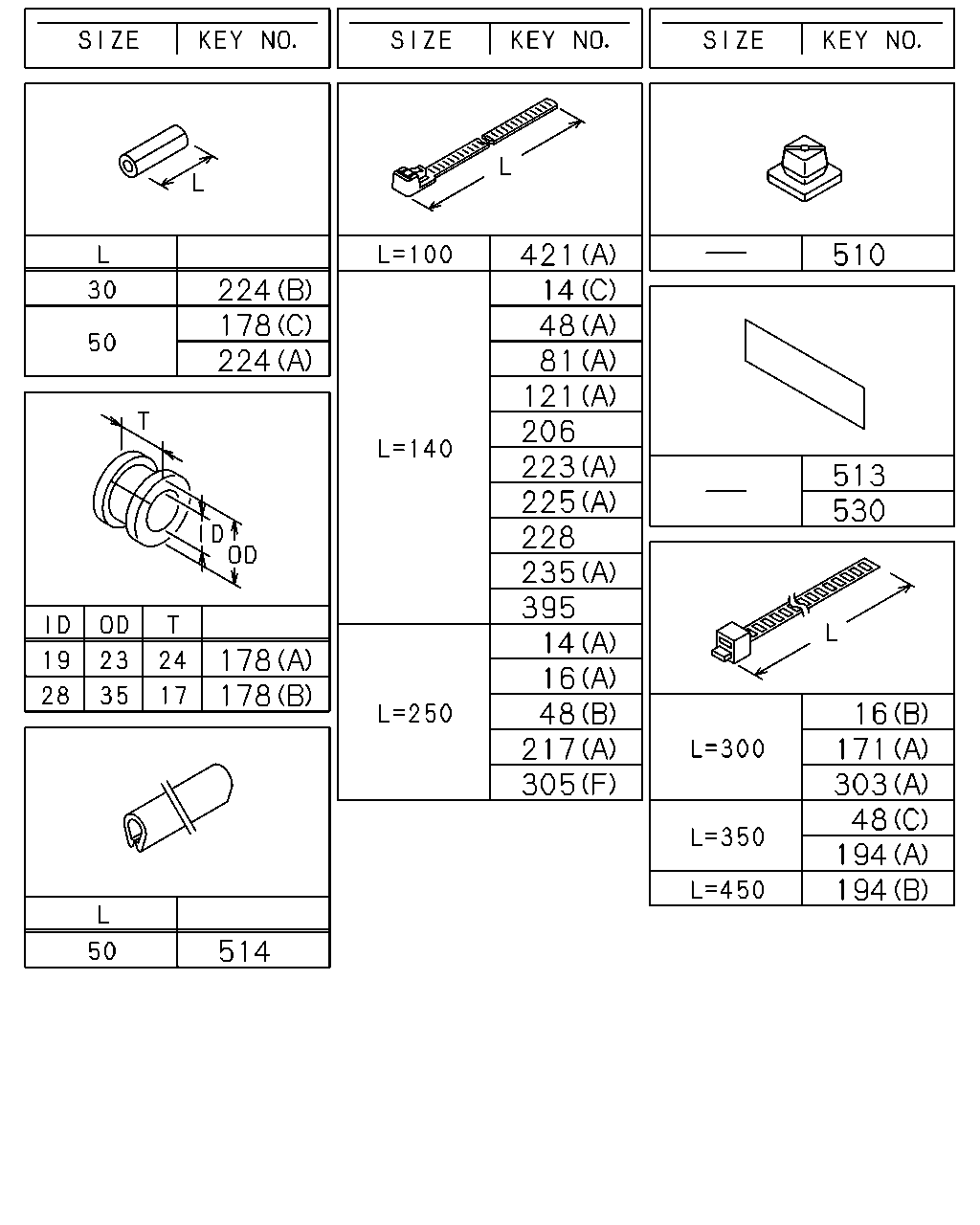

çizim 40520
224 178 224 178 178 514 305 217 48 16 14 395 235 228 225 223 206 121 81 48 14 421 510 513 530 16 171 303 48 194 194
BalonParca AdiParca NoAdetTipApplied Date A B C D
14 CLIP; BAND,HARNESS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=180 		1-09707-162-1 01 1 0005- ●
14 CLIP; BAND,HARNESS
(B) L=180 		1-09707-162-1 01 1 0005- ● ●
14 CLIP; BAND,HARNESS
6HH1 STD ENG(65L),6HH1 N ENG(66L) (A) L=250 		5-09707-030-1 01 1 0005-0210 ● ●
14 CLIP; BAND,HARNESS
(A) L=250 		5-09707-030-1 01 1 0005-0210 ●
14 CLIP; BAND,HARNESS
(C) L=140 		5-09707-031-1 01 1 0211-0302 ● ● ●
14 CLIP; BAND,HARNESS
(C) L=140 		5-09707-031-1 01 1 0211-0302 ● ● ●
14 CLIP; BAND,HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (C) L=140 		5-09707-031-1 01 1 0303-0411 ●
14 CLIP; BAND,HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (C) L=140 		5-09707-031-1 01 1 0303-0411 ●
14 CLIP; BAND,HARNESS
(C) L=140 		5-09707-031-1 01 1 0303-0411 ●
14 CLIP; BAND,HARNESS
(C) L=140 		5-09707-031-1 01 1 0303-0411 ●
14 CLIP; BAND,HARNESS
6HK1 TCC ENG(81L) (C) L=140 		5-09707-031-1 01 1 0303-0411 ●
14 CLIP; BAND,HARNESS
6HK1 TCC ENG(81L) (C) L=140 		5-09707-031-1 01 1 0303-0411 ●
14 CLIP; BAND,HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (C) L=140 		5-09707-031-1 01 1 0412-1205 ●
14 CLIP; BAND,HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (C) L=140 		5-09707-031-1 01 1 0412-1205 ●
14 CLIP; BAND,HARNESS
(C) L=140 		5-09707-031-1 01 1 0412-1205 ● ●
14 CLIP; BAND,HARNESS
(C) L=140 		5-09707-031-1 01 1 0412-1205 ● ●
14 CLIP; BAND,HARNESS
6HK1 TCC ENG(81L) (C) L=140 		5-09707-031-1 01 1 0412-1205 ●
14 CLIP; BAND,HARNESS
6HK1 TCC ENG(81L) (C) L=140 		5-09707-031-1 01 1 0412-1205 ●
14 CLIP; BAND,HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (C) L=140 		8-98216-431-0 01 1 1206- ●
14 CLIP; BAND,HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (C) L=140 		8-98216-431-0 01 1 1206- ●
14 CLIP; BAND,HARNESS
(C) L=140 		8-98216-431-0 01 1 1206- ● ●
14 CLIP; BAND,HARNESS
(C) L=140 		8-98216-431-0 01 1 1206- ● ●
14 CLIP; BAND,HARNESS
6HK1 TCC ENG(81L) (C) L=140 		8-98216-431-0 01 1 1206- ●
14 CLIP; BAND,HARNESS
6HK1 TCC ENG(81L) (C) L=140 		8-98216-431-0 01 1 1206- ●
16 CLIP; HARNESS
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (I) ID=11 L=41 		1-09700-403-0 02 1 0612- ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (S) ID=28 H=45 L=30 		1-09700-948-0 02 1 0411- ● ●
16 CLIP; HARNESS
EXC. AIR HORN<WB8> (I) ID=11 L=41 		1-09700-403-0 03 1 0412- ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 0412- ● ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (T) ID=12 & 16.5 		8-94400-865-0 01 1 0308- ● ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (G) ID=19 H=21 L=50 		1-09700-910-1 01 1 0307-0307 ● ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (S) ID=28 H=45 L=30 		1-09700-948-0 02 1 0307-0307 ● ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (S) ID=28 H=45 L=30 		1-09700-948-0 03 1 0308-0410 ● ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (S) ID=28 H=45 L=30 		1-09700-948-0 01 1 0411- ● ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (P) ID=26 L=27 		1-09701-006-0 01 1 0307- ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (L) L=55 		8-94432-655-0 03 1 0005-0210 ●
16 CLIP; HARNESS
(L) L=55 		8-94432-655-0 03 1 0211-0411 ● ●
16 CLIP; HARNESS
(L) L=55 		8-94432-655-0 03 1 0412- ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (C) L=175 		8-97110-167-0 04 1 0005-0210 ●
16 CLIP; HARNESS
(C) L=175 		8-97110-167-0 06 1 0211-0411 ● ●
16 CLIP; HARNESS
(C) L=175 		8-97110-167-0 06 1 0412- ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> CUSTOM CAB(SR5) (M) 		1-82698-130-0 03 1 0005-0109 ●
16 CLIP; HARNESS
POWER WINDOW<A30> CUSTOM CAB(SR5) (N) 		8-97229-356-0 03 1 0110-0210 ●
16 CLIP; HARNESS
(N) 		8-97229-356-0 03 1 0211-0411 ● ●
16 CLIP; HARNESS
(N) 		8-97229-356-0 03 1 0412- ● ● ●
16 CLIP; HARNESS
(C) L=175 		8-97110-167-0 02 1 0005-0210 ● ●
16 CLIP; HARNESS
(C) L=175 		8-97110-167-0 02 1 0211- ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 0005-0405 ● ● ●
16 CLIP; HARNESS
EXC. AIR HORN<WB8> (I) ID=11 L=41 		1-09700-403-0 03 1 0406-0411 ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 0406-0411 ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 01 1 0412- ●
16 CLIP; HARNESS
(K) ID=28 L=78 		1-09700-858-0 01 1 0005-0210 ● ● ●
16 CLIP; HARNESS
(P) ID=26 L=27 		1-09701-006-0 02 1 0211-0305 ● ● ●
16 CLIP; HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (P) ID=26 L=27 		1-09701-006-0 02 1 0306-0411 ● ●
16 CLIP; HARNESS
6HK1 TCC ENG(81L) (P) ID=26 L=27 		1-09701-006-0 02 1 0306-0411 ●
16 CLIP; HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (P) ID=26 L=27 		1-09701-006-0 02 1 0412- ● ●
16 CLIP; HARNESS
6HK1 TCC ENG(81L) (P) ID=26 L=27 		1-09701-006-0 02 1 0412- ●
16 CLIP; HARNESS
6HK1 TCN ENG(82L) (P) ID=26 L=27 		1-09701-006-0 02 1 0412- ●
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0005-0411 ● ● ●
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0412- ● ● ● ●
16 CLIP; HARNESS
(G) ID=19 H=21 L=50 		1-09700-910-1 01 1 0005-0210 ● ● ●
16 CLIP; HARNESS
(O) ID=18 H=23 L=28 		1-09700-860-0 01 1 0211-0305 ● ● ●
16 CLIP; HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (O) ID=18 H=23 L=28 		1-09700-860-0 01 1 0306-0306 ● ●
16 CLIP; HARNESS
6HK1 TCC ENG(81L) (O) ID=18 H=23 L=28 		1-09700-860-0 01 1 0306-0306 ●
16 CLIP; HARNESS
(O) ID=18 H=23 L=28 		1-09700-860-0 01 1 0307-0411 ● ● ●
16 CLIP; HARNESS
(O) ID=18 H=23 L=28 		1-09700-860-0 01 1 0412- ● ● ● ●
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 0005-0411 ● ● ●
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 0412- ● ● ● ●
16 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 0005-0210 ● ● ●
16 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 0005-0210 ● ● ●
16 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 0211-0411 ● ● ●
16 CLIP; HARNESS
A/T<X9D> (A) L=250 		5-09707-030-1 01 1 0211-0411 ●
16 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 0412- ● ● ● ●
16 CLIP; HARNESS
A/T<X9D> (A) L=250 		5-09707-030-1 01 1 0412- ●
16 CLIP; HARNESS
(D) ID=19 L=32 		9-09525-866-0 01 1 0005-0411 ● ● ●
16 CLIP; HARNESS
(D) ID=19 L=32 		9-09525-866-0 01 1 0412-0606 ● ● ● ●
16 CLIP; HARNESS
(D) ID=19 L=32 		0-95235-866-0 01 1 0607- ● ● ● ●
16 CLIP; HARNESS
(J) ID=14 L=44 		9-09917-427-0 03 1 0005-0405 ● ● ●
16 CLIP; HARNESS
EXC. AIR HORN<WB8> (J) ID=14 L=44 		9-09917-427-0 03 1 0406-0411 ● ●
16 CLIP; HARNESS
(J) ID=14 L=44 		9-09917-427-0 03 1 0406-0411 ●
16 CLIP; HARNESS
EXC. AIR HORN<WB8> (J) ID=14 L=44 		9-09917-427-0 03 1 0412- ● ●
16 CLIP; HARNESS
(J) ID=14 L=44 		9-09917-427-0 03 1 0412- ● ●
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (F) ID=25 L=50 		1-09701-019-0 01 1 0005-0210 ● ●
16 CLIP; HARNESS
(Q) ID=35 H=45 L=33 		1-09701-047-0 01 1 0211-0411 ● ● ●
16 CLIP; HARNESS
(Q) ID=35 H=45 L=33 		1-09701-047-0 01 1 0412- ● ● ● ●
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (E) ID=24 L=40 		1-09701-139-0 01 1 0005-0210 ● ●
16 CLIP; HARNESS
(R) ID=18 L=40 		1-09701-111-0 01 1 0211- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (J) ID=11 L=41 		1-09700-403-0 01 1 0612- ●
48 CLIP; FRAME HARNESS
(Q) ID=25 L=55 		9-09917-573-0 14 1 0412- ●
48 CLIP; FRAME HARNESS
(R) ID=24 L=24 		1-09701-001-1 04 1 0412-0412 ●
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		9-09525-856-0 02 1 0412-0412 ●
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		9-09525-856-0 06 1 0501-0606 ●
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		0-95235-856-0 06 1 0607- ●
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0412- ● ● ●
48 CLIP; FRAME HARNESS
EXC. AIR HORN<WB8> (J) ID=11 L=41 		1-09700-403-0 04 1 0406-0411 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 04 1 0406-0411 ●
48 CLIP; FRAME HARNESS
EXC. AIR HORN<WB8> (J) ID=11 L=41 		1-09700-403-0 04 1 0412- ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 04 1 0412- ● ●
48 CLIP; FRAME HARNESS
(F) ID=26 L=27 		1-09701-006-0 02 1 0307- ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) (A) L=140 		5-09707-031-1 03 1 0307- ● ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) (K) ID=14 L=44 		9-09917-427-0 01 1 0307- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (M) ID=20 L=50 		9-09917-430-0 12 1 0005- ●
48 CLIP; FRAME HARNESS
(O) ID=28 L=78 		1-09700-858-0 05 1 0005-0411 ● ●
48 CLIP; FRAME HARNESS
(O) ID=28 L=78 		1-09700-858-0 05 1 0412- ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (M) ID=20 L=50 		9-09917-430-0 15 1 0005- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (M) ID=20 L=50 		9-09917-430-0 18 1 0005-0210 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5100MM(51W) (M) ID=20 L=50 		9-09917-430-0 21 1 0211- ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 04 1 0005-0405 ● ● ●
48 CLIP; FRAME HARNESS
AIR HORN<WB8> (J) ID=11 L=41 		1-09700-403-0 03 1 0406- ● ●

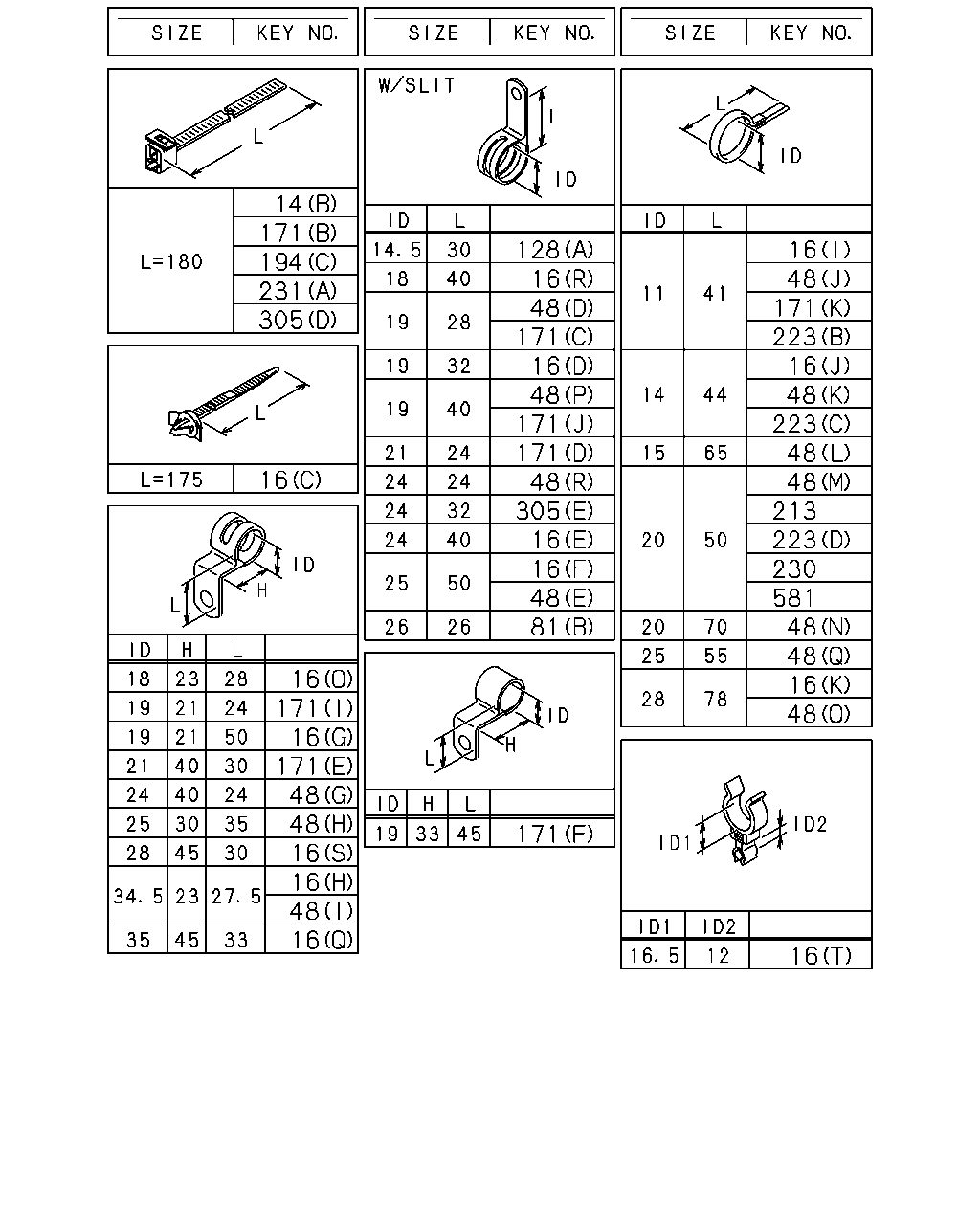

48 CLIP; FRAME HARNESS
(L) ID=15 L=65 		1-09700-466-0 02 1 0005-0411 ● ● ●
48 CLIP; FRAME HARNESS
(L) ID=15 L=65 		1-09700-466-0 02 1 0412- ● ● ● ●
48 CLIP; FRAME HARNESS
(N) ID=20 L=70 		1-09700-485-0 03 1 0005-0210 ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		9-09525-856-0 01 1 0211-0411 ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		9-09525-856-0 01 1 0412-0606 ● ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		0-95235-856-0 01 1 0607- ● ● ● ●
48 CLIP; FRAME HARNESS
(K) ID=14 L=44 		9-09917-427-0 01 1 0005-0210 ● ● ●
48 CLIP; FRAME HARNESS
(I) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0005-0411 ● ● ●
48 CLIP; FRAME HARNESS
(I) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0412- ● ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		9-09525-856-0 02 1 0005-0210 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 02 1 0211-0411 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 02 1 0412- ● ● ●
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 		9-09917-430-0 02 1 0005-0210 ● ●
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0211-0411 ● ●
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 		9-09917-430-0 06 1 0412- ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (H) ID=25 H=30 L=35 		1-09700-875-0 01 1 0005-0006 ● ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (E) ID=25 L=50 		1-09700-976-0 02 1 0005-0210 ● ●
48 CLIP; FRAME HARNESS
(F) ID=26 L=27 		1-09701-006-0 02 1 0211-0306 ● ● ●
48 CLIP; FRAME HARNESS
(F) ID=26 L=27 		1-09701-006-0 02 1 0211-0306 ●
48 CLIP; FRAME HARNESS
(F) ID=26 L=27 		1-09701-006-0 01 1 0307-0411 ● ● ●
48 CLIP; FRAME HARNESS
(F) ID=26 L=27 		1-09701-006-0 01 1 0412- ● ● ● ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (G) ID=24 H=40 L=24 		1-09701-243-0 01 1 0005-0006 ● ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (G) ID=24 H=40 L=24 		1-09701-243-0 02 1 0007-0210 ● ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (C) L=350 		1-09707-183-0 01 1 0005-0210 ● ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (B) L=250 		5-09707-030-1 02 1 0005-0210 ● ●
48 CLIP; FRAME HARNESS
(N) ID=20 L=70 		1-09700-485-0 03 1 0211-0411 ● ●
48 CLIP; FRAME HARNESS
(N) ID=20 L=70 		1-09700-485-0 03 1 0412- ● ● ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) L=140 		5-09707-031-1 03 1 0005-0210 ● ●
48 CLIP; FRAME HARNESS
(F) ID=26 L=27 		1-09701-006-0 02 1 0005-0210 ●
48 CLIP; FRAME HARNESS
(P) ID=19 L=40 		9-09525-876-0 01 1 0211-0606 ●
48 CLIP; FRAME HARNESS
(P) ID=19 L=40 		0-95235-876-0 01 1 0607- ●
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		9-09525-856-0 01 1 0005-0210 ●
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0005-0210 ●
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 		9-09917-430-0 02 1 0211- ●
48 CLIP; FRAME HARNESS
(A) L=140 		5-09707-031-1 01 1 0101-0210 ●
48 CLIP; FRAME HARNESS
(N) ID=20 L=70 		1-09700-485-0 02 1 0211- ●
48 CLIP; FRAME HARNESS
(O) ID=28 L=78 		1-09700-858-0 04 1 0005- ●
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 		9-09917-430-0 17 1 0005-0210 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (M) ID=20 L=50 		9-09917-430-0 19 1 0211- ●

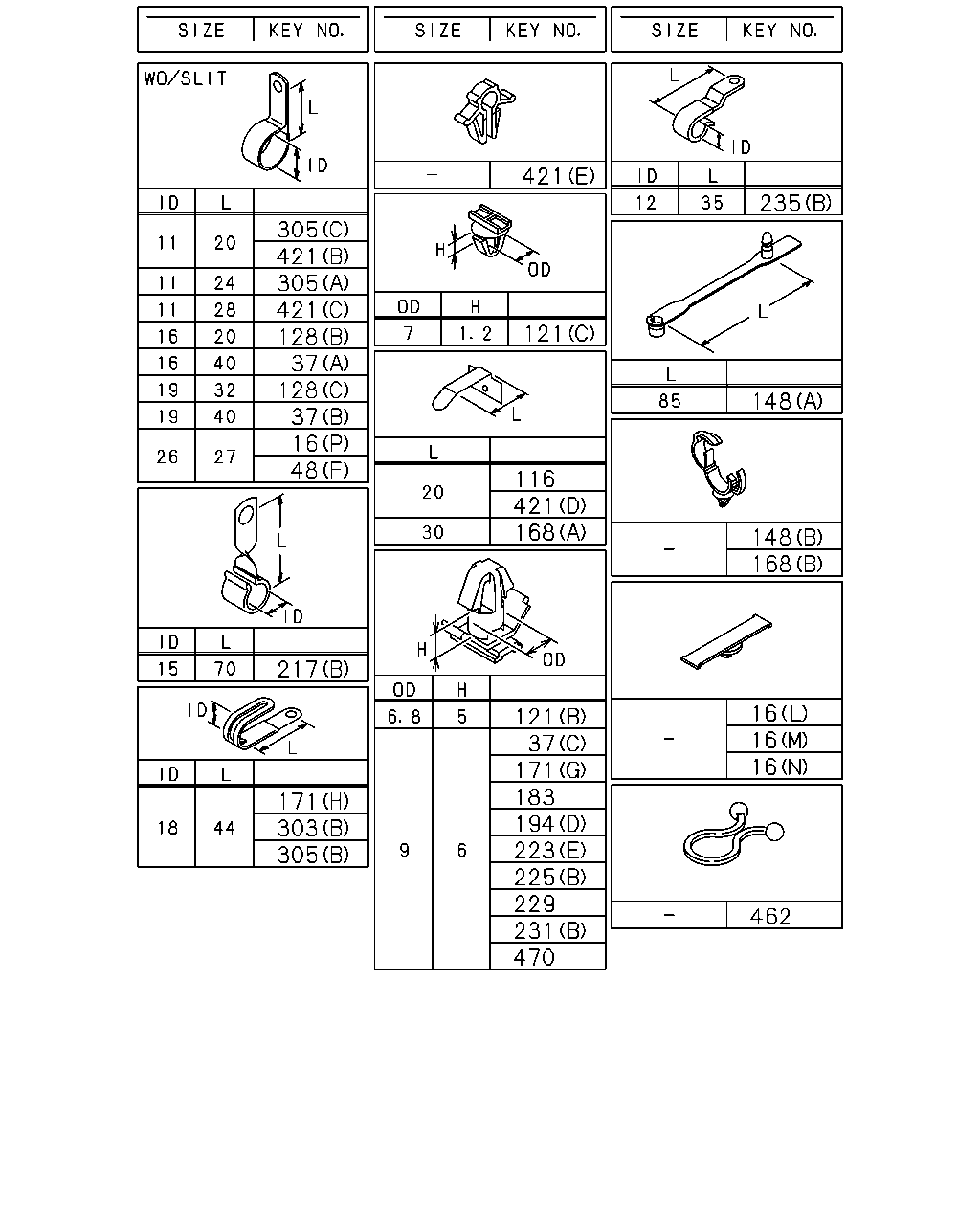

81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0005-0411 ● ● ●
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0412- ● ● ● ●
81 CLIP; HARNESS
(B) ID=26 L=26 		1-09701-236-0 01 1 0211-0411 ● ● ●
81 CLIP; HARNESS
(B) ID=26 L=26 		1-09701-236-0 01 1 0412- ● ● ● ●
121 CLIP; FACIA HARNESS
(B) OD=6.8 H=5 		8-97082-051-0 02 1 0005-0411 ● ●
121 CLIP; FACIA HARNESS
(B) OD=6.8 H=5 		8-97082-051-0 02 1 0412- ● ● ●
121 CLIP; FACIA HARNESS
(A) L=140 		5-09707-031-1 01 1 0005-0411 ● ● ●
121 CLIP; FACIA HARNESS
(A) L=140 		5-09707-031-1 01 1 0412- ● ● ● ●
121 CLIP; FACIA HARNESS
(C) OD=7 H=1.2 		8-94364-750-0 02 1 0005-0210 ●
171 CLIP; STARTER HARNESS
A/T<X9D> (K) ID=11 L=41 		1-09700-403-0 01 1 0402- ●
171 CLIP; STARTER HARNESS
FULLER FSO5206B OD M/T(Y4V) (E) ID=21 L=30 H=40 		1-09700-991-1 01 1 0307- ● ●
171 CLIP; STARTER HARNESS
FULLER FSO5206B OD M/T(Y4V) (B) L=180 		1-09707-162-1 02 1 0307-0309 ● ●
171 CLIP; STARTER HARNESS
FULLER FSO5206B OD M/T(Y4V) (G) OD=9 H=6 		1-09709-178-0 01 1 0310- ● ●
171 CLIP; STARTER HARNESS
FULLER FSO5206B OD M/T(Y4V) (J) ID=19 L=40 		9-09525-876-0 02 1 0307-0307 ● ●
171 CLIP; STARTER HARNESS
FULLER FSO5206B OD M/T(Y4V) (C) ID=19 L=28 		9-09525-856-0 05 1 0307-0309 ● ●
171 CLIP; STARTER HARNESS
A/T<X9D> (F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0005- ●
171 CLIP; STARTER HARNESS
A/T<X9D> (B) L=180 		1-09707-162-1 01 1 0005-0309 ●
171 CLIP; STARTER HARNESS
FULLER FSO5206B OD M/T(Y4V) (B) L=180 		1-09707-162-1 01 1 0310- ● ●
171 CLIP; STARTER HARNESS
A/T<X9D> (B) L=180 		1-09707-162-1 01 1 0310- ●
171 CLIP; STARTER HARNESS
A/T<X9D> (D) ID=21 L=24 		8-94176-807-1 01 1 0005-0105 ●
171 CLIP; STARTER HARNESS
A/T<X9D> (C) ID=19 L=28 		9-09525-856-0 01 1 0005-0105 ●
171 CLIP; STARTER HARNESS
A/T<X9D> (C) ID=19 L=28 		9-09525-856-0 03 1 0106-0306 ●
171 CLIP; STARTER HARNESS
FULLER FSO5206B OD M/T(Y4V) (C) ID=19 L=28 		9-09525-856-0 03 1 0307-0307 ● ●
171 CLIP; STARTER HARNESS
A/T<X9D> (C) ID=19 L=28 		9-09525-856-0 03 1 0307-0307 ●
171 CLIP; STARTER HARNESS
A/T<X9D> (C) ID=19 L=28 		9-09525-856-0 03 1 0307-0606 ●
171 CLIP; STARTER HARNESS
A/T<X9D> (C) ID=19 L=28 		0-95235-856-0 03 1 0607- ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (G) OD=9 H=6 		1-09709-178-0 02 1 0005-0306 ●
171 CLIP; STARTER HARNESS
(G) OD=9 H=6 		1-09709-178-0 02 1 0005-0306 ● ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (G) OD=9 H=6 		1-09709-178-0 02 1 0307-0411 ● ●
171 CLIP; STARTER HARNESS
(G) OD=9 H=6 		1-09709-178-0 02 1 0307-0411 ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (G) OD=9 H=6 		1-09709-178-0 02 1 0412- ● ●
171 CLIP; STARTER HARNESS
(G) OD=9 H=6 		1-09709-178-0 02 1 0412- ● ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (C) ID=19 L=28 		9-09525-856-0 04 1 0005-0306 ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 0005-0306 ● ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (C) ID=19 L=28 		9-09525-856-0 04 1 0307-0309 ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 0307-0309 ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (C) ID=19 L=28 		9-09525-856-0 04 1 0310-0411 ● ●
171 CLIP; STARTER HARNESS
FULLER FSO5206B OD M/T(Y4V) (C) ID=19 L=28 		9-09525-856-0 04 1 0310-0411 ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 0310-0411 ●
171 CLIP; STARTER HARNESS
FULLER FSO5206B OD M/T(Y4V) (C) ID=19 L=28 		9-09525-856-0 04 1 0412-0606 ● ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (C) ID=19 L=28 		9-09525-856-0 04 1 0412-0606 ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 0412-0606 ● ●
171 CLIP; STARTER HARNESS
FULLER FSO5206B OD M/T(Y4V) (C) ID=19 L=28 		0-95235-856-0 04 1 0607- ● ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (C) ID=19 L=28 		0-95235-856-0 04 1 0607- ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 04 1 0607- ● ●
171 CLIP; STARTER HARNESS
(A) L=300 		1-09707-001-1 01 1 0005-0411 ● ● ●
171 CLIP; STARTER HARNESS
(A) L=300 		1-09707-001-1 01 1 0412- ● ● ● ●
171 CLIP; STARTER HARNESS
EURO2 SPECIFICATION<THN> MLD6 M/T<X9Y> (E) ID=21 L=30 H=40 		1-09700-991-1 01 1 0005-0210 ● ●
171 CLIP; STARTER HARNESS
(I) ID=19 L=24 H=21 		1-09700-109-1 01 1 0211-0305 ● ● ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A>,A/T<X9D> (I) ID=19 L=24 H=21 		1-09700-109-1 01 1 0306-0306 ●
171 CLIP; STARTER HARNESS
(I) ID=19 L=24 H=21 		1-09700-109-1 01 1 0306-0306 ● ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A>,A/T<X9D> (I) ID=19 L=24 H=21 		1-09700-109-1 01 1 0307-0411 ●
171 CLIP; STARTER HARNESS
(I) ID=19 L=24 H=21 		1-09700-109-1 01 1 0307-0411 ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (I) ID=19 L=24 H=21 		1-09700-109-1 01 1 0307-0411 ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A>,A/T<X9D> (I) ID=19 L=24 H=21 		1-09700-109-1 01 1 0412- ●
171 CLIP; STARTER HARNESS
(I) ID=19 L=24 H=21 		1-09700-109-1 01 1 0412- ● ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (I) ID=19 L=24 H=21 		1-09700-109-1 01 1 0412- ●
171 CLIP; STARTER HARNESS
(H) ID=18 L=44 		8-94225-185-0 01 1 0005-0210 ●
178 GROMMET; HARNESS
6HK1 TCS ENG(80L) (C) ID=32 OD=36 L=50 		1-09337-023-0 01 1 0307- ● ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0212- ●
178 GROMMET; HARNESS
(A) ID=19 OD=23 T=24 		1-09332-103-0 01 1 0005-0411 ● ● ●
178 GROMMET; HARNESS
(A) ID=19 OD=23 T=24 		1-09332-103-0 01 1 0412- ● ● ● ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=17 		9-09956-256-1 02 1 0005-0210 ● ● ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=17 		9-09956-256-1 01 1 0005-0210 ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=17 		9-09956-256-1 01 1 0211-0211 ● ● ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=17 		9-09956-256-1 01 1 0211-0211 ● ● ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=17 		9-09956-256-1 01 1 0211-0211 ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0212-0411 ● ● ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0412- ● ● ● ●
194 CLIP; BAND
(D) OD=9 H=6 		1-09709-178-0 01 1 0412- ●
194 CLIP; BAND
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=180 		1-09707-162-1 01 1 0005-0210 ●
194 CLIP; BAND
(C) L=180 		1-09707-162-1 01 1 0005-0210 ●
194 CLIP; BAND
(C) L=180 		1-09707-162-1 01 1 0005-0210 ●
194 CLIP; BAND
(C) L=180 		1-09707-162-1 01 1 0211-0611 ●
194 CLIP; BAND
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=180 		1-09707-162-1 01 1 0612- ●
194 CLIP; BAND
(C) L=180 		1-09707-162-1 01 1 0612- ●
194 CLIP; BAND
(C) L=180 		1-09707-162-1 02 1 0005-0210 ● ● ●
194 CLIP; BAND
(C) L=180 		1-09707-162-1 03 1 0211-0411 ● ● ●
194 CLIP; BAND
(C) L=180 		1-09707-162-1 03 1 0412- ● ● ● ●
194 CLIP; BAND
(B) L=450 		1-09707-142-1 01 1 0005- ●
194 CLIP; BAND
(A) L=350 		8-94152-256-1 01 1 0005- ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0005-0411 ● ● ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0412- ● ● ● ●
217 CLIP; RR BODY HARNESS
(B) ID=15 L=70 		1-09700-980-0 02 1 0005-0208 ● ● ●
217 CLIP; RR BODY HARNESS
(A) L=250 		5-09707-030-1 02 1 0005-0411 ● ● ●
217 CLIP; RR BODY HARNESS
(A) L=250 		5-09707-030-1 02 1 0412- ● ● ● ●
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 05 1 0005-0411 ● ●
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 05 1 0412- ● ● ●
223 CLIP; AIR TANK HARNESS
(E) OD=9 H=6 		1-09709-178-0 03 1 0005-0210 ● ● ●
223 CLIP; AIR TANK HARNESS
(E) OD=9 H=6 		1-09709-178-0 03 1 0211-0411 ● ●
223 CLIP; AIR TANK HARNESS
(E) OD=9 H=6 		1-09709-178-0 03 1 0412- ● ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0005-0210 ●
223 CLIP; AIR TANK HARNESS
(E) OD=9 H=6 		1-09709-178-0 01 1 0211- ●
223 CLIP; AIR TANK HARNESS
(A) L=140 		5-09707-031-1 01 1 0005- ●
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 		9-09917-427-0 02 1 0005-0210 ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0211-0411 ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0412- ● ● ●
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 04 1 0005-0210 ●
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 07 1 0211- ●
224 SLEEVE; RUBBER,HARNESS
6HK1 TCS ENG(80L) (B) ID=10 OD=14 L=30 		9-09956-682-0 05 1 0308- ● ●
224 SLEEVE; RUBBER,HARNESS
EURO2 SPECIFICATION<THN> (A) ID=32 OD=36 L=50 		1-09337-023-0 01 1 0005-0210 ● ●
225 CLIP; AIR TANK HARNESS
(A) L=140 		5-09707-031-1 02 1 0005-0210 ● ●
225 CLIP; AIR TANK HARNESS
(A) L=140 		5-09707-031-1 03 1 0211-0411 ● ●
225 CLIP; AIR TANK HARNESS
(A) L=140 		5-09707-031-1 03 1 0412- ● ● ●
225 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0005-0411 ● ● ●
225 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0412- ● ● ● ●
228 CLIP; COOLER HARNESS
L=140 		5-09707-031-1 01 1 0005-0411 ● ● ●
228 CLIP; COOLER HARNESS
L=140 		5-09707-031-1 01 1 0412- ● ● ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ISUZU M/T<X9A> (A) L=140 		5-09707-031-1 01 1 0005-0306 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=140 		5-09707-031-1 01 1 0005-0306 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ISUZU M/T<X9A> (A) L=140 		5-09707-031-1 01 1 0307-0411 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=140 		5-09707-031-1 01 1 0307-0411 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ISUZU M/T<X9A> (A) L=140 		5-09707-031-1 01 1 0412- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=140 		5-09707-031-1 01 1 0412- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
MLD6 M/T<X9Y> (B) ID=12 L=35 		5-09700-206-0 01 1 0005-0210 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
MLD6 M/T<X9Y> (B) ID=12 L=35 		5-09700-206-0 01 1 0211-0306 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=12 L=35 		5-09700-206-0 01 1 0211-0306 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
MLD6 M/T<X9Y> (B) ID=12 L=35 		5-09700-206-0 01 1 0307-0411 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=12 L=35 		5-09700-206-0 01 1 0307-0411 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
MLD6 M/T<X9Y> (B) ID=12 L=35 		5-09700-206-0 01 1 0412- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=12 L=35 		5-09700-206-0 01 1 0412- ● ●
303 CLIP; HARNESS POWER TILT RELAY
(A) L=300 		1-09707-001-1 01 1 0005- ●
303 CLIP; HARNESS POWER TILT RELAY
(B) ID=18 L=44 		8-94225-185-0 01 1 0005-0801 ●
303 CLIP; HARNESS POWER TILT RELAY
(B) ID=18 L=44 		8-97367-985-1 01 1 0802- ●
305 CLIP; ENG HARNESS
6HK1 TCS ENG(80L) (F) L=250 		5-09707-030-1 07 1 0308- ● ●
305 CLIP; ENG HARNESS
A/T<X9D> (B) ID=18 L=44 		8-94225-185-0 02 1 0211-0801 ●
305 CLIP; ENG HARNESS
A/T<X9D> (B) ID=18 L=44 		8-97367-985-1 02 1 0802- ●
305 CLIP; ENG HARNESS
EXC. A/T<X9D> (B) ID=18 L=44 		8-94225-185-0 03 1 0211-0302 ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 03 1 0211-0302 ● ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXC. A/T<X9D> (B) ID=18 L=44 		8-94225-185-0 03 1 0303-0411 ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 03 1 0303-0411 ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L) (B) ID=18 L=44 		8-94225-185-0 03 1 0303-0411 ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXC. A/T<X9D> (B) ID=18 L=44 		8-94225-185-0 03 1 0412-0801 ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 03 1 0412-0801 ● ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L) (B) ID=18 L=44 		8-94225-185-0 03 1 0412-0801 ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXC. A/T<X9D> (B) ID=18 L=44 		8-97367-985-1 03 1 0802- ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 03 1 0802- ● ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L) (B) ID=18 L=44 		8-97367-985-1 03 1 0802- ●
305 CLIP; ENG HARNESS
EXC. A/T<X9D> (C) ID=11 L=20 		9-09525-035-0 01 1 0211-0302 ●
305 CLIP; ENG HARNESS
(C) ID=11 L=20 		9-09525-035-0 01 1 0211-0302 ● ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXC. A/T<X9D> (C) ID=11 L=20 		9-09525-035-0 01 1 0303-0411 ●
305 CLIP; ENG HARNESS
(C) ID=11 L=20 		9-09525-035-0 01 1 0303-0411 ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L) (C) ID=11 L=20 		9-09525-035-0 01 1 0303-0411 ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXC. A/T<X9D> (C) ID=11 L=20 		9-09525-035-0 01 1 0412-0606 ●
305 CLIP; ENG HARNESS
(C) ID=11 L=20 		9-09525-035-0 01 1 0412-0606 ● ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L) (C) ID=11 L=20 		9-09525-035-0 01 1 0412-0606 ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXC. A/T<X9D> (C) ID=11 L=20 		0-95235-035-0 01 1 0607- ●
305 CLIP; ENG HARNESS
(C) ID=11 L=20 		0-95235-035-0 01 1 0607- ● ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L) (C) ID=11 L=20 		0-95235-035-0 01 1 0607- ●
305 CLIP; ENG HARNESS
(A) ID=11 L=24 		9-09525-045-0 01 1 0211-0302 ● ● ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (A) ID=11 L=24 		9-09525-045-0 01 1 0303-0411 ● ●
305 CLIP; ENG HARNESS
(A) ID=11 L=24 		9-09525-045-0 01 1 0303-0411 ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (A) ID=11 L=24 		9-09525-045-0 01 1 0412-0606 ● ●
305 CLIP; ENG HARNESS
(A) ID=11 L=24 		9-09525-045-0 01 1 0412-0606 ● ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (A) ID=11 L=24 		0-95235-045-0 01 1 0607- ● ●
305 CLIP; ENG HARNESS
(A) ID=11 L=24 		0-95235-045-0 01 1 0607- ● ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<THN> (D) L=180 		1-09707-162-1 01 1 0005-0210 ● ●
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 03 1 0211-0302 ● ● ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (E) ID=24 L=32 		1-09700-766-1 03 1 0303-0411 ● ●
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 03 1 0303-0411 ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (E) ID=24 L=32 		1-09700-766-1 03 1 0412- ● ●
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 03 1 0412- ● ●
305 CLIP; ENG HARNESS
EXC. EURO2 SPECIFICATION<THN> (D) L=180 		1-09707-162-1 02 1 0005-0210 ● ●
305 CLIP; ENG HARNESS
(D) L=180 		1-09707-162-1 02 1 0005-0210 ●
305 CLIP; ENG HARNESS
(D) L=180 		1-09707-162-1 01 1 0211-0411 ● ● ●
305 CLIP; ENG HARNESS
(D) L=180 		1-09707-162-1 01 1 0412- ● ● ● ●
395 CLIP; WIPER HARNESS
L=140 		5-09707-031-1 01 1 0005-0411 ● ● ●
395 CLIP; WIPER HARNESS
L=140 		5-09707-031-1 01 1 0412- ● ● ● ●
421 CLIP; FLOOR HARNESS
(D) L=20 		1-09987-246-2 07 1 0005-0101 ● ● ●
421 CLIP; FLOOR HARNESS
(D) L=20 		1-09987-246-2 01 1 0102-0411 ● ● ●
421 CLIP; FLOOR HARNESS
(D) L=20 		1-09987-246-2 01 1 0412- ● ● ● ●
421 CLIP; FLOOR HARNESS
(E) ID=9 		5-09707-027-0 02 1 0005- ●
421 CLIP; FLOOR HARNESS
(A) L=100 		5-09707-036-1 01 1 0005- ●
421 CLIP; FLOOR HARNESS
(B) ID=11 L=20 		9-09525-032-0 03 1 0005-0301 ●
421 CLIP; FLOOR HARNESS
(B) ID=11 L=20 		9-09525-032-0 02 1 0302-0606 ●
421 CLIP; FLOOR HARNESS
(B) ID=11 L=20 		0-95235-032-0 02 1 0607- ●
421 CLIP; FLOOR HARNESS
(C) ID=11 L=28 		9-09525-052-0 04 1 0005-0301 ●
421 CLIP; FLOOR HARNESS
(C) ID=11 L=28 		9-09525-052-0 05 1 0302-0606 ●
421 CLIP; FLOOR HARNESS
(C) ID=11 L=28 		0-95235-052-0 05 1 0607- ●
510 GROMMET; SCREW
EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8 		8-94222-314-0 01 1 0005-0210 ● ●
510 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 01 1 0211-0411 ● ● ●
510 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 01 1 0412- ● ● ● ●
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 01 1 0005-0411 ● ● ●
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 01 1 0412-0906 ● ● ● ●
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-1 08 1 0005-0411 ● ●
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-1 08 1 0412- ● ● ●
513 TAPE; SOFT,HARNESS
100X30 		1-74998-068-0 02 1 0005- ●
514 FINISHER; HARNESS
L=50 		8-94270-377-1 01 1 0907- ● ● ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-0 01 1 0006-0210 ● ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 08 1 0211-0411 ● ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 08 1 0412- ● ● ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-0 06 1 0102-0210 ● ● ●
çizim 99611
503 119 64 524 219 294 294 503 133 210 520 184 127 209 515
BalonParca AdiParca NoAdetTipApplied Date A B C D
64 SCREW; CLIP
EURO2 SPECIFICATION<THN> M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0005-0210 ● ●
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0211-0411 ● ● ●
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0412- ● ● ● ●
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M5X14 W/PL WASHER 		8-94447-551-0 02 1 0005-0210 ●
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 0211-0411 ● ●
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 0412- ● ● ●
127 SCREW; FACIA HARNESS CLIP
M3X10 		9-93490-310-0 04 1 0412- ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0005-0110 ● ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-0411 ● ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0412- ● ● ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210 ● ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0005-0411 ● ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0412- ● ● ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 0005-0411 ● ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 0412-0603 ● ● ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604- ● ● ● ●
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0005-0411 ● ● ●
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0412- ● ● ● ●
219 NUT
A/T<X9D> M8 FLANGE 		0-91150-108-0 01 1 0005-0306 ●
219 NUT
6HK1 TCS ENG(80L) M8 FLANGE 		0-91150-108-0 01 1 0307-0602 ● ●
219 NUT
A/T<X9D> M8 FLANGE 		0-91150-108-0 01 1 0307-0602 ●
219 NUT
6HK1 TCS ENG(80L) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
219 NUT
A/T<X9D> M8 FLANGE 		0-91180-108-0 01 1 0603- ●
219 NUT
M8 FLANGE 		0-91150-108-0 03 1 0005-0210 ● ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 03 1 0005-0210 ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 03 1 0211-0411 ● ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 03 1 0412-0602 ● ● ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ● ● ●
219 NUT
EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91150-108-0 04 1 0005-0210 ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 04 1 0005-0210 ●
219 NUT
M8 FLANGE 		0-91150-108-0 06 1 0211-0411 ● ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 06 1 0412-0602 ● ● ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 06 1 0412-0602 ●
219 NUT
M8 FLANGE 		0-91180-108-0 06 1 0603- ● ● ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 06 1 0603- ●
219 NUT
M8 FLANGE 		0-91150-108-0 05 1 0211-0602 ●
219 NUT
M8 FLANGE 		0-91180-108-0 05 1 0603- ●
294 NUT
(A) M8 FLANGE 		0-91150-108-0 04 1 0412-0602 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0603- ●
294 NUT
FULLER FSO5206B OD M/T(Y4V) (A) M8 FLANGE 		0-91150-108-0 01 1 0307-0602 ● ●
294 NUT
FULLER FSO5206B OD M/T(Y4V) (A) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
294 NUT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (B) M10 FLANGE 		0-91150-210-0 01 1 0307-0602 ● ●
294 NUT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (B) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
294 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ●
294 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0211-0411 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0412-0602 ● ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ●
294 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 0211-0602 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0603- ●
503 CONNECTOR
(A) 		1-82690-668-0 01 1 0310-0411 ● ● ●
503 CONNECTOR
(A) 		1-82690-668-0 01 1 0412- ● ● ● ●
503 CONNECTOR
STARTER SWITCH DELETION<E5D> (B) 		1-82690-666-0 01 1 0212-0411 ● ● ●
503 CONNECTOR
STARTER SWITCH DELETION<E5D> (B) 		1-82690-666-0 01 1 0412- ● ● ● ●
503 CONNECTOR
(A) 		1-82690-668-0 01 1 0005-0210 ● ● ●
515 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0412-0602 ●
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0005-0411 ● ● ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0412- ● ● ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0005-0411 ● ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0412-0602 ● ● ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ● ● ●
çizim 100031
421 235 305 421 305 421 128 37 128 37 16 48 121 148 116 421 168 148 168 217 16 16 16 121 37 171 183 194 223 225 229 231 470 171 303 305 462
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 CLIP; HARNESS
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (I) ID=11 L=41 		1-09700-403-0 02 1 0612- ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (S) ID=28 H=45 L=30 		1-09700-948-0 02 1 0411- ● ●
16 CLIP; HARNESS
EXC. AIR HORN<WB8> (I) ID=11 L=41 		1-09700-403-0 03 1 0412- ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 0412- ● ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (T) ID=12 & 16.5 		8-94400-865-0 01 1 0308- ● ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (G) ID=19 H=21 L=50 		1-09700-910-1 01 1 0307-0307 ● ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (S) ID=28 H=45 L=30 		1-09700-948-0 02 1 0307-0307 ● ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (S) ID=28 H=45 L=30 		1-09700-948-0 03 1 0308-0410 ● ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (S) ID=28 H=45 L=30 		1-09700-948-0 01 1 0411- ● ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (P) ID=26 L=27 		1-09701-006-0 01 1 0307- ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (L) L=55 		8-94432-655-0 03 1 0005-0210 ●
16 CLIP; HARNESS
(L) L=55 		8-94432-655-0 03 1 0211-0411 ● ●
16 CLIP; HARNESS
(L) L=55 		8-94432-655-0 03 1 0412- ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (C) L=175 		8-97110-167-0 04 1 0005-0210 ●
16 CLIP; HARNESS
(C) L=175 		8-97110-167-0 06 1 0211-0411 ● ●
16 CLIP; HARNESS
(C) L=175 		8-97110-167-0 06 1 0412- ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> CUSTOM CAB(SR5) (M) 		1-82698-130-0 03 1 0005-0109 ●
16 CLIP; HARNESS
POWER WINDOW<A30> CUSTOM CAB(SR5) (N) 		8-97229-356-0 03 1 0110-0210 ●
16 CLIP; HARNESS
(N) 		8-97229-356-0 03 1 0211-0411 ● ●
16 CLIP; HARNESS
(N) 		8-97229-356-0 03 1 0412- ● ● ●
16 CLIP; HARNESS
(C) L=175 		8-97110-167-0 02 1 0005-0210 ● ●
16 CLIP; HARNESS
(C) L=175 		8-97110-167-0 02 1 0211- ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 0005-0405 ● ● ●
16 CLIP; HARNESS
EXC. AIR HORN<WB8> (I) ID=11 L=41 		1-09700-403-0 03 1 0406-0411 ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 0406-0411 ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 01 1 0412- ●
16 CLIP; HARNESS
(K) ID=28 L=78 		1-09700-858-0 01 1 0005-0210 ● ● ●
16 CLIP; HARNESS
(P) ID=26 L=27 		1-09701-006-0 02 1 0211-0305 ● ● ●
16 CLIP; HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (P) ID=26 L=27 		1-09701-006-0 02 1 0306-0411 ● ●
16 CLIP; HARNESS
6HK1 TCC ENG(81L) (P) ID=26 L=27 		1-09701-006-0 02 1 0306-0411 ●
16 CLIP; HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (P) ID=26 L=27 		1-09701-006-0 02 1 0412- ● ●
16 CLIP; HARNESS
6HK1 TCC ENG(81L) (P) ID=26 L=27 		1-09701-006-0 02 1 0412- ●
16 CLIP; HARNESS
6HK1 TCN ENG(82L) (P) ID=26 L=27 		1-09701-006-0 02 1 0412- ●
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0005-0411 ● ● ●
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0412- ● ● ● ●
16 CLIP; HARNESS
(G) ID=19 H=21 L=50 		1-09700-910-1 01 1 0005-0210 ● ● ●
16 CLIP; HARNESS
(O) ID=18 H=23 L=28 		1-09700-860-0 01 1 0211-0305 ● ● ●
16 CLIP; HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (O) ID=18 H=23 L=28 		1-09700-860-0 01 1 0306-0306 ● ●
16 CLIP; HARNESS
6HK1 TCC ENG(81L) (O) ID=18 H=23 L=28 		1-09700-860-0 01 1 0306-0306 ●
16 CLIP; HARNESS
(O) ID=18 H=23 L=28 		1-09700-860-0 01 1 0307-0411 ● ● ●
16 CLIP; HARNESS
(O) ID=18 H=23 L=28 		1-09700-860-0 01 1 0412- ● ● ● ●
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 0005-0411 ● ● ●
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 0412- ● ● ● ●
16 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 0005-0210 ● ● ●
16 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 0005-0210 ● ● ●
16 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 0211-0411 ● ● ●
16 CLIP; HARNESS
A/T<X9D> (A) L=250 		5-09707-030-1 01 1 0211-0411 ●
16 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 0412- ● ● ● ●
16 CLIP; HARNESS
A/T<X9D> (A) L=250 		5-09707-030-1 01 1 0412- ●
16 CLIP; HARNESS
(D) ID=19 L=32 		9-09525-866-0 01 1 0005-0411 ● ● ●
16 CLIP; HARNESS
(D) ID=19 L=32 		9-09525-866-0 01 1 0412-0606 ● ● ● ●
16 CLIP; HARNESS
(D) ID=19 L=32 		0-95235-866-0 01 1 0607- ● ● ● ●
16 CLIP; HARNESS
(J) ID=14 L=44 		9-09917-427-0 03 1 0005-0405 ● ● ●
16 CLIP; HARNESS
EXC. AIR HORN<WB8> (J) ID=14 L=44 		9-09917-427-0 03 1 0406-0411 ● ●
16 CLIP; HARNESS
(J) ID=14 L=44 		9-09917-427-0 03 1 0406-0411 ●
16 CLIP; HARNESS
EXC. AIR HORN<WB8> (J) ID=14 L=44 		9-09917-427-0 03 1 0412- ● ●
16 CLIP; HARNESS
(J) ID=14 L=44 		9-09917-427-0 03 1 0412- ● ●
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (F) ID=25 L=50 		1-09701-019-0 01 1 0005-0210 ● ●
16 CLIP; HARNESS
(Q) ID=35 H=45 L=33 		1-09701-047-0 01 1 0211-0411 ● ● ●
16 CLIP; HARNESS
(Q) ID=35 H=45 L=33 		1-09701-047-0 01 1 0412- ● ● ● ●
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (E) ID=24 L=40 		1-09701-139-0 01 1 0005-0210 ● ●
16 CLIP; HARNESS
(R) ID=18 L=40 		1-09701-111-0 01 1 0211- ●
37 CLIP; HARNESS,POWER TILT
(C) OD=9 H=6 		1-09709-178-0 02 1 0005- ●
37 CLIP; HARNESS,POWER TILT
(A) ID=16 L=40 		9-09525-575-0 02 1 0005-0606 ●
37 CLIP; HARNESS,POWER TILT
(A) ID=16 L=40 		0-95235-575-0 02 1 0607- ●
37 CLIP; HARNESS,POWER TILT
(B) ID=19 L=40 		9-09525-875-0 01 1 0005-0606 ●
37 CLIP; HARNESS,POWER TILT
(B) ID=19 L=40 		0-95235-875-0 01 1 0607- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (J) ID=11 L=41 		1-09700-403-0 01 1 0612- ●
48 CLIP; FRAME HARNESS
(Q) ID=25 L=55 		9-09917-573-0 14 1 0412- ●
48 CLIP; FRAME HARNESS
(R) ID=24 L=24 		1-09701-001-1 04 1 0412-0412 ●
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		9-09525-856-0 02 1 0412-0412 ●
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		9-09525-856-0 06 1 0501-0606 ●
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		0-95235-856-0 06 1 0607- ●
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0412- ● ● ●
48 CLIP; FRAME HARNESS
EXC. AIR HORN<WB8> (J) ID=11 L=41 		1-09700-403-0 04 1 0406-0411 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 04 1 0406-0411 ●
48 CLIP; FRAME HARNESS
EXC. AIR HORN<WB8> (J) ID=11 L=41 		1-09700-403-0 04 1 0412- ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 04 1 0412- ● ●
48 CLIP; FRAME HARNESS
(F) ID=26 L=27 		1-09701-006-0 02 1 0307- ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) (A) L=140 		5-09707-031-1 03 1 0307- ● ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) (K) ID=14 L=44 		9-09917-427-0 01 1 0307- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (M) ID=20 L=50 		9-09917-430-0 12 1 0005- ●
48 CLIP; FRAME HARNESS
(O) ID=28 L=78 		1-09700-858-0 05 1 0005-0411 ● ●
48 CLIP; FRAME HARNESS
(O) ID=28 L=78 		1-09700-858-0 05 1 0412- ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (M) ID=20 L=50 		9-09917-430-0 15 1 0005- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (M) ID=20 L=50 		9-09917-430-0 18 1 0005-0210 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5100MM(51W) (M) ID=20 L=50 		9-09917-430-0 21 1 0211- ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 04 1 0005-0405 ● ● ●
48 CLIP; FRAME HARNESS
AIR HORN<WB8> (J) ID=11 L=41 		1-09700-403-0 03 1 0406- ● ●
48 CLIP; FRAME HARNESS
(L) ID=15 L=65 		1-09700-466-0 02 1 0005-0411 ● ● ●
48 CLIP; FRAME HARNESS
(L) ID=15 L=65 		1-09700-466-0 02 1 0412- ● ● ● ●
48 CLIP; FRAME HARNESS
(N) ID=20 L=70 		1-09700-485-0 03 1 0005-0210 ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		9-09525-856-0 01 1 0211-0411 ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		9-09525-856-0 01 1 0412-0606 ● ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		0-95235-856-0 01 1 0607- ● ● ● ●
48 CLIP; FRAME HARNESS
(K) ID=14 L=44 		9-09917-427-0 01 1 0005-0210 ● ● ●
48 CLIP; FRAME HARNESS
(I) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0005-0411 ● ● ●
48 CLIP; FRAME HARNESS
(I) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0412- ● ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		9-09525-856-0 02 1 0005-0210 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 02 1 0211-0411 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 02 1 0412- ● ● ●
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 		9-09917-430-0 02 1 0005-0210 ● ●
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0211-0411 ● ●
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 		9-09917-430-0 06 1 0412- ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (H) ID=25 H=30 L=35 		1-09700-875-0 01 1 0005-0006 ● ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (E) ID=25 L=50 		1-09700-976-0 02 1 0005-0210 ● ●
48 CLIP; FRAME HARNESS
(F) ID=26 L=27 		1-09701-006-0 02 1 0211-0306 ● ● ●
48 CLIP; FRAME HARNESS
(F) ID=26 L=27 		1-09701-006-0 02 1 0211-0306 ●
48 CLIP; FRAME HARNESS
(F) ID=26 L=27 		1-09701-006-0 01 1 0307-0411 ● ● ●
48 CLIP; FRAME HARNESS
(F) ID=26 L=27 		1-09701-006-0 01 1 0412- ● ● ● ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (G) ID=24 H=40 L=24 		1-09701-243-0 01 1 0005-0006 ● ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (G) ID=24 H=40 L=24 		1-09701-243-0 02 1 0007-0210 ● ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (C) L=350 		1-09707-183-0 01 1 0005-0210 ● ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (B) L=250 		5-09707-030-1 02 1 0005-0210 ● ●
48 CLIP; FRAME HARNESS
(N) ID=20 L=70 		1-09700-485-0 03 1 0211-0411 ● ●
48 CLIP; FRAME HARNESS
(N) ID=20 L=70 		1-09700-485-0 03 1 0412- ● ● ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) L=140 		5-09707-031-1 03 1 0005-0210 ● ●
48 CLIP; FRAME HARNESS
(F) ID=26 L=27 		1-09701-006-0 02 1 0005-0210 ●
48 CLIP; FRAME HARNESS
(P) ID=19 L=40 		9-09525-876-0 01 1 0211-0606 ●
48 CLIP; FRAME HARNESS
(P) ID=19 L=40 		0-95235-876-0 01 1 0607- ●
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		9-09525-856-0 01 1 0005-0210 ●
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0005-0210 ●
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 		9-09917-430-0 02 1 0211- ●
48 CLIP; FRAME HARNESS
(A) L=140 		5-09707-031-1 01 1 0101-0210 ●
48 CLIP; FRAME HARNESS
(N) ID=20 L=70 		1-09700-485-0 02 1 0211- ●
48 CLIP; FRAME HARNESS
(O) ID=28 L=78 		1-09700-858-0 04 1 0005- ●
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 		9-09917-430-0 17 1 0005-0210 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (M) ID=20 L=50 		9-09917-430-0 19 1 0211- ●
116 CLIP; ROOF HARNESS
MAP LAMP<C85> L=20 		1-09987-246-2 05 1 0005-0009 ●
116 CLIP; ROOF HARNESS
MAP LAMP<C85> L=20 		1-09987-246-2 06 1 0010-0112 ●
116 CLIP; ROOF HARNESS
MAP LAMP<C85> L=20 		1-09987-246-2 05 1 0201-0405 ●
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 05 1 0201-0405 ●
116 CLIP; ROOF HARNESS
MAP LAMP<C85> L=20 		1-09987-246-2 05 1 0406-0411 ● ●
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 05 1 0406-0411 ●
116 CLIP; ROOF HARNESS
MAP LAMP<C85> L=20 		1-09987-246-2 05 1 0412- ● ● ●
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 05 1 0412- ●
116 CLIP; ROOF HARNESS
EXC. MAP LAMP<C85> L=20 		1-09987-246-2 02 1 0005-0009 ●
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 02 1 0005-0009 ●
116 CLIP; ROOF HARNESS
EXC. MAP LAMP<C85> L=20 		1-09987-246-2 03 1 0010-0405 ●
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 03 1 0010-0405 ●
116 CLIP; ROOF HARNESS
EXC. MAP LAMP<C85> L=20 		1-09987-246-2 03 1 0406-0411 ● ●
116 CLIP; ROOF HARNESS
EXC. MAP LAMP<C85> L=20 		1-09987-246-2 03 1 0412- ● ● ●
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 04 1 0005-0009 ●
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 05 1 0010-0112 ●
121 CLIP; FACIA HARNESS
(B) OD=6.8 H=5 		8-97082-051-0 02 1 0005-0411 ● ●
121 CLIP; FACIA HARNESS
(B) OD=6.8 H=5 		8-97082-051-0 02 1 0412- ● ● ●
121 CLIP; FACIA HARNESS
(A) L=140 		5-09707-031-1 01 1 0005-0411 ● ● ●
121 CLIP; FACIA HARNESS
(A) L=140 		5-09707-031-1 01 1 0412- ● ● ● ●
121 CLIP; FACIA HARNESS
(C) OD=7 H=1.2 		8-94364-750-0 02 1 0005-0210 ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		9-09525-535-0 01 1 0005-0411 ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		9-09525-535-0 01 1 0412-0606 ● ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		0-95235-535-0 01 1 0607- ● ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=19 L=32 		9-09525-862-0 01 1 0005-0011 ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=14.5 L=30 		9-09916-893-1 01 1 0012-0411 ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=14.5 L=30 		9-09916-893-1 01 1 0412- ● ● ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 0005-0411 ● ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 0412- ● ● ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 01 1 0005-0411 ● ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 01 1 0412- ● ● ● ●
168 CLIP; DASH HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 05 1 0005-0411 ● ● ●
168 CLIP; DASH HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 05 1 0412- ● ● ● ●
168 CLIP; DASH HARNESS
(A) L=30 		1-09987-265-0 01 1 0102-0411 ● ● ●
168 CLIP; DASH HARNESS
(A) L=30 		1-09987-265-0 01 1 0412- ● ● ● ●
171 CLIP; STARTER HARNESS
A/T<X9D> (K) ID=11 L=41 		1-09700-403-0 01 1 0402- ●
171 CLIP; STARTER HARNESS
FULLER FSO5206B OD M/T(Y4V) (E) ID=21 L=30 H=40 		1-09700-991-1 01 1 0307- ● ●
171 CLIP; STARTER HARNESS
FULLER FSO5206B OD M/T(Y4V) (B) L=180 		1-09707-162-1 02 1 0307-0309 ● ●
171 CLIP; STARTER HARNESS
FULLER FSO5206B OD M/T(Y4V) (G) OD=9 H=6 		1-09709-178-0 01 1 0310- ● ●
171 CLIP; STARTER HARNESS
FULLER FSO5206B OD M/T(Y4V) (J) ID=19 L=40 		9-09525-876-0 02 1 0307-0307 ● ●
171 CLIP; STARTER HARNESS
FULLER FSO5206B OD M/T(Y4V) (C) ID=19 L=28 		9-09525-856-0 05 1 0307-0309 ● ●
171 CLIP; STARTER HARNESS
A/T<X9D> (F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0005- ●
171 CLIP; STARTER HARNESS
A/T<X9D> (B) L=180 		1-09707-162-1 01 1 0005-0309 ●
171 CLIP; STARTER HARNESS
FULLER FSO5206B OD M/T(Y4V) (B) L=180 		1-09707-162-1 01 1 0310- ● ●
171 CLIP; STARTER HARNESS
A/T<X9D> (B) L=180 		1-09707-162-1 01 1 0310- ●
171 CLIP; STARTER HARNESS
A/T<X9D> (D) ID=21 L=24 		8-94176-807-1 01 1 0005-0105 ●
171 CLIP; STARTER HARNESS
A/T<X9D> (C) ID=19 L=28 		9-09525-856-0 01 1 0005-0105 ●
171 CLIP; STARTER HARNESS
A/T<X9D> (C) ID=19 L=28 		9-09525-856-0 03 1 0106-0306 ●
171 CLIP; STARTER HARNESS
FULLER FSO5206B OD M/T(Y4V) (C) ID=19 L=28 		9-09525-856-0 03 1 0307-0307 ● ●
171 CLIP; STARTER HARNESS
A/T<X9D> (C) ID=19 L=28 		9-09525-856-0 03 1 0307-0307 ●
171 CLIP; STARTER HARNESS
A/T<X9D> (C) ID=19 L=28 		9-09525-856-0 03 1 0307-0606 ●
171 CLIP; STARTER HARNESS
A/T<X9D> (C) ID=19 L=28 		0-95235-856-0 03 1 0607- ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (G) OD=9 H=6 		1-09709-178-0 02 1 0005-0306 ●
171 CLIP; STARTER HARNESS
(G) OD=9 H=6 		1-09709-178-0 02 1 0005-0306 ● ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (G) OD=9 H=6 		1-09709-178-0 02 1 0307-0411 ● ●
171 CLIP; STARTER HARNESS
(G) OD=9 H=6 		1-09709-178-0 02 1 0307-0411 ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (G) OD=9 H=6 		1-09709-178-0 02 1 0412- ● ●
171 CLIP; STARTER HARNESS
(G) OD=9 H=6 		1-09709-178-0 02 1 0412- ● ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (C) ID=19 L=28 		9-09525-856-0 04 1 0005-0306 ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 0005-0306 ● ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (C) ID=19 L=28 		9-09525-856-0 04 1 0307-0309 ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 0307-0309 ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (C) ID=19 L=28 		9-09525-856-0 04 1 0310-0411 ● ●
171 CLIP; STARTER HARNESS
FULLER FSO5206B OD M/T(Y4V) (C) ID=19 L=28 		9-09525-856-0 04 1 0310-0411 ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 0310-0411 ●
171 CLIP; STARTER HARNESS
FULLER FSO5206B OD M/T(Y4V) (C) ID=19 L=28 		9-09525-856-0 04 1 0412-0606 ● ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (C) ID=19 L=28 		9-09525-856-0 04 1 0412-0606 ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 0412-0606 ● ●
171 CLIP; STARTER HARNESS
FULLER FSO5206B OD M/T(Y4V) (C) ID=19 L=28 		0-95235-856-0 04 1 0607- ● ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (C) ID=19 L=28 		0-95235-856-0 04 1 0607- ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 04 1 0607- ● ●
171 CLIP; STARTER HARNESS
(A) L=300 		1-09707-001-1 01 1 0005-0411 ● ● ●
171 CLIP; STARTER HARNESS
(A) L=300 		1-09707-001-1 01 1 0412- ● ● ● ●
171 CLIP; STARTER HARNESS
EURO2 SPECIFICATION<THN> MLD6 M/T<X9Y> (E) ID=21 L=30 H=40 		1-09700-991-1 01 1 0005-0210 ● ●
171 CLIP; STARTER HARNESS
(I) ID=19 L=24 H=21 		1-09700-109-1 01 1 0211-0305 ● ● ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A>,A/T<X9D> (I) ID=19 L=24 H=21 		1-09700-109-1 01 1 0306-0306 ●
171 CLIP; STARTER HARNESS
(I) ID=19 L=24 H=21 		1-09700-109-1 01 1 0306-0306 ● ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A>,A/T<X9D> (I) ID=19 L=24 H=21 		1-09700-109-1 01 1 0307-0411 ●
171 CLIP; STARTER HARNESS
(I) ID=19 L=24 H=21 		1-09700-109-1 01 1 0307-0411 ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (I) ID=19 L=24 H=21 		1-09700-109-1 01 1 0307-0411 ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A>,A/T<X9D> (I) ID=19 L=24 H=21 		1-09700-109-1 01 1 0412- ●
171 CLIP; STARTER HARNESS
(I) ID=19 L=24 H=21 		1-09700-109-1 01 1 0412- ● ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (I) ID=19 L=24 H=21 		1-09700-109-1 01 1 0412- ●
171 CLIP; STARTER HARNESS
(H) ID=18 L=44 		8-94225-185-0 01 1 0005-0210 ●
183 CLIP; CONNECTOR
OD=9 H=6 		1-09709-178-0 01 1 0211-0411 ● ● ●
183 CLIP; CONNECTOR
OD=9 H=6 		1-09709-178-0 01 1 0211-0411 ●
183 CLIP; CONNECTOR
OD=9 H=6 		1-09709-178-0 01 1 0412- ● ● ● ●
183 CLIP; CONNECTOR
OD=9 H=6 		1-09709-178-0 01 1 0412- ●
194 CLIP; BAND
(D) OD=9 H=6 		1-09709-178-0 01 1 0412- ●
194 CLIP; BAND
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=180 		1-09707-162-1 01 1 0005-0210 ●
194 CLIP; BAND
(C) L=180 		1-09707-162-1 01 1 0005-0210 ●
194 CLIP; BAND
(C) L=180 		1-09707-162-1 01 1 0005-0210 ●
194 CLIP; BAND
(C) L=180 		1-09707-162-1 01 1 0211-0611 ●
194 CLIP; BAND
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=180 		1-09707-162-1 01 1 0612- ●
194 CLIP; BAND
(C) L=180 		1-09707-162-1 01 1 0612- ●
194 CLIP; BAND
(C) L=180 		1-09707-162-1 02 1 0005-0210 ● ● ●
194 CLIP; BAND
(C) L=180 		1-09707-162-1 03 1 0211-0411 ● ● ●
194 CLIP; BAND
(C) L=180 		1-09707-162-1 03 1 0412- ● ● ● ●
194 CLIP; BAND
(B) L=450 		1-09707-142-1 01 1 0005- ●
194 CLIP; BAND
(A) L=350 		8-94152-256-1 01 1 0005- ●
217 CLIP; RR BODY HARNESS
(B) ID=15 L=70 		1-09700-980-0 02 1 0005-0208 ● ● ●
217 CLIP; RR BODY HARNESS
(A) L=250 		5-09707-030-1 02 1 0005-0411 ● ● ●
217 CLIP; RR BODY HARNESS
(A) L=250 		5-09707-030-1 02 1 0412- ● ● ● ●
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 05 1 0005-0411 ● ●
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 05 1 0412- ● ● ●
223 CLIP; AIR TANK HARNESS
(E) OD=9 H=6 		1-09709-178-0 03 1 0005-0210 ● ● ●
223 CLIP; AIR TANK HARNESS
(E) OD=9 H=6 		1-09709-178-0 03 1 0211-0411 ● ●
223 CLIP; AIR TANK HARNESS
(E) OD=9 H=6 		1-09709-178-0 03 1 0412- ● ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0005-0210 ●
223 CLIP; AIR TANK HARNESS
(E) OD=9 H=6 		1-09709-178-0 01 1 0211- ●
223 CLIP; AIR TANK HARNESS
(A) L=140 		5-09707-031-1 01 1 0005- ●
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 		9-09917-427-0 02 1 0005-0210 ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0211-0411 ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0412- ● ● ●
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 04 1 0005-0210 ●
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 07 1 0211- ●
225 CLIP; AIR TANK HARNESS
(A) L=140 		5-09707-031-1 02 1 0005-0210 ● ●
225 CLIP; AIR TANK HARNESS
(A) L=140 		5-09707-031-1 03 1 0211-0411 ● ●
225 CLIP; AIR TANK HARNESS
(A) L=140 		5-09707-031-1 03 1 0412- ● ● ●
225 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0005-0411 ● ● ●
225 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0412- ● ● ● ●
229 CLIP; STARTER SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0005-0411 ● ● ●
229 CLIP; STARTER SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0412- ● ● ● ●
231 CLIP; BAND,OIL PRESS
6HH1 STD ENG(65L),6HH1 N ENG(66L) (A) L=180 		1-09707-162-1 01 1 0005-0210 ● ● ●
231 CLIP; BAND,OIL PRESS
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> (A) L=180 		1-09707-162-1 01 1 0005-0210 ● ●
231 CLIP; BAND,OIL PRESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) OD=9 H=6 		1-09709-178-0 01 1 0005-0210 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ISUZU M/T<X9A> (A) L=140 		5-09707-031-1 01 1 0005-0306 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=140 		5-09707-031-1 01 1 0005-0306 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ISUZU M/T<X9A> (A) L=140 		5-09707-031-1 01 1 0307-0411 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=140 		5-09707-031-1 01 1 0307-0411 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ISUZU M/T<X9A> (A) L=140 		5-09707-031-1 01 1 0412- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=140 		5-09707-031-1 01 1 0412- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
MLD6 M/T<X9Y> (B) ID=12 L=35 		5-09700-206-0 01 1 0005-0210 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
MLD6 M/T<X9Y> (B) ID=12 L=35 		5-09700-206-0 01 1 0211-0306 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=12 L=35 		5-09700-206-0 01 1 0211-0306 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
MLD6 M/T<X9Y> (B) ID=12 L=35 		5-09700-206-0 01 1 0307-0411 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=12 L=35 		5-09700-206-0 01 1 0307-0411 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
MLD6 M/T<X9Y> (B) ID=12 L=35 		5-09700-206-0 01 1 0412- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=12 L=35 		5-09700-206-0 01 1 0412- ● ●
303 CLIP; HARNESS POWER TILT RELAY
(A) L=300 		1-09707-001-1 01 1 0005- ●
303 CLIP; HARNESS POWER TILT RELAY
(B) ID=18 L=44 		8-94225-185-0 01 1 0005-0801 ●
303 CLIP; HARNESS POWER TILT RELAY
(B) ID=18 L=44 		8-97367-985-1 01 1 0802- ●
305 CLIP; ENG HARNESS
6HK1 TCS ENG(80L) (F) L=250 		5-09707-030-1 07 1 0308- ● ●
305 CLIP; ENG HARNESS
A/T<X9D> (B) ID=18 L=44 		8-94225-185-0 02 1 0211-0801 ●
305 CLIP; ENG HARNESS
A/T<X9D> (B) ID=18 L=44 		8-97367-985-1 02 1 0802- ●
305 CLIP; ENG HARNESS
EXC. A/T<X9D> (B) ID=18 L=44 		8-94225-185-0 03 1 0211-0302 ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 03 1 0211-0302 ● ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXC. A/T<X9D> (B) ID=18 L=44 		8-94225-185-0 03 1 0303-0411 ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 03 1 0303-0411 ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L) (B) ID=18 L=44 		8-94225-185-0 03 1 0303-0411 ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXC. A/T<X9D> (B) ID=18 L=44 		8-94225-185-0 03 1 0412-0801 ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 03 1 0412-0801 ● ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L) (B) ID=18 L=44 		8-94225-185-0 03 1 0412-0801 ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXC. A/T<X9D> (B) ID=18 L=44 		8-97367-985-1 03 1 0802- ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 03 1 0802- ● ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L) (B) ID=18 L=44 		8-97367-985-1 03 1 0802- ●
305 CLIP; ENG HARNESS
EXC. A/T<X9D> (C) ID=11 L=20 		9-09525-035-0 01 1 0211-0302 ●
305 CLIP; ENG HARNESS
(C) ID=11 L=20 		9-09525-035-0 01 1 0211-0302 ● ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXC. A/T<X9D> (C) ID=11 L=20 		9-09525-035-0 01 1 0303-0411 ●
305 CLIP; ENG HARNESS
(C) ID=11 L=20 		9-09525-035-0 01 1 0303-0411 ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L) (C) ID=11 L=20 		9-09525-035-0 01 1 0303-0411 ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXC. A/T<X9D> (C) ID=11 L=20 		9-09525-035-0 01 1 0412-0606 ●
305 CLIP; ENG HARNESS
(C) ID=11 L=20 		9-09525-035-0 01 1 0412-0606 ● ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L) (C) ID=11 L=20 		9-09525-035-0 01 1 0412-0606 ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXC. A/T<X9D> (C) ID=11 L=20 		0-95235-035-0 01 1 0607- ●
305 CLIP; ENG HARNESS
(C) ID=11 L=20 		0-95235-035-0 01 1 0607- ● ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L) (C) ID=11 L=20 		0-95235-035-0 01 1 0607- ●
305 CLIP; ENG HARNESS
(A) ID=11 L=24 		9-09525-045-0 01 1 0211-0302 ● ● ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (A) ID=11 L=24 		9-09525-045-0 01 1 0303-0411 ● ●
305 CLIP; ENG HARNESS
(A) ID=11 L=24 		9-09525-045-0 01 1 0303-0411 ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (A) ID=11 L=24 		9-09525-045-0 01 1 0412-0606 ● ●
305 CLIP; ENG HARNESS
(A) ID=11 L=24 		9-09525-045-0 01 1 0412-0606 ● ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (A) ID=11 L=24 		0-95235-045-0 01 1 0607- ● ●
305 CLIP; ENG HARNESS
(A) ID=11 L=24 		0-95235-045-0 01 1 0607- ● ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<THN> (D) L=180 		1-09707-162-1 01 1 0005-0210 ● ●
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 03 1 0211-0302 ● ● ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (E) ID=24 L=32 		1-09700-766-1 03 1 0303-0411 ● ●
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 03 1 0303-0411 ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (E) ID=24 L=32 		1-09700-766-1 03 1 0412- ● ●
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 03 1 0412- ● ●
305 CLIP; ENG HARNESS
EXC. EURO2 SPECIFICATION<THN> (D) L=180 		1-09707-162-1 02 1 0005-0210 ● ●
305 CLIP; ENG HARNESS
(D) L=180 		1-09707-162-1 02 1 0005-0210 ●
305 CLIP; ENG HARNESS
(D) L=180 		1-09707-162-1 01 1 0211-0411 ● ● ●
305 CLIP; ENG HARNESS
(D) L=180 		1-09707-162-1 01 1 0412- ● ● ● ●
421 CLIP; FLOOR HARNESS
(D) L=20 		1-09987-246-2 07 1 0005-0101 ● ● ●
421 CLIP; FLOOR HARNESS
(D) L=20 		1-09987-246-2 01 1 0102-0411 ● ● ●
421 CLIP; FLOOR HARNESS
(D) L=20 		1-09987-246-2 01 1 0412- ● ● ● ●
421 CLIP; FLOOR HARNESS
(E) ID=9 		5-09707-027-0 02 1 0005- ●
421 CLIP; FLOOR HARNESS
(A) L=100 		5-09707-036-1 01 1 0005- ●
421 CLIP; FLOOR HARNESS
(B) ID=11 L=20 		9-09525-032-0 03 1 0005-0301 ●
421 CLIP; FLOOR HARNESS
(B) ID=11 L=20 		9-09525-032-0 02 1 0302-0606 ●
421 CLIP; FLOOR HARNESS
(B) ID=11 L=20 		0-95235-032-0 02 1 0607- ●
421 CLIP; FLOOR HARNESS
(C) ID=11 L=28 		9-09525-052-0 04 1 0005-0301 ●
421 CLIP; FLOOR HARNESS
(C) ID=11 L=28 		9-09525-052-0 05 1 0302-0606 ●
421 CLIP; FLOOR HARNESS
(C) ID=11 L=28 		0-95235-052-0 05 1 0607- ●
462 CLIP; HARNESS,HTR
ID=20 		1-09709-068-0 02 1 0005-0411 ● ● ●
462 CLIP; HARNESS,HTR
ID=20 		1-09709-068-0 02 1 0412- ● ● ● ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0005-0411 ● ● ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0412- ● ● ● ●
çizim 100033
14 171 194 231 305 128 16 48 171 16 48 171 171 48 305 16 16 48 81 16 48 171 223 16 48 223 48 48 213 223 230 581 48 48 16 48 16 16 171 16 171 48 48 16 16 48 16 171 16
BalonParca AdiParca NoAdetTipApplied Date A B C D
14 CLIP; BAND,HARNESS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=180 		1-09707-162-1 01 1 0005- ●
14 CLIP; BAND,HARNESS
(B) L=180 		1-09707-162-1 01 1 0005- ● ●
14 CLIP; BAND,HARNESS
6HH1 STD ENG(65L),6HH1 N ENG(66L) (A) L=250 		5-09707-030-1 01 1 0005-0210 ● ●
14 CLIP; BAND,HARNESS
(A) L=250 		5-09707-030-1 01 1 0005-0210 ●
14 CLIP; BAND,HARNESS
(C) L=140 		5-09707-031-1 01 1 0211-0302 ● ● ●
14 CLIP; BAND,HARNESS
(C) L=140 		5-09707-031-1 01 1 0211-0302 ● ● ●
14 CLIP; BAND,HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (C) L=140 		5-09707-031-1 01 1 0303-0411 ●
14 CLIP; BAND,HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (C) L=140 		5-09707-031-1 01 1 0303-0411 ●
14 CLIP; BAND,HARNESS
(C) L=140 		5-09707-031-1 01 1 0303-0411 ●
14 CLIP; BAND,HARNESS
(C) L=140 		5-09707-031-1 01 1 0303-0411 ●
14 CLIP; BAND,HARNESS
6HK1 TCC ENG(81L) (C) L=140 		5-09707-031-1 01 1 0303-0411 ●
14 CLIP; BAND,HARNESS
6HK1 TCC ENG(81L) (C) L=140 		5-09707-031-1 01 1 0303-0411 ●
14 CLIP; BAND,HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (C) L=140 		5-09707-031-1 01 1 0412-1205 ●
14 CLIP; BAND,HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (C) L=140 		5-09707-031-1 01 1 0412-1205 ●
14 CLIP; BAND,HARNESS
(C) L=140 		5-09707-031-1 01 1 0412-1205 ● ●
14 CLIP; BAND,HARNESS
(C) L=140 		5-09707-031-1 01 1 0412-1205 ● ●
14 CLIP; BAND,HARNESS
6HK1 TCC ENG(81L) (C) L=140 		5-09707-031-1 01 1 0412-1205 ●
14 CLIP; BAND,HARNESS
6HK1 TCC ENG(81L) (C) L=140 		5-09707-031-1 01 1 0412-1205 ●
14 CLIP; BAND,HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (C) L=140 		8-98216-431-0 01 1 1206- ●
14 CLIP; BAND,HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (C) L=140 		8-98216-431-0 01 1 1206- ●
14 CLIP; BAND,HARNESS
(C) L=140 		8-98216-431-0 01 1 1206- ● ●
14 CLIP; BAND,HARNESS
(C) L=140 		8-98216-431-0 01 1 1206- ● ●
14 CLIP; BAND,HARNESS
6HK1 TCC ENG(81L) (C) L=140 		8-98216-431-0 01 1 1206- ●
14 CLIP; BAND,HARNESS
6HK1 TCC ENG(81L) (C) L=140 		8-98216-431-0 01 1 1206- ●
16 CLIP; HARNESS
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (I) ID=11 L=41 		1-09700-403-0 02 1 0612- ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (S) ID=28 H=45 L=30 		1-09700-948-0 02 1 0411- ● ●
16 CLIP; HARNESS
EXC. AIR HORN<WB8> (I) ID=11 L=41 		1-09700-403-0 03 1 0412- ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 0412- ● ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (T) ID=12 & 16.5 		8-94400-865-0 01 1 0308- ● ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (G) ID=19 H=21 L=50 		1-09700-910-1 01 1 0307-0307 ● ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (S) ID=28 H=45 L=30 		1-09700-948-0 02 1 0307-0307 ● ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (S) ID=28 H=45 L=30 		1-09700-948-0 03 1 0308-0410 ● ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (S) ID=28 H=45 L=30 		1-09700-948-0 01 1 0411- ● ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (P) ID=26 L=27 		1-09701-006-0 01 1 0307- ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (L) L=55 		8-94432-655-0 03 1 0005-0210 ●
16 CLIP; HARNESS
(L) L=55 		8-94432-655-0 03 1 0211-0411 ● ●
16 CLIP; HARNESS
(L) L=55 		8-94432-655-0 03 1 0412- ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (C) L=175 		8-97110-167-0 04 1 0005-0210 ●
16 CLIP; HARNESS
(C) L=175 		8-97110-167-0 06 1 0211-0411 ● ●
16 CLIP; HARNESS
(C) L=175 		8-97110-167-0 06 1 0412- ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> CUSTOM CAB(SR5) (M) 		1-82698-130-0 03 1 0005-0109 ●
16 CLIP; HARNESS
POWER WINDOW<A30> CUSTOM CAB(SR5) (N) 		8-97229-356-0 03 1 0110-0210 ●
16 CLIP; HARNESS
(N) 		8-97229-356-0 03 1 0211-0411 ● ●
16 CLIP; HARNESS
(N) 		8-97229-356-0 03 1 0412- ● ● ●
16 CLIP; HARNESS
(C) L=175 		8-97110-167-0 02 1 0005-0210 ● ●
16 CLIP; HARNESS
(C) L=175 		8-97110-167-0 02 1 0211- ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 0005-0405 ● ● ●
16 CLIP; HARNESS
EXC. AIR HORN<WB8> (I) ID=11 L=41 		1-09700-403-0 03 1 0406-0411 ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 0406-0411 ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 01 1 0412- ●
16 CLIP; HARNESS
(K) ID=28 L=78 		1-09700-858-0 01 1 0005-0210 ● ● ●
16 CLIP; HARNESS
(P) ID=26 L=27 		1-09701-006-0 02 1 0211-0305 ● ● ●
16 CLIP; HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (P) ID=26 L=27 		1-09701-006-0 02 1 0306-0411 ● ●
16 CLIP; HARNESS
6HK1 TCC ENG(81L) (P) ID=26 L=27 		1-09701-006-0 02 1 0306-0411 ●
16 CLIP; HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (P) ID=26 L=27 		1-09701-006-0 02 1 0412- ● ●
16 CLIP; HARNESS
6HK1 TCC ENG(81L) (P) ID=26 L=27 		1-09701-006-0 02 1 0412- ●
16 CLIP; HARNESS
6HK1 TCN ENG(82L) (P) ID=26 L=27 		1-09701-006-0 02 1 0412- ●
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0005-0411 ● ● ●
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0412- ● ● ● ●
16 CLIP; HARNESS
(G) ID=19 H=21 L=50 		1-09700-910-1 01 1 0005-0210 ● ● ●
16 CLIP; HARNESS
(O) ID=18 H=23 L=28 		1-09700-860-0 01 1 0211-0305 ● ● ●
16 CLIP; HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (O) ID=18 H=23 L=28 		1-09700-860-0 01 1 0306-0306 ● ●
16 CLIP; HARNESS
6HK1 TCC ENG(81L) (O) ID=18 H=23 L=28 		1-09700-860-0 01 1 0306-0306 ●
16 CLIP; HARNESS
(O) ID=18 H=23 L=28 		1-09700-860-0 01 1 0307-0411 ● ● ●
16 CLIP; HARNESS
(O) ID=18 H=23 L=28 		1-09700-860-0 01 1 0412- ● ● ● ●
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 0005-0411 ● ● ●
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 0412- ● ● ● ●
16 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 0005-0210 ● ● ●
16 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 0005-0210 ● ● ●
16 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 0211-0411 ● ● ●
16 CLIP; HARNESS
A/T<X9D> (A) L=250 		5-09707-030-1 01 1 0211-0411 ●
16 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 0412- ● ● ● ●
16 CLIP; HARNESS
A/T<X9D> (A) L=250 		5-09707-030-1 01 1 0412- ●
16 CLIP; HARNESS
(D) ID=19 L=32 		9-09525-866-0 01 1 0005-0411 ● ● ●
16 CLIP; HARNESS
(D) ID=19 L=32 		9-09525-866-0 01 1 0412-0606 ● ● ● ●
16 CLIP; HARNESS
(D) ID=19 L=32 		0-95235-866-0 01 1 0607- ● ● ● ●
16 CLIP; HARNESS
(J) ID=14 L=44 		9-09917-427-0 03 1 0005-0405 ● ● ●
16 CLIP; HARNESS
EXC. AIR HORN<WB8> (J) ID=14 L=44 		9-09917-427-0 03 1 0406-0411 ● ●
16 CLIP; HARNESS
(J) ID=14 L=44 		9-09917-427-0 03 1 0406-0411 ●
16 CLIP; HARNESS
EXC. AIR HORN<WB8> (J) ID=14 L=44 		9-09917-427-0 03 1 0412- ● ●
16 CLIP; HARNESS
(J) ID=14 L=44 		9-09917-427-0 03 1 0412- ● ●
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (F) ID=25 L=50 		1-09701-019-0 01 1 0005-0210 ● ●
16 CLIP; HARNESS
(Q) ID=35 H=45 L=33 		1-09701-047-0 01 1 0211-0411 ● ● ●
16 CLIP; HARNESS
(Q) ID=35 H=45 L=33 		1-09701-047-0 01 1 0412- ● ● ● ●
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (E) ID=24 L=40 		1-09701-139-0 01 1 0005-0210 ● ●
16 CLIP; HARNESS
(R) ID=18 L=40 		1-09701-111-0 01 1 0211- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (J) ID=11 L=41 		1-09700-403-0 01 1 0612- ●
48 CLIP; FRAME HARNESS
(Q) ID=25 L=55 		9-09917-573-0 14 1 0412- ●
48 CLIP; FRAME HARNESS
(R) ID=24 L=24 		1-09701-001-1 04 1 0412-0412 ●
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		9-09525-856-0 02 1 0412-0412 ●
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		9-09525-856-0 06 1 0501-0606 ●
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		0-95235-856-0 06 1 0607- ●
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0412- ● ● ●
48 CLIP; FRAME HARNESS
EXC. AIR HORN<WB8> (J) ID=11 L=41 		1-09700-403-0 04 1 0406-0411 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 04 1 0406-0411 ●
48 CLIP; FRAME HARNESS
EXC. AIR HORN<WB8> (J) ID=11 L=41 		1-09700-403-0 04 1 0412- ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 04 1 0412- ● ●
48 CLIP; FRAME HARNESS
(F) ID=26 L=27 		1-09701-006-0 02 1 0307- ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) (A) L=140 		5-09707-031-1 03 1 0307- ● ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) (K) ID=14 L=44 		9-09917-427-0 01 1 0307- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (M) ID=20 L=50 		9-09917-430-0 12 1 0005- ●
48 CLIP; FRAME HARNESS
(O) ID=28 L=78 		1-09700-858-0 05 1 0005-0411 ● ●
48 CLIP; FRAME HARNESS
(O) ID=28 L=78 		1-09700-858-0 05 1 0412- ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (M) ID=20 L=50 		9-09917-430-0 15 1 0005- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (M) ID=20 L=50 		9-09917-430-0 18 1 0005-0210 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5100MM(51W) (M) ID=20 L=50 		9-09917-430-0 21 1 0211- ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 04 1 0005-0405 ● ● ●
48 CLIP; FRAME HARNESS
AIR HORN<WB8> (J) ID=11 L=41 		1-09700-403-0 03 1 0406- ● ●
48 CLIP; FRAME HARNESS
(L) ID=15 L=65 		1-09700-466-0 02 1 0005-0411 ● ● ●
48 CLIP; FRAME HARNESS
(L) ID=15 L=65 		1-09700-466-0 02 1 0412- ● ● ● ●
48 CLIP; FRAME HARNESS
(N) ID=20 L=70 		1-09700-485-0 03 1 0005-0210 ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		9-09525-856-0 01 1 0211-0411 ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		9-09525-856-0 01 1 0412-0606 ● ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		0-95235-856-0 01 1 0607- ● ● ● ●
48 CLIP; FRAME HARNESS
(K) ID=14 L=44 		9-09917-427-0 01 1 0005-0210 ● ● ●
48 CLIP; FRAME HARNESS
(I) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0005-0411 ● ● ●
48 CLIP; FRAME HARNESS
(I) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0412- ● ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		9-09525-856-0 02 1 0005-0210 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 02 1 0211-0411 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 02 1 0412- ● ● ●
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 		9-09917-430-0 02 1 0005-0210 ● ●
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0211-0411 ● ●
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 		9-09917-430-0 06 1 0412- ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (H) ID=25 H=30 L=35 		1-09700-875-0 01 1 0005-0006 ● ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (E) ID=25 L=50 		1-09700-976-0 02 1 0005-0210 ● ●
48 CLIP; FRAME HARNESS
(F) ID=26 L=27 		1-09701-006-0 02 1 0211-0306 ● ● ●
48 CLIP; FRAME HARNESS
(F) ID=26 L=27 		1-09701-006-0 02 1 0211-0306 ●
48 CLIP; FRAME HARNESS
(F) ID=26 L=27 		1-09701-006-0 01 1 0307-0411 ● ● ●
48 CLIP; FRAME HARNESS
(F) ID=26 L=27 		1-09701-006-0 01 1 0412- ● ● ● ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (G) ID=24 H=40 L=24 		1-09701-243-0 01 1 0005-0006 ● ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (G) ID=24 H=40 L=24 		1-09701-243-0 02 1 0007-0210 ● ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (C) L=350 		1-09707-183-0 01 1 0005-0210 ● ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (B) L=250 		5-09707-030-1 02 1 0005-0210 ● ●
48 CLIP; FRAME HARNESS
(N) ID=20 L=70 		1-09700-485-0 03 1 0211-0411 ● ●
48 CLIP; FRAME HARNESS
(N) ID=20 L=70 		1-09700-485-0 03 1 0412- ● ● ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) L=140 		5-09707-031-1 03 1 0005-0210 ● ●
48 CLIP; FRAME HARNESS
(F) ID=26 L=27 		1-09701-006-0 02 1 0005-0210 ●
48 CLIP; FRAME HARNESS
(P) ID=19 L=40 		9-09525-876-0 01 1 0211-0606 ●
48 CLIP; FRAME HARNESS
(P) ID=19 L=40 		0-95235-876-0 01 1 0607- ●
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		9-09525-856-0 01 1 0005-0210 ●
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0005-0210 ●
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 		9-09917-430-0 02 1 0211- ●
48 CLIP; FRAME HARNESS
(A) L=140 		5-09707-031-1 01 1 0101-0210 ●
48 CLIP; FRAME HARNESS
(N) ID=20 L=70 		1-09700-485-0 02 1 0211- ●
48 CLIP; FRAME HARNESS
(O) ID=28 L=78 		1-09700-858-0 04 1 0005- ●
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 		9-09917-430-0 17 1 0005-0210 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (M) ID=20 L=50 		9-09917-430-0 19 1 0211- ●
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0005-0411 ● ● ●
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0412- ● ● ● ●
81 CLIP; HARNESS
(B) ID=26 L=26 		1-09701-236-0 01 1 0211-0411 ● ● ●
81 CLIP; HARNESS
(B) ID=26 L=26 		1-09701-236-0 01 1 0412- ● ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		9-09525-535-0 01 1 0005-0411 ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		9-09525-535-0 01 1 0412-0606 ● ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		0-95235-535-0 01 1 0607- ● ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=19 L=32 		9-09525-862-0 01 1 0005-0011 ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=14.5 L=30 		9-09916-893-1 01 1 0012-0411 ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=14.5 L=30 		9-09916-893-1 01 1 0412- ● ● ● ●
171 CLIP; STARTER HARNESS
A/T<X9D> (K) ID=11 L=41 		1-09700-403-0 01 1 0402- ●
171 CLIP; STARTER HARNESS
FULLER FSO5206B OD M/T(Y4V) (E) ID=21 L=30 H=40 		1-09700-991-1 01 1 0307- ● ●
171 CLIP; STARTER HARNESS
FULLER FSO5206B OD M/T(Y4V) (B) L=180 		1-09707-162-1 02 1 0307-0309 ● ●
171 CLIP; STARTER HARNESS
FULLER FSO5206B OD M/T(Y4V) (G) OD=9 H=6 		1-09709-178-0 01 1 0310- ● ●
171 CLIP; STARTER HARNESS
FULLER FSO5206B OD M/T(Y4V) (J) ID=19 L=40 		9-09525-876-0 02 1 0307-0307 ● ●
171 CLIP; STARTER HARNESS
FULLER FSO5206B OD M/T(Y4V) (C) ID=19 L=28 		9-09525-856-0 05 1 0307-0309 ● ●
171 CLIP; STARTER HARNESS
A/T<X9D> (F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0005- ●
171 CLIP; STARTER HARNESS
A/T<X9D> (B) L=180 		1-09707-162-1 01 1 0005-0309 ●
171 CLIP; STARTER HARNESS
FULLER FSO5206B OD M/T(Y4V) (B) L=180 		1-09707-162-1 01 1 0310- ● ●
171 CLIP; STARTER HARNESS
A/T<X9D> (B) L=180 		1-09707-162-1 01 1 0310- ●
171 CLIP; STARTER HARNESS
A/T<X9D> (D) ID=21 L=24 		8-94176-807-1 01 1 0005-0105 ●
171 CLIP; STARTER HARNESS
A/T<X9D> (C) ID=19 L=28 		9-09525-856-0 01 1 0005-0105 ●
171 CLIP; STARTER HARNESS
A/T<X9D> (C) ID=19 L=28 		9-09525-856-0 03 1 0106-0306 ●
171 CLIP; STARTER HARNESS
FULLER FSO5206B OD M/T(Y4V) (C) ID=19 L=28 		9-09525-856-0 03 1 0307-0307 ● ●
171 CLIP; STARTER HARNESS
A/T<X9D> (C) ID=19 L=28 		9-09525-856-0 03 1 0307-0307 ●
171 CLIP; STARTER HARNESS
A/T<X9D> (C) ID=19 L=28 		9-09525-856-0 03 1 0307-0606 ●
171 CLIP; STARTER HARNESS
A/T<X9D> (C) ID=19 L=28 		0-95235-856-0 03 1 0607- ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (G) OD=9 H=6 		1-09709-178-0 02 1 0005-0306 ●
171 CLIP; STARTER HARNESS
(G) OD=9 H=6 		1-09709-178-0 02 1 0005-0306 ● ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (G) OD=9 H=6 		1-09709-178-0 02 1 0307-0411 ● ●
171 CLIP; STARTER HARNESS
(G) OD=9 H=6 		1-09709-178-0 02 1 0307-0411 ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (G) OD=9 H=6 		1-09709-178-0 02 1 0412- ● ●
171 CLIP; STARTER HARNESS
(G) OD=9 H=6 		1-09709-178-0 02 1 0412- ● ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (C) ID=19 L=28 		9-09525-856-0 04 1 0005-0306 ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 0005-0306 ● ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (C) ID=19 L=28 		9-09525-856-0 04 1 0307-0309 ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 0307-0309 ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (C) ID=19 L=28 		9-09525-856-0 04 1 0310-0411 ● ●
171 CLIP; STARTER HARNESS
FULLER FSO5206B OD M/T(Y4V) (C) ID=19 L=28 		9-09525-856-0 04 1 0310-0411 ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 0310-0411 ●
171 CLIP; STARTER HARNESS
FULLER FSO5206B OD M/T(Y4V) (C) ID=19 L=28 		9-09525-856-0 04 1 0412-0606 ● ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (C) ID=19 L=28 		9-09525-856-0 04 1 0412-0606 ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 0412-0606 ● ●
171 CLIP; STARTER HARNESS
FULLER FSO5206B OD M/T(Y4V) (C) ID=19 L=28 		0-95235-856-0 04 1 0607- ● ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (C) ID=19 L=28 		0-95235-856-0 04 1 0607- ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 04 1 0607- ● ●
171 CLIP; STARTER HARNESS
(A) L=300 		1-09707-001-1 01 1 0005-0411 ● ● ●
171 CLIP; STARTER HARNESS
(A) L=300 		1-09707-001-1 01 1 0412- ● ● ● ●
171 CLIP; STARTER HARNESS
EURO2 SPECIFICATION<THN> MLD6 M/T<X9Y> (E) ID=21 L=30 H=40 		1-09700-991-1 01 1 0005-0210 ● ●
171 CLIP; STARTER HARNESS
(I) ID=19 L=24 H=21 		1-09700-109-1 01 1 0211-0305 ● ● ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A>,A/T<X9D> (I) ID=19 L=24 H=21 		1-09700-109-1 01 1 0306-0306 ●
171 CLIP; STARTER HARNESS
(I) ID=19 L=24 H=21 		1-09700-109-1 01 1 0306-0306 ● ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A>,A/T<X9D> (I) ID=19 L=24 H=21 		1-09700-109-1 01 1 0307-0411 ●
171 CLIP; STARTER HARNESS
(I) ID=19 L=24 H=21 		1-09700-109-1 01 1 0307-0411 ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (I) ID=19 L=24 H=21 		1-09700-109-1 01 1 0307-0411 ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A>,A/T<X9D> (I) ID=19 L=24 H=21 		1-09700-109-1 01 1 0412- ●
171 CLIP; STARTER HARNESS
(I) ID=19 L=24 H=21 		1-09700-109-1 01 1 0412- ● ●
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (I) ID=19 L=24 H=21 		1-09700-109-1 01 1 0412- ●
171 CLIP; STARTER HARNESS
(H) ID=18 L=44 		8-94225-185-0 01 1 0005-0210 ●
194 CLIP; BAND
(D) OD=9 H=6 		1-09709-178-0 01 1 0412- ●
194 CLIP; BAND
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=180 		1-09707-162-1 01 1 0005-0210 ●
194 CLIP; BAND
(C) L=180 		1-09707-162-1 01 1 0005-0210 ●
194 CLIP; BAND
(C) L=180 		1-09707-162-1 01 1 0005-0210 ●
194 CLIP; BAND
(C) L=180 		1-09707-162-1 01 1 0211-0611 ●
194 CLIP; BAND
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=180 		1-09707-162-1 01 1 0612- ●
194 CLIP; BAND
(C) L=180 		1-09707-162-1 01 1 0612- ●
194 CLIP; BAND
(C) L=180 		1-09707-162-1 02 1 0005-0210 ● ● ●
194 CLIP; BAND
(C) L=180 		1-09707-162-1 03 1 0211-0411 ● ● ●
194 CLIP; BAND
(C) L=180 		1-09707-162-1 03 1 0412- ● ● ● ●
194 CLIP; BAND
(B) L=450 		1-09707-142-1 01 1 0005- ●
194 CLIP; BAND
(A) L=350 		8-94152-256-1 01 1 0005- ●
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 0005-0411 ● ● ●
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 0412- ● ● ● ●
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 05 1 0005-0411 ● ●
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 05 1 0412- ● ● ●
223 CLIP; AIR TANK HARNESS
(E) OD=9 H=6 		1-09709-178-0 03 1 0005-0210 ● ● ●
223 CLIP; AIR TANK HARNESS
(E) OD=9 H=6 		1-09709-178-0 03 1 0211-0411 ● ●
223 CLIP; AIR TANK HARNESS
(E) OD=9 H=6 		1-09709-178-0 03 1 0412- ● ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0005-0210 ●
223 CLIP; AIR TANK HARNESS
(E) OD=9 H=6 		1-09709-178-0 01 1 0211- ●
223 CLIP; AIR TANK HARNESS
(A) L=140 		5-09707-031-1 01 1 0005- ●
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 		9-09917-427-0 02 1 0005-0210 ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0211-0411 ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0412- ● ● ●
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 04 1 0005-0210 ●
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 07 1 0211- ●
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 0005-0411 ● ● ●
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 0412- ● ● ● ●
231 CLIP; BAND,OIL PRESS
6HH1 STD ENG(65L),6HH1 N ENG(66L) (A) L=180 		1-09707-162-1 01 1 0005-0210 ● ● ●
231 CLIP; BAND,OIL PRESS
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> (A) L=180 		1-09707-162-1 01 1 0005-0210 ● ●
231 CLIP; BAND,OIL PRESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) OD=9 H=6 		1-09709-178-0 01 1 0005-0210 ● ●
305 CLIP; ENG HARNESS
6HK1 TCS ENG(80L) (F) L=250 		5-09707-030-1 07 1 0308- ● ●
305 CLIP; ENG HARNESS
A/T<X9D> (B) ID=18 L=44 		8-94225-185-0 02 1 0211-0801 ●
305 CLIP; ENG HARNESS
A/T<X9D> (B) ID=18 L=44 		8-97367-985-1 02 1 0802- ●
305 CLIP; ENG HARNESS
EXC. A/T<X9D> (B) ID=18 L=44 		8-94225-185-0 03 1 0211-0302 ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 03 1 0211-0302 ● ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXC. A/T<X9D> (B) ID=18 L=44 		8-94225-185-0 03 1 0303-0411 ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 03 1 0303-0411 ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L) (B) ID=18 L=44 		8-94225-185-0 03 1 0303-0411 ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXC. A/T<X9D> (B) ID=18 L=44 		8-94225-185-0 03 1 0412-0801 ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 03 1 0412-0801 ● ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L) (B) ID=18 L=44 		8-94225-185-0 03 1 0412-0801 ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXC. A/T<X9D> (B) ID=18 L=44 		8-97367-985-1 03 1 0802- ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 03 1 0802- ● ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L) (B) ID=18 L=44 		8-97367-985-1 03 1 0802- ●
305 CLIP; ENG HARNESS
EXC. A/T<X9D> (C) ID=11 L=20 		9-09525-035-0 01 1 0211-0302 ●
305 CLIP; ENG HARNESS
(C) ID=11 L=20 		9-09525-035-0 01 1 0211-0302 ● ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXC. A/T<X9D> (C) ID=11 L=20 		9-09525-035-0 01 1 0303-0411 ●
305 CLIP; ENG HARNESS
(C) ID=11 L=20 		9-09525-035-0 01 1 0303-0411 ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L) (C) ID=11 L=20 		9-09525-035-0 01 1 0303-0411 ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXC. A/T<X9D> (C) ID=11 L=20 		9-09525-035-0 01 1 0412-0606 ●
305 CLIP; ENG HARNESS
(C) ID=11 L=20 		9-09525-035-0 01 1 0412-0606 ● ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L) (C) ID=11 L=20 		9-09525-035-0 01 1 0412-0606 ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXC. A/T<X9D> (C) ID=11 L=20 		0-95235-035-0 01 1 0607- ●
305 CLIP; ENG HARNESS
(C) ID=11 L=20 		0-95235-035-0 01 1 0607- ● ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L) (C) ID=11 L=20 		0-95235-035-0 01 1 0607- ●
305 CLIP; ENG HARNESS
(A) ID=11 L=24 		9-09525-045-0 01 1 0211-0302 ● ● ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (A) ID=11 L=24 		9-09525-045-0 01 1 0303-0411 ● ●
305 CLIP; ENG HARNESS
(A) ID=11 L=24 		9-09525-045-0 01 1 0303-0411 ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (A) ID=11 L=24 		9-09525-045-0 01 1 0412-0606 ● ●
305 CLIP; ENG HARNESS
(A) ID=11 L=24 		9-09525-045-0 01 1 0412-0606 ● ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (A) ID=11 L=24 		0-95235-045-0 01 1 0607- ● ●
305 CLIP; ENG HARNESS
(A) ID=11 L=24 		0-95235-045-0 01 1 0607- ● ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<THN> (D) L=180 		1-09707-162-1 01 1 0005-0210 ● ●
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 03 1 0211-0302 ● ● ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (E) ID=24 L=32 		1-09700-766-1 03 1 0303-0411 ● ●
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 03 1 0303-0411 ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (E) ID=24 L=32 		1-09700-766-1 03 1 0412- ● ●
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 03 1 0412- ● ●
305 CLIP; ENG HARNESS
EXC. EURO2 SPECIFICATION<THN> (D) L=180 		1-09707-162-1 02 1 0005-0210 ● ●
305 CLIP; ENG HARNESS
(D) L=180 		1-09707-162-1 02 1 0005-0210 ●
305 CLIP; ENG HARNESS
(D) L=180 		1-09707-162-1 01 1 0211-0411 ● ● ●
305 CLIP; ENG HARNESS
(D) L=180 		1-09707-162-1 01 1 0412- ● ● ● ●
581 CLIP; HARNESS,REAR SUSP
ID=20 L=50 		9-09917-430-0 04 1 0412- ●
çizim 100598
304 242 38 304 139 242 242 239 133 38 139 242 313 19 38 242 313 38 139 313 38 139 239 239 38 358 88 173 88 38 239 239 150 150 516 38 133 38
BalonParca AdiParca NoAdetTipApplied Date A B C D
19 BOLT; PROTECTOR
M8X25 FLANGE 		0-28680-825-0 02 1 0412-0512 ●
19 BOLT; PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28680-825-0 06 1 0412-0512 ●
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28650-825-0 06 1 0601- ●
38 BOLT; CLIP,HARNESS
6HK1 TCS ENG(80L) (A) M8X16 FLANGE 		0-28080-816-0 01 1 0308-0512 ● ●
38 BOLT; CLIP,HARNESS
6HK1 TCS ENG(80L) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
FULLER FSO5206B OD M/T(Y4V) (A) M8X16 FLANGE 		0-28080-816-0 06 1 0307-0309 ● ●
38 BOLT; CLIP,HARNESS
6HK1 TCS ENG(80L) (B) M8X20 FLANGE 		0-28680-820-0 03 1 0307-0307 ● ●
38 BOLT; CLIP,HARNESS
6HK1 TCS ENG(80L) (B) M8X20 FLANGE 		0-28080-820-0 01 1 0307-0512 ● ●
38 BOLT; CLIP,HARNESS
6HK1 TCS ENG(80L) (B) M8X20 FLANGE 		0-28050-820-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
A/T<X9D> (A) M8X16 FLANGE 		0-28080-816-0 03 1 0005-0105 ●
38 BOLT; CLIP,HARNESS
ISUZU M/T<X9A> (A) M8X16 FLANGE 		0-28080-816-0 04 1 0005-0105 ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 04 1 0005-0105 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 04 1 0106-0210 ● ● ●
38 BOLT; CLIP,HARNESS
A/T<X9D> (A) M8X16 FLANGE 		0-28080-816-0 04 1 0211-0512 ●
38 BOLT; CLIP,HARNESS
A/T<X9D> (A) M8X16 FLANGE 		0-28050-816-0 04 1 0601- ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0210 ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 04 1 0211-0305 ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0306-0411 ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0306-0411 ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0412-0512 ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0412-0512 ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ●
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28680-825-0 01 1 0005-0210 ● ● ●
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28680-825-0 02 1 0211-0411 ● ● ●
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28680-825-0 02 1 0412-0512 ● ● ● ●
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ● ●
38 BOLT; CLIP,HARNESS
(F) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0005-0411 ● ● ●
38 BOLT; CLIP,HARNESS
(F) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0412-0512 ● ● ● ●
38 BOLT; CLIP,HARNESS
(F) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601- ● ● ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28680-830-0 03 1 0005-0411 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28680-830-0 03 1 0412-0512 ● ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 03 1 0601- ● ● ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28680-820-0 04 1 0005-0210 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0211-0512 ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (C) M8X25 FLANGE 		0-28680-825-0 03 1 0005-0210 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28680-825-0 03 1 0005-0210 ●
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28680-825-0 04 1 0211-0512 ●
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (H) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0005-0210 ● ●
38 BOLT; CLIP,HARNESS
(H) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0211-0411 ● ●
38 BOLT; CLIP,HARNESS
(H) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0412-1201 ● ● ●
38 BOLT; CLIP,HARNESS
(I) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202- ● ● ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> MLD6 M/T<X9Y> (A) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ● ●
38 BOLT; CLIP,HARNESS
ISUZU M/T<X9A> (A) M8X16 FLANGE 		0-28080-816-0 05 1 0211-0306 ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 05 1 0211-0306 ● ●
38 BOLT; CLIP,HARNESS
ISUZU M/T<X9A> (A) M8X16 FLANGE 		0-28080-816-0 05 1 0307-0309 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 05 1 0307-0309 ●
38 BOLT; CLIP,HARNESS
ISUZU M/T<X9A> (A) M8X16 FLANGE 		0-28080-816-0 05 1 0310-0411 ● ●
38 BOLT; CLIP,HARNESS
FULLER FSO5206B OD M/T(Y4V) (A) M8X16 FLANGE 		0-28080-816-0 05 1 0310-0411 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 05 1 0310-0411 ●
38 BOLT; CLIP,HARNESS
FULLER FSO5206B OD M/T(Y4V) (A) M8X16 FLANGE 		0-28080-816-0 05 1 0412-0512 ● ●
38 BOLT; CLIP,HARNESS
ISUZU M/T<X9A> (A) M8X16 FLANGE 		0-28080-816-0 05 1 0412-0512 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 05 1 0412-0512 ● ●
38 BOLT; CLIP,HARNESS
FULLER FSO5206B OD M/T(Y4V) (A) M8X16 FLANGE 		0-28050-816-0 05 1 0601- ● ●
38 BOLT; CLIP,HARNESS
ISUZU M/T<X9A> (A) M8X16 FLANGE 		0-28050-816-0 05 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28050-816-0 05 1 0601- ● ●
38 BOLT; CLIP,HARNESS
EXC. EURO2 SPECIFICATION<THN> (H) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0005-0210 ● ●
38 BOLT; CLIP,HARNESS
(H) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0005-0210 ●
38 BOLT; CLIP,HARNESS
MLD6 M/T<X9Y> (E) M10X20 FLANGE 		0-28781-020-0 01 1 0005-0210 ● ●
38 BOLT; CLIP,HARNESS
MLD6 M/T<X9Y> (E) M10X20 FLANGE 		0-28781-020-0 01 1 0211-0306 ●
38 BOLT; CLIP,HARNESS
(E) M10X20 FLANGE 		0-28781-020-0 01 1 0211-0306 ● ●
38 BOLT; CLIP,HARNESS
MLD6 M/T<X9Y> (E) M10X20 FLANGE 		0-28781-020-0 01 1 0307-0411 ● ●
38 BOLT; CLIP,HARNESS
(E) M10X20 FLANGE 		0-28781-020-0 01 1 0307-0411 ●
38 BOLT; CLIP,HARNESS
MLD6 M/T<X9Y> (E) M10X20 FLANGE 		0-28781-020-0 01 1 0412-0512 ● ●
38 BOLT; CLIP,HARNESS
(E) M10X20 FLANGE 		0-28781-020-0 01 1 0412-0512 ● ●
38 BOLT; CLIP,HARNESS
MLD6 M/T<X9Y> (E) M10X20 FLANGE 		0-28751-020-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(E) M10X20 FLANGE 		0-28751-020-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28680-830-0 04 1 0005-0210 ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28680-830-0 05 1 0211-0512 ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 05 1 0601- ●
38 BOLT; CLIP,HARNESS
(G) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0005- ●
88 BOLT; DOOR HARNESS EARTH
DOOR WINDOW MANUAL CONT<SKF> (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0005-0210 ●
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0005-0210 ● ●
88 BOLT; DOOR HARNESS EARTH
POWER WINDOW<A30> (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0005-0210 ●
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0211-0411 ● ● ●
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0412-1007 ● ● ● ●
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008- ● ● ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0005-0110 ● ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-0411 ● ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0412- ● ● ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210 ● ● ●
139 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V) (A) M8X30 FLANGE 		0-28680-830-0 01 1 0307-0512 ● ●
139 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V) (A) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
139 BOLT; BRKT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (C) M10X16 FLANGE 		0-28181-016-0 01 1 0307-0309 ● ●
139 BOLT; BRKT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (C) M10X16 FLANGE 		0-28081-016-0 02 1 0310-0512 ● ●
139 BOLT; BRKT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (C) M10X16 FLANGE 		0-28051-016-0 02 1 0601- ● ●
139 BOLT; BRKT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (D) M10X20 FLANGE 		0-28681-020-0 02 1 0307-0309 ● ●
139 BOLT; BRKT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (D) M10X20 FLANGE 		0-28781-020-0 01 1 0310-0512 ● ●
139 BOLT; BRKT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (D) M10X20 FLANGE 		0-28751-020-0 01 1 0601- ● ●
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0005-0411 ● ● ●
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0412-0512 ● ● ● ●
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0412-0512 ●
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ● ● ●
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
139 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0211-0512 ●
139 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
150 BOLT; CLIP
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0211-0411 ● ● ●
150 BOLT; CLIP
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0412-0608 ● ● ● ●
150 BOLT; CLIP
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0609-0904 ● ● ● ●
150 BOLT; CLIP
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ● ● ●
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0005-0411 ● ● ●
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0412- ● ● ● ●
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 0005-0411 ● ● ●
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 0412- ● ● ● ●
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0005-0411 ● ● ●
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0412-1007 ● ● ● ●
239 BOLT; GRAND
(D) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008- ● ● ● ●
239 BOLT; GRAND
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0005-0411 ● ● ●
239 BOLT; GRAND
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0412-1201 ● ● ● ●
239 BOLT; GRAND
(E) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202- ● ● ● ●
242 BOLT; BRKT,HARNESS
6HK1 TCS ENG(80L) (E) M8X20 FLANGE 		0-28680-820-0 01 1 0307-0512 ● ●
242 BOLT; BRKT,HARNESS
6HK1 TCS ENG(80L) (E) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
242 BOLT; BRKT,HARNESS
6HK1 TCC ENG(81L) (A) M8X16 FLANGE 		0-28080-816-0 02 1 0211-0302 ● ● ●
242 BOLT; BRKT,HARNESS
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) (A) M8X16 FLANGE 		0-28080-816-0 02 1 0211-0302 ● ●
242 BOLT; BRKT,HARNESS
6HK1 TCC ENG(81L) (A) M8X16 FLANGE 		0-28080-816-0 02 1 0303-0410 ●
242 BOLT; BRKT,HARNESS
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) (A) M8X16 FLANGE 		0-28080-816-0 02 1 0303-0410 ●
242 BOLT; BRKT,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 02 1 0303-0410 ● ●
242 BOLT; BRKT,HARNESS
6HK1 TCC ENG(81L) (A) M8X16 FLANGE 		0-28080-816-0 02 1 0411-0411 ● ● ●
242 BOLT; BRKT,HARNESS
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) (A) M8X16 FLANGE 		0-28080-816-0 02 1 0411-0411 ● ●
242 BOLT; BRKT,HARNESS
6HK1 TCC ENG(81L) (A) M8X16 FLANGE 		0-28080-816-0 02 1 0412-0512 ● ● ●
242 BOLT; BRKT,HARNESS
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) (A) M8X16 FLANGE 		0-28080-816-0 02 1 0412-0512 ● ●
242 BOLT; BRKT,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 02 1 0412-0512 ●
242 BOLT; BRKT,HARNESS
6HK1 TCC ENG(81L) (A) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ● ●
242 BOLT; BRKT,HARNESS
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) (A) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
242 BOLT; BRKT,HARNESS
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
242 BOLT; BRKT,HARNESS
6HK1 TCC ENG(81L) (B) M10X45 FLANGE 		0-28181-045-0 01 1 0211-0302 ● ● ●
242 BOLT; BRKT,HARNESS
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) (B) M10X45 FLANGE 		0-28181-045-0 01 1 0211-0302 ● ●
242 BOLT; BRKT,HARNESS
6HK1 TCC ENG(81L) (B) M10X45 FLANGE 		0-28181-045-0 01 1 0303-0410 ●
242 BOLT; BRKT,HARNESS
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) (B) M10X45 FLANGE 		0-28181-045-0 01 1 0303-0410 ●
242 BOLT; BRKT,HARNESS
(B) M10X45 FLANGE 		0-28181-045-0 01 1 0303-0410 ● ●
242 BOLT; BRKT,HARNESS
6HK1 TCC ENG(81L) (B) M10X45 FLANGE 		0-28181-045-0 01 1 0411-0411 ● ● ●
242 BOLT; BRKT,HARNESS
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) (B) M10X45 FLANGE 		0-28181-045-0 01 1 0411-0411 ● ●
242 BOLT; BRKT,HARNESS
6HK1 TCC ENG(81L) (B) M10X45 FLANGE 		0-28181-045-0 01 1 0412-0512 ● ● ●
242 BOLT; BRKT,HARNESS
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) (B) M10X45 FLANGE 		0-28181-045-0 01 1 0412-0512 ● ●
242 BOLT; BRKT,HARNESS
(B) M10X45 FLANGE 		0-28181-045-0 01 1 0412-0512 ●
242 BOLT; BRKT,HARNESS
6HK1 TCC ENG(81L) (B) M10X45 FLANGE 		0-28151-045-0 01 1 0601- ● ● ●
242 BOLT; BRKT,HARNESS
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) (B) M10X45 FLANGE 		0-28151-045-0 01 1 0601- ● ●
242 BOLT; BRKT,HARNESS
(B) M10X45 FLANGE 		0-28151-045-0 01 1 0601- ●
242 BOLT; BRKT,HARNESS
6HK1 TCC ENG(81L) (C) M10X75 FLANGE 		8-94399-669-1 01 1 0211-0302 ● ● ●
242 BOLT; BRKT,HARNESS
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) (C) M10X75 FLANGE 		8-94399-669-1 01 1 0211-0302 ● ●
242 BOLT; BRKT,HARNESS
6HK1 TCC ENG(81L) (C) M10X75 FLANGE 		8-94399-669-1 01 1 0303-0410 ●
242 BOLT; BRKT,HARNESS
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) (C) M10X75 FLANGE 		8-94399-669-1 01 1 0303-0410 ●
242 BOLT; BRKT,HARNESS
(C) M10X75 FLANGE 		8-94399-669-1 01 1 0303-0410 ● ●
242 BOLT; BRKT,HARNESS
6HK1 TCC ENG(81L) (C) M10X75 FLANGE 		8-94399-669-1 01 1 0411-0411 ● ● ●
242 BOLT; BRKT,HARNESS
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) (C) M10X75 FLANGE 		8-94399-669-1 01 1 0411-0411 ● ●
242 BOLT; BRKT,HARNESS
6HK1 TCC ENG(81L) (C) M10X75 FLANGE 		8-94399-669-1 01 1 0412- ● ● ●
242 BOLT; BRKT,HARNESS
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) (C) M10X75 FLANGE 		8-94399-669-1 01 1 0412- ● ●
242 BOLT; BRKT,HARNESS
(C) M10X75 FLANGE 		8-94399-669-1 01 1 0412- ●
242 BOLT; BRKT,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0512 ●
242 BOLT; BRKT,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
304 BOLT; ENG HARNESS CLIP
A/T<X9D> (B) M8X12 FLANGE 		0-28080-812-0 02 1 0211-0512 ●
304 BOLT; ENG HARNESS CLIP
A/T<X9D> (B) M8X12 FLANGE 		0-28050-812-0 02 1 0601- ●
304 BOLT; ENG HARNESS CLIP
EXC. A/T<X9D> (B) M8X12 FLANGE 		0-28080-812-0 04 1 0211-0302 ●
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28080-812-0 04 1 0211-0302 ● ●
304 BOLT; ENG HARNESS CLIP
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXC. A/T<X9D> (B) M8X12 FLANGE 		0-28080-812-0 04 1 0303-0411 ●
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28080-812-0 04 1 0303-0411 ●
304 BOLT; ENG HARNESS CLIP
6HK1 TCC ENG(81L) (B) M8X12 FLANGE 		0-28080-812-0 04 1 0303-0411 ●
304 BOLT; ENG HARNESS CLIP
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXC. A/T<X9D> (B) M8X12 FLANGE 		0-28080-812-0 04 1 0412-0512 ●
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28080-812-0 04 1 0412-0512 ● ●
304 BOLT; ENG HARNESS CLIP
6HK1 TCC ENG(81L) (B) M8X12 FLANGE 		0-28080-812-0 04 1 0412-0512 ●
304 BOLT; ENG HARNESS CLIP
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXC. A/T<X9D> (B) M8X12 FLANGE 		0-28050-812-0 04 1 0601- ●
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 04 1 0601- ● ●
304 BOLT; ENG HARNESS CLIP
6HK1 TCC ENG(81L) (B) M8X12 FLANGE 		0-28050-812-0 04 1 0601- ●
304 BOLT; ENG HARNESS CLIP
(A) M8X16 FLANGE 		0-28080-816-0 04 1 0211-0302 ● ● ●
304 BOLT; ENG HARNESS CLIP
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (A) M8X16 FLANGE 		0-28080-816-0 04 1 0303-0411 ● ●
304 BOLT; ENG HARNESS CLIP
(A) M8X16 FLANGE 		0-28080-816-0 04 1 0303-0411 ●
304 BOLT; ENG HARNESS CLIP
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (A) M8X16 FLANGE 		0-28080-816-0 04 1 0412-0512 ● ●
304 BOLT; ENG HARNESS CLIP
(A) M8X16 FLANGE 		0-28080-816-0 04 1 0412-0512 ● ●
304 BOLT; ENG HARNESS CLIP
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (A) M8X16 FLANGE 		0-28050-816-0 04 1 0601- ● ●
304 BOLT; ENG HARNESS CLIP
(A) M8X16 FLANGE 		0-28050-816-0 04 1 0601- ● ●
313 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0412-0512 ●
313 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28680-830-0 02 1 0412-0512 ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ●
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
358 BOLT; EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0005-0210 ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0411 ● ● ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0412- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
