◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10826 - FRR/FSR/FRD(AUST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#9465) — 765 parça

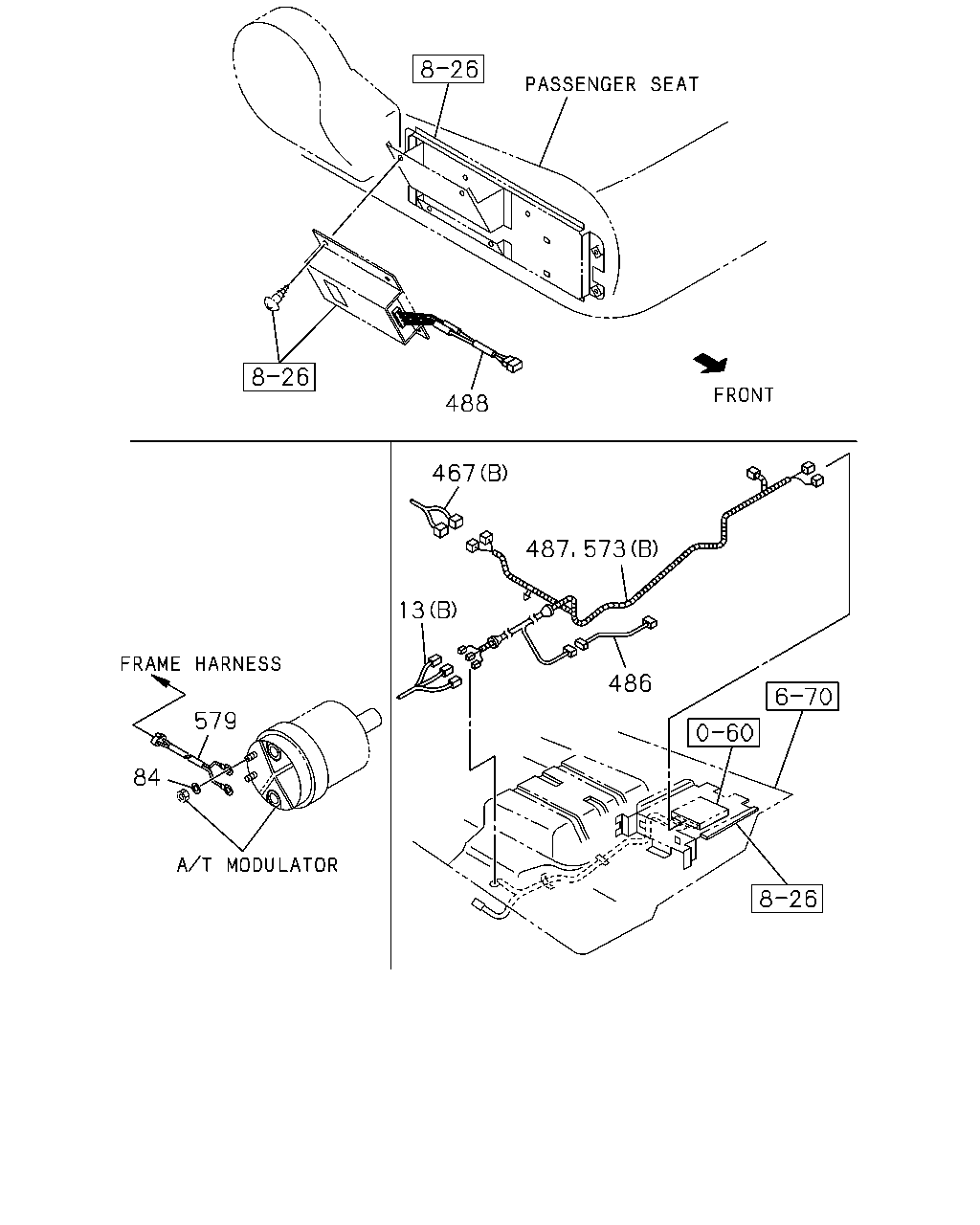

çizim 38183
488 467 13 486 579 84 487 573
BalonParca AdiParca NoAdetTipApplied Date A B C D
13 HARNESS; ENG
6HK1 TCS ENG(80L) (A) 		1-82641-280-0 01 1 0307- ● ●
13 HARNESS; ENG
A/T<X9D> (B) 		1-82641-057-4 01 1 0211- ●
13 HARNESS; ENG
EURO2 SPECIFICATION<THN> (A) 		1-82640-982-0 01 1 0005-0009 ● ●
13 HARNESS; ENG
EURO2 SPECIFICATION<THN> (A) 		1-82641-164-0 01 1 0010-0210 ● ●
13 HARNESS; ENG
EXC. A/T<X9D> (B) 		1-82640-950-5 01 1 0211-0302 ●
13 HARNESS; ENG
(B) 		1-82640-950-5 01 1 0211-0302 ● ●
13 HARNESS; ENG
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXC. A/T<X9D> (B) 		1-82640-950-7 01 1 0303-0411 ●
13 HARNESS; ENG
(B) 		1-82640-950-7 01 1 0303-0411 ●
13 HARNESS; ENG
6HK1 TCC ENG(81L) (B) 		1-82640-950-7 01 1 0303-0411 ●
13 HARNESS; ENG
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXC. A/T<X9D> (B) 		1-82640-950-7 01 1 0412- ●
13 HARNESS; ENG
(B) 		1-82640-950-7 01 1 0412- ● ●
13 HARNESS; ENG
6HK1 TCC ENG(81L) (B) 		1-82640-950-7 01 1 0412- ●
13 HARNESS; ENG
EXC. EURO2 SPECIFICATION<THN> (A) 		1-82640-715-1 01 1 0005-0009 ● ●
13 HARNESS; ENG
(A) 		1-82640-715-1 01 1 0005-0009 ●
13 HARNESS; ENG
EXC. EURO2 SPECIFICATION<THN> (A) 		1-82641-165-0 01 1 0010-0210 ● ●
13 HARNESS; ENG
(A) 		1-82641-165-0 01 1 0010-0210 ●
13 HARNESS; ENG
(A) 		1-82641-277-1 01 1 0211-0305 ● ● ●
13 HARNESS; ENG
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (A) 		1-82641-277-1 01 1 0306-0411 ● ●
13 HARNESS; ENG
6HK1 TCC ENG(81L) (A) 		1-82641-277-1 01 1 0306-0411 ●
13 HARNESS; ENG
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (A) 		1-82641-277-1 01 1 0412- ● ●
13 HARNESS; ENG
6HK1 TCC ENG(81L) (A) 		1-82641-277-1 01 1 0412- ●
13 HARNESS; ENG
6HK1 TCN ENG(82L) (A) 		1-82641-277-1 01 1 0412- ●
84 WASHER; LK
AT545 A/T ALLISON(MD1) ID=6.1 		9-09150-506-0 02 1 0211-0603 ●
84 WASHER; LK
AT545 A/T ALLISON(MD1) ID=6.1 		0-91510-506-0 02 1 0604- ●
467 HARNESS; FACIA
6HK1 TCN ENG(82L) FOG LAMP<T96> (B) 		1-82662-872-1 01 1 0601- ●
467 HARNESS; FACIA
FOG LAMP<T96> A/T<X9D> (B) 		1-82662-868-1 01 1 0601- ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) FOG LAMP<T96> AIR HORN<WB8> (B) 		1-82662-871-1 01 1 0601- ● ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) FOG LAMP<T96> EXC. AIR HORN<WB8> (B) 		1-82662-870-1 01 1 0601- ● ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) FOG LAMP<T96> ISUZU M/T<X9A> (B) 		1-82662-867-1 01 1 0601- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) FOG LAMP<T96> ISUZU M/T<X9A> (B) 		1-82662-867-1 01 1 0601- ●
467 HARNESS; FACIA
FOG LAMP<T96> (B) 		1-82662-869-1 01 1 0601- ●
467 HARNESS; FACIA
(B) 		1-82662-635-0 01 1 0412-0512 ●
467 HARNESS; FACIA
6HK1 TCN ENG(82L) EXC. FOG LAMP<T96> (B) 		1-82662-635-2 01 1 0601- ●
467 HARNESS; FACIA
(A) 		1-82662-634-0 01 1 0412- ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) AIR HORN<WB8> (B) 		1-82662-385-0 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) AIR HORN<WB8> EXC. FOG LAMP<T96> (B) 		1-82662-385-2 01 1 0601- ● ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) (A) 		1-82661-377-0 01 1 0307- ● ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) (B) 		1-82661-890-0 01 1 0307-0405 ● ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) EXC. AIR HORN<WB8> (B) 		1-82661-890-0 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) EXC. FOG LAMP<T96>,AIR HORN<WB8> (B) 		1-82661-890-2 01 1 0601- ● ●
467 HARNESS; FACIA
A/T<X9D> EXC. POWER WINDOW<A30>,CUSTOM CAB(SR5),EURO2 SPECIFICATION<THN> (B) 		1-82629-254-3 01 1 0005-0210 ●
467 HARNESS; FACIA
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,CUSTOM CAB(SR5) (B) 		1-82629-258-3 01 1 0005-0210 ●
467 HARNESS; FACIA
EURO2 SPECIFICATION<THN> (B) 		1-82629-258-3 01 1 0005-0210 ●
467 HARNESS; FACIA
ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,CUSTOM CAB(SR5),EURO2 SPECIFICATION<THN> (B) 		1-82629-252-3 01 1 0005-0210 ●
467 HARNESS; FACIA
EXC. EURO2 SPECIFICATION<THN> (B) 		1-82629-252-3 01 1 0005-0210 ●
467 HARNESS; FACIA
POWER WINDOW<A30> CUSTOM CAB(SR5) A/T<X9D> EXC. EURO2 SPECIFICATION<THN> (B) 		1-82629-255-3 01 1 0005-0210 ●
467 HARNESS; FACIA
POWER WINDOW<A30> CUSTOM CAB(SR5) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> (B) 		1-82629-259-3 01 1 0005-0210 ●
467 HARNESS; FACIA
ISUZU M/T<X9A> (B) 		1-82661-378-1 01 1 0211-0305 ●
467 HARNESS; FACIA
(B) 		1-82661-378-1 01 1 0211-0305 ●
467 HARNESS; FACIA
ISUZU M/T<X9A> (B) 		1-82661-378-1 01 1 0306-0512 ●
467 HARNESS; FACIA
(B) 		1-82661-378-1 01 1 0306-0512 ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) ISUZU M/T<X9A> EXC. FOG LAMP<T96> (B) 		1-82661-378-3 01 1 0601- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) ISUZU M/T<X9A> EXC. FOG LAMP<T96> (B) 		1-82661-378-3 01 1 0601- ●
467 HARNESS; FACIA
POWER WINDOW<A30> CUSTOM CAB(SR5) ISUZU M/T<X9A> EXC. EURO2 SPECIFICATION<THN> (B) 		1-82629-253-3 01 1 0005-0210 ●
467 HARNESS; FACIA
A/T<X9D> (B) 		1-82660-762-2 01 1 0211-0512 ●
467 HARNESS; FACIA
A/T<X9D> EXC. FOG LAMP<T96> (B) 		1-82660-762-4 01 1 0601- ●
467 HARNESS; FACIA
(A) 		1-82629-294-2 01 1 0005-0305 ● ● ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (A) 		1-82629-294-2 01 1 0306- ● ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) (A) 		1-82629-294-2 01 1 0306- ●
467 HARNESS; FACIA
(B) 		1-82629-269-3 01 1 0005-0210 ●
467 HARNESS; FACIA
(B) 		1-82661-379-1 01 1 0211-0512 ●
467 HARNESS; FACIA
EXC. FOG LAMP<T96> (B) 		1-82661-379-3 01 1 0601- ●
486 HARNESS; ALL SPEED ACCEL
PTO CONTROL<SV6> 		1-82675-898-0 01 1 0612- ●
487 HARNESS; GOV
6HK1 TCS ENG(80L) 		1-82661-891-1 01 1 0307- ● ●
488 HARNESS; EXT,CONVERTER
W/FUSE 12V 6.3A 		1-82628-954-0 01 1 0009-0411 ● ● ●
488 HARNESS; EXT,CONVERTER
W/FUSE 12V 6.3A 		1-82628-954-0 01 1 0412-0603 ● ● ● ●
488 HARNESS; EXT,CONVERTER 1-82662-883-0 01 1 0604- ● ● ● ●
573 HARNESS; CONTROL UNIT
EURO2 SPECIFICATION<THN> (A) 		1-82626-745-3 01 1 0005-0210 ● ●
573 HARNESS; CONTROL UNIT
(B) 		1-82661-390-1 01 1 0211-0305 ● ● ●
573 HARNESS; CONTROL UNIT
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (B) 		1-82661-390-2 01 1 0306-0411 ● ●
573 HARNESS; CONTROL UNIT
6HK1 TCC ENG(81L) (B) 		1-82661-390-2 01 1 0306-0411 ●
573 HARNESS; CONTROL UNIT
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (B) 		1-82661-390-2 01 1 0412- ● ●
573 HARNESS; CONTROL UNIT
6HK1 TCC ENG(81L) (B) 		1-82661-390-2 01 1 0412- ●
573 HARNESS; CONTROL UNIT
6HK1 TCN ENG(82L) (B) 		1-82661-390-2 01 1 0412- ●
579 HARNESS; A/T
AT545 A/T ALLISON(MD1) 		1-82641-273-1 01 1 0211- ●

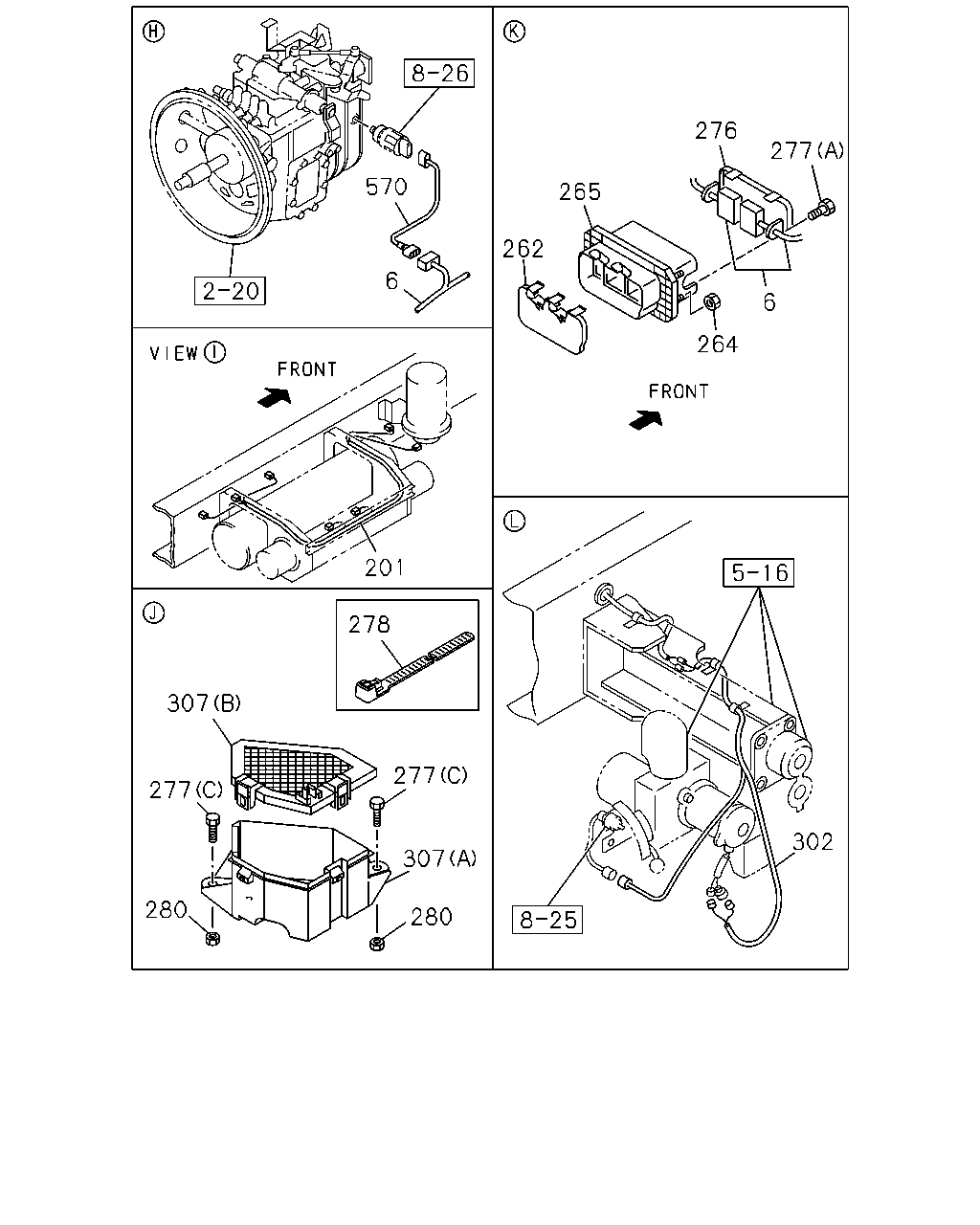

çizim 38481
276 277 570 265 262 6 6 264 201 278 307 277 277 302 307 280 280
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 HARNESS; FRAME
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) PTO CONTROL<SV6> FOG LAMP<T96> ISUZU M/T<X9A> 		1-82678-445-0 01 1 0612- ●
6 HARNESS; FRAME
6HK1 TCN ENG(82L) FOG LAMP<T96> 		1-82678-279-0 01 1 0601- ●
6 HARNESS; FRAME
FOG LAMP<T96> A/T<X9D> 		1-82678-277-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) FOG LAMP<T96> AIR HORN<WB8> 		1-82678-276-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-275-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) FOG LAMP<T96> ISUZU M/T<X9A> 		1-82678-274-0 01 1 0601-0611 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) FOG LAMP<T96> ISUZU M/T<X9A> EXC. PTO CONTROL<SV6> 		1-82678-274-0 01 1 0612- ●
6 HARNESS; FRAME
FOG LAMP<T96> 		1-82678-278-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) FOG LAMP<T96> AIR HORN<WB8> 		1-82678-282-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-281-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L) FOG LAMP<T96> ISUZU M/T<X9A> 		1-82678-280-0 01 1 0601- ●
6 HARNESS; FRAME 1-82678-019-0 01 1 0412-0512 ●
6 HARNESS; FRAME
6HK1 TCN ENG(82L) EXC. FOG LAMP<T96> 		1-82678-019-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) AIR HORN<WB8> 		1-82677-902-0 01 1 0406-0512 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-902-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) AIR HORN<WB8> 		1-82677-903-0 01 1 0406-0512 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-903-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) 		1-82677-318-2 01 1 0307-0405 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) EXC. AIR HORN<WB8> 		1-82677-318-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82677-318-2 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) 		1-82677-319-1 01 1 0307-0405 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) EXC. AIR HORN<WB8> 		1-82677-319-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82677-319-1 01 1 0601- ●
6 HARNESS; FRAME
A/T<X9D> 		1-82672-968-2 01 1 0005-0210 ●
6 HARNESS; FRAME
A/T<X9D> 		1-82676-188-1 01 1 0211-0401 ●
6 HARNESS; FRAME
A/T<X9D> 		1-82677-512-0 01 1 0402-0512 ●
6 HARNESS; FRAME
A/T<X9D> EXC. FOG LAMP<T96> 		1-82677-512-0 01 1 0601- ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> 		1-82672-969-2 01 1 0005-0210 ●
6 HARNESS; FRAME
ISUZU M/T<X9A> 		1-82676-024-1 01 1 0211-0305 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) ISUZU M/T<X9A> 		1-82676-024-1 01 1 0306-0401 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) ISUZU M/T<X9A> 		1-82677-513-0 01 1 0402-0512 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) ISUZU M/T<X9A> EXC. FOG LAMP<T96> 		1-82677-513-0 01 1 0601- ●
6 HARNESS; FRAME
ISUZU M/T<X9A> EXC. EURO2 SPECIFICATION<THN> 		1-82672-966-2 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82672-967-2 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-025-1 01 1 0211-0401 ●
6 HARNESS; FRAME 1-82677-515-0 01 1 0402-0512 ●
6 HARNESS; FRAME
EXC. FOG LAMP<T96> 		1-82677-515-0 01 1 0601- ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> 		1-82672-971-2 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-026-1 01 1 0211-0306 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L) ISUZU M/T<X9A> 		1-82676-026-1 01 1 0307-0401 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L) ISUZU M/T<X9A> 		1-82677-514-0 01 1 0402-0512 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L) ISUZU M/T<X9A> EXC. FOG LAMP<T96> 		1-82677-514-0 01 1 0601- ●
6 HARNESS; FRAME
EXC. EURO2 SPECIFICATION<THN> 		1-82672-970-2 01 1 0005-0210 ●
201 HARNESS; AIR TANK 1-82670-502-0 01 1 0005-0210 ● ●
201 HARNESS; AIR TANK 1-82676-034-1 01 1 0211-0411 ● ●
201 HARNESS; AIR TANK 1-82676-034-1 01 1 0412- ● ● ●
201 HARNESS; AIR TANK 1-82673-025-0 01 1 0005-0005 ●
201 HARNESS; AIR TANK
6HE1 TC ENG(57L) 		1-82673-025-1 01 1 0006-0210 ●
201 HARNESS; AIR TANK 1-82676-035-1 01 1 0211- ●
201 HARNESS; AIR TANK
6HH1 STD ENG(65L) 		1-82670-504-2 01 1 0006-0210 ●
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 0005-0411 ● ● ●
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 0412- ● ● ● ●
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0005-0411 ● ● ●
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0412- ● ● ● ●
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 0005-0411 ● ● ●
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 0412- ● ● ● ●
276 COVER; BOX,FRAME HARNESS 1-82699-558-3 01 1 0005-0411 ● ● ●
276 COVER; BOX,FRAME HARNESS 1-82699-558-3 01 1 0412- ● ● ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0005-0411 ● ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0412-0512 ● ● ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0601- ● ● ● ●
277 BOLT; BOX ASM FIX
EURO2 SPECIFICATION<THN> (B) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0210 ● ●
277 BOLT; BOX ASM FIX
(C) M8X30 W/LK&PL WASHER 		8-94279-144-0 02 1 0211-0411 ● ● ●
277 BOLT; BOX ASM FIX
(C) M8X30 W/LK&PL WASHER 		8-94279-144-0 02 1 0412- ● ● ● ●
278 CLIP; BOX
6HK1 TCS ENG(80L) L=140 		5-09707-031-1 01 1 0307- ● ●
280 NUT; BOX ASM FIX
M8 FLANGE 		0-91150-108-0 02 1 0211-0411 ● ● ●
280 NUT; BOX ASM FIX
M8 FLANGE 		0-91150-108-0 02 1 0412-0602 ● ● ● ●
280 NUT; BOX ASM FIX
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ●
302 HARNESS; POWER CAB TILT 1-82639-388-4 01 1 0005- ●
307 BOX; ENG HARNESS
(A) 		1-82698-070-1 01 1 0211-0411 ● ● ●
307 BOX; ENG HARNESS
(A) 		1-82698-070-1 01 1 0412- ● ● ● ●
307 BOX; ENG HARNESS
(B) 		1-82698-138-0 01 1 0211-0411 ● ● ●
307 BOX; ENG HARNESS
(B) 		1-82698-138-0 01 1 0412- ● ● ● ●
570 HARNESS; SPEED SENSOR
AT545 A/T ALLISON(MD1),MBJ6T M/T(Y2A) 		1-82670-078-0 01 1 0005-0210 ● ●
570 HARNESS; SPEED SENSOR 1-82670-078-0 01 1 0005-0210 ●
570 HARNESS; SPEED SENSOR
A/T<X9D> 		1-82670-078-0 01 1 0211-0401 ●
570 HARNESS; SPEED SENSOR
MLD6Q M/T(X5J) 		1-82670-012-0 01 1 0005-0210 ● ●
570 HARNESS; SPEED SENSOR
MLD6 M/T<X9Y> 		1-82670-012-0 01 1 0211-0306 ●
570 HARNESS; SPEED SENSOR 1-82670-012-0 01 1 0211-0306 ● ●
570 HARNESS; SPEED SENSOR
FULLER FSO5206B OD M/T(Y4V) 		1-82670-012-0 01 1 0307-0401 ● ●
570 HARNESS; SPEED SENSOR
MLD6 M/T<X9Y> 		1-82670-012-0 01 1 0307-0401 ● ●
570 HARNESS; SPEED SENSOR 1-82670-012-0 01 1 0307-0401 ●

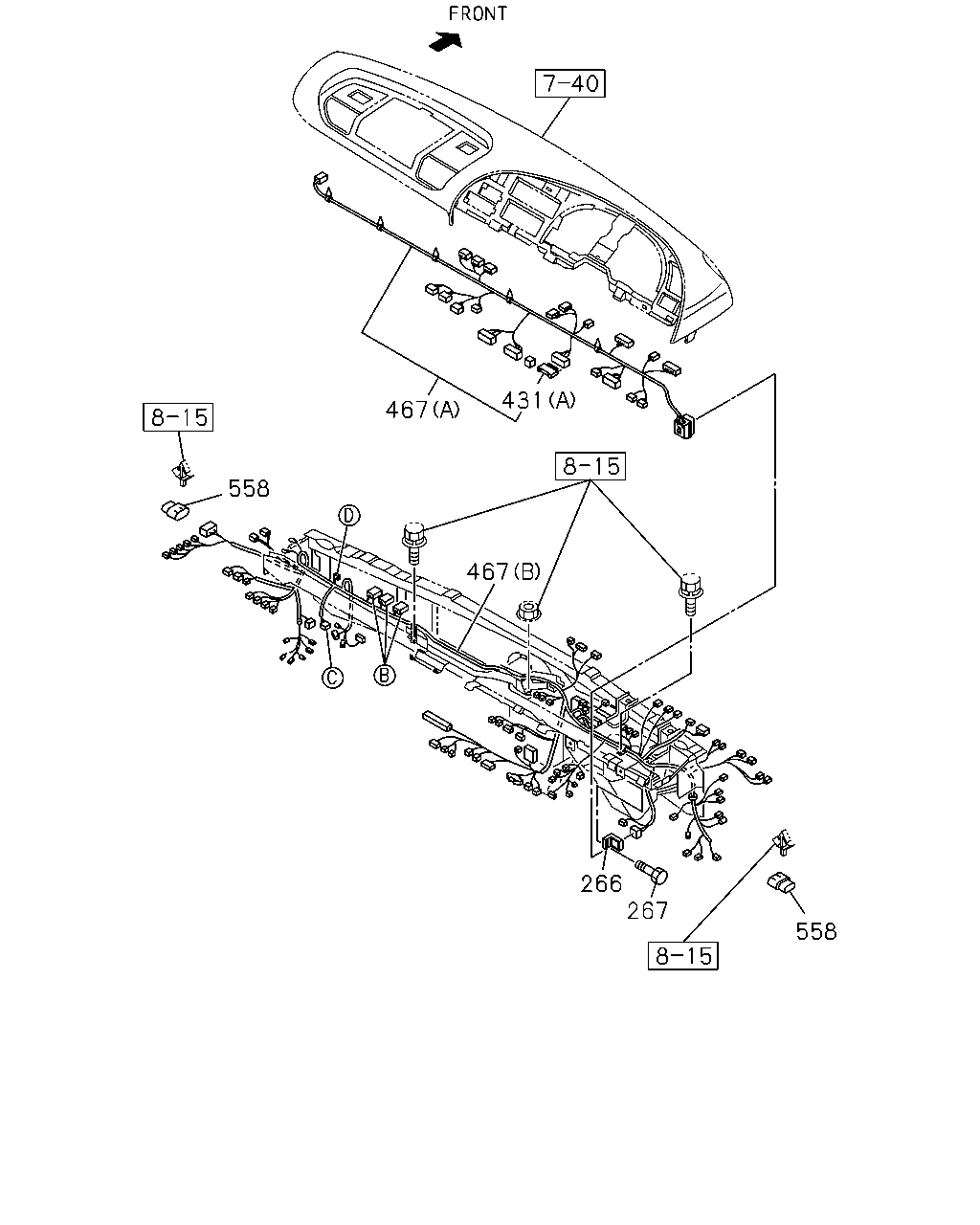

çizim 38547
431 467 558 467 266 267 558
BalonParca AdiParca NoAdetTipApplied Date A B C D
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0005-0411 ● ● ●
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0412- ● ● ● ●
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 0005-0411 ● ● ●
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 0412- ● ● ● ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 AR 1 0005-0411 ● ● ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 AR 1 0412- ● ● ● ●
431 CONNECTOR; JOINT
(B) 3P & 3P 		1-82698-170-0 AR 1 0204-0411 ● ● ●
431 CONNECTOR; JOINT
(B) 3P & 3P 		1-82698-170-0 AR 1 0412- ● ● ● ●
467 HARNESS; FACIA
6HK1 TCN ENG(82L) FOG LAMP<T96> (B) 		1-82662-872-1 01 1 0601- ●
467 HARNESS; FACIA
FOG LAMP<T96> A/T<X9D> (B) 		1-82662-868-1 01 1 0601- ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) FOG LAMP<T96> AIR HORN<WB8> (B) 		1-82662-871-1 01 1 0601- ● ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) FOG LAMP<T96> EXC. AIR HORN<WB8> (B) 		1-82662-870-1 01 1 0601- ● ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) FOG LAMP<T96> ISUZU M/T<X9A> (B) 		1-82662-867-1 01 1 0601- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) FOG LAMP<T96> ISUZU M/T<X9A> (B) 		1-82662-867-1 01 1 0601- ●
467 HARNESS; FACIA
FOG LAMP<T96> (B) 		1-82662-869-1 01 1 0601- ●
467 HARNESS; FACIA
(B) 		1-82662-635-0 01 1 0412-0512 ●
467 HARNESS; FACIA
6HK1 TCN ENG(82L) EXC. FOG LAMP<T96> (B) 		1-82662-635-2 01 1 0601- ●
467 HARNESS; FACIA
(A) 		1-82662-634-0 01 1 0412- ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) AIR HORN<WB8> (B) 		1-82662-385-0 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) AIR HORN<WB8> EXC. FOG LAMP<T96> (B) 		1-82662-385-2 01 1 0601- ● ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) (A) 		1-82661-377-0 01 1 0307- ● ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) (B) 		1-82661-890-0 01 1 0307-0405 ● ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) EXC. AIR HORN<WB8> (B) 		1-82661-890-0 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) EXC. FOG LAMP<T96>,AIR HORN<WB8> (B) 		1-82661-890-2 01 1 0601- ● ●
467 HARNESS; FACIA
A/T<X9D> EXC. POWER WINDOW<A30>,CUSTOM CAB(SR5),EURO2 SPECIFICATION<THN> (B) 		1-82629-254-3 01 1 0005-0210 ●
467 HARNESS; FACIA
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,CUSTOM CAB(SR5) (B) 		1-82629-258-3 01 1 0005-0210 ●
467 HARNESS; FACIA
EURO2 SPECIFICATION<THN> (B) 		1-82629-258-3 01 1 0005-0210 ●
467 HARNESS; FACIA
ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,CUSTOM CAB(SR5),EURO2 SPECIFICATION<THN> (B) 		1-82629-252-3 01 1 0005-0210 ●
467 HARNESS; FACIA
EXC. EURO2 SPECIFICATION<THN> (B) 		1-82629-252-3 01 1 0005-0210 ●
467 HARNESS; FACIA
POWER WINDOW<A30> CUSTOM CAB(SR5) A/T<X9D> EXC. EURO2 SPECIFICATION<THN> (B) 		1-82629-255-3 01 1 0005-0210 ●
467 HARNESS; FACIA
POWER WINDOW<A30> CUSTOM CAB(SR5) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> (B) 		1-82629-259-3 01 1 0005-0210 ●
467 HARNESS; FACIA
ISUZU M/T<X9A> (B) 		1-82661-378-1 01 1 0211-0305 ●
467 HARNESS; FACIA
(B) 		1-82661-378-1 01 1 0211-0305 ●
467 HARNESS; FACIA
ISUZU M/T<X9A> (B) 		1-82661-378-1 01 1 0306-0512 ●
467 HARNESS; FACIA
(B) 		1-82661-378-1 01 1 0306-0512 ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) ISUZU M/T<X9A> EXC. FOG LAMP<T96> (B) 		1-82661-378-3 01 1 0601- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) ISUZU M/T<X9A> EXC. FOG LAMP<T96> (B) 		1-82661-378-3 01 1 0601- ●
467 HARNESS; FACIA
POWER WINDOW<A30> CUSTOM CAB(SR5) ISUZU M/T<X9A> EXC. EURO2 SPECIFICATION<THN> (B) 		1-82629-253-3 01 1 0005-0210 ●
467 HARNESS; FACIA
A/T<X9D> (B) 		1-82660-762-2 01 1 0211-0512 ●
467 HARNESS; FACIA
A/T<X9D> EXC. FOG LAMP<T96> (B) 		1-82660-762-4 01 1 0601- ●
467 HARNESS; FACIA
(A) 		1-82629-294-2 01 1 0005-0305 ● ● ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (A) 		1-82629-294-2 01 1 0306- ● ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) (A) 		1-82629-294-2 01 1 0306- ●
467 HARNESS; FACIA
(B) 		1-82629-269-3 01 1 0005-0210 ●
467 HARNESS; FACIA
(B) 		1-82661-379-1 01 1 0211-0512 ●
467 HARNESS; FACIA
EXC. FOG LAMP<T96> (B) 		1-82661-379-3 01 1 0601- ●
558 CONNECTOR; HARNESS
EXC. POWER WINDOW<A30> 		1-82690-666-0 02 1 0005-0210 ●
558 CONNECTOR; HARNESS 1-82690-666-0 02 1 0005-0210 ● ●
558 CONNECTOR; HARNESS 1-82690-666-0 02 1 0211-0411 ● ●
558 CONNECTOR; HARNESS 1-82690-666-0 02 1 0412- ● ● ●

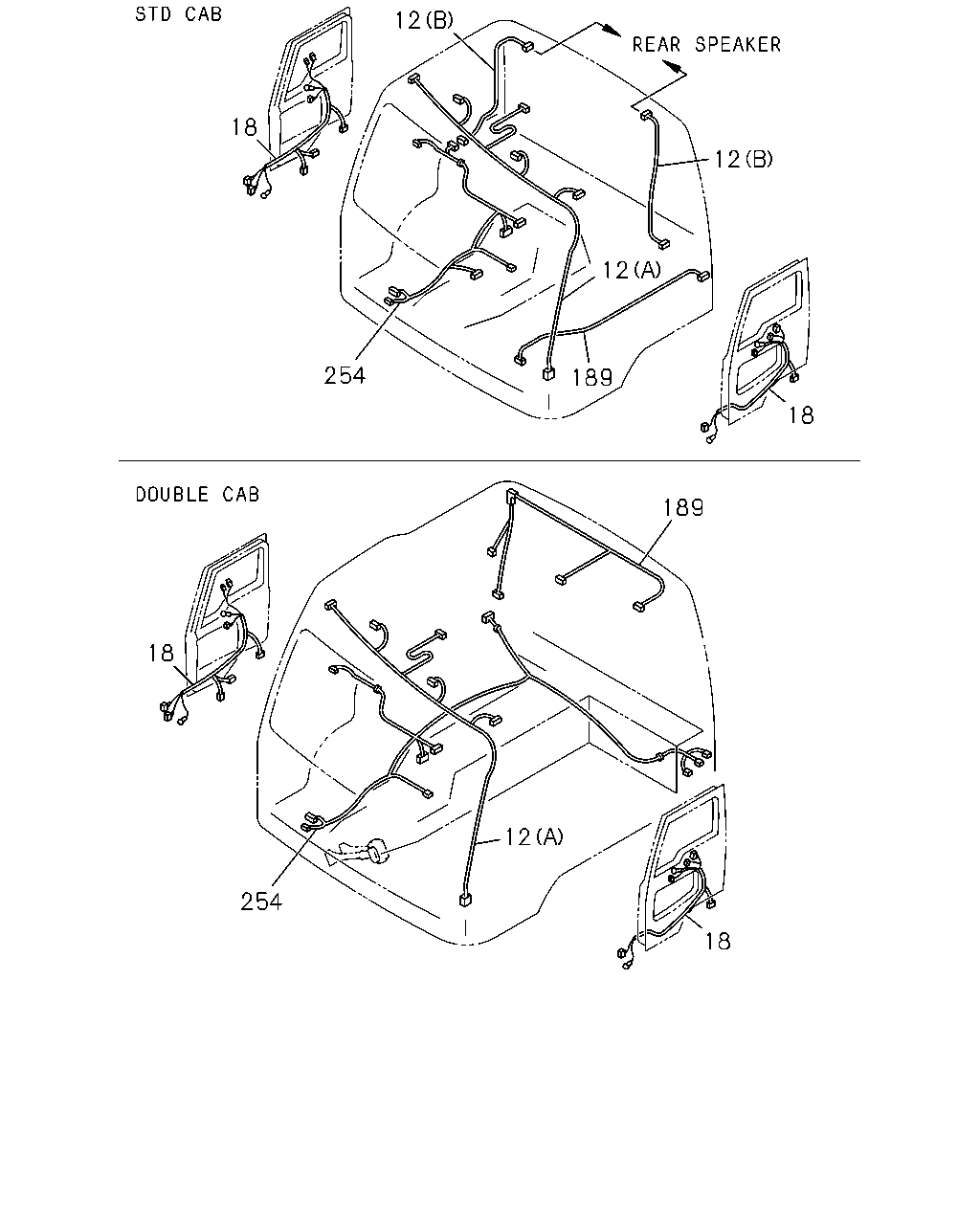

çizim 38549
12 18 12 12 254 189 18 189 18 12 254 18
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 HARNESS; ROOF
(A) 		1-82629-297-1 01 1 0005-0210 ● ● ●
12 HARNESS; ROOF
(A) 		1-82660-765-1 01 1 0211-0411 ● ● ●
12 HARNESS; ROOF
(A) 		1-82660-765-1 01 1 0412- ● ● ● ●
12 HARNESS; ROOF
(B) 		1-82626-753-0 02 1 0005-0411 ● ●
12 HARNESS; ROOF
(B) 		1-82626-753-0 02 1 0412- ● ● ●
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-582-0 01 1 0005-0210 ●
18 HARNESS; DOOR 1-82628-582-0 01 1 0211-0411 ●
18 HARNESS; DOOR 1-82628-582-0 01 1 0412- ● ●
18 HARNESS; DOOR
POWER WINDOW<A30> CUSTOM CAB(SR5) 		1-82629-301-1 01 1 0005-0210 ●
18 HARNESS; DOOR 1-82629-301-1 01 1 0211-0411 ●
18 HARNESS; DOOR 1-82629-301-1 01 1 0412- ● ●
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		1-82628-581-0 02 1 0005-0210 ●
18 HARNESS; DOOR 1-82628-581-0 02 1 0005-0210 ●
18 HARNESS; DOOR 1-82628-581-0 02 1 0211- ●
18 HARNESS; DOOR 1-82628-583-0 01 1 0211-0411 ●
18 HARNESS; DOOR 1-82628-583-0 01 1 0412- ●
18 HARNESS; DOOR 1-82629-302-1 01 1 0211-0411 ●
18 HARNESS; DOOR 1-82629-302-1 01 1 0412- ●
189 HARNESS; EXT
MAP LAMP<C85> 		1-82662-384-1 01 1 0406- ●
189 HARNESS; EXT 1-82625-774-0 01 1 0005-0405 ●
189 HARNESS; EXT
EXC. MAP LAMP<C85> 		1-82625-774-0 01 1 0406- ●
189 HARNESS; EXT 1-82625-673-2 02 1 0005-0411 ●
189 HARNESS; EXT 1-82625-673-2 02 1 0412- ●
254 HARNESS; CAB FLOOR 1-82662-636-2 01 1 0412- ●
254 HARNESS; CAB FLOOR
A/T<X9D> EXC. CUSTOM CAB(SR5),AUTO LIGHT HEADLAMPS ON-OFFCONTROL<TAT> 		1-82628-133-5 01 1 0005-0210 ●
254 HARNESS; CAB FLOOR
A/T<X9D> EXC. CUSTOM CAB(SR5) 		1-82660-764-1 01 1 0211-0310 ●
254 HARNESS; CAB FLOOR
A/T<X9D> EXC. CUSTOM CAB(SR5) 		1-82662-048-1 01 1 0311- ●
254 HARNESS; CAB FLOOR
CUSTOM CAB(SR5) AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> A/T<X9D> 		1-82629-299-2 01 1 0005-0210 ●
254 HARNESS; CAB FLOOR
CUSTOM CAB(SR5) A/T<X9D> 		1-82629-299-2 01 1 0211-0310 ●
254 HARNESS; CAB FLOOR
CUSTOM CAB(SR5) A/T<X9D> 		1-82662-046-1 01 1 0311- ●
254 HARNESS; CAB FLOOR
CUSTOM CAB(SR5) AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> ISUZU M/T<X9A> 		1-82629-298-2 01 1 0005-0210 ●
254 HARNESS; CAB FLOOR
CUSTOM CAB(SR5) ISUZU M/T<X9A> 		1-82629-298-2 01 1 0211-0306 ●
254 HARNESS; CAB FLOOR
CUSTOM CAB(SR5) ISUZU M/T<X9A>,FULLER M/T<X9B> 		1-82629-298-2 01 1 0307-0310 ●
254 HARNESS; CAB FLOOR
CUSTOM CAB(SR5) ISUZU M/T<X9A>,FULLER M/T<X9B> 		1-82662-047-1 01 1 0311- ●
254 HARNESS; CAB FLOOR
ISUZU M/T<X9A> EXC. CUSTOM CAB(SR5),AUTO LIGHT HEADLAMPS ON-OFFCONTROL<TAT> 		1-82628-129-5 01 1 0005-0210 ●
254 HARNESS; CAB FLOOR 1-82628-129-5 01 1 0005-0210 ●
254 HARNESS; CAB FLOOR
ISUZU M/T<X9A> EXC. CUSTOM CAB(SR5) 		1-82661-385-1 01 1 0211-0306 ●
254 HARNESS; CAB FLOOR 1-82661-385-1 01 1 0211-0306 ●
254 HARNESS; CAB FLOOR
ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. CUSTOM CAB(SR5) 		1-82661-385-1 01 1 0307-0310 ●
254 HARNESS; CAB FLOOR
ISUZU M/T<X9A>,FULLER M/T<X9B> 		1-82661-385-1 01 1 0307-0310 ●
254 HARNESS; CAB FLOOR
ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. CUSTOM CAB(SR5) 		1-82662-049-1 01 1 0311- ●
254 HARNESS; CAB FLOOR
ISUZU M/T<X9A>,FULLER M/T<X9B> 		1-82662-049-1 01 1 0311- ●
254 HARNESS; CAB FLOOR 1-82628-136-3 01 1 0005-0210 ●
254 HARNESS; CAB FLOOR 1-82660-769-1 01 1 0211-0310 ●
254 HARNESS; CAB FLOOR 1-82662-050-1 01 1 0311- ●

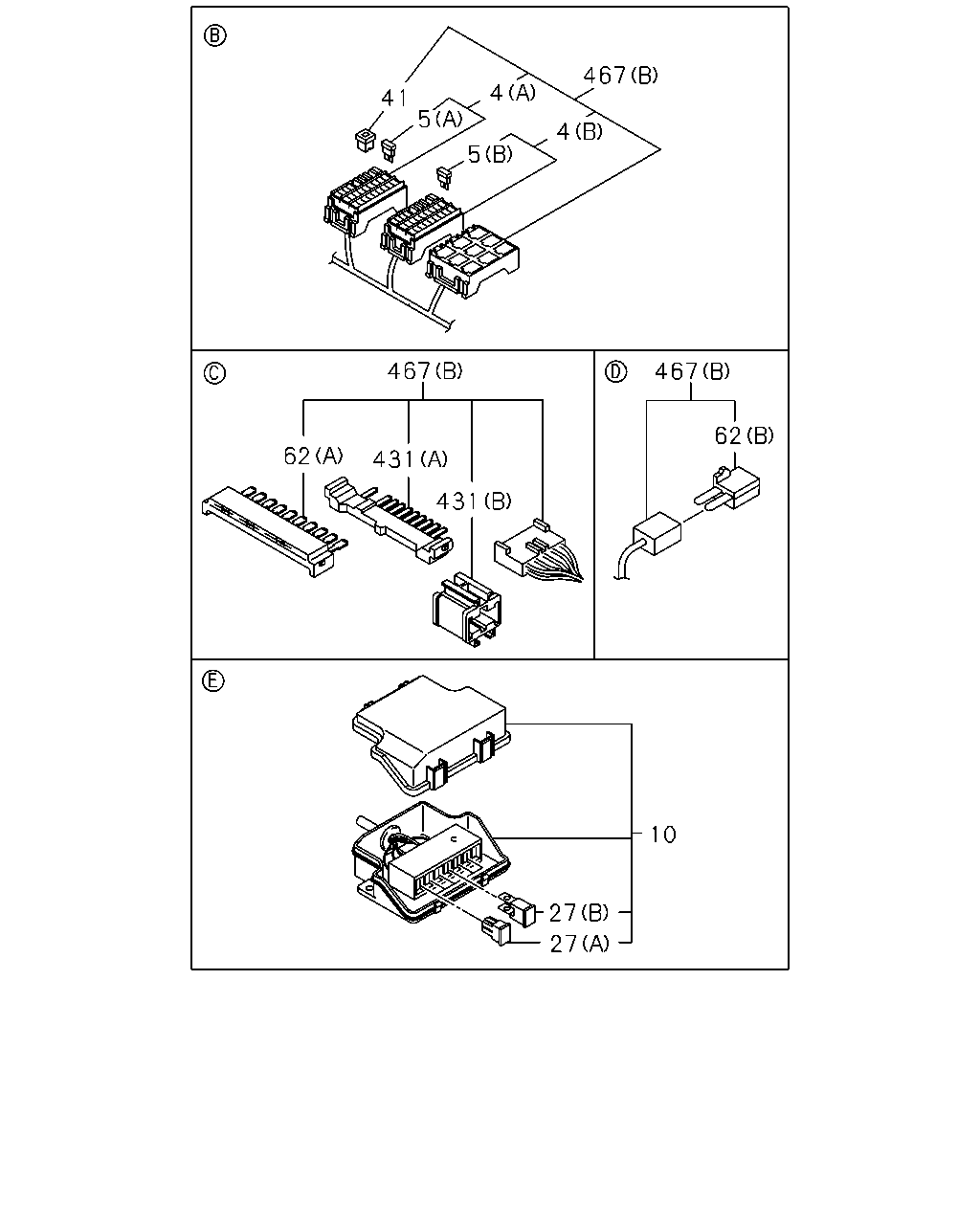

çizim 38584
467 4 41 5 4 5 467 467 62 62 431 431 10 27 27
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 BOX ASM; FUSE,HARNESS
6HK1 TCS ENG(80L) (A) 7.5AX16 		1-82510-395-0 01 1 0307- ● ●
4 BOX ASM; FUSE,HARNESS
6HK1 TCS ENG(80L) (B) 15AX16 		1-82510-397-0 01 1 0307- ● ●
4 BOX ASM; FUSE,HARNESS
A/T<X9D> (B) 15AX14 		1-82510-472-0 01 1 0005-0203 ●
4 BOX ASM; FUSE,HARNESS
A/T<X9D> (A) 7.5AX15 		1-82510-391-0 01 1 0204-0411 ●
4 BOX ASM; FUSE,HARNESS
A/T<X9D> (A) 7.5AX15 		1-82510-391-0 01 1 0412-0512 ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX15 		1-82510-391-0 01 1 0412-0512 ●
4 BOX ASM; FUSE,HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) FOG LAMP<T96> ISUZU M/T<X9A> (A) 7.5AX15 		1-82510-391-0 01 1 0601-0601 ●
4 BOX ASM; FUSE,HARNESS
A/T<X9D> (A) 7.5AX15 		1-82510-391-0 01 1 0601-0601 ●
4 BOX ASM; FUSE,HARNESS
FOG LAMP<T96> (A) 7.5AX15 		1-82510-391-0 01 1 0601-0601 ●
4 BOX ASM; FUSE,HARNESS
6HK1 TCC ENG(81L) FOG LAMP<T96> (A) 7.5AX15 		1-82510-391-0 01 1 0601-0601 ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX15 		1-82510-391-0 01 1 0601-0601 ●
4 BOX ASM; FUSE,HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (A) 7.5AX15 		1-82510-391-0 01 1 0602- ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX15 		1-82510-391-0 01 1 0602- ● ●
4 BOX ASM; FUSE,HARNESS
6HK1 TCC ENG(81L) (A) 7.5AX15 		1-82510-391-0 01 1 0602- ●
4 BOX ASM; FUSE,HARNESS
A/T<X9D> (A) 7.5AX14 		1-82510-486-0 01 1 0005-0203 ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX14 		1-82510-486-0 01 1 0005-0203 ●
4 BOX ASM; FUSE,HARNESS
A/T<X9D> (B) 15AX15 		1-82510-521-0 01 1 0204-0210 ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX15 		1-82510-521-0 01 1 0204-0210 ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX15 		1-82510-521-0 01 1 0211-0306 ● ● ●
4 BOX ASM; FUSE,HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (B) 15AX15 		1-82510-521-0 01 1 0307-0411 ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX15 		1-82510-521-0 01 1 0307-0411 ●
4 BOX ASM; FUSE,HARNESS
6HK1 TCC ENG(81L) (B) 15AX15 		1-82510-521-0 01 1 0307-0411 ●
4 BOX ASM; FUSE,HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (B) 15AX15 		1-82510-521-0 01 1 0412- ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX15 		1-82510-521-0 01 1 0412- ● ●
4 BOX ASM; FUSE,HARNESS
6HK1 TCC ENG(81L) (B) 15AX15 		1-82510-521-0 01 1 0412- ●
4 BOX ASM; FUSE,HARNESS
ISUZU M/T<X9A> (B) 15AX16 		1-82510-397-0 01 1 0005-0210 ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX16 		1-82510-397-0 01 1 0005-0210 ●
4 BOX ASM; FUSE,HARNESS
ISUZU M/T<X9A> (A) 7.5AX13 		1-82510-421-0 01 1 0211-0305 ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX13 		1-82510-421-0 01 1 0211-0305 ● ●
4 BOX ASM; FUSE,HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) ISUZU M/T<X9A> (A) 7.5AX13 		1-82510-421-0 01 1 0306-0306 ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX13 		1-82510-421-0 01 1 0306-0306 ●
4 BOX ASM; FUSE,HARNESS
6HK1 TCC ENG(81L) (A) 7.5AX13 		1-82510-421-0 01 1 0306-0306 ●
4 BOX ASM; FUSE,HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) ISUZU M/T<X9A> (A) 7.5AX13 		1-82510-421-0 01 1 0307-0512 ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX13 		1-82510-421-0 01 1 0307-0512 ●
4 BOX ASM; FUSE,HARNESS
6HK1 TCC ENG(81L) ISUZU M/T<X9A> (A) 7.5AX13 		1-82510-421-0 01 1 0307-0512 ●
4 BOX ASM; FUSE,HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) ISUZU M/T<X9A> EXC. FOG LAMP<T96> (A) 7.5AX13 		1-82510-421-0 01 1 0601-0601 ●
4 BOX ASM; FUSE,HARNESS
EXC. FOG LAMP<T96> (A) 7.5AX13 		1-82510-421-0 01 1 0601-0601 ●
4 BOX ASM; FUSE,HARNESS
6HK1 TCC ENG(81L) ISUZU M/T<X9A> EXC. FOG LAMP<T96> (A) 7.5AX13 		1-82510-421-0 01 1 0601-0601 ●
4 BOX ASM; FUSE,HARNESS
ISUZU M/T<X9A> (A) 7.5AX18 		1-82510-422-0 01 1 0005-0210 ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX18 		1-82510-422-0 01 1 0005-0210 ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX15 		1-82510-521-0 01 1 0005-0203 ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX14 		1-82510-486-0 01 1 0204-0210 ●
5 FUSE; FACIA HARNESS
(B) 15A BLUE 		5-82516-003-0 AR 1 0005- ● ● ●
5 FUSE; FACIA HARNESS
(A) 7.5A BROWN 		8-94159-007-0 AR 1 0005- ● ● ●
10 BOX; FUSE,HARNESS 1-82510-408-0 01 1 0211-0306 ● ●
10 BOX; FUSE,HARNESS
A/T<X9D> 		1-82510-408-0 01 1 0307-0405 ●
10 BOX; FUSE,HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) ISUZU M/T<X9A> 		1-82510-408-0 01 1 0307-0405 ●
10 BOX; FUSE,HARNESS
6HK1 TCC ENG(81L) ISUZU M/T<X9A> 		1-82510-408-0 01 1 0307-0405 ●
10 BOX; FUSE,HARNESS 1-82510-408-0 01 1 0406-0411 ● ●
10 BOX; FUSE,HARNESS 1-82510-408-0 01 1 0412- ● ● ●
10 BOX; FUSE,HARNESS
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) 		1-82510-109-0 01 1 0310-0405 ●
10 BOX; FUSE,HARNESS 1-82510-409-0 01 1 0005-0210 ● ● ●
10 BOX; FUSE,HARNESS 1-82510-409-0 01 1 0211-0306 ●
10 BOX; FUSE,HARNESS
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) 		1-82510-409-0 01 1 0307-0309 ● ●
10 BOX; FUSE,HARNESS 1-82510-409-0 01 1 0307-0309 ●
10 BOX; FUSE,HARNESS 1-82510-409-0 01 1 0310-0405 ●
10 BOX; FUSE,HARNESS
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) 		1-82510-409-0 01 1 0310-0405 ●
10 BOX; FUSE,HARNESS 1-82510-409-0 01 1 0406- ●
27 FUSE UNIT
(A) 40A GREEN 		8-94468-662-0 04 1 0211-0306 ● ●
27 FUSE UNIT
A/T<X9D> (A) 40A GREEN 		8-94468-662-0 04 1 0307-0405 ●
27 FUSE UNIT
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) ISUZU M/T<X9A> (A) 40A GREEN 		8-94468-662-0 04 1 0307-0405 ●
27 FUSE UNIT
6HK1 TCC ENG(81L) ISUZU M/T<X9A> (A) 40A GREEN 		8-94468-662-0 04 1 0307-0405 ●
27 FUSE UNIT
(A) 40A GREEN 		8-94468-662-0 04 1 0406-0411 ● ●
27 FUSE UNIT
(A) 40A GREEN 		8-94468-662-0 04 1 0412- ● ● ●
27 FUSE UNIT
(A) 40A GREEN 		8-94468-662-0 03 1 0005-0210 ● ● ●
27 FUSE UNIT
(A) 40A GREEN 		8-94468-662-0 03 1 0211-0306 ●
27 FUSE UNIT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (A) 40A GREEN 		8-94468-662-0 03 1 0307-0405 ● ●
27 FUSE UNIT
(A) 40A GREEN 		8-94468-662-0 03 1 0307-0405 ●
27 FUSE UNIT
(A) 40A GREEN 		8-94468-662-0 03 1 0406- ●
27 FUSE UNIT
(B) 60A YELLOW 		8-94468-669-0 01 1 0005-0411 ● ● ●
27 FUSE UNIT
(B) 60A YELLOW 		8-94468-669-0 01 1 0412- ● ● ● ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 0005-0411 ● ● ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 0412- ● ● ● ●
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 04 1 0412-0512 ●
62 DIODE; HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) FOG LAMP<T96> ISUZU M/T<X9A> (A) BLACK 10P 		1-82699-703-0 04 1 0601-0601 ●
62 DIODE; HARNESS
FOG LAMP<T96> (A) BLACK 10P 		1-82699-703-0 04 1 0601-0601 ●
62 DIODE; HARNESS
6HK1 TCC ENG(81L) FOG LAMP<T96> ISUZU M/T<X9A> (A) BLACK 10P 		1-82699-703-0 04 1 0601-0601 ●
62 DIODE; HARNESS
6HK1 TCN ENG(82L) (A) BLACK 10P 		1-82699-703-0 04 1 0601-0601 ●
62 DIODE; HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) ISUZU M/T<X9A> (A) BLACK 10P 		1-82699-703-0 04 1 0602- ●
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 04 1 0602- ●
62 DIODE; HARNESS
6HK1 TCC ENG(81L) ISUZU M/T<X9A> (A) BLACK 10P 		1-82699-703-0 04 1 0602- ●
62 DIODE; HARNESS
6HK1 TCN ENG(82L) (A) BLACK 10P 		1-82699-703-0 04 1 0602- ●
62 DIODE; HARNESS
6HK1 TCS ENG(80L) (B) BLACK 2P-1.5A 		8-94422-639-1 07 1 0307-0411 ● ●
62 DIODE; HARNESS
6HK1 TCS ENG(80L) (B) BLACK 2P-1.5A 		8-94422-639-1 07 1 0412-0512 ● ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 07 1 0412-0512 ●
62 DIODE; HARNESS
6HK1 TCS ENG(80L) (B) BLACK 2P-1.5A 		8-94422-639-1 07 1 0601-0601 ● ●
62 DIODE; HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) FOG LAMP<T96> ISUZU M/T<X9A> (B) BLACK 2P-1.5A 		8-94422-639-1 07 1 0601-0601 ●
62 DIODE; HARNESS
FOG LAMP<T96> (B) BLACK 2P-1.5A 		8-94422-639-1 07 1 0601-0601 ●
62 DIODE; HARNESS
6HK1 TCC ENG(81L) FOG LAMP<T96> ISUZU M/T<X9A> (B) BLACK 2P-1.5A 		8-94422-639-1 07 1 0601-0601 ●
62 DIODE; HARNESS
6HK1 TCN ENG(82L) (B) BLACK 2P-1.5A 		8-94422-639-1 07 1 0601-0601 ●
62 DIODE; HARNESS
6HK1 TCS ENG(80L) (B) BLACK 2P-1.5A 		8-94422-639-1 07 1 0602- ● ●
62 DIODE; HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) ISUZU M/T<X9A> (B) BLACK 2P-1.5A 		8-94422-639-1 07 1 0602- ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 07 1 0602- ●
62 DIODE; HARNESS
6HK1 TCC ENG(81L) ISUZU M/T<X9A> (B) BLACK 2P-1.5A 		8-94422-639-1 07 1 0602- ●
62 DIODE; HARNESS
6HK1 TCN ENG(82L) (B) BLACK 2P-1.5A 		8-94422-639-1 07 1 0602- ●
62 DIODE; HARNESS
A/T<X9D> (B) BLACK 2P-1.5A 		8-94422-639-1 03 1 0005-0207 ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 03 1 0005-0207 ●
62 DIODE; HARNESS
A/T<X9D> (B) BLACK 2P-1.5A 		8-94422-639-1 04 1 0208- ●
62 DIODE; HARNESS
ISUZU M/T<X9A> (B) BLACK 2P-1.5A 		8-94422-639-1 10 1 0005-0210 ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 10 1 0005-0210 ●
62 DIODE; HARNESS
ISUZU M/T<X9A> (B) BLACK 2P-1.5A 		8-94422-639-1 05 1 0211-0305 ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 05 1 0211-0305 ● ●
62 DIODE; HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) ISUZU M/T<X9A> (B) BLACK 2P-1.5A 		8-94422-639-1 05 1 0306-0306 ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 05 1 0306-0306 ●
62 DIODE; HARNESS
6HK1 TCC ENG(81L) (B) BLACK 2P-1.5A 		8-94422-639-1 05 1 0306-0306 ●
62 DIODE; HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) ISUZU M/T<X9A> (B) BLACK 2P-1.5A 		8-94422-639-1 05 1 0307-0512 ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 05 1 0307-0512 ●
62 DIODE; HARNESS
6HK1 TCC ENG(81L) ISUZU M/T<X9A> (B) BLACK 2P-1.5A 		8-94422-639-1 05 1 0307-0512 ●
62 DIODE; HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) ISUZU M/T<X9A> EXC. FOG LAMP<T96> (B) BLACK 2P-1.5A 		8-94422-639-1 05 1 0601-0601 ●
62 DIODE; HARNESS
EXC. FOG LAMP<T96> (B) BLACK 2P-1.5A 		8-94422-639-1 05 1 0601-0601 ●
62 DIODE; HARNESS
6HK1 TCC ENG(81L) ISUZU M/T<X9A> EXC. FOG LAMP<T96> (B) BLACK 2P-1.5A 		8-94422-639-1 05 1 0601-0601 ●
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 02 1 0005-0512 ● ● ●
62 DIODE; HARNESS
6HK1 TCS ENG(80L) (A) BLACK 10P 		1-82699-703-0 02 1 0601-0601 ● ●
62 DIODE; HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) ISUZU M/T<X9A> EXC. FOG LAMP<T96> (A) BLACK 10P 		1-82699-703-0 02 1 0601-0601 ●
62 DIODE; HARNESS
A/T<X9D> (A) BLACK 10P 		1-82699-703-0 02 1 0601-0601 ●
62 DIODE; HARNESS
EXC. FOG LAMP<T96> (A) BLACK 10P 		1-82699-703-0 02 1 0601-0601 ●
62 DIODE; HARNESS
6HK1 TCC ENG(81L) ISUZU M/T<X9A> EXC. FOG LAMP<T96> (A) BLACK 10P 		1-82699-703-0 02 1 0601-0601 ●
62 DIODE; HARNESS
6HK1 TCS ENG(80L) (A) BLACK 10P 		1-82699-703-0 02 1 0602- ● ●
62 DIODE; HARNESS
A/T<X9D> (A) BLACK 10P 		1-82699-703-0 02 1 0602- ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 03 1 0208-0210 ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 AR 1 0005-0411 ● ● ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 AR 1 0412- ● ● ● ●
431 CONNECTOR; JOINT
(B) 3P & 3P 		1-82698-170-0 AR 1 0204-0411 ● ● ●
431 CONNECTOR; JOINT
(B) 3P & 3P 		1-82698-170-0 AR 1 0412- ● ● ● ●
467 HARNESS; FACIA
6HK1 TCN ENG(82L) FOG LAMP<T96> (B) 		1-82662-872-1 01 1 0601- ●
467 HARNESS; FACIA
FOG LAMP<T96> A/T<X9D> (B) 		1-82662-868-1 01 1 0601- ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) FOG LAMP<T96> AIR HORN<WB8> (B) 		1-82662-871-1 01 1 0601- ● ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) FOG LAMP<T96> EXC. AIR HORN<WB8> (B) 		1-82662-870-1 01 1 0601- ● ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) FOG LAMP<T96> ISUZU M/T<X9A> (B) 		1-82662-867-1 01 1 0601- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) FOG LAMP<T96> ISUZU M/T<X9A> (B) 		1-82662-867-1 01 1 0601- ●
467 HARNESS; FACIA
FOG LAMP<T96> (B) 		1-82662-869-1 01 1 0601- ●
467 HARNESS; FACIA
(B) 		1-82662-635-0 01 1 0412-0512 ●
467 HARNESS; FACIA
6HK1 TCN ENG(82L) EXC. FOG LAMP<T96> (B) 		1-82662-635-2 01 1 0601- ●
467 HARNESS; FACIA
(A) 		1-82662-634-0 01 1 0412- ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) AIR HORN<WB8> (B) 		1-82662-385-0 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) AIR HORN<WB8> EXC. FOG LAMP<T96> (B) 		1-82662-385-2 01 1 0601- ● ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) (A) 		1-82661-377-0 01 1 0307- ● ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) (B) 		1-82661-890-0 01 1 0307-0405 ● ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) EXC. AIR HORN<WB8> (B) 		1-82661-890-0 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) EXC. FOG LAMP<T96>,AIR HORN<WB8> (B) 		1-82661-890-2 01 1 0601- ● ●
467 HARNESS; FACIA
A/T<X9D> EXC. POWER WINDOW<A30>,CUSTOM CAB(SR5),EURO2 SPECIFICATION<THN> (B) 		1-82629-254-3 01 1 0005-0210 ●
467 HARNESS; FACIA
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,CUSTOM CAB(SR5) (B) 		1-82629-258-3 01 1 0005-0210 ●
467 HARNESS; FACIA
EURO2 SPECIFICATION<THN> (B) 		1-82629-258-3 01 1 0005-0210 ●
467 HARNESS; FACIA
ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,CUSTOM CAB(SR5),EURO2 SPECIFICATION<THN> (B) 		1-82629-252-3 01 1 0005-0210 ●
467 HARNESS; FACIA
EXC. EURO2 SPECIFICATION<THN> (B) 		1-82629-252-3 01 1 0005-0210 ●
467 HARNESS; FACIA
POWER WINDOW<A30> CUSTOM CAB(SR5) A/T<X9D> EXC. EURO2 SPECIFICATION<THN> (B) 		1-82629-255-3 01 1 0005-0210 ●
467 HARNESS; FACIA
POWER WINDOW<A30> CUSTOM CAB(SR5) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> (B) 		1-82629-259-3 01 1 0005-0210 ●
467 HARNESS; FACIA
ISUZU M/T<X9A> (B) 		1-82661-378-1 01 1 0211-0305 ●
467 HARNESS; FACIA
(B) 		1-82661-378-1 01 1 0211-0305 ●
467 HARNESS; FACIA
ISUZU M/T<X9A> (B) 		1-82661-378-1 01 1 0306-0512 ●
467 HARNESS; FACIA
(B) 		1-82661-378-1 01 1 0306-0512 ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) ISUZU M/T<X9A> EXC. FOG LAMP<T96> (B) 		1-82661-378-3 01 1 0601- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) ISUZU M/T<X9A> EXC. FOG LAMP<T96> (B) 		1-82661-378-3 01 1 0601- ●
467 HARNESS; FACIA
POWER WINDOW<A30> CUSTOM CAB(SR5) ISUZU M/T<X9A> EXC. EURO2 SPECIFICATION<THN> (B) 		1-82629-253-3 01 1 0005-0210 ●
467 HARNESS; FACIA
A/T<X9D> (B) 		1-82660-762-2 01 1 0211-0512 ●
467 HARNESS; FACIA
A/T<X9D> EXC. FOG LAMP<T96> (B) 		1-82660-762-4 01 1 0601- ●
467 HARNESS; FACIA
(A) 		1-82629-294-2 01 1 0005-0305 ● ● ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (A) 		1-82629-294-2 01 1 0306- ● ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) (A) 		1-82629-294-2 01 1 0306- ●
467 HARNESS; FACIA
(B) 		1-82629-269-3 01 1 0005-0210 ●
467 HARNESS; FACIA
(B) 		1-82661-379-1 01 1 0211-0512 ●
467 HARNESS; FACIA
EXC. FOG LAMP<T96> (B) 		1-82661-379-3 01 1 0601- ●

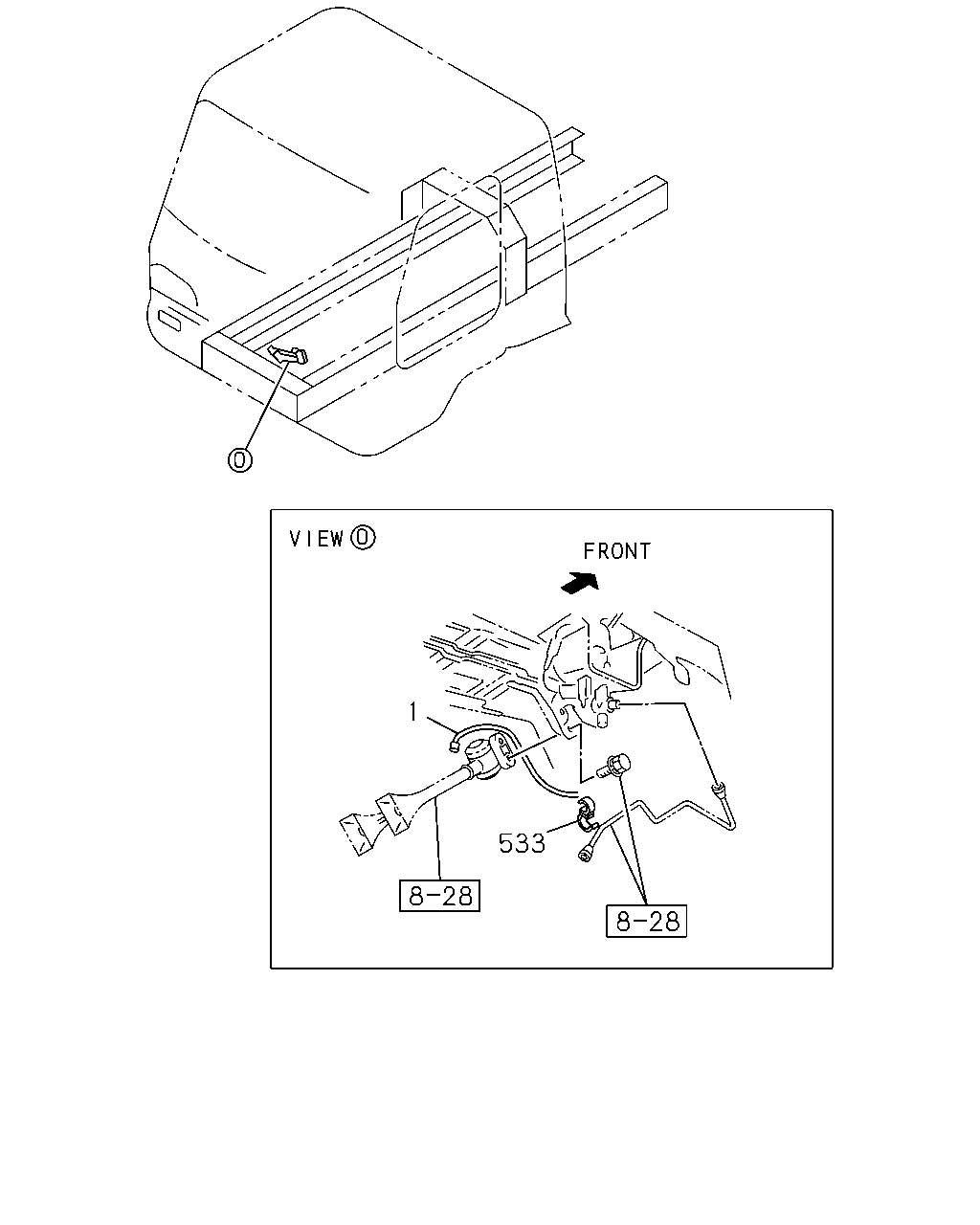

çizim 99801
1 533
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HARNESS; CAB
AIR HORN<WB8> 		1-82627-506-3 01 1 0406- ● ●
1 HARNESS; CAB 1-82626-365-0 01 1 0005-0210 ● ● ●
1 HARNESS; CAB 1-82629-662-1 01 1 0211-0405 ● ● ●
1 HARNESS; CAB
EXC. AIR HORN<WB8> 		1-82629-662-1 01 1 0406-0411 ● ●
1 HARNESS; CAB 1-82629-662-1 01 1 0406-0411 ●
1 HARNESS; CAB
EXC. AIR HORN<WB8> 		1-82629-662-1 01 1 0412- ● ●
1 HARNESS; CAB 1-82629-662-1 01 1 0412- ● ●
533 CLIP
AIR HORN<WB8> ID=6.35 & 10.0 		1-09709-274-1 01 1 0406- ● ●

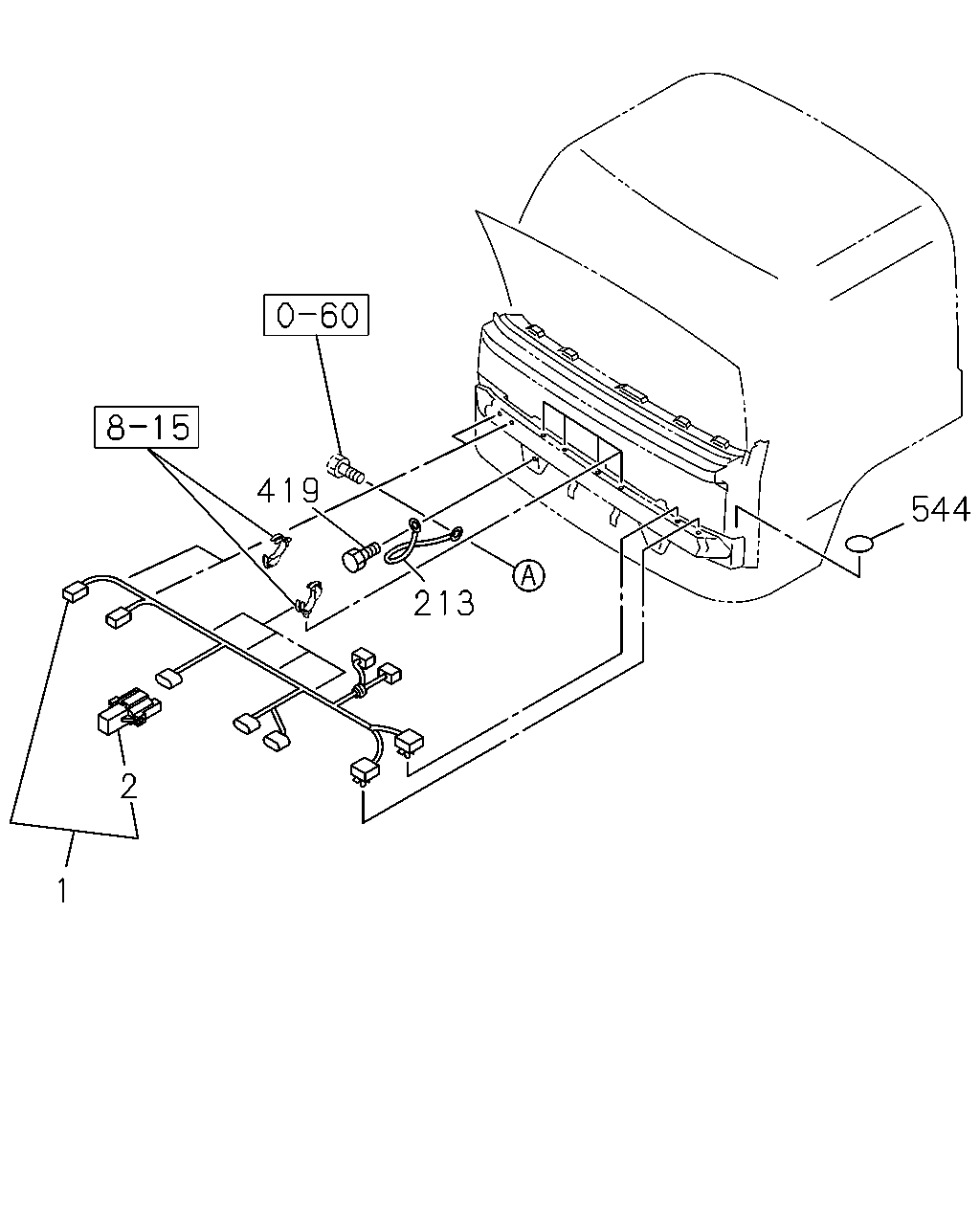

çizim 99970
419 544 213 2 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HARNESS; CAB
AIR HORN<WB8> 		1-82627-506-3 01 1 0406- ● ●
1 HARNESS; CAB 1-82626-365-0 01 1 0005-0210 ● ● ●
1 HARNESS; CAB 1-82629-662-1 01 1 0211-0405 ● ● ●
1 HARNESS; CAB
EXC. AIR HORN<WB8> 		1-82629-662-1 01 1 0406-0411 ● ●
1 HARNESS; CAB 1-82629-662-1 01 1 0406-0411 ●
1 HARNESS; CAB
EXC. AIR HORN<WB8> 		1-82629-662-1 01 1 0412- ● ●
1 HARNESS; CAB 1-82629-662-1 01 1 0412- ● ●
2 DIODE; CABLE HARNESS
AIR HORN<WB8> GRAY 2P-1.3A 		1-81514-015-0 01 1 0406- ● ●
213 CABLE; EARTH,CAB TO FRAME 1-82657-055-1 01 1 0005-0411 ● ● ●
213 CABLE; EARTH,CAB TO FRAME 1-82657-055-1 01 1 0412- ● ● ● ●
419 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0005-0411 ● ● ●
419 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0412-1201 ● ● ● ●
419 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202- ● ● ● ●
544 SEAL; FRT MTG RAIL
OD=25 BLACK 		1-76798-019-0 01 1 0005-0411 ● ● ●
544 SEAL; FRT MTG RAIL
OD=25 BLACK 		1-76798-019-0 01 1 0412- ● ● ● ●

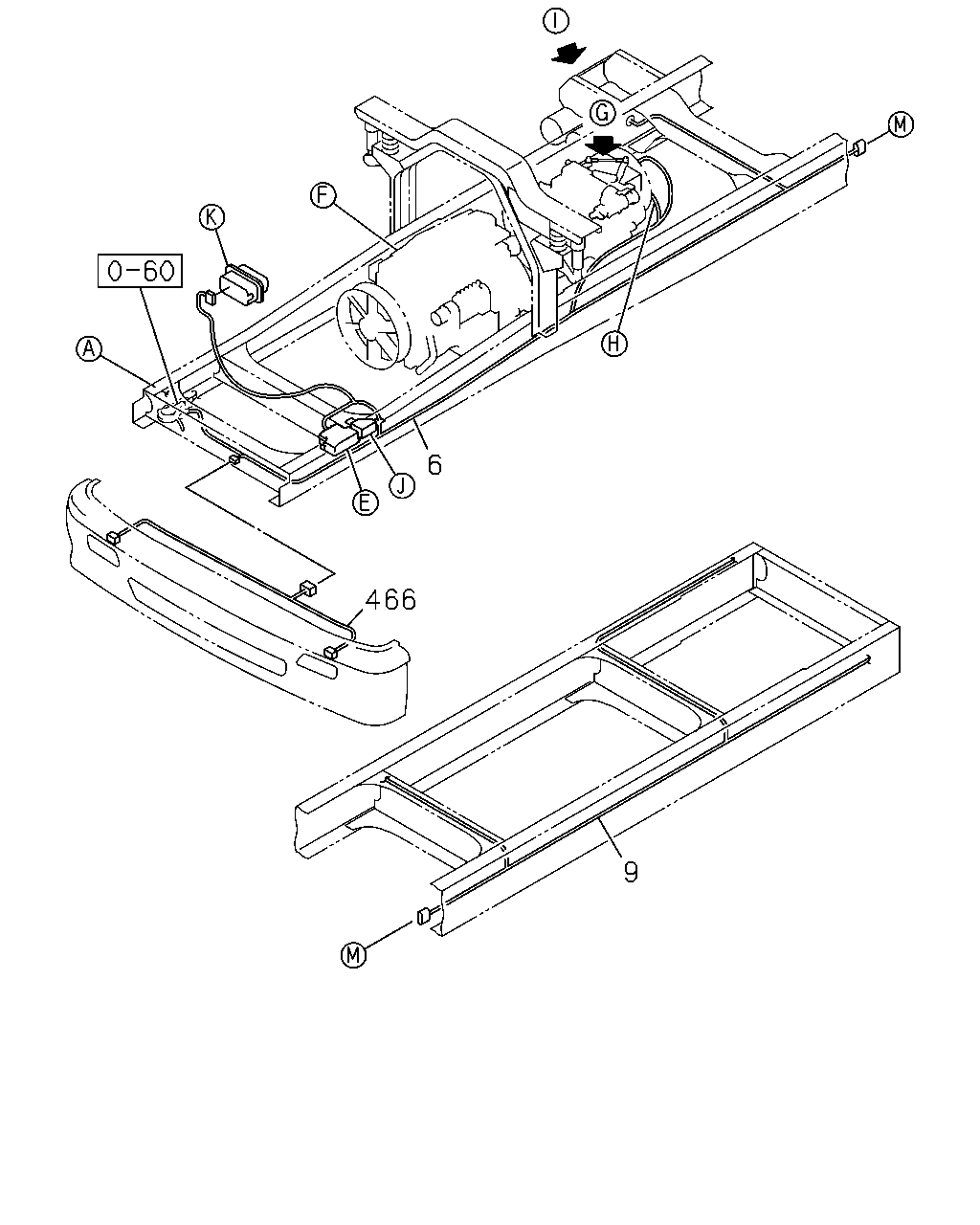

çizim 100030
6 466 9
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 HARNESS; FRAME
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) PTO CONTROL<SV6> FOG LAMP<T96> ISUZU M/T<X9A> 		1-82678-445-0 01 1 0612- ●
6 HARNESS; FRAME
6HK1 TCN ENG(82L) FOG LAMP<T96> 		1-82678-279-0 01 1 0601- ●
6 HARNESS; FRAME
FOG LAMP<T96> A/T<X9D> 		1-82678-277-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) FOG LAMP<T96> AIR HORN<WB8> 		1-82678-276-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-275-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) FOG LAMP<T96> ISUZU M/T<X9A> 		1-82678-274-0 01 1 0601-0611 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) FOG LAMP<T96> ISUZU M/T<X9A> EXC. PTO CONTROL<SV6> 		1-82678-274-0 01 1 0612- ●
6 HARNESS; FRAME
FOG LAMP<T96> 		1-82678-278-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) FOG LAMP<T96> AIR HORN<WB8> 		1-82678-282-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-281-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L) FOG LAMP<T96> ISUZU M/T<X9A> 		1-82678-280-0 01 1 0601- ●
6 HARNESS; FRAME 1-82678-019-0 01 1 0412-0512 ●
6 HARNESS; FRAME
6HK1 TCN ENG(82L) EXC. FOG LAMP<T96> 		1-82678-019-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) AIR HORN<WB8> 		1-82677-902-0 01 1 0406-0512 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-902-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) AIR HORN<WB8> 		1-82677-903-0 01 1 0406-0512 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-903-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) 		1-82677-318-2 01 1 0307-0405 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) EXC. AIR HORN<WB8> 		1-82677-318-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82677-318-2 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) 		1-82677-319-1 01 1 0307-0405 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) EXC. AIR HORN<WB8> 		1-82677-319-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82677-319-1 01 1 0601- ●
6 HARNESS; FRAME
A/T<X9D> 		1-82672-968-2 01 1 0005-0210 ●
6 HARNESS; FRAME
A/T<X9D> 		1-82676-188-1 01 1 0211-0401 ●
6 HARNESS; FRAME
A/T<X9D> 		1-82677-512-0 01 1 0402-0512 ●
6 HARNESS; FRAME
A/T<X9D> EXC. FOG LAMP<T96> 		1-82677-512-0 01 1 0601- ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> 		1-82672-969-2 01 1 0005-0210 ●
6 HARNESS; FRAME
ISUZU M/T<X9A> 		1-82676-024-1 01 1 0211-0305 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) ISUZU M/T<X9A> 		1-82676-024-1 01 1 0306-0401 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) ISUZU M/T<X9A> 		1-82677-513-0 01 1 0402-0512 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) ISUZU M/T<X9A> EXC. FOG LAMP<T96> 		1-82677-513-0 01 1 0601- ●
6 HARNESS; FRAME
ISUZU M/T<X9A> EXC. EURO2 SPECIFICATION<THN> 		1-82672-966-2 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82672-967-2 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-025-1 01 1 0211-0401 ●
6 HARNESS; FRAME 1-82677-515-0 01 1 0402-0512 ●
6 HARNESS; FRAME
EXC. FOG LAMP<T96> 		1-82677-515-0 01 1 0601- ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> 		1-82672-971-2 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-026-1 01 1 0211-0306 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L) ISUZU M/T<X9A> 		1-82676-026-1 01 1 0307-0401 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L) ISUZU M/T<X9A> 		1-82677-514-0 01 1 0402-0512 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L) ISUZU M/T<X9A> EXC. FOG LAMP<T96> 		1-82677-514-0 01 1 0601- ●
6 HARNESS; FRAME
EXC. EURO2 SPECIFICATION<THN> 		1-82672-970-2 01 1 0005-0210 ●
9 HARNESS; FRAME,RR
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82678-446-0 01 1 0612- ●
9 HARNESS; FRAME,RR 1-82678-020-0 01 1 0412- ●
9 HARNESS; FRAME,RR
WHEEL BASE 3700MM(37W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82672-975-0 01 1 0005- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82672-976-0 01 1 0005- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) 		1-82672-976-0 01 1 0005- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82672-981-0 01 1 0005- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82672-977-0 01 1 0005-0210 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W) 		1-82672-977-0 01 1 0005-0210 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82676-030-0 01 1 0211- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5100MM(51W) 		1-82676-030-0 01 1 0211- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82672-982-0 01 1 0005-0210 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5100MM(51W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82676-029-0 01 1 0211- ●
9 HARNESS; FRAME,RR
EURO2 SPECIFICATION<THN> 		1-82673-366-0 01 1 0005-0210 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) 		1-82673-006-0 01 1 0211- ●
9 HARNESS; FRAME,RR
EXC. EURO2 SPECIFICATION<THN> 		1-82672-978-0 01 1 0005-0210 ●
466 HARNESS; BUMPER
FOG LAMP<T96> 		8-97603-621-3 01 1 0601- ● ● ● ●
466 HARNESS; BUMPER 1-82638-758-1 01 1 0005-0411 ● ● ●
466 HARNESS; BUMPER 1-82638-758-1 01 1 0412-0512 ● ● ● ●
466 HARNESS; BUMPER
EXC. FOG LAMP<T96> 		1-82638-758-1 01 1 0601- ● ● ● ●

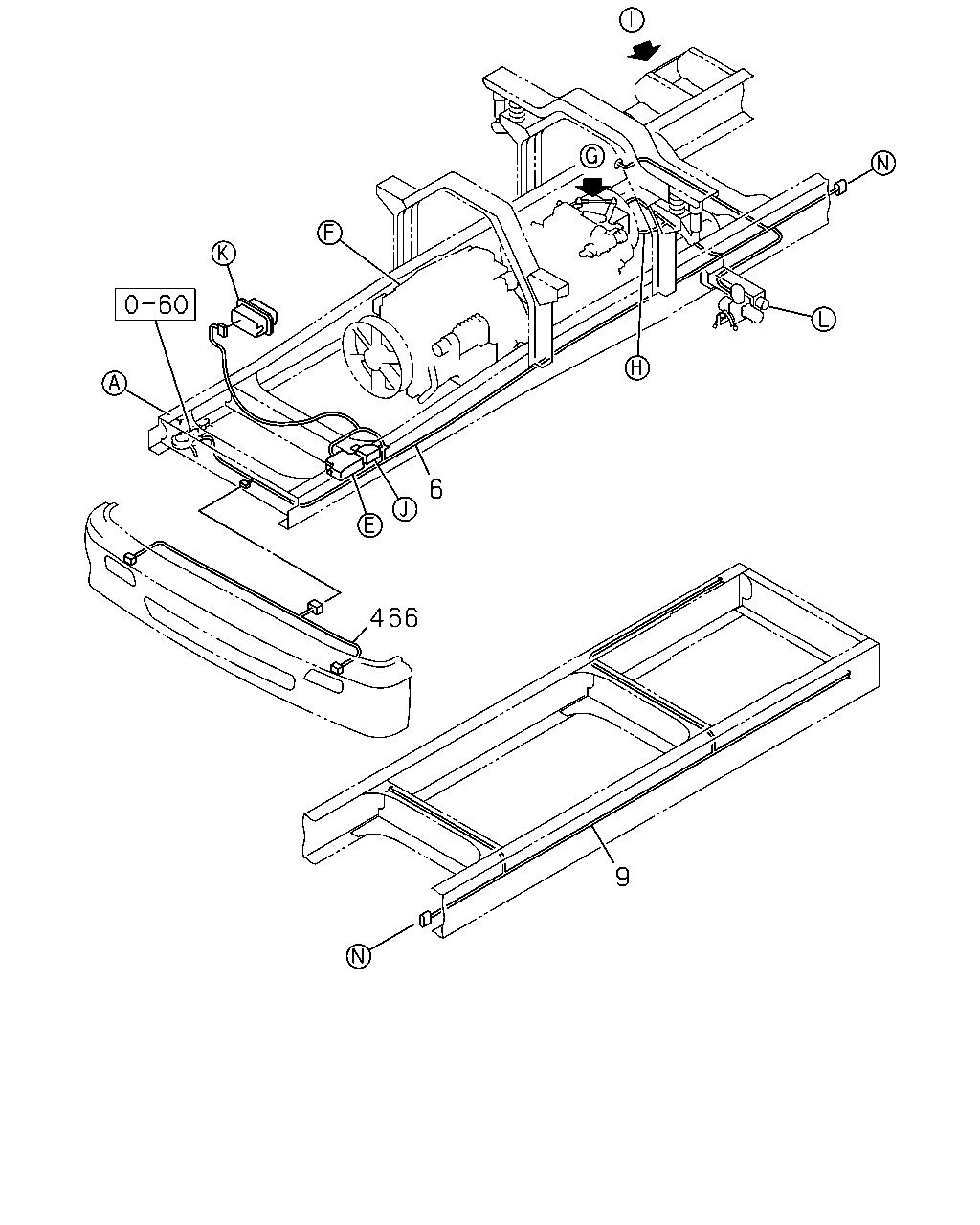

çizim 100034
6 466 9
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 HARNESS; FRAME
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) PTO CONTROL<SV6> FOG LAMP<T96> ISUZU M/T<X9A> 		1-82678-445-0 01 1 0612- ●
6 HARNESS; FRAME
6HK1 TCN ENG(82L) FOG LAMP<T96> 		1-82678-279-0 01 1 0601- ●
6 HARNESS; FRAME
FOG LAMP<T96> A/T<X9D> 		1-82678-277-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) FOG LAMP<T96> AIR HORN<WB8> 		1-82678-276-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-275-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) FOG LAMP<T96> ISUZU M/T<X9A> 		1-82678-274-0 01 1 0601-0611 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) FOG LAMP<T96> ISUZU M/T<X9A> EXC. PTO CONTROL<SV6> 		1-82678-274-0 01 1 0612- ●
6 HARNESS; FRAME
FOG LAMP<T96> 		1-82678-278-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) FOG LAMP<T96> AIR HORN<WB8> 		1-82678-282-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-281-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L) FOG LAMP<T96> ISUZU M/T<X9A> 		1-82678-280-0 01 1 0601- ●
6 HARNESS; FRAME 1-82678-019-0 01 1 0412-0512 ●
6 HARNESS; FRAME
6HK1 TCN ENG(82L) EXC. FOG LAMP<T96> 		1-82678-019-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) AIR HORN<WB8> 		1-82677-902-0 01 1 0406-0512 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-902-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) AIR HORN<WB8> 		1-82677-903-0 01 1 0406-0512 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-903-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) 		1-82677-318-2 01 1 0307-0405 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) EXC. AIR HORN<WB8> 		1-82677-318-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82677-318-2 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) 		1-82677-319-1 01 1 0307-0405 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) EXC. AIR HORN<WB8> 		1-82677-319-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82677-319-1 01 1 0601- ●
6 HARNESS; FRAME
A/T<X9D> 		1-82672-968-2 01 1 0005-0210 ●
6 HARNESS; FRAME
A/T<X9D> 		1-82676-188-1 01 1 0211-0401 ●
6 HARNESS; FRAME
A/T<X9D> 		1-82677-512-0 01 1 0402-0512 ●
6 HARNESS; FRAME
A/T<X9D> EXC. FOG LAMP<T96> 		1-82677-512-0 01 1 0601- ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> 		1-82672-969-2 01 1 0005-0210 ●
6 HARNESS; FRAME
ISUZU M/T<X9A> 		1-82676-024-1 01 1 0211-0305 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) ISUZU M/T<X9A> 		1-82676-024-1 01 1 0306-0401 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) ISUZU M/T<X9A> 		1-82677-513-0 01 1 0402-0512 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) ISUZU M/T<X9A> EXC. FOG LAMP<T96> 		1-82677-513-0 01 1 0601- ●
6 HARNESS; FRAME
ISUZU M/T<X9A> EXC. EURO2 SPECIFICATION<THN> 		1-82672-966-2 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82672-967-2 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-025-1 01 1 0211-0401 ●
6 HARNESS; FRAME 1-82677-515-0 01 1 0402-0512 ●
6 HARNESS; FRAME
EXC. FOG LAMP<T96> 		1-82677-515-0 01 1 0601- ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> 		1-82672-971-2 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-026-1 01 1 0211-0306 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L) ISUZU M/T<X9A> 		1-82676-026-1 01 1 0307-0401 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L) ISUZU M/T<X9A> 		1-82677-514-0 01 1 0402-0512 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L) ISUZU M/T<X9A> EXC. FOG LAMP<T96> 		1-82677-514-0 01 1 0601- ●
6 HARNESS; FRAME
EXC. EURO2 SPECIFICATION<THN> 		1-82672-970-2 01 1 0005-0210 ●
9 HARNESS; FRAME,RR
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82678-446-0 01 1 0612- ●
9 HARNESS; FRAME,RR 1-82678-020-0 01 1 0412- ●
9 HARNESS; FRAME,RR
WHEEL BASE 3700MM(37W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82672-975-0 01 1 0005- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82672-976-0 01 1 0005- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) 		1-82672-976-0 01 1 0005- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82672-981-0 01 1 0005- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82672-977-0 01 1 0005-0210 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W) 		1-82672-977-0 01 1 0005-0210 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82676-030-0 01 1 0211- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5100MM(51W) 		1-82676-030-0 01 1 0211- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82672-982-0 01 1 0005-0210 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5100MM(51W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82676-029-0 01 1 0211- ●
9 HARNESS; FRAME,RR
EURO2 SPECIFICATION<THN> 		1-82673-366-0 01 1 0005-0210 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) 		1-82673-006-0 01 1 0211- ●
9 HARNESS; FRAME,RR
EXC. EURO2 SPECIFICATION<THN> 		1-82672-978-0 01 1 0005-0210 ●
466 HARNESS; BUMPER
FOG LAMP<T96> 		8-97603-621-3 01 1 0601- ● ● ● ●
466 HARNESS; BUMPER 1-82638-758-1 01 1 0005-0411 ● ● ●
466 HARNESS; BUMPER 1-82638-758-1 01 1 0412-0512 ● ● ● ●
466 HARNESS; BUMPER
EXC. FOG LAMP<T96> 		1-82638-758-1 01 1 0601- ● ● ● ●

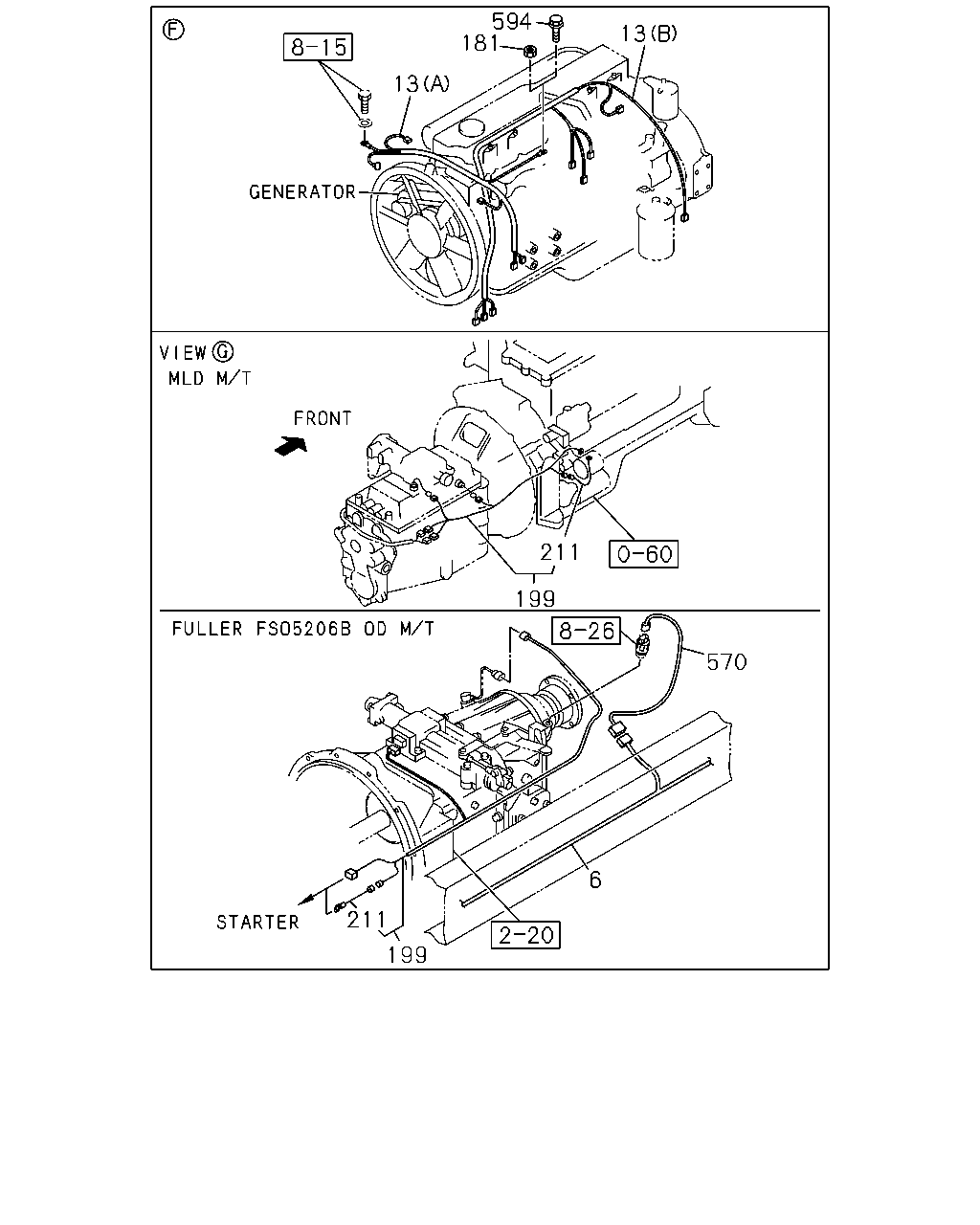

çizim 100082
594 181 13 13 211 199 570 6 211 199
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 HARNESS; FRAME
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) PTO CONTROL<SV6> FOG LAMP<T96> ISUZU M/T<X9A> 		1-82678-445-0 01 1 0612- ●
6 HARNESS; FRAME
6HK1 TCN ENG(82L) FOG LAMP<T96> 		1-82678-279-0 01 1 0601- ●
6 HARNESS; FRAME
FOG LAMP<T96> A/T<X9D> 		1-82678-277-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) FOG LAMP<T96> AIR HORN<WB8> 		1-82678-276-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-275-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) FOG LAMP<T96> ISUZU M/T<X9A> 		1-82678-274-0 01 1 0601-0611 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) FOG LAMP<T96> ISUZU M/T<X9A> EXC. PTO CONTROL<SV6> 		1-82678-274-0 01 1 0612- ●
6 HARNESS; FRAME
FOG LAMP<T96> 		1-82678-278-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) FOG LAMP<T96> AIR HORN<WB8> 		1-82678-282-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-281-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L) FOG LAMP<T96> ISUZU M/T<X9A> 		1-82678-280-0 01 1 0601- ●
6 HARNESS; FRAME 1-82678-019-0 01 1 0412-0512 ●
6 HARNESS; FRAME
6HK1 TCN ENG(82L) EXC. FOG LAMP<T96> 		1-82678-019-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) AIR HORN<WB8> 		1-82677-902-0 01 1 0406-0512 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-902-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) AIR HORN<WB8> 		1-82677-903-0 01 1 0406-0512 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-903-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) 		1-82677-318-2 01 1 0307-0405 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) EXC. AIR HORN<WB8> 		1-82677-318-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82677-318-2 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) 		1-82677-319-1 01 1 0307-0405 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) EXC. AIR HORN<WB8> 		1-82677-319-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82677-319-1 01 1 0601- ●
6 HARNESS; FRAME
A/T<X9D> 		1-82672-968-2 01 1 0005-0210 ●
6 HARNESS; FRAME
A/T<X9D> 		1-82676-188-1 01 1 0211-0401 ●
6 HARNESS; FRAME
A/T<X9D> 		1-82677-512-0 01 1 0402-0512 ●
6 HARNESS; FRAME
A/T<X9D> EXC. FOG LAMP<T96> 		1-82677-512-0 01 1 0601- ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> 		1-82672-969-2 01 1 0005-0210 ●
6 HARNESS; FRAME
ISUZU M/T<X9A> 		1-82676-024-1 01 1 0211-0305 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) ISUZU M/T<X9A> 		1-82676-024-1 01 1 0306-0401 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) ISUZU M/T<X9A> 		1-82677-513-0 01 1 0402-0512 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) ISUZU M/T<X9A> EXC. FOG LAMP<T96> 		1-82677-513-0 01 1 0601- ●
6 HARNESS; FRAME
ISUZU M/T<X9A> EXC. EURO2 SPECIFICATION<THN> 		1-82672-966-2 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82672-967-2 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-025-1 01 1 0211-0401 ●
6 HARNESS; FRAME 1-82677-515-0 01 1 0402-0512 ●
6 HARNESS; FRAME
EXC. FOG LAMP<T96> 		1-82677-515-0 01 1 0601- ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> 		1-82672-971-2 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-026-1 01 1 0211-0306 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L) ISUZU M/T<X9A> 		1-82676-026-1 01 1 0307-0401 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L) ISUZU M/T<X9A> 		1-82677-514-0 01 1 0402-0512 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L) ISUZU M/T<X9A> EXC. FOG LAMP<T96> 		1-82677-514-0 01 1 0601- ●
6 HARNESS; FRAME
EXC. EURO2 SPECIFICATION<THN> 		1-82672-970-2 01 1 0005-0210 ●
13 HARNESS; ENG
6HK1 TCS ENG(80L) (A) 		1-82641-280-0 01 1 0307- ● ●
13 HARNESS; ENG
A/T<X9D> (B) 		1-82641-057-4 01 1 0211- ●
13 HARNESS; ENG
EURO2 SPECIFICATION<THN> (A) 		1-82640-982-0 01 1 0005-0009 ● ●
13 HARNESS; ENG
EURO2 SPECIFICATION<THN> (A) 		1-82641-164-0 01 1 0010-0210 ● ●
13 HARNESS; ENG
EXC. A/T<X9D> (B) 		1-82640-950-5 01 1 0211-0302 ●
13 HARNESS; ENG
(B) 		1-82640-950-5 01 1 0211-0302 ● ●
13 HARNESS; ENG
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXC. A/T<X9D> (B) 		1-82640-950-7 01 1 0303-0411 ●
13 HARNESS; ENG
(B) 		1-82640-950-7 01 1 0303-0411 ●
13 HARNESS; ENG
6HK1 TCC ENG(81L) (B) 		1-82640-950-7 01 1 0303-0411 ●
13 HARNESS; ENG
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXC. A/T<X9D> (B) 		1-82640-950-7 01 1 0412- ●
13 HARNESS; ENG
(B) 		1-82640-950-7 01 1 0412- ● ●
13 HARNESS; ENG
6HK1 TCC ENG(81L) (B) 		1-82640-950-7 01 1 0412- ●
13 HARNESS; ENG
EXC. EURO2 SPECIFICATION<THN> (A) 		1-82640-715-1 01 1 0005-0009 ● ●
13 HARNESS; ENG
(A) 		1-82640-715-1 01 1 0005-0009 ●
13 HARNESS; ENG
EXC. EURO2 SPECIFICATION<THN> (A) 		1-82641-165-0 01 1 0010-0210 ● ●
13 HARNESS; ENG
(A) 		1-82641-165-0 01 1 0010-0210 ●
13 HARNESS; ENG
(A) 		1-82641-277-1 01 1 0211-0305 ● ● ●
13 HARNESS; ENG
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (A) 		1-82641-277-1 01 1 0306-0411 ● ●
13 HARNESS; ENG
6HK1 TCC ENG(81L) (A) 		1-82641-277-1 01 1 0306-0411 ●
13 HARNESS; ENG
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (A) 		1-82641-277-1 01 1 0412- ● ●
13 HARNESS; ENG
6HK1 TCC ENG(81L) (A) 		1-82641-277-1 01 1 0412- ●
13 HARNESS; ENG
6HK1 TCN ENG(82L) (A) 		1-82641-277-1 01 1 0412- ●
181 NUT; GLOW PLUG HARNESS
M4 FLANGE 		5-09440-007-0 01 1 0005-0305 ● ● ●
181 NUT; GLOW PLUG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) M4 FLANGE 		5-09440-007-0 01 1 0306-0411 ● ●
181 NUT; GLOW PLUG HARNESS
6HK1 TCC ENG(81L) M4 FLANGE 		5-09440-007-0 01 1 0306-0411 ●
181 NUT; GLOW PLUG HARNESS
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) M4 FLANGE 		5-09440-007-0 01 1 0412- ● ●
181 NUT; GLOW PLUG HARNESS
6HK1 TCC ENG(81L) M4 FLANGE 		5-09440-007-0 01 1 0412- ●
181 NUT; GLOW PLUG HARNESS
6HK1 TCN ENG(82L) M4 FLANGE 		5-09440-007-0 01 1 0412- ●
199 HARNESS; STARTER
FULLER FSO5206B OD M/T(Y4V) 		1-82641-335-0 01 1 0307-0309 ● ●
199 HARNESS; STARTER
FULLER FSO5206B OD M/T(Y4V) 		1-82641-343-0 01 1 0310-0401 ● ●
199 HARNESS; STARTER
FULLER FSO5206B OD M/T(Y4V) 		1-82641-353-2 01 1 0402- ● ●
199 HARNESS; STARTER
A/T<X9D> 		1-82640-720-3 01 1 0005-0105 ●
199 HARNESS; STARTER
A/T<X9D> 		1-82641-206-0 01 1 0106-0210 ●
199 HARNESS; STARTER
A/T<X9D> 		1-82641-278-1 01 1 0211- ●
199 HARNESS; STARTER
MLD6 M/T<X9Y> EXC. EURO2 SPECIFICATION<THN> 		1-82640-974-0 01 1 0005-0005 ● ●
199 HARNESS; STARTER
MBJ6 M/T<Y9B> 		1-82640-966-0 01 1 0005-0210 ● ●
199 HARNESS; STARTER 1-82640-966-0 01 1 0005-0210 ●
199 HARNESS; STARTER
MLD6 M/T<X9Y> 		1-82641-302-1 01 1 0211-0306 ●
199 HARNESS; STARTER 1-82641-302-1 01 1 0211-0306 ● ●
199 HARNESS; STARTER
MLD6 M/T<X9Y> 		1-82641-302-2 01 1 0307-0411 ● ●
199 HARNESS; STARTER 1-82641-302-2 01 1 0307-0411 ●
199 HARNESS; STARTER
MLD6 M/T<X9Y> 		1-82641-302-2 01 1 0412- ● ●
199 HARNESS; STARTER 1-82641-302-2 01 1 0412- ● ●
199 HARNESS; STARTER
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> MLD6 M/T<X9Y> 		1-82640-668-3 01 1 0005-0210 ● ●
199 HARNESS; STARTER
6HH1 STD ENG(65L) MLD6 M/T<X9Y> 		1-82640-668-3 01 1 0005-0210 ● ●
211 WIRE; FUSIBLE LINK,STARTER
WHITE 		1-82659-124-0 01 1 0005-0306 ● ● ●
211 WIRE; FUSIBLE LINK,STARTER
MLD6 M/T<X9Y> WHITE 		1-82659-124-0 01 1 0307-0401 ● ●
211 WIRE; FUSIBLE LINK,STARTER
A/T<X9D> WHITE 		1-82659-124-0 01 1 0307-0401 ●
211 WIRE; FUSIBLE LINK,STARTER
WHITE 		1-82659-124-0 01 1 0307-0401 ●
211 WIRE; FUSIBLE LINK,STARTER
WHITE 		1-82659-124-0 01 1 0402-0411 ● ● ●
211 WIRE; FUSIBLE LINK,STARTER
WHITE 		1-82659-124-0 01 1 0412- ● ● ● ●
570 HARNESS; SPEED SENSOR
AT545 A/T ALLISON(MD1),MBJ6T M/T(Y2A) 		1-82670-078-0 01 1 0005-0210 ● ●
570 HARNESS; SPEED SENSOR 1-82670-078-0 01 1 0005-0210 ●
570 HARNESS; SPEED SENSOR
A/T<X9D> 		1-82670-078-0 01 1 0211-0401 ●
570 HARNESS; SPEED SENSOR
MLD6Q M/T(X5J) 		1-82670-012-0 01 1 0005-0210 ● ●
570 HARNESS; SPEED SENSOR
MLD6 M/T<X9Y> 		1-82670-012-0 01 1 0211-0306 ●
570 HARNESS; SPEED SENSOR 1-82670-012-0 01 1 0211-0306 ● ●
570 HARNESS; SPEED SENSOR
FULLER FSO5206B OD M/T(Y4V) 		1-82670-012-0 01 1 0307-0401 ● ●
570 HARNESS; SPEED SENSOR
MLD6 M/T<X9Y> 		1-82670-012-0 01 1 0307-0401 ● ●
570 HARNESS; SPEED SENSOR 1-82670-012-0 01 1 0307-0401 ●
594 BOLT; GLOW PLUG HARNESS
M4X10 W/LK&PL WASHER 		9-03920-410-0 01 1 0211-0411 ● ● ●
594 BOLT; GLOW PLUG HARNESS
M4X10 W/LK&PL WASHER 		9-03920-410-0 01 1 0412-0604 ● ● ● ●
594 BOLT; GLOW PLUG HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0605- ● ● ● ●
çizim 100524
467 6 573 6 277 296 275 298 297
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 HARNESS; FRAME
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) PTO CONTROL<SV6> FOG LAMP<T96> ISUZU M/T<X9A> 		1-82678-445-0 01 1 0612- ●
6 HARNESS; FRAME
6HK1 TCN ENG(82L) FOG LAMP<T96> 		1-82678-279-0 01 1 0601- ●
6 HARNESS; FRAME
FOG LAMP<T96> A/T<X9D> 		1-82678-277-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) FOG LAMP<T96> AIR HORN<WB8> 		1-82678-276-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-275-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) FOG LAMP<T96> ISUZU M/T<X9A> 		1-82678-274-0 01 1 0601-0611 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) FOG LAMP<T96> ISUZU M/T<X9A> EXC. PTO CONTROL<SV6> 		1-82678-274-0 01 1 0612- ●
6 HARNESS; FRAME
FOG LAMP<T96> 		1-82678-278-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) FOG LAMP<T96> AIR HORN<WB8> 		1-82678-282-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-281-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L) FOG LAMP<T96> ISUZU M/T<X9A> 		1-82678-280-0 01 1 0601- ●
6 HARNESS; FRAME 1-82678-019-0 01 1 0412-0512 ●
6 HARNESS; FRAME
6HK1 TCN ENG(82L) EXC. FOG LAMP<T96> 		1-82678-019-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) AIR HORN<WB8> 		1-82677-902-0 01 1 0406-0512 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-902-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) AIR HORN<WB8> 		1-82677-903-0 01 1 0406-0512 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-903-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) 		1-82677-318-2 01 1 0307-0405 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) EXC. AIR HORN<WB8> 		1-82677-318-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82677-318-2 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) 		1-82677-319-1 01 1 0307-0405 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) EXC. AIR HORN<WB8> 		1-82677-319-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82677-319-1 01 1 0601- ●
6 HARNESS; FRAME
A/T<X9D> 		1-82672-968-2 01 1 0005-0210 ●
6 HARNESS; FRAME
A/T<X9D> 		1-82676-188-1 01 1 0211-0401 ●
6 HARNESS; FRAME
A/T<X9D> 		1-82677-512-0 01 1 0402-0512 ●
6 HARNESS; FRAME
A/T<X9D> EXC. FOG LAMP<T96> 		1-82677-512-0 01 1 0601- ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> 		1-82672-969-2 01 1 0005-0210 ●
6 HARNESS; FRAME
ISUZU M/T<X9A> 		1-82676-024-1 01 1 0211-0305 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) ISUZU M/T<X9A> 		1-82676-024-1 01 1 0306-0401 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) ISUZU M/T<X9A> 		1-82677-513-0 01 1 0402-0512 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) ISUZU M/T<X9A> EXC. FOG LAMP<T96> 		1-82677-513-0 01 1 0601- ●
6 HARNESS; FRAME
ISUZU M/T<X9A> EXC. EURO2 SPECIFICATION<THN> 		1-82672-966-2 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82672-967-2 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-025-1 01 1 0211-0401 ●
6 HARNESS; FRAME 1-82677-515-0 01 1 0402-0512 ●
6 HARNESS; FRAME
EXC. FOG LAMP<T96> 		1-82677-515-0 01 1 0601- ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> 		1-82672-971-2 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-026-1 01 1 0211-0306 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L) ISUZU M/T<X9A> 		1-82676-026-1 01 1 0307-0401 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L) ISUZU M/T<X9A> 		1-82677-514-0 01 1 0402-0512 ●
6 HARNESS; FRAME
6HK1 TCC ENG(81L) ISUZU M/T<X9A> EXC. FOG LAMP<T96> 		1-82677-514-0 01 1 0601- ●
6 HARNESS; FRAME
EXC. EURO2 SPECIFICATION<THN> 		1-82672-970-2 01 1 0005-0210 ●
275 BOX ASM; FRAME HARNESS
EURO2 SPECIFICATION<THN> 		1-82699-378-0 01 1 0005-0210 ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0005-0411 ● ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0412-0512 ● ● ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0601- ● ● ● ●
277 BOLT; BOX ASM FIX
EURO2 SPECIFICATION<THN> (B) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0210 ● ●
277 BOLT; BOX ASM FIX
(C) M8X30 W/LK&PL WASHER 		8-94279-144-0 02 1 0211-0411 ● ● ●
277 BOLT; BOX ASM FIX
(C) M8X30 W/LK&PL WASHER 		8-94279-144-0 02 1 0412- ● ● ● ●
296 BRACKET; HARNESS BOX
EURO2 SPECIFICATION<THN> 		1-82699-923-0 01 1 0005-0210 ● ●
297 BOLT; BOX BRKT
EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28680-825-0 02 1 0005-0210 ● ●
298 NUT; BOX BRKT
EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ● ●
467 HARNESS; FACIA
6HK1 TCN ENG(82L) FOG LAMP<T96> (B) 		1-82662-872-1 01 1 0601- ●
467 HARNESS; FACIA
FOG LAMP<T96> A/T<X9D> (B) 		1-82662-868-1 01 1 0601- ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) FOG LAMP<T96> AIR HORN<WB8> (B) 		1-82662-871-1 01 1 0601- ● ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) FOG LAMP<T96> EXC. AIR HORN<WB8> (B) 		1-82662-870-1 01 1 0601- ● ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) FOG LAMP<T96> ISUZU M/T<X9A> (B) 		1-82662-867-1 01 1 0601- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) FOG LAMP<T96> ISUZU M/T<X9A> (B) 		1-82662-867-1 01 1 0601- ●
467 HARNESS; FACIA
FOG LAMP<T96> (B) 		1-82662-869-1 01 1 0601- ●
467 HARNESS; FACIA
(B) 		1-82662-635-0 01 1 0412-0512 ●
467 HARNESS; FACIA
6HK1 TCN ENG(82L) EXC. FOG LAMP<T96> (B) 		1-82662-635-2 01 1 0601- ●
467 HARNESS; FACIA
(A) 		1-82662-634-0 01 1 0412- ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) AIR HORN<WB8> (B) 		1-82662-385-0 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) AIR HORN<WB8> EXC. FOG LAMP<T96> (B) 		1-82662-385-2 01 1 0601- ● ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) (A) 		1-82661-377-0 01 1 0307- ● ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) (B) 		1-82661-890-0 01 1 0307-0405 ● ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) EXC. AIR HORN<WB8> (B) 		1-82661-890-0 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) EXC. FOG LAMP<T96>,AIR HORN<WB8> (B) 		1-82661-890-2 01 1 0601- ● ●
467 HARNESS; FACIA
A/T<X9D> EXC. POWER WINDOW<A30>,CUSTOM CAB(SR5),EURO2 SPECIFICATION<THN> (B) 		1-82629-254-3 01 1 0005-0210 ●
467 HARNESS; FACIA
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,CUSTOM CAB(SR5) (B) 		1-82629-258-3 01 1 0005-0210 ●
467 HARNESS; FACIA
EURO2 SPECIFICATION<THN> (B) 		1-82629-258-3 01 1 0005-0210 ●
467 HARNESS; FACIA
ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,CUSTOM CAB(SR5),EURO2 SPECIFICATION<THN> (B) 		1-82629-252-3 01 1 0005-0210 ●
467 HARNESS; FACIA
EXC. EURO2 SPECIFICATION<THN> (B) 		1-82629-252-3 01 1 0005-0210 ●
467 HARNESS; FACIA
POWER WINDOW<A30> CUSTOM CAB(SR5) A/T<X9D> EXC. EURO2 SPECIFICATION<THN> (B) 		1-82629-255-3 01 1 0005-0210 ●
467 HARNESS; FACIA
POWER WINDOW<A30> CUSTOM CAB(SR5) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> (B) 		1-82629-259-3 01 1 0005-0210 ●
467 HARNESS; FACIA
ISUZU M/T<X9A> (B) 		1-82661-378-1 01 1 0211-0305 ●
467 HARNESS; FACIA
(B) 		1-82661-378-1 01 1 0211-0305 ●
467 HARNESS; FACIA
ISUZU M/T<X9A> (B) 		1-82661-378-1 01 1 0306-0512 ●
467 HARNESS; FACIA
(B) 		1-82661-378-1 01 1 0306-0512 ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) ISUZU M/T<X9A> EXC. FOG LAMP<T96> (B) 		1-82661-378-3 01 1 0601- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) ISUZU M/T<X9A> EXC. FOG LAMP<T96> (B) 		1-82661-378-3 01 1 0601- ●
467 HARNESS; FACIA
POWER WINDOW<A30> CUSTOM CAB(SR5) ISUZU M/T<X9A> EXC. EURO2 SPECIFICATION<THN> (B) 		1-82629-253-3 01 1 0005-0210 ●
467 HARNESS; FACIA
A/T<X9D> (B) 		1-82660-762-2 01 1 0211-0512 ●
467 HARNESS; FACIA
A/T<X9D> EXC. FOG LAMP<T96> (B) 		1-82660-762-4 01 1 0601- ●
467 HARNESS; FACIA
(A) 		1-82629-294-2 01 1 0005-0305 ● ● ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (A) 		1-82629-294-2 01 1 0306- ● ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) (A) 		1-82629-294-2 01 1 0306- ●
467 HARNESS; FACIA
(B) 		1-82629-269-3 01 1 0005-0210 ●
467 HARNESS; FACIA
(B) 		1-82661-379-1 01 1 0211-0512 ●
467 HARNESS; FACIA
EXC. FOG LAMP<T96> (B) 		1-82661-379-3 01 1 0601- ●
573 HARNESS; CONTROL UNIT
EURO2 SPECIFICATION<THN> (A) 		1-82626-745-3 01 1 0005-0210 ● ●
573 HARNESS; CONTROL UNIT
(B) 		1-82661-390-1 01 1 0211-0305 ● ● ●
573 HARNESS; CONTROL UNIT
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (B) 		1-82661-390-2 01 1 0306-0411 ● ●
573 HARNESS; CONTROL UNIT
6HK1 TCC ENG(81L) (B) 		1-82661-390-2 01 1 0306-0411 ●
573 HARNESS; CONTROL UNIT
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (B) 		1-82661-390-2 01 1 0412- ● ●
573 HARNESS; CONTROL UNIT
6HK1 TCC ENG(81L) (B) 		1-82661-390-2 01 1 0412- ●
573 HARNESS; CONTROL UNIT
6HK1 TCN ENG(82L) (B) 		1-82661-390-2 01 1 0412- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
