◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10826 - FRR/FSR/FRD(AUST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#9462) — 197 parça
çizim 38541
256 83 82 80 292 174 84 203 123 250 121 251
BalonParca AdiParca NoAdetTipApplied Date A B C D
80 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 0211-0411 ● ● ●
80 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 0412- ● ● ● ●
80 BULB; MARKER LAMP
12V 5W 		1-82194-053-0 02 1 0005-0210 ● ● ●
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 0005-0411 ● ● ●
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 0412- ● ● ● ●
83 LENS; MARKER LAMP 1-82215-046-0 02 1 0005-0411 ● ● ●
83 LENS; MARKER LAMP 1-82215-046-0 02 1 0412- ● ● ● ●
84 GASKET; MARKER LAMP 1-86830-288-0 04 1 0005-0411 ● ● ●
84 GASKET; MARKER LAMP 1-86830-288-0 04 1 0412- ● ● ● ●
121 REFLECTOR; REFLEX 1-82290-061-0 02 1 0005-0411 ● ●
121 REFLECTOR; REFLEX 1-82290-061-0 02 1 0412- ● ● ●
123 NUT; REFLECTOR
M6 		9-09110-406-0 02 1 0005-0411 ● ●
123 NUT; REFLECTOR
M6 		9-09110-406-0 02 1 0412-0512 ● ● ●
123 NUT; REFLECTOR
M6 		0-91110-506-0 02 1 0601- ● ● ●
174 BOLT
FOG LAMP<T96> M6X20 W/LK&PL WASHER 		0-50640-620-0 04 1 0601- ● ● ● ●
174 BOLT
M6X25 W/PL WASHER 		1-09039-006-1 04 1 0005-0411 ● ● ●
174 BOLT
M6X25 W/PL WASHER 		1-09039-006-1 04 1 0412-0906 ● ● ● ●
174 BOLT
M6X25 W/PL WASHER 		8-98064-173-0 04 1 0907- ● ● ● ●
203 FASTENER; HEADLAMP 1-71996-035-1 04 1 0005-0411 ● ●
203 FASTENER; HEADLAMP 1-71996-035-1 04 1 0412- ● ● ●
250 BRACKET ASM 1-71996-094-1 01 1 0005-0411 ● ●
250 BRACKET ASM 1-71996-094-1 01 1 0412- ● ● ●
250 BRACKET ASM 1-71996-118-0 01 1 0005-0411 ● ●
250 BRACKET ASM 1-71996-118-0 01 1 0412- ● ● ●
251 SCREW; BRKT FIX
M6X22 		1-65481-386-0 04 1 0005-0411 ● ●
251 SCREW; BRKT FIX
M6X22 		1-65481-386-0 04 1 0412- ● ● ●
256 LAMP; MARKER 1-86830-293-0 01 1 0005-0411 ● ● ●
256 LAMP; MARKER 1-86830-293-0 01 1 0412- ● ● ● ●
256 LAMP; MARKER 1-86830-292-0 01 1 0005-0411 ● ● ●
256 LAMP; MARKER 1-86830-292-0 01 1 0412- ● ● ● ●
292 WASHER; MARKER LAMP 1-82219-012-0 04 1 0005-0411 ● ● ●
292 WASHER; MARKER LAMP 1-82219-012-0 04 1 0412- ● ● ● ●

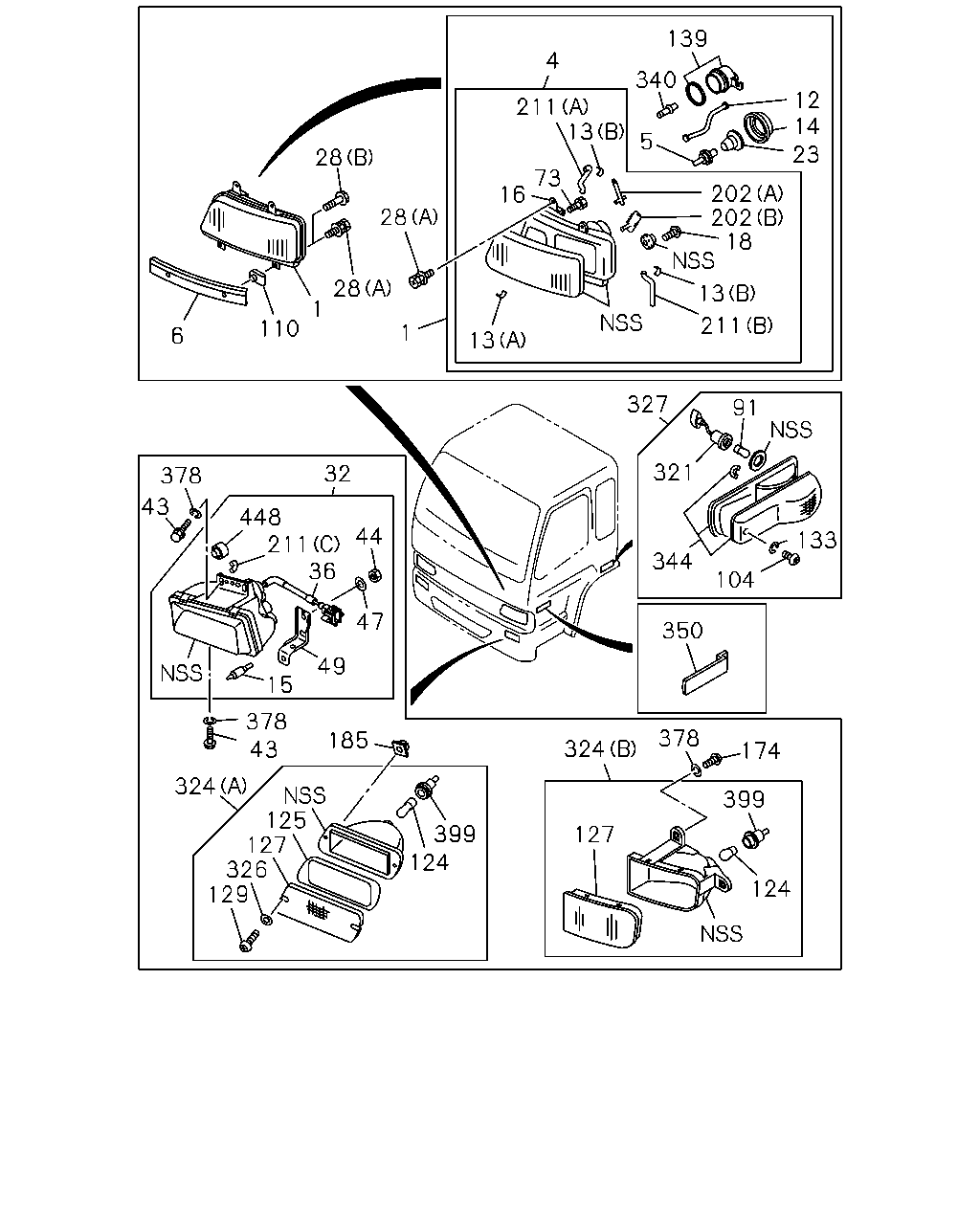

çizim 100029
124 127 324 378 174 399 124 399 129 326 127 125 324 43 185 378 15 49 47 36 211 448 44 32 43 378 1 110 6 1 28 28 28 4 211 13 73 16 13 340 5 139 12 14 23 202 202 18 13 211 350 344 104 133 321 327 91
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LAMP ASM; HEAD 1-86830-122-4 01 1 0005-0411 ● ● ●
1 LAMP ASM; HEAD 1-86830-122-4 01 1 0412- ● ● ● ●
1 LAMP ASM; HEAD 1-86830-121-4 01 1 0005-0411 ● ● ●
1 LAMP ASM; HEAD 1-86830-121-4 01 1 0412- ● ● ● ●
4 HEADLAMP UNIT 1-86830-194-1 01 1 0005-0411 ● ● ●
4 HEADLAMP UNIT 1-86830-194-1 01 1 0412- ● ● ● ●
4 HEADLAMP UNIT 1-86830-193-1 01 1 0005-0411 ● ● ●
4 HEADLAMP UNIT 1-86830-193-1 01 1 0412- ● ● ● ●
5 BULB; HEADLAMP
24V 75/70W 		8-94405-657-0 02 1 0005-0411 ● ● ●
5 BULB; HEADLAMP
24V 75/70W 		8-94405-657-0 02 1 0412- ● ● ● ●
6 RIM; HEADLAMP
BODY COLOR FT ORANGE(609) EXC. CUSTOM CAB(SR5) 		1-86830-005-5 01 1 0612- ●
6 RIM; HEADLAMP
BODY COLOR FT ORANGE(609) 		1-86830-005-5 01 1 0612- ● ●
6 RIM; HEADLAMP
BODY COLOR FT ORANGE(609) EXC. CUSTOM CAB(SR5) 		1-86830-006-5 01 1 0612- ●
6 RIM; HEADLAMP
BODY COLOR FT ORANGE(609) 		1-86830-006-5 01 1 0612- ● ●
6 RIM; HEADLAMP
BODY COLOR ARC WHITE(729) FOG LAMP<T96> 		1-86830-035-5 01 1 0602-0602 ● ● ● ●
6 RIM; HEADLAMP
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. CUSTOM CAB(SR5) 		1-86830-035-5 01 1 0603- ●
6 RIM; HEADLAMP
BODY COLOR ARC WHITE(729) FOG LAMP<T96> 		1-86830-035-5 01 1 0603- ● ● ●
6 RIM; HEADLAMP
BODY COLOR ARC WHITE(729) FOG LAMP<T96> 		1-86830-036-5 01 1 0602-0602 ● ● ● ●
6 RIM; HEADLAMP
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. CUSTOM CAB(SR5) 		1-86830-036-5 01 1 0603- ●
6 RIM; HEADLAMP
BODY COLOR ARC WHITE(729) FOG LAMP<T96> 		1-86830-036-5 01 1 0603- ● ● ●
6 RIM; HEADLAMP
CUSTOM CAB(SR5) 		1-88434-533-0 01 1 0005- ●
6 RIM; HEADLAMP
CUSTOM CAB(SR5) 		1-88434-532-0 01 1 0005- ●
6 RIM; HEADLAMP
EXC. CUSTOM CAB(SR5) 		1-86830-006-5 01 1 0005-0411 ●
6 RIM; HEADLAMP 1-86830-006-5 01 1 0005-0411 ● ●
6 RIM; HEADLAMP
BODY COLOR ARC WHITE(729) EXC. CUSTOM CAB(SR5) 		1-86830-006-5 01 1 0412-0601 ●
6 RIM; HEADLAMP
BODY COLOR ARC WHITE(729) 		1-86830-006-5 01 1 0412-0601 ● ● ●
6 RIM; HEADLAMP
BODY COLOR ARC WHITE(729) EXC. CUSTOM CAB(SR5),FOG LAMP<T96> 		1-86830-006-5 01 1 0602- ●
6 RIM; HEADLAMP
BODY COLOR ARC WHITE(729) EXC. FOG LAMP<T96> 		1-86830-006-5 01 1 0602- ● ● ●
6 RIM; HEADLAMP
EXC. CUSTOM CAB(SR5) 		1-86830-005-5 01 1 0005-0411 ●
6 RIM; HEADLAMP 1-86830-005-5 01 1 0005-0411 ● ●
6 RIM; HEADLAMP
BODY COLOR ARC WHITE(729) EXC. CUSTOM CAB(SR5),FOG LAMP<T96> 		1-86830-005-5 01 1 0602- ●
6 RIM; HEADLAMP
BODY COLOR ARC WHITE(729) EXC. FOG LAMP<T96> 		1-86830-005-5 01 1 0602- ● ● ●
12 HARNESS; HEADLAMP 1-86830-199-0 02 1 0211-0411 ● ● ●
12 HARNESS; HEADLAMP 1-86830-199-0 02 1 0412- ● ● ● ●
12 HARNESS; HEADLAMP 1-86830-199-0 02 1 0005-0210 ● ● ●
13 CLIP; HEADLAMP
(B) 		1-82119-084-0 04 1 0005-0411 ● ● ●
13 CLIP; HEADLAMP
(B) 		1-82119-084-0 04 1 0412- ● ● ● ●
13 CLIP; HEADLAMP
(A) 		8-94381-588-0 14 1 0005-0411 ● ● ●
13 CLIP; HEADLAMP
(A) 		8-94381-588-0 14 1 0412- ● ● ● ●
14 CAP; BULB,LAMP 1-86830-148-0 02 1 0005-0411 ● ● ●
14 CAP; BULB,LAMP 1-86830-148-0 02 1 0412- ● ● ● ●
15 BULB; FOG LAMP
FOG LAMP<T96> 24V 70W 		1-82194-106-0 02 1 0601- ● ● ● ●
16 BRACKET; HEADLAMP 1-86830-076-0 01 1 0005-0411 ● ● ●
16 BRACKET; HEADLAMP 1-86830-076-0 01 1 0412- ● ● ● ●
16 BRACKET; HEADLAMP 1-86830-075-0 01 1 0005-0411 ● ● ●
16 BRACKET; HEADLAMP 1-86830-075-0 01 1 0412- ● ● ● ●
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 0005-0411 ● ● ●
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 0412- ● ● ● ●
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 0005-0411 ● ● ●
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 0412- ● ● ● ●
28 BOLT; HEADLAMP
(B) M6X16 FLANGE 		0-28650-616-0 04 1 0709- ● ● ● ●
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0005-0411 ● ● ●
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0412-0708 ● ● ● ●
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0709- ● ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		1-82110-453-0 01 1 0601-0712 ● ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		1-82110-475-0 01 1 0801-0906 ● ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-149-1 01 1 0907-1301 ● ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-064-0 01 1 1302- ● ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		1-82110-454-0 01 1 0601-0712 ● ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		1-82110-476-0 01 1 0801-0906 ● ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-150-1 01 1 0907-1301 ● ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-065-0 01 1 1302- ● ● ● ●
36 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-015-0 01 1 0601- ● ● ● ●
36 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-016-0 01 1 0601- ● ● ● ●
43 BOLT; FOG LAMP
FOG LAMP<T96> M6X20 FLANGE 		0-28650-620-0 04 1 0601- ● ● ● ●
43 BOLT; FOG LAMP
FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> M6X20 FLANGE 		0-28650-620-0 02 1 0601- ●
43 BOLT; FOG LAMP
FOG LAMP<T96> M6X20 FLANGE 		0-28650-620-0 02 1 0601- ● ●
43 BOLT; FOG LAMP
FOG LAMP<T96> FRONT UNDER SPOILER<VP1> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
43 BOLT; FOG LAMP
FOG LAMP<T96> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
43 BOLT; FOG LAMP
FOG LAMP<T96> M6X20 FLANGE 		0-28680-620-0 04 1 0601- ● ● ● ●
43 BOLT; FOG LAMP
FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> M6X20 FLANGE 		0-28680-620-0 02 1 0601- ●
43 BOLT; FOG LAMP
FOG LAMP<T96> M6X20 FLANGE 		0-28680-620-0 02 1 0601- ● ●
43 BOLT; FOG LAMP
FOG LAMP<T96> FRONT UNDER SPOILER<VP1> M8X20 FLANGE 		0-28680-820-0 02 1 0601- ●
43 BOLT; FOG LAMP
FOG LAMP<T96> M8X20 FLANGE 		0-28680-820-0 02 1 0601- ●
44 NUT; FOG LAMP
FOG LAMP<T96> M6 		8-98217-430-0 02 1 1205- ● ● ● ●
47 WASHER; PL,FOG LAMP
FOG LAMP<T96> 		8-98217-429-0 02 1 1205- ● ● ● ●
49 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-437-0 01 1 0601- ● ● ● ●
49 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-438-0 01 1 0601- ● ● ● ●
73 BOLT; BRKT,HEADLAMP 8-94332-050-0 04 1 0005-0411 ● ● ●
73 BOLT; BRKT,HEADLAMP 8-94332-050-0 04 1 0412- ● ● ● ●
91 BULB; SIDE TURN SIGNAL
24V 10W 		1-82194-037-0 02 1 0005-0411 ● ● ●
91 BULB; SIDE TURN SIGNAL
24V 10W 		1-82194-037-0 02 1 0412- ● ● ● ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0005-0411 ● ● ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0412- ● ● ● ●
110 CLIP; RIM,HEADLAMP 1-86830-213-1 04 1 0005-0411 ● ● ●
110 CLIP; RIM,HEADLAMP 1-86830-213-1 04 1 0412- ● ● ● ●
124 BULB; FRT TURN SIGNAL
FOG LAMP<T96> 24V 21W 		1-82194-105-0 02 1 0601- ● ● ● ●
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 0005-0411 ● ● ●
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 0412-0512 ● ● ● ●
124 BULB; FRT TURN SIGNAL
EXC. FOG LAMP<T96> 24V 21W 		1-82194-036-0 02 1 0601- ● ● ● ●
125 GASKET; FRT TURN SIGNAL 1-82216-033-0 02 1 0005-0411 ● ● ●
125 GASKET; FRT TURN SIGNAL 1-82216-033-0 02 1 0412-0512 ● ● ● ●
125 GASKET; FRT TURN SIGNAL
EXC. FOG LAMP<T96> 		1-82216-033-0 02 1 0601- ● ● ● ●
127 LENS; FRT TURN SIGNAL
FOG LAMP<T96> ORANGE 		1-82215-073-0 01 1 0601- ● ● ● ●
127 LENS; FRT TURN SIGNAL
FOG LAMP<T96> ORANGE 		1-82215-074-0 01 1 0601- ● ● ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-065-0 01 1 0005-0411 ● ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-065-0 01 1 0412-0512 ● ● ● ●
127 LENS; FRT TURN SIGNAL
EXC. FOG LAMP<T96> ORANGE 		1-82215-065-0 01 1 0601- ● ● ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-064-0 01 1 0005-0411 ● ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-064-0 01 1 0412-0512 ● ● ● ●
127 LENS; FRT TURN SIGNAL
EXC. FOG LAMP<T96> ORANGE 		1-82215-064-0 01 1 0601- ● ● ● ●
129 SCREW; FRT TURN SIGNAL 1-82219-026-0 04 1 0005-0411 ● ● ●
129 SCREW; FRT TURN SIGNAL 1-82219-026-0 04 1 0412-0512 ● ● ● ●
129 SCREW; FRT TURN SIGNAL
EXC. FOG LAMP<T96> 		1-82219-026-0 04 1 0601- ● ● ● ●
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 0005-0206 ● ● ●
139 COVER; HEADLAMP 1-82119-224-0 02 1 0211-0411 ● ● ●
139 COVER; HEADLAMP 1-82119-224-0 02 1 0412- ● ● ● ●
174 BOLT
FOG LAMP<T96> M6X20 W/LK&PL WASHER 		0-50640-620-0 04 1 0601- ● ● ● ●
174 BOLT
M6X25 W/PL WASHER 		1-09039-006-1 04 1 0005-0411 ● ● ●
174 BOLT
M6X25 W/PL WASHER 		1-09039-006-1 04 1 0412-0906 ● ● ● ●
174 BOLT
M6X25 W/PL WASHER 		8-98064-173-0 04 1 0907- ● ● ● ●
185 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0005-0411 ● ● ●
185 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0412-0512 ● ● ● ●
185 GROMMET; SCREW
EXC. FOG LAMP<T96> D=9.7X9.7 L=8 		8-94222-314-0 04 1 0601- ● ● ● ●
202 GEAR UNIT; HEADLAMP
(A) OUTER 		1-86830-139-0 02 1 0005-0411 ● ● ●
202 GEAR UNIT; HEADLAMP
(A) OUTER 		1-86830-139-0 02 1 0412- ● ● ● ●
202 GEAR UNIT; HEADLAMP
(B) INNER 		1-86830-140-0 02 1 0005-0411 ● ● ●
202 GEAR UNIT; HEADLAMP
(B) INNER 		1-86830-140-0 02 1 0412- ● ● ● ●
211 TUBE; HEADLAMP
FOG LAMP<T96> (C) 		8-97025-128-0 02 1 0601-0906 ● ● ● ●
211 TUBE; HEADLAMP
(A) 		1-86830-329-0 01 1 0005-0105 ● ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0005-0411 ● ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0412- ● ● ● ●
211 TUBE; HEADLAMP
(A) 		1-86830-328-0 01 1 0005-0105 ● ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0005-0411 ● ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0412- ● ● ● ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0005-0411 ● ● ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0412- ● ● ● ●
324 LAMP; FRT FLASHER
FOG LAMP<T96> (B) 		1-82210-259-1 01 1 0601- ● ● ● ●
324 LAMP; FRT FLASHER
FOG LAMP<T96> (B) 		1-82210-260-1 01 1 0601- ● ● ● ●
324 LAMP; FRT FLASHER
(A) 		1-82210-203-1 01 1 0005-0411 ● ● ●
324 LAMP; FRT FLASHER
(A) 		1-82210-203-1 01 1 0412-0512 ● ● ● ●
324 LAMP; FRT FLASHER
EXC. FOG LAMP<T96> (A) 		1-82210-203-1 01 1 0601- ● ● ● ●
324 LAMP; FRT FLASHER
(A) 		1-82210-202-1 01 1 0005-0411 ● ● ●
324 LAMP; FRT FLASHER
(A) 		1-82210-202-1 01 1 0412-0512 ● ● ● ●
324 LAMP; FRT FLASHER
EXC. FOG LAMP<T96> (A) 		1-82210-202-1 01 1 0601- ● ● ● ●
326 WASHER; PL,FRT TURN SIGNAL 1-82216-032-0 04 1 0005-0411 ● ● ●
326 WASHER; PL,FRT TURN SIGNAL 1-82216-032-0 04 1 0412-0512 ● ● ● ●
326 WASHER; PL,FRT TURN SIGNAL
EXC. FOG LAMP<T96> 		1-82216-032-0 04 1 0601- ● ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-263-1 01 1 0005-0411 ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-263-1 01 1 0412- ● ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-262-1 01 1 0005-0411 ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-262-1 01 1 0412- ● ● ● ●
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 0005-0411 ● ● ●
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 0412- ● ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 0005-0411 ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 0412- ● ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 0005-0411 ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 0412- ● ● ● ●
350 COVER; SIDE TURN HOLE
BODY COLOR FT ORANGE(609) 		1-79996-606-0 01 1 0702- ●
350 COVER; SIDE TURN HOLE
BODY COLOR FT ORANGE(609) 		1-79996-607-0 01 1 0702- ●
350 COVER; SIDE TURN HOLE 1-79998-944-1 01 1 0005-0209 ●
350 COVER; SIDE TURN HOLE 1-79998-943-1 01 1 0005-0209 ●
350 COVER; SIDE TURN HOLE 1-79996-607-0 01 1 0210- ●
350 COVER; SIDE TURN HOLE 1-79996-606-0 01 1 0210- ●
378 WASHER; PL
ID=6.4 OD=14 		9-09160-606-0 04 1 0601-0605 ● ● ● ●
378 WASHER; PL
ID=6.4 		0-91610-606-0 04 1 0606- ● ● ● ●
378 WASHER; PL
EXC. FRONT UNDER SPOILER<VP1> ID=6.4 OD=14 		9-09160-606-0 02 1 0601-0605 ●
378 WASHER; PL
ID=6.4 OD=14 		9-09160-606-0 02 1 0601-0605 ● ●
378 WASHER; PL
EXC. FRONT UNDER SPOILER<VP1> ID=6.4 		0-91610-606-0 02 1 0606- ●
378 WASHER; PL
ID=6.4 		0-91610-606-0 02 1 0606- ● ●
399 SOCKET; TURN SIGNAL
FOG LAMP<T96> 		1-82219-038-0 02 1 0601- ● ● ● ●
399 SOCKET; TURN SIGNAL 1-82219-034-0 02 1 0005-0411 ● ● ●
399 SOCKET; TURN SIGNAL 1-82219-034-0 02 1 0412-0512 ● ● ● ●
399 SOCKET; TURN SIGNAL
EXC. FOG LAMP<T96> 		1-82219-034-0 02 1 0601- ● ● ● ●
448 CAP ASM; LAMP
FOG LAMP<T96> 		8-97378-874-0 02 1 0907- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
