7-70 — SEPARATER AND BED (#9461) — 172 parça

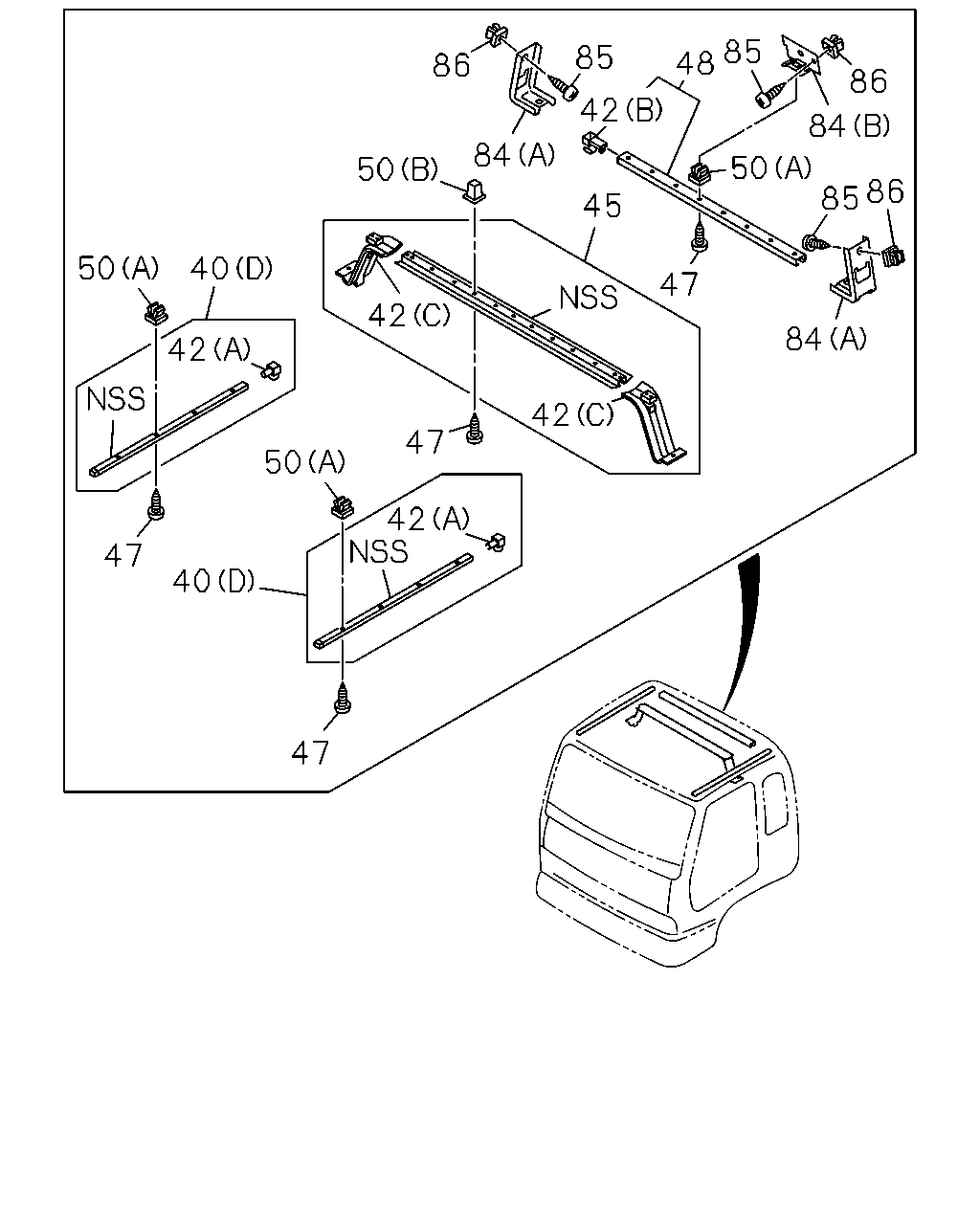

50 47 40 48 47 47 50 40 45 50 50 50 47 42 42 40 40 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
40	RAIL; CURTAIN,SIDE CUSTOM CAB(SR5) (C)	1-73908-356-1	01	1	0005-	●
40	RAIL; CURTAIN,SIDE CUSTOM CAB(SR5) (C)	1-73908-355-1	01	1	0005-	●
40	RAIL; CURTAIN,SIDE EXC. CUSTOM CAB(SR5) (D)	1-73996-378-1	02	1	0005-0411	●
40	RAIL; CURTAIN,SIDE (D)	1-73996-378-1	02	1	0005-0411		●
40	RAIL; CURTAIN,SIDE EXC. CUSTOM CAB(SR5) (D)	1-73996-378-1	02	1	0412-	●
40	RAIL; CURTAIN,SIDE (D)	1-73996-378-1	02	1	0412-		●	●
40	RAIL; CURTAIN,SIDE (A)	1-73996-381-0	02	1	0005-				●
40	RAIL; CURTAIN,SIDE (B)	1-73996-448-1	01	1	0005-				●
40	RAIL; CURTAIN,SIDE (B)	1-73996-447-1	01	1	0005-				●
42	STOPPER; CURTAIN RAIL CUSTOM CAB(SR5) (C)	1-73996-401-0	02	1	0005-0305	●
42	STOPPER; CURTAIN RAIL EXC. CUSTOM CAB(SR5) (C)	1-73996-402-0	02	1	0005-0305	●
42	STOPPER; CURTAIN RAIL (C)	1-73996-402-0	02	1	0005-0305		●
42	STOPPER; CURTAIN RAIL (C)	1-73996-402-0	02	1	0306-0411	●	●
42	STOPPER; CURTAIN RAIL (C)	1-73996-402-0	02	1	0412-	●	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0005-0411	●	●		●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0412-	●	●	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	0005-0411	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	0412-	●	●	●
45	RAIL; CURTAIN,FRT CUSTOM CAB(SR5)	1-73996-492-0	01	1	0005-0305	●
45	RAIL; CURTAIN,FRT EXC. CUSTOM CAB(SR5)	1-73996-369-0	01	1	0005-0305	●
45	RAIL; CURTAIN,FRT	1-73996-369-0	01	1	0005-0305		●
45	RAIL; CURTAIN,FRT	1-73996-369-1	01	1	0306-0411	●	●
45	RAIL; CURTAIN,FRT	1-73996-369-1	01	1	0412-	●	●	●
45	RAIL; CURTAIN,FRT	1-73996-387-1	01	1	0005-				●
47	SCREW; CURTAIN RAIL CUSTOM CAB(SR5) M5X20	5-09981-059-0	30	1	0005-	●
47	SCREW; CURTAIN RAIL EXC. CUSTOM CAB(SR5) M5X20	5-09981-059-0	19	1	0005-0411	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	19	1	0005-0411		●
47	SCREW; CURTAIN RAIL EXC. CUSTOM CAB(SR5) M5X20	5-09981-059-0	19	1	0412-	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	19	1	0412-		●	●
47	SCREW; CURTAIN RAIL EXC. CUSTOM CAB(SR5) M5X25	5-09981-093-0	07	1	0005-0411	●
47	SCREW; CURTAIN RAIL M5X25	5-09981-093-0	07	1	0005-0411		●
47	SCREW; CURTAIN RAIL EXC. CUSTOM CAB(SR5) M5X25	5-09981-093-0	07	1	0412-	●
47	SCREW; CURTAIN RAIL M5X25	5-09981-093-0	07	1	0412-		●	●
47	SCREW; CURTAIN RAIL M4X16 TAPPING	1-09981-477-0	15	1	0005-				●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	13	1	0005-				●
48	RAIL; CURTAIN,BACK	1-73996-385-1	01	1	0005-0411	●	●
48	RAIL; CURTAIN,BACK	1-73996-385-1	01	1	0412-	●	●	●
48	RAIL; CURTAIN,BACK	1-73996-449-1	01	1	0005-				●
50	GROMMET; SCREW,CURTAIN RAIL CUSTOM CAB(SR5) (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0005-	●
50	GROMMET; SCREW,CURTAIN RAIL CUSTOM CAB(SR5) (A) D=8.6X7.7 L=7.5	8-94279-078-0	25	1	0005-	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. CUSTOM CAB(SR5) (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0005-0411	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0005-0411		●
50	GROMMET; SCREW,CURTAIN RAIL EXC. CUSTOM CAB(SR5) (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0412-	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0412-		●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. CUSTOM CAB(SR5) (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0005-0411	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0005-0411		●
50	GROMMET; SCREW,CURTAIN RAIL EXC. CUSTOM CAB(SR5) (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0412-	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0412-		●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	04	1	0005-				●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0005-				●

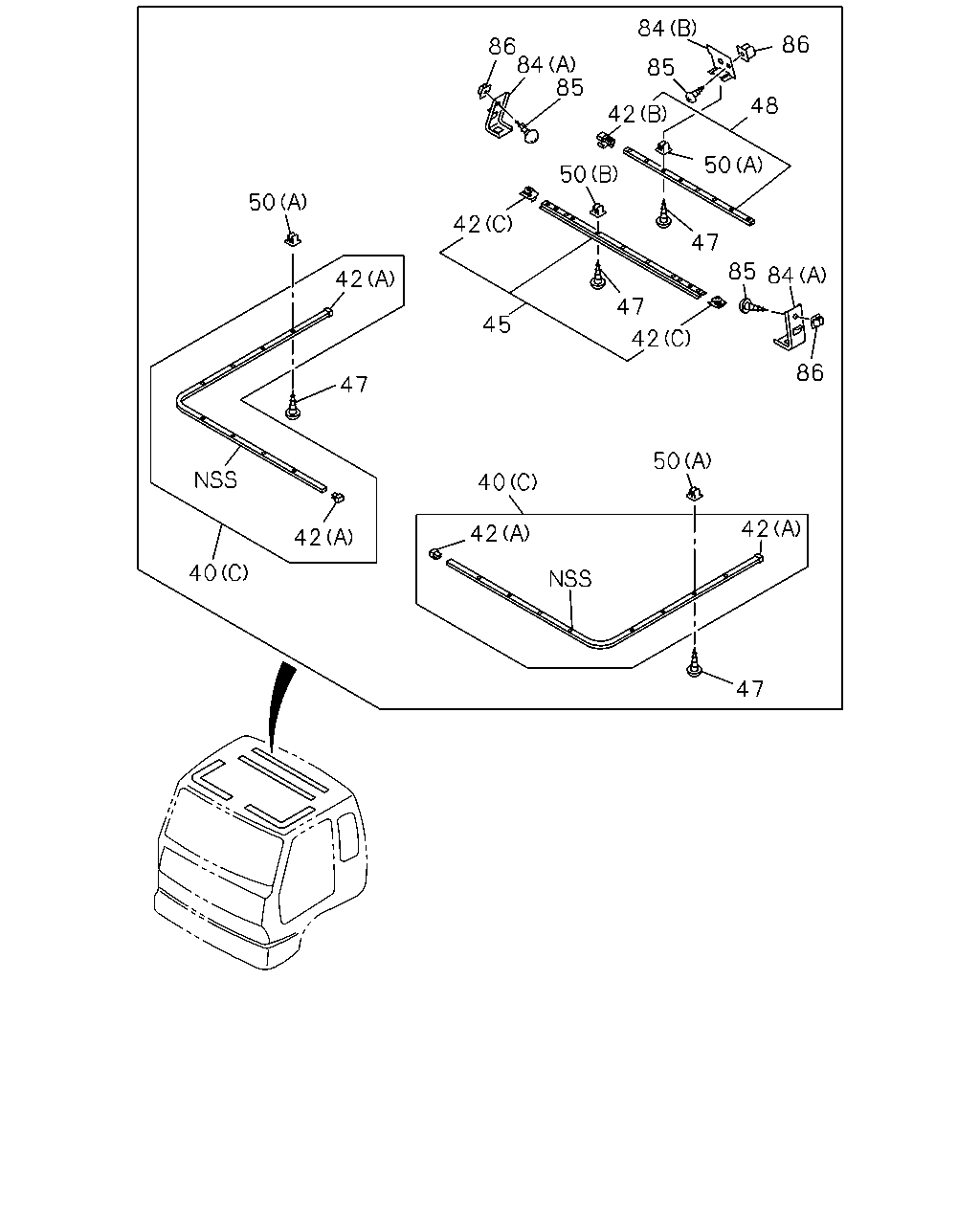

85 48 85 86 86 42 84 84 50 86 85 50 45 50 40 47 42 84 42 42 47 50 42 47 40 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
40	RAIL; CURTAIN,SIDE CUSTOM CAB(SR5) (C)	1-73908-356-1	01	1	0005-	●
40	RAIL; CURTAIN,SIDE CUSTOM CAB(SR5) (C)	1-73908-355-1	01	1	0005-	●
40	RAIL; CURTAIN,SIDE EXC. CUSTOM CAB(SR5) (D)	1-73996-378-1	02	1	0005-0411	●
40	RAIL; CURTAIN,SIDE (D)	1-73996-378-1	02	1	0005-0411		●
40	RAIL; CURTAIN,SIDE EXC. CUSTOM CAB(SR5) (D)	1-73996-378-1	02	1	0412-	●
40	RAIL; CURTAIN,SIDE (D)	1-73996-378-1	02	1	0412-		●	●
40	RAIL; CURTAIN,SIDE (A)	1-73996-381-0	02	1	0005-				●
40	RAIL; CURTAIN,SIDE (B)	1-73996-448-1	01	1	0005-				●
40	RAIL; CURTAIN,SIDE (B)	1-73996-447-1	01	1	0005-				●
42	STOPPER; CURTAIN RAIL CUSTOM CAB(SR5) (C)	1-73996-401-0	02	1	0005-0305	●
42	STOPPER; CURTAIN RAIL EXC. CUSTOM CAB(SR5) (C)	1-73996-402-0	02	1	0005-0305	●
42	STOPPER; CURTAIN RAIL (C)	1-73996-402-0	02	1	0005-0305		●
42	STOPPER; CURTAIN RAIL (C)	1-73996-402-0	02	1	0306-0411	●	●
42	STOPPER; CURTAIN RAIL (C)	1-73996-402-0	02	1	0412-	●	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0005-0411	●	●		●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0412-	●	●	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	0005-0411	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	0412-	●	●	●
45	RAIL; CURTAIN,FRT CUSTOM CAB(SR5)	1-73996-492-0	01	1	0005-0305	●
45	RAIL; CURTAIN,FRT EXC. CUSTOM CAB(SR5)	1-73996-369-0	01	1	0005-0305	●
45	RAIL; CURTAIN,FRT	1-73996-369-0	01	1	0005-0305		●
45	RAIL; CURTAIN,FRT	1-73996-369-1	01	1	0306-0411	●	●
45	RAIL; CURTAIN,FRT	1-73996-369-1	01	1	0412-	●	●	●
45	RAIL; CURTAIN,FRT	1-73996-387-1	01	1	0005-				●
47	SCREW; CURTAIN RAIL CUSTOM CAB(SR5) M5X20	5-09981-059-0	30	1	0005-	●
47	SCREW; CURTAIN RAIL EXC. CUSTOM CAB(SR5) M5X20	5-09981-059-0	19	1	0005-0411	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	19	1	0005-0411		●
47	SCREW; CURTAIN RAIL EXC. CUSTOM CAB(SR5) M5X20	5-09981-059-0	19	1	0412-	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	19	1	0412-		●	●
47	SCREW; CURTAIN RAIL EXC. CUSTOM CAB(SR5) M5X25	5-09981-093-0	07	1	0005-0411	●
47	SCREW; CURTAIN RAIL M5X25	5-09981-093-0	07	1	0005-0411		●
47	SCREW; CURTAIN RAIL EXC. CUSTOM CAB(SR5) M5X25	5-09981-093-0	07	1	0412-	●
47	SCREW; CURTAIN RAIL M5X25	5-09981-093-0	07	1	0412-		●	●
47	SCREW; CURTAIN RAIL M4X16 TAPPING	1-09981-477-0	15	1	0005-				●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	13	1	0005-				●
48	RAIL; CURTAIN,BACK	1-73996-385-1	01	1	0005-0411	●	●
48	RAIL; CURTAIN,BACK	1-73996-385-1	01	1	0412-	●	●	●
48	RAIL; CURTAIN,BACK	1-73996-449-1	01	1	0005-				●
50	GROMMET; SCREW,CURTAIN RAIL CUSTOM CAB(SR5) (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0005-	●
50	GROMMET; SCREW,CURTAIN RAIL CUSTOM CAB(SR5) (A) D=8.6X7.7 L=7.5	8-94279-078-0	25	1	0005-	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. CUSTOM CAB(SR5) (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0005-0411	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0005-0411		●
50	GROMMET; SCREW,CURTAIN RAIL EXC. CUSTOM CAB(SR5) (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0412-	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0412-		●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. CUSTOM CAB(SR5) (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0005-0411	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0005-0411		●
50	GROMMET; SCREW,CURTAIN RAIL EXC. CUSTOM CAB(SR5) (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0412-	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0412-		●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	04	1	0005-				●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0005-				●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0005-0411	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0412-	●	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	03	1	0005-0305	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0306-0411	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0412-	●	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	05	1	0005-0305	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0306-0411	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0412-	●	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	05	1	0005-0305	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0306-0411	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0412-	●	●	●

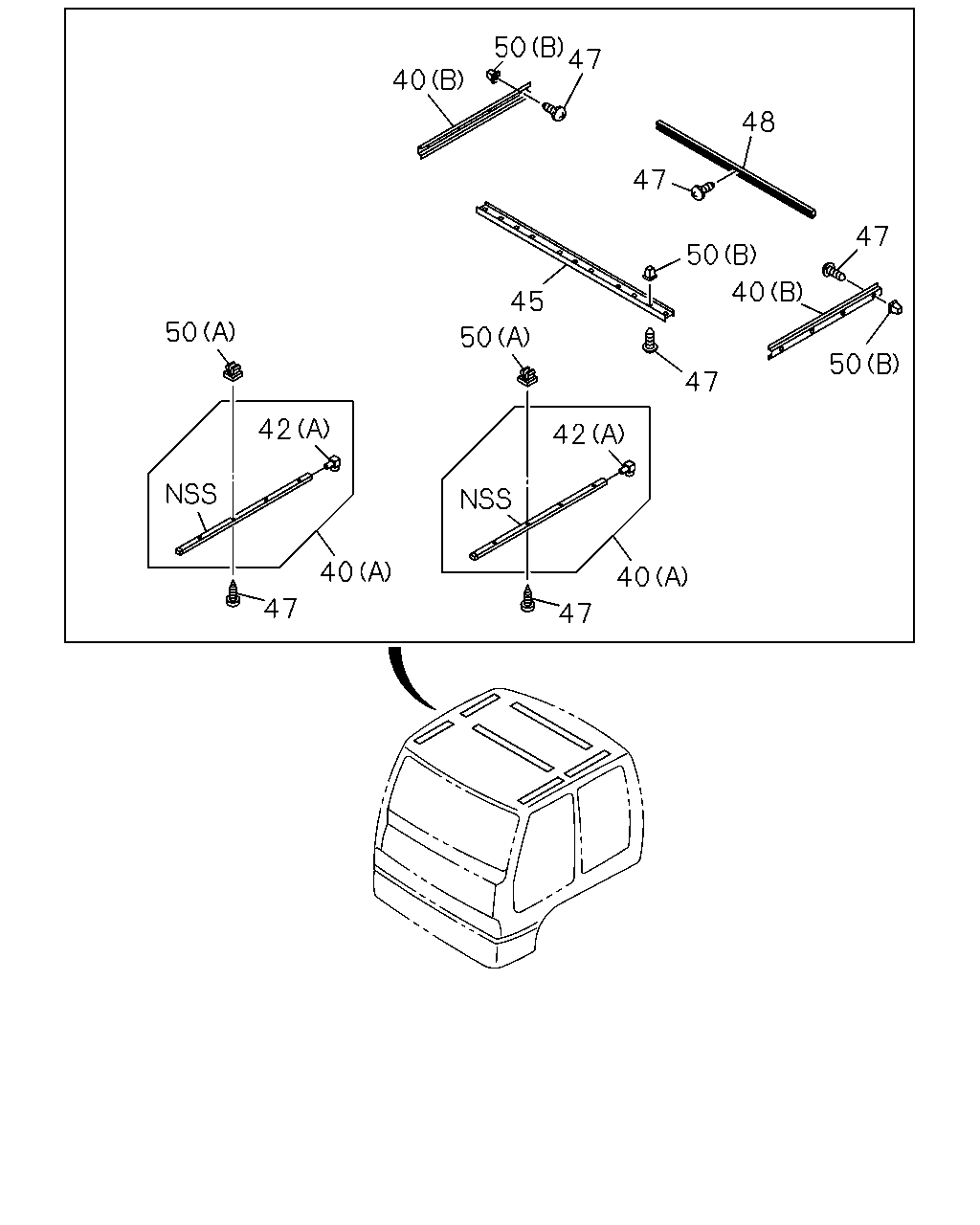

84 86 86 84 85 85 48 42 50 50 50 42 47 85 84 42 47 45 42 86 47 50 40 42 42 42 40 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
40	RAIL; CURTAIN,SIDE CUSTOM CAB(SR5) (C)	1-73908-356-1	01	1	0005-	●
40	RAIL; CURTAIN,SIDE CUSTOM CAB(SR5) (C)	1-73908-355-1	01	1	0005-	●
40	RAIL; CURTAIN,SIDE EXC. CUSTOM CAB(SR5) (D)	1-73996-378-1	02	1	0005-0411	●
40	RAIL; CURTAIN,SIDE (D)	1-73996-378-1	02	1	0005-0411		●
40	RAIL; CURTAIN,SIDE EXC. CUSTOM CAB(SR5) (D)	1-73996-378-1	02	1	0412-	●
40	RAIL; CURTAIN,SIDE (D)	1-73996-378-1	02	1	0412-		●	●
40	RAIL; CURTAIN,SIDE (A)	1-73996-381-0	02	1	0005-				●
40	RAIL; CURTAIN,SIDE (B)	1-73996-448-1	01	1	0005-				●
40	RAIL; CURTAIN,SIDE (B)	1-73996-447-1	01	1	0005-				●
42	STOPPER; CURTAIN RAIL CUSTOM CAB(SR5) (C)	1-73996-401-0	02	1	0005-0305	●
42	STOPPER; CURTAIN RAIL EXC. CUSTOM CAB(SR5) (C)	1-73996-402-0	02	1	0005-0305	●
42	STOPPER; CURTAIN RAIL (C)	1-73996-402-0	02	1	0005-0305		●
42	STOPPER; CURTAIN RAIL (C)	1-73996-402-0	02	1	0306-0411	●	●
42	STOPPER; CURTAIN RAIL (C)	1-73996-402-0	02	1	0412-	●	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0005-0411	●	●		●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0412-	●	●	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	0005-0411	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	0412-	●	●	●
45	RAIL; CURTAIN,FRT CUSTOM CAB(SR5)	1-73996-492-0	01	1	0005-0305	●
45	RAIL; CURTAIN,FRT EXC. CUSTOM CAB(SR5)	1-73996-369-0	01	1	0005-0305	●
45	RAIL; CURTAIN,FRT	1-73996-369-0	01	1	0005-0305		●
45	RAIL; CURTAIN,FRT	1-73996-369-1	01	1	0306-0411	●	●
45	RAIL; CURTAIN,FRT	1-73996-369-1	01	1	0412-	●	●	●
45	RAIL; CURTAIN,FRT	1-73996-387-1	01	1	0005-				●
47	SCREW; CURTAIN RAIL CUSTOM CAB(SR5) M5X20	5-09981-059-0	30	1	0005-	●
47	SCREW; CURTAIN RAIL EXC. CUSTOM CAB(SR5) M5X20	5-09981-059-0	19	1	0005-0411	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	19	1	0005-0411		●
47	SCREW; CURTAIN RAIL EXC. CUSTOM CAB(SR5) M5X20	5-09981-059-0	19	1	0412-	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	19	1	0412-		●	●
47	SCREW; CURTAIN RAIL EXC. CUSTOM CAB(SR5) M5X25	5-09981-093-0	07	1	0005-0411	●
47	SCREW; CURTAIN RAIL M5X25	5-09981-093-0	07	1	0005-0411		●
47	SCREW; CURTAIN RAIL EXC. CUSTOM CAB(SR5) M5X25	5-09981-093-0	07	1	0412-	●
47	SCREW; CURTAIN RAIL M5X25	5-09981-093-0	07	1	0412-		●	●
47	SCREW; CURTAIN RAIL M4X16 TAPPING	1-09981-477-0	15	1	0005-				●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	13	1	0005-				●
48	RAIL; CURTAIN,BACK	1-73996-385-1	01	1	0005-0411	●	●
48	RAIL; CURTAIN,BACK	1-73996-385-1	01	1	0412-	●	●	●
48	RAIL; CURTAIN,BACK	1-73996-449-1	01	1	0005-				●
50	GROMMET; SCREW,CURTAIN RAIL CUSTOM CAB(SR5) (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0005-	●
50	GROMMET; SCREW,CURTAIN RAIL CUSTOM CAB(SR5) (A) D=8.6X7.7 L=7.5	8-94279-078-0	25	1	0005-	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. CUSTOM CAB(SR5) (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0005-0411	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0005-0411		●
50	GROMMET; SCREW,CURTAIN RAIL EXC. CUSTOM CAB(SR5) (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0412-	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0412-		●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. CUSTOM CAB(SR5) (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0005-0411	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0005-0411		●
50	GROMMET; SCREW,CURTAIN RAIL EXC. CUSTOM CAB(SR5) (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0412-	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0412-		●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	04	1	0005-				●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0005-				●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0005-0411	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0412-	●	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	03	1	0005-0305	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0306-0411	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0412-	●	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	05	1	0005-0305	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0306-0411	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0412-	●	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	05	1	0005-0305	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0306-0411	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0412-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
