◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10826 - FRR/FSR/FRD(AUST) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#9460) — 41 parça

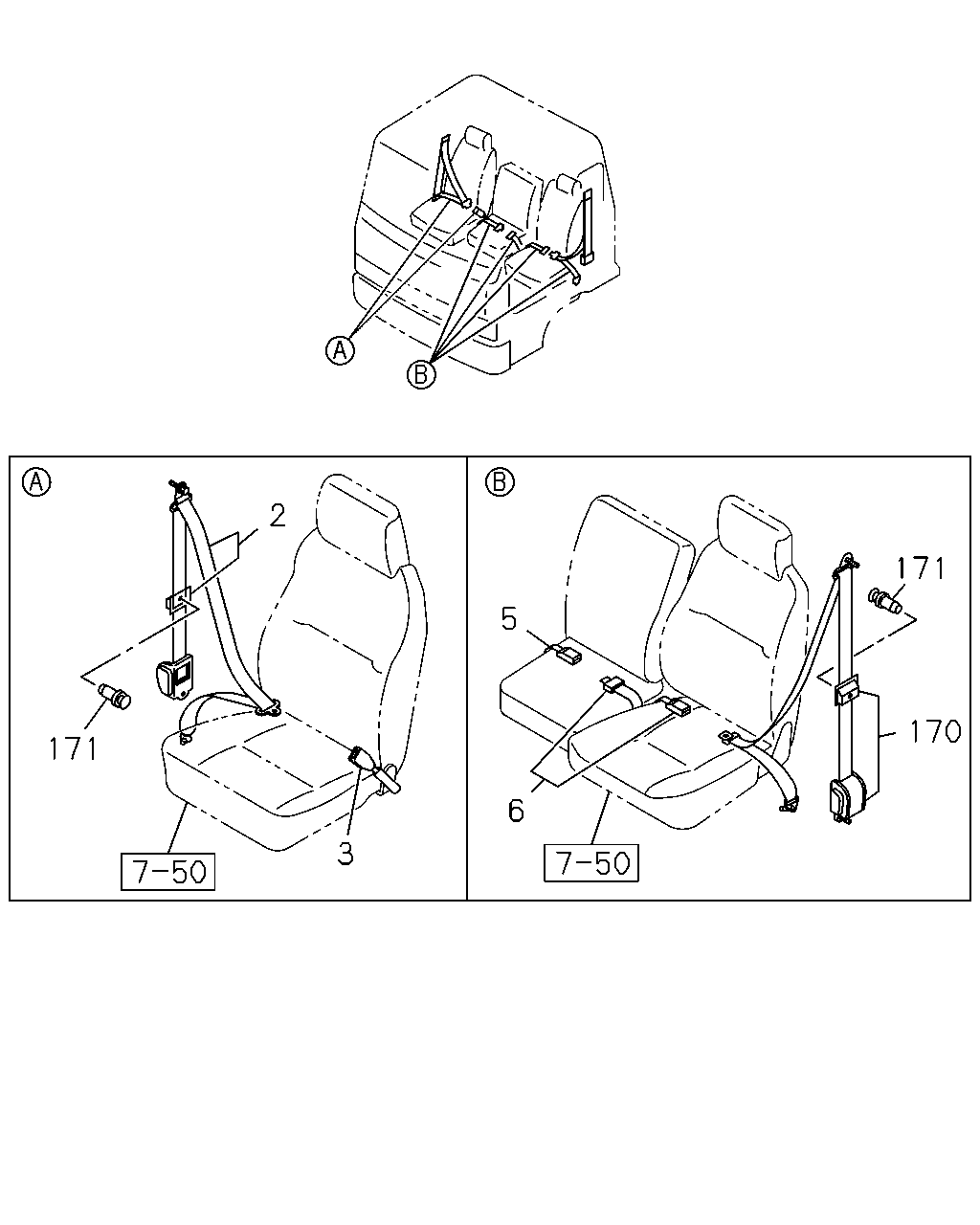

çizim 38062
2 171 5 170 171 6 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 BELT; SEAT,TONGUE SIDE
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75618-923-2 01 1 0005- ●
2 BELT; SEAT,TONGUE SIDE 1-75618-923-2 01 1 0005- ● ●
2 BELT; SEAT,TONGUE SIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-947-2 01 1 0005-0411 ●
2 BELT; SEAT,TONGUE SIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-947-2 01 1 0412- ●
2 BELT; SEAT,TONGUE SIDE 1-75618-947-2 01 1 0412- ●
3 BELT; SEAT,BUCKLE SIDE
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75618-925-1 01 1 0005- ●
3 BELT; SEAT,BUCKLE SIDE 1-75618-925-1 01 1 0005- ● ●
3 BELT; SEAT,BUCKLE SIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-946-1 01 1 0005-0411 ●
3 BELT; SEAT,BUCKLE SIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-946-1 01 1 0412- ●
3 BELT; SEAT,BUCKLE SIDE 1-75618-946-1 01 1 0412- ●
5 BELT; CENTER SEAT,BUCKLE SIDE 1-75617-553-1 01 1 0005-0411 ● ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE 1-75617-553-1 01 1 0412- ● ● ● ●
6 BELT; CENTER SEAT,TONGUE SIDE 1-75618-926-3 01 1 0005-0411 ● ● ●
6 BELT; CENTER SEAT,TONGUE SIDE 1-75618-926-3 01 1 0412- ● ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75618-924-2 01 1 0005-0411 ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75618-924-2 01 1 0412- ● ● ● ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0005-0411 ● ● ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0412- ● ● ● ●

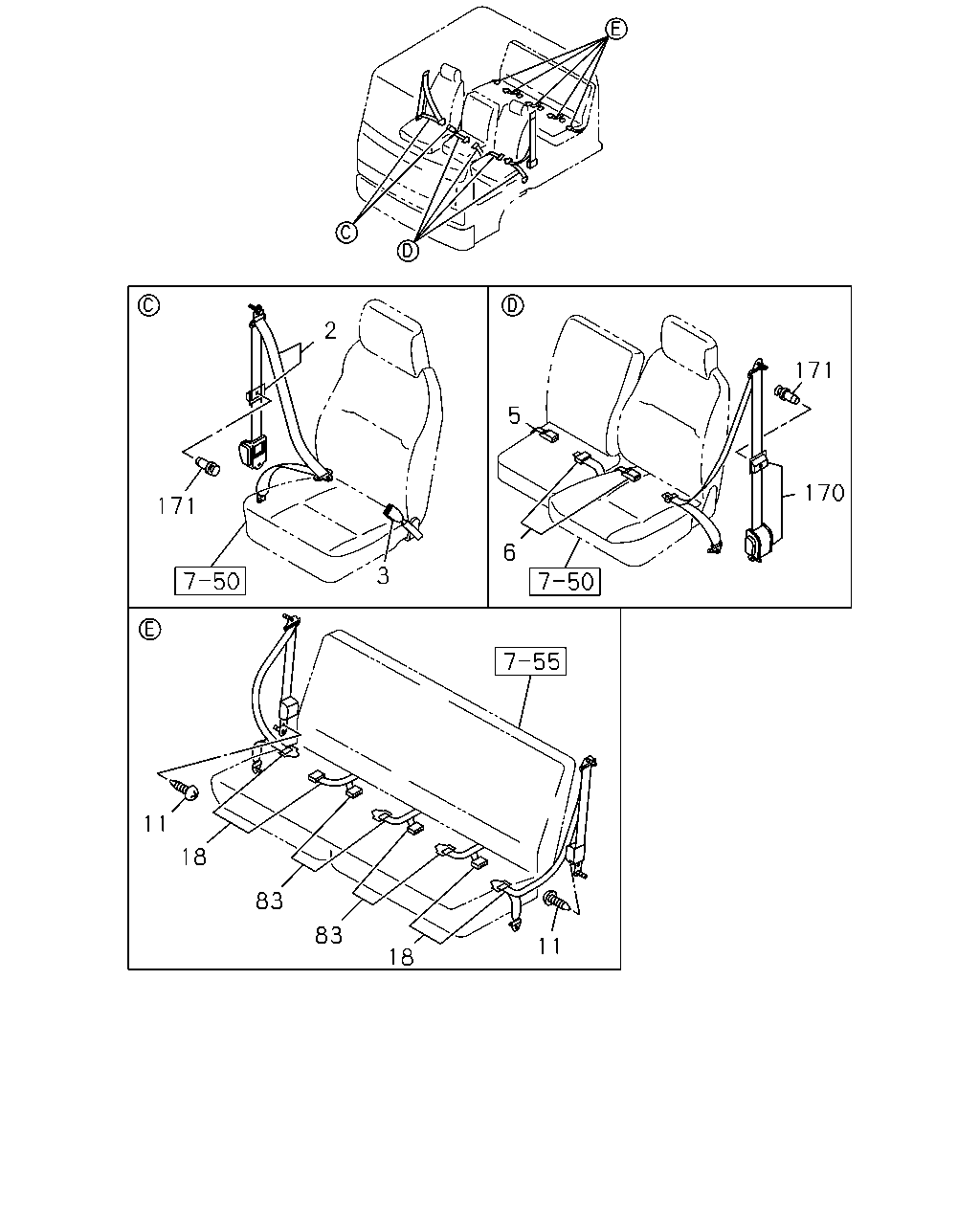

çizim 38158
2 171 5 170 171 6 3 11 18 83 83 11 18
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 BELT; SEAT,TONGUE SIDE
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75618-923-2 01 1 0005- ●
2 BELT; SEAT,TONGUE SIDE 1-75618-923-2 01 1 0005- ● ●
2 BELT; SEAT,TONGUE SIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-947-2 01 1 0005-0411 ●
2 BELT; SEAT,TONGUE SIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-947-2 01 1 0412- ●
2 BELT; SEAT,TONGUE SIDE 1-75618-947-2 01 1 0412- ●
3 BELT; SEAT,BUCKLE SIDE
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75618-925-1 01 1 0005- ●
3 BELT; SEAT,BUCKLE SIDE 1-75618-925-1 01 1 0005- ● ●
3 BELT; SEAT,BUCKLE SIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-946-1 01 1 0005-0411 ●
3 BELT; SEAT,BUCKLE SIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-946-1 01 1 0412- ●
3 BELT; SEAT,BUCKLE SIDE 1-75618-946-1 01 1 0412- ●
5 BELT; CENTER SEAT,BUCKLE SIDE 1-75617-553-1 01 1 0005-0411 ● ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE 1-75617-553-1 01 1 0412- ● ● ● ●
6 BELT; CENTER SEAT,TONGUE SIDE 1-75618-926-3 01 1 0005-0411 ● ● ●
6 BELT; CENTER SEAT,TONGUE SIDE 1-75618-926-3 01 1 0412- ● ● ● ●
11 SCREW; SEAT BELT
M6X20 W/LK&PL WASHER 		1-09981-304-0 02 1 0005- ●
18 BELT; SEAT,RR 1-75618-951-2 01 1 0005- ●
18 BELT; SEAT,RR 1-75618-950-2 01 1 0005- ●
83 BELT; RR SEAT,INNER 1-75618-949-0 01 1 0005- ●
83 BELT; RR SEAT,INNER 1-75618-948-0 01 1 0005- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75618-924-2 01 1 0005-0411 ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75618-924-2 01 1 0412- ● ● ● ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0005-0411 ● ● ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0412- ● ● ● ●
