Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#9458) — 459 parça

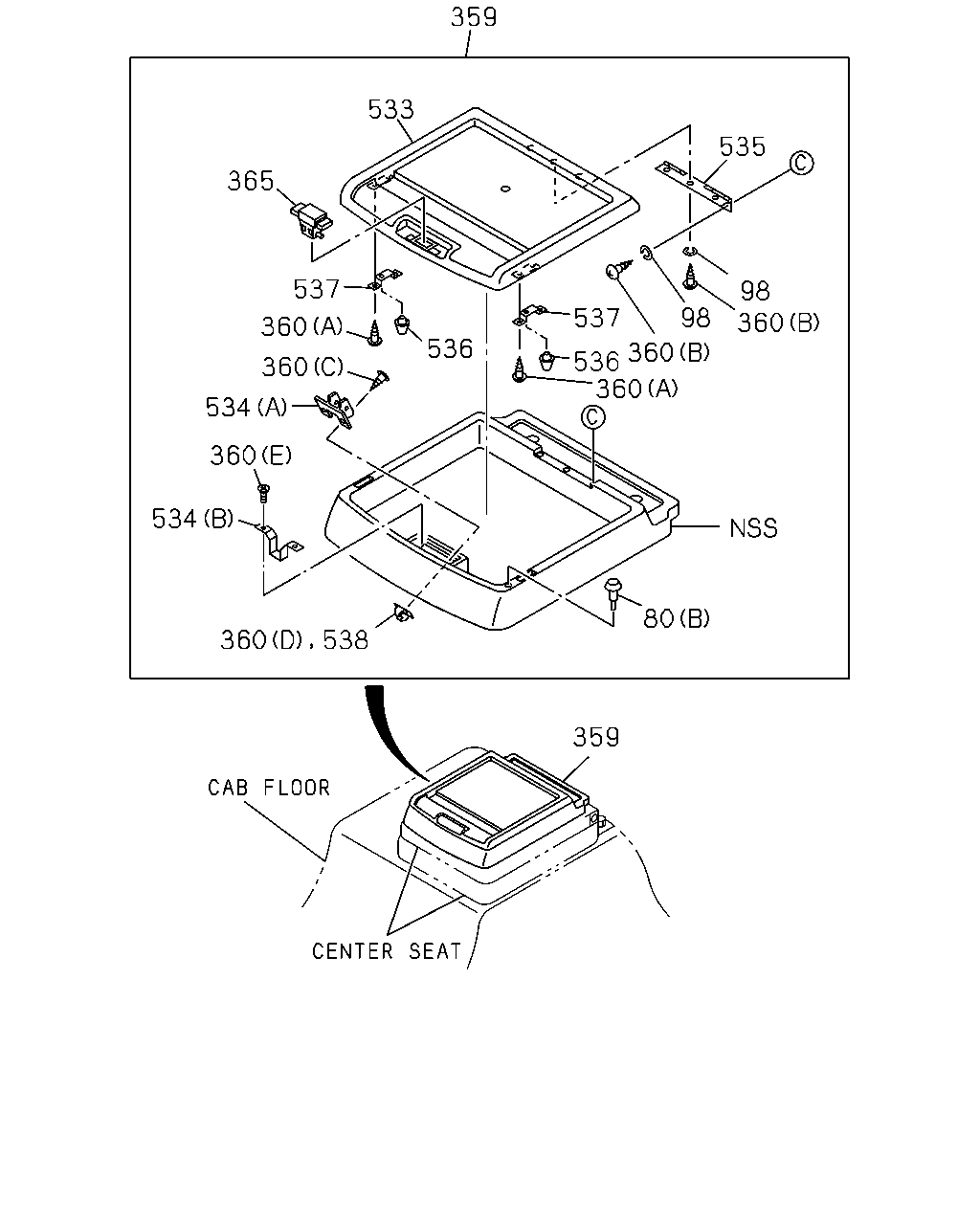

359 533 535 365 537 98 360 98 537 360 536 360 536 360 360 534 360 534 80 359 360 538

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
80	RUBBER; STOPPER (B)	1-72538-187-0	02	1	1007-	●	●	●	●
80	RUBBER; STOPPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75530-062-0	02	1	0005-0411		●
80	RUBBER; STOPPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75530-062-0	02	1	0412-		●
80	RUBBER; STOPPER (A)	1-75530-062-0	02	1	0412-	●
98	WASHER; HINGE ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0005-0411		●	●	●
98	WASHER; HINGE ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0412-	●	●	●	●
359	BOX; PARCEL	1-72538-275-4	01	1	0005-0411		●	●	●
359	BOX; PARCEL	1-72538-275-4	01	1	0412-1006	●	●	●	●
359	BOX; PARCEL	8-98145-114-0	01	1	1007-	●	●	●	●
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0005-0411		●	●	●
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0412-0612	●	●	●	●
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0701-1006	●	●	●	●
360	SCREW; PARCEL (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1007-	●	●	●	●
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	0005-0411		●	●	●
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	0412-0612	●	●	●	●
360	SCREW; PARCEL (B) M4X16	0-70040-416-0	06	1	0701-1104	●	●	●	●
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	1105-	●	●	●	●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0005-0411		●	●	●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0412-1006	●	●	●	●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1007-	●	●	●	●
360	SCREW; PARCEL (D)	1-09983-165-0	02	1	0005-0310		●	●	●
365	LOCK ASM; SEAT	1-72538-180-0	01	1	0005-0411		●	●	●
365	LOCK ASM; SEAT	1-72538-180-0	01	1	0412-	●	●	●	●
533	LID; PARCEL BOX	1-72538-277-1	01	1	0005-0411		●	●	●
533	LID; PARCEL BOX	1-72538-277-1	01	1	0412-1006	●	●	●	●
533	LID; PARCEL BOX	8-98145-118-0	01	1	1007-	●	●	●	●
534	STRIKER; PARCEL BOX (A)	1-72538-181-0	01	1	0005-0411		●	●	●
534	STRIKER; PARCEL BOX (A)	1-72538-181-0	01	1	0412-1006	●	●	●	●
534	STRIKER; PARCEL BOX (B)	1-72538-190-0	01	1	1007-	●	●	●	●
535	HINGE; PARCEL BOX	1-72447-391-1	01	1	0005-0411		●	●	●
535	HINGE; PARCEL BOX	1-72447-391-1	01	1	0412-	●	●	●	●
536	RUBBER; CUSHION	5-09983-002-1	02	1	0005-0411		●	●	●
536	RUBBER; CUSHION	5-09983-002-1	02	1	0412-1006	●	●	●	●
537	BRACKET; RUBBER	1-72548-057-1	02	1	0005-0411		●	●	●
537	BRACKET; RUBBER	1-72548-057-1	02	1	0412-1006	●	●	●	●
538	GROMMET; SCREW	1-09983-165-0	02	1	0311-0411		●	●	●
538	GROMMET; SCREW	1-09983-165-0	02	1	0412-1006	●	●	●	●

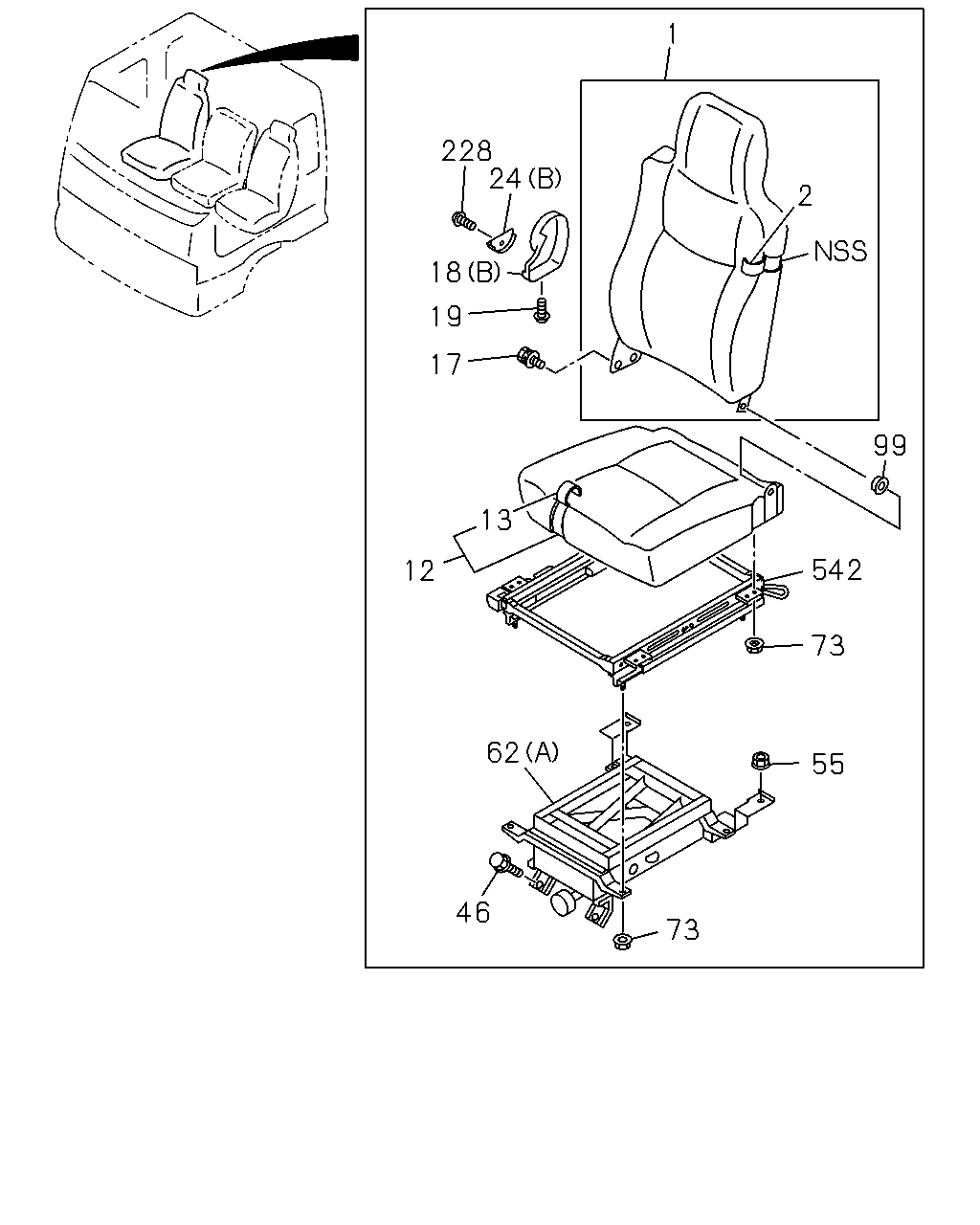

1 228 24 2 18 19 17 99 13 542 12 73 62 55 46 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER	1-75026-267-0	01	1	0005-		●
1	BACK ASM; SEAT DRIVER	1-75026-267-0	01	1	0005-			●	●
1	BACK ASM; SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	1-75026-729-0	01	1	0005-0105		●
1	BACK ASM; SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	1-75208-068-2	01	1	0106-0411		●
1	BACK ASM; SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	1-75208-068-2	01	1	0412-0901		●
1	BACK ASM; SEAT DRIVER	1-75208-068-2	01	1	0412-0901	●
1	BACK ASM; SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	8-98135-612-0	01	1	0902-		●
1	BACK ASM; SEAT DRIVER	8-98135-612-0	01	1	0902-	●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER	1-75116-464-0	01	1	0005-		●
2	COVER; TRIM,FRT SEAT,BACK DRIVER	1-75116-464-0	01	1	0005-			●	●
2	COVER; TRIM,FRT SEAT,BACK SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	1-75116-703-1	01	1	0005-0411		●
2	COVER; TRIM,FRT SEAT,BACK SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	1-75116-703-1	01	1	0412-		●
2	COVER; TRIM,FRT SEAT,BACK DRIVER	1-75116-703-1	01	1	0412-	●
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER	1-75026-268-0	01	1	0005-		●
12	CUSHION; SEAT,FRT DRIVER	1-75026-268-0	01	1	0005-			●	●
12	CUSHION; SEAT,FRT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	1-75026-694-2	01	1	0005-0411		●
12	CUSHION; SEAT,FRT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	1-75026-694-2	01	1	0412-		●
12	CUSHION; SEAT,FRT DRIVER	1-75026-694-2	01	1	0412-	●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER	1-75116-465-0	01	1	0005-		●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER	1-75116-465-0	01	1	0005-			●	●
13	COVER; TRIM,FRT SEAT,CUSHION SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	1-75116-682-1	01	1	0005-0411		●
13	COVER; TRIM,FRT SEAT,CUSHION SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	1-75116-682-1	01	1	0412-		●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER	1-75116-682-1	01	1	0412-	●
17	BOLT; RECLINING SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER SEAT M8X20	8-97255-906-0	02	1	0005-0411		●
17	BOLT; RECLINING SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER SEAT M8X20	8-97255-906-0	02	1	0412-		●
17	BOLT; RECLINING DRIVER SEAT M8X20	8-97255-906-0	02	1	0412-	●
18	COVER; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> (A) DRIVER SEAT	1-75418-063-0	01	1	0005-		●
18	COVER; RECLINING (A) DRIVER SEAT	1-75418-063-0	01	1	0005-			●	●
18	COVER; RECLINING SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) DRIVER SEAT DARK GRAY	8-97867-020-0	01	1	0005-0411		●
18	COVER; RECLINING SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) DRIVER SEAT DARK GRAY	8-97867-020-0	01	1	0412-		●
18	COVER; RECLINING (B) DRIVER SEAT DARK GRAY	8-97867-020-0	01	1	0412-	●
19	SCREW; COVER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER SEAT M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0005-0411		●
19	SCREW; COVER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER SEAT M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0412-		●
19	SCREW; COVER DRIVER SEAT M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0412-	●
24	KNOB; RECLINING,FRT,SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) DRIVER DARK GRAY	8-97867-021-0	01	1	0005-0411		●
24	KNOB; RECLINING,FRT,SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) DRIVER DARK GRAY	8-97867-021-0	01	1	0412-0710		●
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER DARK GRAY	8-97867-021-0	01	1	0412-0710	●
24	KNOB; RECLINING,FRT,SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) DRIVER	1-75418-066-0	01	1	0711-		●
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER	1-75418-066-0	01	1	0711-	●
24	KNOB; RECLINING,FRT,SEAT (A) PASSENGER DARK GRAY	8-97859-019-0	01	1	0005-0411		●	●	●
24	KNOB; RECLINING,FRT,SEAT (A) PASSENGER DARK GRAY	8-97859-019-0	01	1	0412-	●	●	●	●
46	BOLT; STAND TO FLOOR DRIVER SEAT M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0005-0411		●	●	●
46	BOLT; STAND TO FLOOR DRIVER SEAT M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0412-0703	●	●	●	●
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	0704-	●	●	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0005-0411		●	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0412-0703	●	●	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	0-91180-110-0	02	1	0704-	●	●	●	●

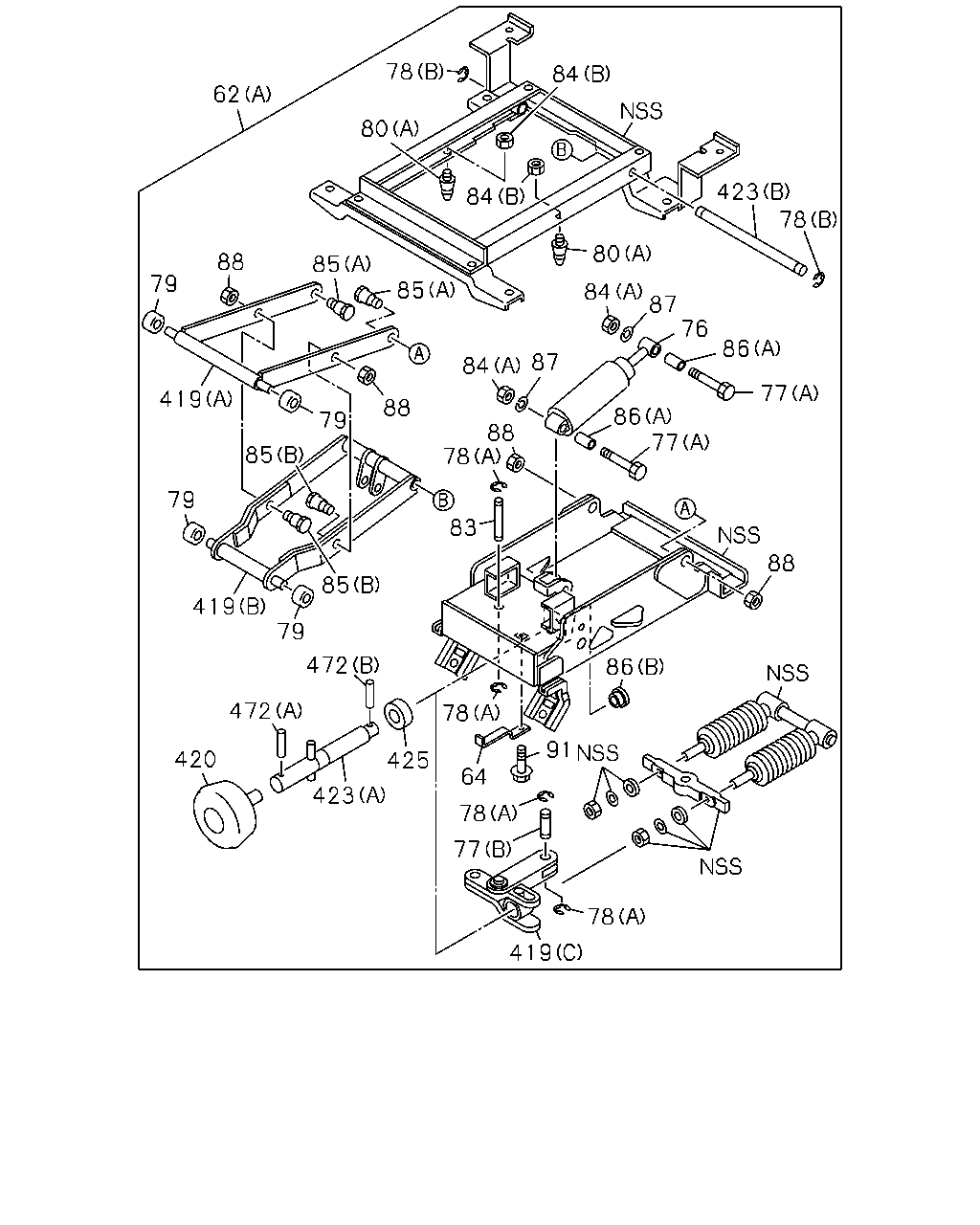

62	DAMPER ASM; SEAT SUSP DRIVER ISRINGHAUSEN SEAT<SJA> (B) DRIVER	1-75538-198-0	01	1	0005-		●
62	DAMPER ASM; SEAT SUSP (B) DRIVER	1-75538-198-0	01	1	0005-			●	●
62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) DRIVER	1-75538-164-0	01	1	0005-0411		●
62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) DRIVER	1-75538-164-0	01	1	0412-		●
62	DAMPER ASM; SEAT SUSP (A) DRIVER	1-75538-164-0	01	1	0412-	●
73	NUT; ADJ,HEIGHT CONT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER SEAT M8 FLANGE	1-75538-207-0	08	1	0005-0411		●
73	NUT; ADJ,HEIGHT CONT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER SEAT M8 FLANGE	1-75538-207-0	08	1	0412-		●
73	NUT; ADJ,HEIGHT CONT DRIVER SEAT M8 FLANGE	1-75538-207-0	08	1	0412-	●
73	NUT; ADJ,HEIGHT CONT PASSENGER SEAT M8 FLANGE	1-75538-207-0	04	1	0005-0411		●	●	●
73	NUT; ADJ,HEIGHT CONT PASSENGER SEAT M8 FLANGE	1-75538-207-0	04	1	0412-	●	●	●	●
99	BUSHING; SEAT BACK SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	8-97854-087-0	01	1	0005-0411		●
99	BUSHING; SEAT BACK SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	8-97854-087-0	01	1	0412-		●
99	BUSHING; SEAT BACK DRIVER	8-97854-087-0	01	1	0412-	●
228	SCREW; KNOB SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER M4	8-98062-662-0	01	1	0711-		●
228	SCREW; KNOB DRIVER M4	8-98062-662-0	01	1	0711-	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0005-0411		●	●	●
228	SCREW; KNOB SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M4X6	8-97042-273-0	01	1	0005-0411		●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0412-0710	●	●	●	●
228	SCREW; KNOB SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M4X6	8-97042-273-0	01	1	0412-0710		●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0412-0710	●
228	SCREW; KNOB PASSENGER M4X6	8-97042-273-0	01	1	0711-	●	●	●	●

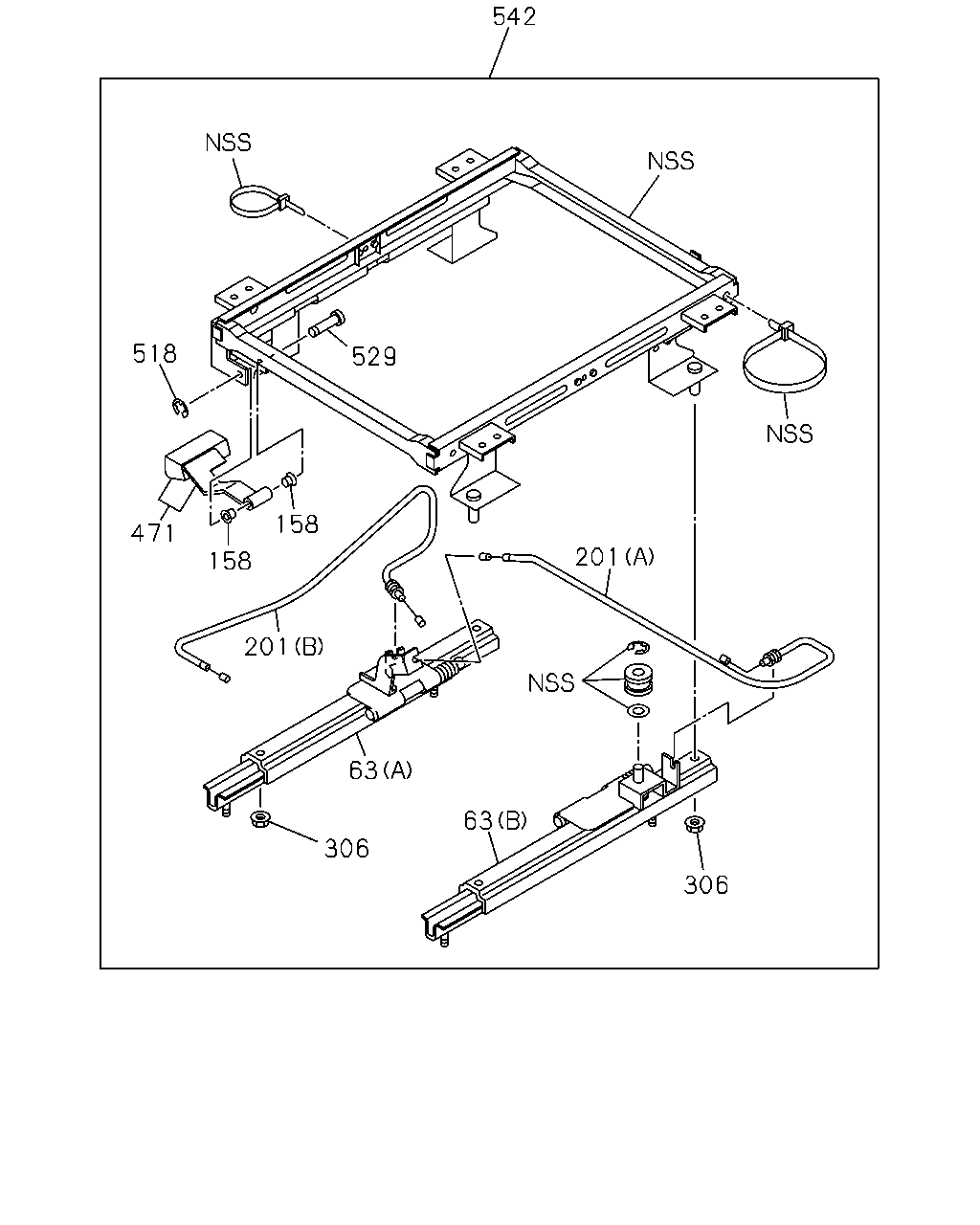

542	ADJUSTER ASM; SEAT SLIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	1-75518-285-3	01	1	0005-0411		●
542	ADJUSTER ASM; SEAT SLIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	1-75518-285-3	01	1	0412-		●
542	ADJUSTER ASM; SEAT SLIDE DRIVER	1-75518-285-3	01	1	0412-	●

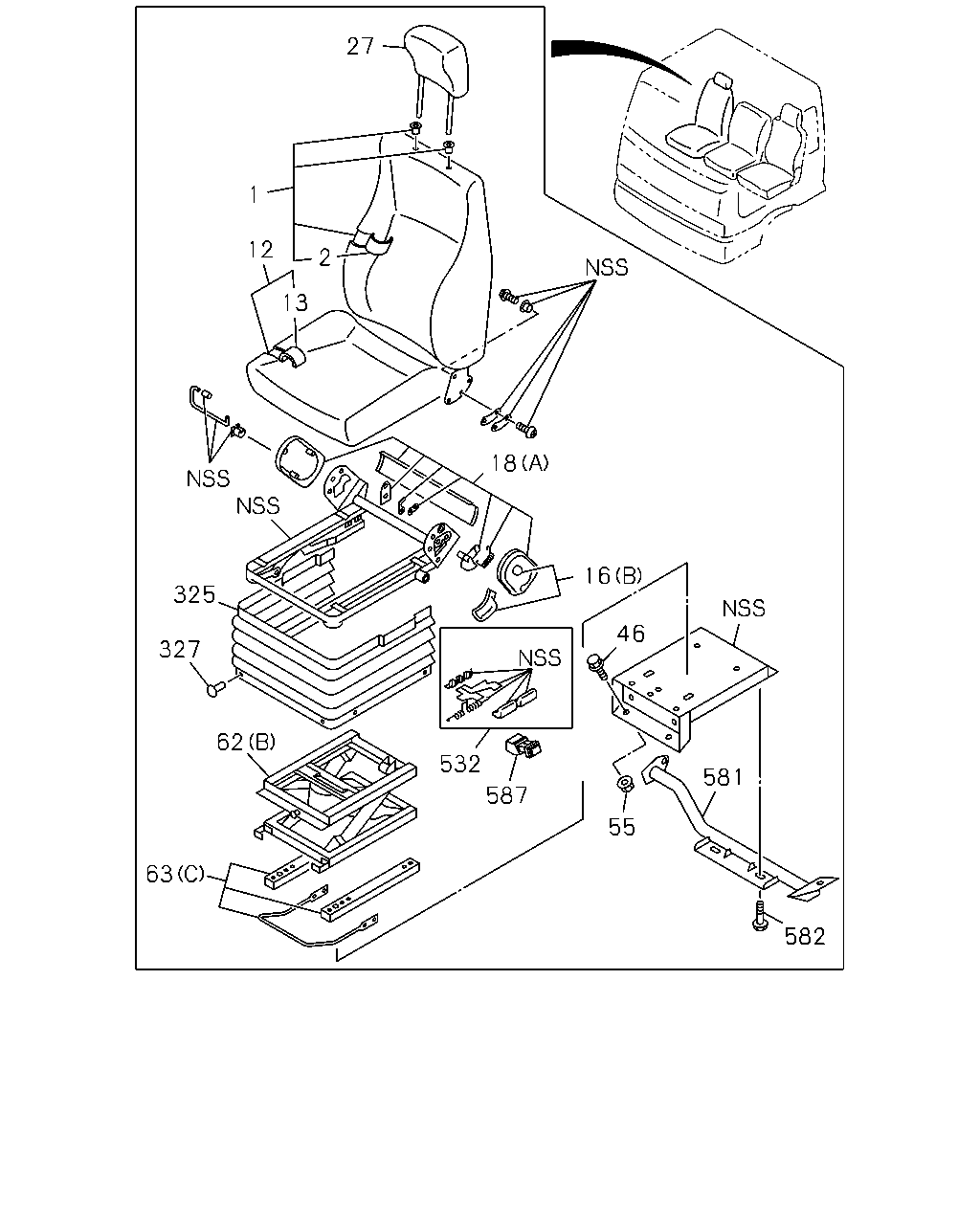

27 1 12 2 13 18 16 325 46 327 62 532 581 587 55 63 582

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER	1-75026-267-0	01	1	0005-		●
1	BACK ASM; SEAT DRIVER	1-75026-267-0	01	1	0005-			●	●
1	BACK ASM; SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	1-75026-729-0	01	1	0005-0105		●
1	BACK ASM; SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	1-75208-068-2	01	1	0106-0411		●
1	BACK ASM; SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	1-75208-068-2	01	1	0412-0901		●
1	BACK ASM; SEAT DRIVER	1-75208-068-2	01	1	0412-0901	●
1	BACK ASM; SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	8-98135-612-0	01	1	0902-		●
1	BACK ASM; SEAT DRIVER	8-98135-612-0	01	1	0902-	●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER	1-75116-464-0	01	1	0005-		●
2	COVER; TRIM,FRT SEAT,BACK DRIVER	1-75116-464-0	01	1	0005-			●	●
2	COVER; TRIM,FRT SEAT,BACK SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	1-75116-703-1	01	1	0005-0411		●
2	COVER; TRIM,FRT SEAT,BACK SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	1-75116-703-1	01	1	0412-		●
2	COVER; TRIM,FRT SEAT,BACK DRIVER	1-75116-703-1	01	1	0412-	●
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER	1-75026-268-0	01	1	0005-		●
12	CUSHION; SEAT,FRT DRIVER	1-75026-268-0	01	1	0005-			●	●
12	CUSHION; SEAT,FRT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	1-75026-694-2	01	1	0005-0411		●
12	CUSHION; SEAT,FRT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	1-75026-694-2	01	1	0412-		●
12	CUSHION; SEAT,FRT DRIVER	1-75026-694-2	01	1	0412-	●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER	1-75116-465-0	01	1	0005-		●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER	1-75116-465-0	01	1	0005-			●	●
13	COVER; TRIM,FRT SEAT,CUSHION SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	1-75116-682-1	01	1	0005-0411		●
13	COVER; TRIM,FRT SEAT,CUSHION SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	1-75116-682-1	01	1	0412-		●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER	1-75116-682-1	01	1	0412-	●
16	ADJUSTER ASM; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> (B) DRIVER SEAT	1-75418-064-0	01	1	0005-		●
16	ADJUSTER ASM; RECLINING (B) DRIVER SEAT	1-75418-064-0	01	1	0005-			●	●
16	ADJUSTER ASM; RECLINING (A) CENTER SEAT	1-75418-062-1	01	1	0005-0411		●	●	●
16	ADJUSTER ASM; RECLINING (A) CENTER SEAT	1-75418-062-1	01	1	0412-	●	●	●	●
18	COVER; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> (A) DRIVER SEAT	1-75418-063-0	01	1	0005-		●
18	COVER; RECLINING (A) DRIVER SEAT	1-75418-063-0	01	1	0005-			●	●
18	COVER; RECLINING SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) DRIVER SEAT DARK GRAY	8-97867-020-0	01	1	0005-0411		●
18	COVER; RECLINING SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) DRIVER SEAT DARK GRAY	8-97867-020-0	01	1	0412-		●
18	COVER; RECLINING (B) DRIVER SEAT DARK GRAY	8-97867-020-0	01	1	0412-	●
27	REST; HD,FRT SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER	1-75658-052-0	01	1	0005-		●
27	REST; HD,FRT SEAT DRIVER	1-75658-052-0	01	1	0005-			●	●
46	BOLT; STAND TO FLOOR DRIVER SEAT M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0005-0411		●	●	●
46	BOLT; STAND TO FLOOR DRIVER SEAT M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0412-0703	●	●	●	●
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	0704-	●	●	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0005-0411		●	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0412-0703	●	●	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	0-91180-110-0	02	1	0704-	●	●	●	●

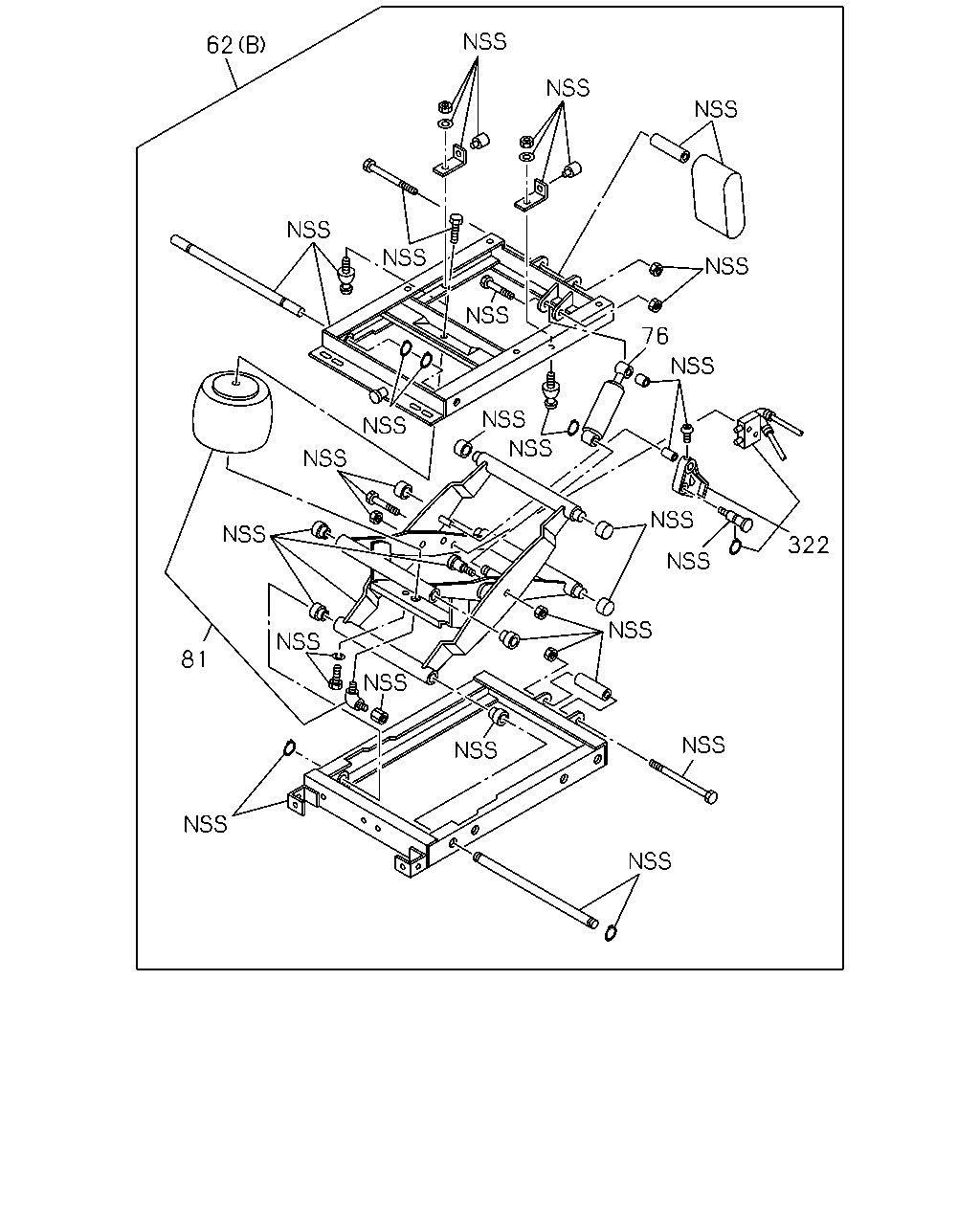

62	DAMPER ASM; SEAT SUSP DRIVER ISRINGHAUSEN SEAT<SJA> (B) DRIVER	1-75538-198-0	01	1	0005-		●
62	DAMPER ASM; SEAT SUSP (B) DRIVER	1-75538-198-0	01	1	0005-			●	●
62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) DRIVER	1-75538-164-0	01	1	0005-0411		●
62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) DRIVER	1-75538-164-0	01	1	0412-		●
62	DAMPER ASM; SEAT SUSP (A) DRIVER	1-75538-164-0	01	1	0412-	●
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT<SJA> (C) DRIVER SEAT	1-75518-315-0	01	1	0005-		●
63	ADJUSTER; SEAT SLIDE (C) DRIVER SEAT	1-75518-315-0	01	1	0005-			●	●
63	ADJUSTER; SEAT SLIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) ADJUSTER ASM	1-75518-199-1	01	1	0005-0411		●
63	ADJUSTER; SEAT SLIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) ADJUSTER ASM	1-75518-199-1	01	1	0412-		●
63	ADJUSTER; SEAT SLIDE (B) ADJUSTER ASM	1-75518-199-1	01	1	0412-	●
63	ADJUSTER; SEAT SLIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) ADJUSTER ASM	1-75518-294-1	01	1	0005-0411		●
63	ADJUSTER; SEAT SLIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) ADJUSTER ASM	1-75518-294-1	01	1	0412-		●
63	ADJUSTER; SEAT SLIDE (A) ADJUSTER ASM	1-75518-294-1	01	1	0412-	●
325	COVER; SUSPENSION DEVICE DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT	1-75538-196-0	01	1	0005-		●
325	COVER; SUSPENSION DEVICE DRIVER SEAT	1-75538-196-0	01	1	0005-			●	●
327	CLIP; COVER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT	1-75538-197-0	01	1	0005-		●
327	CLIP; COVER DRIVER SEAT	1-75538-197-0	01	1	0005-			●	●
327	CLIP; COVER PASSENGER SEAT	1-09987-273-0	02	1	0211-			●
532	LEVER ASM; TILT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT	1-75518-314-0	01	1	0005-		●
532	LEVER ASM; TILT DRIVER SEAT	1-75518-314-0	01	1	0005-			●	●
581	PIPE; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER	1-73907-573-3	01	1	0005-		●
581	PIPE; SEAT DRIVER	1-73907-573-3	01	1	0005-			●	●
582	BOLT; PIPE,SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER	1-09980-619-1	02	1	0005-		●
582	BOLT; PIPE,SEAT DRIVER	1-09980-619-1	02	1	0005-			●	●
587	VALVE; LUMBAR SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER	1-75418-065-0	01	1	0005-		●
587	VALVE; LUMBAR SUPPORT DRIVER	1-75418-065-0	01	1	0005-			●	●

506 360 175 176 188 16 189 188 359 403 179 182 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	ADJUSTER ASM; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> (B) DRIVER SEAT	1-75418-064-0	01	1	0005-		●
16	ADJUSTER ASM; RECLINING (B) DRIVER SEAT	1-75418-064-0	01	1	0005-			●	●
16	ADJUSTER ASM; RECLINING (A) CENTER SEAT	1-75418-062-1	01	1	0005-0411		●	●	●
16	ADJUSTER ASM; RECLINING (A) CENTER SEAT	1-75418-062-1	01	1	0412-	●	●	●	●
175	BACK ASM; PASSENGER CENTER SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	1-75026-857-4	01	1	0005-		●
175	BACK ASM; PASSENGER CENTER SEAT	1-75026-857-4	01	1	0005-			●	●
175	BACK ASM; PASSENGER CENTER SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75026-854-3	01	1	0005-0411		●
175	BACK ASM; PASSENGER CENTER SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75026-854-3	01	1	0412-		●
175	BACK ASM; PASSENGER CENTER SEAT	1-75026-854-3	01	1	0412-	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DRIVER ISRINGHAUSEN SEAT<SJA>	1-75116-711-2	01	1	0005-		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK	1-75116-711-2	01	1	0005-			●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75116-650-1	01	1	0005-0411		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75116-650-1	01	1	0412-		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK	1-75116-650-1	01	1	0412-	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DRIVER ISRINGHAUSEN SEAT<SJA>	1-75116-694-2	01	1	0005-		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH	1-75116-694-2	01	1	0005-			●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75116-695-1	01	1	0005-0411		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75116-695-1	01	1	0412-		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH	1-75116-695-1	01	1	0412-	●
182	CUSHION ASM; CENTER SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	1-75026-843-4	01	1	0005-		●
182	CUSHION ASM; CENTER SEAT	1-75026-843-4	01	1	0005-			●	●
182	CUSHION ASM; CENTER SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75026-844-4	01	1	0005-0411		●
182	CUSHION ASM; CENTER SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75026-844-4	01	1	0412-		●
182	CUSHION ASM; CENTER SEAT	1-75026-844-4	01	1	0412-	●
188	BOLT; BACK TO CUSHION M10X16 FLANGE	1-75198-053-0	04	1	0005-0411		●	●	●
188	BOLT; BACK TO CUSHION M10X16 FLANGE	1-75198-053-0	04	1	0412-	●	●	●	●
189	BUSHING; HINGE,CENTER SEAT BACK	8-97854-900-0	01	1	0005-0411		●	●	●
189	BUSHING; HINGE,CENTER SEAT BACK	8-97854-900-0	01	1	0412-	●	●	●	●
359	BOX; PARCEL	1-72538-275-4	01	1	0005-0411		●	●	●
359	BOX; PARCEL	1-72538-275-4	01	1	0412-1006	●	●	●	●
359	BOX; PARCEL	8-98145-114-0	01	1	1007-	●	●	●	●
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0005-0411		●	●	●
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0412-0612	●	●	●	●
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0701-1006	●	●	●	●
360	SCREW; PARCEL (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1007-	●	●	●	●
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	0005-0411		●	●	●
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	0412-0612	●	●	●	●
360	SCREW; PARCEL (B) M4X16	0-70040-416-0	06	1	0701-1104	●	●	●	●
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	1105-	●	●	●	●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0005-0411		●	●	●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0412-1006	●	●	●	●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1007-	●	●	●	●
360	SCREW; PARCEL (D)	1-09983-165-0	02	1	0005-0310		●	●	●
403	NUT; CENTER SEAT M8 FLANGE	8-94279-518-0	04	1	0005-0312		●	●	●
403	NUT; CENTER SEAT M8 FLANGE	1-75538-207-0	04	1	0401-0411		●	●	●
403	NUT; CENTER SEAT M8 FLANGE	1-75538-207-0	04	1	0412-0703	●	●	●	●
403	NUT; CENTER SEAT M8 FLANGE	0-91180-108-0	04	1	0704-	●	●	●	●
506	CAP; PARCEL BOX	1-09983-180-3	04	1	0005-0411		●	●	●
506	CAP; PARCEL BOX	1-09983-180-3	04	1	0412-1006	●	●	●	●
506	CAP; PARCEL BOX	1-09983-180-3	02	1	1007-	●	●	●	●

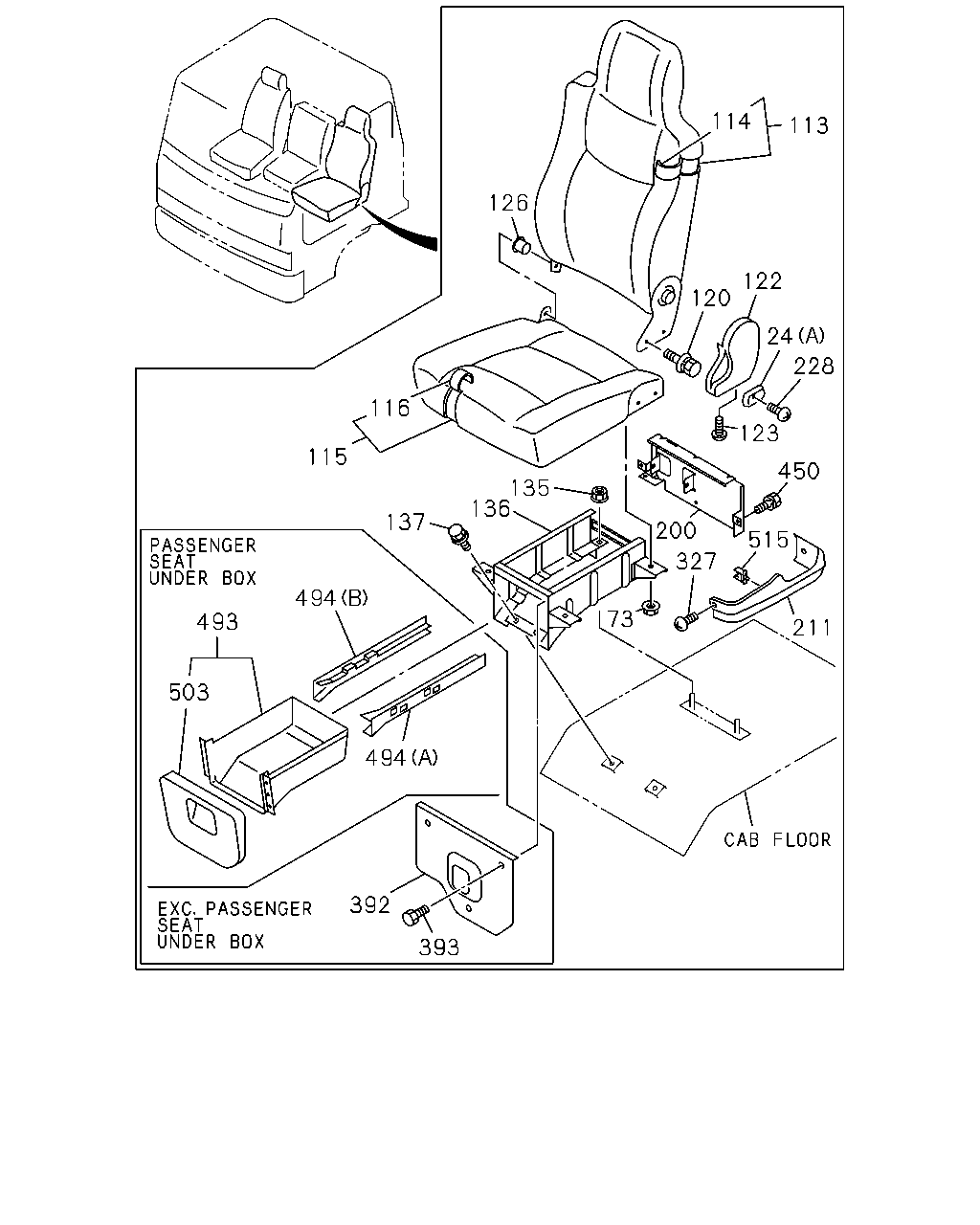

114 113 126 122 120 24 228 116 123 115 450 135 136 137 515 200 327 494 73 493 211 503 494 392 393

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	KNOB; RECLINING,FRT,SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) DRIVER DARK GRAY	8-97867-021-0	01	1	0005-0411		●
24	KNOB; RECLINING,FRT,SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) DRIVER DARK GRAY	8-97867-021-0	01	1	0412-0710		●
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER DARK GRAY	8-97867-021-0	01	1	0412-0710	●
24	KNOB; RECLINING,FRT,SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) DRIVER	1-75418-066-0	01	1	0711-		●
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER	1-75418-066-0	01	1	0711-	●
24	KNOB; RECLINING,FRT,SEAT (A) PASSENGER DARK GRAY	8-97859-019-0	01	1	0005-0411		●	●	●
24	KNOB; RECLINING,FRT,SEAT (A) PASSENGER DARK GRAY	8-97859-019-0	01	1	0412-	●	●	●	●
73	NUT; ADJ,HEIGHT CONT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER SEAT M8 FLANGE	1-75538-207-0	08	1	0005-0411		●
73	NUT; ADJ,HEIGHT CONT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER SEAT M8 FLANGE	1-75538-207-0	08	1	0412-		●
73	NUT; ADJ,HEIGHT CONT DRIVER SEAT M8 FLANGE	1-75538-207-0	08	1	0412-	●
73	NUT; ADJ,HEIGHT CONT PASSENGER SEAT M8 FLANGE	1-75538-207-0	04	1	0005-0411		●	●	●
73	NUT; ADJ,HEIGHT CONT PASSENGER SEAT M8 FLANGE	1-75538-207-0	04	1	0412-	●	●	●	●
113	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> PASSENGER	1-75026-796-0	01	1	0005-0105		●
113	BACK ASM; SEAT PASSENGER	1-75026-796-0	01	1	0005-0105			●	●
113	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> PASSENGER	1-75208-191-4	01	1	0106-		●
113	BACK ASM; SEAT PASSENGER	1-75208-191-4	01	1	0106-			●	●
113	BACK ASM; SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> PASSENGER	1-75026-733-0	01	1	0005-0105		●
113	BACK ASM; SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> PASSENGER	1-75208-072-3	01	1	0106-0411		●
113	BACK ASM; SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> PASSENGER	1-75208-072-3	01	1	0412-		●
113	BACK ASM; SEAT PASSENGER	1-75208-072-3	01	1	0412-	●
114	COVER; TRIM,PASSENGER SEAT,BACK DRIVER ISRINGHAUSEN SEAT<SJA>	1-75116-709-2	01	1	0005-		●
114	COVER; TRIM,PASSENGER SEAT,BACK	1-75116-709-2	01	1	0005-			●	●
114	COVER; TRIM,PASSENGER SEAT,BACK SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75116-707-1	01	1	0005-0411		●
114	COVER; TRIM,PASSENGER SEAT,BACK SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75116-707-1	01	1	0412-		●
114	COVER; TRIM,PASSENGER SEAT,BACK	1-75116-707-1	01	1	0412-	●
115	CUSHION ASM; PASSENGER SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	1-75026-782-0	01	1	0005-0210		●
115	CUSHION ASM; PASSENGER SEAT	1-75026-782-0	01	1	0005-0210			●	●
115	CUSHION ASM; PASSENGER SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	1-75026-782-2	01	1	0211-		●
115	CUSHION ASM; PASSENGER SEAT	1-75026-782-2	01	1	0211-				●
115	CUSHION ASM; PASSENGER SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75026-700-1	01	1	0005-0411		●
115	CUSHION ASM; PASSENGER SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75026-700-1	01	1	0412-		●
115	CUSHION ASM; PASSENGER SEAT	1-75026-700-1	01	1	0412-	●
115	CUSHION ASM; PASSENGER SEAT	1-75026-784-2	01	1	0211-			●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT<SJA>	1-75116-589-0	01	1	0005-0210		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION	1-75116-589-0	01	1	0005-0210			●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT<SJA>	1-75116-589-2	01	1	0211-		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION	1-75116-589-2	01	1	0211-				●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75116-688-1	01	1	0005-0411		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75116-688-1	01	1	0412-		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION	1-75116-688-1	01	1	0412-	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION	1-75116-691-2	01	1	0211-			●
120	BOLT; RECLINING ADJ PASSENGER SEAT M8X20	8-97255-906-0	02	1	0005-0411		●	●	●
120	BOLT; RECLINING ADJ PASSENGER SEAT M8X20	8-97255-906-0	02	1	0412-	●	●	●	●
122	COVER; ADJ,RECLINING PASSENGER SEAT DARK GRAY	8-97859-018-0	01	1	0005-0411		●	●	●
122	COVER; ADJ,RECLINING PASSENGER SEAT DARK GRAY	8-97859-018-0	01	1	0412-	●	●	●	●
123	SCREW; COVER,RECLINING PASSENGER SEAT M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0005-0411		●	●	●
123	SCREW; COVER,RECLINING PASSENGER SEAT M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0412-	●	●	●	●
126	BUSHING; HINGE,RECLINING PASSENGER SEAT	8-97854-087-0	01	1	0005-0411		●	●	●
126	BUSHING; HINGE,RECLINING PASSENGER SEAT	8-97854-087-0	01	1	0412-	●	●	●	●
135	NUT; SEAT STAND PASSENGER M10 FLANGE	1-09984-153-0	02	1	0005-0411		●	●	●
135	NUT; SEAT STAND PASSENGER M10 FLANGE	1-09984-153-0	02	1	0412-0703	●	●	●	●
135	NUT; SEAT STAND M10 FLANGE	0-91180-110-0	02	1	0704-	●	●	●	●
136	STAND; PASSENGER SEAT PASSENGER SEAT UNDER BOX<TDN> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75558-603-0	01	1	0102-0105		●
136	STAND; PASSENGER SEAT PASSENGER SEAT UNDER BOX<TDN>	1-75558-603-0	01	1	0106-0210		●	●	●
136	STAND; PASSENGER SEAT	1-75558-602-3	01	1	0211-1305			●
136	STAND; PASSENGER SEAT	8-98242-299-0	01	1	1306-			●
136	STAND; PASSENGER SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. PASSENGER SEAT UNDER BOX<TDN>	1-75558-601-0	01	1	0102-0105		●
136	STAND; PASSENGER SEAT EXC. PASSENGER SEAT UNDER BOX<TDN>	1-75558-601-0	01	1	0106-0210		●		●
136	STAND; PASSENGER SEAT	1-75558-601-3	01	1	0211-0411		●		●
136	STAND; PASSENGER SEAT	1-75558-601-3	01	1	0412-1305	●	●		●
136	STAND; PASSENGER SEAT	8-98242-298-0	01	1	1306-	●	●		●
136	STAND; PASSENGER SEAT PASSENGER SEAT UNDER BOX<TDN>	1-75558-584-0	01	1	0005-0101		●	●	●
136	STAND; PASSENGER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> PASSENGER SEAT UNDER BOX<TDN>	1-75558-584-0	01	1	0102-0105		●
136	STAND; PASSENGER SEAT	1-75558-584-0	01	1	0102-0105			●
136	STAND; PASSENGER SEAT PASSENGER SEAT UNDER BOX<TDN>	1-75558-584-0	01	1	0102-0105				●
136	STAND; PASSENGER SEAT EXC. PASSENGER SEAT UNDER BOX<TDN>	1-75558-585-0	01	1	0005-0101		●		●
136	STAND; PASSENGER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. PASSENGER SEAT UNDER BOX<TDN>	1-75558-585-0	01	1	0102-0105		●
136	STAND; PASSENGER SEAT EXC. PASSENGER SEAT UNDER BOX<TDN>	1-75558-585-0	01	1	0102-0105				●
137	BOLT; STAND PASSENGER SEAT M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0005-0411		●	●	●
137	BOLT; STAND PASSENGER SEAT M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0412-0703	●	●	●	●
137	BOLT; STAND M10X20 FLANGE	0-28451-020-0	02	1	0704-	●	●	●	●
200	BRACKET; SEAT PASSENGER SEAT	1-75558-583-2	01	1	0211-			●
211	COVER; FRT SEAT PASSENGER SEAT	1-72538-274-0	01	1	0211-			●
228	SCREW; KNOB SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER M4	8-98062-662-0	01	1	0711-		●
228	SCREW; KNOB DRIVER M4	8-98062-662-0	01	1	0711-	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0005-0411		●	●	●
228	SCREW; KNOB SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M4X6	8-97042-273-0	01	1	0005-0411		●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0412-0710	●	●	●	●
228	SCREW; KNOB SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M4X6	8-97042-273-0	01	1	0412-0710		●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0412-0710	●
228	SCREW; KNOB PASSENGER M4X6	8-97042-273-0	01	1	0711-	●	●	●	●
327	CLIP; COVER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT	1-75538-197-0	01	1	0005-		●
327	CLIP; COVER DRIVER SEAT	1-75538-197-0	01	1	0005-			●	●
327	CLIP; COVER PASSENGER SEAT	1-09987-273-0	02	1	0211-			●
392	COVER; STAND,PASSENGER SEAT EXC. PASSENGER SEAT UNDER BOX<TDN>	1-75558-523-4	01	1	0005-0111		●		●
392	COVER; STAND,PASSENGER SEAT EXC. PASSENGER SEAT UNDER BOX<TDN>	1-75558-556-1	01	1	0112-0210		●		●
393	BOLT; COVER,SEAT STAND EXC. PASSENGER SEAT UNDER BOX<TDN> PASSENGER M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0005-0210		●		●
450	BOLT; BRKT PASSENGER SEAT M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0211-0703			●
450	BOLT; BRKT M6X16	0-52000-616-0	03	1	0704-			●
493	BOX; SEAT STAND PASSENGER SEAT UNDER BOX<TDN> PASSENGER	1-72537-130-1	01	1	0005-0210		●		●
493	BOX; SEAT STAND PASSENGER	1-72537-130-1	01	1	0005-0210			●
494	RAIL; GUIDE PASSENGER SEAT UNDER BOX<TDN> (A) PASSENGER SEAT	1-72537-149-0	01	1	0005-0210		●	●	●
494	RAIL; GUIDE PASSENGER SEAT UNDER BOX<TDN> (B) PASSENGER SEAT	1-72537-150-0	01	1	0005-0210		●	●	●
503	COVER; BOX PASSENGER SEAT UNDER BOX<TDN> PASSENGER SEAT	1-72537-136-0	01	1	0005-0210		●		●
503	COVER; BOX PASSENGER SEAT	1-72537-136-0	01	1	0005-0210			●
515	CLIP; PIPE PASSENGER SEAT BLACK	8-94227-248-1	01	1	0211-			●

542 518 529 158 471 201 158 201 63 63 306 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT<SJA> (C) DRIVER SEAT	1-75518-315-0	01	1	0005-		●
63	ADJUSTER; SEAT SLIDE (C) DRIVER SEAT	1-75518-315-0	01	1	0005-			●	●
63	ADJUSTER; SEAT SLIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) ADJUSTER ASM	1-75518-199-1	01	1	0005-0411		●
63	ADJUSTER; SEAT SLIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) ADJUSTER ASM	1-75518-199-1	01	1	0412-		●
63	ADJUSTER; SEAT SLIDE (B) ADJUSTER ASM	1-75518-199-1	01	1	0412-	●
63	ADJUSTER; SEAT SLIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) ADJUSTER ASM	1-75518-294-1	01	1	0005-0411		●
63	ADJUSTER; SEAT SLIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) ADJUSTER ASM	1-75518-294-1	01	1	0412-		●
63	ADJUSTER; SEAT SLIDE (A) ADJUSTER ASM	1-75518-294-1	01	1	0412-	●
158	BUSHING; LINK ARM SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75518-209-0	02	1	0005-0411		●
158	BUSHING; LINK ARM SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75518-209-0	02	1	0412-		●
158	BUSHING; LINK ARM	1-75518-209-0	02	1	0412-	●
201	CABLE; ADJ SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) L=667	1-75518-288-0	01	1	0005-0411		●
201	CABLE; ADJ SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) L=667	1-75518-288-0	01	1	0412-		●
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	0412-	●
201	CABLE; ADJ SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) L=605	1-75518-289-1	01	1	0005-0411		●
201	CABLE; ADJ SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) L=605	1-75518-289-1	01	1	0412-		●
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	0412-	●
306	NUT; SEAT ADJ SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	1-75538-207-0	04	1	0005-0411		●
306	NUT; SEAT ADJ SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	1-75538-207-0	04	1	0412-		●
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	04	1	0412-	●
471	LEVER; SEAT ADJ SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75518-291-0	01	1	0005-0411		●
471	LEVER; SEAT ADJ SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75518-291-0	01	1	0412-0710		●
471	LEVER; SEAT ADJ	1-75518-291-0	01	1	0412-0710	●
471	LEVER; SEAT ADJ SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	8-98107-869-0	01	1	0711-		●
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	0711-	●
518	NUT; TILT ADJ SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75518-263-0	01	1	0005-0411		●
518	NUT; TILT ADJ SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75518-263-0	01	1	0412-		●
518	NUT; TILT ADJ	1-75518-263-0	01	1	0412-	●
529	PIN; LINK SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75518-262-0	01	1	0005-0411		●
529	PIN; LINK SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75518-262-0	01	1	0412-		●
529	PIN; LINK	1-75518-262-0	01	1	0412-	●
542	ADJUSTER ASM; SEAT SLIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	1-75518-285-3	01	1	0005-0411		●
542	ADJUSTER ASM; SEAT SLIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	1-75518-285-3	01	1	0412-		●
542	ADJUSTER ASM; SEAT SLIDE DRIVER	1-75518-285-3	01	1	0412-	●

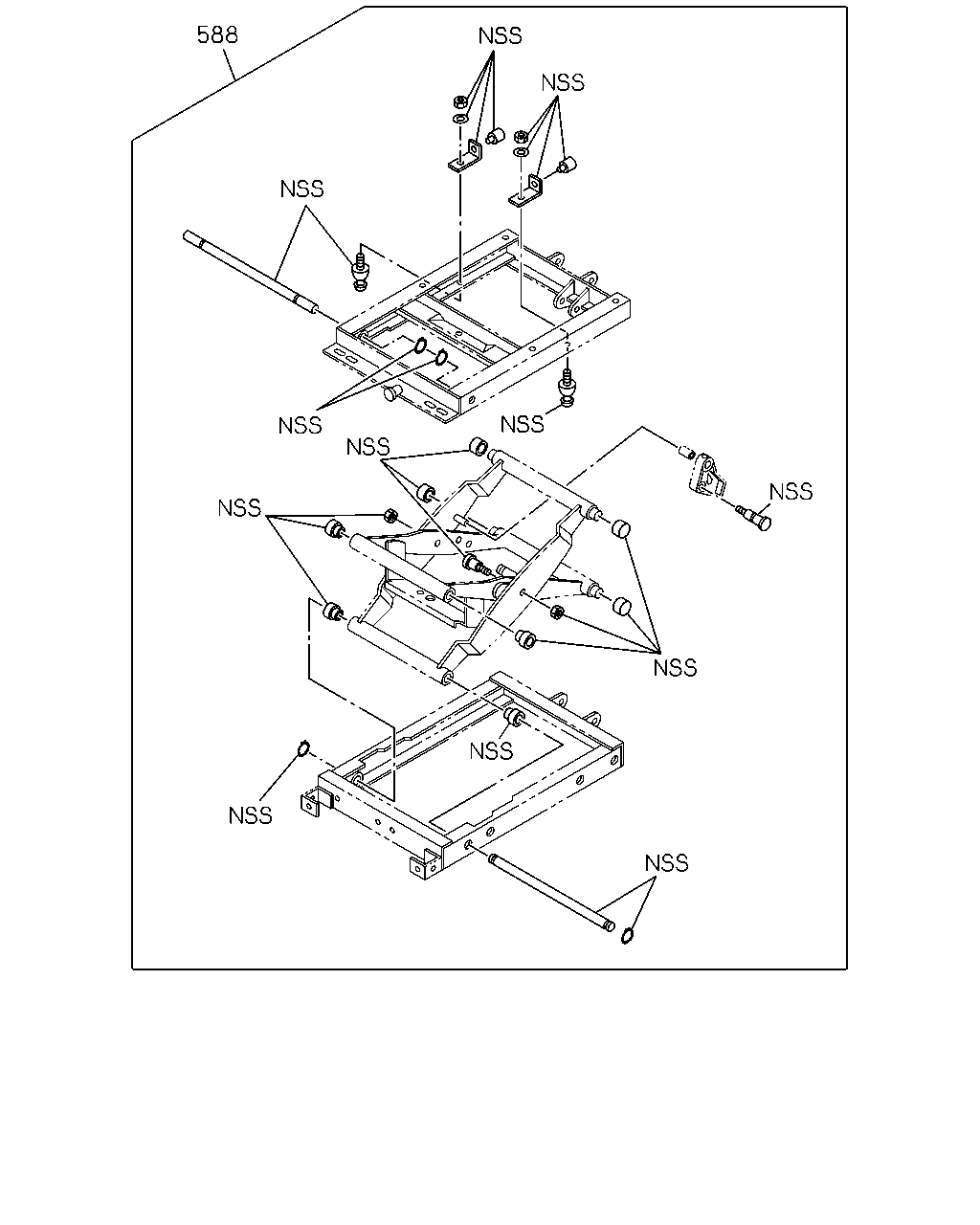

588

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
	588	REPAIR KIT; SUSPENSION DRIVER ISRINGHAUSEN SEAT<SJA>	1-75538-202-0	01	1	0005-		●
	588	REPAIR KIT; SUSPENSION	1-75538-202-0	01	1	0005-			●	●

62 76 322 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
62	DAMPER ASM; SEAT SUSP DRIVER ISRINGHAUSEN SEAT<SJA> (B) DRIVER	1-75538-198-0	01	1	0005-		●
62	DAMPER ASM; SEAT SUSP (B) DRIVER	1-75538-198-0	01	1	0005-			●	●
62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) DRIVER	1-75538-164-0	01	1	0005-0411		●
62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) DRIVER	1-75538-164-0	01	1	0412-		●
62	DAMPER ASM; SEAT SUSP (A) DRIVER	1-75538-164-0	01	1	0412-	●
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT<SJA>	1-75538-201-0	01	1	0005-		●
76	DAMPER; AIR SUSP	1-75538-201-0	01	1	0005-			●	●
76	DAMPER; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75538-166-0	01	1	0005-0411		●
76	DAMPER; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75538-166-0	01	1	0412-		●
76	DAMPER; AIR SUSP	1-75538-166-0	01	1	0412-	●
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT<SJA>	1-75538-199-0	01	1	0005-		●
81	SPRING; AIR	1-75538-199-0	01	1	0005-			●	●
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT<SJA>	1-75538-200-0	01	1	0005-		●
322	VALVE; AIR SPRING	1-75538-200-0	01	1	0005-			●	●

62 78 80 85 88 79 419 79 85 79 419 85 79 472 472 420 423 425 78 64 78 77 419 78 91 86 88 77 86 77 86 76 87 84 80 78 423 84 84 85 87 84 88 88 78 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
62	DAMPER ASM; SEAT SUSP DRIVER ISRINGHAUSEN SEAT<SJA> (B) DRIVER	1-75538-198-0	01	1	0005-		●
62	DAMPER ASM; SEAT SUSP (B) DRIVER	1-75538-198-0	01	1	0005-			●	●
62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) DRIVER	1-75538-164-0	01	1	0005-0411		●
62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) DRIVER	1-75538-164-0	01	1	0412-		●
62	DAMPER ASM; SEAT SUSP (A) DRIVER	1-75538-164-0	01	1	0412-	●
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-080-0	01	1	0005-0411		●
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-080-0	01	1	0412-		●
64	STOPPER; LWR,SUSPENSION DEVICE	1-75530-080-0	01	1	0412-	●
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT<SJA>	1-75538-201-0	01	1	0005-		●
76	DAMPER; AIR SUSP	1-75538-201-0	01	1	0005-			●	●
76	DAMPER; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75538-166-0	01	1	0005-0411		●
76	DAMPER; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75538-166-0	01	1	0412-		●
76	DAMPER; AIR SUSP	1-75538-166-0	01	1	0412-	●
77	PIN; DAMPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75530-040-0	02	1	0005-0411		●
77	PIN; DAMPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75530-040-0	02	1	0412-		●
77	PIN; DAMPER (A)	1-75530-040-0	02	1	0412-	●
77	PIN; DAMPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75530-065-0	01	1	0005-0411		●
77	PIN; DAMPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75530-065-0	01	1	0412-		●
77	PIN; DAMPER (B)	1-75530-065-0	01	1	0412-	●
78	RING; SNAP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75530-066-0	03	1	0005-0411		●
78	RING; SNAP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75530-066-0	03	1	0412-		●
78	RING; SNAP (A)	1-75530-066-0	03	1	0412-	●
78	RING; SNAP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75530-069-0	02	1	0005-0411		●
78	RING; SNAP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75530-069-0	02	1	0412-		●
78	RING; SNAP (B)	1-75530-069-0	02	1	0412-	●
79	ROLLER ASM; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-043-0	04	1	0005-0411		●
79	ROLLER ASM; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-043-0	04	1	0412-		●
79	ROLLER ASM; AIR SUSP	1-75530-043-0	04	1	0412-	●
80	RUBBER; STOPPER (B)	1-72538-187-0	02	1	1007-	●	●	●	●
80	RUBBER; STOPPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75530-062-0	02	1	0005-0411		●
80	RUBBER; STOPPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75530-062-0	02	1	0412-		●
80	RUBBER; STOPPER (A)	1-75530-062-0	02	1	0412-	●
83	PIN; LOW & UPR SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-070-0	01	1	0005-0411		●
83	PIN; LOW & UPR SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-070-0	01	1	0412-		●
83	PIN; LOW & UPR	1-75530-070-0	01	1	0412-	●
84	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75530-042-0	02	1	0005-0411		●
84	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75530-042-0	02	1	0412-		●
84	NUT; AIR SUSP (A)	1-75530-042-0	02	1	0412-	●
84	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75530-063-0	02	1	0005-0411		●
84	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75530-063-0	02	1	0412-		●
84	NUT; AIR SUSP (B)	1-75530-063-0	02	1	0412-	●
85	BOLT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75530-048-0	02	1	0005-0411		●
85	BOLT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75530-048-0	02	1	0412-		●
85	BOLT; AIR SUSP (A)	1-75530-048-0	02	1	0412-	●
85	BOLT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75530-068-0	02	1	0005-0411		●
85	BOLT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75530-068-0	02	1	0412-		●
85	BOLT; AIR SUSP (B)	1-75530-068-0	02	1	0412-	●
86	BUSHING; GUIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75530-041-0	02	1	0005-0411		●
86	BUSHING; GUIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75530-041-0	02	1	0412-		●
86	BUSHING; GUIDE (A)	1-75530-041-0	02	1	0412-	●
86	BUSHING; GUIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75530-071-0	01	1	0005-0411		●
86	BUSHING; GUIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75530-071-0	01	1	0412-		●
86	BUSHING; GUIDE (B)	1-75530-071-0	01	1	0412-	●
87	WASHER; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-036-0	02	1	0005-0411		●
87	WASHER; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-036-0	02	1	0412-		●
87	WASHER; AIR SUSP	1-75530-036-0	02	1	0412-	●
88	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-039-0	04	1	0005-0411		●
88	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-039-0	04	1	0412-		●
88	NUT; AIR SUSP	1-75530-039-0	04	1	0412-	●
91	SCREW; SEAT ADJ COVER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-081-0	01	1	0005-0411		●
91	SCREW; SEAT ADJ COVER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-081-0	01	1	0412-		●
91	SCREW; SEAT ADJ COVER	1-75530-081-0	01	1	0412-	●
419	LINK ASM; SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75530-085-0	01	1	0005-0411		●
419	LINK ASM; SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75530-085-0	01	1	0412-		●
419	LINK ASM; SUSPENSION DEVICE (A)	1-75530-085-0	01	1	0412-	●
419	LINK ASM; SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75530-086-0	01	1	0005-0411		●
419	LINK ASM; SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75530-086-0	01	1	0412-		●
419	LINK ASM; SUSPENSION DEVICE (B)	1-75530-086-0	01	1	0412-	●
419	LINK ASM; SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (C)	1-75530-087-0	01	1	0005-0411		●
419	LINK ASM; SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (C)	1-75530-087-0	01	1	0412-		●
419	LINK ASM; SUSPENSION DEVICE (C)	1-75530-087-0	01	1	0412-	●
420	KNOB; ADJ,SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-067-0	01	1	0005-0411		●
420	KNOB; ADJ,SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-067-0	01	1	0412-		●
420	KNOB; ADJ,SEAT SUSP	1-75530-067-0	01	1	0412-	●
423	SHAFT; SEAT DAMPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75530-064-0	01	1	0005-0411		●
423	SHAFT; SEAT DAMPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75530-064-0	01	1	0412-		●
423	SHAFT; SEAT DAMPER (A)	1-75530-064-0	01	1	0412-	●
423	SHAFT; SEAT DAMPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75530-082-0	01	1	0005-0411		●
423	SHAFT; SEAT DAMPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75530-082-0	01	1	0412-		●
423	SHAFT; SEAT DAMPER (B)	1-75530-082-0	01	1	0412-	●
425	BEARING; THRUST,KNOB SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-074-0	01	1	0005-0411		●
425	BEARING; THRUST,KNOB SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-074-0	01	1	0412-		●
425	BEARING; THRUST,KNOB	1-75530-074-0	01	1	0412-	●
472	PIN; SPRING SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75530-072-0	01	1	0005-0411		●
472	PIN; SPRING SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75530-072-0	01	1	0412-		●
472	PIN; SPRING (A)	1-75530-072-0	01	1	0412-	●
472	PIN; SPRING SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75530-075-0	01	1	0005-0411		●
472	PIN; SPRING SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75530-075-0	01	1	0412-		●
472	PIN; SPRING (B)	1-75530-075-0	01	1	0412-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
