Sayfa 7-43 - Isuzu EPC

7-43 — SUN VISOR AND ASSIST GRIP (#9456) — 293 parça

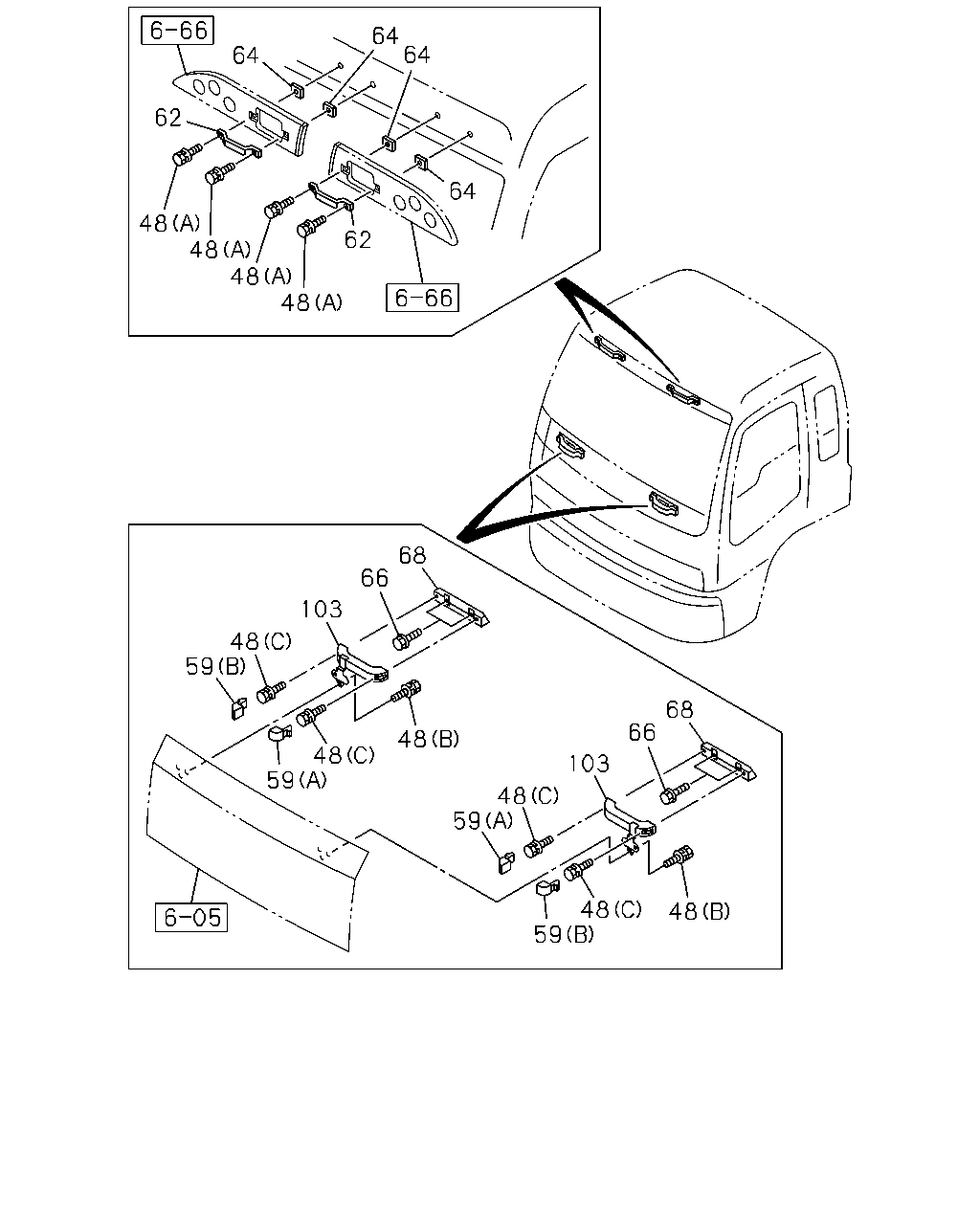

64 64 64 62 64 48 48 48 48 62 68 66 103 48 59 68 66 48 48 59 103 48 59 48 59 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0005-0411	●	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0412-0412	●	●	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0412-	●	●	●	●
48	BOLT; ASSIST GRIP (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0005-0411	●	●	●
48	BOLT; ASSIST GRIP (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0412-	●	●	●	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0005-0411	●	●	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0412-	●	●	●	●
48	BOLT; ASSIST GRIP (D) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0005-			●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0005-0411	●	●	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0412-	●	●	●	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0005-0411	●	●	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0412-	●	●	●	●
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	02	1	0005-0411	●	●	●
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	02	1	0412-0907	●	●	●	●
62	GRIP; ASSIST,ROOF PANEL	8-97630-819-0	02	1	0908-	●	●	●	●
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	0005-0411	●	●	●
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	0412-	●	●	●	●
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0005-0411	●	●	●
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0412-	●	●	●	●
68	BRACKET; ASSIST GRIP,FRT PANEL	1-65580-203-0	02	1	0005-0411	●	●	●
68	BRACKET; ASSIST GRIP,FRT PANEL	1-65580-203-0	02	1	0412-	●	●	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-792-2	01	1	0005-0411	●	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-792-2	01	1	0412-0412	●	●	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-792-2	01	1	0412-	●	●	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-791-2	01	1	0005-0411	●	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-791-2	01	1	0412-0412	●	●	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-791-2	01	1	0412-	●	●	●	●

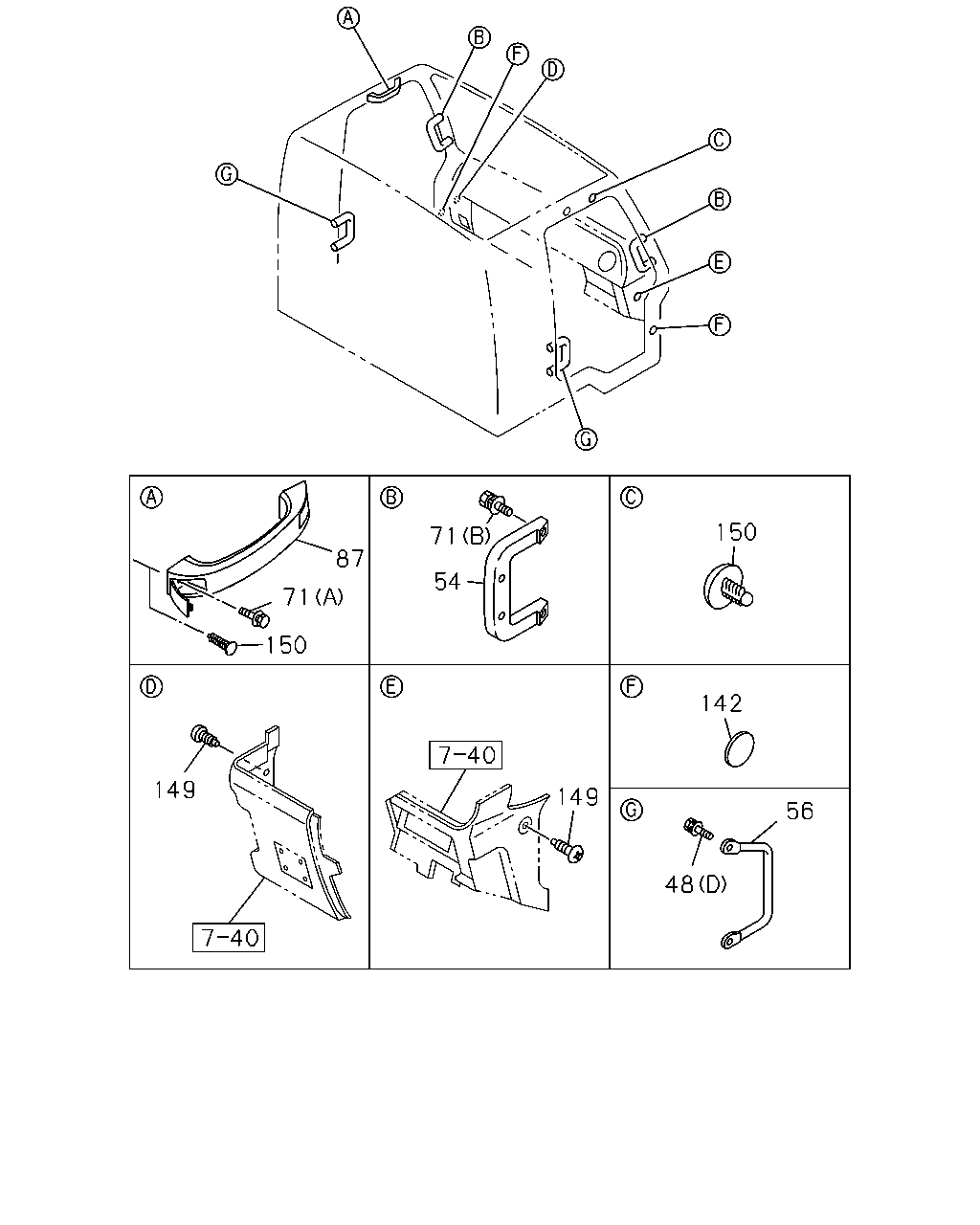

150 71 87 54 71 150 142 149 149 56 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0005-0411	●	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0412-0412	●	●	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0412-	●	●	●	●
48	BOLT; ASSIST GRIP (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0005-0411	●	●	●
48	BOLT; ASSIST GRIP (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0412-	●	●	●	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0005-0411	●	●	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0412-	●	●	●	●
48	BOLT; ASSIST GRIP (D) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0005-			●
54	GRIP; ASSIST,QUARTER SIDE	1-73618-158-2	02	1	0005-0211	●	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73618-185-1	02	1	0212-0411	●	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73618-185-1	02	1	0412-	●	●	●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	0005-0402			●
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0403-0804			●
56	GRIP; ASSIST,SIDE SILL	8-98081-700-0	02	1	0805-			●
71	SCREW (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0005-0212	●	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0301-0310	●	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-0411	●	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0412-	●	●	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	0005-0211	●	●	●
71	SCREW (B) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0212-0411	●	●	●
71	SCREW (B) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0412-	●	●	●	●
71	SCREW (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	0005-0411	●	●	●
71	SCREW (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	0412-	●	●	●	●
71	SCREW (D) M6X24 W/LK&PL WASHER	8-94279-404-0	16	1	0005-0005		●
71	SCREW (D) M6X18 W/LK&PL WASHER	8-94279-328-0	08	1	0006-		●
71	SCREW (D) M6X25	8-94279-342-0	08	1	0006-		●
87	GRIP; ASSIST,CANT RAIL SIDE DARK GRAY	8-97098-476-2	01	1	0005-0212	●	●	●
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP<EG5> DARK GRAY	8-97098-476-2	01	1	0301-0411	●	●	●
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP<EG5> DARK GRAY	8-97098-476-2	01	1	0412-	●	●	●	●
142	SEAL; ASSIST GRIP OD=25 BLACK	1-76798-019-0	02	1	0005-0411	●	●	●
142	SEAL; ASSIST GRIP OD=25 BLACK	1-76798-019-0	02	1	0412-	●	●	●	●
149	SCREW; ASSIST GRIP HOLE M6X16	8-94479-534-0	02	1	0005-0302	●	●	●
149	SCREW; ASSIST GRIP HOLE M6X12	8-97094-854-0	02	1	0303-0411	●	●	●
149	SCREW; ASSIST GRIP HOLE M6X12	8-97094-854-0	02	1	0412-	●	●	●	●
150	CLIP; ASSIST GRIP HOLE CUSTOM CAB(SR5) EXC. ASSIST GRIP<EG5> OD=6 L=17 DARK GRAY	1-73996-364-0	04	1	0301-	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP<EG5>,CUSTOM CAB(SR5) OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0301-0411	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0301-0411		●	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP<EG5>,CUSTOM CAB(SR5) OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0412-	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0412-		●	●	●
150	CLIP; ASSIST GRIP HOLE CUSTOM CAB(SR5) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0005-0212	●
150	CLIP; ASSIST GRIP HOLE ASSIST GRIP<EG5> CUSTOM CAB(SR5) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0301-	●
150	CLIP; ASSIST GRIP HOLE EXC. CUSTOM CAB(SR5) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0005-0212	●
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0005-0212		●	●
150	CLIP; ASSIST GRIP HOLE ASSIST GRIP<EG5> EXC. CUSTOM CAB(SR5) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0301-0411	●
150	CLIP; ASSIST GRIP HOLE ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0301-0411		●	●
150	CLIP; ASSIST GRIP HOLE ASSIST GRIP<EG5> EXC. CUSTOM CAB(SR5) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0412-	●
150	CLIP; ASSIST GRIP HOLE ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0412-		●	●	●

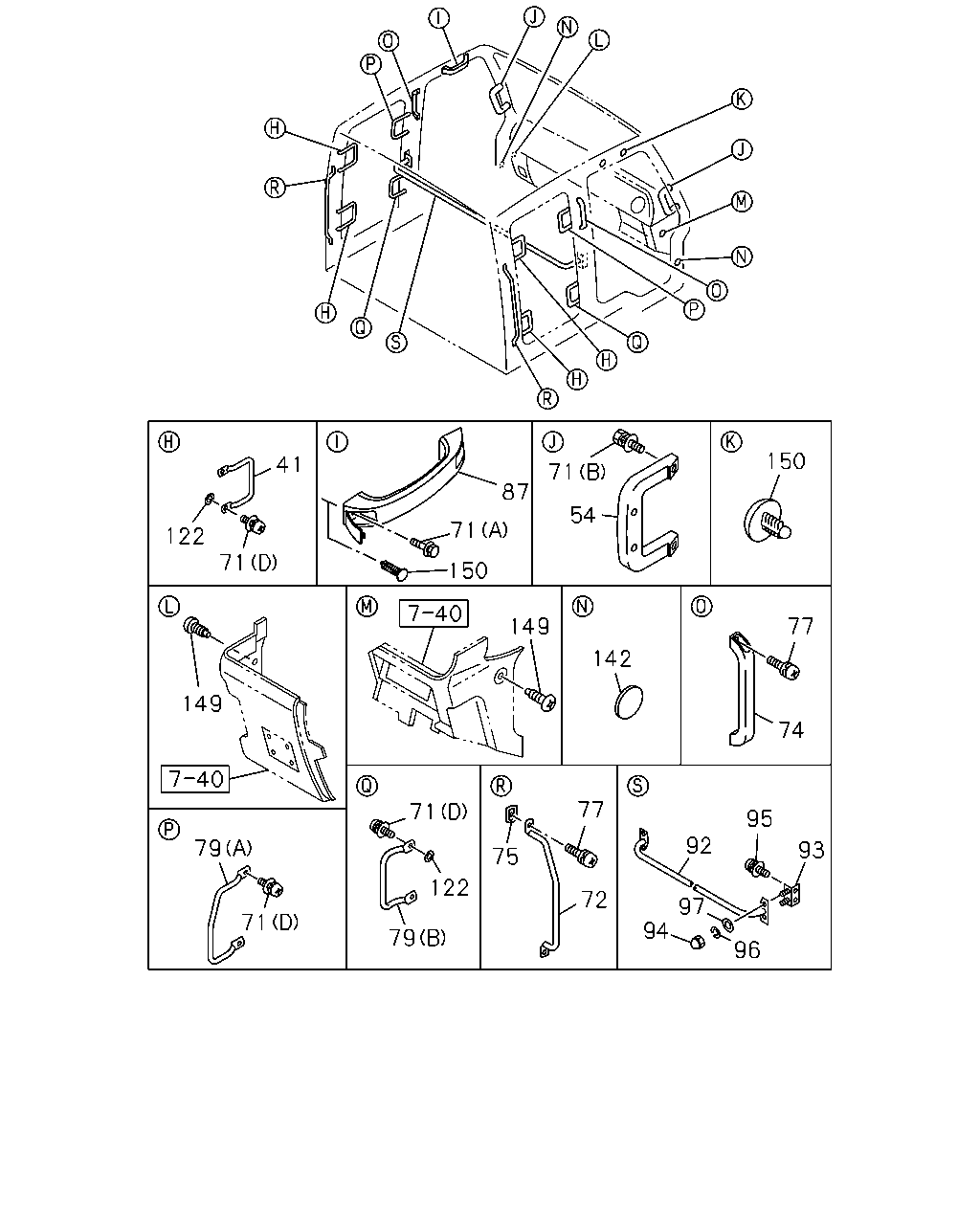

150 41 71 87 54 71 122 71 150 149 77 142 149 74 77 71 95 92 79 93 75 122 72 97 71 94 79 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
41	GRIP; ASSIST,BACK SIDE	1-71998-467-0	04	1	0005-		●
54	GRIP; ASSIST,QUARTER SIDE	1-73618-158-2	02	1	0005-0211	●	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73618-185-1	02	1	0212-0411	●	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73618-185-1	02	1	0412-	●	●	●	●
71	SCREW (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0005-0212	●	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0301-0310	●	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-0411	●	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0412-	●	●	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	0005-0211	●	●	●
71	SCREW (B) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0212-0411	●	●	●
71	SCREW (B) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0412-	●	●	●	●
71	SCREW (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	0005-0411	●	●	●
71	SCREW (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	0412-	●	●	●	●
71	SCREW (D) M6X24 W/LK&PL WASHER	8-94279-404-0	16	1	0005-0005		●
71	SCREW (D) M6X18 W/LK&PL WASHER	8-94279-328-0	08	1	0006-		●
71	SCREW (D) M6X25	8-94279-342-0	08	1	0006-		●
72	GRIP; ASSIST,CAB ENTRY,BACK L=450 WHITE	1-71998-278-0	02	1	0005-		●
74	GRIP; ASSIST,CAB ENTRY,BACK CENTER	1-71998-944-2	02	1	0005-		●
75	SHEET; ASSIST GRIP,CAB ENTRY	1-71997-478-1	04	1	0005-		●
77	SCREW; ASSIST GRIP	8-94279-407-0	08	1	0005-		●
79	GRIP; ASSIST (A)	1-71996-134-0	02	1	0005-		●
79	GRIP; ASSIST (B)	1-71998-467-0	02	1	0005-		●
87	GRIP; ASSIST,CANT RAIL SIDE DARK GRAY	8-97098-476-2	01	1	0005-0212	●	●	●
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP<EG5> DARK GRAY	8-97098-476-2	01	1	0301-0411	●	●	●
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP<EG5> DARK GRAY	8-97098-476-2	01	1	0412-	●	●	●	●
92	BAR; ASSIST	1-73618-123-2	01	1	0005-		●
93	BRACKET; ASSIST BAR	1-73618-126-1	02	1	0005-		●
94	NUT; CAP,ASSIST BAR M8 FLANGE	1-09984-126-0	04	1	0005-		●
95	SCREW; ASSIST BAR BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0005-0904		●
95	SCREW; ASSIST BAR BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0905-		●
96	WASHER; LK,ASSIST BAR ID=8.2	1-09985-177-0	04	1	0005-		●
97	WASHER; PL,ASSIST BAR ID=8.4 OD=16	1-09985-174-0	04	1	0005-		●
122	WASHER; PL,ASSIST GRIP ID=10.2 OD=22 T=6	1-09989-009-1	02	1	0005-		●
122	WASHER; PL,ASSIST GRIP ID=6.4 OD=14 T=1	1-09985-187-0	08	1	0006-		●
142	SEAL; ASSIST GRIP OD=25 BLACK	1-76798-019-0	02	1	0005-0411	●	●	●
142	SEAL; ASSIST GRIP OD=25 BLACK	1-76798-019-0	02	1	0412-	●	●	●	●
149	SCREW; ASSIST GRIP HOLE M6X16	8-94479-534-0	02	1	0005-0302	●	●	●
149	SCREW; ASSIST GRIP HOLE M6X12	8-97094-854-0	02	1	0303-0411	●	●	●
149	SCREW; ASSIST GRIP HOLE M6X12	8-97094-854-0	02	1	0412-	●	●	●	●
150	CLIP; ASSIST GRIP HOLE CUSTOM CAB(SR5) EXC. ASSIST GRIP<EG5> OD=6 L=17 DARK GRAY	1-73996-364-0	04	1	0301-	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP<EG5>,CUSTOM CAB(SR5) OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0301-0411	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0301-0411		●	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP<EG5>,CUSTOM CAB(SR5) OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0412-	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0412-		●	●	●
150	CLIP; ASSIST GRIP HOLE CUSTOM CAB(SR5) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0005-0212	●
150	CLIP; ASSIST GRIP HOLE ASSIST GRIP<EG5> CUSTOM CAB(SR5) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0301-	●
150	CLIP; ASSIST GRIP HOLE EXC. CUSTOM CAB(SR5) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0005-0212	●
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0005-0212		●	●
150	CLIP; ASSIST GRIP HOLE ASSIST GRIP<EG5> EXC. CUSTOM CAB(SR5) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0301-0411	●
150	CLIP; ASSIST GRIP HOLE ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0301-0411		●	●
150	CLIP; ASSIST GRIP HOLE ASSIST GRIP<EG5> EXC. CUSTOM CAB(SR5) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0412-	●
150	CLIP; ASSIST GRIP HOLE ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0412-		●	●	●

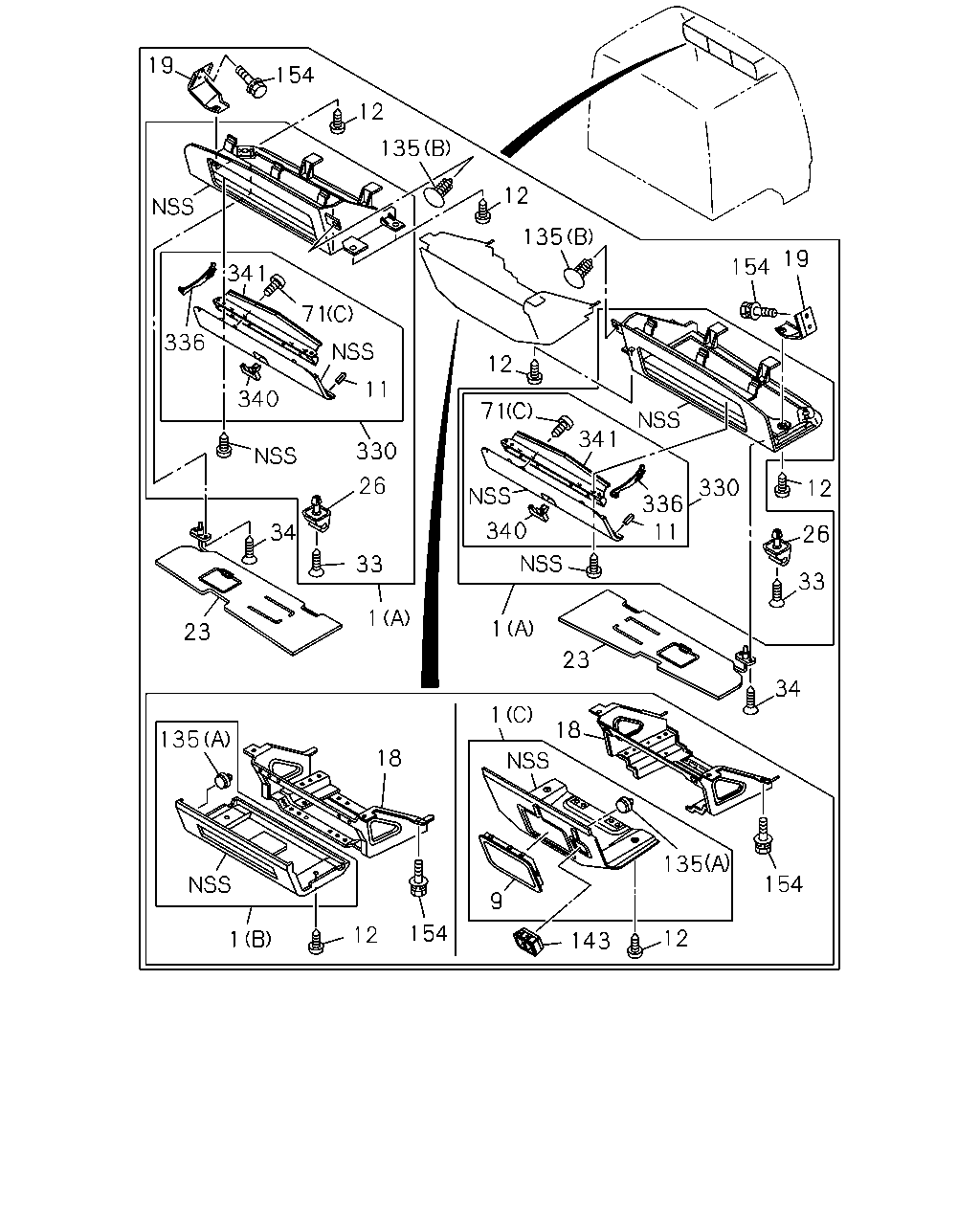

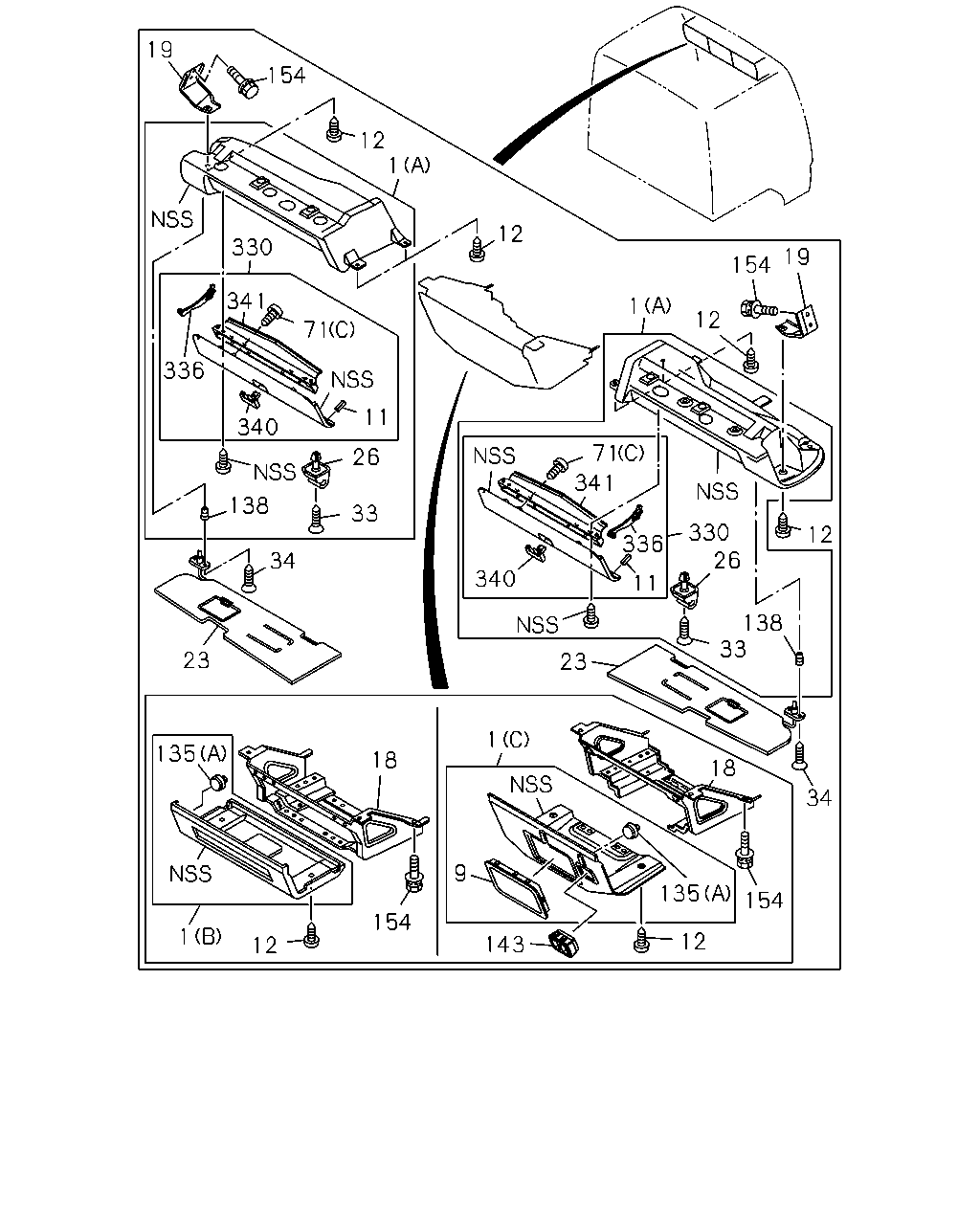

19 154 12 1 12 330 19 154 341 1 12 71 336 11 340 71 26 341 138 33 330 26 12 336 34 340 11 138 33 23 23 1 135 18 18 34 9 135 154 154 1 12 143 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BOARD; HEADER SHELF CUSTOM CAB(SR5) (A)	1-72448-678-0	01	1	0005-0305	●
1	BOARD; HEADER SHELF CUSTOM CAB(SR5) (A)	1-72448-677-0	01	1	0005-0305	●
1	BOARD; HEADER SHELF EXC. CUSTOM CAB(SR5) (A)	1-73318-691-0	01	1	0005-0305	●
1	BOARD; HEADER SHELF (A)	1-73318-691-0	01	1	0005-0305		●	●
1	BOARD; HEADER SHELF (A)	1-73318-691-0	01	1	0306-0411	●	●	●
1	BOARD; HEADER SHELF (A)	1-73318-691-0	01	1	0412-	●	●	●	●
1	BOARD; HEADER SHELF EXC. CUSTOM CAB(SR5) (A)	1-73318-690-0	01	1	0005-0305	●
1	BOARD; HEADER SHELF (A)	1-73318-690-0	01	1	0005-0305		●	●
1	BOARD; HEADER SHELF (A)	1-73318-690-0	01	1	0306-0411	●	●	●
1	BOARD; HEADER SHELF (A)	1-73318-690-0	01	1	0412-	●	●	●	●
1	BOARD; HEADER SHELF MAP LAMP<C85> (C) CENTER	1-72448-667-0	01	1	0005-0405	●
1	BOARD; HEADER SHELF MAP LAMP<C85> (C) CENTER	1-72448-667-0	01	1	0406-0411	●	●	●
1	BOARD; HEADER SHELF MAP LAMP<C85> (C) CENTER	1-72448-667-0	01	1	0412-	●	●	●	●
1	BOARD; HEADER SHELF EXC. MAP LAMP<C85> (B) CENTER	1-72448-663-0	01	1	0005-0405	●
1	BOARD; HEADER SHELF (B) CENTER	1-72448-663-0	01	1	0005-0405		●	●
1	BOARD; HEADER SHELF EXC. MAP LAMP<C85> (B) CENTER	1-72448-663-0	01	1	0406-0411	●	●	●
1	BOARD; HEADER SHELF EXC. MAP LAMP<C85> (B) CENTER	1-72448-663-0	01	1	0412-	●	●	●	●
9	COVER; HOLE,HEADER SHELF CENTER MAP LAMP<C85>	1-72448-547-2	01	1	0005-0405	●
9	COVER; HOLE,HEADER SHELF CENTER MAP LAMP<C85>	1-72448-547-2	01	1	0406-0411	●	●	●
9	COVER; HOLE,HEADER SHELF CENTER MAP LAMP<C85>	1-72448-547-2	01	1	0412-	●	●	●	●
11	CAP; HEADER SHELF	8-94270-538-0	04	1	0005-0411	●	●	●
11	CAP; HEADER SHELF	8-94270-538-0	04	1	0412-	●	●	●	●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	0211-0411	●	●	●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	0412-	●	●	●	●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	0005-0210	●	●	●
18	SUPPORT; HEADER SHELF CENTER MAP LAMP<C85>	1-72448-632-0	01	1	0005-0405	●
18	SUPPORT; HEADER SHELF CENTER MAP LAMP<C85>	1-72448-632-1	01	1	0406-0411	●	●	●
18	SUPPORT; HEADER SHELF CENTER MAP LAMP<C85>	1-72448-632-1	01	1	0412-	●	●	●	●
18	SUPPORT; HEADER SHELF CENTER EXC. MAP LAMP<C85>	8-97865-124-1	01	1	0005-0405	●
18	SUPPORT; HEADER SHELF CENTER	8-97865-124-1	01	1	0005-0405		●	●
18	SUPPORT; HEADER SHELF CENTER EXC. MAP LAMP<C85>	8-97865-124-1	01	1	0406-0411	●	●	●
18	SUPPORT; HEADER SHELF CENTER EXC. MAP LAMP<C85>	8-97865-124-1	01	1	0412-	●	●	●	●
19	SUPPORT ASM; HEADER SHELF	1-72448-324-1	01	1	0005-0411	●	●	●
19	SUPPORT ASM; HEADER SHELF	1-72448-324-1	01	1	0412-	●	●	●	●
19	SUPPORT ASM; HEADER SHELF	1-72448-323-1	01	1	0005-0411	●	●	●
19	SUPPORT ASM; HEADER SHELF	1-72448-323-1	01	1	0412-	●	●	●	●
23	SUN VISOR	1-73138-157-1	01	1	0005-0411	●	●	●
23	SUN VISOR	1-73138-157-1	01	1	0412-	●	●	●	●
23	SUN VISOR	1-73138-156-1	01	1	0005-0411	●	●	●
23	SUN VISOR	1-73138-156-1	01	1	0412-	●	●	●	●
26	HOLDER; SUN VISOR	1-73137-175-0	02	1	0005-0411	●	●	●
26	HOLDER; SUN VISOR	1-73137-175-0	02	1	0412-	●	●	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	0005-0411	●	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	0412-0603	●	●	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70540-416-0	02	1	0604-	●	●	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	0005-0411	●	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	0412-	●	●	●	●
71	SCREW (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0005-0212	●	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0301-0310	●	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-0411	●	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0412-	●	●	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	0005-0211	●	●	●
71	SCREW (B) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0212-0411	●	●	●
71	SCREW (B) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0412-	●	●	●	●
71	SCREW (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	0005-0411	●	●	●
71	SCREW (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	0412-	●	●	●	●
71	SCREW (D) M6X24 W/LK&PL WASHER	8-94279-404-0	16	1	0005-0005		●
71	SCREW (D) M6X18 W/LK&PL WASHER	8-94279-328-0	08	1	0006-		●
71	SCREW (D) M6X25	8-94279-342-0	08	1	0006-		●
135	CLIP; HEADER SHELF EXC. MAP LAMP<C85> (A) OD=7.9 BLACK	8-94279-974-1	06	1	0006-0405	●
135	CLIP; HEADER SHELF (A) OD=7.9 BLACK	8-94279-974-1	06	1	0006-0405		●	●
135	CLIP; HEADER SHELF EXC. MAP LAMP<C85> (A) OD=7.9 BLACK	8-94279-974-1	06	1	0406-0411	●	●	●
135	CLIP; HEADER SHELF EXC. MAP LAMP<C85> (A) OD=7.9 BLACK	8-94279-974-1	06	1	0412-	●	●	●	●
135	CLIP; HEADER SHELF (B) D6X23 DARK GRAY	1-09987-238-0	02	1	0005-0209	●	●	●
135	CLIP; HEADER SHELF (B) D6X23 BLACK	1-09987-114-0	02	1	0210-0411	●	●	●
135	CLIP; HEADER SHELF (B) D6X23 BLACK	1-09987-114-0	02	1	0412-	●	●	●	●
135	CLIP; HEADER SHELF (A) OD=7.9 BLACK	8-94279-974-1	03	1	0005-0005	●	●	●
135	CLIP; HEADER SHELF MAP LAMP<C85> (A) OD=7.9 BLACK	8-94279-974-1	03	1	0006-0405	●
135	CLIP; HEADER SHELF MAP LAMP<C85> (A) OD=7.9 BLACK	8-94279-974-1	03	1	0406-0411	●	●	●
135	CLIP; HEADER SHELF MAP LAMP<C85> (A) OD=7.9 BLACK	8-94279-974-1	03	1	0412-	●	●	●	●
138	NUT; BRKT,HEADER SHELF CUSTOM CAB(SR5)	1-09984-166-0	04	1	0005-0305	●
143	BEZEL CUSTOM CAB(SR5)	1-72448-532-0	01	1	0005-0407	●
143	BEZEL MAP LAMP<C85>	1-72448-532-0	01	1	0408-0411	●	●	●
143	BEZEL MAP LAMP<C85>	1-72448-532-0	01	1	0412-	●	●	●	●
154	BOLT; SUPPORT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0005-0411	●	●	●
154	BOLT; SUPPORT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0412-	●	●	●	●
330	LID; HEADER SHELF	1-72448-679-0	02	1	0005-0411	●	●	●
330	LID; HEADER SHELF	1-72448-679-0	02	1	0412-	●	●	●	●
336	STAY; LID	1-72448-379-3	04	1	0005-0411	●	●	●
336	STAY; LID	1-72448-379-3	04	1	0412-	●	●	●	●
340	LOCK; HEADER SHELF	1-72448-376-0	02	1	0005-0411	●	●	●
340	LOCK; HEADER SHELF	1-72448-376-0	02	1	0412-	●	●	●	●
341	HINGE; LID,HEADER SHELF	1-72448-403-1	02	1	0005-0411	●	●	●
341	HINGE; LID,HEADER SHELF	1-72448-403-1	02	1	0412-	●	●	●	●

19 154 12 135 12 135 19 154 341 71 336 12 11 340 71 341 330 26 330 12 33 11 340 34 26 33 33 1 1 23 23 34 1 18 135 18 135 154 9 154 12 12 1 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BOARD; HEADER SHELF CUSTOM CAB(SR5) (A)	1-72448-678-0	01	1	0005-0305	●
1	BOARD; HEADER SHELF CUSTOM CAB(SR5) (A)	1-72448-677-0	01	1	0005-0305	●
1	BOARD; HEADER SHELF EXC. CUSTOM CAB(SR5) (A)	1-73318-691-0	01	1	0005-0305	●
1	BOARD; HEADER SHELF (A)	1-73318-691-0	01	1	0005-0305		●	●
1	BOARD; HEADER SHELF (A)	1-73318-691-0	01	1	0306-0411	●	●	●
1	BOARD; HEADER SHELF (A)	1-73318-691-0	01	1	0412-	●	●	●	●
1	BOARD; HEADER SHELF EXC. CUSTOM CAB(SR5) (A)	1-73318-690-0	01	1	0005-0305	●
1	BOARD; HEADER SHELF (A)	1-73318-690-0	01	1	0005-0305		●	●
1	BOARD; HEADER SHELF (A)	1-73318-690-0	01	1	0306-0411	●	●	●
1	BOARD; HEADER SHELF (A)	1-73318-690-0	01	1	0412-	●	●	●	●
1	BOARD; HEADER SHELF MAP LAMP<C85> (C) CENTER	1-72448-667-0	01	1	0005-0405	●
1	BOARD; HEADER SHELF MAP LAMP<C85> (C) CENTER	1-72448-667-0	01	1	0406-0411	●	●	●
1	BOARD; HEADER SHELF MAP LAMP<C85> (C) CENTER	1-72448-667-0	01	1	0412-	●	●	●	●
1	BOARD; HEADER SHELF EXC. MAP LAMP<C85> (B) CENTER	1-72448-663-0	01	1	0005-0405	●
1	BOARD; HEADER SHELF (B) CENTER	1-72448-663-0	01	1	0005-0405		●	●
1	BOARD; HEADER SHELF EXC. MAP LAMP<C85> (B) CENTER	1-72448-663-0	01	1	0406-0411	●	●	●
1	BOARD; HEADER SHELF EXC. MAP LAMP<C85> (B) CENTER	1-72448-663-0	01	1	0412-	●	●	●	●
9	COVER; HOLE,HEADER SHELF CENTER MAP LAMP<C85>	1-72448-547-2	01	1	0005-0405	●
9	COVER; HOLE,HEADER SHELF CENTER MAP LAMP<C85>	1-72448-547-2	01	1	0406-0411	●	●	●
9	COVER; HOLE,HEADER SHELF CENTER MAP LAMP<C85>	1-72448-547-2	01	1	0412-	●	●	●	●
11	CAP; HEADER SHELF	8-94270-538-0	04	1	0005-0411	●	●	●
11	CAP; HEADER SHELF	8-94270-538-0	04	1	0412-	●	●	●	●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	0211-0411	●	●	●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	0412-	●	●	●	●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	0005-0210	●	●	●
18	SUPPORT; HEADER SHELF CENTER MAP LAMP<C85>	1-72448-632-0	01	1	0005-0405	●
18	SUPPORT; HEADER SHELF CENTER MAP LAMP<C85>	1-72448-632-1	01	1	0406-0411	●	●	●
18	SUPPORT; HEADER SHELF CENTER MAP LAMP<C85>	1-72448-632-1	01	1	0412-	●	●	●	●
18	SUPPORT; HEADER SHELF CENTER EXC. MAP LAMP<C85>	8-97865-124-1	01	1	0005-0405	●
18	SUPPORT; HEADER SHELF CENTER	8-97865-124-1	01	1	0005-0405		●	●
18	SUPPORT; HEADER SHELF CENTER EXC. MAP LAMP<C85>	8-97865-124-1	01	1	0406-0411	●	●	●
18	SUPPORT; HEADER SHELF CENTER EXC. MAP LAMP<C85>	8-97865-124-1	01	1	0412-	●	●	●	●
19	SUPPORT ASM; HEADER SHELF	1-72448-324-1	01	1	0005-0411	●	●	●
19	SUPPORT ASM; HEADER SHELF	1-72448-324-1	01	1	0412-	●	●	●	●
19	SUPPORT ASM; HEADER SHELF	1-72448-323-1	01	1	0005-0411	●	●	●
19	SUPPORT ASM; HEADER SHELF	1-72448-323-1	01	1	0412-	●	●	●	●
23	SUN VISOR	1-73138-157-1	01	1	0005-0411	●	●	●
23	SUN VISOR	1-73138-157-1	01	1	0412-	●	●	●	●
23	SUN VISOR	1-73138-156-1	01	1	0005-0411	●	●	●
23	SUN VISOR	1-73138-156-1	01	1	0412-	●	●	●	●
26	HOLDER; SUN VISOR	1-73137-175-0	02	1	0005-0411	●	●	●
26	HOLDER; SUN VISOR	1-73137-175-0	02	1	0412-	●	●	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	0005-0411	●	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	0412-0603	●	●	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70540-416-0	02	1	0604-	●	●	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	0005-0411	●	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	0412-	●	●	●	●
71	SCREW (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0005-0212	●	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0301-0310	●	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-0411	●	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0412-	●	●	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	0005-0211	●	●	●
71	SCREW (B) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0212-0411	●	●	●
71	SCREW (B) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0412-	●	●	●	●
71	SCREW (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	0005-0411	●	●	●
71	SCREW (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	0412-	●	●	●	●
71	SCREW (D) M6X24 W/LK&PL WASHER	8-94279-404-0	16	1	0005-0005		●
71	SCREW (D) M6X18 W/LK&PL WASHER	8-94279-328-0	08	1	0006-		●
71	SCREW (D) M6X25	8-94279-342-0	08	1	0006-		●
135	CLIP; HEADER SHELF EXC. MAP LAMP<C85> (A) OD=7.9 BLACK	8-94279-974-1	06	1	0006-0405	●
135	CLIP; HEADER SHELF (A) OD=7.9 BLACK	8-94279-974-1	06	1	0006-0405		●	●
135	CLIP; HEADER SHELF EXC. MAP LAMP<C85> (A) OD=7.9 BLACK	8-94279-974-1	06	1	0406-0411	●	●	●
135	CLIP; HEADER SHELF EXC. MAP LAMP<C85> (A) OD=7.9 BLACK	8-94279-974-1	06	1	0412-	●	●	●	●
135	CLIP; HEADER SHELF (B) D6X23 DARK GRAY	1-09987-238-0	02	1	0005-0209	●	●	●
135	CLIP; HEADER SHELF (B) D6X23 BLACK	1-09987-114-0	02	1	0210-0411	●	●	●
135	CLIP; HEADER SHELF (B) D6X23 BLACK	1-09987-114-0	02	1	0412-	●	●	●	●
135	CLIP; HEADER SHELF (A) OD=7.9 BLACK	8-94279-974-1	03	1	0005-0005	●	●	●
135	CLIP; HEADER SHELF MAP LAMP<C85> (A) OD=7.9 BLACK	8-94279-974-1	03	1	0006-0405	●
135	CLIP; HEADER SHELF MAP LAMP<C85> (A) OD=7.9 BLACK	8-94279-974-1	03	1	0406-0411	●	●	●
135	CLIP; HEADER SHELF MAP LAMP<C85> (A) OD=7.9 BLACK	8-94279-974-1	03	1	0412-	●	●	●	●
143	BEZEL CUSTOM CAB(SR5)	1-72448-532-0	01	1	0005-0407	●
143	BEZEL MAP LAMP<C85>	1-72448-532-0	01	1	0408-0411	●	●	●
143	BEZEL MAP LAMP<C85>	1-72448-532-0	01	1	0412-	●	●	●	●
154	BOLT; SUPPORT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0005-0411	●	●	●
154	BOLT; SUPPORT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0412-	●	●	●	●
330	LID; HEADER SHELF	1-72448-679-0	02	1	0005-0411	●	●	●
330	LID; HEADER SHELF	1-72448-679-0	02	1	0412-	●	●	●	●
336	STAY; LID	1-72448-379-3	04	1	0005-0411	●	●	●
336	STAY; LID	1-72448-379-3	04	1	0412-	●	●	●	●
340	LOCK; HEADER SHELF	1-72448-376-0	02	1	0005-0411	●	●	●
340	LOCK; HEADER SHELF	1-72448-376-0	02	1	0412-	●	●	●	●
341	HINGE; LID,HEADER SHELF	1-72448-403-1	02	1	0005-0411	●	●	●
341	HINGE; LID,HEADER SHELF	1-72448-403-1	02	1	0412-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
