◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10826 - FRR/FSR/FRD(AUST) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#9453) — 37 parça

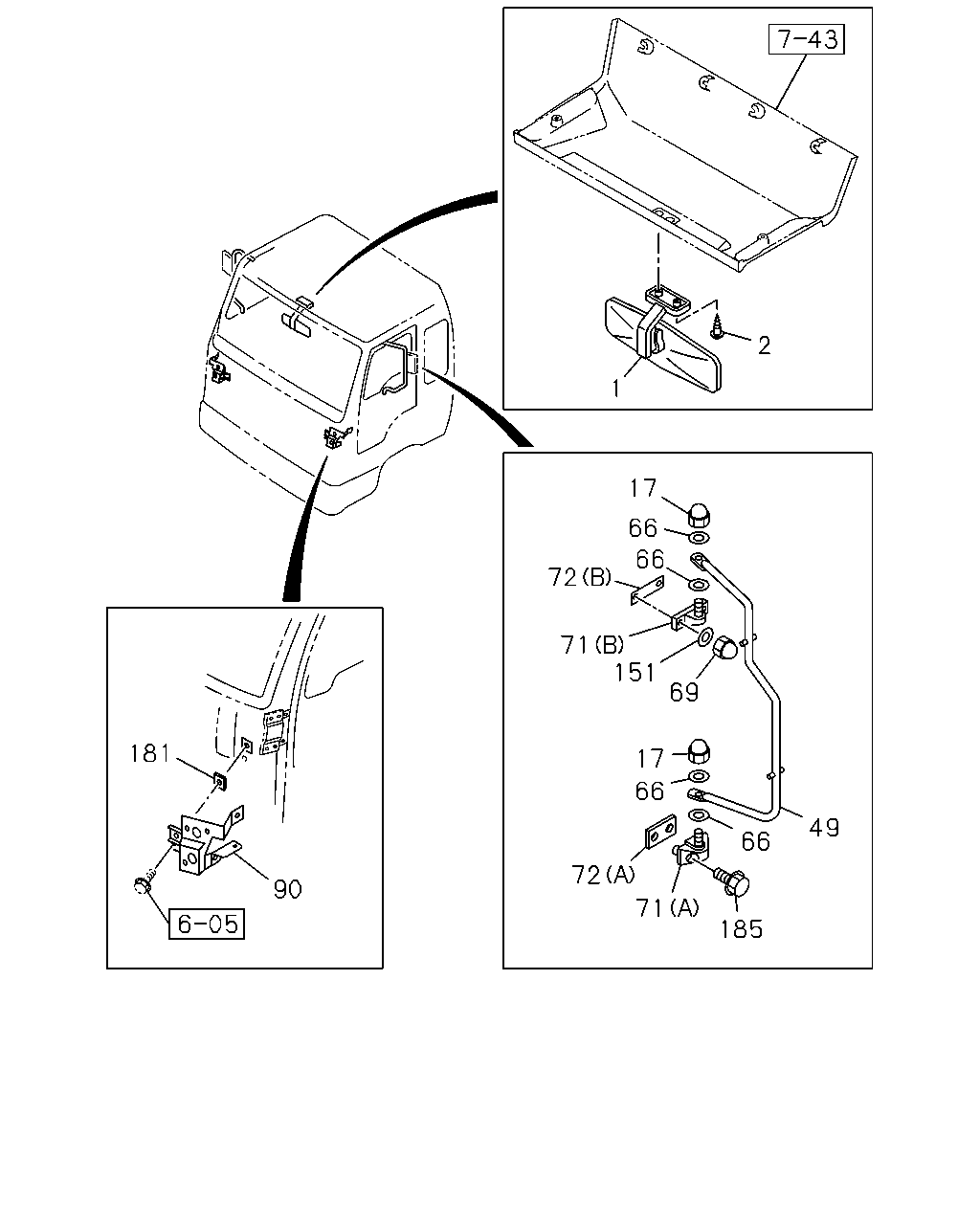

çizim 38623
2 1 17 66 66 72 71 151 69 181 17 66 49 66 72 90 71 185
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 MIRROR; ROOM 1-73117-033-1 01 1 0005-0411 ● ● ●
1 MIRROR; ROOM 1-73117-033-1 01 1 0412- ● ● ● ●
2 SCREW; MIRROR TO BODY
M6X20 		1-09981-310-0 02 1 0005-0411 ● ● ●
2 SCREW; MIRROR TO BODY
M6X20 		1-09981-310-0 02 1 0412- ● ● ● ●
17 NUT; CAP,MIRROR STAY
M10 		1-09984-183-0 04 1 0005-0208 ● ● ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 04 1 0209-0411 ● ● ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 04 1 0412- ● ● ● ●
49 STAY; MIRROR SIDE 1-71798-719-1 01 1 0005-0411 ● ● ●
49 STAY; MIRROR SIDE 1-71798-719-1 01 1 0412- ● ● ● ●
49 STAY; MIRROR SIDE 1-71798-583-3 01 1 0005-0411 ● ● ●
49 STAY; MIRROR SIDE 1-71798-583-3 01 1 0412- ● ● ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 0005-0411 ● ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 0412- ● ● ● ●
69 NUT; CAP
M8 		1-09984-187-0 04 1 0005-0411 ● ● ●
69 NUT; CAP
M8 		1-09984-187-0 04 1 0412-0809 ● ● ● ●
69 NUT; CAP
M8 CAP NUT 		8-98059-914-0 04 1 0810- ● ● ● ●
71 BRACKET; OUTSIDE MIRROR
(B) UPPER 		1-71798-484-1 02 1 0005-0411 ● ● ●
71 BRACKET; OUTSIDE MIRROR
(B) UPPER 		1-71798-484-1 02 1 0412- ● ● ● ●
71 BRACKET; OUTSIDE MIRROR
(A) LOWER 		1-71798-486-2 02 1 0005-0411 ● ● ●
71 BRACKET; OUTSIDE MIRROR
(A) LOWER 		1-71798-486-2 02 1 0412- ● ● ● ●
72 SHEET
(B) UPPER 		1-71798-487-3 02 1 0005-0411 ● ● ●
72 SHEET
(B) UPPER 		1-71798-487-3 02 1 0412- ● ● ● ●
72 SHEET
(A) LOWER 		1-71798-488-1 02 1 0005-0411 ● ● ●
72 SHEET
(A) LOWER 		1-71798-488-1 02 1 0412- ● ● ● ●
90 BRACKET; MIRROR STAY 1-71798-829-1 01 1 0005-0411 ● ● ●
90 BRACKET; MIRROR STAY 1-71798-829-1 01 1 0412- ● ● ● ●
90 BRACKET; MIRROR STAY 1-71798-828-1 01 1 0005-0411 ● ● ●
90 BRACKET; MIRROR STAY 1-71798-828-1 01 1 0412-0809 ● ● ● ●
90 BRACKET; MIRROR STAY 1-71707-237-0 01 1 0810- ● ● ● ●
151 WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 04 1 0005-0411 ● ● ●
151 WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 04 1 0412- ● ● ● ●
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 0005-0411 ● ● ●
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 0412- ● ● ● ●
185 BOLT; BRKT
M8X35 FLANGE 		0-28690-835-0 04 1 0005-0411 ● ● ●
185 BOLT; BRKT
M8X35 FLANGE 		0-28690-835-0 04 1 0412-0512 ● ● ● ●
185 BOLT; BRKT
M8X35 FLANGE 		0-28660-835-0 04 1 0601-0605 ● ● ● ●
185 BOLT; BRKT
M8X35 FLANGE 		8-98046-876-0 04 1 0606- ● ● ● ●
