◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10826 - FRR/FSR/FRD(AUST) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#9452) — 38 parça

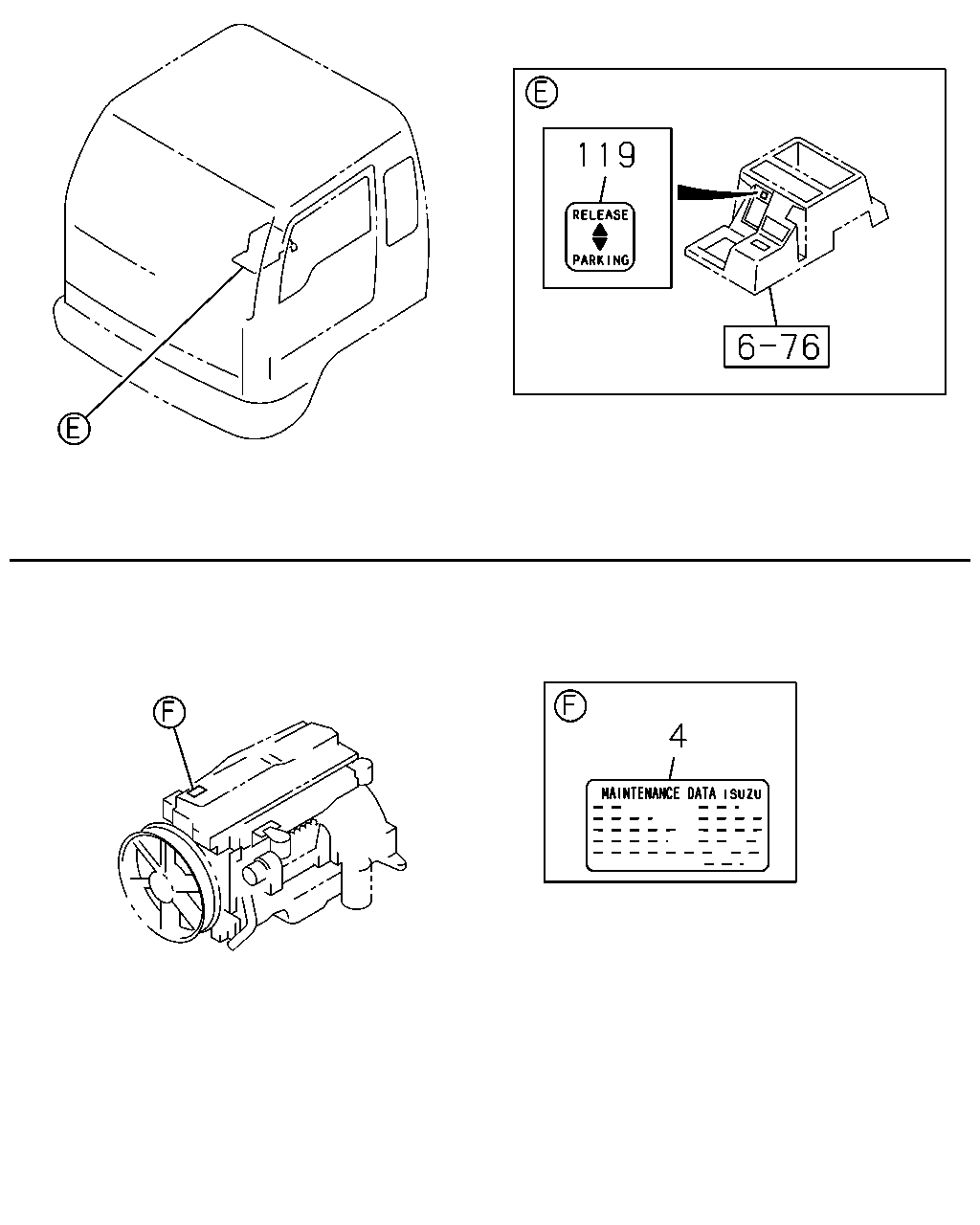

çizim 39005
119 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 LABEL; ENG MAINTENANCE
6HK1 TCS ENG(80L) 		8-97601-793-0 01 1 0307- ● ●
4 LABEL; ENG MAINTENANCE
6HH1 N ENG(66L) 		8-94390-091-0 01 1 0005-0210 ● ●
4 LABEL; ENG MAINTENANCE
6HH1 STD ENG(65L) 		8-94390-517-0 01 1 0005-0210 ● ● ●
4 LABEL; ENG MAINTENANCE 8-94391-524-0 01 1 0211-0302 ● ● ●
4 LABEL; ENG MAINTENANCE
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) 		8-94391-524-0 01 1 0303-0411 ● ●
4 LABEL; ENG MAINTENANCE 8-94391-524-0 01 1 0303-0411 ●
4 LABEL; ENG MAINTENANCE
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) 		8-94391-524-0 01 1 0412- ● ●
4 LABEL; ENG MAINTENANCE 8-94391-524-0 01 1 0412- ● ●
119 PLATE; CAUTION,HAND BRK LEVER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85881-759-0 01 1 0005- ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0005- ● ●

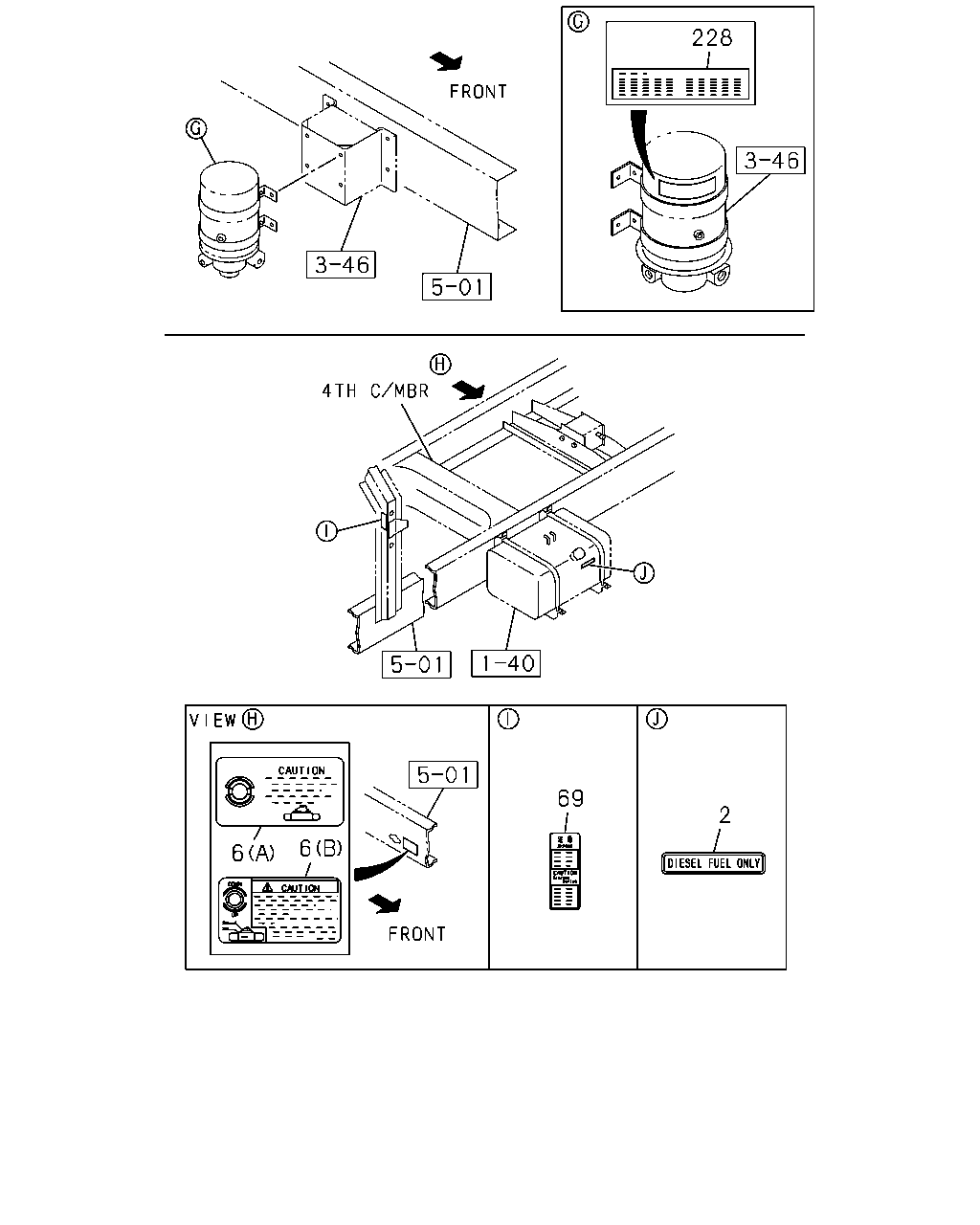

çizim 99615
228 69 2 6 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 LABEL; FUEL CAUTION 8-97135-605-0 01 1 0005-0312 ● ● ●
2 LABEL; FUEL CAUTION 1-85883-153-0 01 1 0401-0411 ● ● ●
2 LABEL; FUEL CAUTION 1-85883-153-0 01 1 0412- ● ● ● ●
6 PLATE; CAUTION,SPARE TIRE
(A) 		1-53639-004-0 01 1 0005-0708 ● ● ●
6 PLATE; CAUTION,SPARE TIRE
(B) 		8-98082-437-0 01 1 0709- ● ● ●
69 PLATE; CAUTION,STARTER SW 1-85887-389-0 01 1 0005-0302 ● ● ●
69 PLATE; CAUTION,STARTER SW
EXC. STARTER SWITCH DELETION<E5D> 		1-85887-389-0 01 1 0303-0411 ● ● ●
69 PLATE; CAUTION,STARTER SW
EXC. STARTER SWITCH DELETION<E5D> 		1-85887-389-0 01 1 0412- ● ● ● ●
228 PLATE; CAUTION,AIR DRYER 1-48199-325-0 01 1 0005-0411 ● ● ●
228 PLATE; CAUTION,AIR DRYER 1-48199-325-0 01 1 0412-1001 ● ● ● ●
çizim 100450
109 60 51 51 51 49
BalonParca AdiParca NoAdetTipApplied Date A B C D
49 PLATE; CAUTION,FUSE BOX 1-85878-517-0 01 1 0412- ●
49 PLATE; CAUTION,FUSE BOX 1-85878-278-0 01 1 0005-0210 ● ● ●
49 PLATE; CAUTION,FUSE BOX 1-85878-324-0 01 1 0211- ● ● ●
51 PLATE; CAUTION,WARNING
(C) 		1-85878-516-0 01 1 0412- ●
51 PLATE; CAUTION,WARNING
6HK1 TCS ENG(80L) (B) 		1-85878-325-0 01 1 0307- ● ●
51 PLATE; CAUTION,WARNING
(A) 		1-85880-707-1 01 1 0005-0411 ● ● ●
51 PLATE; CAUTION,WARNING
(A) 		1-85880-707-1 01 1 0412- ● ● ● ●
51 PLATE; CAUTION,WARNING
(B) 		1-85888-559-2 01 1 0005-0305 ● ● ●
51 PLATE; CAUTION,WARNING
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (B) 		1-85888-559-2 01 1 0306- ● ●
51 PLATE; CAUTION,WARNING
6HK1 TCC ENG(81L) (B) 		1-85888-559-2 01 1 0306- ●
60 PLATE; CAUTION,CAB TILT 1-85883-169-0 01 1 0005-0411 ● ●
60 PLATE; CAUTION,CAB TILT 1-85883-169-0 01 1 0412- ● ● ●
60 PLATE; CAUTION,CAB TILT 1-85883-178-0 01 1 0005- ●
109 PLATE; CAUTION,TIRE PLACARD 1-85881-766-1 01 1 0005-0411 ● ●
109 PLATE; CAUTION,TIRE PLACARD 1-85881-766-1 01 1 0412-0611 ● ● ●
109 PLATE; CAUTION,TIRE PLACARD
TIRE 9.5R 17.5-129/127L FRT RIB RR TRACTION(5J6) ,TIRE 9.5R 17.5-129/127(83N) 		1-85881-766-1 01 1 0612- ●
109 PLATE; CAUTION,TIRE PLACARD 1-85881-766-1 01 1 0612- ● ●
109 PLATE; CAUTION,TIRE PLACARD 1-85881-767-0 01 1 0005- ●
