7-01 — EMBLEM AND NAME PLATE (#9451) — 16 parça

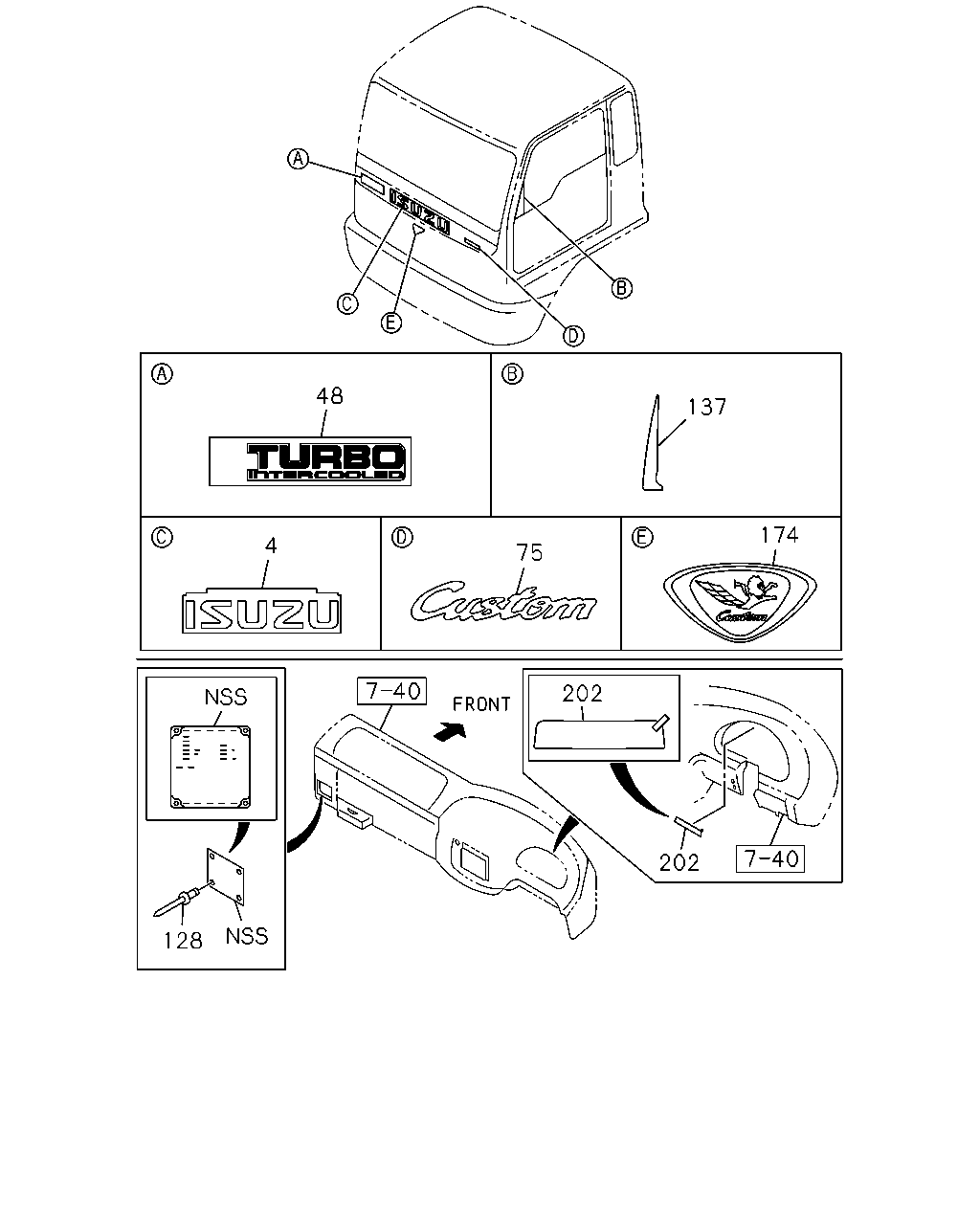

çizim 38546
48 137 174 4 75 202 202 128
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 EMBLEM; RAD GRILLE
CUSTOM CAB(SR5) ISUZU 		1-76210-669-3 01 1 0005- ●
4 EMBLEM; RAD GRILLE
EXC. CUSTOM CAB(SR5) ISUZU 		1-76210-668-3 01 1 0005-0411 ●
4 EMBLEM; RAD GRILLE
ISUZU 		1-76210-668-3 01 1 0005-0411 ● ●
4 EMBLEM; RAD GRILLE
EXC. CUSTOM CAB(SR5) ISUZU 		1-76210-668-3 01 1 0412- ●
4 EMBLEM; RAD GRILLE
ISUZU 		1-76210-668-3 01 1 0412- ● ● ●
48 DECAL; TURBOCHARGER
6HE1 TC ENG(57L) INTERCOOLED 		1-76218-114-0 01 1 0005-0210 ● ●
48 DECAL; TURBOCHARGER
INTERCOOLED 		1-76218-114-0 01 1 0211-0410 ● ● ●
75 DECAL; FRT CORNER
CUSTOM CAB(SR5) CUSTOM 		1-76210-640-3 01 1 0005- ●
128 RIVET; POP,NAME PLATE 5-09734-001-0 04 1 0005-0411 ● ● ●
128 RIVET; POP,NAME PLATE 5-09734-001-0 04 1 0412- ● ● ● ●
137 DECAL; DOOR
BLACK 		1-74998-049-3 01 1 0005-0411 ● ● ●
137 DECAL; DOOR
BLACK 		1-74998-049-3 01 1 0412- ● ● ● ●
137 DECAL; DOOR
BLACK 		1-74998-048-3 01 1 0005-0411 ● ● ●
137 DECAL; DOOR
BLACK 		1-74998-048-3 01 1 0412- ● ● ● ●
174 EMBLEM; FRT PANEL
CUSTOM CAB(SR5) CUSTOM 		1-76210-641-2 01 1 0005- ●
202 DECAL; METER CLUSTER
CUSTOM CAB(SR5) 		1-72418-016-1 01 1 0005- ●
