6-84 — BACK TRIM (#9449) — 44 parça

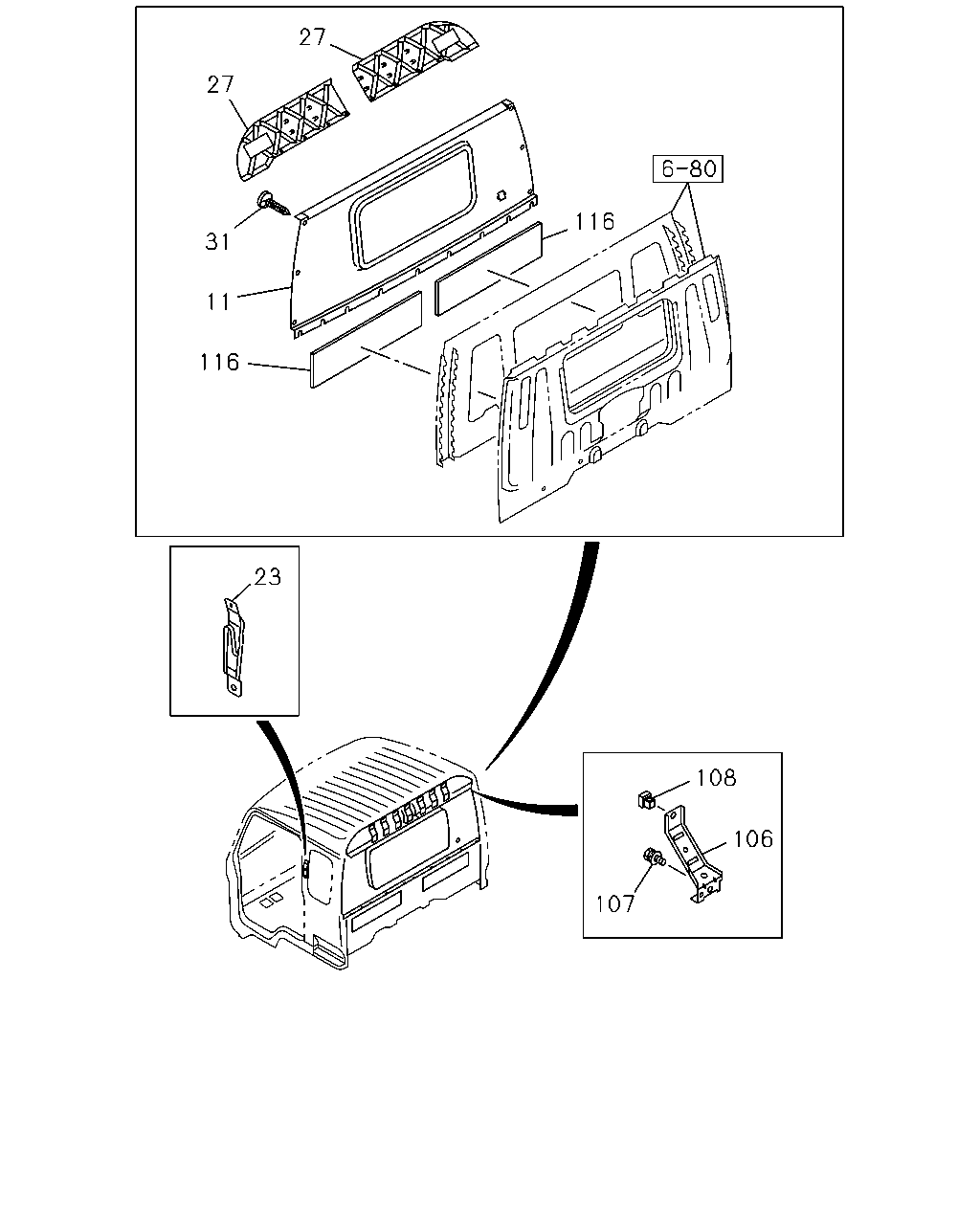

çizim 39017
27 27 116 31 11 116 23 108 106 107
BalonParca AdiParca NoAdetTipApplied Date A B C D
11 TRIM; ROOM,BACK INNER
PROVISIONAL PACKAGE<NLY> 		8-97893-967-0 01 1 0301-0405 ● ●
11 TRIM; ROOM,BACK INNER 1-73348-942-1 01 1 0005-0212 ● ●
11 TRIM; ROOM,BACK INNER
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-942-1 01 1 0301-0405 ● ●
11 TRIM; ROOM,BACK INNER 1-73348-942-3 01 1 0406-0411 ● ●
11 TRIM; ROOM,BACK INNER 1-73348-942-3 01 1 0412- ● ● ●
23 FINISHER; BACK INNER PANEL 1-73347-789-1 01 1 0005-0411 ● ●
23 FINISHER; BACK INNER PANEL 1-73347-789-1 01 1 0412- ● ● ●
23 FINISHER; BACK INNER PANEL 1-73347-788-1 01 1 0005-0411 ● ●
23 FINISHER; BACK INNER PANEL 1-73347-788-1 01 1 0412- ● ● ●
23 FINISHER; BACK INNER PANEL
WHITE 		1-73337-264-0 02 1 0005- ●
27 COVER; TRIM,BACK
CUSTOM CAB(SR5) 		1-73348-946-0 01 1 0005-0305 ●
27 COVER; TRIM,BACK
CUSTOM CAB(SR5) 		1-73348-945-0 01 1 0005-0305 ●
31 CLIP; TRIM PAD
D6X23 LIGHT GRAY 		1-73318-629-0 27 1 0005-0411 ● ●
31 CLIP; TRIM PAD
D6X23 LIGHT GRAY 		1-73318-629-0 27 1 0412- ● ● ●
106 BRACKET; BACK TRIM
CUSTOM CAB(SR5) 		1-73348-411-4 03 1 0005-0305 ●
107 SCREW; BRKT
CUSTOM CAB(SR5) M5X20 		5-09981-059-0 06 1 0005-0305 ●
108 GROMMET; SCREW
CUSTOM CAB(SR5) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0005-0305 ●
116 INSULATOR; BACK PANEL 1-73368-002-2 02 1 0005-0411 ● ●
116 INSULATOR; BACK PANEL 1-73368-002-2 02 1 0412- ● ● ●

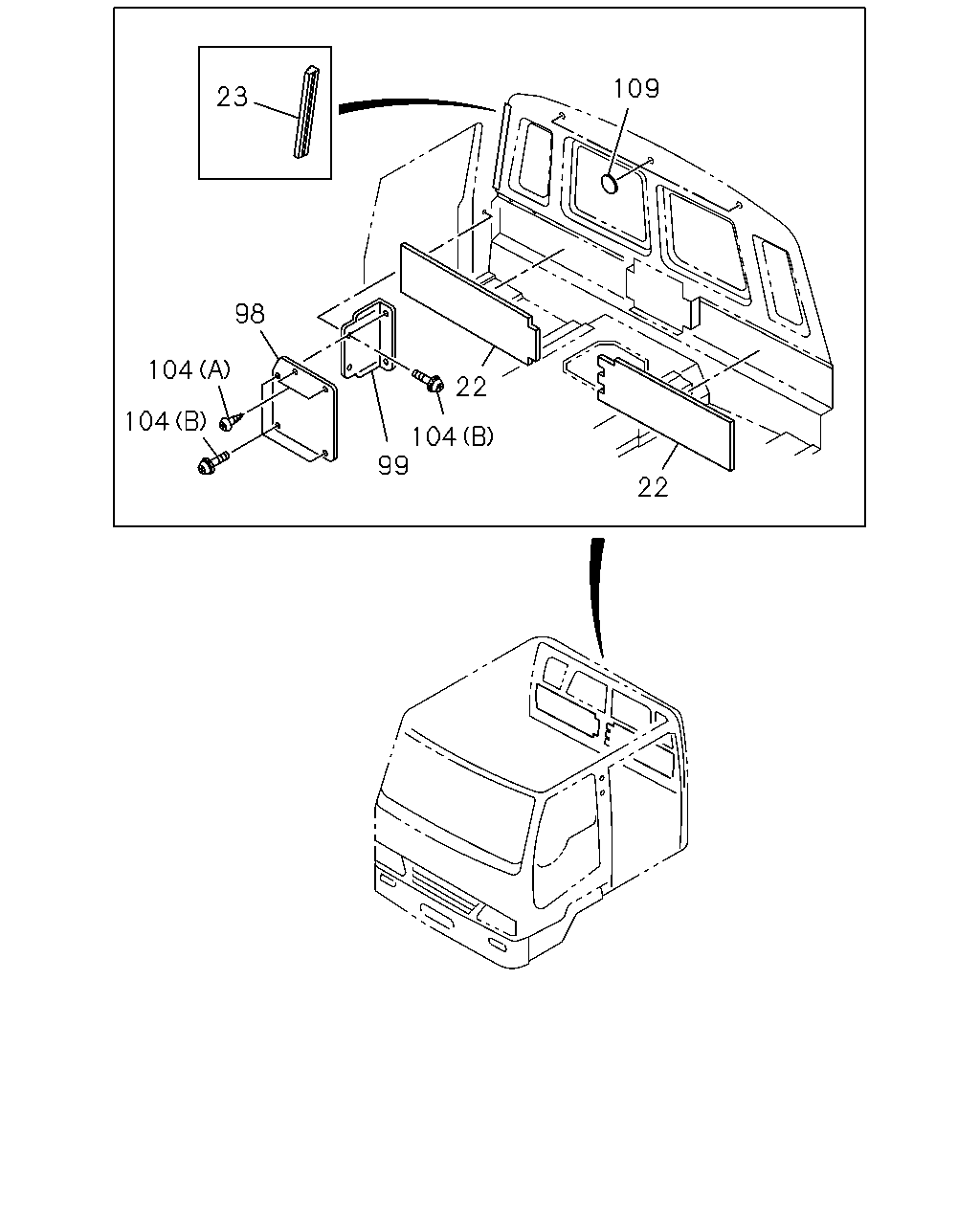

çizim 100516
109 23 98 104 22 104 104 99 22
BalonParca AdiParca NoAdetTipApplied Date A B C D
22 SHEET; SILENCER,CAB FLOOR 1-73348-204-4 01 1 0005- ●
22 SHEET; SILENCER,CAB FLOOR 1-73348-203-3 01 1 0005- ●
23 FINISHER; BACK INNER PANEL 1-73347-789-1 01 1 0005-0411 ● ●
23 FINISHER; BACK INNER PANEL 1-73347-789-1 01 1 0412- ● ● ●
23 FINISHER; BACK INNER PANEL 1-73347-788-1 01 1 0005-0411 ● ●
23 FINISHER; BACK INNER PANEL 1-73347-788-1 01 1 0412- ● ● ●
23 FINISHER; BACK INNER PANEL
WHITE 		1-73337-264-0 02 1 0005- ●
98 TRIM; BACK SIDE 1-73348-951-0 01 1 0005- ●
98 TRIM; BACK SIDE 1-73348-950-0 01 1 0005- ●
99 SUPPORT; BACK SIDE TRIM
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BOD Y COLOR PURUTAMINA BLUE(918),BODY COLOR TNT ORANGE(992) 		1-73348-765-0 01 1 0005-0005 ●
99 SUPPORT; BACK SIDE TRIM
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BOD Y COLOR PURUTAMINA BLUE(918) 		1-73348-765-0 01 1 0006-0207 ●
99 SUPPORT; BACK SIDE TRIM
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915) 		1-73348-765-0 01 1 0208- ●
99 SUPPORT; BACK SIDE TRIM
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BOD Y COLOR PURUTAMINA BLUE(918),BODY COLOR TNT ORANGE(992) 		1-73348-503-1 01 1 0005-0005 ●
99 SUPPORT; BACK SIDE TRIM
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BOD Y COLOR PURUTAMINA BLUE(918) 		1-73348-503-1 01 1 0006-0207 ●
99 SUPPORT; BACK SIDE TRIM
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915) 		1-73348-503-1 01 1 0208- ●
99 SUPPORT; BACK SIDE TRIM
BODY COLOR ARC WHITE(729) 		1-73348-820-0 01 1 0005-0005 ●
99 SUPPORT; BACK SIDE TRIM
BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) 		1-73348-820-0 01 1 0006-0207 ●
99 SUPPORT; BACK SIDE TRIM
BODY COLOR ARC WHITE(729) 		1-73348-820-0 01 1 0208- ●
99 SUPPORT; BACK SIDE TRIM
BODY COLOR ARC WHITE(729) 		1-73348-784-0 01 1 0005-0005 ●
99 SUPPORT; BACK SIDE TRIM
BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) 		1-73348-784-0 01 1 0006-0207 ●
99 SUPPORT; BACK SIDE TRIM
BODY COLOR ARC WHITE(729) 		1-73348-784-0 01 1 0208- ●
104 SCREW; BACK TRIM
(A) M6X13 		5-09981-074-0 04 1 0005- ●
104 SCREW; BACK TRIM
(B) M6X16 W/LK&PL WASHER 		8-94279-402-0 10 1 0005- ●
109 SEAL; HOLE
WHITE 		1-76777-076-0 03 1 0005-0404 ●
109 SEAL; HOLE
OD=20 T=0.05 WHITE 		8-97856-832-2 03 1 0405- ●
