Isuzu WW
▶
TRUCKS
▶
FRR
▶
10826 - FRR/FSR/FRD(AUST)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

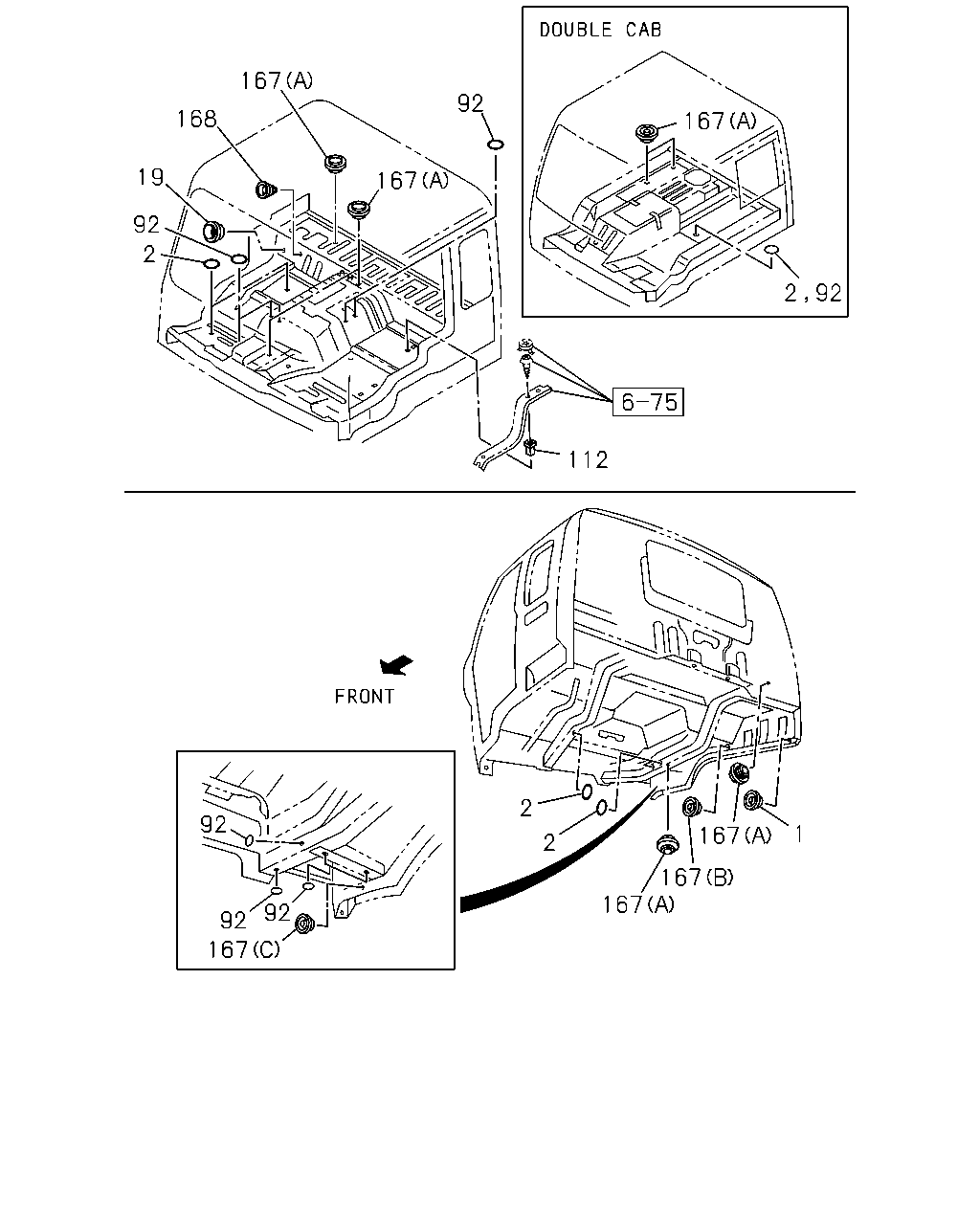

6-78 - FLOOR HOLE PLUG
▶
6-78 — FLOOR HOLE PLUG
(#9446) — 31 parça
Tümü
A - FRR5MF
B - FSR5MF
C - FRD5MF
D - FRR5WF
167
92
168
167
19
167
92
2
112
2
92
1
167
2
167
167
92
92
167
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
GROMMET
OD=40
1-09600-083-0
02
1
0005-0411
●
●
1
GROMMET
OD=40
1-09600-083-0
02
1
0412-
●
●
●
2
GROMMET
OD=25 BLACK
1-76798-019-0
02
1
0005-0411
●
●
●
2
GROMMET
OD=25 BLACK
1-76798-019-0
02
1
0412-
●
●
●
●
2
GROMMET
OD=36 T=0.05 BLACK
5-76777-035-0
04
1
0005-
●
19
GROMMET; FLOOR FRT
OD=28
8-94279-720-0
02
1
0005-0411
●
●
●
19
GROMMET; FLOOR FRT
OD=28
8-94279-720-0
02
1
0412-
●
●
●
●
92
SEAL; LOCATION HOLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK
1-76798-019-0
02
1
0005-
●
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
02
1
0005-
●
●
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
11
1
0005-0411
●
●
●
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
11
1
0412-
●
●
●
●
92
SEAL; LOCATION HOLE
OD=36 T=0.05 BLACK
5-76777-035-0
02
1
0005-0203
●
●
●
92
SEAL; LOCATION HOLE
OD=36 T=0.05 BLACK
5-76777-035-0
02
1
0005-0203
●
●
92
SEAL; LOCATION HOLE
OD=36 T=0.05 BLACK
5-76777-035-0
02
1
0204-0411
●
●
●
92
SEAL; LOCATION HOLE
OD=36 T=0.05 BLACK
5-76777-035-0
02
1
0412-
●
●
●
●
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
14
1
0005-0411
●
●
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
14
1
0412-
●
●
●
112
GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
08
1
0005-0411
●
●
●
112
GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
08
1
0412-
●
●
●
●
167
GROMMET; LOCATION HOLE
(A) OD=23.5
1-09983-101-0
06
1
0005-0411
●
●
●
167
GROMMET; LOCATION HOLE
(A) OD=23.5
1-09983-101-0
06
1
0005-0411
●
167
GROMMET; LOCATION HOLE
(A) OD=23.5
1-09983-101-0
06
1
0412-
●
●
●
●
167
GROMMET; LOCATION HOLE
(A) OD=23.5
1-09983-101-0
06
1
0412-
●
167
GROMMET; LOCATION HOLE
(C) OD=35
8-94122-971-0
04
1
0005-0411
●
●
●
167
GROMMET; LOCATION HOLE
(C) OD=35
8-94122-971-0
04
1
0412-
●
●
●
●
167
GROMMET; LOCATION HOLE
(B) OD=15.0
8-94279-040-0
02
1
0005-0411
●
●
●
167
GROMMET; LOCATION HOLE
(B) OD=15.0
8-94279-040-0
02
1
0412-
●
●
●
●
167
GROMMET; LOCATION HOLE
(A) OD=23.5
1-09983-101-0
02
1
0005-0411
●
●
167
GROMMET; LOCATION HOLE
(A) OD=23.5
1-09983-101-0
02
1
0412-
●
●
●
168
COVER; HOLE,ANNTENA CABLE
1-79998-891-1
01
1
0005-0411
●
●
168
COVER; HOLE,ANNTENA CABLE
1-79998-891-1
01
1
0412-
●
●
●
