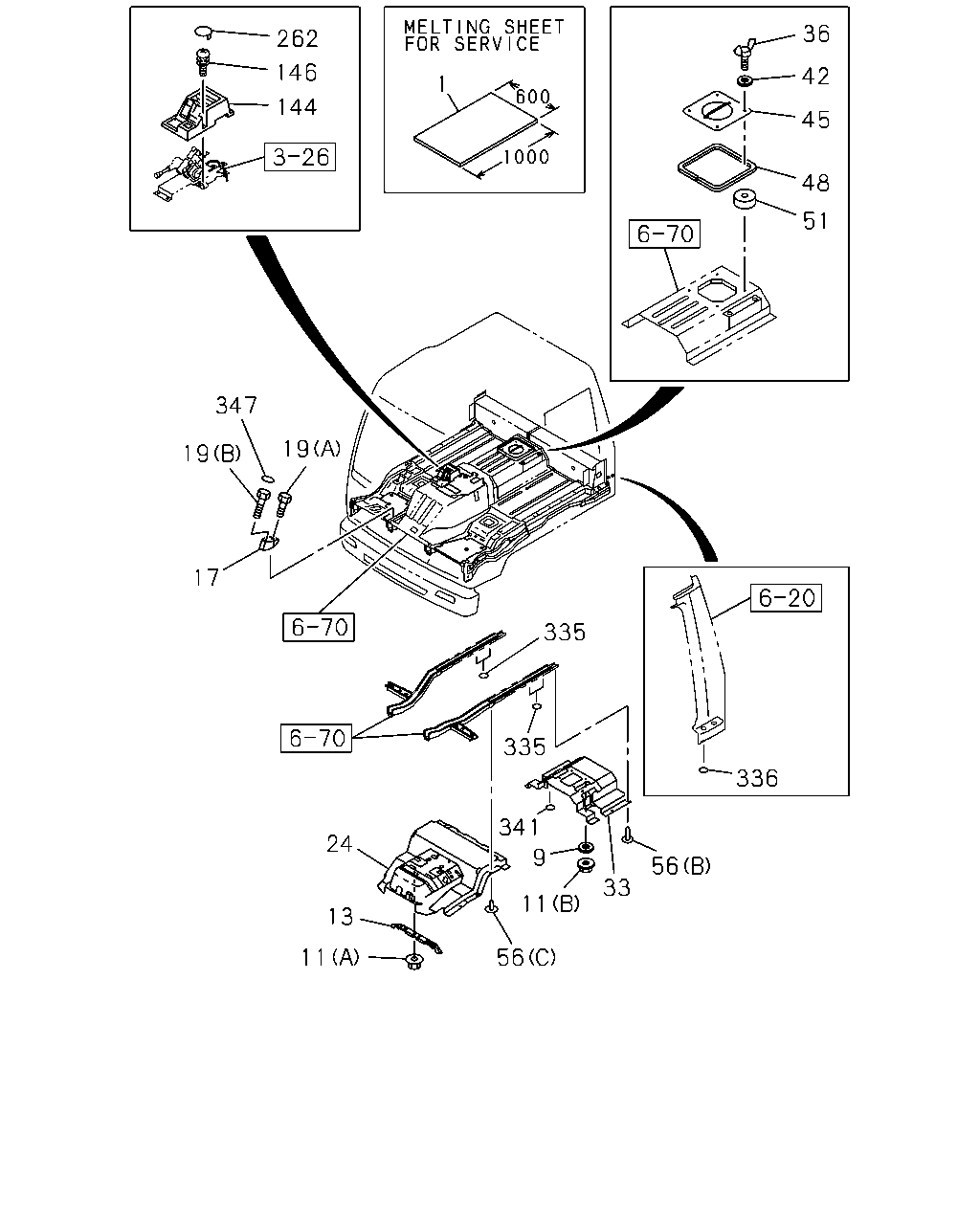

6-76 — FLOOR EQUIPMENT AND SEALING (#9445) — 80 parça

36 262 146 42 1 144 45 48 51 347 19 19 17 335 335 336 341 24 9 56 33 11 13 56 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHEET; MELTING,FLOOR CUT BULK SHEET 600X1000 T=3.0	1-61970-039-0	AR	1	0005-0411	●	●	●
1	SHEET; MELTING,FLOOR CUT BULK SHEET 600X1000 T=3.0	1-61970-039-0	AR	1	0412-	●	●	●	●
9	WASHER; HEAT INSULATOR	1-73377-052-2	02	1	0005-		●
11	NUT; HEAT INSULATOR (A) M8 FLANGE	8-94279-518-0	02	1	0005-0401	●	●	●
11	NUT; HEAT INSULATOR (A) M8 FLANGE	1-75538-207-0	02	1	0402-0411	●	●	●
11	NUT; HEAT INSULATOR (A) M8 FLANGE	1-75538-207-0	02	1	0412-	●	●	●	●
11	NUT; HEAT INSULATOR (B) M6 FLANGE	1-09984-141-0	02	1	0005-		●
13	PLATE; HEAT INSULATOR	1-71998-812-4	01	1	0005-0411	●	●	●
13	PLATE; HEAT INSULATOR	1-71998-812-4	01	1	0412-	●	●	●	●
17	REST; FOOT,DRIVER	1-73907-176-1	01	1	0005-0411	●	●	●
17	REST; FOOT,DRIVER	1-73907-176-1	01	1	0412-	●	●	●	●
19	BOLT; FOOT REST (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-0411	●	●	●
19	BOLT; FOOT REST (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0412-	●	●	●	●
19	BOLT; FOOT REST (B) M6X47	8-94407-876-1	01	1	0005-0411	●	●	●
19	BOLT; FOOT REST (B) M6X47	8-94407-876-1	01	1	0412-	●	●	●	●
24	INSULATOR; HEAT,FRT	1-71998-901-9	01	1	0005-		●
33	INSULATOR; HEAT,RR	1-71996-090-0	01	1	0005-0210		●
33	INSULATOR; HEAT,RR	1-71996-282-1	01	1	0211-		●
36	BOLT; WING,COVER	9-61405-010-0	04	1	0005-		●
42	WASHER; PL,COVER ID=10.5 OD=18	9-09160-510-0	04	1	0005-0605		●
42	WASHER; PL,COVER ID=10.5	0-91610-510-0	04	1	0606-		●
45	COVER; CENTER,CHECK HOLE	1-65380-056-0	01	1	0005-		●
48	SEAL; CHECK HOLE LID,CENTER	1-65380-091-0	01	1	0005-		●
51	SEAL; LID,CHECK HOLE	1-65380-121-0	04	1	0005-		●
56	CLIP; HEAT INSULATOR,ENG HOOD (A) ID=6.2 L=11.4	8-97808-623-0	17	1	0005-0411	●		●
56	CLIP; HEAT INSULATOR,ENG HOOD (A) ID=6.2 L=11.4	8-97808-623-0	17	1	0412-	●		●	●
56	CLIP; HEAT INSULATOR,ENG HOOD (B) D6X23 BLACK	1-09987-114-0	10	1	0005-0210		●
56	CLIP; HEAT INSULATOR,ENG HOOD (B) D6X23 BLACK	1-09987-114-0	08	1	0211-		●
56	CLIP; HEAT INSULATOR,ENG HOOD (C) ID=6.2 L=11.4	8-97808-623-0	12	1	0005-		●
144	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-73908-372-1	01	1	0005-	●
144	COVER; HAND BRK VLV	1-73908-372-1	01	1	0005-		●	●
146	BOLT; COVER BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0211-	●
146	BOLT; COVER BRKT M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0211-		●	●
146	BOLT; COVER BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0005-0210	●
146	BOLT; COVER BRKT M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0005-0210		●	●
262	COVER; CHECK HOLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-76337-461-0	04	1	0005-	●
262	COVER; CHECK HOLE	1-76337-461-0	04	1	0005-		●	●
335	SEAL; UNDER FRAME OD=25 BLACK	1-76798-019-0	08	1	0005-		●
336	SEAL; FLOOR SIDE OD=25 BLACK	1-76798-019-0	06	1	0005-0411	●
336	SEAL; FLOOR SIDE OD=25 BLACK	1-76798-019-0	06	1	0412-	●			●
336	SEAL; FLOOR SIDE OD=25 BLACK	1-76798-019-0	02	1	0005-		●
336	SEAL; FLOOR SIDE OD=25 BLACK	1-76798-019-0	04	1	0005-			●
341	SEAL; INSULATOR HOLE OD=25 BLACK	1-76798-019-0	02	1	0211-		●
347	SEAL; FOOT RESTR OD=25 BLACK	1-76798-019-0	02	1	0005-0411	●	●	●
347	SEAL; FOOT RESTR OD=25 BLACK	1-76798-019-0	02	1	0412-	●	●	●	●

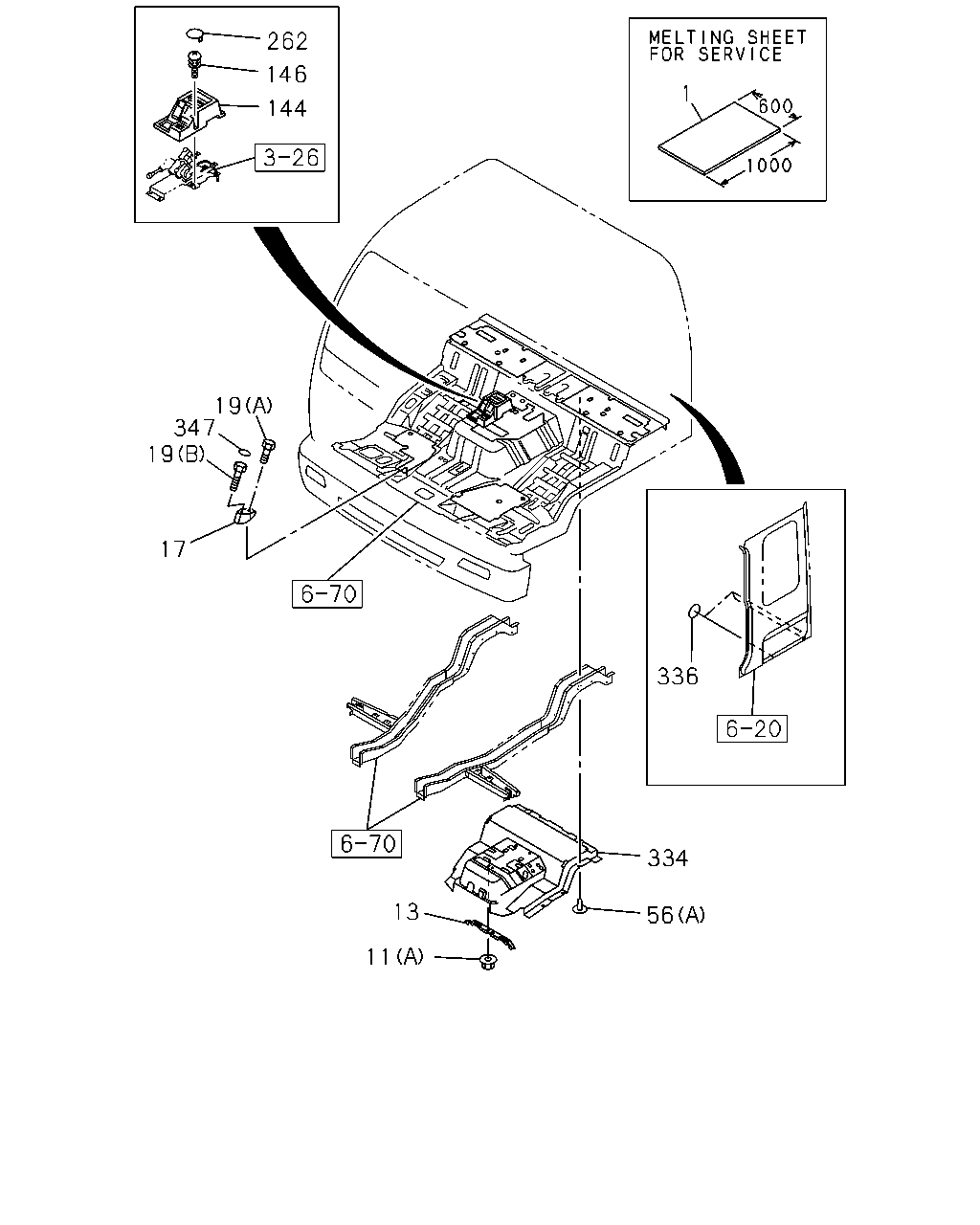

262 146 1 144 19 347 19 17 336 334 13 56 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHEET; MELTING,FLOOR CUT BULK SHEET 600X1000 T=3.0	1-61970-039-0	AR	1	0005-0411	●	●	●
1	SHEET; MELTING,FLOOR CUT BULK SHEET 600X1000 T=3.0	1-61970-039-0	AR	1	0412-	●	●	●	●
11	NUT; HEAT INSULATOR (A) M8 FLANGE	8-94279-518-0	02	1	0005-0401	●	●	●
11	NUT; HEAT INSULATOR (A) M8 FLANGE	1-75538-207-0	02	1	0402-0411	●	●	●
11	NUT; HEAT INSULATOR (A) M8 FLANGE	1-75538-207-0	02	1	0412-	●	●	●	●
11	NUT; HEAT INSULATOR (B) M6 FLANGE	1-09984-141-0	02	1	0005-		●
13	PLATE; HEAT INSULATOR	1-71998-812-4	01	1	0005-0411	●	●	●
13	PLATE; HEAT INSULATOR	1-71998-812-4	01	1	0412-	●	●	●	●
17	REST; FOOT,DRIVER	1-73907-176-1	01	1	0005-0411	●	●	●
17	REST; FOOT,DRIVER	1-73907-176-1	01	1	0412-	●	●	●	●
19	BOLT; FOOT REST (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-0411	●	●	●
19	BOLT; FOOT REST (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0412-	●	●	●	●
19	BOLT; FOOT REST (B) M6X47	8-94407-876-1	01	1	0005-0411	●	●	●
19	BOLT; FOOT REST (B) M6X47	8-94407-876-1	01	1	0412-	●	●	●	●
56	CLIP; HEAT INSULATOR,ENG HOOD (A) ID=6.2 L=11.4	8-97808-623-0	17	1	0005-0411	●		●
56	CLIP; HEAT INSULATOR,ENG HOOD (A) ID=6.2 L=11.4	8-97808-623-0	17	1	0412-	●		●	●
56	CLIP; HEAT INSULATOR,ENG HOOD (B) D6X23 BLACK	1-09987-114-0	10	1	0005-0210		●
56	CLIP; HEAT INSULATOR,ENG HOOD (B) D6X23 BLACK	1-09987-114-0	08	1	0211-		●
56	CLIP; HEAT INSULATOR,ENG HOOD (C) ID=6.2 L=11.4	8-97808-623-0	12	1	0005-		●
144	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-73908-372-1	01	1	0005-	●
144	COVER; HAND BRK VLV	1-73908-372-1	01	1	0005-		●	●
146	BOLT; COVER BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0211-	●
146	BOLT; COVER BRKT M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0211-		●	●
146	BOLT; COVER BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0005-0210	●
146	BOLT; COVER BRKT M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0005-0210		●	●
262	COVER; CHECK HOLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-76337-461-0	04	1	0005-	●
262	COVER; CHECK HOLE	1-76337-461-0	04	1	0005-		●	●
334	INSULATOR; ENG HOOD	1-71996-034-4	01	1	0005-0411	●		●
334	INSULATOR; ENG HOOD	1-71996-034-4	01	1	0412-	●		●	●
336	SEAL; FLOOR SIDE OD=25 BLACK	1-76798-019-0	06	1	0005-0411	●
336	SEAL; FLOOR SIDE OD=25 BLACK	1-76798-019-0	06	1	0412-	●			●
336	SEAL; FLOOR SIDE OD=25 BLACK	1-76798-019-0	02	1	0005-		●
336	SEAL; FLOOR SIDE OD=25 BLACK	1-76798-019-0	04	1	0005-			●
347	SEAL; FOOT RESTR OD=25 BLACK	1-76798-019-0	02	1	0005-0411	●	●	●
347	SEAL; FOOT RESTR OD=25 BLACK	1-76798-019-0	02	1	0412-	●	●	●	●
