6-70 — FLOOR PANEL (#9443) — 146 parça

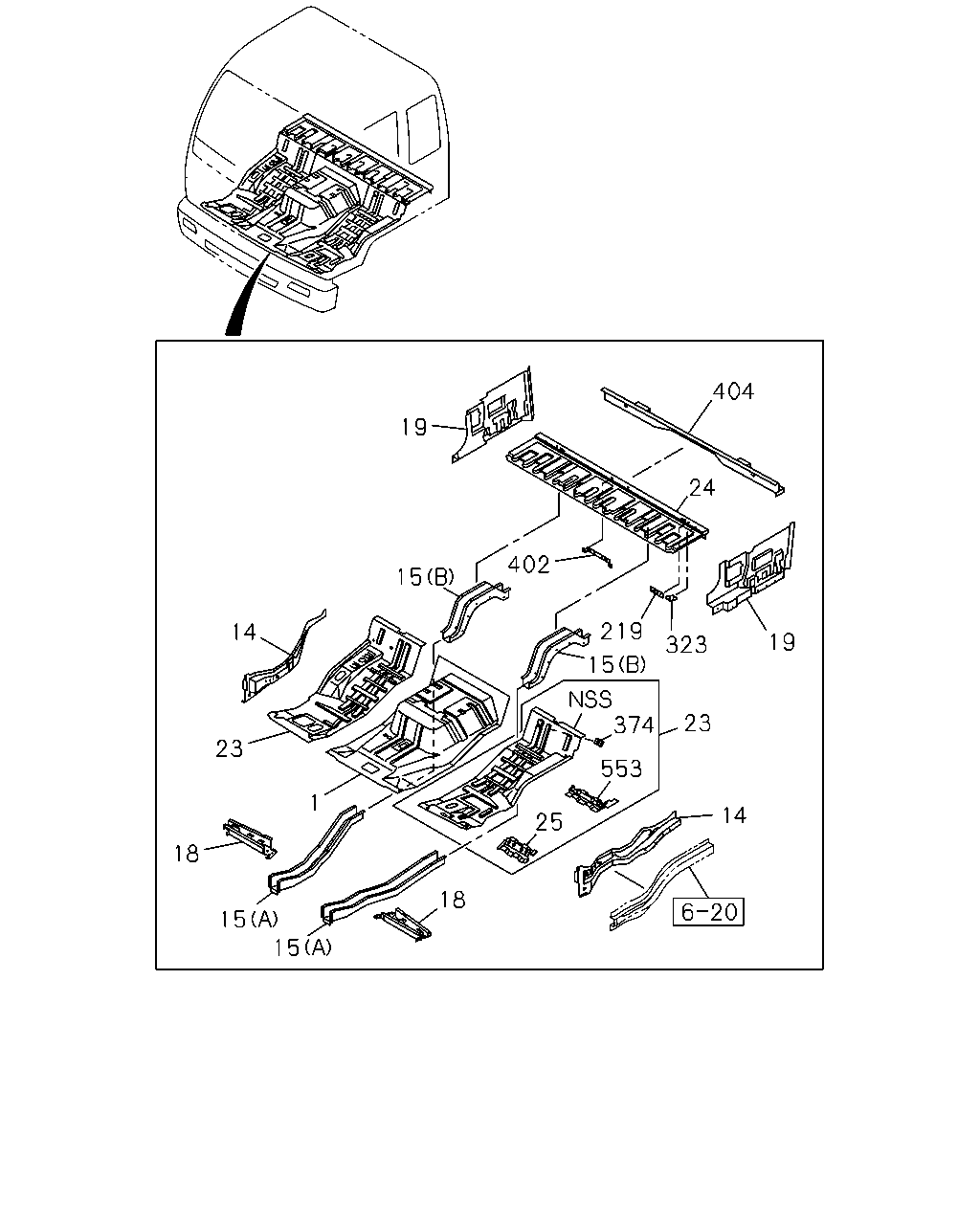

19 404 24 402 15 219 15 323 19 23 374 553 14 25 18 1 18 15 23 14 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PANEL; FLOOR A/T<X9D>	1-62183-318-6	01	1	0005-0210	●
1	PANEL; FLOOR A/T<X9D>	1-62183-671-0	01	1	0211-	●
1	PANEL; FLOOR ISUZU M/T<X9A>	1-62183-405-2	01	1	0005-0210	●
1	PANEL; FLOOR	1-62183-405-2	01	1	0005-0210		●
1	PANEL; FLOOR ISUZU M/T<X9A>	1-62183-668-0	01	1	0211-0306	●
1	PANEL; FLOOR	1-62183-668-0	01	1	0211-0306		●
1	PANEL; FLOOR ISUZU M/T<X9A>,FULLER M/T<X9B>	1-62183-668-0	01	1	0307-0411	●	●
1	PANEL; FLOOR ISUZU M/T<X9A>,FULLER M/T<X9B>	1-62183-668-0	01	1	0412-	●	●
1	PANEL; FLOOR	1-62183-668-0	01	1	0412-			●
1	PANEL; FLOOR	1-62183-225-3	01	1	0005-0210				●
1	PANEL; FLOOR	1-62183-656-0	01	1	0211-				●
14	PANEL; FLOOR SIDE,FRT	1-62482-918-6	01	1	0005-0411	●	●		●
14	PANEL; FLOOR SIDE,FRT	1-62482-918-6	01	1	0412-	●	●	●	●
14	PANEL; FLOOR SIDE,FRT	1-62482-917-6	01	1	0005-0411	●	●		●
14	PANEL; FLOOR SIDE,FRT	1-62482-917-6	01	1	0412-	●	●	●	●
15	FRAME; UNDER (A)	1-62482-931-9	01	1	0005-0401	●	●
15	FRAME; UNDER (A)	8-97583-580-0	01	1	0402-0411	●	●
15	FRAME; UNDER (A)	8-97583-580-0	01	1	0412-	●	●	●
15	FRAME; UNDER (B)	1-62483-160-0	01	1	0005-0012	●	●
15	FRAME; UNDER (B)	1-62483-154-3	01	1	0101-0411	●	●
15	FRAME; UNDER (B)	1-62483-154-3	01	1	0412-	●	●	●
15	FRAME; UNDER (A)	1-62482-930-9	01	1	0005-0103	●	●
15	FRAME; UNDER (A)	1-62483-333-1	01	1	0104-0411	●	●
15	FRAME; UNDER (A)	1-62483-333-1	01	1	0412-	●	●	●
15	FRAME; UNDER (B)	1-62483-159-0	01	1	0005-0012	●	●
15	FRAME; UNDER (B)	1-62483-153-3	01	1	0101-0411	●	●
15	FRAME; UNDER (B)	1-62483-153-3	01	1	0412-	●	●	●
15	FRAME; UNDER (C)	1-62483-018-3	01	1	0005-				●
15	FRAME; UNDER (C)	1-62483-017-2	01	1	0005-0210				●
15	FRAME; UNDER (C)	1-62483-348-1	01	1	0211-				●
18	FRAME; FLOOR,CENTER SIDE	1-62482-958-6	01	1	0005-0411	●	●
18	FRAME; FLOOR,CENTER SIDE	1-62482-958-6	01	1	0412-	●	●	●
18	FRAME; FLOOR,CENTER SIDE	1-62482-957-6	01	1	0005-0411	●	●
18	FRAME; FLOOR,CENTER SIDE	1-62482-957-6	01	1	0412-	●	●	●
18	FRAME; FLOOR,CENTER SIDE	1-62482-997-6	01	1	0005-				●
18	FRAME; FLOOR,CENTER SIDE	1-62483-023-6	01	1	0005-				●
19	PANEL; FLOOR SIDE,REAR	1-62482-192-2	01	1	0211-				●
19	PANEL; FLOOR SIDE,REAR	1-62482-924-6	01	1	0005-0411	●	●
19	PANEL; FLOOR SIDE,REAR	1-62482-924-6	01	1	0412-	●	●	●
19	PANEL; FLOOR SIDE,REAR	1-62482-923-5	01	1	0005-0411	●	●
19	PANEL; FLOOR SIDE,REAR	1-62482-923-5	01	1	0412-	●	●	●
19	PANEL; FLOOR SIDE,REAR	1-62482-192-2	01	1	0005-0210				●
19	PANEL; FLOOR SIDE,REAR	1-62482-191-3	01	1	0005-				●
23	PANEL; FLOOR,SIDE	1-62172-799-0	01	1	0005-0411	●	●
23	PANEL; FLOOR,SIDE	1-62172-799-0	01	1	0412-	●	●	●
23	PANEL; FLOOR,SIDE	1-62183-125-3	01	1	0005-0411	●	●
23	PANEL; FLOOR,SIDE	1-62183-125-3	01	1	0412-	●	●	●
23	PANEL; FLOOR,SIDE	1-62183-311-0	01	1	0005-				●
23	PANEL; FLOOR,SIDE	1-62183-320-0	01	1	0005-				●
24	PANEL; BED PAN	1-62182-940-9	01	1	0005-0411	●	●
24	PANEL; BED PAN	1-62182-940-9	01	1	0412-	●	●	●
25	REINFORCEMENT; FRAME FLOOR,FRT	1-62182-926-4	01	1	0005-0411	●	●		●
25	REINFORCEMENT; FRAME FLOOR,FRT	1-62182-926-4	01	1	0412-	●	●	●	●
219	PATCH; AIR DUCT LWR	1-62182-941-0	01	1	0005-0411	●	●
219	PATCH; AIR DUCT LWR	1-62182-941-0	01	1	0412-	●	●	●
219	PATCH; AIR DUCT LWR	1-62182-197-0	01	1	0005-				●
323	PATCH; HAND LEVER	1-62182-961-0	01	1	0005-0411	●	●
323	PATCH; HAND LEVER	1-62182-961-0	01	1	0412-	●	●	●
374	NUT; FLOOR M6	1-09984-110-0	01	1	0005-0411	●	●
374	NUT; FLOOR M6	1-09984-110-0	01	1	0412-	●	●	●
402	PATCH; CAB LOCK	1-62182-947-2	01	1	0005-0411	●	●
402	PATCH; CAB LOCK	1-62182-947-2	01	1	0412-	●	●	●
404	RAIL ASM; MTG,RR	1-62482-955-4	01	1	0005-0411	●	●
404	RAIL ASM; MTG,RR	1-62482-955-4	01	1	0412-	●	●	●
553	REINFORCEMENT; SEAT STAND RR	1-62172-795-0	01	1	0005-0411	●	●
553	REINFORCEMENT; SEAT STAND RR	1-62172-795-0	01	1	0412-	●	●	●

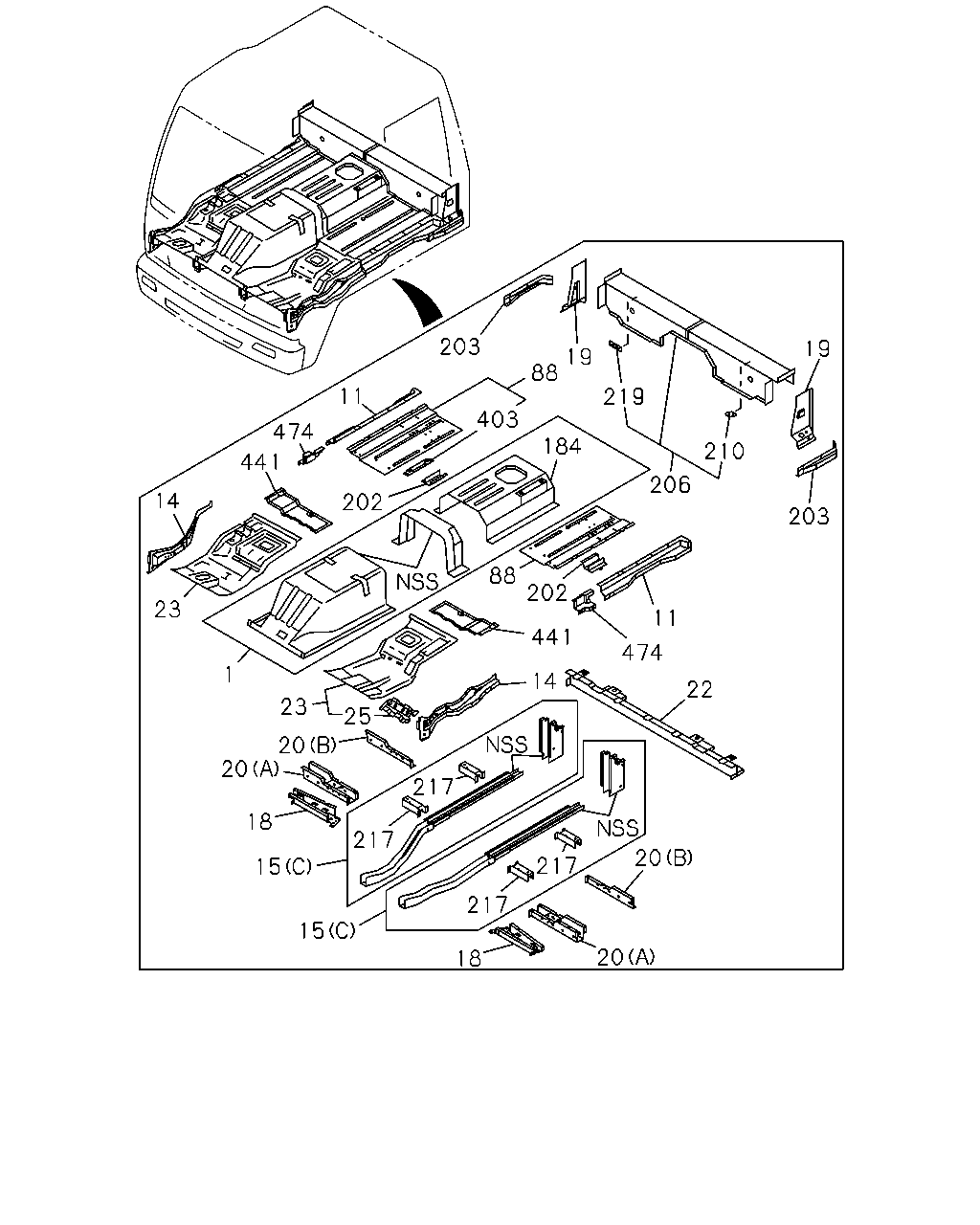

23 14 441 474 11 202 203 19 88 403 219 184 206 210 19 203 11 474 22 20 20 18 217 217 15 15 217 217 18 20 1 23 20 25 88 202 441 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PANEL; FLOOR A/T<X9D>	1-62183-318-6	01	1	0005-0210	●
1	PANEL; FLOOR A/T<X9D>	1-62183-671-0	01	1	0211-	●
1	PANEL; FLOOR ISUZU M/T<X9A>	1-62183-405-2	01	1	0005-0210	●
1	PANEL; FLOOR	1-62183-405-2	01	1	0005-0210		●
1	PANEL; FLOOR ISUZU M/T<X9A>	1-62183-668-0	01	1	0211-0306	●
1	PANEL; FLOOR	1-62183-668-0	01	1	0211-0306		●
1	PANEL; FLOOR ISUZU M/T<X9A>,FULLER M/T<X9B>	1-62183-668-0	01	1	0307-0411	●	●
1	PANEL; FLOOR ISUZU M/T<X9A>,FULLER M/T<X9B>	1-62183-668-0	01	1	0412-	●	●
1	PANEL; FLOOR	1-62183-668-0	01	1	0412-			●
1	PANEL; FLOOR	1-62183-225-3	01	1	0005-0210				●
1	PANEL; FLOOR	1-62183-656-0	01	1	0211-				●
11	PANEL; FLOOR SIDE RR	1-62483-047-0	01	1	0005-				●
11	PANEL; FLOOR SIDE RR	1-62483-046-0	01	1	0005-				●
14	PANEL; FLOOR SIDE,FRT	1-62482-918-6	01	1	0005-0411	●	●		●
14	PANEL; FLOOR SIDE,FRT	1-62482-918-6	01	1	0412-	●	●	●	●
14	PANEL; FLOOR SIDE,FRT	1-62482-917-6	01	1	0005-0411	●	●		●
14	PANEL; FLOOR SIDE,FRT	1-62482-917-6	01	1	0412-	●	●	●	●
15	FRAME; UNDER (A)	1-62482-931-9	01	1	0005-0401	●	●
15	FRAME; UNDER (A)	8-97583-580-0	01	1	0402-0411	●	●
15	FRAME; UNDER (A)	8-97583-580-0	01	1	0412-	●	●	●
15	FRAME; UNDER (B)	1-62483-160-0	01	1	0005-0012	●	●
15	FRAME; UNDER (B)	1-62483-154-3	01	1	0101-0411	●	●
15	FRAME; UNDER (B)	1-62483-154-3	01	1	0412-	●	●	●
15	FRAME; UNDER (A)	1-62482-930-9	01	1	0005-0103	●	●
15	FRAME; UNDER (A)	1-62483-333-1	01	1	0104-0411	●	●
15	FRAME; UNDER (A)	1-62483-333-1	01	1	0412-	●	●	●
15	FRAME; UNDER (B)	1-62483-159-0	01	1	0005-0012	●	●
15	FRAME; UNDER (B)	1-62483-153-3	01	1	0101-0411	●	●
15	FRAME; UNDER (B)	1-62483-153-3	01	1	0412-	●	●	●
15	FRAME; UNDER (C)	1-62483-018-3	01	1	0005-				●
15	FRAME; UNDER (C)	1-62483-017-2	01	1	0005-0210				●
15	FRAME; UNDER (C)	1-62483-348-1	01	1	0211-				●
18	FRAME; FLOOR,CENTER SIDE	1-62482-958-6	01	1	0005-0411	●	●
18	FRAME; FLOOR,CENTER SIDE	1-62482-958-6	01	1	0412-	●	●	●
18	FRAME; FLOOR,CENTER SIDE	1-62482-957-6	01	1	0005-0411	●	●
18	FRAME; FLOOR,CENTER SIDE	1-62482-957-6	01	1	0412-	●	●	●
18	FRAME; FLOOR,CENTER SIDE	1-62482-997-6	01	1	0005-				●
18	FRAME; FLOOR,CENTER SIDE	1-62483-023-6	01	1	0005-				●
19	PANEL; FLOOR SIDE,REAR	1-62482-192-2	01	1	0211-				●
19	PANEL; FLOOR SIDE,REAR	1-62482-924-6	01	1	0005-0411	●	●
19	PANEL; FLOOR SIDE,REAR	1-62482-924-6	01	1	0412-	●	●	●
19	PANEL; FLOOR SIDE,REAR	1-62482-923-5	01	1	0005-0411	●	●
19	PANEL; FLOOR SIDE,REAR	1-62482-923-5	01	1	0412-	●	●	●
19	PANEL; FLOOR SIDE,REAR	1-62482-192-2	01	1	0005-0210				●
19	PANEL; FLOOR SIDE,REAR	1-62482-191-3	01	1	0005-				●
20	FRAME; FLOOR SIDE,REAR (B)	1-62482-303-3	01	1	0005-				●
20	FRAME; FLOOR SIDE,REAR (A)	1-62482-778-1	01	1	0005-				●
20	FRAME; FLOOR SIDE,REAR (B)	1-62482-302-3	01	1	0005-				●
20	FRAME; FLOOR SIDE,REAR (A)	1-62482-315-3	01	1	0005-				●
22	FRAME; FLOOR REAR	1-62482-066-5	01	1	0005-				●
23	PANEL; FLOOR,SIDE	1-62172-799-0	01	1	0005-0411	●	●
23	PANEL; FLOOR,SIDE	1-62172-799-0	01	1	0412-	●	●	●
23	PANEL; FLOOR,SIDE	1-62183-125-3	01	1	0005-0411	●	●
23	PANEL; FLOOR,SIDE	1-62183-125-3	01	1	0412-	●	●	●
23	PANEL; FLOOR,SIDE	1-62183-311-0	01	1	0005-				●
23	PANEL; FLOOR,SIDE	1-62183-320-0	01	1	0005-				●
25	REINFORCEMENT; FRAME FLOOR,FRT	1-62182-926-4	01	1	0005-0411	●	●		●
25	REINFORCEMENT; FRAME FLOOR,FRT	1-62182-926-4	01	1	0412-	●	●	●	●
88	BOARD ASM; FLOOR	1-62483-038-1	01	1	0005-0210				●
88	BOARD ASM; FLOOR	1-62483-336-0	01	1	0211-				●
88	BOARD ASM; FLOOR	1-62483-037-1	01	1	0005-0210				●
88	BOARD ASM; FLOOR	1-62483-334-0	01	1	0211-				●
184	HOOD ASM; ENG RR	1-62183-036-1	01	1	0005-0210				●
184	HOOD ASM; ENG RR	1-62183-657-0	01	1	0211-				●
202	PANEL; CENTER MTG REINF	1-62482-254-3	01	1	0005-				●
202	PANEL; CENTER MTG REINF	1-62482-253-2	01	1	0005-				●
203	PANEL; CLOSING,BACK CORNER,BACK PANEL	1-62482-313-0	01	1	0005-				●
203	PANEL; CLOSING,BACK CORNER,BACK PANEL	1-62482-312-0	01	1	0005-				●
206	PANEL; FLOOR BOARD RR	1-62182-689-0	01	1	0005-				●
210	PANEL; HAND BRAKE LEVER BRKT	1-62182-085-0	01	1	0005-				●
217	PANEL; SEAT STAND WO/NUT	1-62482-181-2	03	1	0005-				●
217	PANEL; SEAT STAND W/NUT	1-62482-425-0	01	1	0005-				●
219	PATCH; AIR DUCT LWR	1-62182-941-0	01	1	0005-0411	●	●
219	PATCH; AIR DUCT LWR	1-62182-941-0	01	1	0412-	●	●	●
219	PATCH; AIR DUCT LWR	1-62182-197-0	01	1	0005-				●
403	PATCH; FIRE EXTINGUSHER	1-62183-077-1	01	1	0005-				●
441	PANEL; EXTENSION,FLOOR SIDE	1-62483-031-4	01	1	0005-0210				●
441	PANEL; EXTENSION,FLOOR SIDE	1-62483-030-5	01	1	0005-0210				●
474	EXTENSION; FLOOR SIDE	1-62182-992-2	01	1	0005-				●
474	EXTENSION; FLOOR SIDE	1-62182-991-2	01	1	0005-				●
