6-60 — ROOF PANEL (#9441) — 78 parça

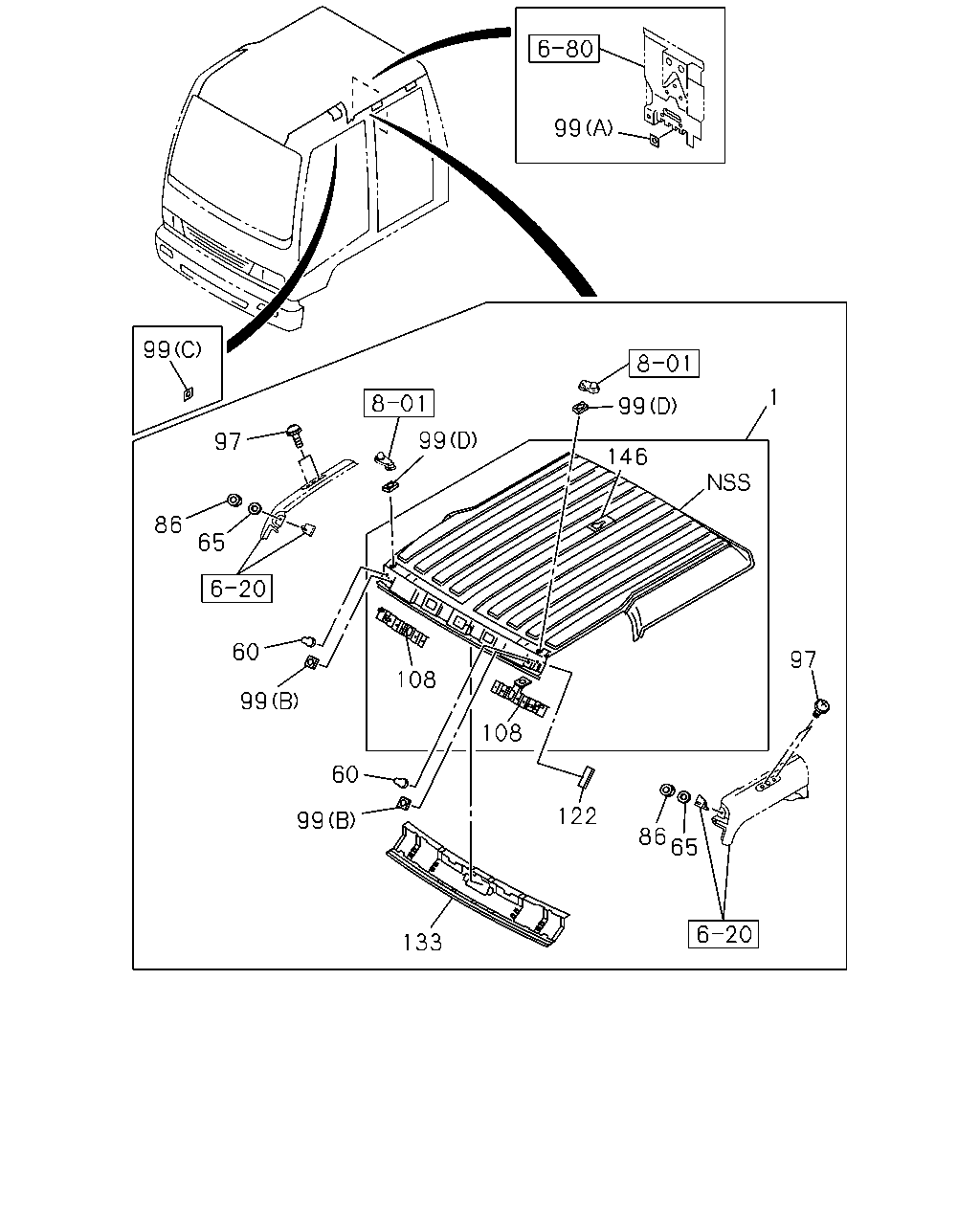

çizim 38517
99 99 1 99 99 97 146 86 65 60 97 108 99 108 60 122 99 86 65 133
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PANEL; ROOF 1-61181-169-0 01 1 0005-0411 ● ●
1 PANEL; ROOF 1-61181-169-0 01 1 0412- ● ● ●
1 PANEL; ROOF 1-61181-093-3 01 1 0005- ●
60 COVER; ROOF 1-79998-922-3 05 1 0005-0411 ● ● ●
60 COVER; ROOF 1-79998-922-3 05 1 0412- ● ● ● ●
65 WASHER; PL
ID=8 T=2.3 		8-94368-403-1 02 1 0005-0411 ● ● ●
65 WASHER; PL
ID=8 T=2.3 		8-94368-403-1 02 1 0412-0701 ● ● ● ●
65 WASHER; PL
ID=8 T=2.3 		8-98073-399-0 02 1 0702- ● ● ● ●
86 NUT; ROOF
M8 LOCK NUT 		9-09131-408-0 02 1 0005-0103 ● ● ●
86 NUT; ROOF
M8 LOCK NUT 		9-09131-508-0 02 1 0104-0411 ● ● ●
86 NUT; ROOF
M8 LOCK NUT 		9-09131-508-0 02 1 0412-0603 ● ● ● ●
86 NUT; ROOF
M8 LOCK NUT 		0-91370-008-0 02 1 0604- ● ● ● ●
97 BOLT; AIR DEFLECTOR
M8X15 W/PL WASHER 		1-79198-003-2 08 1 0005-0411 ● ●
97 BOLT; AIR DEFLECTOR
M8X15 W/PL WASHER 		1-79198-003-2 08 1 0412- ● ● ●
97 BOLT; AIR DEFLECTOR
M8X15 W/PL WASHER 		1-79198-003-2 04 1 0005- ●
99 SEAL; BODY,METAL
(D) 75X50 ID=36 		1-61281-458-1 02 1 0501- ● ● ● ●
99 SEAL; BODY,METAL
(C) 14X14 ID=10 T=0.7 		1-61281-427-1 08 1 0404-0411 ● ● ●
99 SEAL; BODY,METAL
(C) 14X14 ID=10 T=0.7 		1-61281-427-1 04 1 0412- ● ● ● ●
99 SEAL; BODY,METAL
(C) 14X14 ID=10 T=0.7 		1-61281-427-0 08 1 0005-0403 ● ● ●
99 SEAL; BODY,METAL
(C) 14X14 ID=10 T=0.7 		1-61281-427-0 08 1 0005-0403 ● ● ●
99 SEAL; BODY,METAL
(C) 14X14 ID=10 T=0.7 		1-61281-427-1 04 1 0404-0411 ● ● ●
99 SEAL; BODY,METAL
(C) 14X14 ID=10 T=0.7 		1-61281-427-1 08 1 0412- ● ● ● ●
99 SEAL; BODY,METAL
(B) 30X30 ID=9 T=0.7 		1-61281-444-1 02 1 0005-0411 ● ● ●
99 SEAL; BODY,METAL
(B) 30X30 ID=9 T=0.7 		1-61281-444-1 02 1 0412- ● ● ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-2 25 1 0005-0411 ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-2 25 1 0412- ● ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-2 04 1 0005- ●
108 PATCH; MIRROR 1-61180-979-4 01 1 0005-0411 ● ● ●
108 PATCH; MIRROR 1-61180-979-4 01 1 0412- ● ● ● ●
108 PATCH; MIRROR 1-61180-956-4 01 1 0005-0411 ● ● ●
108 PATCH; MIRROR 1-61180-956-4 01 1 0412- ● ● ● ●
122 SEAL; FRT UPR 1-61270-919-0 02 1 0005-0411 ● ● ●
122 SEAL; FRT UPR 1-61270-919-0 02 1 0412-0809 ● ● ● ●
122 SEAL; FRT UPR 1-61270-973-0 02 1 0810- ● ● ● ●
133 HEADER; ROOF 1-61181-089-1 01 1 0005- ●
146 REINFORCEMENT; ROOM LAMP 1-61181-040-1 01 1 0211- ●

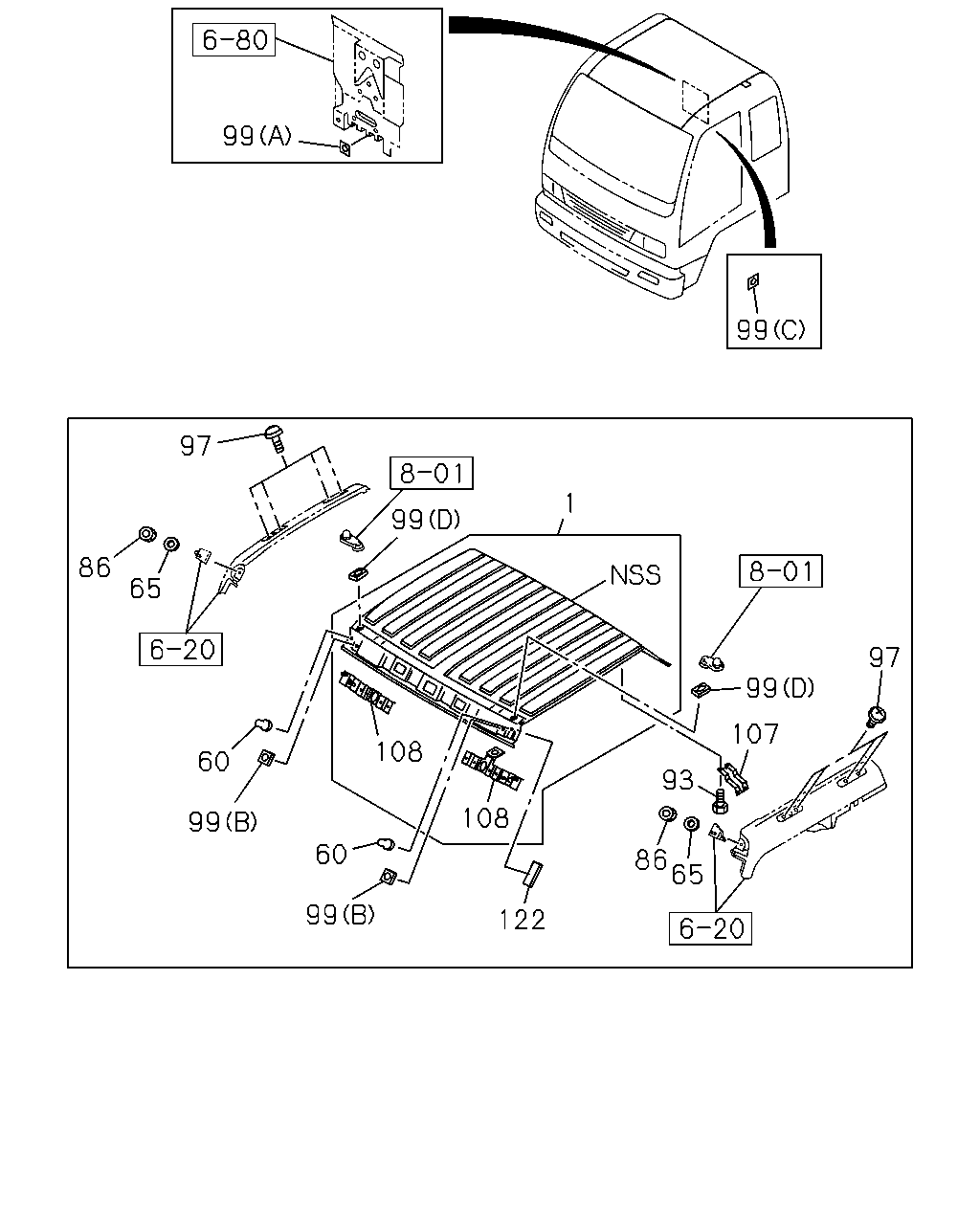

çizim 38976
99 99 97 1 99 86 65 97 99 107 108 60 93 108 99 60 86 65 99 122
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PANEL; ROOF 1-61181-169-0 01 1 0005-0411 ● ●
1 PANEL; ROOF 1-61181-169-0 01 1 0412- ● ● ●
1 PANEL; ROOF 1-61181-093-3 01 1 0005- ●
60 COVER; ROOF 1-79998-922-3 05 1 0005-0411 ● ● ●
60 COVER; ROOF 1-79998-922-3 05 1 0412- ● ● ● ●
65 WASHER; PL
ID=8 T=2.3 		8-94368-403-1 02 1 0005-0411 ● ● ●
65 WASHER; PL
ID=8 T=2.3 		8-94368-403-1 02 1 0412-0701 ● ● ● ●
65 WASHER; PL
ID=8 T=2.3 		8-98073-399-0 02 1 0702- ● ● ● ●
86 NUT; ROOF
M8 LOCK NUT 		9-09131-408-0 02 1 0005-0103 ● ● ●
86 NUT; ROOF
M8 LOCK NUT 		9-09131-508-0 02 1 0104-0411 ● ● ●
86 NUT; ROOF
M8 LOCK NUT 		9-09131-508-0 02 1 0412-0603 ● ● ● ●
86 NUT; ROOF
M8 LOCK NUT 		0-91370-008-0 02 1 0604- ● ● ● ●
93 BOLT; SUPPORT
M6X12 W/LK&PL WASHER 		8-94279-200-0 10 1 0005-0411 ● ●
93 BOLT; SUPPORT
M6X12 W/LK&PL WASHER 		8-94279-200-0 10 1 0412- ● ● ●
97 BOLT; AIR DEFLECTOR
M8X15 W/PL WASHER 		1-79198-003-2 08 1 0005-0411 ● ●
97 BOLT; AIR DEFLECTOR
M8X15 W/PL WASHER 		1-79198-003-2 08 1 0412- ● ● ●
97 BOLT; AIR DEFLECTOR
M8X15 W/PL WASHER 		1-79198-003-2 04 1 0005- ●
99 SEAL; BODY,METAL
(D) 75X50 ID=36 		1-61281-458-1 02 1 0501- ● ● ● ●
99 SEAL; BODY,METAL
(C) 14X14 ID=10 T=0.7 		1-61281-427-1 08 1 0404-0411 ● ● ●
99 SEAL; BODY,METAL
(C) 14X14 ID=10 T=0.7 		1-61281-427-1 04 1 0412- ● ● ● ●
99 SEAL; BODY,METAL
(C) 14X14 ID=10 T=0.7 		1-61281-427-0 08 1 0005-0403 ● ● ●
99 SEAL; BODY,METAL
(C) 14X14 ID=10 T=0.7 		1-61281-427-0 08 1 0005-0403 ● ● ●
99 SEAL; BODY,METAL
(C) 14X14 ID=10 T=0.7 		1-61281-427-1 04 1 0404-0411 ● ● ●
99 SEAL; BODY,METAL
(C) 14X14 ID=10 T=0.7 		1-61281-427-1 08 1 0412- ● ● ● ●
99 SEAL; BODY,METAL
(B) 30X30 ID=9 T=0.7 		1-61281-444-1 02 1 0005-0411 ● ● ●
99 SEAL; BODY,METAL
(B) 30X30 ID=9 T=0.7 		1-61281-444-1 02 1 0412- ● ● ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-2 25 1 0005-0411 ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-2 25 1 0412- ● ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-2 04 1 0005- ●
107 SUPPORT; ROOF,RR
CUSTOM CAB(SR5) 		1-73318-493-3 02 1 0110-0305 ●
107 SUPPORT; ROOF,RR 1-73318-595-2 02 1 0005-0109 ● ●
107 SUPPORT; ROOF,RR
EXC. CUSTOM CAB(SR5) 		1-73318-595-2 02 1 0110-0305 ●
107 SUPPORT; ROOF,RR 1-73318-595-2 02 1 0110-0305 ●
107 SUPPORT; ROOF,RR 1-73318-595-3 02 1 0306-0411 ● ●
107 SUPPORT; ROOF,RR 1-73318-595-3 02 1 0412- ● ● ●
108 PATCH; MIRROR 1-61180-979-4 01 1 0005-0411 ● ● ●
108 PATCH; MIRROR 1-61180-979-4 01 1 0412- ● ● ● ●
108 PATCH; MIRROR 1-61180-956-4 01 1 0005-0411 ● ● ●
108 PATCH; MIRROR 1-61180-956-4 01 1 0412- ● ● ● ●
122 SEAL; FRT UPR 1-61270-919-0 02 1 0005-0411 ● ● ●
122 SEAL; FRT UPR 1-61270-919-0 02 1 0412-0809 ● ● ● ●
122 SEAL; FRT UPR 1-61270-973-0 02 1 0810- ● ● ● ●
