Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#9436) — 661 parça

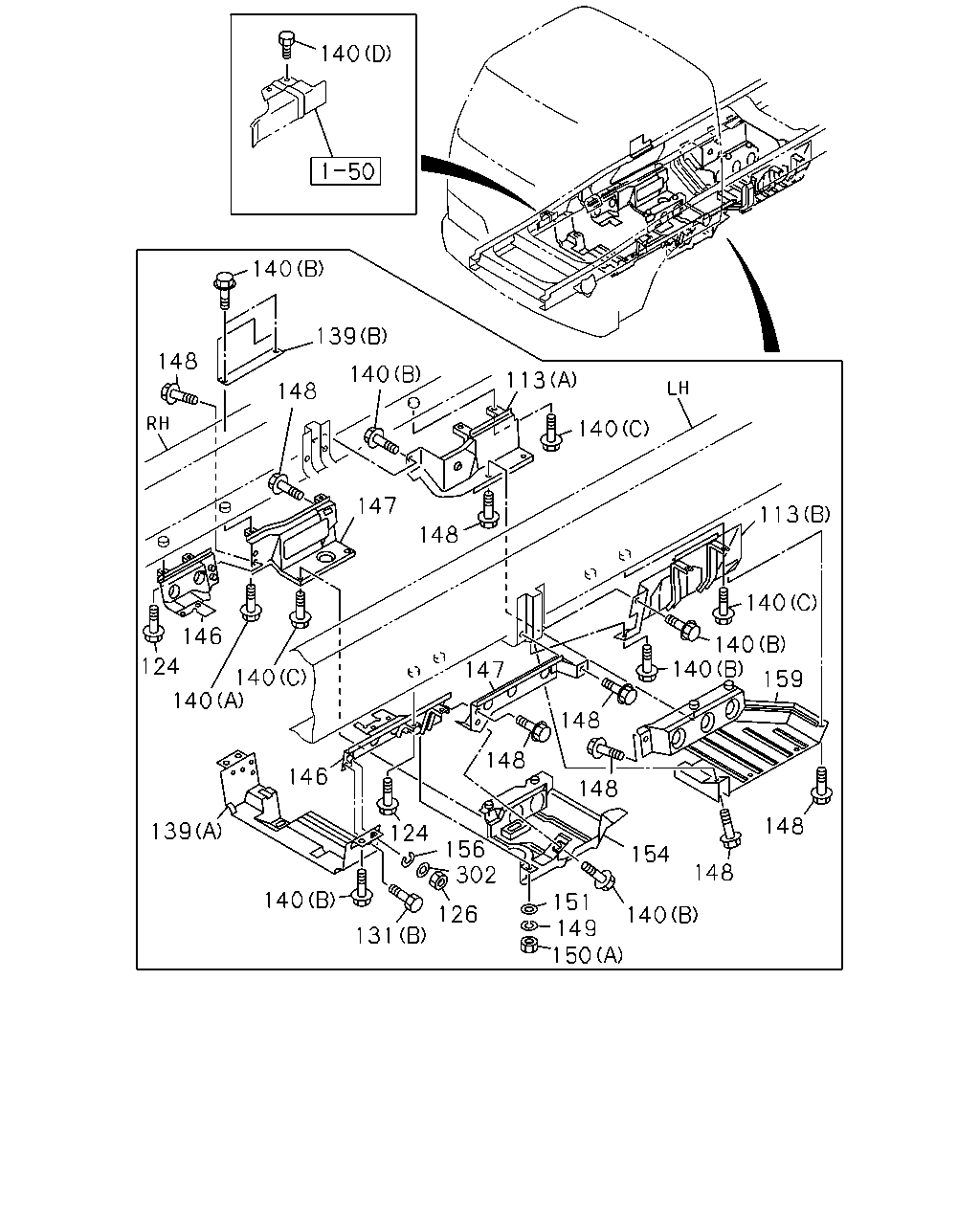

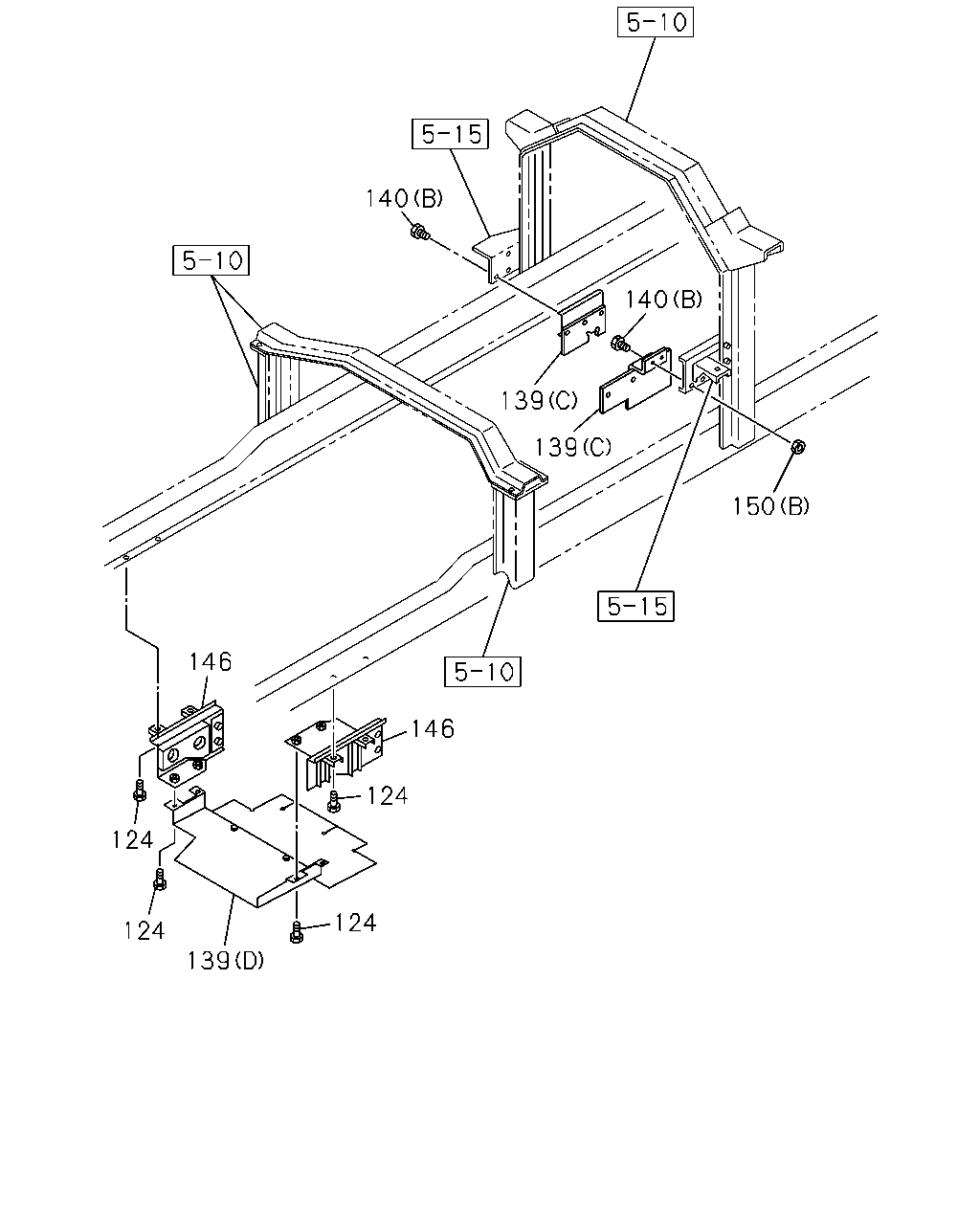

140 140 139 139 150 146 146 124 124 124 124 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
124	BOLT; BRKT 6HH1 N ENG(66L) M8X25 FLANGE	0-28680-825-0	04	1	0005-0210	●	●
124	BOLT; BRKT 6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	08	1	0005-0210	●	●	●
139	PANEL; SIDE 6HH1 STD ENG(65L) EXC. A/T<X9D> (D) CENTER	1-53192-917-2	01	1	0005-0210	●
139	PANEL; SIDE 6HH1 STD ENG(65L) (D) CENTER	1-53192-917-2	01	1	0005-0210		●	●
139	PANEL; SIDE 6HH1 STD ENG(65L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. A/T<X9D> (B)	1-53193-148-0	01	1	0005-0010	●
139	PANEL; SIDE 6HH1 STD ENG(65L) (B)	1-53193-148-0	01	1	0005-0010			●
139	PANEL; SIDE 6HH1 STD ENG(65L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), A/T<X9D> (B)	1-53193-224-0	01	1	0005-0010	●
139	PANEL; SIDE 6HH1 STD ENG(65L) EXC. A/T<X9D> (B)	1-53193-224-0	01	1	0011-0104	●
139	PANEL; SIDE 6HH1 STD ENG(65L) (B)	1-53193-224-0	01	1	0011-0104			●
139	PANEL; SIDE 6HH1 STD ENG(65L) EXC. A/T<X9D> (B)	1-53194-117-0	01	1	0105-0210	●
139	PANEL; SIDE 6HH1 STD ENG(65L) (B)	1-53194-117-0	01	1	0105-0210			●
139	PANEL; SIDE 6HH1 STD ENG(65L),6HH1 N ENG(66L) EXC. A/T<X9D> (A) CENTER	1-53192-591-0	01	1	0005-0210	●
139	PANEL; SIDE 6HH1 STD ENG(65L),6HH1 N ENG(66L) (A) CENTER	1-53192-591-0	01	1	0005-0210		●	●
139	PANEL; SIDE (C)	1-53192-129-1	01	1	0005-		●
139	PANEL; SIDE (C)	1-53192-128-0	01	1	0005-		●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) (D) M8X25 FLANGE	0-28680-825-0	02	1	0005-0104	●	●	●
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 8.5"(B1S) (D) M8X25 FLANGE	0-28680-825-0	02	1	0105-0210	●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) EXC. A/T<X9D> (D) M8X25 FLANGE	0-28680-825-0	02	1	0105-0210	●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) (D) M8X25 FLANGE	0-28680-825-0	02	1	0105-0210			●
140	BOLT; SIDE PANEL AIR ASSIST CLUTCH<PK1> (B) M8X25 FLANGE	0-28680-825-0	04	1	0211-0411	●
140	BOLT; SIDE PANEL (B) M8X25 FLANGE	0-28680-825-0	04	1	0211-0411		●
140	BOLT; SIDE PANEL (B) M8X25 FLANGE	0-28680-825-0	04	1	0211-0411		●
140	BOLT; SIDE PANEL AIR ASSIST CLUTCH<PK1> (B) M8X25 FLANGE	0-28680-825-0	04	1	0412-0512	●
140	BOLT; SIDE PANEL (B) M8X25 FLANGE	0-28680-825-0	04	1	0412-0512		●		●
140	BOLT; SIDE PANEL (B) M8X25 FLANGE	0-28680-825-0	04	1	0412-0512		●
140	BOLT; SIDE PANEL AIR ASSIST CLUTCH<PK1> (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
140	BOLT; SIDE PANEL (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-		●		●
140	BOLT; SIDE PANEL (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-		●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L),6HH1 N ENG(66L) (A) M8X25 FLANGE	0-28680-825-0	01	1	0005-0104	●	●	●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L),6HH1 N ENG(66L) (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0210	●	●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0210			●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L),6HH1 N ENG(66L) (B) M8X25 FLANGE	0-28680-825-0	04	1	0005-0210	●	●	●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L),6HH1 N ENG(66L) (B) M8X25 FLANGE	0-28680-825-0	04	1	0005-0210	●	●	●
140	BOLT; SIDE PANEL (B) M8X25 FLANGE	0-28680-825-0	04	1	0005-0210	●	●
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 8.5"(B1S) (D) M8X20 FLANGE	0-28680-820-0	01	1	0211-0411	●
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 8.5"(B1S) (D) M8X20 FLANGE	0-28680-820-0	01	1	0412-0512	●
140	BOLT; SIDE PANEL (D) M8X20 FLANGE	0-28680-820-0	01	1	0412-0512				●
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 8.5"(B1S) (D) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
140	BOLT; SIDE PANEL (D) M8X20 FLANGE	0-28650-820-0	01	1	0601-				●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L),6HH1 N ENG(66L) (C) M8X22 W/LK&PL WASHER	1-09030-084-0	02	1	0005-0210	●	●	●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L),6HH1 N ENG(66L) (C) M8X22 W/LK&PL WASHER	1-09030-084-0	02	1	0005-0210	●	●	●
146	PANEL; SIDE,UNDER,FRT 6HH1 N ENG(66L)	1-53193-039-0	01	1	0005-0210	●	●
146	PANEL; SIDE,UNDER,FRT 6HH1 N ENG(66L)	1-53193-037-1	01	1	0005-0210	●	●
146	PANEL; SIDE,UNDER,FRT 6HH1 STD ENG(65L)	1-53192-938-0	01	1	0005-0210	●	●	●
146	PANEL; SIDE,UNDER,FRT 6HH1 STD ENG(65L)	1-53192-936-0	01	1	0005-0210	●	●	●
150	NUT; SIDE PANEL 6HH1 STD ENG(65L) (A) M8	9-09110-408-0	01	1	0005-0205	●	●	●
150	NUT; SIDE PANEL 6HH1 STD ENG(65L) (A) M8 FLANGE	0-91150-108-0	01	1	0206-0210	●	●	●
150	NUT; SIDE PANEL (B) M8 FLANGE	0-91150-108-0	02	1	0205-0602		●
150	NUT; SIDE PANEL (B) M8 FLANGE	0-91180-108-0	02	1	0603-		●

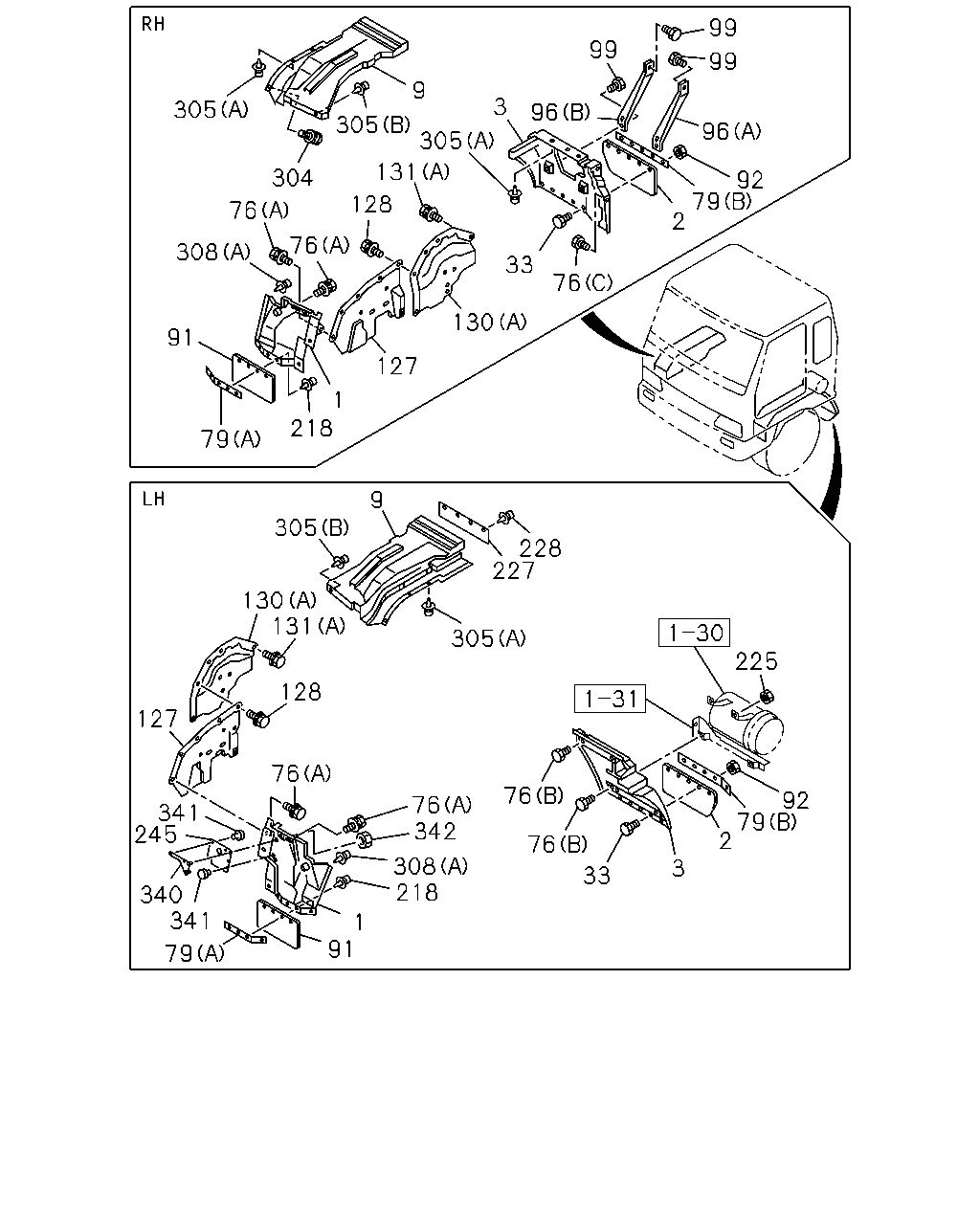

99 99 99 9 3 305 96 305 305 96 131 304 92 79 2 128 76 76 308 33 76 130 9 127 1 218 79 9 305 228 227 130 131 305 225 128 127 76 76 92 79 2 341 245 76 342 76 308 218 3 33 340 341 1 91 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	GUARD; MUD,FRT A/T<X9D>	1-79938-995-1	01	1	0211-	●
1	GUARD; MUD,FRT	1-79938-812-8	01	1	0005-0210	●	●	●
1	GUARD; MUD,FRT EXC. A/T<X9D>	1-79938-812-8	01	1	0211-0411	●
1	GUARD; MUD,FRT	1-79938-812-8	01	1	0211-0411		●	●
1	GUARD; MUD,FRT EXC. A/T<X9D>	1-79938-812-8	01	1	0412-	●
1	GUARD; MUD,FRT	1-79938-812-8	01	1	0412-		●	●	●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	0005-0411	●	●	●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	0412-	●	●	●	●
2	COVER; MUD,TIRE RR	1-79930-484-2	01	1	0005-0411	●
2	COVER; MUD,TIRE RR	1-79930-484-2	01	1	0412-	●			●
2	COVER; MUD,TIRE RR	1-79930-693-1	01	1	0005-0411	●
2	COVER; MUD,TIRE RR	1-79930-693-1	01	1	0412-	●			●
2	COVER; MUD,TIRE RR	1-79931-225-2	01	1	0005-		●
2	COVER; MUD,TIRE RR	1-79931-218-1	01	1	0005-		●
2	COVER; MUD,TIRE RR	1-79931-255-2	01	1	0005-0411			●
2	COVER; MUD,TIRE RR	1-79931-255-2	01	1	0412-			●
2	COVER; MUD,TIRE RR	1-79938-973-1	01	1	0005-0210			●
2	COVER; MUD,TIRE RR	1-79931-271-0	01	1	0211-			●
3	GUARD; MUD,RR	1-79938-961-2	01	1	0005-0411	●
3	GUARD; MUD,RR	1-79938-961-2	01	1	0412-	●			●
3	GUARD; MUD,RR	1-79938-935-3	01	1	0005-0210	●
3	GUARD; MUD,RR	1-79936-011-0	01	1	0211-0411	●
3	GUARD; MUD,RR	1-79936-011-0	01	1	0412-	●			●
3	GUARD; MUD,RR	1-79938-918-2	01	1	0005-		●
3	GUARD; MUD,RR	1-79938-917-2	01	1	0005-		●
3	GUARD; MUD,RR	1-79938-971-1	01	1	0005-0210			●
3	GUARD; MUD,RR	1-79936-012-0	01	1	0211-0411			●
3	GUARD; MUD,RR	1-79936-012-0	01	1	0412-			●
3	GUARD; MUD,RR 6HE1 TC ENG(57L)	1-79938-959-2	01	1	0005-0210			●
3	GUARD; MUD,RR	1-79938-959-2	01	1	0211-0411			●
3	GUARD; MUD,RR	1-79938-959-2	01	1	0412-			●
3	GUARD; MUD,RR 6HH1 STD ENG(65L)	1-79938-998-0	01	1	0005-0210			●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-822-9	01	1	0005-0304	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-037-1	01	1	0305-0411	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-037-1	01	1	0412-	●			●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-821-9	01	1	0005-0304	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-036-1	01	1	0305-0411	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-036-1	01	1	0412-	●			●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-007-2	01	1	0005-0411			●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-007-2	01	1	0412-			●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-955-3	01	1	0005-0411			●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-955-3	01	1	0412-			●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	09	1	0005-0411	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	09	1	0412-	●			●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	08	1	0005-0410		●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	08	1	0411-		●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	0005-0210			●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	0211-0411			●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	0412-			●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	0211-			●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0005-0411	●	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0412-0805	●	●	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0806-	●	●	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0005-0411	●	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0412-	●	●	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0005-0411	●	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0412-	●	●	●	●
76	BOLT; MUD GUARD (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	06	1	0005-0904		●
76	BOLT; MUD GUARD (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	0905-		●
76	BOLT; MUD GUARD 6HH1 STD ENG(65L) (D) M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	0005-0210			●
79	RETAINER; MUD COVER (B)	1-79930-962-1	01	1	0005-0411	●
79	RETAINER; MUD COVER (B)	1-79930-962-1	01	1	0412-	●			●
79	RETAINER; MUD COVER (B) L=509	1-79930-695-1	01	1	0005-0411	●
79	RETAINER; MUD COVER (B) L=509	1-79930-695-1	01	1	0412-	●			●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	0005-0411	●	●	●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	0412-	●	●	●	●
79	RETAINER; MUD COVER (B) L=504	1-79930-520-1	01	1	0005-		●
79	RETAINER; MUD COVER (B) L=428	1-79930-696-0	01	1	0005-		●
79	RETAINER; MUD COVER (B)	1-79931-252-0	01	1	0005-0210			●
79	RETAINER; MUD COVER (D)	1-79931-269-0	01	1	0211-0411			●
79	RETAINER; MUD COVER (D)	1-79931-269-0	01	1	0412-			●
79	RETAINER; MUD COVER 6HE1 TC ENG(57L) (B)	1-79931-288-0	01	1	0005-0210			●
79	RETAINER; MUD COVER (B)	1-79931-288-0	01	1	0211-0411			●
79	RETAINER; MUD COVER (B)	1-79931-288-0	01	1	0412-			●
79	RETAINER; MUD COVER 6HH1 STD ENG(65L) (C)	1-79931-304-0	01	1	0005-0210			●
91	COVER; MUD,FRT	1-79931-214-1	02	1	0005-0411	●	●	●
91	COVER; MUD,FRT	1-79931-214-1	02	1	0412-	●	●	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	0005-0210	●
92	NUT; MUD COVER 6HH1 STD ENG(65L) M6 FLANGE	0-91150-106-0	09	1	0005-0210			●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	0211-0411	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	0412-0602	●			●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	09	1	0603-	●			●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	08	1	0005-0602		●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	08	1	0603-		●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	07	1	0211-0411			●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	04	1	0412-0602			●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	04	1	0603-			●
92	NUT; MUD COVER 6HE1 TC ENG(57L) M6 FLANGE	0-91150-106-0	07	1	0005-0210			●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	04	1	0211-0411			●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	07	1	0412-0602			●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	07	1	0603-			●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	0005-0210	●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	0211-0411	●		●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	0412-	●		●	●
96	STAY; MUD GUARD (B)	1-79938-738-0	01	1	0005-0210	●
96	STAY; MUD GUARD (B)	1-79938-738-1	01	1	0211-0411	●		●
96	STAY; MUD GUARD (B)	1-79938-738-1	01	1	0412-	●		●	●
96	STAY; MUD GUARD (C)	1-79938-656-1	01	1	0005-		●
96	STAY; MUD GUARD (C)	1-79938-654-0	01	1	0005-		●
96	STAY; MUD GUARD (B)	1-79938-968-2	01	1	0005-0210			●
96	STAY; MUD GUARD (E)	1-53497-637-0	01	1	0211-			●
96	STAY; MUD GUARD (A)	1-79938-969-1	01	1	0005-0210			●
96	STAY; MUD GUARD (D)	1-79938-996-0	01	1	0005-0210			●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0005-0411	●		●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0412-	●		●	●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0005-		●
127	APRON; FRT 6HK1 TCS ENG(80L)	1-53192-301-3	01	1	0307-	●		●
127	APRON; FRT 6HK1 TCS ENG(80L)	1-53193-222-1	01	1	0307-	●		●
127	APRON; FRT	1-53193-223-1	01	1	0005-0011	●	●	●
127	APRON; FRT	1-53193-222-1	01	1	0012-0210	●	●	●
127	APRON; FRT	1-53192-957-2	01	1	0211-0305	●	●	●
127	APRON; FRT 6HK1 TCC ENG(81L),6HK1 TCN ENG(82L)	1-53192-957-2	01	1	0306-0411	●	●
127	APRON; FRT 6HK1 TCC ENG(81L)	1-53192-957-2	01	1	0306-0411			●
127	APRON; FRT 6HK1 TCC ENG(81L),6HK1 TCN ENG(82L)	1-53192-957-2	01	1	0412-	●	●
127	APRON; FRT 6HK1 TCC ENG(81L)	1-53192-957-2	01	1	0412-			●
127	APRON; FRT 6HK1 TCN ENG(82L)	1-53192-957-2	01	1	0412-				●
127	APRON; FRT	1-53192-301-3	01	1	0005-0210	●	●	●
127	APRON; FRT	1-53192-956-1	01	1	0211-0305	●	●	●
127	APRON; FRT 6HK1 TCC ENG(81L),6HK1 TCN ENG(82L)	1-53192-956-1	01	1	0306-0411	●	●
127	APRON; FRT 6HK1 TCC ENG(81L)	1-53192-956-1	01	1	0306-0411			●
127	APRON; FRT 6HK1 TCC ENG(81L),6HK1 TCN ENG(82L)	1-53192-956-1	01	1	0412-	●	●
127	APRON; FRT 6HK1 TCC ENG(81L)	1-53192-956-1	01	1	0412-			●
127	APRON; FRT 6HK1 TCN ENG(82L)	1-53192-956-1	01	1	0412-				●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	0005-0411	●		●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	0412-	●		●	●
128	BOLT; APRON,FRT M8X30 W/LK&PL WASHER	1-09030-080-0	02	1	0005-		●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0005-		●
130	PANEL; SHUTTER NOISE (A)	1-53192-307-4	01	1	0005-0210	●		●
130	PANEL; SHUTTER NOISE (A)	1-53192-955-2	01	1	0211-0411	●		●
130	PANEL; SHUTTER NOISE (A)	1-53192-955-2	01	1	0412-	●		●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-305-2	01	1	0005-0210	●		●
130	PANEL; SHUTTER NOISE (A)	1-53193-704-1	01	1	0211-0411	●		●
130	PANEL; SHUTTER NOISE (A)	1-53193-704-1	01	1	0412-	●		●	●
130	PANEL; SHUTTER NOISE (C)	1-79938-793-0	01	1	0005-		●
130	PANEL; SHUTTER NOISE (B)	1-53192-718-4	01	1	0005-		●
130	PANEL; SHUTTER NOISE (B)	1-53192-717-3	01	1	0005-0210		●
130	PANEL; SHUTTER NOISE (B)	1-53194-186-2	01	1	0211-		●
131	BOLT; PANEL 6HH1 STD ENG(65L),6HH1 N ENG(66L) (B) M8X22 W/LK&PL WASHER	1-09030-084-0	01	1	0005-0210	●	●
131	BOLT; PANEL 6HH1 STD ENG(65L) (B) M8X22 W/LK&PL WASHER	1-09030-084-0	01	1	0005-0210			●
131	BOLT; PANEL (A) M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	0005-0411	●		●
131	BOLT; PANEL (A) M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	0412-	●		●	●
131	BOLT; PANEL (A) M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	0005-		●
218	FASTENER; RUBBER	1-09470-001-0	08	1	0005-0411	●	●	●
218	FASTENER; RUBBER	1-09470-001-0	08	1	0412-	●	●	●	●
225	NUT; MUD GUARD 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	03	1	0005-0210	●		●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	03	1	0211-0411	●		●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	03	1	0412-0602	●		●	●
225	NUT; MUD GUARD M8 FLANGE	0-91180-108-0	03	1	0603-	●		●	●
225	NUT; MUD GUARD 6HH1 STD ENG(65L),6HH1 N ENG(66L) M8 FLANGE	0-91150-108-0	02	1	0005-0210	●		●
227	SEAL; MUD GUARD	1-79938-953-1	01	1	0005-0411	●		●
227	SEAL; MUD GUARD	1-79938-953-1	01	1	0412-	●		●	●
228	FASTENER; MUD GUARD SEAL D8X13.5	1-09987-248-1	04	1	0005-0411	●		●
228	FASTENER; MUD GUARD SEAL D8X13.5	1-09987-248-1	04	1	0412-	●		●	●
245	RUBBER; SHUTTER,RAD A/T<X9D>	1-79936-027-0	01	1	0211-	●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0005-0411	●		●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0412-	●		●	●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	0005-		●
305	FASTENER; SPLASH GUARD (B) D8X13.5	1-09987-248-1	01	1	0405-			●
305	FASTENER; SPLASH GUARD (A) D8X13.5	1-09987-248-1	08	1	0005-0411	●
305	FASTENER; SPLASH GUARD (A) D8X13.5	1-09987-248-1	08	1	0412-	●			●
305	FASTENER; SPLASH GUARD (B) D8X13.5	1-09987-248-1	02	1	0005-0411	●	●	●
305	FASTENER; SPLASH GUARD (B) D8X13.5	1-09987-248-1	02	1	0412-	●	●	●	●
305	FASTENER; SPLASH GUARD (A) D8X13.5	1-09987-248-1	03	1	0005-0411	●		●
305	FASTENER; SPLASH GUARD (A) D8X13.5	1-09987-248-1	03	1	0412-	●		●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	0005-0411	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	0412-	●	●		●
308	FASTENER; MUD GUARD (B)	1-09470-007-0	02	1	0005-0404			●
308	FASTENER; MUD GUARD (C) M6X22	1-65481-386-0	02	1	0005-0404			●
308	FASTENER; MUD GUARD (C) M6X22	1-65481-386-0	04	1	0405-			●
340	BRACKET; RUBBER,SHUTTER A/T<X9D>	1-79936-024-1	01	1	0211-	●
341	CLIP; RUBBER A/T<X9D> ID=6X6 OD=8	1-09987-194-0	03	1	0211-	●
342	NUT; BRKT,RUBBER A/T<X9D> M8 FLANGE	8-97046-127-0	02	1	0211-0805	●
342	NUT; BRKT,RUBBER A/T<X9D> M8 W/DISHED WASHER	8-97329-625-0	02	1	0806-	●

140 140 139 148 140 113 148 140 147 113 148 140 146 140 140 124 147 140 159 140 148 148 146 148 148 139 124 156 302 154 148 140 151 149 150 126 140 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
113	PANEL; SIDE 6HH1 STD ENG(65L),6HH1 N ENG(66L) ISUZU M/T<X9A> (A)	1-53192-909-2	01	1	0005-0210	●	●	●
113	PANEL; SIDE 6HH1 STD ENG(65L),6HH1 N ENG(66L) ISUZU M/T<X9A> (B)	1-53192-911-2	01	1	0005-0210	●	●	●
124	BOLT; BRKT 6HH1 N ENG(66L) M8X25 FLANGE	0-28680-825-0	04	1	0005-0210	●	●
124	BOLT; BRKT 6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	08	1	0005-0210	●	●	●
126	NUT; PANEL 6HH1 STD ENG(65L),6HH1 N ENG(66L) M8	9-09110-408-0	01	1	0005-0205	●	●
126	NUT; PANEL 6HH1 STD ENG(65L) M8	9-09110-408-0	01	1	0005-0205			●
126	NUT; PANEL 6HH1 STD ENG(65L),6HH1 N ENG(66L) M8 FLANGE	0-91150-108-0	01	1	0206-0210	●	●
126	NUT; PANEL 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	01	1	0206-0210			●
131	BOLT; PANEL 6HH1 STD ENG(65L),6HH1 N ENG(66L) (B) M8X22 W/LK&PL WASHER	1-09030-084-0	01	1	0005-0210	●	●
131	BOLT; PANEL 6HH1 STD ENG(65L) (B) M8X22 W/LK&PL WASHER	1-09030-084-0	01	1	0005-0210			●
131	BOLT; PANEL (A) M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	0005-0411	●		●
131	BOLT; PANEL (A) M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	0412-	●		●	●
131	BOLT; PANEL (A) M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	0005-		●
139	PANEL; SIDE 6HH1 STD ENG(65L) EXC. A/T<X9D> (D) CENTER	1-53192-917-2	01	1	0005-0210	●
139	PANEL; SIDE 6HH1 STD ENG(65L) (D) CENTER	1-53192-917-2	01	1	0005-0210		●	●
139	PANEL; SIDE 6HH1 STD ENG(65L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. A/T<X9D> (B)	1-53193-148-0	01	1	0005-0010	●
139	PANEL; SIDE 6HH1 STD ENG(65L) (B)	1-53193-148-0	01	1	0005-0010			●
139	PANEL; SIDE 6HH1 STD ENG(65L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), A/T<X9D> (B)	1-53193-224-0	01	1	0005-0010	●
139	PANEL; SIDE 6HH1 STD ENG(65L) EXC. A/T<X9D> (B)	1-53193-224-0	01	1	0011-0104	●
139	PANEL; SIDE 6HH1 STD ENG(65L) (B)	1-53193-224-0	01	1	0011-0104			●
139	PANEL; SIDE 6HH1 STD ENG(65L) EXC. A/T<X9D> (B)	1-53194-117-0	01	1	0105-0210	●
139	PANEL; SIDE 6HH1 STD ENG(65L) (B)	1-53194-117-0	01	1	0105-0210			●
139	PANEL; SIDE 6HH1 STD ENG(65L),6HH1 N ENG(66L) EXC. A/T<X9D> (A) CENTER	1-53192-591-0	01	1	0005-0210	●
139	PANEL; SIDE 6HH1 STD ENG(65L),6HH1 N ENG(66L) (A) CENTER	1-53192-591-0	01	1	0005-0210		●	●
139	PANEL; SIDE (C)	1-53192-129-1	01	1	0005-		●
139	PANEL; SIDE (C)	1-53192-128-0	01	1	0005-		●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) (D) M8X25 FLANGE	0-28680-825-0	02	1	0005-0104	●	●	●
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 8.5"(B1S) (D) M8X25 FLANGE	0-28680-825-0	02	1	0105-0210	●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) EXC. A/T<X9D> (D) M8X25 FLANGE	0-28680-825-0	02	1	0105-0210	●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) (D) M8X25 FLANGE	0-28680-825-0	02	1	0105-0210			●
140	BOLT; SIDE PANEL AIR ASSIST CLUTCH<PK1> (B) M8X25 FLANGE	0-28680-825-0	04	1	0211-0411	●
140	BOLT; SIDE PANEL (B) M8X25 FLANGE	0-28680-825-0	04	1	0211-0411		●
140	BOLT; SIDE PANEL (B) M8X25 FLANGE	0-28680-825-0	04	1	0211-0411		●
140	BOLT; SIDE PANEL AIR ASSIST CLUTCH<PK1> (B) M8X25 FLANGE	0-28680-825-0	04	1	0412-0512	●
140	BOLT; SIDE PANEL (B) M8X25 FLANGE	0-28680-825-0	04	1	0412-0512		●		●
140	BOLT; SIDE PANEL (B) M8X25 FLANGE	0-28680-825-0	04	1	0412-0512		●
140	BOLT; SIDE PANEL AIR ASSIST CLUTCH<PK1> (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
140	BOLT; SIDE PANEL (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-		●		●
140	BOLT; SIDE PANEL (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-		●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L),6HH1 N ENG(66L) (A) M8X25 FLANGE	0-28680-825-0	01	1	0005-0104	●	●	●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L),6HH1 N ENG(66L) (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0210	●	●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0210			●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L),6HH1 N ENG(66L) (B) M8X25 FLANGE	0-28680-825-0	04	1	0005-0210	●	●	●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L),6HH1 N ENG(66L) (B) M8X25 FLANGE	0-28680-825-0	04	1	0005-0210	●	●	●
140	BOLT; SIDE PANEL (B) M8X25 FLANGE	0-28680-825-0	04	1	0005-0210	●	●
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 8.5"(B1S) (D) M8X20 FLANGE	0-28680-820-0	01	1	0211-0411	●
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 8.5"(B1S) (D) M8X20 FLANGE	0-28680-820-0	01	1	0412-0512	●
140	BOLT; SIDE PANEL (D) M8X20 FLANGE	0-28680-820-0	01	1	0412-0512				●
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 8.5"(B1S) (D) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
140	BOLT; SIDE PANEL (D) M8X20 FLANGE	0-28650-820-0	01	1	0601-				●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L),6HH1 N ENG(66L) (C) M8X22 W/LK&PL WASHER	1-09030-084-0	02	1	0005-0210	●	●	●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L),6HH1 N ENG(66L) (C) M8X22 W/LK&PL WASHER	1-09030-084-0	02	1	0005-0210	●	●	●
146	PANEL; SIDE,UNDER,FRT 6HH1 N ENG(66L)	1-53193-039-0	01	1	0005-0210	●	●
146	PANEL; SIDE,UNDER,FRT 6HH1 N ENG(66L)	1-53193-037-1	01	1	0005-0210	●	●
146	PANEL; SIDE,UNDER,FRT 6HH1 STD ENG(65L)	1-53192-938-0	01	1	0005-0210	●	●	●
146	PANEL; SIDE,UNDER,FRT 6HH1 STD ENG(65L)	1-53192-936-0	01	1	0005-0210	●	●	●
147	PANEL; SIDE,UNDER,RR 6HH1 STD ENG(65L),6HH1 N ENG(66L)	1-53193-043-1	01	1	0005-0210	●	●
147	PANEL; SIDE,UNDER,RR 6HH1 STD ENG(65L)	1-53193-043-1	01	1	0005-0210			●
147	PANEL; SIDE,UNDER,RR 6HH1 STD ENG(65L),6HH1 N ENG(66L)	1-53193-114-2	01	1	0005-0210	●	●
147	PANEL; SIDE,UNDER,RR 6HH1 STD ENG(65L)	1-53192-924-0	01	1	0005-0210			●
148	BOLT; PANEL TO PANEL 6HH1 STD ENG(65L) M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	0005-0210	●	●	●
148	BOLT; PANEL TO PANEL 6HH1 STD ENG(65L),6HH1 N ENG(66L) M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	0005-0210	●	●	●
148	BOLT; PANEL TO PANEL 6HH1 STD ENG(65L),6HH1 N ENG(66L) ISUZU M/T<X9A> M8X22 W/LK&PL WASHER	1-09030-084-0	08	1	0005-0210	●	●	●
149	WASHER; LK,SIDE PANEL 6HH1 STD ENG(65L) ID=8.2	9-09150-508-0	01	1	0005-0205	●	●	●
150	NUT; SIDE PANEL 6HH1 STD ENG(65L) (A) M8	9-09110-408-0	01	1	0005-0205	●	●	●
150	NUT; SIDE PANEL 6HH1 STD ENG(65L) (A) M8 FLANGE	0-91150-108-0	01	1	0206-0210	●	●	●
150	NUT; SIDE PANEL (B) M8 FLANGE	0-91150-108-0	02	1	0205-0602		●
150	NUT; SIDE PANEL (B) M8 FLANGE	0-91180-108-0	02	1	0603-		●
151	WASHER; PL,SIDE PANEL 6HH1 STD ENG(65L) ID=8.4 OD=22	9-09160-708-0	01	1	0005-0205	●	●	●
154	PANEL; SIDE,UNDER ENG CTR 6HH1 STD ENG(65L)	1-53192-919-1	01	1	0005-0210	●	●	●
156	WASHER; LK,PANEL 6HH1 STD ENG(65L),6HH1 N ENG(66L) ID=8.2	9-09150-508-0	01	1	0005-0205	●	●
156	WASHER; LK,PANEL 6HH1 STD ENG(65L) ID=8.2	9-09150-508-0	01	1	0005-0205			●
159	PANEL; SIDE,TRANS,CTR 6HH1 STD ENG(65L),6HH1 N ENG(66L) ISUZU M/T<X9A>	1-53193-116-1	01	1	0005-0210	●	●	●
302	WASHER; PL,PANEL 6HH1 STD ENG(65L),6HH1 N ENG(66L) ID=8.4 OD=22	9-09160-708-0	01	1	0005-0205	●	●
302	WASHER; PL,PANEL 6HH1 STD ENG(65L) ID=8.4 OD=22	9-09160-708-0	01	1	0005-0205			●

99 99 174 96 96 238 79 96 99 92 9 79 98 305 92 175 76 305 305 2 3 128 131 304 33 308 308 2 96 76 1 130 127 92 79 91 79 218 9 228 305 104 225 130 79 131 121 105 227 102 305 76 127 225 103 3 76 128 225 76 308 218 1 2 91 306 79 308 76 33 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	GUARD; MUD,FRT A/T<X9D>	1-79938-995-1	01	1	0211-	●
1	GUARD; MUD,FRT	1-79938-812-8	01	1	0005-0210	●	●	●
1	GUARD; MUD,FRT EXC. A/T<X9D>	1-79938-812-8	01	1	0211-0411	●
1	GUARD; MUD,FRT	1-79938-812-8	01	1	0211-0411		●	●
1	GUARD; MUD,FRT EXC. A/T<X9D>	1-79938-812-8	01	1	0412-	●
1	GUARD; MUD,FRT	1-79938-812-8	01	1	0412-		●	●	●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	0005-0411	●	●	●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	0412-	●	●	●	●
2	COVER; MUD,TIRE RR	1-79930-484-2	01	1	0005-0411	●
2	COVER; MUD,TIRE RR	1-79930-484-2	01	1	0412-	●			●
2	COVER; MUD,TIRE RR	1-79930-693-1	01	1	0005-0411	●
2	COVER; MUD,TIRE RR	1-79930-693-1	01	1	0412-	●			●
2	COVER; MUD,TIRE RR	1-79931-225-2	01	1	0005-		●
2	COVER; MUD,TIRE RR	1-79931-218-1	01	1	0005-		●
2	COVER; MUD,TIRE RR	1-79931-255-2	01	1	0005-0411			●
2	COVER; MUD,TIRE RR	1-79931-255-2	01	1	0412-			●
2	COVER; MUD,TIRE RR	1-79938-973-1	01	1	0005-0210			●
2	COVER; MUD,TIRE RR	1-79931-271-0	01	1	0211-			●
3	GUARD; MUD,RR	1-79938-961-2	01	1	0005-0411	●
3	GUARD; MUD,RR	1-79938-961-2	01	1	0412-	●			●
3	GUARD; MUD,RR	1-79938-935-3	01	1	0005-0210	●
3	GUARD; MUD,RR	1-79936-011-0	01	1	0211-0411	●
3	GUARD; MUD,RR	1-79936-011-0	01	1	0412-	●			●
3	GUARD; MUD,RR	1-79938-918-2	01	1	0005-		●
3	GUARD; MUD,RR	1-79938-917-2	01	1	0005-		●
3	GUARD; MUD,RR	1-79938-971-1	01	1	0005-0210			●
3	GUARD; MUD,RR	1-79936-012-0	01	1	0211-0411			●
3	GUARD; MUD,RR	1-79936-012-0	01	1	0412-			●
3	GUARD; MUD,RR 6HE1 TC ENG(57L)	1-79938-959-2	01	1	0005-0210			●
3	GUARD; MUD,RR	1-79938-959-2	01	1	0211-0411			●
3	GUARD; MUD,RR	1-79938-959-2	01	1	0412-			●
3	GUARD; MUD,RR 6HH1 STD ENG(65L)	1-79938-998-0	01	1	0005-0210			●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-822-9	01	1	0005-0304	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-037-1	01	1	0305-0411	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-037-1	01	1	0412-	●			●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-821-9	01	1	0005-0304	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-036-1	01	1	0305-0411	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-036-1	01	1	0412-	●			●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-007-2	01	1	0005-0411			●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-007-2	01	1	0412-			●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-955-3	01	1	0005-0411			●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-955-3	01	1	0412-			●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	09	1	0005-0411	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	09	1	0412-	●			●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	08	1	0005-0410		●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	08	1	0411-		●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	0005-0210			●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	0211-0411			●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	0412-			●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	0211-			●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0005-0411	●	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0412-0805	●	●	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0806-	●	●	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0005-0411	●	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0412-	●	●	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0005-0411	●	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0412-	●	●	●	●
76	BOLT; MUD GUARD (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	06	1	0005-0904		●
76	BOLT; MUD GUARD (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	0905-		●
76	BOLT; MUD GUARD 6HH1 STD ENG(65L) (D) M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	0005-0210			●
79	RETAINER; MUD COVER (B)	1-79930-962-1	01	1	0005-0411	●
79	RETAINER; MUD COVER (B)	1-79930-962-1	01	1	0412-	●			●
79	RETAINER; MUD COVER (B) L=509	1-79930-695-1	01	1	0005-0411	●
79	RETAINER; MUD COVER (B) L=509	1-79930-695-1	01	1	0412-	●			●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	0005-0411	●	●	●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	0412-	●	●	●	●
79	RETAINER; MUD COVER (B) L=504	1-79930-520-1	01	1	0005-		●
79	RETAINER; MUD COVER (B) L=428	1-79930-696-0	01	1	0005-		●
79	RETAINER; MUD COVER (B)	1-79931-252-0	01	1	0005-0210			●
79	RETAINER; MUD COVER (D)	1-79931-269-0	01	1	0211-0411			●
79	RETAINER; MUD COVER (D)	1-79931-269-0	01	1	0412-			●
79	RETAINER; MUD COVER 6HE1 TC ENG(57L) (B)	1-79931-288-0	01	1	0005-0210			●
79	RETAINER; MUD COVER (B)	1-79931-288-0	01	1	0211-0411			●
79	RETAINER; MUD COVER (B)	1-79931-288-0	01	1	0412-			●
79	RETAINER; MUD COVER 6HH1 STD ENG(65L) (C)	1-79931-304-0	01	1	0005-0210			●
91	COVER; MUD,FRT	1-79931-214-1	02	1	0005-0411	●	●	●
91	COVER; MUD,FRT	1-79931-214-1	02	1	0412-	●	●	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	0005-0210	●
92	NUT; MUD COVER 6HH1 STD ENG(65L) M6 FLANGE	0-91150-106-0	09	1	0005-0210			●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	0211-0411	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	0412-0602	●			●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	09	1	0603-	●			●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	08	1	0005-0602		●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	08	1	0603-		●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	07	1	0211-0411			●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	04	1	0412-0602			●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	04	1	0603-			●
92	NUT; MUD COVER 6HE1 TC ENG(57L) M6 FLANGE	0-91150-106-0	07	1	0005-0210			●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	04	1	0211-0411			●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	07	1	0412-0602			●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	07	1	0603-			●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	0005-0210	●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	0211-0411	●		●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	0412-	●		●	●
96	STAY; MUD GUARD (B)	1-79938-738-0	01	1	0005-0210	●
96	STAY; MUD GUARD (B)	1-79938-738-1	01	1	0211-0411	●		●
96	STAY; MUD GUARD (B)	1-79938-738-1	01	1	0412-	●		●	●
96	STAY; MUD GUARD (C)	1-79938-656-1	01	1	0005-		●
96	STAY; MUD GUARD (C)	1-79938-654-0	01	1	0005-		●
96	STAY; MUD GUARD (B)	1-79938-968-2	01	1	0005-0210			●
96	STAY; MUD GUARD (E)	1-53497-637-0	01	1	0211-			●
96	STAY; MUD GUARD (A)	1-79938-969-1	01	1	0005-0210			●
96	STAY; MUD GUARD (D)	1-79938-996-0	01	1	0005-0210			●
98	BOLT; STAY TO BRKT M8X30 FLANGE	0-28680-830-0	04	1	0211-0411			●
98	BOLT; STAY TO BRKT M8X30 FLANGE	0-28680-830-0	04	1	0412-0512			●
98	BOLT; STAY TO BRKT M8X30 FLANGE	0-28650-830-0	04	1	0601-			●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0005-0411	●		●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0412-	●		●	●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0005-		●
102	STAY; LWR,MUD GUARD 6HE1 TC ENG(57L)	1-53497-528-0	01	1	0005-0210			●
102	STAY; LWR,MUD GUARD	1-53497-535-0	01	1	0211-0411			●
102	STAY; LWR,MUD GUARD	1-53497-535-0	01	1	0412-			●
103	BRACKET ASM; RR MUD FLAP 6HE1 TC ENG(57L)	1-53497-486-2	01	1	0005-0210			●
103	BRACKET ASM; RR MUD FLAP	1-53497-486-2	01	1	0211-			●
104	BOLT; BRKT 6HE1 TC ENG(57L) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210			●
104	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0211-0512			●
104	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-			●
105	NUT; BRKT 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	02	1	0005-0210			●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0211-0602			●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-			●
121	BOLT 6HE1 TC ENG(57L) M10X30 FLANGE	0-28681-030-0	04	1	0005-0210			●
121	BOLT M10X30 FLANGE	0-28681-030-0	04	1	0211-0411			●
121	BOLT M10X30 FLANGE	0-28681-030-0	04	1	0412-0512			●
121	BOLT M10X30 FLANGE	0-28651-030-0	04	1	0601-			●
127	APRON; FRT 6HK1 TCS ENG(80L)	1-53192-301-3	01	1	0307-	●		●
127	APRON; FRT 6HK1 TCS ENG(80L)	1-53193-222-1	01	1	0307-	●		●
127	APRON; FRT	1-53193-223-1	01	1	0005-0011	●	●	●
127	APRON; FRT	1-53193-222-1	01	1	0012-0210	●	●	●
127	APRON; FRT	1-53192-957-2	01	1	0211-0305	●	●	●
127	APRON; FRT 6HK1 TCC ENG(81L),6HK1 TCN ENG(82L)	1-53192-957-2	01	1	0306-0411	●	●
127	APRON; FRT 6HK1 TCC ENG(81L)	1-53192-957-2	01	1	0306-0411			●
127	APRON; FRT 6HK1 TCC ENG(81L),6HK1 TCN ENG(82L)	1-53192-957-2	01	1	0412-	●	●
127	APRON; FRT 6HK1 TCC ENG(81L)	1-53192-957-2	01	1	0412-			●
127	APRON; FRT 6HK1 TCN ENG(82L)	1-53192-957-2	01	1	0412-				●
127	APRON; FRT	1-53192-301-3	01	1	0005-0210	●	●	●
127	APRON; FRT	1-53192-956-1	01	1	0211-0305	●	●	●
127	APRON; FRT 6HK1 TCC ENG(81L),6HK1 TCN ENG(82L)	1-53192-956-1	01	1	0306-0411	●	●
127	APRON; FRT 6HK1 TCC ENG(81L)	1-53192-956-1	01	1	0306-0411			●
127	APRON; FRT 6HK1 TCC ENG(81L),6HK1 TCN ENG(82L)	1-53192-956-1	01	1	0412-	●	●
127	APRON; FRT 6HK1 TCC ENG(81L)	1-53192-956-1	01	1	0412-			●
127	APRON; FRT 6HK1 TCN ENG(82L)	1-53192-956-1	01	1	0412-				●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	0005-0411	●		●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	0412-	●		●	●
128	BOLT; APRON,FRT M8X30 W/LK&PL WASHER	1-09030-080-0	02	1	0005-		●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0005-		●
130	PANEL; SHUTTER NOISE (A)	1-53192-307-4	01	1	0005-0210	●		●
130	PANEL; SHUTTER NOISE (A)	1-53192-955-2	01	1	0211-0411	●		●
130	PANEL; SHUTTER NOISE (A)	1-53192-955-2	01	1	0412-	●		●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-305-2	01	1	0005-0210	●		●
130	PANEL; SHUTTER NOISE (A)	1-53193-704-1	01	1	0211-0411	●		●
130	PANEL; SHUTTER NOISE (A)	1-53193-704-1	01	1	0412-	●		●	●
130	PANEL; SHUTTER NOISE (C)	1-79938-793-0	01	1	0005-		●
130	PANEL; SHUTTER NOISE (B)	1-53192-718-4	01	1	0005-		●
130	PANEL; SHUTTER NOISE (B)	1-53192-717-3	01	1	0005-0210		●
130	PANEL; SHUTTER NOISE (B)	1-53194-186-2	01	1	0211-		●
131	BOLT; PANEL 6HH1 STD ENG(65L),6HH1 N ENG(66L) (B) M8X22 W/LK&PL WASHER	1-09030-084-0	01	1	0005-0210	●	●
131	BOLT; PANEL 6HH1 STD ENG(65L) (B) M8X22 W/LK&PL WASHER	1-09030-084-0	01	1	0005-0210			●
131	BOLT; PANEL (A) M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	0005-0411	●		●
131	BOLT; PANEL (A) M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	0412-	●		●	●
131	BOLT; PANEL (A) M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	0005-		●
174	BOLT; STAY FIX M6X20 W/LK&PL WASHER	8-94279-203-0	03	1	0005-0210			●
175	NUT; STAY FIX M8 FLANGE	0-91150-108-0	02	1	0211-0602			●
175	NUT; STAY FIX M8 FLANGE	0-91180-108-0	02	1	0603-			●
218	FASTENER; RUBBER	1-09470-001-0	08	1	0005-0411	●	●	●
218	FASTENER; RUBBER	1-09470-001-0	08	1	0412-	●	●	●	●
225	NUT; MUD GUARD 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	03	1	0005-0210	●		●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	03	1	0211-0411	●		●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	03	1	0412-0602	●		●	●
225	NUT; MUD GUARD M8 FLANGE	0-91180-108-0	03	1	0603-	●		●	●
225	NUT; MUD GUARD 6HH1 STD ENG(65L),6HH1 N ENG(66L) M8 FLANGE	0-91150-108-0	02	1	0005-0210	●		●
227	SEAL; MUD GUARD	1-79938-953-1	01	1	0005-0411	●		●
227	SEAL; MUD GUARD	1-79938-953-1	01	1	0412-	●		●	●
228	FASTENER; MUD GUARD SEAL D8X13.5	1-09987-248-1	04	1	0005-0411	●		●
228	FASTENER; MUD GUARD SEAL D8X13.5	1-09987-248-1	04	1	0412-	●		●	●
238	SCREW; MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	0005-0411			●
238	SCREW; MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	0412-			●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0005-0411	●		●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0412-	●		●	●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	0005-		●
305	FASTENER; SPLASH GUARD (B) D8X13.5	1-09987-248-1	01	1	0405-			●
305	FASTENER; SPLASH GUARD (A) D8X13.5	1-09987-248-1	08	1	0005-0411	●
305	FASTENER; SPLASH GUARD (A) D8X13.5	1-09987-248-1	08	1	0412-	●			●
305	FASTENER; SPLASH GUARD (B) D8X13.5	1-09987-248-1	02	1	0005-0411	●	●	●
305	FASTENER; SPLASH GUARD (B) D8X13.5	1-09987-248-1	02	1	0412-	●	●	●	●
305	FASTENER; SPLASH GUARD (A) D8X13.5	1-09987-248-1	03	1	0005-0411	●		●
305	FASTENER; SPLASH GUARD (A) D8X13.5	1-09987-248-1	03	1	0412-	●		●	●
306	BRACKET; MUD GUARD 6HE1 TC ENG(57L)	1-53497-618-0	01	1	0005-0210			●
306	BRACKET; MUD GUARD	1-53497-618-0	01	1	0211-			●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	0005-0411	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	0412-	●	●		●
308	FASTENER; MUD GUARD (B)	1-09470-007-0	02	1	0005-0404			●
308	FASTENER; MUD GUARD (C) M6X22	1-65481-386-0	02	1	0005-0404			●
308	FASTENER; MUD GUARD (C) M6X22	1-65481-386-0	04	1	0405-			●

303 131 84 244 262 29 307 3 304 96 304 305 92 304 79 2 128 76 308 76 33 99 91 130 79 127 1 218 131 3 96 76 224 307 304 84 305 92 303 130 79 2 76 99 76 29 262 128 33 244 127 255 76 91 256 256 308 258 218 257 1 259 260 130 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	GUARD; MUD,FRT A/T<X9D>	1-79938-995-1	01	1	0211-	●
1	GUARD; MUD,FRT	1-79938-812-8	01	1	0005-0210	●	●	●
1	GUARD; MUD,FRT EXC. A/T<X9D>	1-79938-812-8	01	1	0211-0411	●
1	GUARD; MUD,FRT	1-79938-812-8	01	1	0211-0411		●	●
1	GUARD; MUD,FRT EXC. A/T<X9D>	1-79938-812-8	01	1	0412-	●
1	GUARD; MUD,FRT	1-79938-812-8	01	1	0412-		●	●	●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	0005-0411	●	●	●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	0412-	●	●	●	●
2	COVER; MUD,TIRE RR	1-79930-484-2	01	1	0005-0411	●
2	COVER; MUD,TIRE RR	1-79930-484-2	01	1	0412-	●			●
2	COVER; MUD,TIRE RR	1-79930-693-1	01	1	0005-0411	●
2	COVER; MUD,TIRE RR	1-79930-693-1	01	1	0412-	●			●
2	COVER; MUD,TIRE RR	1-79931-225-2	01	1	0005-		●
2	COVER; MUD,TIRE RR	1-79931-218-1	01	1	0005-		●
2	COVER; MUD,TIRE RR	1-79931-255-2	01	1	0005-0411			●
2	COVER; MUD,TIRE RR	1-79931-255-2	01	1	0412-			●
2	COVER; MUD,TIRE RR	1-79938-973-1	01	1	0005-0210			●
2	COVER; MUD,TIRE RR	1-79931-271-0	01	1	0211-			●
3	GUARD; MUD,RR	1-79938-961-2	01	1	0005-0411	●
3	GUARD; MUD,RR	1-79938-961-2	01	1	0412-	●			●
3	GUARD; MUD,RR	1-79938-935-3	01	1	0005-0210	●
3	GUARD; MUD,RR	1-79936-011-0	01	1	0211-0411	●
3	GUARD; MUD,RR	1-79936-011-0	01	1	0412-	●			●
3	GUARD; MUD,RR	1-79938-918-2	01	1	0005-		●
3	GUARD; MUD,RR	1-79938-917-2	01	1	0005-		●
3	GUARD; MUD,RR	1-79938-971-1	01	1	0005-0210			●
3	GUARD; MUD,RR	1-79936-012-0	01	1	0211-0411			●
3	GUARD; MUD,RR	1-79936-012-0	01	1	0412-			●
3	GUARD; MUD,RR 6HE1 TC ENG(57L)	1-79938-959-2	01	1	0005-0210			●
3	GUARD; MUD,RR	1-79938-959-2	01	1	0211-0411			●
3	GUARD; MUD,RR	1-79938-959-2	01	1	0412-			●
3	GUARD; MUD,RR 6HH1 STD ENG(65L)	1-79938-998-0	01	1	0005-0210			●
29	RIVET	1-09987-240-0	08	1	0005-		●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	09	1	0005-0411	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	09	1	0412-	●			●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	08	1	0005-0410		●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	08	1	0411-		●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	0005-0210			●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	0211-0411			●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	0412-			●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	0211-			●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0005-0411	●	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0412-0805	●	●	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0806-	●	●	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0005-0411	●	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0412-	●	●	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0005-0411	●	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0412-	●	●	●	●
76	BOLT; MUD GUARD (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	06	1	0005-0904		●
76	BOLT; MUD GUARD (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	0905-		●
76	BOLT; MUD GUARD 6HH1 STD ENG(65L) (D) M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	0005-0210			●
79	RETAINER; MUD COVER (B)	1-79930-962-1	01	1	0005-0411	●
79	RETAINER; MUD COVER (B)	1-79930-962-1	01	1	0412-	●			●
79	RETAINER; MUD COVER (B) L=509	1-79930-695-1	01	1	0005-0411	●
79	RETAINER; MUD COVER (B) L=509	1-79930-695-1	01	1	0412-	●			●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	0005-0411	●	●	●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	0412-	●	●	●	●
79	RETAINER; MUD COVER (B) L=504	1-79930-520-1	01	1	0005-		●
79	RETAINER; MUD COVER (B) L=428	1-79930-696-0	01	1	0005-		●
79	RETAINER; MUD COVER (B)	1-79931-252-0	01	1	0005-0210			●
79	RETAINER; MUD COVER (D)	1-79931-269-0	01	1	0211-0411			●
79	RETAINER; MUD COVER (D)	1-79931-269-0	01	1	0412-			●
79	RETAINER; MUD COVER 6HE1 TC ENG(57L) (B)	1-79931-288-0	01	1	0005-0210			●
79	RETAINER; MUD COVER (B)	1-79931-288-0	01	1	0211-0411			●
79	RETAINER; MUD COVER (B)	1-79931-288-0	01	1	0412-			●
79	RETAINER; MUD COVER 6HH1 STD ENG(65L) (C)	1-79931-304-0	01	1	0005-0210			●
84	RIVET; MUD GUARD	1-09987-128-0	04	1	0005-		●
91	COVER; MUD,FRT	1-79931-214-1	02	1	0005-0411	●	●	●
91	COVER; MUD,FRT	1-79931-214-1	02	1	0412-	●	●	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	0005-0210	●
92	NUT; MUD COVER 6HH1 STD ENG(65L) M6 FLANGE	0-91150-106-0	09	1	0005-0210			●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	0211-0411	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	0412-0602	●			●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	09	1	0603-	●			●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	08	1	0005-0602		●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	08	1	0603-		●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	07	1	0211-0411			●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	04	1	0412-0602			●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	04	1	0603-			●
92	NUT; MUD COVER 6HE1 TC ENG(57L) M6 FLANGE	0-91150-106-0	07	1	0005-0210			●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	04	1	0211-0411			●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	07	1	0412-0602			●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	07	1	0603-			●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	0005-0210	●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	0211-0411	●		●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	0412-	●		●	●
96	STAY; MUD GUARD (B)	1-79938-738-0	01	1	0005-0210	●
96	STAY; MUD GUARD (B)	1-79938-738-1	01	1	0211-0411	●		●
96	STAY; MUD GUARD (B)	1-79938-738-1	01	1	0412-	●		●	●
96	STAY; MUD GUARD (C)	1-79938-656-1	01	1	0005-		●
96	STAY; MUD GUARD (C)	1-79938-654-0	01	1	0005-		●
96	STAY; MUD GUARD (B)	1-79938-968-2	01	1	0005-0210			●
96	STAY; MUD GUARD (E)	1-53497-637-0	01	1	0211-			●
96	STAY; MUD GUARD (A)	1-79938-969-1	01	1	0005-0210			●
96	STAY; MUD GUARD (D)	1-79938-996-0	01	1	0005-0210			●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0005-0411	●		●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0412-	●		●	●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0005-		●
127	APRON; FRT 6HK1 TCS ENG(80L)	1-53192-301-3	01	1	0307-	●		●
127	APRON; FRT 6HK1 TCS ENG(80L)	1-53193-222-1	01	1	0307-	●		●
127	APRON; FRT	1-53193-223-1	01	1	0005-0011	●	●	●
127	APRON; FRT	1-53193-222-1	01	1	0012-0210	●	●	●
127	APRON; FRT	1-53192-957-2	01	1	0211-0305	●	●	●
127	APRON; FRT 6HK1 TCC ENG(81L),6HK1 TCN ENG(82L)	1-53192-957-2	01	1	0306-0411	●	●
127	APRON; FRT 6HK1 TCC ENG(81L)	1-53192-957-2	01	1	0306-0411			●
127	APRON; FRT 6HK1 TCC ENG(81L),6HK1 TCN ENG(82L)	1-53192-957-2	01	1	0412-	●	●
127	APRON; FRT 6HK1 TCC ENG(81L)	1-53192-957-2	01	1	0412-			●
127	APRON; FRT 6HK1 TCN ENG(82L)	1-53192-957-2	01	1	0412-				●
127	APRON; FRT	1-53192-301-3	01	1	0005-0210	●	●	●
127	APRON; FRT	1-53192-956-1	01	1	0211-0305	●	●	●
127	APRON; FRT 6HK1 TCC ENG(81L),6HK1 TCN ENG(82L)	1-53192-956-1	01	1	0306-0411	●	●
127	APRON; FRT 6HK1 TCC ENG(81L)	1-53192-956-1	01	1	0306-0411			●
127	APRON; FRT 6HK1 TCC ENG(81L),6HK1 TCN ENG(82L)	1-53192-956-1	01	1	0412-	●	●
127	APRON; FRT 6HK1 TCC ENG(81L)	1-53192-956-1	01	1	0412-			●
127	APRON; FRT 6HK1 TCN ENG(82L)	1-53192-956-1	01	1	0412-				●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	0005-0411	●		●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	0412-	●		●	●
128	BOLT; APRON,FRT M8X30 W/LK&PL WASHER	1-09030-080-0	02	1	0005-		●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0005-		●
130	PANEL; SHUTTER NOISE (A)	1-53192-307-4	01	1	0005-0210	●		●
130	PANEL; SHUTTER NOISE (A)	1-53192-955-2	01	1	0211-0411	●		●
130	PANEL; SHUTTER NOISE (A)	1-53192-955-2	01	1	0412-	●		●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-305-2	01	1	0005-0210	●		●
130	PANEL; SHUTTER NOISE (A)	1-53193-704-1	01	1	0211-0411	●		●
130	PANEL; SHUTTER NOISE (A)	1-53193-704-1	01	1	0412-	●		●	●
130	PANEL; SHUTTER NOISE (C)	1-79938-793-0	01	1	0005-		●
130	PANEL; SHUTTER NOISE (B)	1-53192-718-4	01	1	0005-		●
130	PANEL; SHUTTER NOISE (B)	1-53192-717-3	01	1	0005-0210		●
130	PANEL; SHUTTER NOISE (B)	1-53194-186-2	01	1	0211-		●
131	BOLT; PANEL 6HH1 STD ENG(65L),6HH1 N ENG(66L) (B) M8X22 W/LK&PL WASHER	1-09030-084-0	01	1	0005-0210	●	●
131	BOLT; PANEL 6HH1 STD ENG(65L) (B) M8X22 W/LK&PL WASHER	1-09030-084-0	01	1	0005-0210			●
131	BOLT; PANEL (A) M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	0005-0411	●		●
131	BOLT; PANEL (A) M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	0412-	●		●	●
131	BOLT; PANEL (A) M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	0005-		●
218	FASTENER; RUBBER	1-09470-001-0	08	1	0005-0411	●	●	●
218	FASTENER; RUBBER	1-09470-001-0	08	1	0412-	●	●	●	●
224	SUPPORT; MUD GUARD	1-79938-696-1	01	1	0005-		●
244	GUARD; MUD,SPLASH	1-79938-912-8	01	1	0005-		●
244	GUARD; MUD,SPLASH	1-79938-911-8	01	1	0005-		●
255	COVER; SIDE,REAR	1-79938-785-0	01	1	0005-0402		●
255	COVER; SIDE,REAR	1-79938-951-0	01	1	0403-		●
255	COVER; SIDE,REAR	1-79938-784-0	01	1	0005-0402		●
255	COVER; SIDE,REAR	1-79936-034-0	01	1	0403-		●
256	BOLT; SIDE COVER REAR M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	0005-		●
257	SHUTTER; RUBBER,SIDE COVER REAR	1-79938-791-0	01	1	0005-0402		●
257	SHUTTER; RUBBER,SIDE COVER REAR	1-79938-950-0	02	1	0403-		●
257	SHUTTER; RUBBER,SIDE COVER REAR	1-79938-790-0	01	1	0005-0402		●
258	RIVET; SCREW,SHUTTER D6X16 PUSH RIVET	1-09983-105-0	10	1	0005-0402		●
258	RIVET; SCREW,SHUTTER D6X16 PUSH RIVET	1-09983-105-0	08	1	0403-		●
259	BOLT; NOISE PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0005-		●
260	SHUTTER; RUBBER,NOISE PANEL	1-79938-792-0	01	1	0005-		●
262	WASHER; MUD GUARD ID=5.3 OD=10 T=0.8	1-09985-175-0	08	1	0005-		●
303	EXTENSION; SPLASH GUARD	1-79938-896-8	01	1	0005-		●
303	EXTENSION; SPLASH GUARD	1-79938-895-7	01	1	0005-		●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0005-0411	●		●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0412-	●		●	●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	0005-		●
305	FASTENER; SPLASH GUARD (B) D8X13.5	1-09987-248-1	01	1	0405-			●
305	FASTENER; SPLASH GUARD (A) D8X13.5	1-09987-248-1	08	1	0005-0411	●
305	FASTENER; SPLASH GUARD (A) D8X13.5	1-09987-248-1	08	1	0412-	●			●
305	FASTENER; SPLASH GUARD (B) D8X13.5	1-09987-248-1	02	1	0005-0411	●	●	●
305	FASTENER; SPLASH GUARD (B) D8X13.5	1-09987-248-1	02	1	0412-	●	●	●	●
305	FASTENER; SPLASH GUARD (A) D8X13.5	1-09987-248-1	03	1	0005-0411	●		●
305	FASTENER; SPLASH GUARD (A) D8X13.5	1-09987-248-1	03	1	0412-	●		●	●
307	RETAINER	1-79938-900-1	01	1	0005-		●
307	RETAINER	1-79938-899-1	01	1	0005-		●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	0005-0411	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	0412-	●	●		●
308	FASTENER; MUD GUARD (B)	1-09470-007-0	02	1	0005-0404			●
308	FASTENER; MUD GUARD (C) M6X22	1-65481-386-0	02	1	0005-0404			●
308	FASTENER; MUD GUARD (C) M6X22	1-65481-386-0	04	1	0405-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
