◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10826 - FRR/FSR/FRD(AUST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#9435) — 56 parça

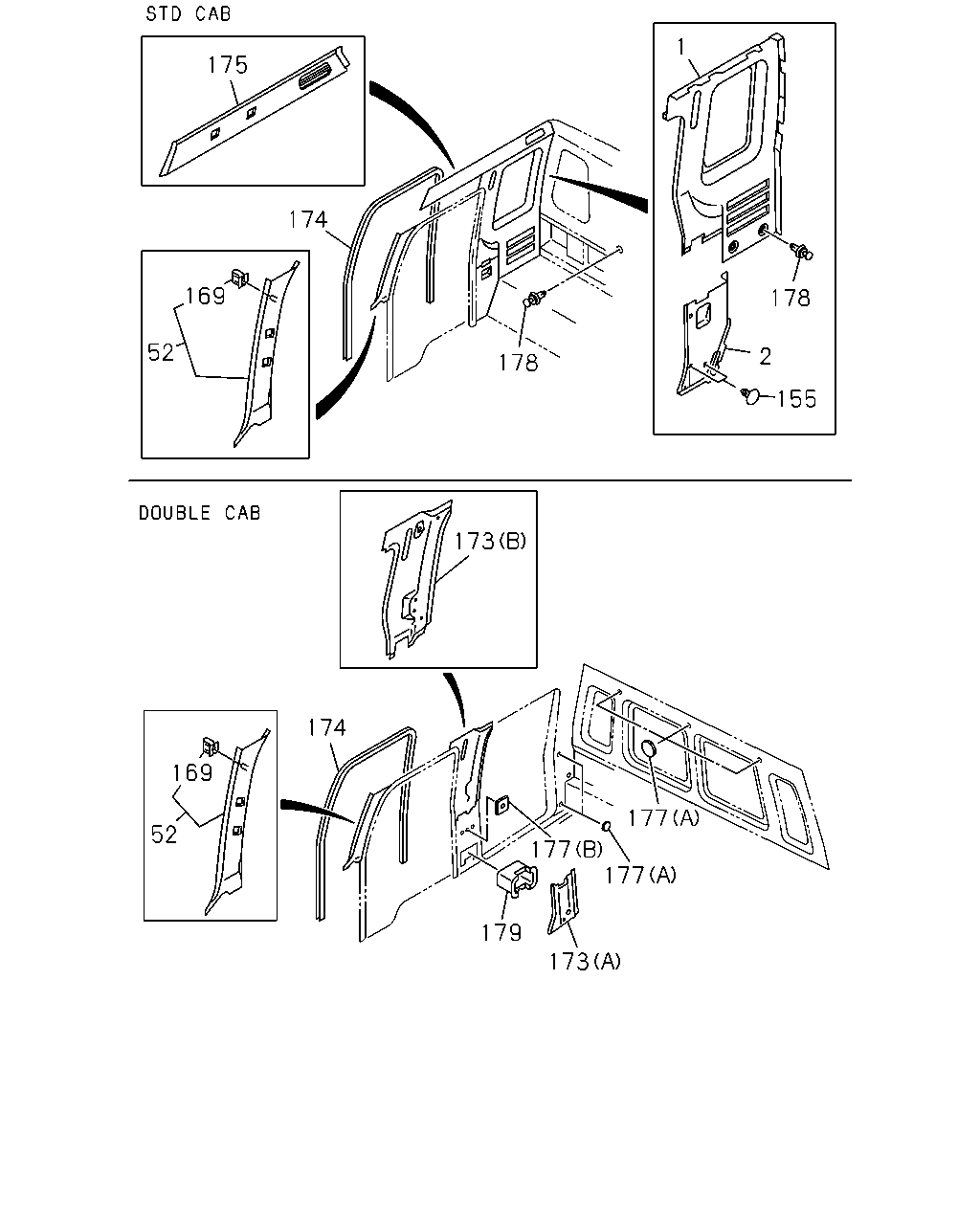

çizim 39077
1 175 174 169 178 178 2 2 155 173 174 169 177 52 177 177 179 173
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 TRIM; ROOM,QUARTER WINDOW UPR
PROVISIONAL PACKAGE<NLY> 		1-73348-995-1 01 1 0301-0405 ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR
PROVISIONAL PACKAGE<NLY> 		1-73348-996-1 01 1 0301-0405 ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-941-4 01 1 0005-0212 ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-941-4 01 1 0301-0405 ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-941-7 01 1 0406-0411 ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-941-7 01 1 0412- ● ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-934-4 01 1 0005-0212 ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-934-4 01 1 0301-0405 ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-934-7 01 1 0406-0411 ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-934-7 01 1 0412- ● ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
PROVISIONAL PACKAGE<NLY> 		1-73348-967-1 01 1 0301-0405 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
PROVISIONAL PACKAGE<NLY> DRIVER ISRINGHAUSEN SEAT<SJA> 		1-73346-033-0 01 1 0301-0405 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
PROVISIONAL PACKAGE<NLY> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-73348-966-1 01 1 0301-0405 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
PROVISIONAL PACKAGE<NLY> 		1-73346-032-0 01 1 0301-0405 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
PROVISIONAL PACKAGE<NLY> 		1-73348-978-1 01 1 0301-0405 ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-923-2 01 1 0005-0212 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-923-2 01 1 0301-0405 ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-923-3 01 1 0406-0411 ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-923-3 01 1 0412- ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-73348-983-0 01 1 0005-0212 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-983-0 01 1 0301-0405 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-73348-983-1 01 1 0406- ●
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-73348-922-2 01 1 0005-0212 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. PROVISIONAL PACKAGE<NLY>,DRIVER ISRINGHAUSEN SEAT<SJA> 		1-73348-922-2 01 1 0301-0405 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-73348-922-3 01 1 0406-0411 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-73348-922-3 01 1 0412- ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-922-3 01 1 0412- ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-927-2 01 1 0005-0212 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-927-2 01 1 0301-0405 ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-927-3 01 1 0406- ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-980-0 01 1 0005-0212 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-980-0 01 1 0301-0405 ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-980-1 01 1 0406- ●
52 COVER; TRIM,FRT PILLAR 1-73347-833-0 01 1 0005-0411 ● ● ●
52 COVER; TRIM,FRT PILLAR 1-73347-833-0 01 1 0412- ● ● ● ●
52 COVER; TRIM,FRT PILLAR 1-73348-939-0 01 1 0005-0411 ● ● ●
52 COVER; TRIM,FRT PILLAR 1-73348-939-0 01 1 0412- ● ● ● ●
155 CLIP; TRIM,QUARTER
OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0005-0411 ● ●
155 CLIP; TRIM,QUARTER
OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0412- ● ● ●
169 CLIP; TRIM COVER,FRT PILLAR 8-94313-458-0 02 1 0005-0411 ● ● ●
169 CLIP; TRIM COVER,FRT PILLAR 8-94313-458-0 02 1 0412- ● ● ● ●
173 TRIM; ROOM,CENTER PILLAR
(B) 		1-73348-986-2 01 1 0005- ●
173 TRIM; ROOM,CENTER PILLAR
(A) 		1-73348-989-1 01 1 0005- ●
173 TRIM; ROOM,CENTER PILLAR
(B) 		1-73348-984-2 01 1 0005- ●
173 TRIM; ROOM,CENTER PILLAR
(A) 		1-73348-990-1 01 1 0005- ●
174 FINISHER; BODY SIDE 1-76718-175-4 02 1 0005-0411 ● ● ●
174 FINISHER; BODY SIDE 1-76718-175-4 02 1 0412- ● ● ● ●
175 COVER; TRIM,SIDE
CUSTOM CAB(SR5) 		1-73348-994-0 01 1 0005-0305 ●
175 COVER; TRIM,SIDE
CUSTOM CAB(SR5) 		1-73348-992-0 01 1 0005-0305 ●
177 SEAL; SIDE PANEL
(A) WHITE 		1-76777-076-0 07 1 0005-0404 ●
177 SEAL; SIDE PANEL
(A) OD=20 T=0.05 WHITE 		8-97856-832-2 07 1 0405- ●
177 SEAL; SIDE PANEL
(B) 25X25 		8-94272-533-0 04 1 0005- ●
178 CLIP; TRIM COVER
OD=6.2 LIGHT GRAY 		1-09983-178-0 09 1 0005-0411 ● ●
178 CLIP; TRIM COVER
OD=6.2 LIGHT GRAY 		1-09983-178-0 09 1 0412- ● ● ●
179 COVER; SIDE PANEL 1-73348-768-2 01 1 0005- ●
179 COVER; SIDE PANEL 1-73348-767-2 01 1 0005- ●
