◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10826 - FRR/FSR/FRD(AUST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#9431) — 241 parça

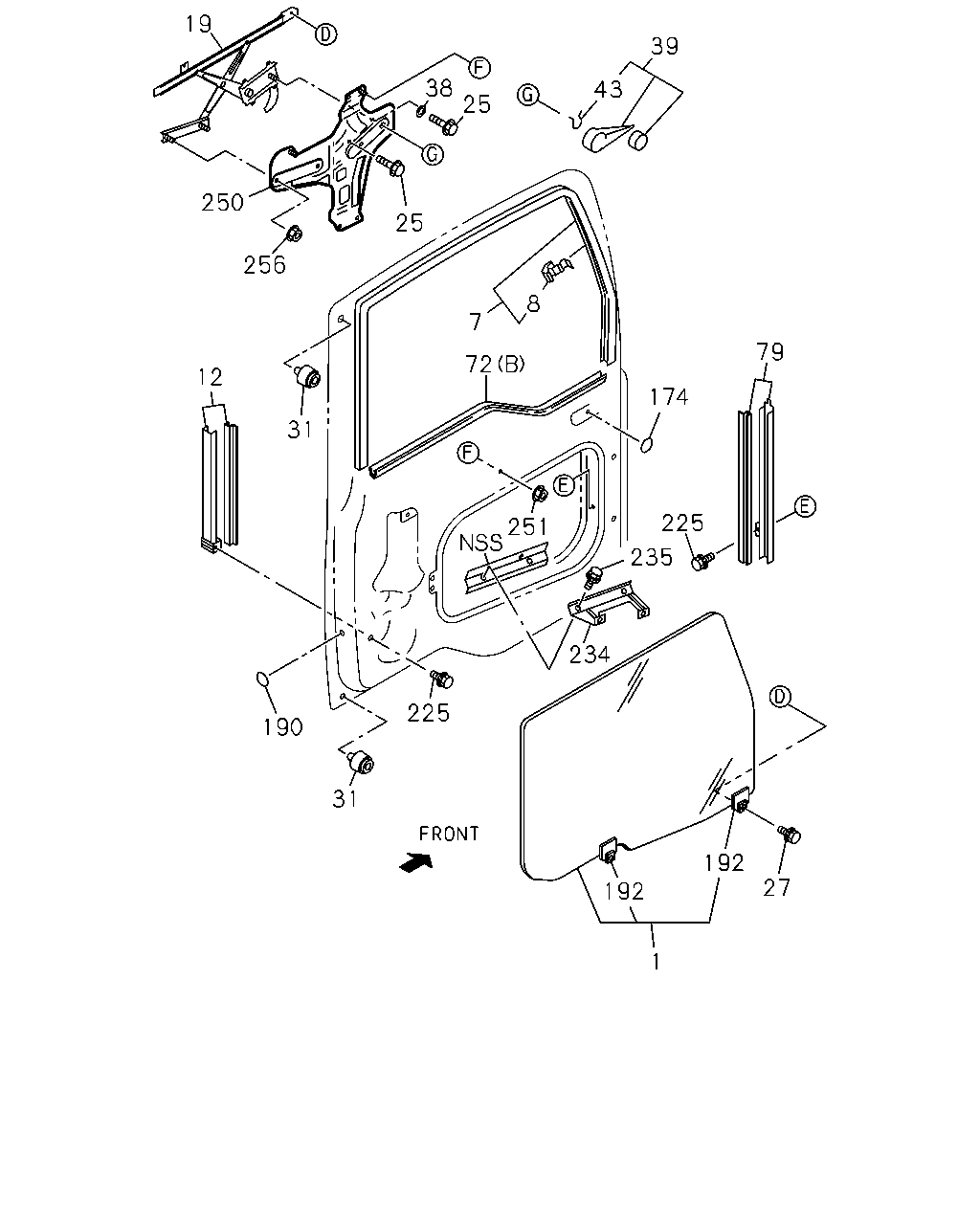

çizim 39007
19 39 38 25 43 250 25 256 8 7 79 72 12 174 31 225 251 235 234 225 190 31 192 27 192 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GLASS; FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-76148-094-0 01 1 0005-0210 ●
1 GLASS; FRT DOOR 1-76148-094-0 01 1 0005-0210 ● ●
1 GLASS; FRT DOOR 1-76148-094-2 01 1 0211- ●
1 GLASS; FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-76167-174-0 01 1 0005-0210 ●
1 GLASS; FRT DOOR 1-76167-174-0 01 1 0005-0210 ● ●
1 GLASS; FRT DOOR 1-76167-174-2 01 1 0211- ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-095-0 01 1 0005-0210 ●
1 GLASS; FRT DOOR 1-76148-095-2 01 1 0211-0411 ● ●
1 GLASS; FRT DOOR 1-76148-095-2 01 1 0412- ● ● ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-177-0 01 1 0005-0210 ●
1 GLASS; FRT DOOR 1-76167-177-2 01 1 0211-0411 ● ●
1 GLASS; FRT DOOR 1-76167-177-2 01 1 0412- ● ● ●
7 GLASS RUN; FRT DOOR 1-74318-022-8 01 1 0005-0411 ● ● ●
7 GLASS RUN; FRT DOOR 1-74318-022-8 01 1 0412- ● ● ● ●
7 GLASS RUN; FRT DOOR 1-74318-021-8 01 1 0005-0411 ● ● ●
7 GLASS RUN; FRT DOOR 1-74318-021-8 01 1 0412- ● ● ● ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 0005-0411 ● ● ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 0412- ● ● ● ●
12 CHANNEL; GLASS RUN,FRT 1-74338-071-3 01 1 0005-0411 ● ● ●
12 CHANNEL; GLASS RUN,FRT 1-74338-071-3 01 1 0412- ● ● ● ●
12 CHANNEL; GLASS RUN,FRT 1-74338-070-3 01 1 0005-0411 ● ● ●
12 CHANNEL; GLASS RUN,FRT 1-74338-070-3 01 1 0412- ● ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-74418-134-4 01 1 0005-0210 ●
19 REGULATOR; WINDOW,FRT DOOR 1-74418-134-4 01 1 0005-0210 ● ●
19 REGULATOR; WINDOW,FRT DOOR 1-74418-134-5 01 1 0211- ●
19 REGULATOR; WINDOW,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-74418-144-4 01 1 0005-0210 ●
19 REGULATOR; WINDOW,FRT DOOR 1-74418-144-4 01 1 0005-0210 ● ●
19 REGULATOR; WINDOW,FRT DOOR 1-74418-144-5 01 1 0211- ●
25 BOLT; WINDOW REG
DOOR WINDOW MANUAL CONT<SKF> M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0005-0210 ●
25 BOLT; WINDOW REG
M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0005-0210 ● ●
25 BOLT; WINDOW REG
M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0211- ●
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0005-0210 ●
25 BOLT; WINDOW REG
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0211-0405 ● ●
25 BOLT; WINDOW REG
M6X16 FLANGE 		0-28080-616-0 10 1 0406-0411 ● ●
25 BOLT; WINDOW REG
M6X16 FLANGE 		0-28080-616-0 10 1 0412-0512 ● ● ●
25 BOLT; WINDOW REG
M6X16 FLANGE 		0-28050-616-0 10 1 0601-0710 ● ● ●
25 BOLT; WINDOW REG
M6X10 FLANGE 		0-28050-610-0 10 1 0711- ● ● ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0005-0411 ● ● ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0412- ● ● ● ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 0005-0411 ● ● ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 0412- ● ● ● ●
38 WASHER; PL,WINDOW REG
DOOR WINDOW MANUAL CONT<SKF> ID=6.4 OD=14 T=1 		1-09985-187-0 04 1 0005-0210 ●
38 WASHER; PL,WINDOW REG
ID=6.4 OD=14 T=1 		1-09985-187-0 04 1 0005-0210 ● ●
38 WASHER; PL,WINDOW REG
ID=6.4 OD=14 T=1 		1-09985-187-0 04 1 0211- ●
39 HANDLE; WINDOW REG,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> BLACK 		8-94371-427-0 02 1 0005-0210 ●
39 HANDLE; WINDOW REG,FRT DOOR
BLACK 		8-94371-427-0 02 1 0005-0210 ● ●
39 HANDLE; WINDOW REG,FRT DOOR
BLACK 		8-94371-427-0 02 1 0211- ●
43 CLIP; REG HANDLE,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		8-94220-591-0 02 1 0005-0210 ●
43 CLIP; REG HANDLE,FRT DOOR 8-94220-591-0 02 1 0005-0210 ● ●
43 CLIP; REG HANDLE,FRT DOOR 8-94220-591-0 02 1 0211- ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 0005-0411 ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 0412-1207 ● ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-040-0 01 1 1208- ● ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0005-0411 ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0412- ● ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 0005-0411 ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 0412-1207 ● ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-039-0 01 1 1208- ● ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0005-0411 ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0412- ● ● ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-3 01 1 0005-0411 ● ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-3 01 1 0412- ● ● ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-3 01 1 0005-0411 ● ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-3 01 1 0412- ● ● ● ●
174 SEAL; LOCATION HOLE
DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK 		1-76798-019-0 20 1 0005-0210 ●
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 20 1 0005-0210 ● ●
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 20 1 0211-0212 ●
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 22 1 0301- ●
174 SEAL; LOCATION HOLE
DOOR WINDOW MANUAL CONT<SKF> OD=52 BLACK 		1-76798-041-0 02 1 0005-0210 ●
174 SEAL; LOCATION HOLE
OD=52 BLACK 		1-76798-041-0 02 1 0005-0210 ●
174 SEAL; LOCATION HOLE
OD=52 BLACK 		1-76798-041-0 08 1 0211- ●
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 14 1 0005-0210 ●
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 14 1 0211-0212 ● ●
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 16 1 0301-0411 ● ●
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 16 1 0412- ● ● ●
174 SEAL; LOCATION HOLE
OD=52 BLACK 		1-76798-041-0 06 1 0005-0210 ●
190 REFLECTOR; FRT DOOR INNER 5-76777-060-1 01 1 0005-0411 ● ● ●
190 REFLECTOR; FRT DOOR INNER 5-76777-060-1 01 1 0005-0411 ●
190 REFLECTOR; FRT DOOR INNER 5-76777-060-1 01 1 0412- ● ● ● ●
190 REFLECTOR; FRT DOOR INNER 5-76777-060-1 01 1 0412- ●
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 0005-0210 ● ● ●
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 0211-0411 ● ● ●
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 0412- ● ● ● ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0005-0411 ● ● ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0412-0512 ● ● ● ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601- ● ● ● ●
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 0005-0411 ● ● ●
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 0412- ● ● ● ●
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 0005-0411 ● ● ●
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 0412- ● ● ● ●
235 BOLT; BRKT
M6X16 FLANGE 		0-28080-616-0 08 1 0406-0512 ●
235 BOLT; BRKT
M6X16 FLANGE 		0-28050-616-0 08 1 0601-0710 ●
235 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 08 1 0711- ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0005-0210 ● ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0005-0210 ● ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0211-0405 ● ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0211-0405 ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0406-0411 ● ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0412- ● ● ● ●
250 BRACKET; REGULATOR 1-74418-148-0 01 1 0211- ●
250 BRACKET; REGULATOR 1-74418-149-0 01 1 0211- ●
250 BRACKET; REGULATOR
DOOR WINDOW MANUAL CONT<SKF> 		1-74418-149-0 01 1 0005-0210 ●
250 BRACKET; REGULATOR 1-74418-149-0 01 1 0005-0210 ● ●
250 BRACKET; REGULATOR
DOOR WINDOW MANUAL CONT<SKF> 		1-74418-148-0 01 1 0005-0210 ●
250 BRACKET; REGULATOR 1-74418-148-0 01 1 0005-0210 ● ●
251 NUT; BRKT
DOOR WINDOW MANUAL CONT<SKF> M6 FLANGE 		1-09984-141-0 04 1 0005-0210 ●
251 NUT; BRKT
M6 FLANGE 		1-09984-141-0 04 1 0005-0210 ● ●
251 NUT; BRKT
M6 FLANGE 		1-09984-141-0 04 1 0211- ●
256 NUT
DOOR WINDOW MANUAL CONT<SKF> M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0005-0210 ●
256 NUT
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0005-0210 ● ●
256 NUT
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0211- ●

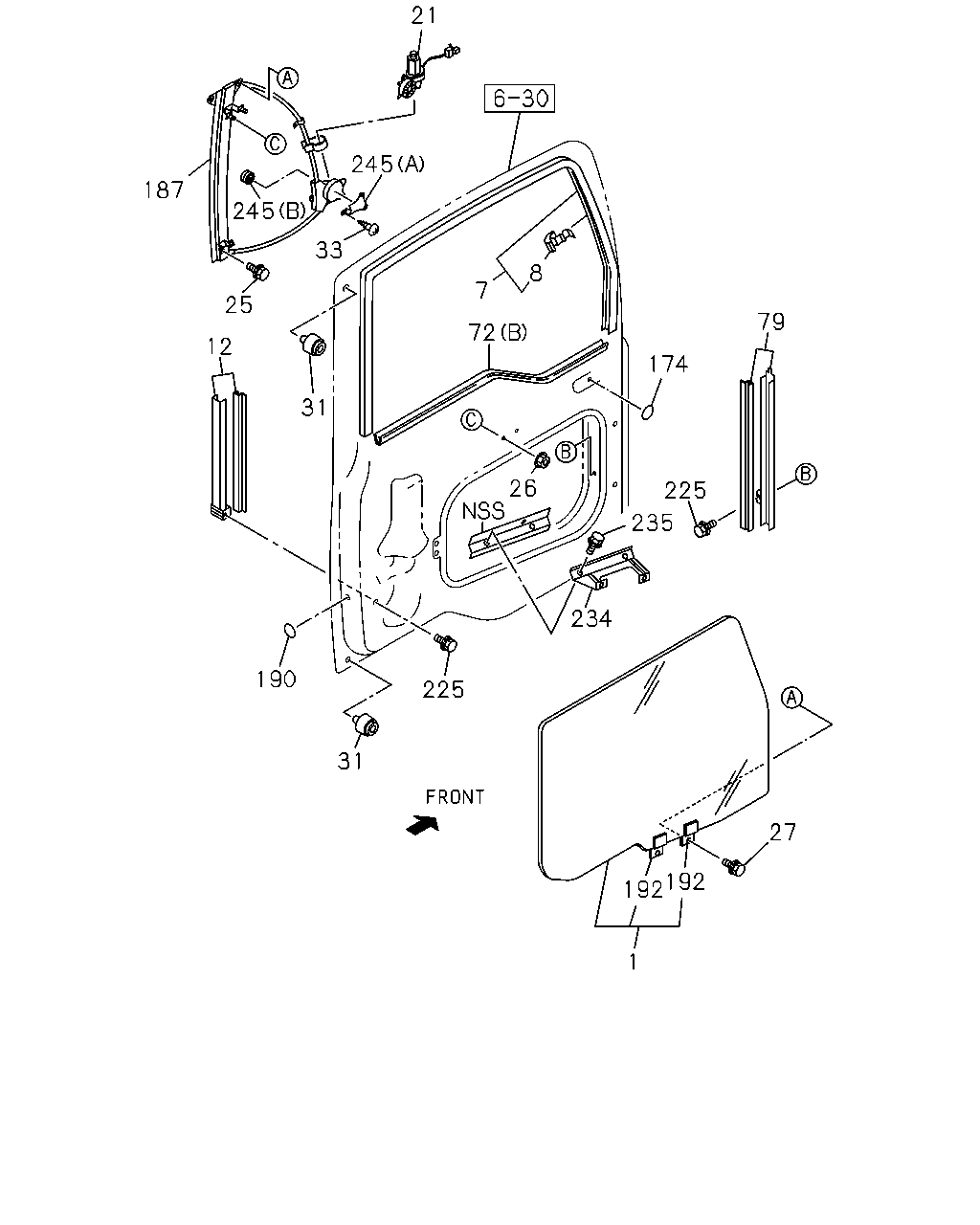

çizim 39040
21 245 33 245 187 25 7 8 72 174 79 225 234 235 26 31 12 225 31 190 27 192 192 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GLASS; FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-76148-094-0 01 1 0005-0210 ●
1 GLASS; FRT DOOR 1-76148-094-0 01 1 0005-0210 ● ●
1 GLASS; FRT DOOR 1-76148-094-2 01 1 0211- ●
1 GLASS; FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-76167-174-0 01 1 0005-0210 ●
1 GLASS; FRT DOOR 1-76167-174-0 01 1 0005-0210 ● ●
1 GLASS; FRT DOOR 1-76167-174-2 01 1 0211- ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-095-0 01 1 0005-0210 ●
1 GLASS; FRT DOOR 1-76148-095-2 01 1 0211-0411 ● ●
1 GLASS; FRT DOOR 1-76148-095-2 01 1 0412- ● ● ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-177-0 01 1 0005-0210 ●
1 GLASS; FRT DOOR 1-76167-177-2 01 1 0211-0411 ● ●
1 GLASS; FRT DOOR 1-76167-177-2 01 1 0412- ● ● ●
7 GLASS RUN; FRT DOOR 1-74318-022-8 01 1 0005-0411 ● ● ●
7 GLASS RUN; FRT DOOR 1-74318-022-8 01 1 0412- ● ● ● ●
7 GLASS RUN; FRT DOOR 1-74318-021-8 01 1 0005-0411 ● ● ●
7 GLASS RUN; FRT DOOR 1-74318-021-8 01 1 0412- ● ● ● ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 0005-0411 ● ● ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 0412- ● ● ● ●
12 CHANNEL; GLASS RUN,FRT 1-74338-071-3 01 1 0005-0411 ● ● ●
12 CHANNEL; GLASS RUN,FRT 1-74338-071-3 01 1 0412- ● ● ● ●
12 CHANNEL; GLASS RUN,FRT 1-74338-070-3 01 1 0005-0411 ● ● ●
12 CHANNEL; GLASS RUN,FRT 1-74338-070-3 01 1 0412- ● ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-177-0 01 1 0005-0210 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-177-0 01 1 0211-0411 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-177-0 01 1 0412- ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-176-0 01 1 0005-0105 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-176-0 02 1 0106-0204 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-176-0 01 1 0205-0210 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-176-0 01 1 0211-0411 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-176-0 01 1 0412- ● ● ●
25 BOLT; WINDOW REG
DOOR WINDOW MANUAL CONT<SKF> M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0005-0210 ●
25 BOLT; WINDOW REG
M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0005-0210 ● ●
25 BOLT; WINDOW REG
M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0211- ●
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0005-0210 ●
25 BOLT; WINDOW REG
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0211-0405 ● ●
25 BOLT; WINDOW REG
M6X16 FLANGE 		0-28080-616-0 10 1 0406-0411 ● ●
25 BOLT; WINDOW REG
M6X16 FLANGE 		0-28080-616-0 10 1 0412-0512 ● ● ●
25 BOLT; WINDOW REG
M6X16 FLANGE 		0-28050-616-0 10 1 0601-0710 ● ● ●
25 BOLT; WINDOW REG
M6X10 FLANGE 		0-28050-610-0 10 1 0711- ● ● ●
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 06 1 0005-0210 ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		1-09984-141-0 06 1 0211-0411 ● ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		1-09984-141-0 06 1 0412- ● ● ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0005-0411 ● ● ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0412- ● ● ● ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 0005-0411 ● ● ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 0412- ● ● ● ●
33 SCREW; REG MOTOR 8-98099-646-0 06 1 1204- ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 0005-0411 ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 0412-1207 ● ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-040-0 01 1 1208- ● ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0005-0411 ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0412- ● ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 0005-0411 ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 0412-1207 ● ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-039-0 01 1 1208- ● ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0005-0411 ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0412- ● ● ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-3 01 1 0005-0411 ● ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-3 01 1 0412- ● ● ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-3 01 1 0005-0411 ● ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-3 01 1 0412- ● ● ● ●
174 SEAL; LOCATION HOLE
DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK 		1-76798-019-0 20 1 0005-0210 ●
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 20 1 0005-0210 ● ●
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 20 1 0211-0212 ●
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 22 1 0301- ●
174 SEAL; LOCATION HOLE
DOOR WINDOW MANUAL CONT<SKF> OD=52 BLACK 		1-76798-041-0 02 1 0005-0210 ●
174 SEAL; LOCATION HOLE
OD=52 BLACK 		1-76798-041-0 02 1 0005-0210 ●
174 SEAL; LOCATION HOLE
OD=52 BLACK 		1-76798-041-0 08 1 0211- ●
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 14 1 0005-0210 ●
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 14 1 0211-0212 ● ●
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 16 1 0301-0411 ● ●
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 16 1 0412- ● ● ●
174 SEAL; LOCATION HOLE
OD=52 BLACK 		1-76798-041-0 06 1 0005-0210 ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-179-1 01 1 0005-0210 ●
187 REGULATOR ASM; DOOR 1-74418-179-3 01 1 0211-0411 ● ●
187 REGULATOR ASM; DOOR 1-74418-179-3 01 1 0412- ● ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-178-1 01 1 0005-0210 ●
187 REGULATOR ASM; DOOR 1-74418-178-3 01 1 0211-0411 ● ●
187 REGULATOR ASM; DOOR 1-74418-178-3 01 1 0412- ● ● ●
190 REFLECTOR; FRT DOOR INNER 5-76777-060-1 01 1 0005-0411 ● ● ●
190 REFLECTOR; FRT DOOR INNER 5-76777-060-1 01 1 0005-0411 ●
190 REFLECTOR; FRT DOOR INNER 5-76777-060-1 01 1 0412- ● ● ● ●
190 REFLECTOR; FRT DOOR INNER 5-76777-060-1 01 1 0412- ●
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 0005-0210 ● ● ●
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 0211-0411 ● ● ●
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 0412- ● ● ● ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0005-0411 ● ● ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0412-0512 ● ● ● ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601- ● ● ● ●
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 0005-0411 ● ● ●
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 0412- ● ● ● ●
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 0005-0411 ● ● ●
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 0412- ● ● ● ●
235 BOLT; BRKT
M6X16 FLANGE 		0-28080-616-0 08 1 0406-0512 ●
235 BOLT; BRKT
M6X16 FLANGE 		0-28050-616-0 08 1 0601-0710 ●
235 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 08 1 0711- ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0005-0210 ● ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0005-0210 ● ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0211-0405 ● ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0211-0405 ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0406-0411 ● ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0412- ● ● ● ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (B) 		1-74417-074-0 01 1 0106-0209 ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (B) 		1-74417-074-0 02 1 0210-0210 ●
245 DAMPER; WINDOW REGULATOR
(B) 		1-74417-074-0 02 1 0211-0411 ● ●
245 DAMPER; WINDOW REGULATOR
(B) 		1-74417-074-0 02 1 0412- ● ● ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (A) 		1-74418-181-0 01 1 0005-0210 ●
245 DAMPER; WINDOW REGULATOR
(A) 		1-74418-181-0 01 1 0211-0411 ● ●
245 DAMPER; WINDOW REGULATOR
(A) 		1-74418-181-0 01 1 0412- ● ● ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (A) 		1-74418-180-0 01 1 0005-0210 ●
245 DAMPER; WINDOW REGULATOR
(A) 		1-74418-180-0 01 1 0211-0411 ● ●
245 DAMPER; WINDOW REGULATOR
(A) 		1-74418-180-0 01 1 0412- ● ● ●

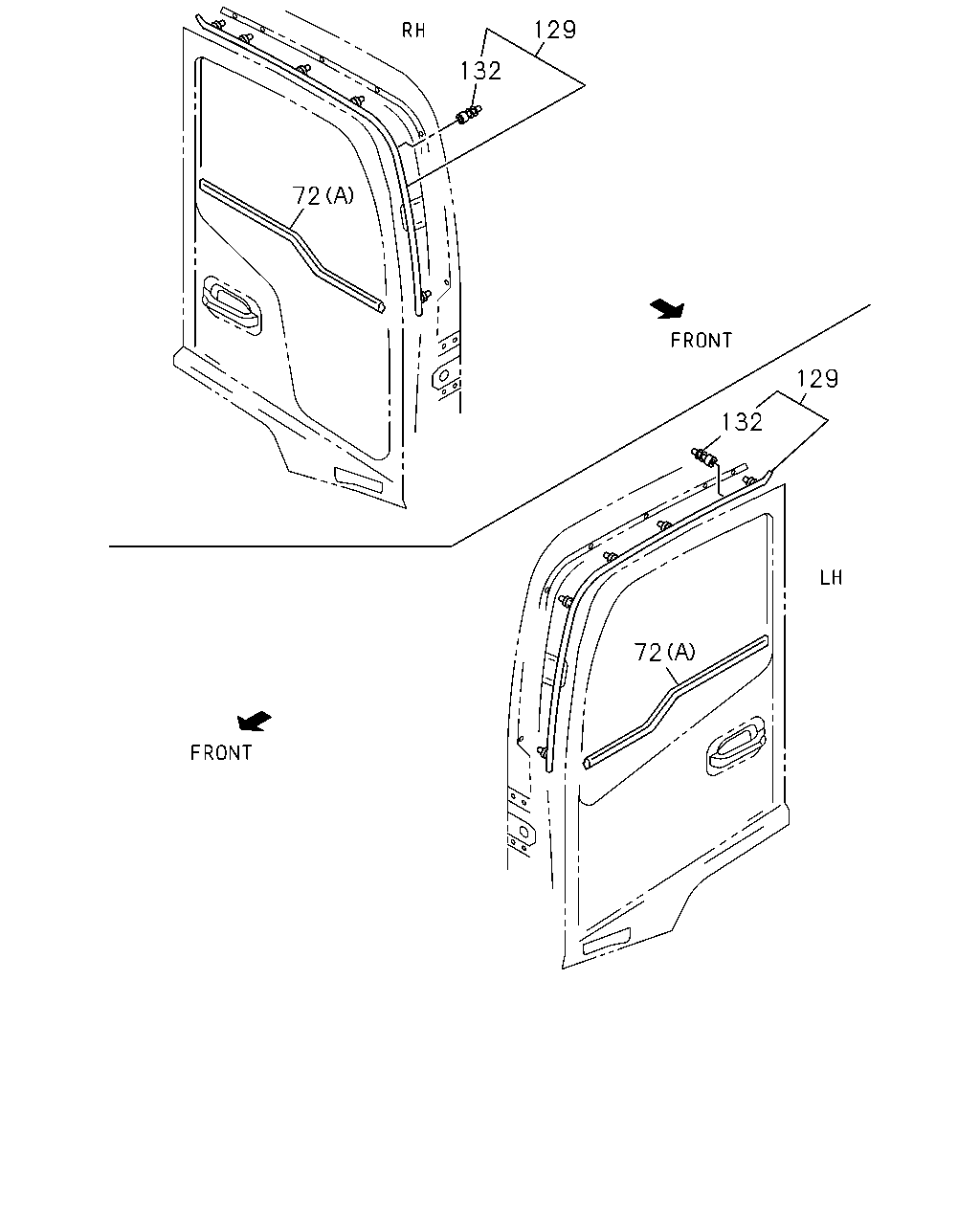

çizim 100381
129 132 72 129 132 72
BalonParca AdiParca NoAdetTipApplied Date A B C D
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 0005-0411 ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 0412-1207 ● ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-040-0 01 1 1208- ● ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0005-0411 ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0412- ● ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 0005-0411 ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 0412-1207 ● ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-039-0 01 1 1208- ● ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0005-0411 ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0412- ● ● ● ●
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 0005-0411 ● ● ●
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 0412- ● ● ● ●
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 0005-0411 ● ● ●
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 0412- ● ● ● ●
132 CLIP; SEAL,DOOR
YELLOW 		1-09987-254-1 06 1 0005-0411 ● ● ●
132 CLIP; SEAL,DOOR
YELLOW 		1-09987-254-1 06 1 0412- ● ● ● ●
132 CLIP; SEAL,DOOR
NATURAL 		1-09987-253-1 06 1 0005-0411 ● ● ●
132 CLIP; SEAL,DOOR
NATURAL 		1-09987-253-1 06 1 0412- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
