9-01 — TOOLS (#94306) — 70 parça

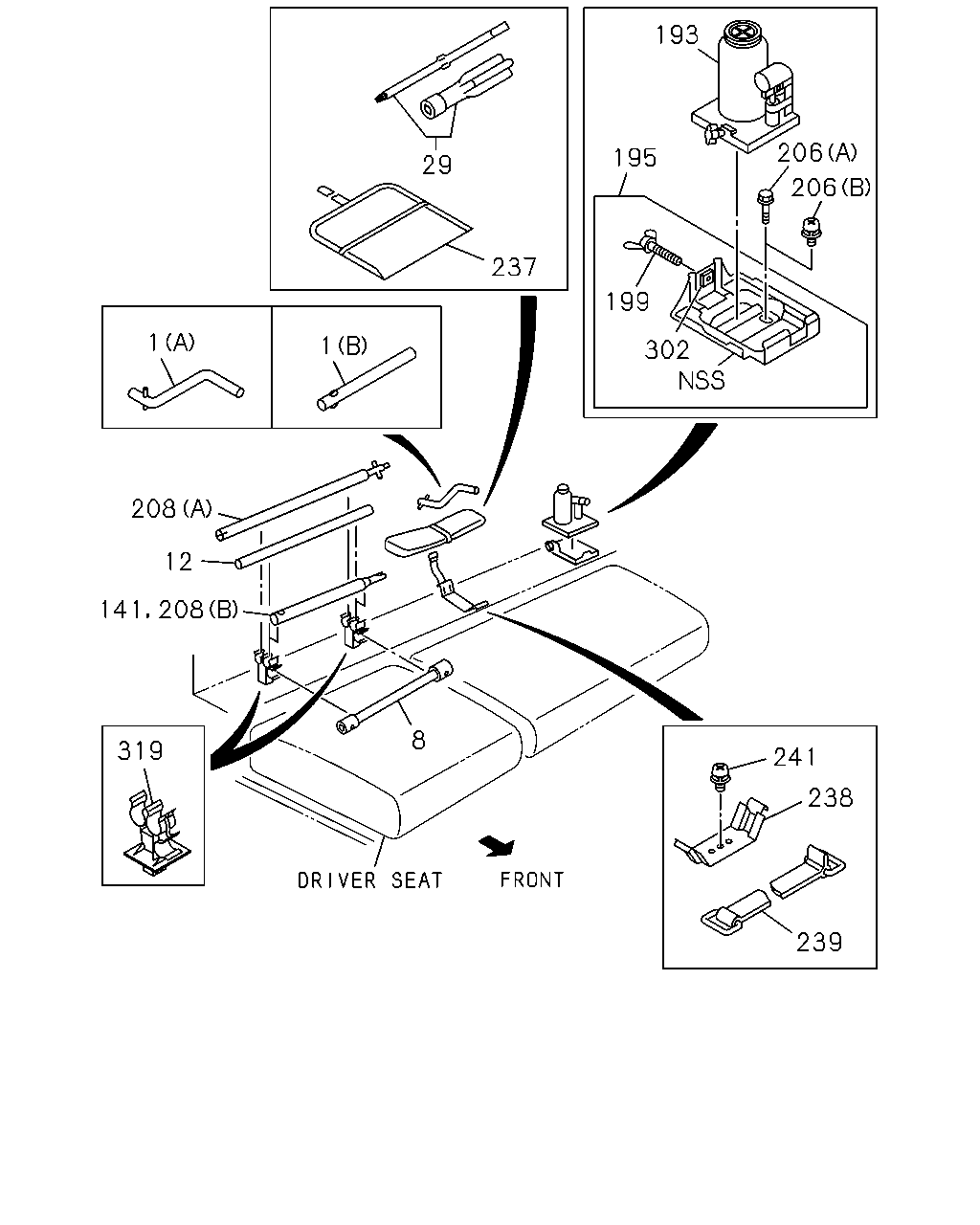

193 206 206 195 199 302 237 29 1 1 208 12 141 208 319 8 241 238 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	07.629 HANDLE; SPARE TIRE CARRIER (B) L=280	8-98181-251-0	01	1	1207-	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3800MM(38W) (B) L=280	8-98181-251-0	01	1	1207-			●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 4100MM(41W) (A)	8-97218-985-0	01	1	1207-1209			●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 4100MM(41W) (A)	8-97218-985-0	01	1	1210-			●
1	07.629 HANDLE; SPARE TIRE CARRIER (A)	8-97218-985-0	01	1	1210-				●
8	08.821 WRENCH; WHEEL B=41X21 L=440	1-85113-015-1	01	1	1207-1209	●	●	●
8	08.821 WRENCH; WHEEL FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU) B=41X21 L=440	1-85113-015-1	01	1	1210-	●
8	08.821 WRENCH; WHEEL B=41X21 L=440	1-85113-015-1	01	1	1210-		●	●
8	08.821 WRENCH; WHEEL FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 7R-16-10 16X5.5F-1 15(07H) B=41X19 L=330	8-94386-490-1	01	1	1210-	●
8	08.821 WRENCH; WHEEL B=41X19 L=330	8-94386-490-1	01	1	1210-				●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 4100MM(41W) 08.820 OD=25 L=480	1-85116-011-0	01	1	1207-1209			●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 4100MM(41W) 08.820 OD=25 L=480	1-85116-011-0	01	1	1210-1407			●
12	08.821 HANDLE; WRENCH,WHEEL PIN 08.820 OD=25 L=480	1-85116-011-0	01	1	1210-1407				●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 4100MM(41W) OD=25 L=480	8-98257-407-0	01	1	1408-			●
12	08.821 HANDLE; WRENCH,WHEEL PIN OD=25 L=480	8-98257-407-0	01	1	1408-				●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	1207-1209	●	●	●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	1210-	●	●	●	●
141	08.821 HANDLE; WRENCH 08.820 L=580	8-98181-249-0	01	1	1207-		●
193	08.820 JACK ASM 4TON	8-98012-285-0	01	1	1207-1209	●	●	●
193	08.820 JACK ASM 4TON	8-98012-285-0	01	1	1210-	●	●	●	●
195	08.820 BRACKET; JACK	8-94262-068-3	01	1	1207-		●
195	08.820 BRACKET; JACK	8-98033-737-2	01	1	1207-1209	●		●
195	08.820 BRACKET; JACK	8-98033-737-2	01	1	1210-	●		●	●
199	08.820 BOLT; JACK M8X50 WING	8-94279-136-0	01	1	1207-		●
199	08.820 BOLT; JACK M8X50 WING	8-98005-537-0	01	1	1207-1209	●		●
199	08.820 BOLT; JACK M8X50 WING	8-98005-537-0	01	1	1210-	●		●	●
206	08.820 SCREW; OIL JACK BRKT 16.570 (B) M6X16	0-38050-616-0	01	1	1207-		●
206	08.820 SCREW; OIL JACK BRKT 06.216 (A) BOLT M8X25 FLANGE	0-28650-825-0	01	1	1207-1209	●		●
206	08.820 SCREW; OIL JACK BRKT 06.216 (A) BOLT M8X25 FLANGE	0-28650-825-0	01	1	1210-	●		●	●
208	08.820 HANDLE; JACK WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=580	8-98181-249-0	01	1	1207-1209	●
208	08.820 HANDLE; JACK WHEEL BASE 3800MM(38W) (B) L=580	8-98181-249-0	01	1	1207-1209			●
208	08.820 HANDLE; JACK WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) L=580	8-98181-249-0	01	1	1210-1510	●
208	08.820 HANDLE; JACK WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=580	8-98181-249-0	01	1	1210-1510	●
208	08.820 HANDLE; JACK WHEEL BASE 3800MM(38W) (B) L=580	8-98181-249-0	01	1	1210-1510			●
208	08.820 HANDLE; JACK WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=580	8-98181-249-0	01	1	1511-	●
208	08.820 HANDLE; JACK WHEEL BASE 3800MM(38W) (B) L=580	8-98181-249-0	01	1	1511-			●
208	08.820 HANDLE; JACK WHEEL BASE 4100MM(41W) (A) L=642	8-98181-477-0	01	1	1207-1209			●
208	08.820 HANDLE; JACK WHEEL BASE 4100MM(41W) (A) L=642	8-98181-477-0	01	1	1210-			●
208	08.820 HANDLE; JACK (A) L=642	8-98181-477-0	01	1	1210-				●
237	08.821 BAG; TOOL	8-97130-903-1	01	1	1207-1209	●	●	●
237	08.821 BAG; TOOL	8-97130-903-1	01	1	1210-	●	●	●	●
238	08.820 SUPPORT; TOOL BAG	8-97994-977-0	01	1	1207-1209	●		●
238	08.820 SUPPORT; TOOL BAG	8-97994-977-0	01	1	1210-	●		●	●
239	08.820 BAND; TOOL BAG L=100	5-73997-026-1	01	1	1207-1209	●	●	●	●
239	08.820 BAND; TOOL BAG L=100	5-73997-026-1	01	1	1210-	●	●	●	●
241	08.820 SCREW; TOOL BAG SUPPORT 16.570 M6X16	0-38050-616-0	01	1	1207-1209	●		●
241	08.820 SCREW; TOOL BAG SUPPORT 16.570 M6X16	0-38050-616-0	01	1	1210-	●		●	●
302	08.820 NUT; JACK BRKT	8-94279-522-0	01	1	1207-		●
302	08.820 NUT; JACK BRKT	8-98021-556-0	01	1	1207-1209	●		●
302	08.820 NUT; JACK BRKT	8-98021-556-0	01	1	1210-	●		●	●
319	08.821 CLIP; TOOL BAR	8-97853-077-2	02	1	1207-1209	●	●	●	●
319	08.821 CLIP; TOOL BAR	8-97853-077-2	02	1	1210-	●	●	●	●

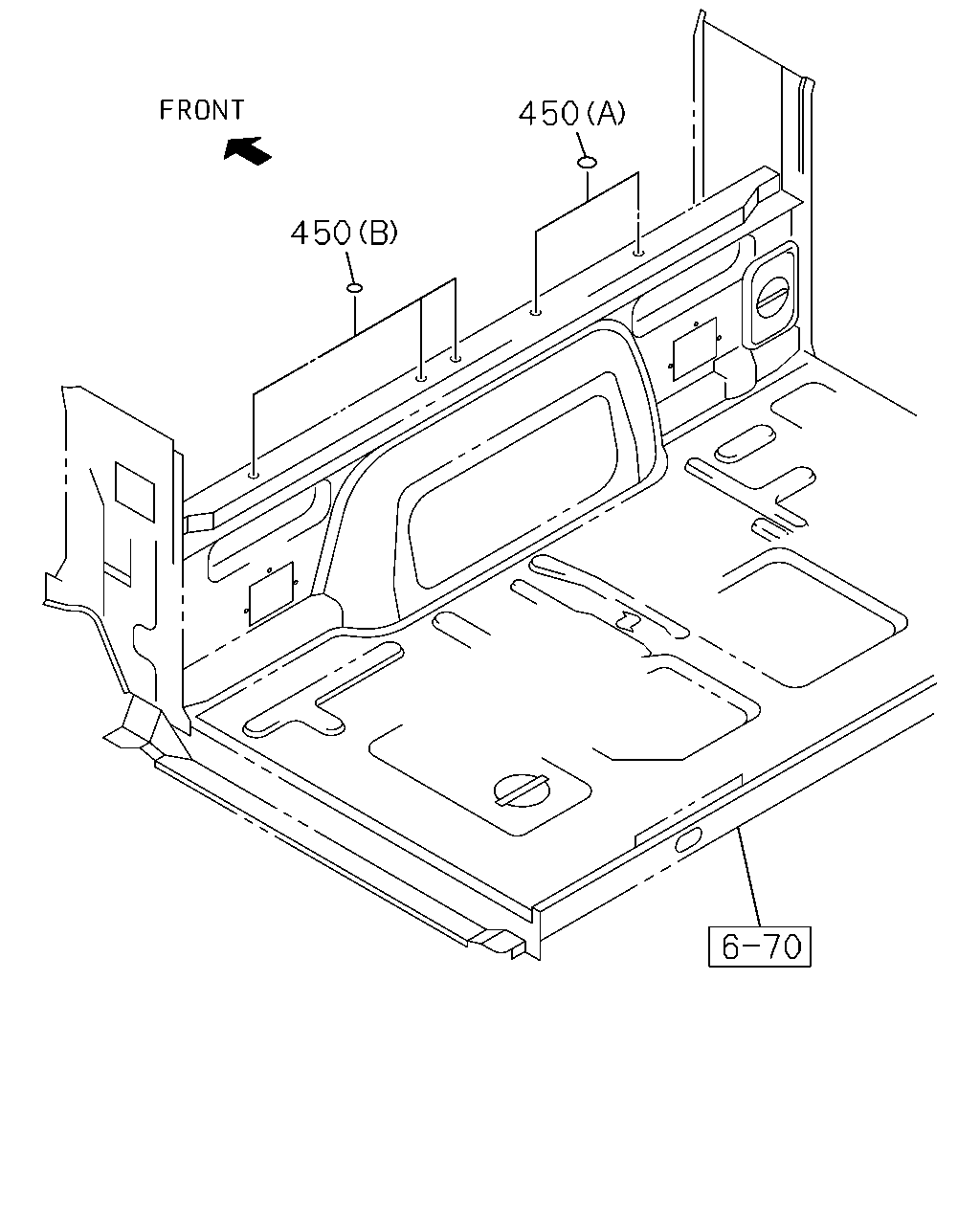

450 450

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
	450	16.064 SEAL; HOLE 02.580 (A) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	1207-		●
	450	16.064 SEAL; HOLE 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	03	1	1207-		●

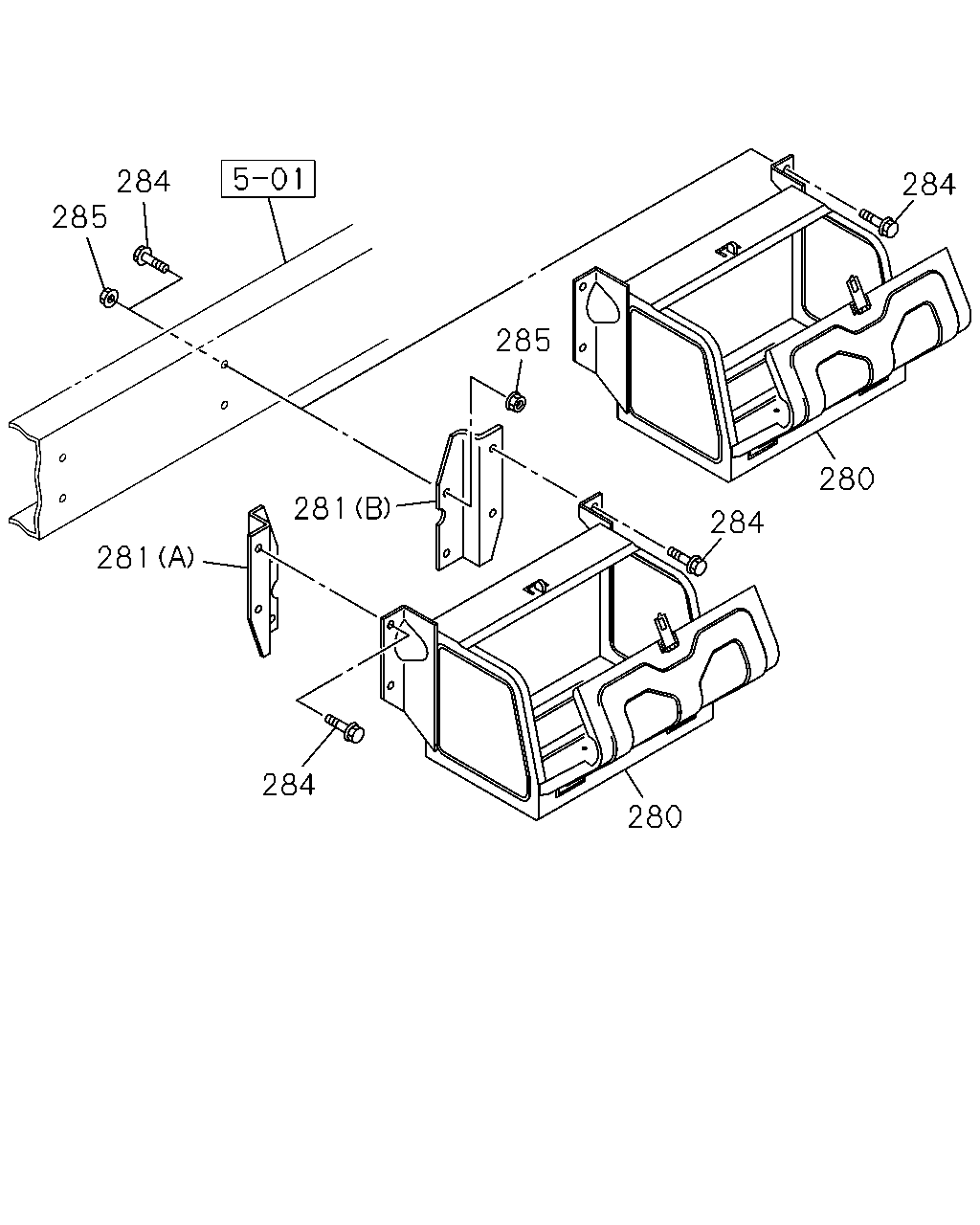

284 285 281 281 285 284 280 284 280 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2>	8-97384-079-0	01	1	1207-1209	●	●	●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2>	8-97384-079-0	01	1	1210-	●	●	●	●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98045-642-1	01	1	1210-	●
281	08.821 BRACKET; TOOL BOX TOOL & STORAGE BOX<VK2> (B)	8-98045-642-1	01	1	1210-				●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98130-709-0	01	1	1210-	●
281	08.821 BRACKET; TOOL BOX TOOL & STORAGE BOX<VK2> (A)	8-98130-709-0	01	1	1210-				●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1207-1209	●	●	●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1210-	●	●	●	●
284	08.821 BOLT; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1210-	●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1210-				●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE	0-91180-110-0	04	1	1207-1209	●
285	08.821 NUT; TOOL BOX WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE	0-91180-110-0	04	1	1207-1209			●
285	08.821 NUT; TOOL BOX TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE	0-91180-110-0	04	1	1207-1209		●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE	0-91180-110-0	04	1	1210-	●
285	08.821 NUT; TOOL BOX WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE	0-91180-110-0	04	1	1210-			●
285	08.821 NUT; TOOL BOX TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE	0-91180-110-0	04	1	1210-		●		●
