8-73 — BLOWER UNIT (#94302) — 75 parça

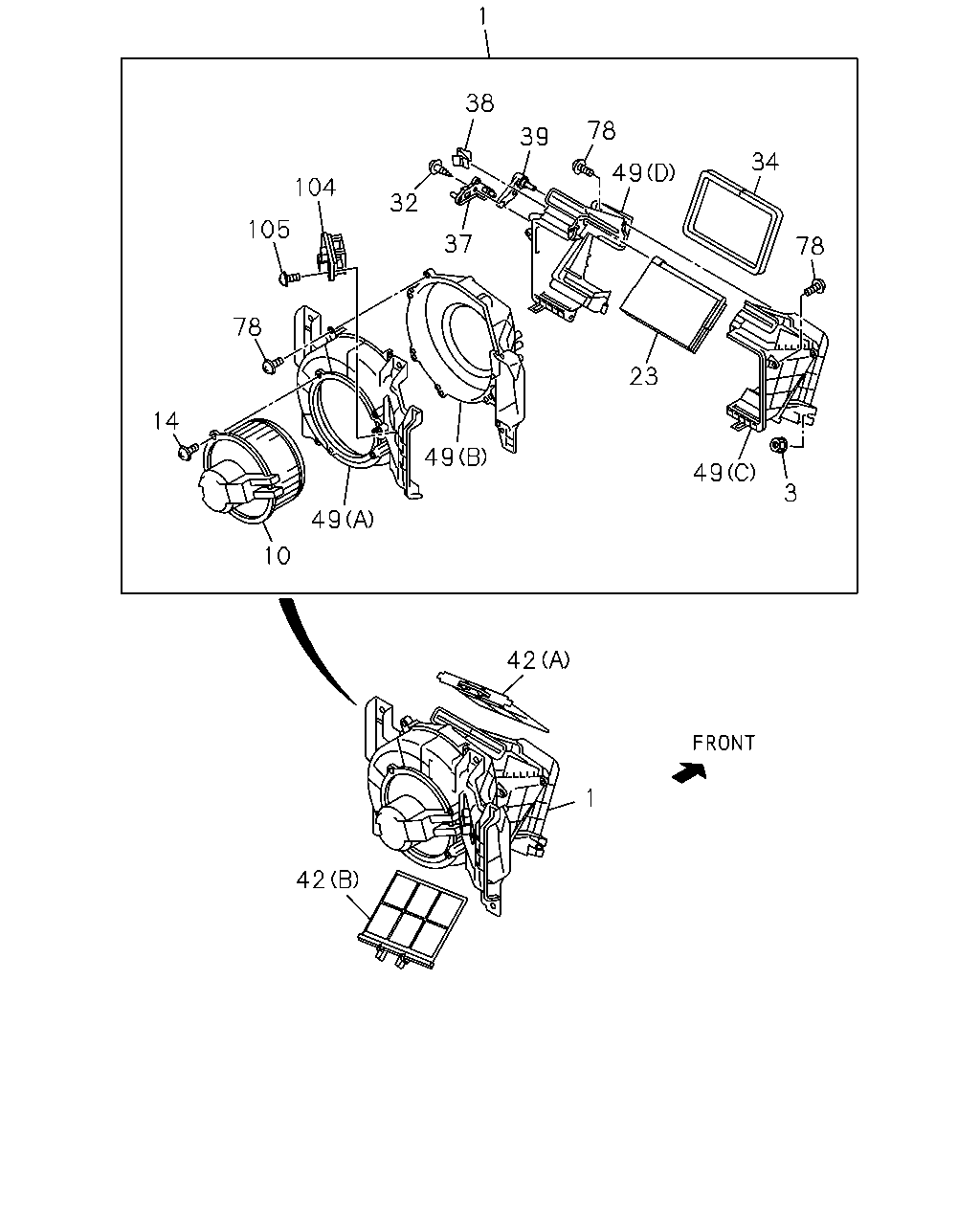

çizim 286520
1 14 78 105 104 38 32 37 39 78 49 34 78 3 49 23 49 49 10 42 1 42
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98183-589-0 01 1 1207-1209 ● ● ●
1 08.855 BLOWER ASM
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98183-589-0 01 1 1210- ●
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98183-589-0 01 1 1210- ● ●
1 08.855 BLOWER ASM
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98183-589-0 01 1 1210- ●
3 08.855 NUT; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 09.190 M6 		1-83539-354-0 02 1 1207-1209 ● ● ●
3 08.855 NUT; CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.190 M6 		1-83539-354-0 02 1 1210- ●
3 08.855 NUT; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 09.190 M6 		1-83539-354-0 02 1 1210- ● ●
3 08.855 NUT; CASE
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 09.190 M6 		1-83539-354-0 02 1 1210- ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98183-924-0 01 1 1207-1209 ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98183-924-0 01 1 1210- ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98183-924-0 01 1 1210- ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98183-924-0 01 1 1210- ●
14 08.857 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) M5X16 		8-98047-448-0 03 1 1207-1209 ● ● ●
14 08.857 SCREW; COVER TO CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-98047-448-0 03 1 1210- ●
14 08.857 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) M5X16 		8-98047-448-0 03 1 1210- ● ●
14 08.857 SCREW; COVER TO CASE
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-98047-448-0 03 1 1210- ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-437-0 01 1 1207-1209 ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-437-0 01 1 1210- ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-437-0 01 1 1210- ● ●
23 08.857 SHUTTER; BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-437-0 01 1 1210- ●
32 08.856 SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.852 M4X16 		8-98047-416-0 01 1 1207-1209 ● ● ●
32 08.856 SCREW; LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-98047-416-0 01 1 1210- ●
32 08.856 SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.852 M4X16 		8-98047-416-0 01 1 1210- ● ●
32 08.856 SCREW; LEVER
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-98047-416-0 01 1 1210- ●
34 08.856 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-430-0 01 1 1207-1209 ● ● ●
34 08.856 LINING; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-430-0 01 1 1210- ●
34 08.856 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-430-0 01 1 1210- ● ●
34 08.856 LINING; BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-430-0 01 1 1210- ●
37 09.786 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-436-0 01 1 1207-1209 ● ● ●
37 09.786 LEVER; MODE LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-436-0 01 1 1210- ●
37 09.786 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-436-0 01 1 1210- ● ●
37 09.786 LEVER; MODE LEVER
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-436-0 01 1 1210- ●
38 09.787 CLIP; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.854 		8-98047-417-0 01 1 1207-1209 ● ● ●
38 09.787 CLIP; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.854 		8-98047-417-0 01 1 1210- ●
38 09.787 CLIP; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.854 		8-98047-417-0 01 1 1210- ● ●
38 09.787 CLIP; BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 08.854 		8-98047-417-0 01 1 1210- ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-435-0 01 1 1207-1209 ● ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-435-0 01 1 1210- ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-435-0 01 1 1210- ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-435-0 01 1 1210- ●
42 08.857 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-97387-096-1 01 1 1207-1209 ● ● ●
42 08.857 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-97387-096-1 01 1 1210- ● ● ●
42 08.857 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97387-096-1 01 1 1210- ●
42 08.857 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98025-006-1 01 1 1207-1209 ● ● ●
42 08.857 FILTER; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98025-006-1 01 1 1210- ●
42 08.857 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98025-006-1 01 1 1210- ● ●
42 08.857 FILTER; BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98025-006-1 01 1 1210- ●
49 08.857 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-98047-440-0 01 1 1207-1209 ● ● ●
49 08.857 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-440-0 01 1 1210- ●
49 08.857 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-98047-440-0 01 1 1210- ● ●
49 08.857 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-440-0 01 1 1210- ●
49 08.857 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98047-441-0 01 1 1207-1209 ● ● ●
49 08.857 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-441-0 01 1 1210- ●
49 08.857 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98047-441-0 01 1 1210- ● ●
49 08.857 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-441-0 01 1 1210- ●
49 08.857 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (C) 		8-98047-442-0 01 1 1207-1209 ● ● ●
49 08.857 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98047-442-0 01 1 1210- ●
49 08.857 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (C) 		8-98047-442-0 01 1 1210- ● ●
49 08.857 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98047-442-0 01 1 1210- ●
49 08.857 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (D) 		8-98047-443-0 01 1 1207-1209 ● ● ●
49 08.857 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98047-443-0 01 1 1210- ●
49 08.857 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (D) 		8-98047-443-0 01 1 1210- ● ●
49 08.857 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98047-443-0 01 1 1210- ●
78 08.857 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 15 1 1207-1209 ● ● ●
78 08.857 SCREW; CASE TO CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 15 1 1210- ●
78 08.857 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 15 1 1210- ● ●
78 08.857 SCREW; CASE TO CASE
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 15 1 1210- ●
104 08.855 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98074-113-0 01 1 1207-1209 ● ● ●
104 08.855 RESISTOR; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-113-0 01 1 1210- ●
104 08.855 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98074-113-0 01 1 1210- ● ●
104 08.855 RESISTOR; BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-113-0 01 1 1210- ●
105 08.855 SCREW; RESISTOR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 02 1 1207-1209 ● ● ●
105 08.855 SCREW; RESISTOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 02 1 1210- ●
105 08.855 SCREW; RESISTOR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 02 1 1210- ● ●
105 08.855 SCREW; RESISTOR
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 02 1 1210- ●
