8-65 — CONTROL LEVER; HEATER AND AIR CON (#94300) — 54 parça

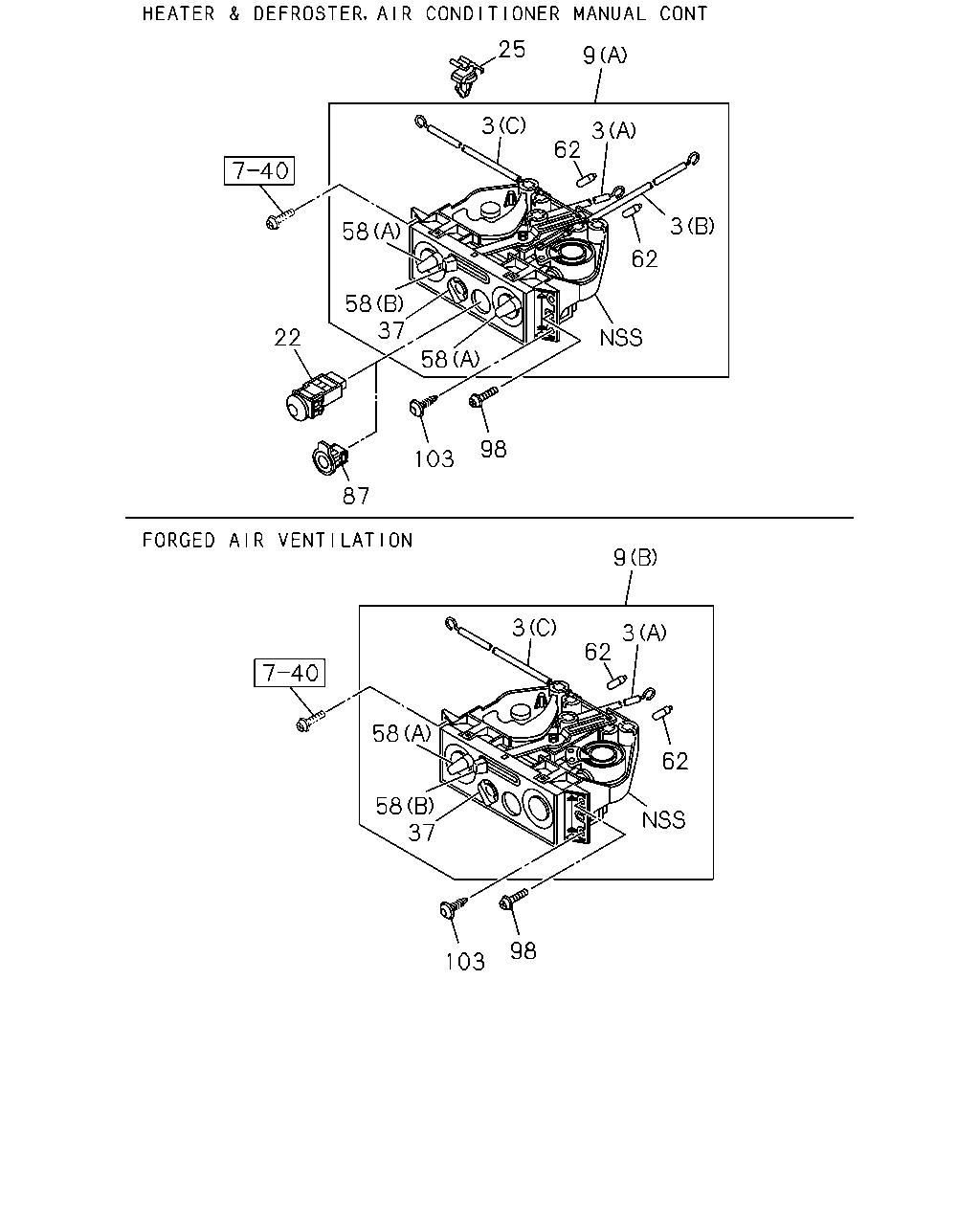

çizim 286524
98 103 37 58 58 62 62 3 3 9 98 103 87 22 58 37 58 58 62 3 3 62 9 3 25
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) MODE 		8-98039-250-0 01 1 1207-1209 ● ● ●
3 09.787 CABLE; HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MODE 		8-98039-250-0 01 1 1210- ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) MODE 		8-98039-250-0 01 1 1210- ● ●
3 09.787 CABLE; HTR CONT LVR
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (A) MODE 		8-98039-250-0 01 1 1210- ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) MIX 		8-98039-251-0 01 1 1207-1209 ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) MIX 		8-98039-251-0 01 1 1210- ● ● ●
3 09.787 CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) (B) MIX 		8-98039-251-0 01 1 1210- ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (C) FRESH 		8-98039-253-2 01 1 1207-1209 ● ● ●
3 09.787 CABLE; HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) FRESH 		8-98039-253-2 01 1 1210- ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (C) FRESH 		8-98039-253-2 01 1 1210- ● ●
3 09.787 CABLE; HTR CONT LVR
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (C) FRESH 		8-98039-253-2 01 1 1210- ●
9 08.852 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-98037-363-2 01 1 1207-1209 ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-98037-363-2 01 1 1210- ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98037-363-2 01 1 1210- ●
9 08.852 LEVER ASM; HTR & A/C CONT
FORGED AIR VENTILATION(C39) (B) 		8-98066-001-1 01 1 1210- ● ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) 		8-98021-982-0 01 1 1207-1209 ● ● ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) 		8-98021-982-0 01 1 1210- ● ● ● ●
25 08.854 CLIP; CABLE,CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 09.647 ID=4.8 		8-94128-483-0 01 1 1207-1209 ● ● ●
25 08.854 CLIP; CABLE,CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 09.647 ID=4.8 		8-94128-483-0 01 1 1210-1302 ● ● ●
25 08.854 CLIP; CABLE,CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) 09.647 ID=4.8 		8-94128-483-0 01 1 1210-1302 ●
25 08.854 CLIP; CABLE,CONT LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 ID=4.8 		8-94128-483-0 01 1 1303- ●
25 08.854 CLIP; CABLE,CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 09.647 ID=4.8 		8-94128-483-0 01 1 1303- ● ●
25 08.854 CLIP; CABLE,CONT LEVER
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 09.647 ID=4.8 		8-94128-483-0 01 1 1303- ●
37 08.852 KNOB; SW,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98037-368-0 01 1 1207-1209 ● ● ●
37 08.852 KNOB; SW,HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98037-368-0 01 1 1210- ●
37 08.852 KNOB; SW,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98037-368-0 01 1 1210- ● ●
37 08.852 KNOB; SW,HTR CONT LVR
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98037-368-0 01 1 1210- ●
58 09.787 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-98037-369-0 02 1 1207-1209 ● ● ●
58 09.787 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-98037-369-0 02 1 1210- ● ● ●
58 09.787 KNOB; LVR,HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98037-369-0 02 1 1210- ●
58 09.787 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98037-370-0 01 1 1207-1209 ● ● ●
58 09.787 KNOB; LVR,HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98037-370-0 01 1 1210- ●
58 09.787 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98037-370-0 01 1 1210- ● ●
58 09.787 KNOB; LVR,HTR CONT LVR
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98037-370-0 01 1 1210- ●
58 09.787 KNOB; LVR,HTR CONT LVR
FORGED AIR VENTILATION(C39) (A) 		8-98037-369-0 01 1 1210- ● ●
62 08.991 BULB; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 24V 1.1W 		8-98037-371-0 02 1 1207-1209 ● ● ●
62 08.991 BULB; HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 1.1W 		8-98037-371-0 02 1 1210- ●
62 08.991 BULB; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 24V 1.1W 		8-98037-371-0 02 1 1210- ● ●
62 08.991 BULB; HTR CONT LVR
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 24V 1.1W 		8-98037-371-0 02 1 1210- ●
87 08.849 CAP; A/C SWITCH
HEATER & DEFROSTER(C41) 		8-98006-089-0 01 1 1207-1212 ● ● ●
87 08.849 CAP; A/C SWITCH
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-98006-089-0 01 1 1301- ●
87 08.849 CAP; A/C SWITCH
HEATER & DEFROSTER(C41) 		8-98006-089-0 01 1 1301- ● ●
87 08.849 CAP; A/C SWITCH
FORGED AIR VENTILATION(C39) 		8-98006-089-0 01 1 1301- ●
98 08.852 SCREW; CONT PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.100 M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1207-1209 ● ● ●
98 08.852 SCREW; CONT PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.100 M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1210-1212 ●
98 08.852 SCREW; CONT PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.100 M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1210-1212 ● ●
98 08.852 SCREW; CONT PANEL
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 16.100 M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1210-1212 ●
98 08.852 SCREW; CONT PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301- ●
98 08.852 SCREW; CONT PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301- ● ●
98 08.852 SCREW; CONT PANEL
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301- ●
103 08.854 CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.742 DARK GRAY 		8-97098-326-0 01 1 1207-1209 ● ● ●
103 08.854 CLIP
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.742 DARK GRAY 		8-97098-326-0 01 1 1210- ●
103 08.854 CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.742 DARK GRAY 		8-97098-326-0 01 1 1210- ● ●
103 08.854 CLIP
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 16.742 DARK GRAY 		8-97098-326-0 01 1 1210- ●
