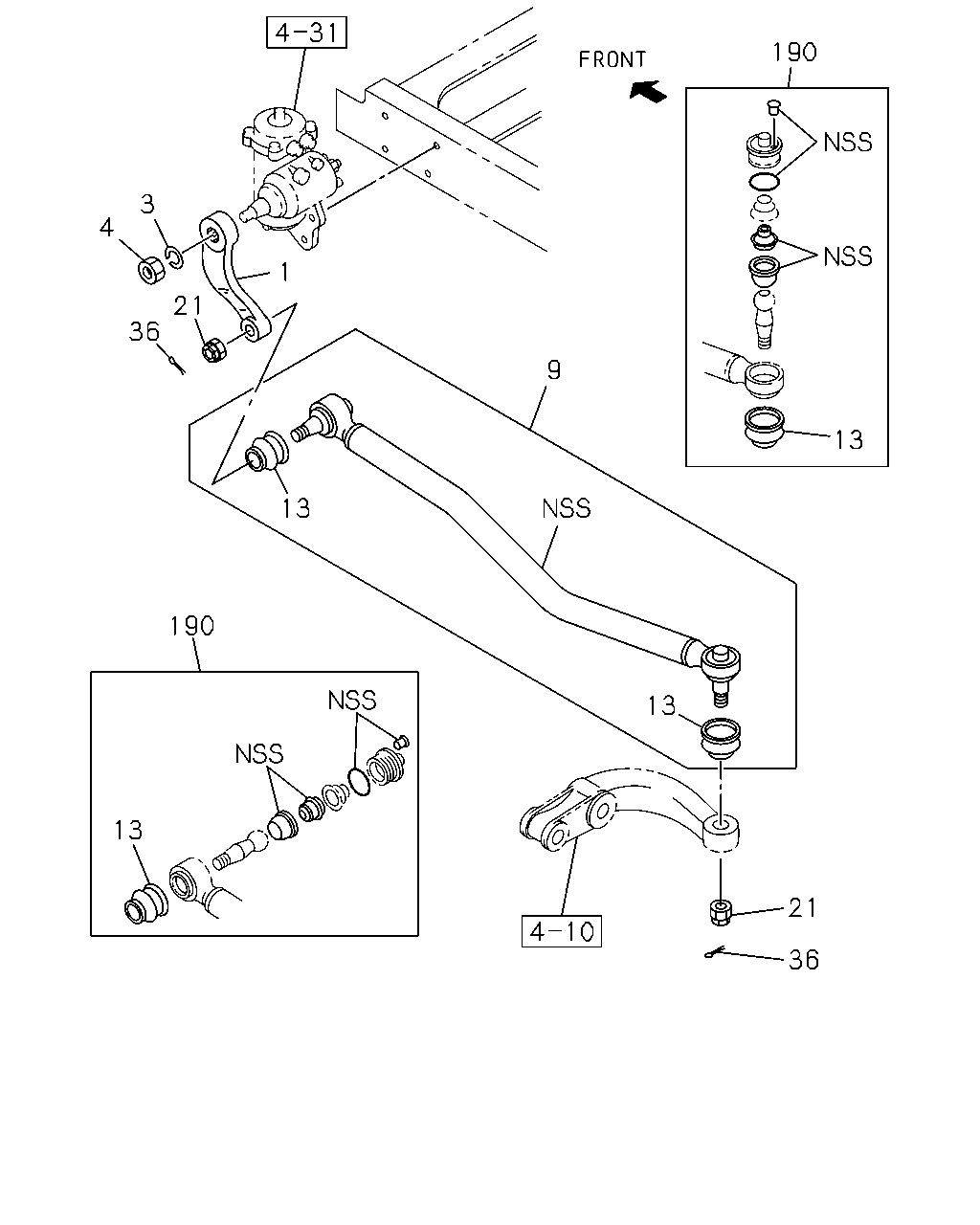

4-33 — STEERING LINKAGE (#943) — 41 parça

190 3 4 1 21 36 9 13 13 190 13 13 21 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; PITMAN,STRG FRONT AXLE F049(FS4)	1-44341-384-0	01	1	9202-	●	●
1	ARM; PITMAN,STRG FRONT AXLE F063(FS7)	1-44341-388-0	01	1	9202-	●	●
3	WASHER; LK,PITMAN ARM FRONT AXLE F049(FS4) ID=30.5	1-09500-026-0	01	1	9202-	●	●
3	WASHER; LK,PITMAN ARM FRONT AXLE F063(FS7) ID=36.5	1-09500-021-0	01	1	9202-	●	●
4	NUT; PITMAN ARM FRONT AXLE F049(FS4) M30	1-09400-050-0	01	1	9202-	●	●
4	NUT; PITMAN ARM FRONT AXLE F063(FS7) M36 FLANGE	1-09440-013-0	01	1	9202-	●	●
9	LINK; DRAG FRONT AXLE F049(FS4)	1-44350-874-1	01	1	9202-	●	●
9	LINK; DRAG FRONT AXLE F063(FS7) FRT AXLE GREASE NON MENTENANCE FREE<B3L>	1-44380-002-1	01	1	9202-9410	●	●
9	LINK; DRAG FRONT AXLE F063(FS7)	1-44380-112-2	01	1	9411-	●	●
9	LINK; DRAG FRONT AXLE F063(FS7) EXC. FRT AXLE GREASE NON MENTENANCE FREE<B3L>	1-44380-015-1	01	1	9202-9305	●	●
9	LINK; DRAG FRONT AXLE F063(FS7) EXC. FRT AXLE GREASE NON MENTENANCE FREE<B3L>	1-44380-056-0	01	1	9306-9410	●	●
13	BOOT; DRAG LINK FRONT AXLE F063(FS7) FRT AXLE GREASE NON MENTENANCE FREE<B3L>	1-43159-078-0	02	1	9202-9305	●	●
13	BOOT; DRAG LINK FRONT AXLE F063(FS7)	1-43159-078-0	02	1	9306-	●	●
13	BOOT; DRAG LINK FRONT AXLE F063(FS7) EXC. FRT AXLE GREASE NON MENTENANCE FREE<B3L>	1-43159-080-0	02	1	9202-9305	●	●
21	NUT; LK,JOINT BALL FRONT AXLE F049(FS4) M24	9-09844-669-2	01	1	9202-	●	●
21	NUT; LK,JOINT BALL FRONT AXLE F063(FS7) M24 SLOTTED	1-09442-020-0	02	1	9202-	●	●
36	PIN; SPLIT,DRAG LINK FRONT AXLE F063(FS7) OD=4.6 L=35	9-08115-035-0	02	1	9202-	●	●
190	REPAIR KIT; DRAG LINK FRONT AXLE F063(FS7) EXC. FRT AXLE GREASE NON MENTENANCE FREE<B3L>	1-85574-041-0	02	1	9306-9410	●	●
190	REPAIR KIT; DRAG LINK FRONT AXLE F063(FS7)	1-85574-041-0	02	1	9411-	●	●

3 4 1 21 24 8 8 6 14 17 5 6 11 9 17 8 8 14 24 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; PITMAN,STRG FRONT AXLE F049(FS4)	1-44341-384-0	01	1	9202-	●	●
1	ARM; PITMAN,STRG FRONT AXLE F063(FS7)	1-44341-388-0	01	1	9202-	●	●
3	WASHER; LK,PITMAN ARM FRONT AXLE F049(FS4) ID=30.5	1-09500-026-0	01	1	9202-	●	●
3	WASHER; LK,PITMAN ARM FRONT AXLE F063(FS7) ID=36.5	1-09500-021-0	01	1	9202-	●	●
4	NUT; PITMAN ARM FRONT AXLE F049(FS4) M30	1-09400-050-0	01	1	9202-	●	●
4	NUT; PITMAN ARM FRONT AXLE F063(FS7) M36 FLANGE	1-09440-013-0	01	1	9202-	●	●
5	BALL; JOINT,DRAG LINK FRONT AXLE F049(FS4)	1-44361-066-0	01	1	9202-9210	●	●
5	BALL; JOINT,DRAG LINK FRONT AXLE F049(FS4)	1-44361-060-0	01	1	9211-	●	●
6	PIN; SPLIT,ADJ SCREW FRONT AXLE F049(FS4)	9-08115-060-0	02	1	9202-9205	●	●
6	PIN; SPLIT,ADJ SCREW FRONT AXLE F049(FS4)	9-08115-065-0	02	1	9206-	●	●
8	SEAT; SPR,ROD END FRONT AXLE F049(FS4) OD=36	9-09881-340-0	04	1	9202-	●	●
9	LINK; DRAG FRONT AXLE F049(FS4)	1-44350-874-1	01	1	9202-	●	●
9	LINK; DRAG FRONT AXLE F063(FS7) FRT AXLE GREASE NON MENTENANCE FREE<B3L>	1-44380-002-1	01	1	9202-9410	●	●
9	LINK; DRAG FRONT AXLE F063(FS7)	1-44380-112-2	01	1	9411-	●	●
9	LINK; DRAG FRONT AXLE F063(FS7) EXC. FRT AXLE GREASE NON MENTENANCE FREE<B3L>	1-44380-015-1	01	1	9202-9305	●	●
9	LINK; DRAG FRONT AXLE F063(FS7) EXC. FRT AXLE GREASE NON MENTENANCE FREE<B3L>	1-44380-056-0	01	1	9306-9410	●	●
11	NIPPLE; GREASE,DRAG LINK FRONT AXLE F049(FS4) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9202-	●	●
14	SPRING; COIL,DRAG LINK FRONT AXLE F049(FS4)	9-09940-639-1	02	1	9202-	●	●
17	GUARD; MUD,DRAG LINK FRONT AXLE F049(FS4)	1-44365-020-0	02	1	9202-	●	●
21	NUT; LK,JOINT BALL FRONT AXLE F049(FS4) M24	9-09844-669-2	01	1	9202-	●	●
21	NUT; LK,JOINT BALL FRONT AXLE F063(FS7) M24 SLOTTED	1-09442-020-0	02	1	9202-	●	●
24	PLUG; ADJ,DRAG LINK FRONT AXLE F049(FS4)	9-44375-021-0	02	1	9202-	●	●
