Sayfa 8-60 - Isuzu EPC

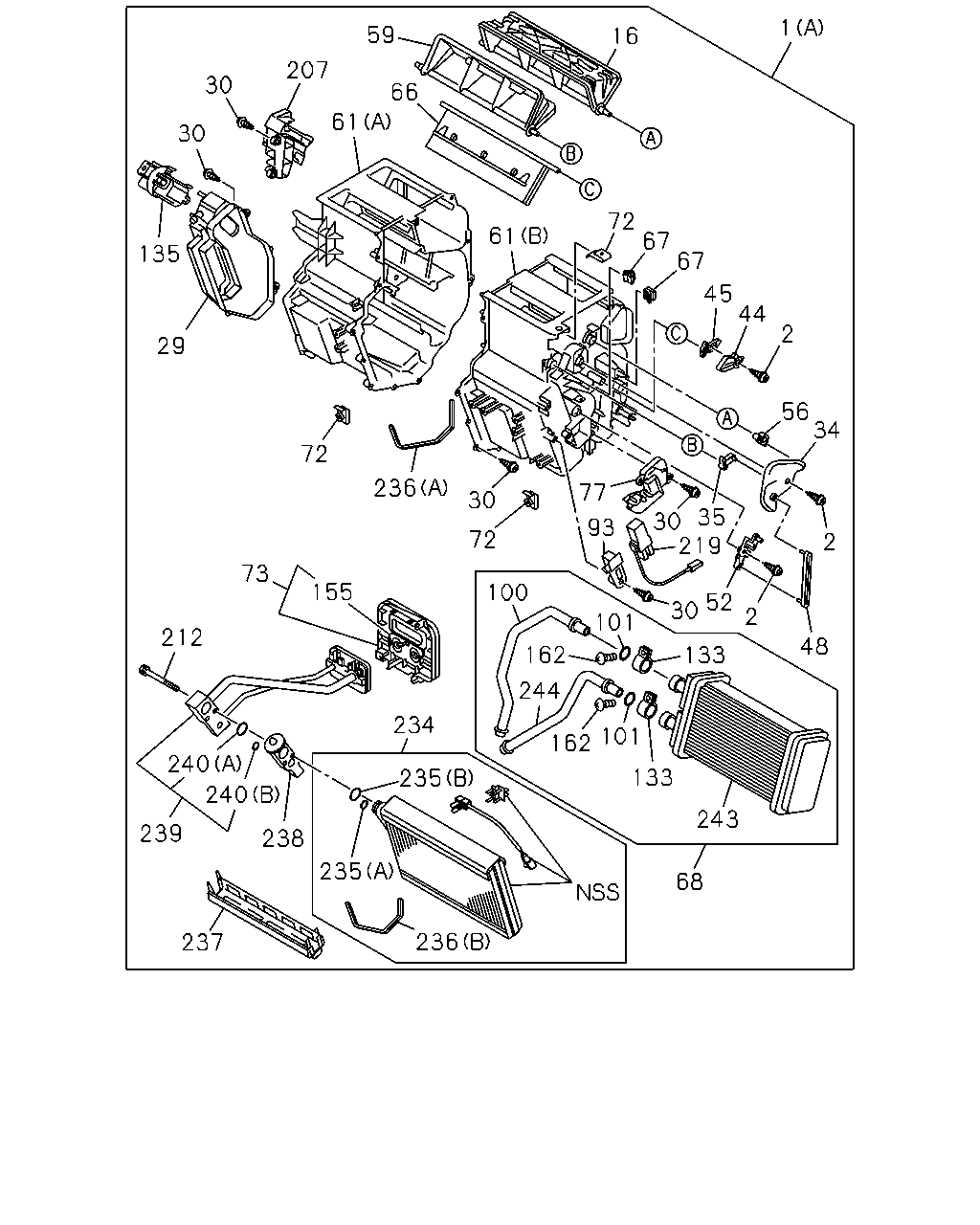

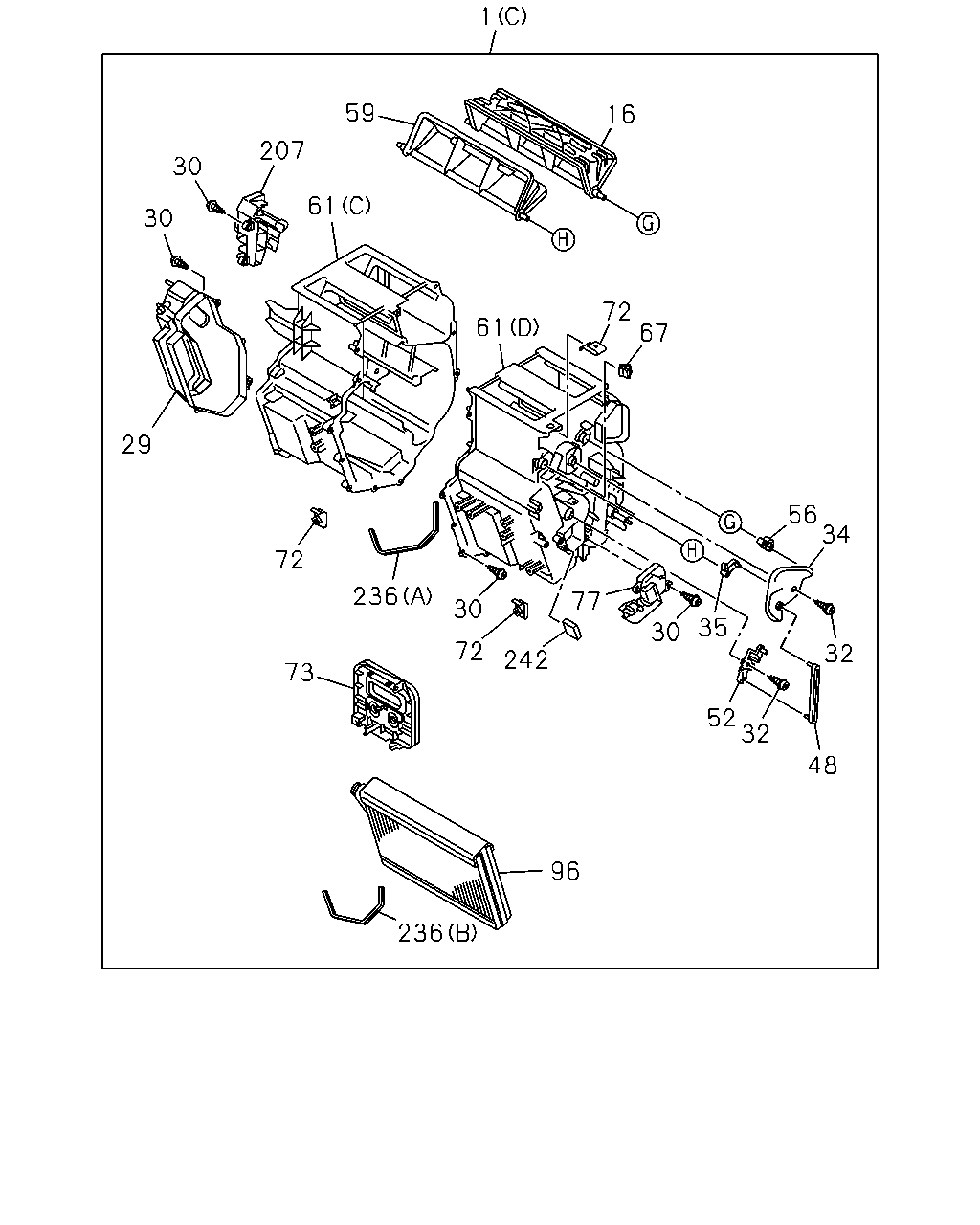

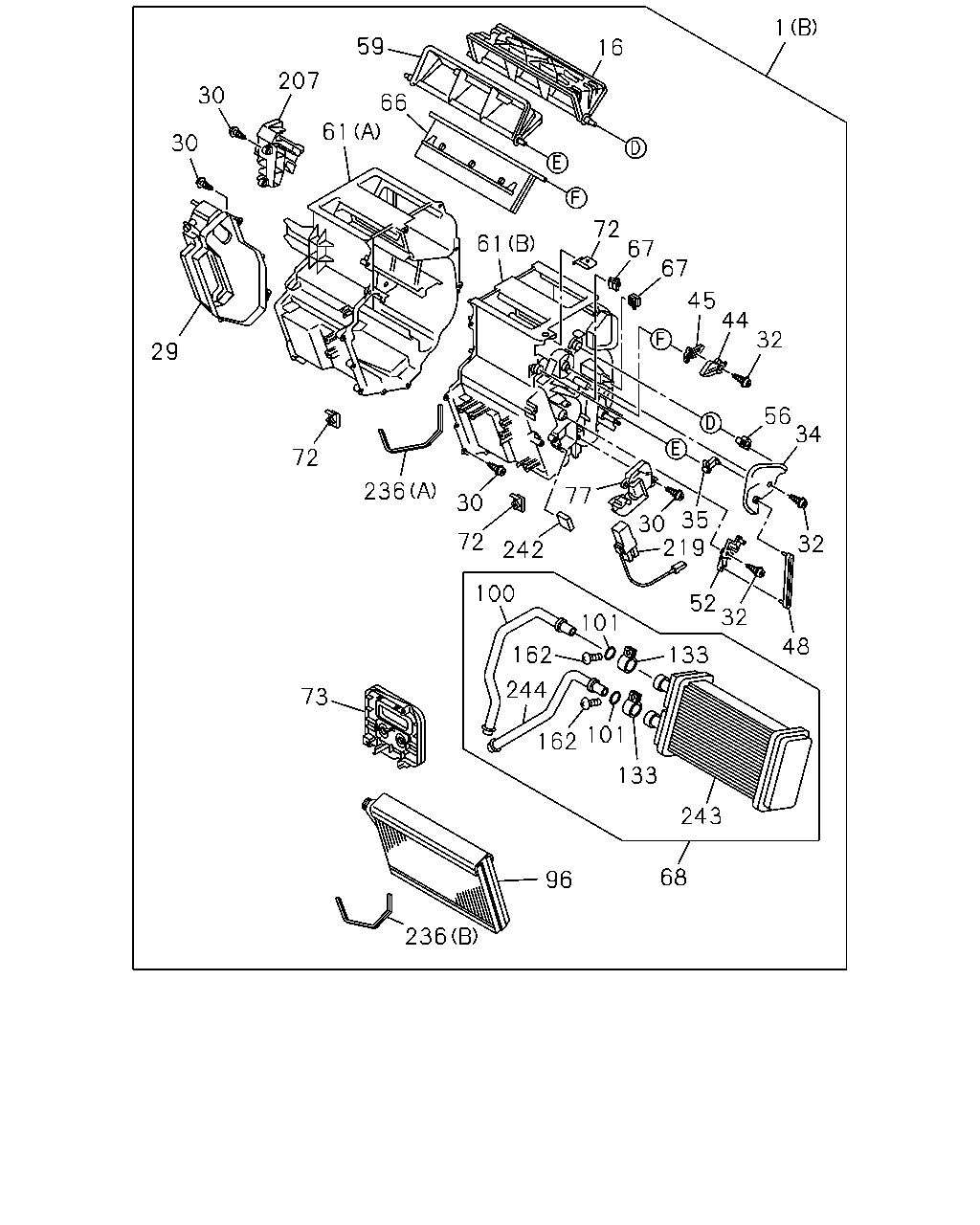

8-60 — HEATER UNIT; FRONT (#94299) — 372 parça

236 96 48 32 52 32 35 30 34 56 77 242 72 30 236 73 72 67 72 61 16 1 59 61 207 30 30 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41) (B)	8-98062-756-1	01	1	1207-	●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	1207-1209	●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	1210-	●	●	●	●
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39) (C)	8-98062-757-1	01	1	1210-1301	●			●
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39) (C)	8-98214-400-1	01	1	1302-	●			●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-387-0	01	1	1207-1209	●	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-387-0	01	1	1210-	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-387-0	01	1	1210-		●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-387-0	01	1	1210-				●
29	08.857 COVER; HTR UNIT FORGED AIR VENTILATION(C39)	8-98231-367-0	01	1	1302-	●			●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98074-119-0	01	1	1207-1209	●	●	●
29	08.857 COVER; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98074-119-0	01	1	1210-1301	●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98074-119-0	01	1	1210-1301		●	●
29	08.857 COVER; HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98074-119-0	01	1	1210-1301				●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98074-119-0	01	1	1302-	●	●	●
29	08.857 COVER; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98074-119-0	01	1	1302-				●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	1302-	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	1207-1209	●	●	●
30	08.845 SCREW; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	1210-1301	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	1210-1301		●	●
30	08.845 SCREW; HTR UNIT FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	1210-1301				●
30	08.845 SCREW; HTR UNIT FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING	8-97957-708-0	20	1	1302-	●			●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1207-1209	●	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1210-	●	●	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16	8-98047-416-0	03	1	1207-	●	●	●
32	08.852 SCREW; HTR UNIT FORGED AIR VENTILATION(C39) M4X16	8-98047-416-0	02	1	1210-	●			●
34	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-389-0	01	1	1207-1209	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-389-0	01	1	1210-	●
34	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-389-0	01	1	1210-		●	●
34	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-389-0	01	1	1210-				●
35	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-392-0	01	1	1207-1209	●	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-392-0	01	1	1210-	●
35	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-392-0	01	1	1210-		●	●
35	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-392-0	01	1	1210-				●
48	09.786 LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-391-0	01	1	1207-1209	●	●	●
48	09.786 LEVER; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-391-0	01	1	1210-	●
48	09.786 LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-391-0	01	1	1210-		●	●
48	09.786 LEVER; HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-391-0	01	1	1210-				●
52	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-390-0	01	1	1207-1209	●	●	●
52	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-390-0	01	1	1210-	●
52	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-390-0	01	1	1210-		●	●
52	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-390-0	01	1	1210-				●
56	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-393-0	01	1	1207-1209	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-393-0	01	1	1210-	●
56	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-393-0	01	1	1210-		●	●
56	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-393-0	01	1	1210-				●
59	08.845 SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-386-0	01	1	1207-1209	●	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-386-0	01	1	1210-	●
59	08.845 SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-386-0	01	1	1210-		●	●
59	08.845 SHUTTER; HTR UNIT,SIDE FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-386-0	01	1	1210-				●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98047-375-0	01	1	1207-1209	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98047-375-0	01	1	1210-	●	●	●
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	1210-				●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98047-376-0	01	1	1207-1209	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98047-376-0	01	1	1210-	●	●	●
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-376-0	01	1	1210-				●
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39) (C)	8-98077-422-0	01	1	1210-	●			●
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39) (D)	8-98077-423-0	01	1	1210-	●			●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-417-0	02	1	1207-1209	●	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-417-0	02	1	1210-	●	●	●
67	08.854 CLIP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	1210-				●
67	08.854 CLIP; HTR UNIT FORGED AIR VENTILATION(C39)	8-98047-417-0	01	1	1210-	●			●
72	08.845 NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) M6	8-98047-428-0	03	1	1207-1209	●	●	●
72	08.845 NUT; CASE,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6	8-98047-428-0	03	1	1210-	●
72	08.845 NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) M6	8-98047-428-0	03	1	1210-		●	●
72	08.845 NUT; CASE,HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) M6	8-98047-428-0	03	1	1210-				●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	1207-	●	●	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98074-118-0	01	1	1207-1209	●	●	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98074-118-0	01	1	1210-	●	●	●	●
73	08.845 PLATE; HTR UNIT FORGED AIR VENTILATION(C39)	8-98077-419-0	01	1	1210-1301	●			●
77	08.857 COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-414-0	01	1	1207-1209	●	●	●
77	08.857 COVER; HTR CASE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-414-0	01	1	1210-	●
77	08.857 COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-414-0	01	1	1210-		●	●
77	08.857 COVER; HTR CASE FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-414-0	01	1	1210-				●
96	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1207-1209	●	●	●
96	08.845 PLATE; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1210-1301	●
96	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1210-1301		●	●
96	08.845 PLATE; HTR UNIT FORGED AIR VENTILATION(C39)	8-98048-815-0	01	1	1210-1301				●
96	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1302-	●	●	●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-379-0	01	1	1207-1209	●	●	●
207	08.845 CLAMP; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-379-0	01	1	1210-1301	●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-379-0	01	1	1210-1301		●	●
207	08.845 CLAMP; HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-379-0	01	1	1210-1301				●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-379-0	01	1	1302-	●	●	●
207	08.845 CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-379-0	01	1	1302-				●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98047-420-0	01	1	1207-1209	●	●	●
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-420-0	01	1	1210-	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98047-420-0	01	1	1210-		●	●
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-420-0	01	1	1210-				●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98047-421-0	01	1	1207-1209	●	●	●
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-421-0	01	1	1210-	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98047-421-0	01	1	1210-		●	●
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-421-0	01	1	1210-				●
242	08.855 GASKET; CASE HEATER & DEFROSTER(C41) 08.845	8-98048-816-0	01	1	1207-1209	●	●	●
242	08.855 GASKET; CASE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.845	8-98048-816-0	01	1	1210-1411	●
242	08.855 GASKET; CASE HEATER & DEFROSTER(C41) 08.845	8-98048-816-0	01	1	1210-1411		●	●
242	08.855 GASKET; CASE FORGED AIR VENTILATION(C39) 08.845	8-98048-816-0	01	1	1210-1411				●
242	08.855 GASKET; CASE HEATER & DEFROSTER(C41) 08.845	8-98048-816-0	01	1	1412-	●	●	●

68 243 133 101 162 244 162 133 101 100 73 96 236 48 32 32 52 219 30 35 34 56 32 44 45 67 67 72 61 77 242 72 30 236 72 29 30 30 207 59 61 66 16 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41) (B)	8-98062-756-1	01	1	1207-	●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	1207-1209	●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	1210-	●	●	●	●
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39) (C)	8-98062-757-1	01	1	1210-1301	●			●
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39) (C)	8-98214-400-1	01	1	1302-	●			●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-387-0	01	1	1207-1209	●	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-387-0	01	1	1210-	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-387-0	01	1	1210-		●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-387-0	01	1	1210-				●
29	08.857 COVER; HTR UNIT FORGED AIR VENTILATION(C39)	8-98231-367-0	01	1	1302-	●			●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98074-119-0	01	1	1207-1209	●	●	●
29	08.857 COVER; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98074-119-0	01	1	1210-1301	●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98074-119-0	01	1	1210-1301		●	●
29	08.857 COVER; HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98074-119-0	01	1	1210-1301				●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98074-119-0	01	1	1302-	●	●	●
29	08.857 COVER; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98074-119-0	01	1	1302-				●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	1302-	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	1207-1209	●	●	●
30	08.845 SCREW; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	1210-1301	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	1210-1301		●	●
30	08.845 SCREW; HTR UNIT FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	1210-1301				●
30	08.845 SCREW; HTR UNIT FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING	8-97957-708-0	20	1	1302-	●			●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1207-1209	●	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1210-	●	●	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16	8-98047-416-0	03	1	1207-	●	●	●
32	08.852 SCREW; HTR UNIT FORGED AIR VENTILATION(C39) M4X16	8-98047-416-0	02	1	1210-	●			●
34	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-389-0	01	1	1207-1209	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-389-0	01	1	1210-	●
34	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-389-0	01	1	1210-		●	●
34	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-389-0	01	1	1210-				●
35	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-392-0	01	1	1207-1209	●	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-392-0	01	1	1210-	●
35	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-392-0	01	1	1210-		●	●
35	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-392-0	01	1	1210-				●
44	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-394-0	01	1	1207-1209	●	●	●
44	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-394-0	01	1	1210-	●	●	●
44	08.852 LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-394-0	01	1	1210-				●
45	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-395-0	01	1	1207-1209	●	●	●
45	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-395-0	01	1	1210-	●	●	●
45	09.786 LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-395-0	01	1	1210-				●
48	09.786 LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-391-0	01	1	1207-1209	●	●	●
48	09.786 LEVER; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-391-0	01	1	1210-	●
48	09.786 LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-391-0	01	1	1210-		●	●
48	09.786 LEVER; HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-391-0	01	1	1210-				●
52	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-390-0	01	1	1207-1209	●	●	●
52	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-390-0	01	1	1210-	●
52	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-390-0	01	1	1210-		●	●
52	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-390-0	01	1	1210-				●
56	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-393-0	01	1	1207-1209	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-393-0	01	1	1210-	●
56	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-393-0	01	1	1210-		●	●
56	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-393-0	01	1	1210-				●
59	08.845 SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-386-0	01	1	1207-1209	●	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-386-0	01	1	1210-	●
59	08.845 SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-386-0	01	1	1210-		●	●
59	08.845 SHUTTER; HTR UNIT,SIDE FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-386-0	01	1	1210-				●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98047-375-0	01	1	1207-1209	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98047-375-0	01	1	1210-	●	●	●
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	1210-				●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98047-376-0	01	1	1207-1209	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98047-376-0	01	1	1210-	●	●	●
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-376-0	01	1	1210-				●
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39) (C)	8-98077-422-0	01	1	1210-	●			●
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39) (D)	8-98077-423-0	01	1	1210-	●			●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-385-0	01	1	1207-1209	●	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-385-0	01	1	1210-	●	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR AIR CONDITIONER MANUAL CONT(C60)	8-98047-385-0	01	1	1210-				●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-417-0	02	1	1207-1209	●	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-417-0	02	1	1210-	●	●	●
67	08.854 CLIP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	1210-				●
67	08.854 CLIP; HTR UNIT FORGED AIR VENTILATION(C39)	8-98047-417-0	01	1	1210-	●			●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-380-0	01	1	1207-1209	●	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-380-0	01	1	1210-	●	●	●
68	08.854 CORE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-380-0	01	1	1210-				●
72	08.845 NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) M6	8-98047-428-0	03	1	1207-1209	●	●	●
72	08.845 NUT; CASE,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6	8-98047-428-0	03	1	1210-	●
72	08.845 NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) M6	8-98047-428-0	03	1	1210-		●	●
72	08.845 NUT; CASE,HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) M6	8-98047-428-0	03	1	1210-				●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	1207-	●	●	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98074-118-0	01	1	1207-1209	●	●	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98074-118-0	01	1	1210-	●	●	●	●
73	08.845 PLATE; HTR UNIT FORGED AIR VENTILATION(C39)	8-98077-419-0	01	1	1210-1301	●			●
77	08.857 COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-414-0	01	1	1207-1209	●	●	●
77	08.857 COVER; HTR CASE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-414-0	01	1	1210-	●
77	08.857 COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-414-0	01	1	1210-		●	●
77	08.857 COVER; HTR CASE FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-414-0	01	1	1210-				●
96	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1207-1209	●	●	●
96	08.845 PLATE; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1210-1301	●
96	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1210-1301		●	●
96	08.845 PLATE; HTR UNIT FORGED AIR VENTILATION(C39)	8-98048-815-0	01	1	1210-1301				●
96	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1302-	●	●	●
100	08.854 PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98072-528-0	01	1	1207-1209	●	●	●
100	08.854 PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98072-528-0	01	1	1210-	●	●	●
100	08.854 PIPE; CORE,HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98072-528-0	01	1	1210-				●
101	08.845 GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98072-531-0	02	1	1207-1209	●	●	●
101	08.845 GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98072-531-0	02	1	1210-	●	●	●
101	08.845 GASKET; CORE,HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98072-531-0	02	1	1210-				●
133	08.845 CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98072-530-0	02	1	1207-1209	●	●	●
133	08.845 CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98072-530-0	02	1	1210-	●	●	●
133	08.845 CLIP; PIPE AIR CONDITIONER MANUAL CONT(C60)	8-98072-530-0	02	1	1210-				●
162	08.845 SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98072-529-0	02	1	1207-1209	●	●	●
162	08.845 SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98072-529-0	02	1	1210-	●	●	●
162	08.845 SCREW; CLIP FIX AIR CONDITIONER MANUAL CONT(C60)	8-98072-529-0	02	1	1210-				●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-379-0	01	1	1207-1209	●	●	●
207	08.845 CLAMP; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-379-0	01	1	1210-1301	●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-379-0	01	1	1210-1301		●	●
207	08.845 CLAMP; HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-379-0	01	1	1210-1301				●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-379-0	01	1	1302-	●	●	●
207	08.845 CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-379-0	01	1	1302-				●
219	08.854 AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-429-0	01	1	1207-1209	●	●	●
219	08.854 AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-429-0	01	1	1210-	●	●	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98047-420-0	01	1	1207-1209	●	●	●
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-420-0	01	1	1210-	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98047-420-0	01	1	1210-		●	●
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-420-0	01	1	1210-				●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98047-421-0	01	1	1207-1209	●	●	●
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-421-0	01	1	1210-	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98047-421-0	01	1	1210-		●	●
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-421-0	01	1	1210-				●
242	08.855 GASKET; CASE HEATER & DEFROSTER(C41) 08.845	8-98048-816-0	01	1	1207-1209	●	●	●
242	08.855 GASKET; CASE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.845	8-98048-816-0	01	1	1210-1411	●
242	08.855 GASKET; CASE HEATER & DEFROSTER(C41) 08.845	8-98048-816-0	01	1	1210-1411		●	●
242	08.855 GASKET; CASE FORGED AIR VENTILATION(C39) 08.845	8-98048-816-0	01	1	1210-1411				●
242	08.855 GASKET; CASE HEATER & DEFROSTER(C41) 08.845	8-98048-816-0	01	1	1412-	●	●	●
243	08.854 CORE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.656	8-98048-508-0	01	1	1207-1209	●	●	●
243	08.854 CORE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.656	8-98048-508-0	01	1	1210-	●	●	●
243	08.854 CORE AIR CONDITIONER MANUAL CONT(C60) 01.656	8-98048-508-0	01	1	1210-				●
244	08.854 PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98048-510-0	01	1	1207-1209	●	●	●
244	08.854 PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98048-510-0	01	1	1210-	●	●	●
244	08.854 PIPE; INLET AIR CONDITIONER MANUAL CONT(C60)	8-98048-510-0	01	1	1210-				●

68 243 133 101 162 244 162 133 48 2 52 30 101 100 236 235 235 234 238 237 239 240 240 212 73 155 72 30 236 72 93 77 219 30 35 2 34 56 2 44 45 67 67 72 61 61 66 59 16 1 207 30 30 29 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41) (B)	8-98062-756-1	01	1	1207-	●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	1207-1209	●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	1210-	●	●	●	●
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39) (C)	8-98062-757-1	01	1	1210-1301	●			●
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39) (C)	8-98214-400-1	01	1	1302-	●			●
2	08.854 SCREW; LEVER AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-98047-416-0	03	1	1207-1209	●	●	●
2	08.854 SCREW; LEVER AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-98047-416-0	03	1	1210-	●	●	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-387-0	01	1	1207-1209	●	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-387-0	01	1	1210-	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-387-0	01	1	1210-		●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-387-0	01	1	1210-				●
29	08.857 COVER; HTR UNIT FORGED AIR VENTILATION(C39)	8-98231-367-0	01	1	1302-	●			●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98074-119-0	01	1	1207-1209	●	●	●
29	08.857 COVER; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98074-119-0	01	1	1210-1301	●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98074-119-0	01	1	1210-1301		●	●
29	08.857 COVER; HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98074-119-0	01	1	1210-1301				●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98074-119-0	01	1	1302-	●	●	●
29	08.857 COVER; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98074-119-0	01	1	1302-				●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	1302-	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	1207-1209	●	●	●
30	08.845 SCREW; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	1210-1301	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	1210-1301		●	●
30	08.845 SCREW; HTR UNIT FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	1210-1301				●
30	08.845 SCREW; HTR UNIT FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING	8-97957-708-0	20	1	1302-	●			●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1207-1209	●	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1210-	●	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-389-0	01	1	1207-1209	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-389-0	01	1	1210-	●
34	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-389-0	01	1	1210-		●	●
34	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-389-0	01	1	1210-				●
35	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-392-0	01	1	1207-1209	●	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-392-0	01	1	1210-	●
35	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-392-0	01	1	1210-		●	●
35	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-392-0	01	1	1210-				●
44	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-394-0	01	1	1207-1209	●	●	●
44	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-394-0	01	1	1210-	●	●	●
44	08.852 LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-394-0	01	1	1210-				●
45	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-395-0	01	1	1207-1209	●	●	●
45	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-395-0	01	1	1210-	●	●	●
45	09.786 LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-395-0	01	1	1210-				●
48	09.786 LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-391-0	01	1	1207-1209	●	●	●
48	09.786 LEVER; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-391-0	01	1	1210-	●
48	09.786 LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-391-0	01	1	1210-		●	●
48	09.786 LEVER; HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-391-0	01	1	1210-				●
52	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-390-0	01	1	1207-1209	●	●	●
52	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-390-0	01	1	1210-	●
52	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-390-0	01	1	1210-		●	●
52	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-390-0	01	1	1210-				●
56	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-393-0	01	1	1207-1209	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-393-0	01	1	1210-	●
56	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-393-0	01	1	1210-		●	●
56	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-393-0	01	1	1210-				●
59	08.845 SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-386-0	01	1	1207-1209	●	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-386-0	01	1	1210-	●
59	08.845 SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-386-0	01	1	1210-		●	●
59	08.845 SHUTTER; HTR UNIT,SIDE FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-386-0	01	1	1210-				●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98047-375-0	01	1	1207-1209	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98047-375-0	01	1	1210-	●	●	●
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	1210-				●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98047-376-0	01	1	1207-1209	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98047-376-0	01	1	1210-	●	●	●
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-376-0	01	1	1210-				●
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39) (C)	8-98077-422-0	01	1	1210-	●			●
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39) (D)	8-98077-423-0	01	1	1210-	●			●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-385-0	01	1	1207-1209	●	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-385-0	01	1	1210-	●	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR AIR CONDITIONER MANUAL CONT(C60)	8-98047-385-0	01	1	1210-				●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-417-0	02	1	1207-1209	●	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-417-0	02	1	1210-	●	●	●
67	08.854 CLIP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	1210-				●
67	08.854 CLIP; HTR UNIT FORGED AIR VENTILATION(C39)	8-98047-417-0	01	1	1210-	●			●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-380-0	01	1	1207-1209	●	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-380-0	01	1	1210-	●	●	●
68	08.854 CORE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-380-0	01	1	1210-				●
72	08.845 NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) M6	8-98047-428-0	03	1	1207-1209	●	●	●
72	08.845 NUT; CASE,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6	8-98047-428-0	03	1	1210-	●
72	08.845 NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) M6	8-98047-428-0	03	1	1210-		●	●
72	08.845 NUT; CASE,HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) M6	8-98047-428-0	03	1	1210-				●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	1207-	●	●	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98074-118-0	01	1	1207-1209	●	●	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98074-118-0	01	1	1210-	●	●	●	●
73	08.845 PLATE; HTR UNIT FORGED AIR VENTILATION(C39)	8-98077-419-0	01	1	1210-1301	●			●
77	08.857 COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-414-0	01	1	1207-1209	●	●	●
77	08.857 COVER; HTR CASE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-414-0	01	1	1210-	●
77	08.857 COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-414-0	01	1	1210-		●	●
77	08.857 COVER; HTR CASE FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-414-0	01	1	1210-				●
93	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-427-0	01	1	1207-1209	●	●	●
93	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-427-0	01	1	1210-	●	●	●	●
100	08.854 PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98072-528-0	01	1	1207-1209	●	●	●
100	08.854 PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98072-528-0	01	1	1210-	●	●	●
100	08.854 PIPE; CORE,HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98072-528-0	01	1	1210-				●
101	08.845 GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98072-531-0	02	1	1207-1209	●	●	●
101	08.845 GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98072-531-0	02	1	1210-	●	●	●
101	08.845 GASKET; CORE,HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98072-531-0	02	1	1210-				●
133	08.845 CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98072-530-0	02	1	1207-1209	●	●	●
133	08.845 CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98072-530-0	02	1	1210-	●	●	●
133	08.845 CLIP; PIPE AIR CONDITIONER MANUAL CONT(C60)	8-98072-530-0	02	1	1210-				●
135	08.854 COVER; HTR AIR CONDITIONER MANUAL CONT(C60)	8-98047-384-0	01	1	1207-1209	●	●	●
135	08.854 COVER; HTR AIR CONDITIONER MANUAL CONT(C60)	8-98047-384-0	01	1	1210-	●	●	●	●
155	09.260 GROMMET; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-431-0	01	1	1207-1209	●	●	●
155	09.260 GROMMET; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-431-0	01	1	1210-	●	●	●	●
162	08.845 SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98072-529-0	02	1	1207-1209	●	●	●
162	08.845 SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98072-529-0	02	1	1210-	●	●	●
162	08.845 SCREW; CLIP FIX AIR CONDITIONER MANUAL CONT(C60)	8-98072-529-0	02	1	1210-				●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-379-0	01	1	1207-1209	●	●	●
207	08.845 CLAMP; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-379-0	01	1	1210-1301	●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-379-0	01	1	1210-1301		●	●
207	08.845 CLAMP; HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-379-0	01	1	1210-1301				●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-379-0	01	1	1302-	●	●	●
207	08.845 CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-379-0	01	1	1302-				●
212	09.262 BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) M5X61	8-98047-415-0	02	1	1207-1209	●	●	●
212	09.262 BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) M5X61	8-98047-415-0	02	1	1210-	●	●	●	●
219	08.854 AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-429-0	01	1	1207-1209	●	●	●
219	08.854 AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-429-0	01	1	1210-	●	●	●	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98074-116-1	01	1	1207-1209	●	●	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98074-116-1	01	1	1210-	●	●	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) 09.260 (A) ID=11.7	8-97095-907-0	01	1	1207-1209	●	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) 09.260 (A) ID=11.7	8-97095-907-0	01	1	1210-	●	●	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1207-1209	●	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1210-	●	●	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98047-420-0	01	1	1207-1209	●	●	●
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-420-0	01	1	1210-	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98047-420-0	01	1	1210-		●	●
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-420-0	01	1	1210-				●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98047-421-0	01	1	1207-1209	●	●	●
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-421-0	01	1	1210-	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98047-421-0	01	1	1210-		●	●
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-421-0	01	1	1210-				●
237	08.855 INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-98047-382-0	01	1	1207-1209	●	●	●
237	08.855 INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-98047-382-0	01	1	1210-	●	●	●	●
238	08.845 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-98047-383-0	01	1	1207-1209	●	●	●
238	08.845 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-98047-383-0	01	1	1210-	●	●	●	●
239	08.846 TUBE ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98074-115-0	01	1	1207-1209	●	●	●
239	08.846 TUBE ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98074-115-0	01	1	1210-	●	●	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=7.4	8-97095-906-0	01	1	1207-1209	●	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=7.4	8-97095-906-0	01	1	1210-	●	●	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) 09.225 (A) ID=14.5	8-97095-908-0	01	1	1207-1209	●	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) 09.225 (A) ID=14.5	8-97095-908-0	01	1	1210-	●	●	●	●
243	08.854 CORE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.656	8-98048-508-0	01	1	1207-1209	●	●	●
243	08.854 CORE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.656	8-98048-508-0	01	1	1210-	●	●	●
243	08.854 CORE AIR CONDITIONER MANUAL CONT(C60) 01.656	8-98048-508-0	01	1	1210-				●
244	08.854 PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98048-510-0	01	1	1207-1209	●	●	●
244	08.854 PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98048-510-0	01	1	1210-	●	●	●
244	08.854 PIPE; INLET AIR CONDITIONER MANUAL CONT(C60)	8-98048-510-0	01	1	1210-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
