Sayfa 8-40 - Isuzu EPC

8-40 — HEATER SYSTEM (#94295) — 238 parça

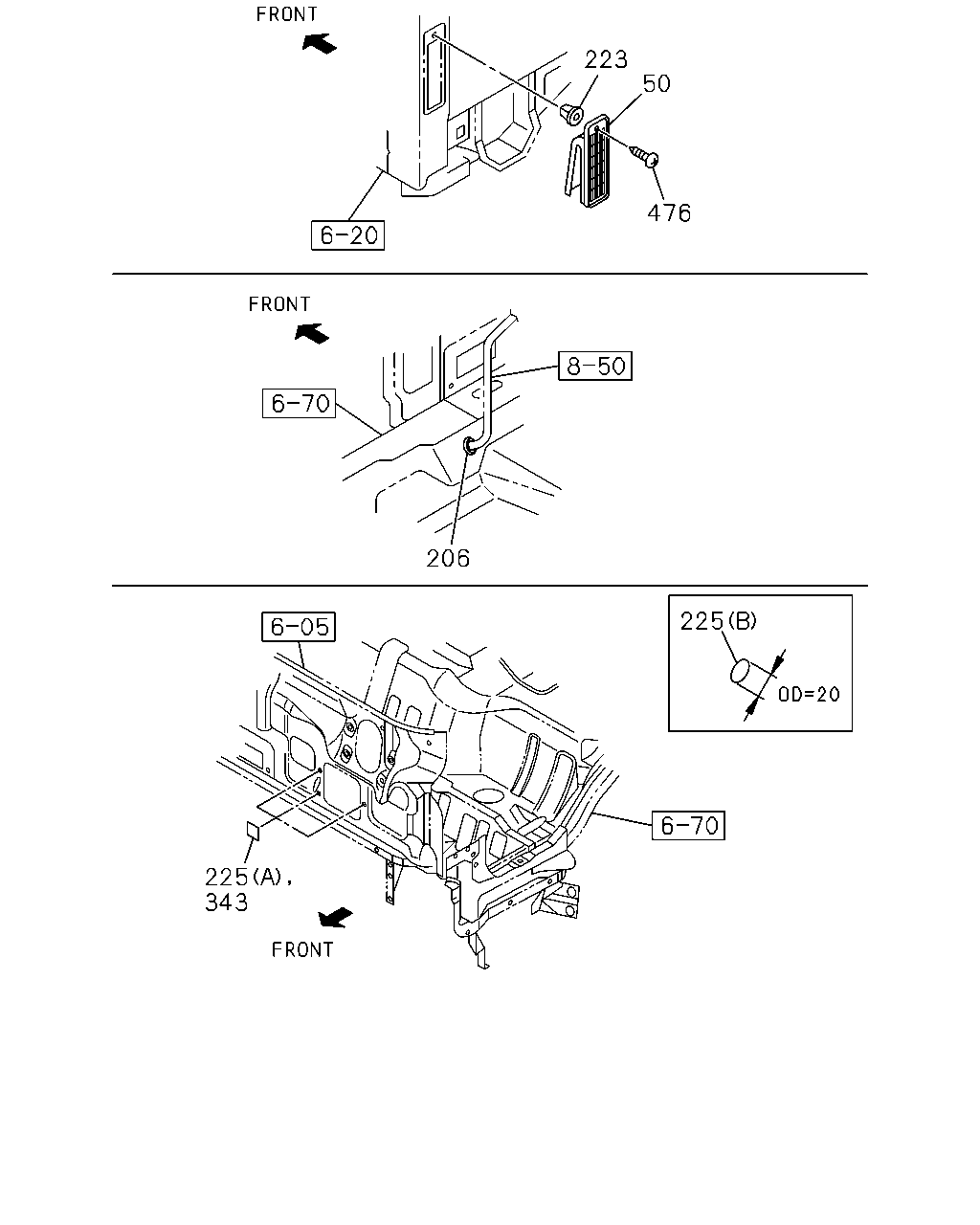

223 476 206 225 225 343 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
50	08.845 VALVE ASM; HTR	8-98080-999-2	01	1	1207-	●
50	08.845 VALVE ASM; HTR	8-98080-998-1	01	1	1207-1209		●	●
50	08.845 VALVE ASM; HTR	8-98080-998-1	01	1	1210-		●	●	●
206	09.743 GROMMET; A/C PIPE TO BLOWER UNIT	8-98019-649-0	01	1	1207-1209	●	●	●	●
206	09.743 GROMMET; A/C PIPE TO BLOWER UNIT	8-98019-649-0	01	1	1210-	●	●	●	●
223	08.845 GROMMET; SCREW 02.679 D=7.9X7.9 L=20 M5	8-94441-539-0	01	1	1207-1209	●	●	●	●
223	08.845 GROMMET; SCREW 02.679 D=7.9X7.9 L=20 M5	8-94441-539-0	01	1	1210-	●	●	●	●
225	08.845 SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-97856-616-0	01	1	1303-	●	●	●
225	08.845 SEAL; WATER AIR CONDITIONER MANUAL CONT(C60) (A)	8-97856-616-0	01	1	1303-				●
225	08.845 SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-97856-616-0	03	1	1207-1209	●	●	●
225	08.845 SEAL; WATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97856-616-0	03	1	1210-1302		●
225	08.845 SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-97856-616-0	03	1	1210-1302	●		●
225	08.845 SEAL; WATER FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97856-616-0	03	1	1210-1302				●
225	08.845 SEAL; WATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97856-616-0	02	1	1303-		●
225	08.845 SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-97856-616-0	02	1	1303-	●		●
225	08.845 SEAL; WATER FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97856-616-0	02	1	1303-				●
225	08.845 SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1207-1209	●	●	●
225	08.845 SEAL; WATER EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1210-1301		●
225	08.845 SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1210-1301	●		●
225	08.845 SEAL; WATER EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1210-1301				●
225	08.845 SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1302-	●	●	●
225	08.845 SEAL; WATER EXC. AIR CONDITIONER MANUAL CONT(C60) 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1302-				●
343	08.845 SEAL; AIR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97856-616-0	02	1	1207-1209	●	●	●
343	08.845 SEAL; AIR DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60)	8-97856-616-0	02	1	1210-		●
343	08.845 SEAL; AIR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97856-616-0	02	1	1210-	●		●
343	08.845 SEAL; AIR DUCT EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-97856-616-0	02	1	1210-				●
476	09.222 SCREW; VALVE M5X16 TAPPING HEXALOBULAR	8-98062-675-0	01	1	1207-1209	●	●	●	●
476	09.222 SCREW; VALVE M5X16 TAPPING HEXALOBULAR	8-98062-675-0	01	1	1210-	●	●	●	●

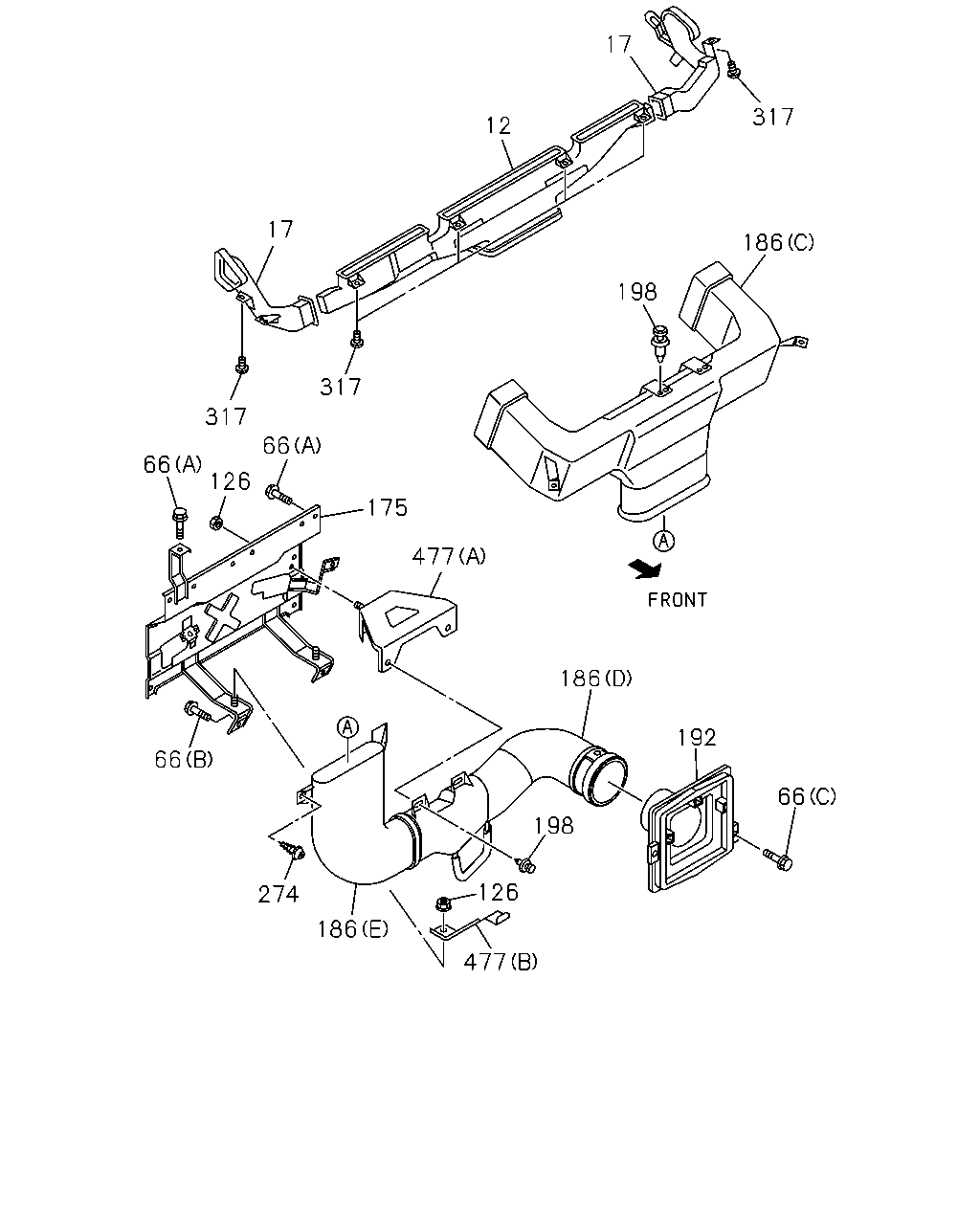

66 192 186 198 126 477 186 274 66 66 126 66 317 317 17 12 17 317 186 198 175 477

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	09.779 NOZZLE; DEFROSTER	8-97585-480-4	01	1	1207-1209	●	●	●
12	09.779 NOZZLE; DEFROSTER	8-97585-480-4	01	1	1210-	●	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-97585-469-1	01	1	1207-1209	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97585-469-1	01	1	1210-		●
17	09.779 NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-97585-469-1	01	1	1210-	●		●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-97585-469-1	01	1	1210-				●
17	09.779 NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-97585-475-5	01	1	1207-1209	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97585-475-5	01	1	1210-		●
17	09.779 NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-97585-475-5	01	1	1210-	●		●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-97585-475-5	01	1	1210-				●
66	08.845 BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	1207-1209	●	●	●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	1210-		●
66	08.845 BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	1210-	●		●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	1210-				●
66	08.845 BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.857 (C) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1207-1209	●	●	●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 08.857 (C) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1210-		●
66	08.845 BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.857 (C) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1210-	●		●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 08.857 (C) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1210-				●
66	08.845 BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	1207-1209	●	●	●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (B) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	1210-		●
66	08.845 BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	1210-	●		●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (B) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	1210-				●
126	09.262 NUT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1207-1209	●	●	●
126	09.262 NUT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1207-1209	●	●	●
126	09.262 NUT; BRKT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1210-		●
126	09.262 NUT; BRKT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1210-		●
126	09.262 NUT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1210-	●		●
126	09.262 NUT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1210-	●		●
126	09.262 NUT; BRKT EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1210-				●
126	09.262 NUT; BRKT EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1210-				●
175	09.262 BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98221-688-0	01	1	1207-1209	●	●	●
175	09.262 BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60)	8-98221-688-0	01	1	1210-		●
175	09.262 BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98221-688-0	01	1	1210-	●		●
175	09.262 BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98221-688-0	01	1	1210-				●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-97585-466-7	01	1	1207-1209	●	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97585-466-7	01	1	1210-1410		●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-97585-466-7	01	1	1210-1410	●		●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97585-466-7	01	1	1210-1410				●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98285-582-0	01	1	1411-		●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98285-582-0	01	1	1411-	●		●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98285-582-0	01	1	1411-				●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-97585-486-6	01	1	1207-1209	●	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97585-486-6	01	1	1210-1410		●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-97585-486-6	01	1	1210-1410	●		●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97585-486-6	01	1	1210-1410				●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98285-585-0	01	1	1411-		●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98285-585-0	01	1	1411-	●		●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98285-585-0	01	1	1411-				●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98054-363-0	01	1	1207-1209	●	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (C)	8-98054-363-0	01	1	1210-		●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98054-363-0	01	1	1210-	●		●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98054-363-0	01	1	1210-				●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98054-371-0	01	1	1207-1209	●	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (E)	8-98054-371-0	01	1	1210-		●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98054-371-0	01	1	1210-	●		●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98054-371-0	01	1	1210-				●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98054-379-2	01	1	1207-1209	●	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (D)	8-98054-379-2	01	1	1210-		●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98054-379-2	01	1	1210-	●		●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98054-379-2	01	1	1210-				●
192	09.262 DUCT; RAM AIR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.417	8-98054-386-4	01	1	1207-1209	●	●	●
192	09.262 DUCT; RAM AIR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 03.417	8-98054-386-4	01	1	1210-		●
192	09.262 DUCT; RAM AIR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.417	8-98054-386-4	01	1	1210-	●		●
192	09.262 DUCT; RAM AIR EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 03.417	8-98054-386-4	01	1	1210-				●
198	09.787 CLIP; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.264	1-09987-144-0	05	1	1207-1209	●	●	●
198	09.787 CLIP; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 09.264	1-09987-144-0	05	1	1210-		●
198	09.787 CLIP; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.264	1-09987-144-0	05	1	1210-	●		●
198	09.787 CLIP; DUCT EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 09.264	1-09987-144-0	05	1	1210-				●
274	08.852 SCREW; VENT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1207-1209	●	●	●
274	08.852 SCREW; VENT DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1210-1212		●
274	08.852 SCREW; VENT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1210-1212	●		●
274	08.852 SCREW; VENT DUCT EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1210-1212				●
274	08.852 SCREW; VENT DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-		●
274	08.852 SCREW; VENT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●		●
274	08.852 SCREW; VENT DUCT EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-				●
317	09.264 SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1207-1209	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1210-1212		●
317	09.264 SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1210-1212	●		●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1210-1212				●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-		●
317	09.264 SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●		●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-				●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1207-1209	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1210-1212	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-	●	●	●	●
477	09.786 BRACKET; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98091-304-0	01	1	1207-1209	●	●	●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (A)	8-98091-304-0	01	1	1210-		●
477	09.786 BRACKET; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98091-304-0	01	1	1210-	●		●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98091-304-0	01	1	1210-				●
477	09.786 BRACKET; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98164-455-0	01	1	1207-1209	●	●	●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (B)	8-98164-455-0	01	1	1210-		●
477	09.786 BRACKET; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98164-455-0	01	1	1210-	●		●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98164-455-0	01	1	1210-				●

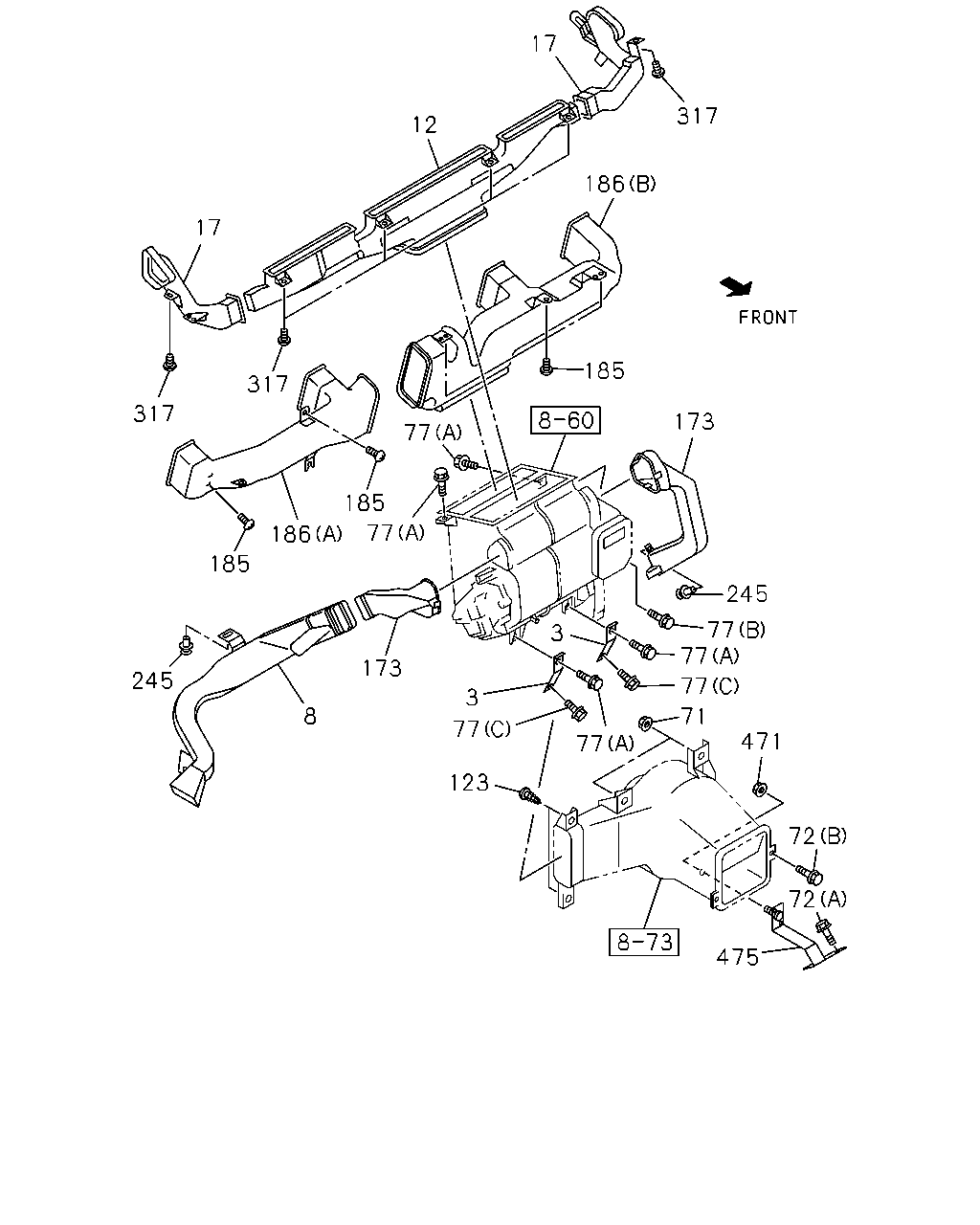

475 72 72 471 71 77 77 77 245 77 123 77 3 173 8 245 185 186 77 185 77 185 173 186 317 17 12 17 317 317 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	08.854 BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98082-473-1	02	1	1207-1209	●	●	●
3	08.854 BRACKET; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98082-473-1	02	1	1210-		●
3	08.854 BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98082-473-1	02	1	1210-	●		●
3	08.854 BRACKET; HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98082-473-1	02	1	1210-				●
8	09.786 DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98084-146-0	01	1	1207-1209	●	●	●
8	09.786 DUCT; HTR AIR,DRIVER FOOT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98084-146-0	01	1	1210-		●
8	09.786 DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98084-146-0	01	1	1210-	●		●
8	09.786 DUCT; HTR AIR,DRIVER FOOT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98084-146-0	01	1	1210-				●
12	09.779 NOZZLE; DEFROSTER	8-97585-480-4	01	1	1207-1209	●	●	●
12	09.779 NOZZLE; DEFROSTER	8-97585-480-4	01	1	1210-	●	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-97585-469-1	01	1	1207-1209	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97585-469-1	01	1	1210-		●
17	09.779 NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-97585-469-1	01	1	1210-	●		●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-97585-469-1	01	1	1210-				●
17	09.779 NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-97585-475-5	01	1	1207-1209	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97585-475-5	01	1	1210-		●
17	09.779 NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-97585-475-5	01	1	1210-	●		●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-97585-475-5	01	1	1210-				●
71	08.845 NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1207-1209	●	●	●
71	08.845 NUT; BLOWER UNIT TO DASH FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1210-		●
71	08.845 NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1210-	●		●
71	08.845 NUT; BLOWER UNIT TO DASH FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1210-				●
72	08.857 BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.085 (A) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	1207-1209	●	●	●
72	08.857 BOLT; BLOWER UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.085 (A) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	1210-		●
72	08.857 BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.085 (A) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	1210-	●		●
72	08.857 BOLT; BLOWER UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 16.085 (A) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	1210-				●
72	08.857 BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1207-1209	●	●	●
72	08.857 BOLT; BLOWER UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1210-		●
72	08.857 BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1210-	●		●
72	08.857 BOLT; BLOWER UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1210-				●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 02.343 (A) M6X16 FLANGE	0-28650-616-0	04	1	1207-1209	●	●	●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.343 (A) M6X16 FLANGE	0-28650-616-0	04	1	1210-		●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 02.343 (A) M6X16 FLANGE	0-28650-616-0	04	1	1210-	●		●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 02.343 (A) M6X16 FLANGE	0-28650-616-0	04	1	1210-				●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	01	1	1207-1209	●	●	●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	01	1	1210-1301		●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	01	1	1210-1301	●		●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	01	1	1210-1301				●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	01	1	1302-	●	●	●
77	08.845 BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	01	1	1302-				●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	1207-1209	●	●	●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	1210-		●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	1210-	●		●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	1210-				●
123	09.786 SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1207-1209	●	●	●
123	09.786 SCREW; DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1210-1212		●
123	09.786 SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1210-1212	●		●
123	09.786 SCREW; DUCT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1210-1212				●
123	09.786 SCREW; DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-		●
123	09.786 SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●		●
123	09.786 SCREW; DUCT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-				●
173	09.786 DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-97585-504-3	01	1	1207-1209	●	●	●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97585-504-3	01	1	1210-		●
173	09.786 DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-97585-504-3	01	1	1210-	●		●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-97585-504-3	01	1	1210-				●
173	09.786 DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98084-145-0	01	1	1207-1209	●	●	●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98084-145-0	01	1	1210-1411		●
173	09.786 DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98084-145-0	01	1	1210-1411	●		●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98084-145-0	01	1	1210-1411				●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98246-555-0	01	1	1412-		●
173	09.786 DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98246-555-0	01	1	1412-	●		●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98246-555-0	01	1	1412-				●
185	09.262 SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1207-1209	●	●	●
185	09.262 SCREW; VENT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1210-1212		●
185	09.262 SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1210-1212	●		●
185	09.262 SCREW; VENT DUCT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1210-1212				●
185	09.262 SCREW; VENT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-		●
185	09.262 SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-	●		●
185	09.262 SCREW; VENT DUCT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-				●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-97585-466-7	01	1	1207-1209	●	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97585-466-7	01	1	1210-1410		●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-97585-466-7	01	1	1210-1410	●		●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97585-466-7	01	1	1210-1410				●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98285-582-0	01	1	1411-		●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98285-582-0	01	1	1411-	●		●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98285-582-0	01	1	1411-				●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-97585-486-6	01	1	1207-1209	●	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97585-486-6	01	1	1210-1410		●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-97585-486-6	01	1	1210-1410	●		●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97585-486-6	01	1	1210-1410				●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98285-585-0	01	1	1411-		●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98285-585-0	01	1	1411-	●		●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98285-585-0	01	1	1411-				●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98054-363-0	01	1	1207-1209	●	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (C)	8-98054-363-0	01	1	1210-		●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98054-363-0	01	1	1210-	●		●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98054-363-0	01	1	1210-				●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98054-371-0	01	1	1207-1209	●	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (E)	8-98054-371-0	01	1	1210-		●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98054-371-0	01	1	1210-	●		●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98054-371-0	01	1	1210-				●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98054-379-2	01	1	1207-1209	●	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (D)	8-98054-379-2	01	1	1210-		●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98054-379-2	01	1	1210-	●		●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98054-379-2	01	1	1210-				●
245	09.786 CLIP; FOOT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 09.264	1-09987-144-0	02	1	1207-1209	●	●	●
245	09.786 CLIP; FOOT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.264	1-09987-144-0	02	1	1210-		●
245	09.786 CLIP; FOOT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 09.264	1-09987-144-0	02	1	1210-	●		●
245	09.786 CLIP; FOOT DUCT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 09.264	1-09987-144-0	02	1	1210-				●
317	09.264 SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1207-1209	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1210-1212		●
317	09.264 SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1210-1212	●		●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1210-1212				●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-		●
317	09.264 SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●		●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-				●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1207-1209	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1210-1212	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-	●	●	●	●
471	08.866 NUT; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1207-1209	●	●	●
471	08.866 NUT; BLOWER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1210-		●
471	08.866 NUT; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1210-	●		●
471	08.866 NUT; BLOWER FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1210-				●
475	09.277 BRACKET; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-97387-092-2	01	1	1207-1209	●	●	●
475	09.277 BRACKET; BLOWER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97387-092-2	01	1	1210-		●
475	09.277 BRACKET; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-97387-092-2	01	1	1210-	●		●
475	09.277 BRACKET; BLOWER FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-97387-092-2	01	1	1210-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
