8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#94292) — 52 parça

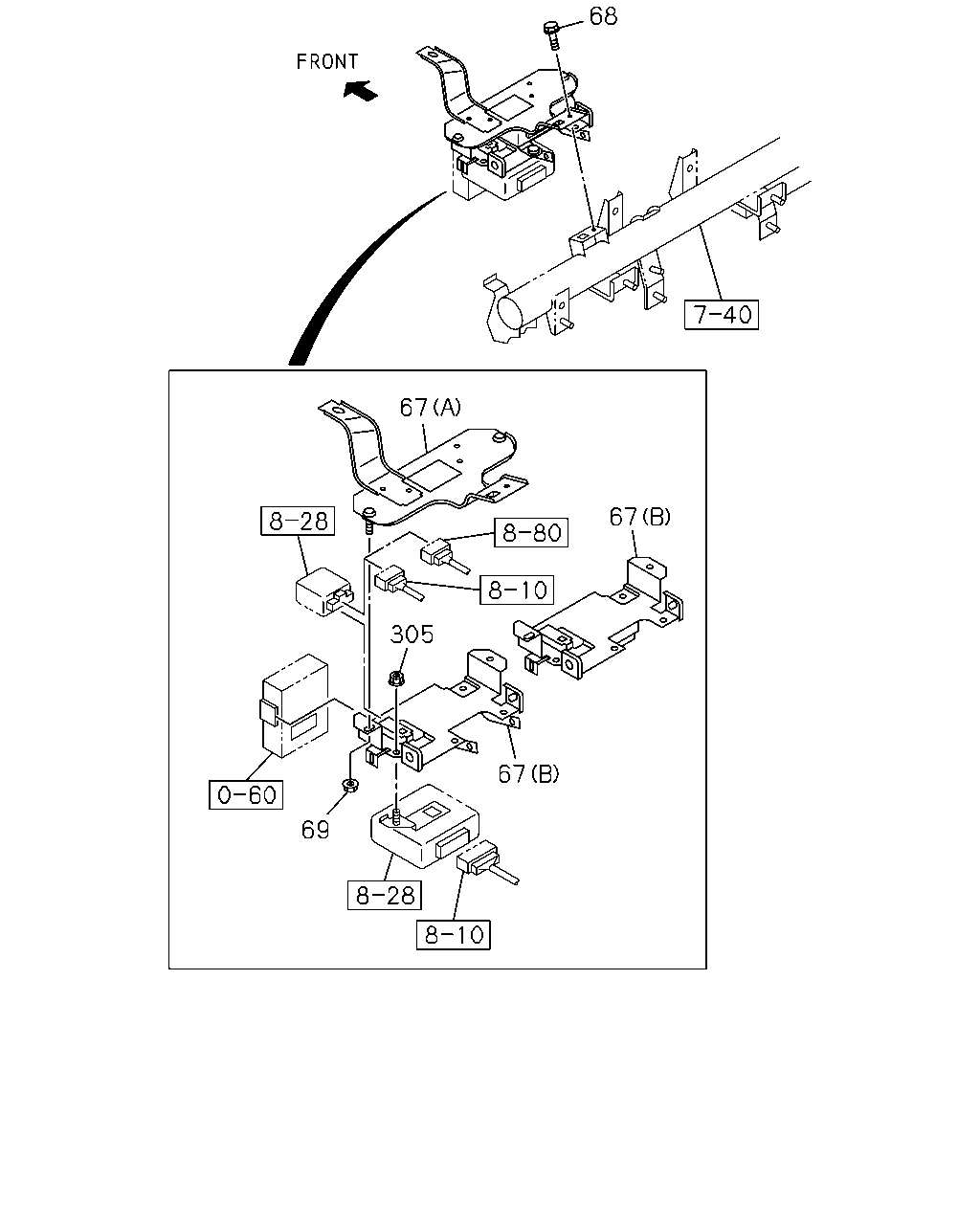

68 67 67 67 69 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
67	03.887 BRACKET; CONT UNIT (B)	8-98203-057-0	01	1	1207-1207	●	●	●
67	03.887 BRACKET; CONT UNIT (B)	8-98217-377-0	01	1	1208-1209	●	●	●
67	03.887 BRACKET; CONT UNIT (B)	8-98217-377-0	01	1	1210-1212	●	●	●	●
67	03.887 BRACKET; CONT UNIT (B)	8-98237-555-0	01	1	1301-1404	●	●	●	●
67	03.887 BRACKET; CONT UNIT (B)	8-98217-377-0	01	1	1405-	●	●	●	●
67	03.887 BRACKET; CONT UNIT (A)	8-98022-170-1	01	1	1207-1209	●	●	●
67	03.887 BRACKET; CONT UNIT (A)	8-98022-170-1	01	1	1210-	●	●	●	●
68	02.500 BOLT; BRKT 00.206 M6X12 FLANGE	0-28450-612-0	01	1	1207-1209	●	●	●
68	02.500 BOLT; BRKT 00.206 M6X12 FLANGE	0-28450-612-0	01	1	1210-	●	●	●	●
69	02.458 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	02	1	1207-1209	●	●	●
69	02.458 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	02	1	1210-	●	●	●	●
305	08.915 NUT; CONT UNIT REMOTE CONT DOOR LOCK<6NF> 01.062 M6 FLANGE	0-91180-106-0	01	1	1207-	●	●	●

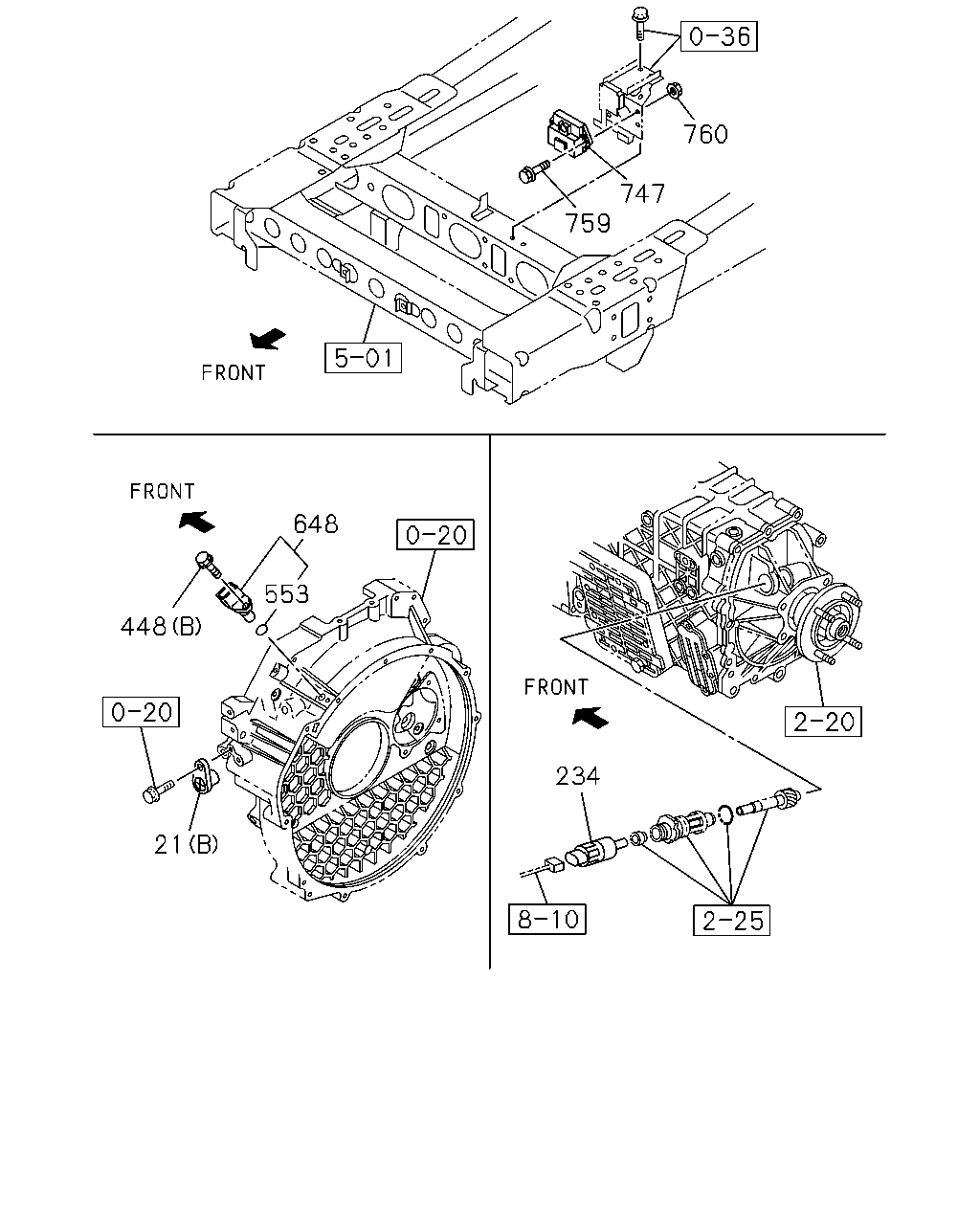

760 747 759 648 553 448 21 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
21	09.744 COVER; HOLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.748 (B)	8-97101-974-0	01	1	1207-	●	●	●
21	09.744 COVER; HOLE 16.081 (A)	8-98025-954-1	01	1	1207-1209	●	●	●
21	09.744 COVER; HOLE 16.081 (A)	8-98025-954-1	01	1	1207-1209	●	●	●
21	09.744 COVER; HOLE 16.081 (A)	8-98025-954-1	01	1	1207-1209	●	●	●
21	09.744 COVER; HOLE 16.081 (A)	8-98025-954-1	01	1	1210-	●	●	●	●
21	09.744 COVER; HOLE 16.081 (A)	8-98025-954-1	01	1	1210-	●	●	●	●
21	09.744 COVER; HOLE 16.081 (A)	8-98025-954-1	01	1	1210-	●	●	●	●
234	03.682 SENSOR; VEHICLE SPD 25 PULSE ALUMINUM	8-97328-058-1	01	1	1207-1209		●
234	03.682 SENSOR; VEHICLE SPD EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 25 PULSE ALUMINUM	8-97328-058-1	01	1	1210-	●
234	03.682 SENSOR; VEHICLE SPD 25 PULSE ALUMINUM	8-97328-058-1	01	1	1210-		●		●
448	02.500 BOLT; SENSOR AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER	8-97105-796-1	02	1	1207-	●	●	●
448	02.500 BOLT; SENSOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.242 (B) M6X16 FLANGE	0-28050-616-0	01	1	1207-	●	●	●
553	02.500 GASKET 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.724 ID=14.2 OD=18.8	8-97369-404-0	01	1	1207-	●	●	●
648	03.682 SENSOR; CRANK ANGLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97606-943-0	01	1	1207-	●	●	●
747	02.510 CONTROL UNIT; TURBOCHARGER 4HK1-TCN ENG(RDQ)	8-98162-807-0	01	1	1207-	●		●
747	02.510 CONTROL UNIT; TURBOCHARGER 4HK1-TCS ENG(RJS)	8-98162-807-0	01	1	1207-		●
759	04.115 BOLT; CONT MODULE,TURBOCHARGER 4HK1-TCN ENG(RDQ) 03.162 M6X20 FLANGE	0-28650-620-0	02	1	1207-	●		●
759	04.115 BOLT; CONT MODULE,TURBOCHARGER 4HK1-TCS ENG(RJS) 03.162 M6X20 FLANGE	0-28650-620-0	02	1	1207-		●
760	04.115 NUT; CONT MODULE,TURBOCHARGER 4HK1-TCN ENG(RDQ) 01.062 M6 FLANGE	0-91180-106-0	02	1	1207-	●		●
760	04.115 NUT; CONT MODULE,TURBOCHARGER 4HK1-TCS ENG(RJS) 01.062 M6 FLANGE	0-91180-106-0	02	1	1207-		●

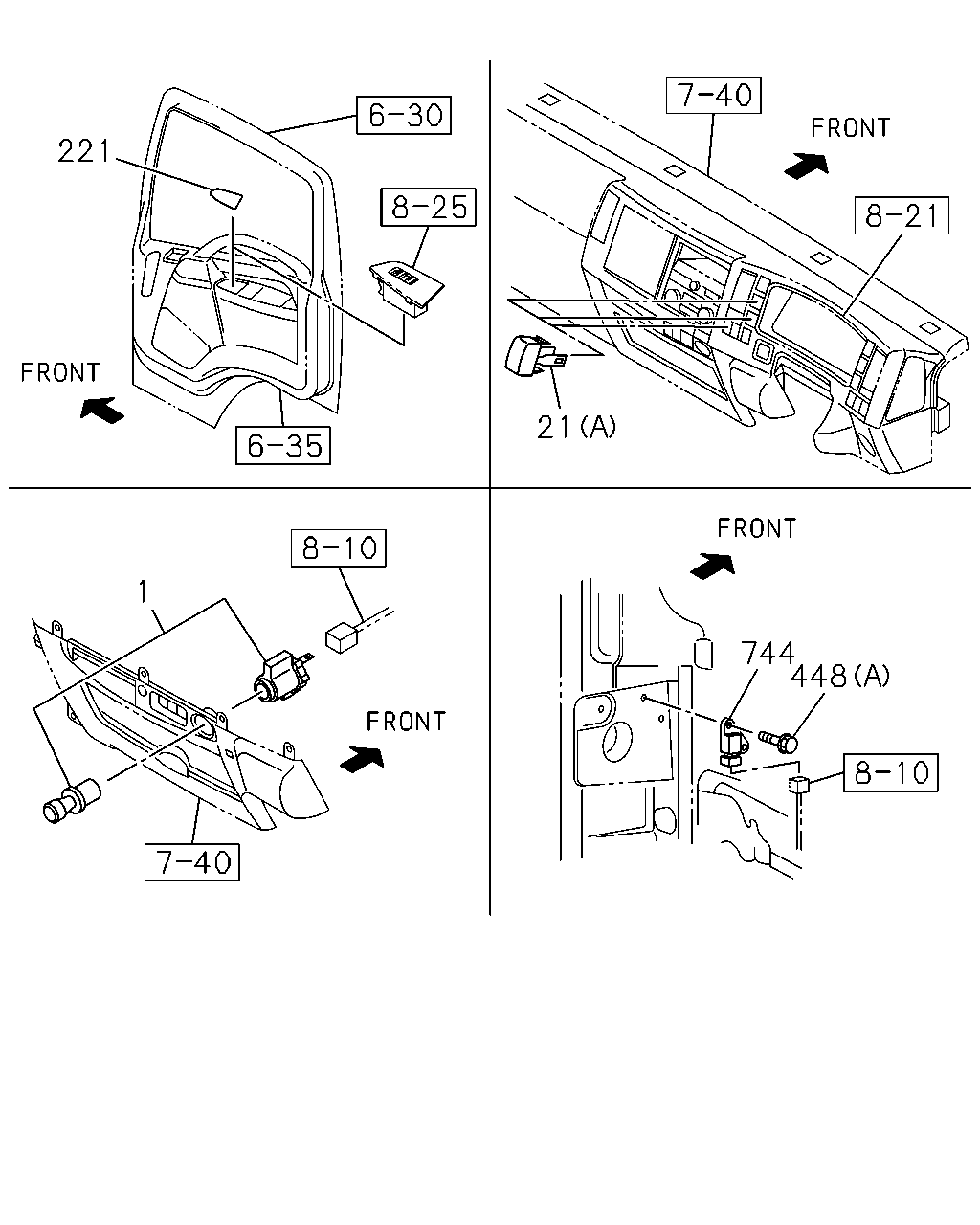

448 744 21 221 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	09.709 LIGHTER; CIGAR	8-98142-962-0	01	1	1207-1209	●	●	●
1	09.709 LIGHTER; CIGAR	8-98142-962-0	01	1	1210-	●	●	●	●
21	09.744 COVER; HOLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.748 (B)	8-97101-974-0	01	1	1207-	●	●	●
21	09.744 COVER; HOLE 16.081 (A)	8-98025-954-1	01	1	1207-1209	●	●	●
21	09.744 COVER; HOLE 16.081 (A)	8-98025-954-1	01	1	1207-1209	●	●	●
21	09.744 COVER; HOLE 16.081 (A)	8-98025-954-1	01	1	1207-1209	●	●	●
21	09.744 COVER; HOLE 16.081 (A)	8-98025-954-1	01	1	1210-	●	●	●	●
21	09.744 COVER; HOLE 16.081 (A)	8-98025-954-1	01	1	1210-	●	●	●	●
21	09.744 COVER; HOLE 16.081 (A)	8-98025-954-1	01	1	1210-	●	●	●	●
221	16.320 COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT DOOR<A32>	8-98029-915-2	01	1	1207-1209	●	●
221	16.320 COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98029-915-2	01	1	1207-1209			●
221	16.320 COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT DOOR<A32>	8-98029-915-2	01	1	1210-	●	●		●
221	16.320 COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98029-915-2	01	1	1210-			●
221	16.320 COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT DOOR<A32>	8-98029-916-2	01	1	1207-1209	●	●
221	16.320 COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98029-916-2	01	1	1207-1209			●
221	16.320 COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT DOOR<A32>	8-98029-916-2	01	1	1210-	●	●		●
221	16.320 COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98029-916-2	01	1	1210-			●
448	02.500 BOLT; SENSOR AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER	8-97105-796-1	02	1	1207-	●	●	●
448	02.500 BOLT; SENSOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.242 (B) M6X16 FLANGE	0-28050-616-0	01	1	1207-	●	●	●
744	03.682 SENSOR; AIR BAG AIR BAG DRIVER & PASSENGER<AK5>	8-97386-841-2	01	1	1207-	●	●	●
