8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#94291) — 166 parça

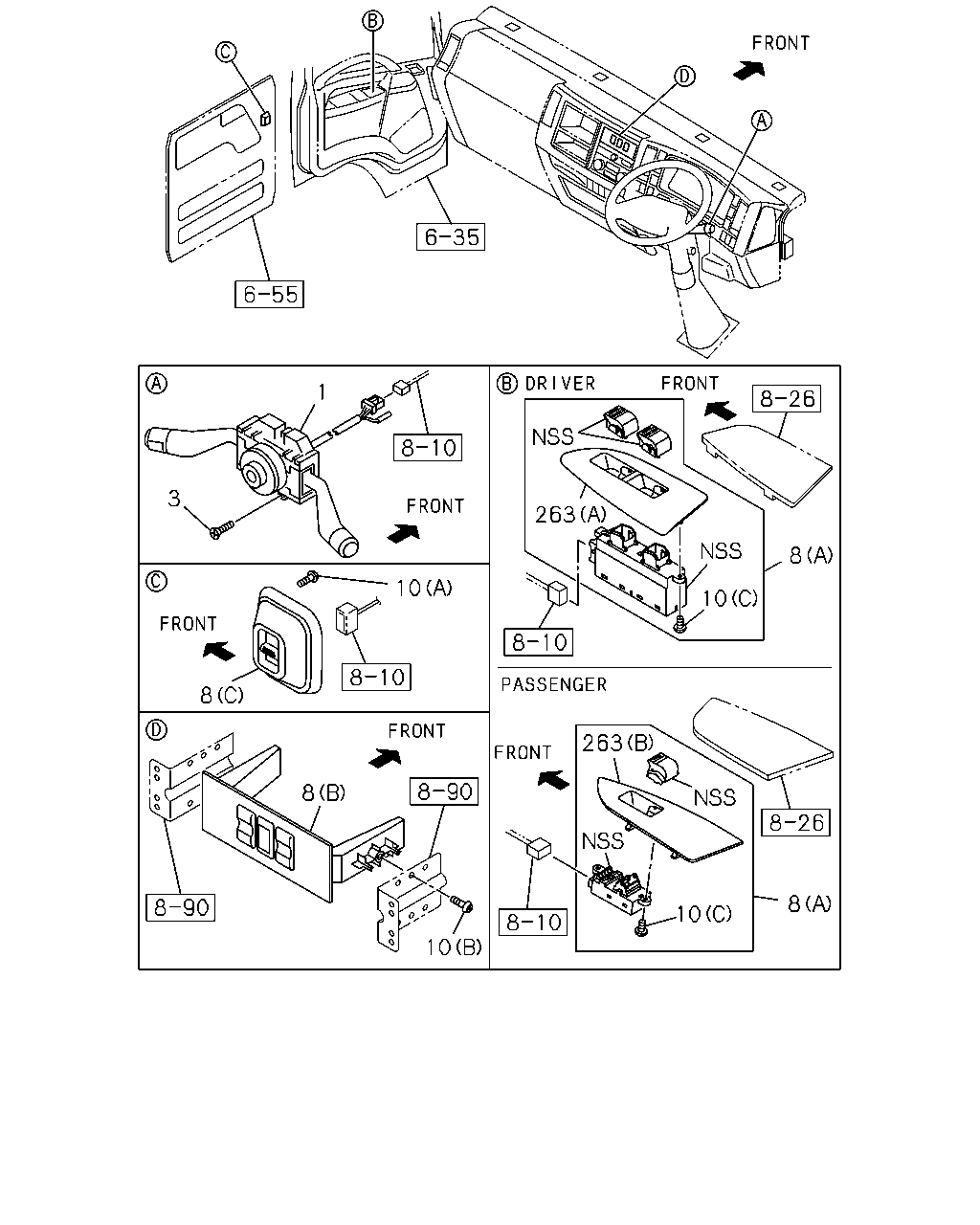

çizim 286474
8 10 263 10 8 8 10 10 8 263 3 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> 		8-98146-635-0 01 1 1207-1210 ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> 		8-98217-808-0 01 1 1211-1310 ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> 		8-98243-725-0 01 1 1311- ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98069-995-1 01 1 1207-1209 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98069-995-1 01 1 1210-1310 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-98069-995-1 01 1 1210-1310 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98243-729-0 01 1 1311- ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-98243-729-0 01 1 1311- ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13> 		8-98069-993-2 01 1 1207-1209 ● ● ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13> 		8-98069-993-2 01 1 1210-1310 ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-98069-993-2 01 1 1210-1310 ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13> 		8-98243-728-0 01 1 1311- ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-98243-728-0 01 1 1311- ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1207-1209 ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1210- ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-97386-987-2 01 1 1207- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (C) REAR SIDE 		8-97387-035-0 02 1 1207- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE 		8-97387-034-2 01 1 1207-1209 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER SIDE 		8-97387-034-2 01 1 1207-1209 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE 		8-97387-034-2 01 1 1210-1509 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER SIDE 		8-97387-034-2 01 1 1210-1509 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE 		8-98316-415-0 01 1 1510- ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER SIDE 		8-98316-415-0 01 1 1510- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE 		8-98159-543-0 01 1 1207-1209 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE 		8-98159-543-0 01 1 1207-1209 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE 		8-98159-543-0 01 1 1210-1509 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE 		8-98159-543-0 01 1 1210-1509 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE 		8-98298-750-0 01 1 1510- ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE 		8-98298-750-0 01 1 1510- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> 16.714 (A) M4X14 TAPPING 		0-74360-414-0 04 1 1207- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> 16.100 (B) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1207- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> (C) 		8-98153-865-0 03 1 1207-1209 ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> (C) 		8-98153-865-0 03 1 1207-1209 ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> (C) 		8-98153-865-0 03 1 1210- ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> (C) 		8-98153-865-0 03 1 1210- ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (A) 		8-98153-836-0 01 1 1207-1209 ● ●
263 16.081 COVER; SW
POWER WINDOW FRT&REAR DOOR<A31> (A) 		8-98153-836-0 01 1 1207-1209 ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (A) 		8-98153-836-0 01 1 1210- ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT&REAR DOOR<A31> (A) 		8-98153-836-0 01 1 1210- ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (B) 		8-98153-841-0 01 1 1207-1209 ● ●
263 16.081 COVER; SW
POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-98153-841-0 01 1 1207-1209 ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (B) 		8-98153-841-0 01 1 1210- ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-98153-841-0 01 1 1210- ●
çizim 286480
151 154
BalonParca AdiParca NoAdetTipApplied Date A B C D
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207-1209 ● ● ●
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1210- ● ● ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1207-1209 ● ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1210- ● ● ● ●

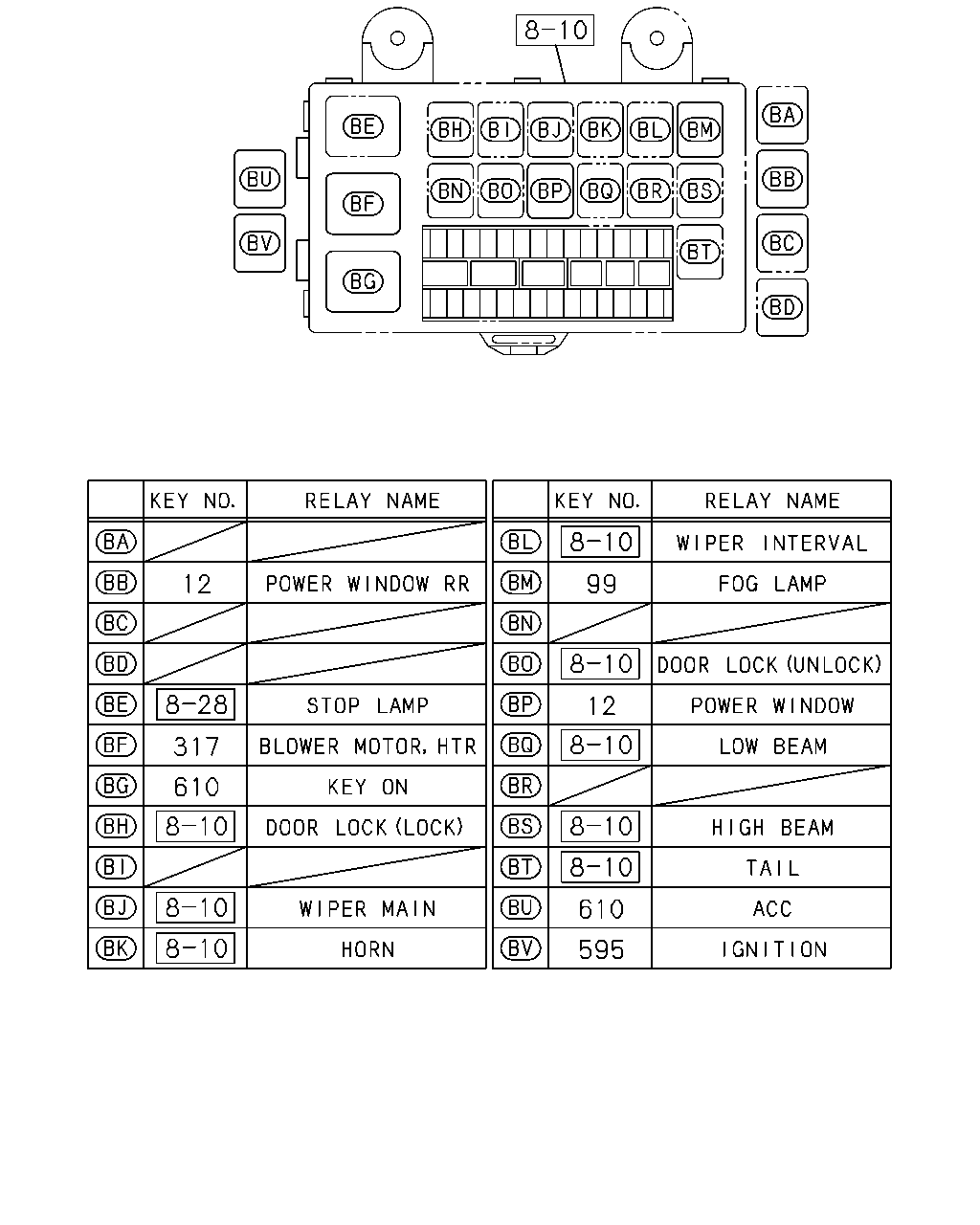

çizim 286481
12 317 610 99 12 610 595
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1207-1209 ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1207-1209 ●
12 08.852 RELAY; POWER WINDOW
4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1207-1209 ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1210- ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1210- ●
12 08.852 RELAY; POWER WINDOW
4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1210- ●
99 02.485 RELAY; FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1207-1209 ● ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1210- ● ●
99 02.485 RELAY; FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1210- ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207-1209 ● ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1210- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1210- ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1210- ●
595 02.510 RELAY; IGNITION
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207-1209 ● ● ●
595 02.510 RELAY; IGNITION
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1210- ● ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207-1209 ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207-1209 ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1210- ● ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1210- ● ● ● ●

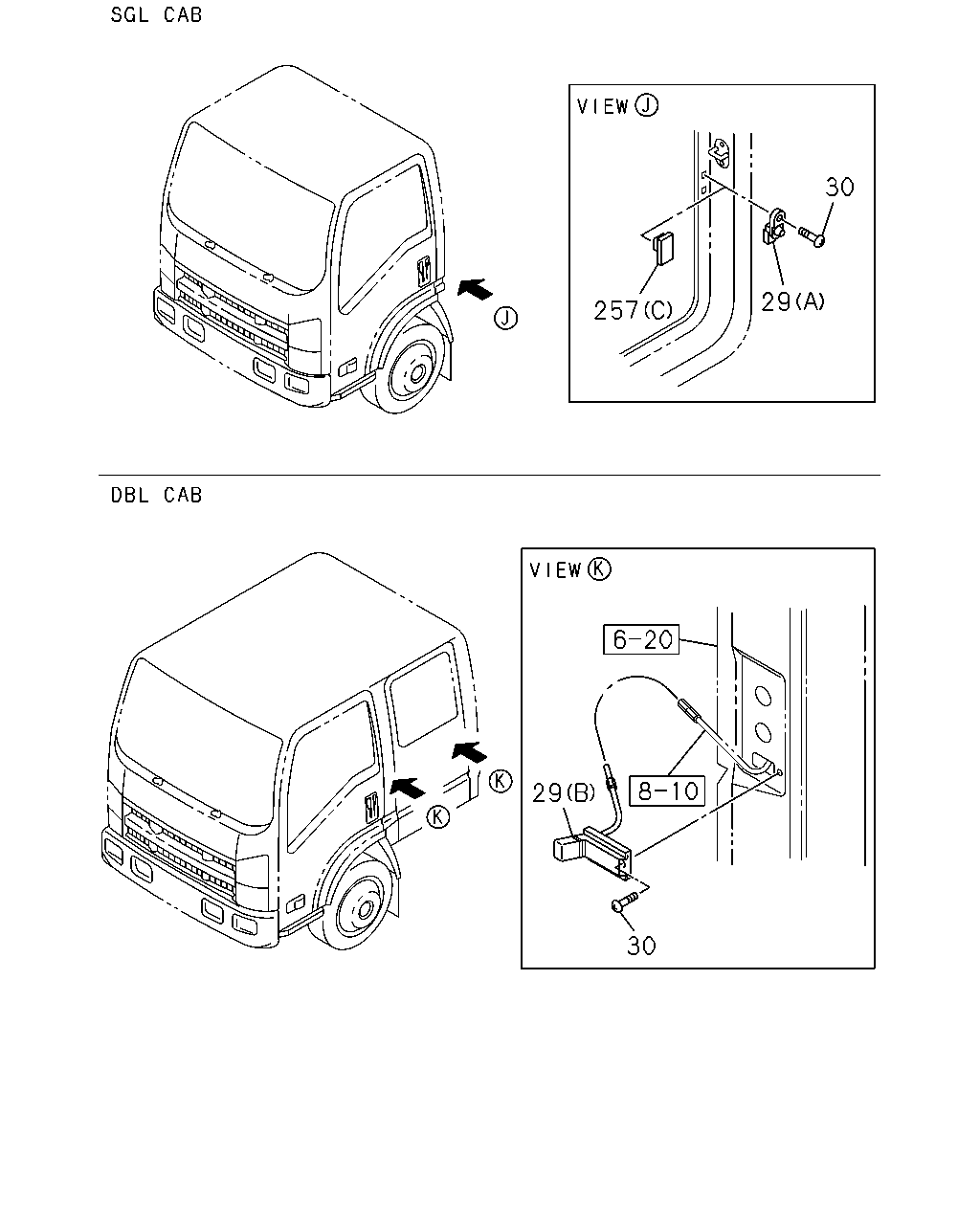

çizim 286483
30 29 30 29 257
BalonParca AdiParca NoAdetTipApplied Date A B C D
29 16.263 SWITCH; DOOR
(B) FRONT 		8-97855-032-3 01 1 1207- ●
29 16.263 SWITCH; DOOR
(B) FRONT 		8-97855-032-3 01 1 1207- ●
29 16.263 SWITCH; DOOR
(B) REAR 		8-98054-195-0 01 1 1207- ●
29 16.263 SWITCH; DOOR
(B) REAR 		8-98054-195-0 01 1 1207- ●
29 16.263 SWITCH; DOOR
(A) BLACK 		8-98022-211-0 01 1 1207-1209 ● ●
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF> (A) BLACK 		8-98022-211-0 01 1 1207-1209 ● ●
29 16.263 SWITCH; DOOR
REMOTE CONT DOOR LOCK<6NF> (A) BLACK 		8-98022-211-0 01 1 1207-1209 ● ●
29 16.263 SWITCH; DOOR
(A) BLACK 		8-98022-211-0 01 1 1210- ● ● ●
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF> (A) BLACK 		8-98022-211-0 01 1 1210- ● ●
29 16.263 SWITCH; DOOR
REMOTE CONT DOOR LOCK<6NF> (A) BLACK 		8-98022-211-0 01 1 1210- ● ●
30 16.263 SCREW; DOOR SW
ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF> M5X18 		8-98047-201-0 02 1 1207- ● ●
30 16.263 SCREW; DOOR SW
REMOTE CONT DOOR LOCK<6NF> M5X18 		8-98047-201-0 02 1 1207- ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 04 1 1207- ●
30 16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF> M5X18 		8-98047-201-0 01 1 1207-1209 ● ●
30 16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF> M5X18 		8-98047-201-0 01 1 1210- ● ●
30 16.263 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 1210- ●
257 16.081 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1207-1209 ● ● ●
257 16.081 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1210- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF> (C) 		8-98029-917-0 01 1 1207-1209 ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF> (C) 		8-98029-917-0 01 1 1210- ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98029-917-0 01 1 1210- ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1207-1209 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1207-1209 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1207-1209 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1207-1209 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1207-1209 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1207-1209 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1207-1209 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1207-1209 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1207-1209 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1210-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1210-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1210-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1210-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1210-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1210-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1210-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1210-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1210-1211 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1210-1211 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1212- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1212- ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1212- ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ●

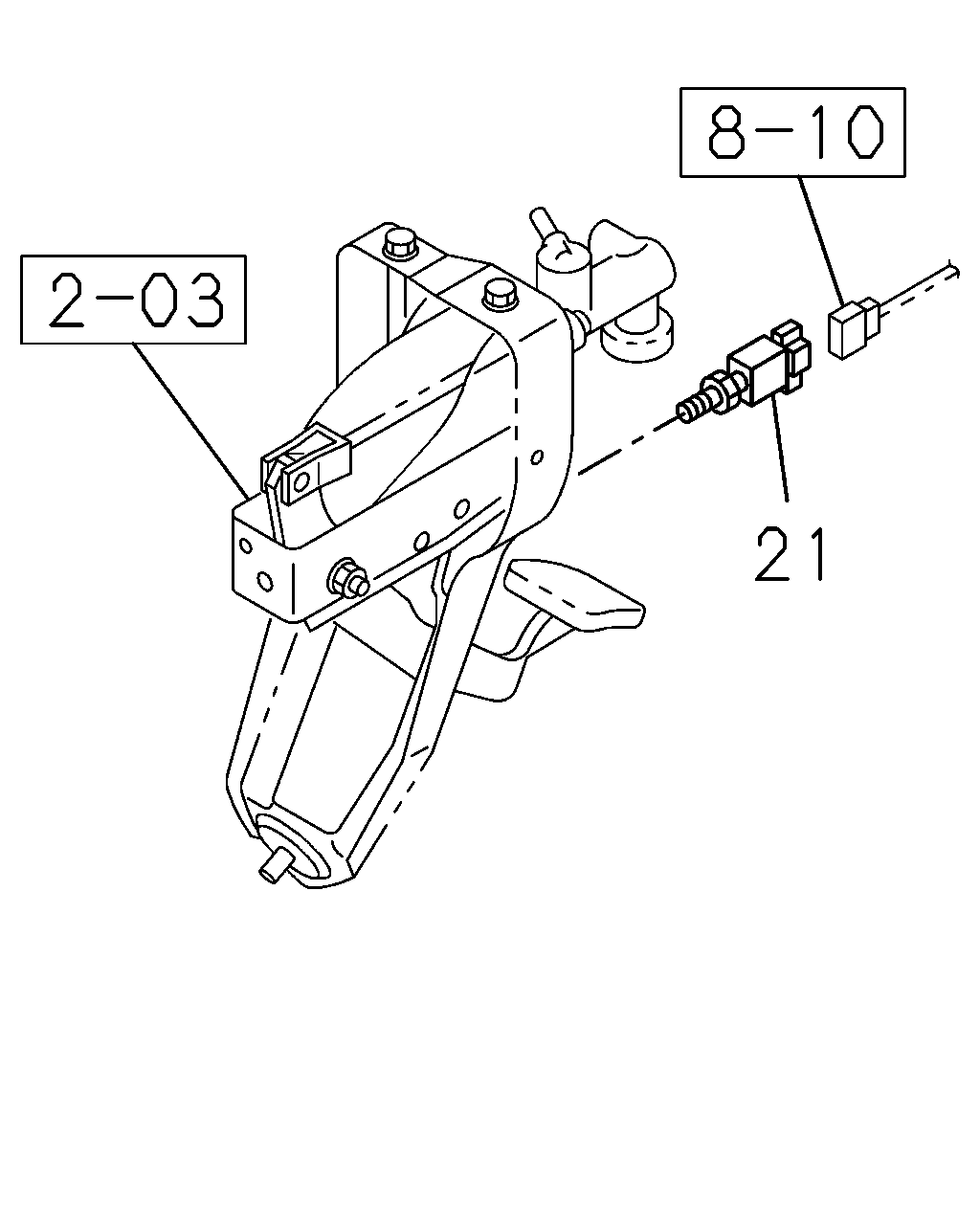

çizim 286487
21
BalonParca AdiParca NoAdetTipApplied Date A B C D
21 02.575 SWITCH; CLU 8-97358-248-0 01 1 1207-1209 ● ● ●
21 02.575 SWITCH; CLU 8-97358-248-0 01 1 1210- ● ● ● ●

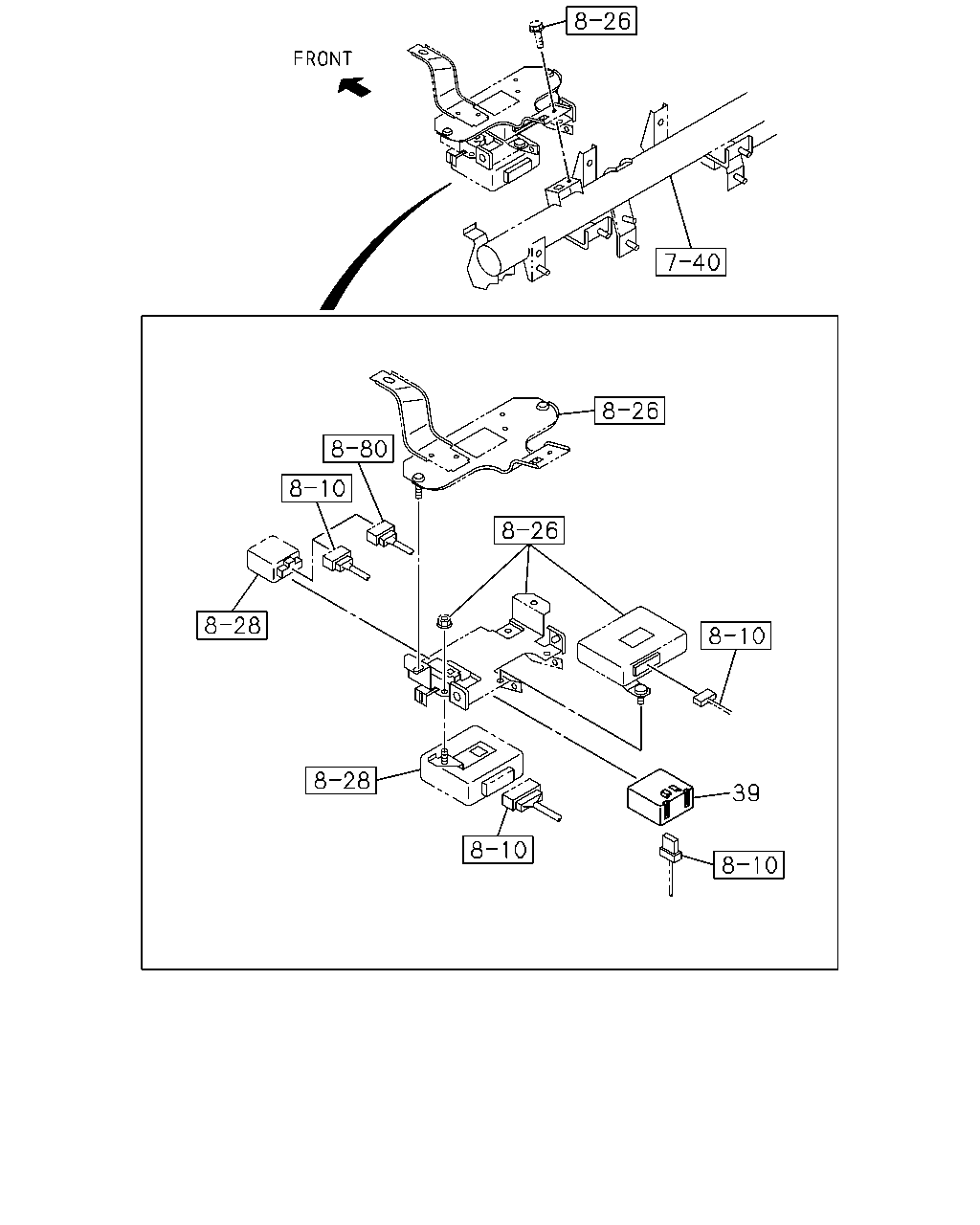

çizim 286652
39
BalonParca AdiParca NoAdetTipApplied Date A B C D
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98060-789-0 01 1 1207-1209 ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98060-789-0 01 1 1210- ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-98060-789-0 01 1 1210- ●

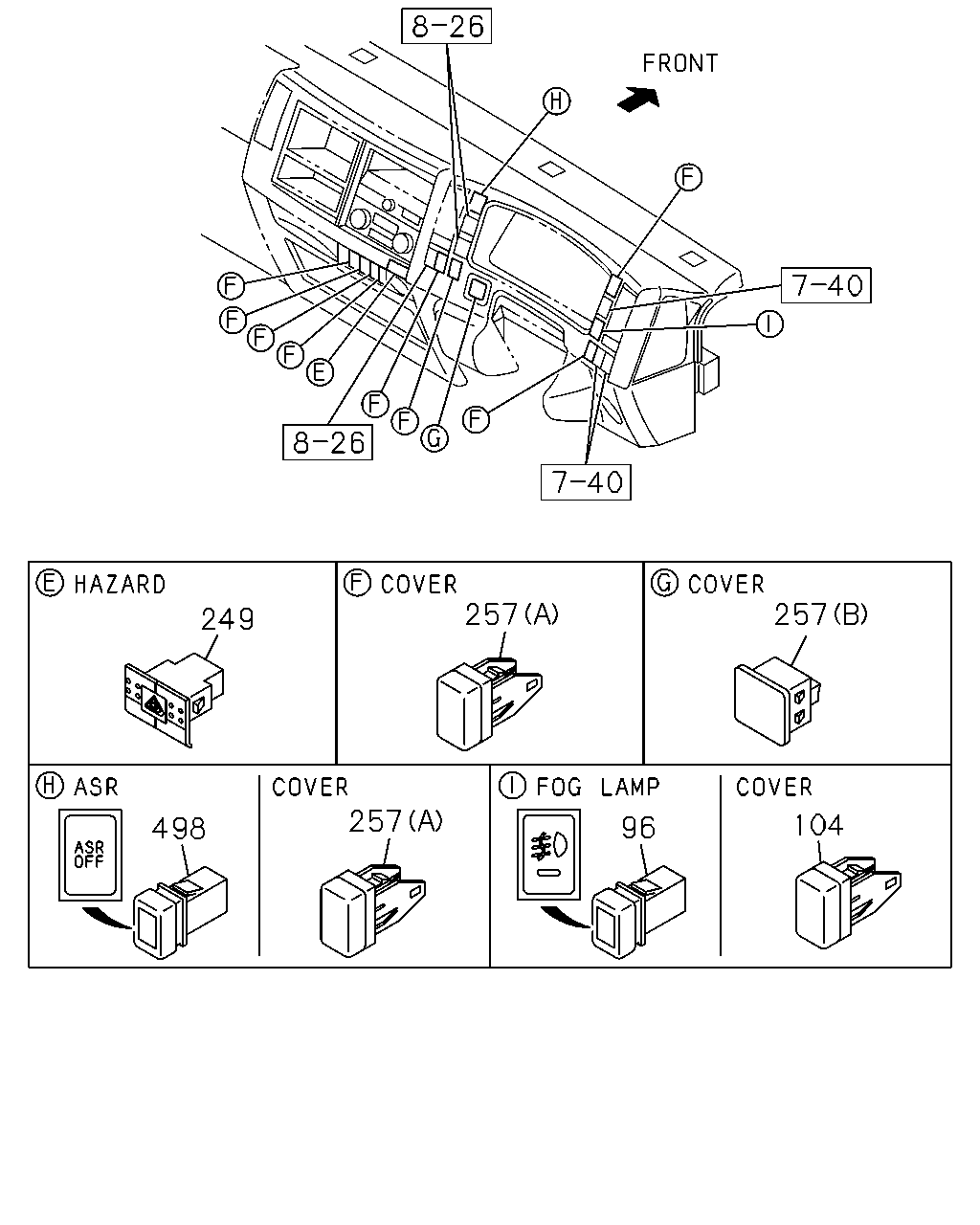

çizim 286653
104 96 257 498 249 257 257
BalonParca AdiParca NoAdetTipApplied Date A B C D
96 02.485 SWITCH; FOG LAMP 8-97387-031-3 01 1 1207-1209 ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 1210- ● ●
96 02.485 SWITCH; FOG LAMP 8-97387-031-4 01 1 1210- ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 1210- ● ●
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 1207-1209 ● ● ●
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 1210- ● ● ● ●
257 16.081 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1207-1209 ● ● ●
257 16.081 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1210- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF> (C) 		8-98029-917-0 01 1 1207-1209 ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF> (C) 		8-98029-917-0 01 1 1210- ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98029-917-0 01 1 1210- ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1207-1209 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1207-1209 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1207-1209 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1207-1209 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1207-1209 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1207-1209 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1207-1209 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1207-1209 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1207-1209 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1210-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1210-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1210-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1210-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1210-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1210-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1210-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1210-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1210-1211 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1210-1211 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1212- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1212- ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1212- ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ●
498 03.883 SWITCH; ASR 8-97386-920-2 01 1 1207-1209 ● ●
498 03.883 SWITCH; ASR
THROTTLE CONTROL SYSTEM<6XH> 		8-97386-920-2 01 1 1210- ●
498 03.883 SWITCH; ASR 8-97386-920-2 01 1 1210- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
