8-21 — METER ASM (#94290) — 24 parça

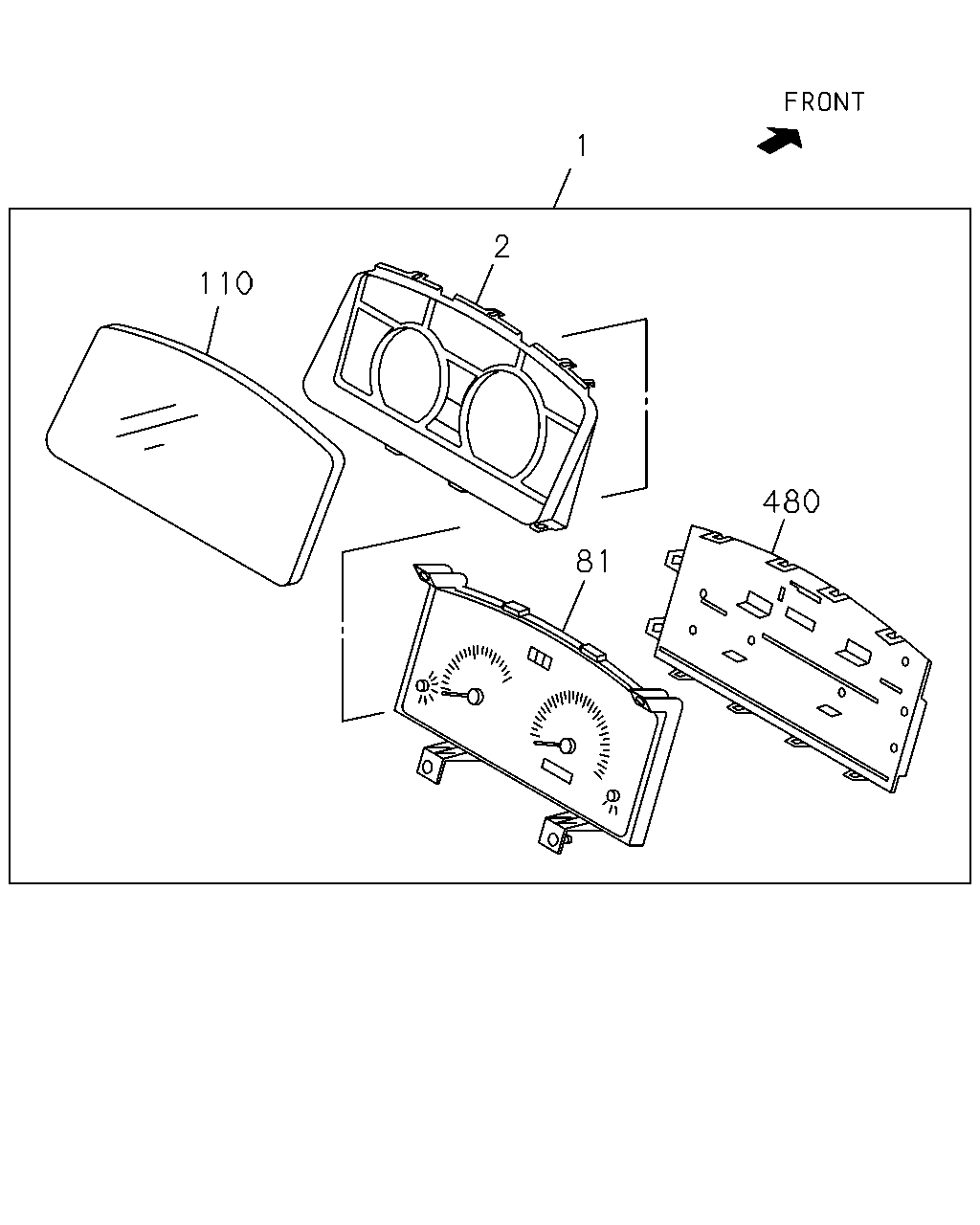

çizim 286467
1 110 2 81 480
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ) 		8-98021-249-4 01 1 1207- ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCS ENG(RJS) 		8-98021-249-4 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCC ENG(RDU) 		8-98161-295-0 01 1 1210- ● ●
2 09.735 PANEL; CLUSTER 8-98054-432-0 01 1 1207-1209 ● ● ●
2 09.735 PANEL; CLUSTER 8-98054-432-0 01 1 1210- ● ● ● ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ) 		8-98073-677-0 01 1 1207- ● ●
81 09.735 METER SUB ASM
4HK1-TCS ENG(RJS) 		8-98073-677-0 01 1 1207- ●
81 09.735 METER SUB ASM
4JJ1-TCC ENG(RDU) 		8-98176-353-0 01 1 1210- ● ●
110 09.748 GLASS; CLUSTER METER 8-98054-431-0 01 1 1207-1209 ● ● ●
110 09.748 GLASS; CLUSTER METER 8-98054-431-0 01 1 1210- ● ● ● ●
480 09.748 COVER; METER
BLACK 		8-98054-433-0 01 1 1207-1209 ● ● ●
480 09.748 COVER; METER
BLACK 		8-98054-433-0 01 1 1210- ● ● ● ●

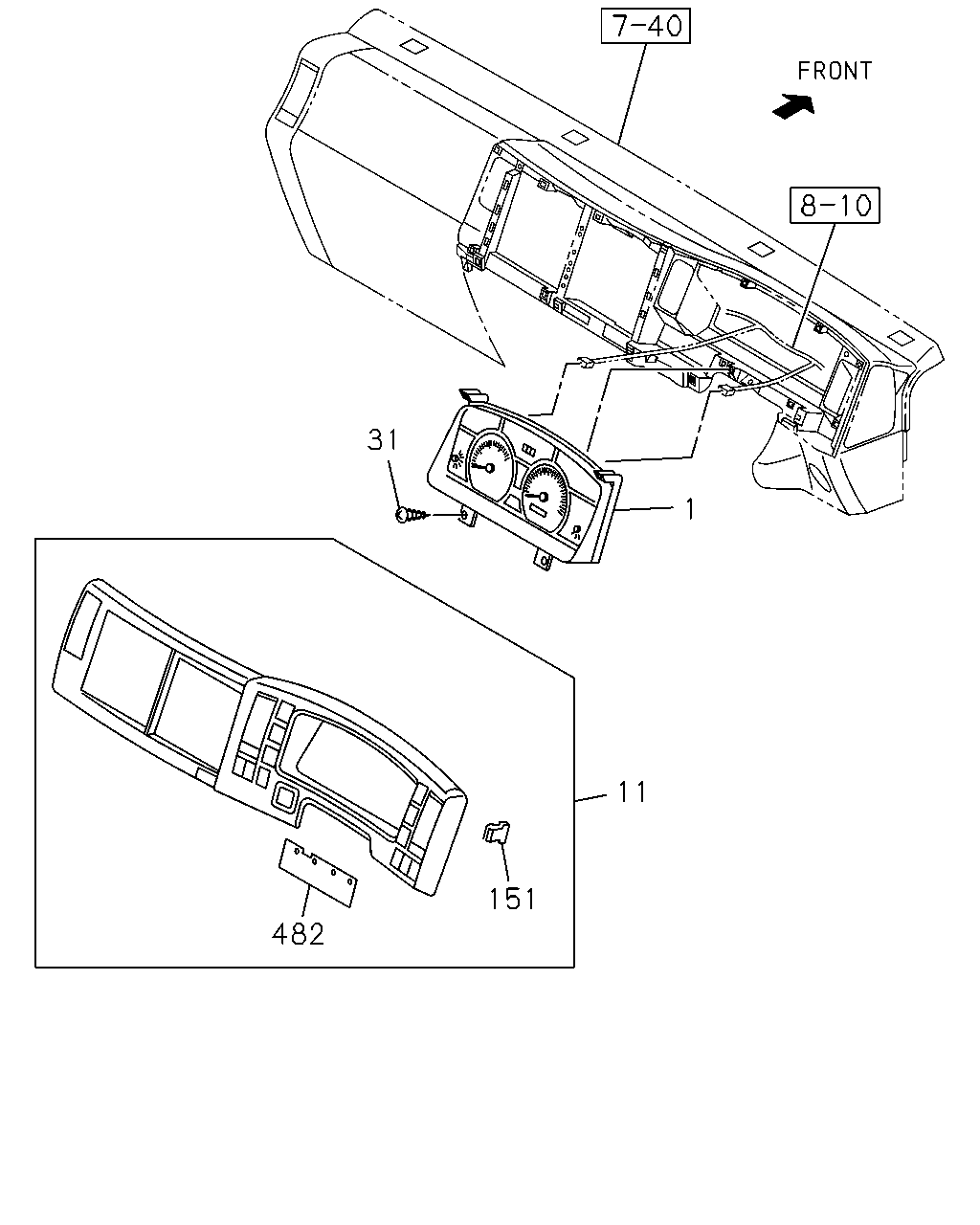

çizim 286651
31 1 11 151 482
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ) 		8-98021-249-4 01 1 1207- ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCS ENG(RJS) 		8-98021-249-4 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCC ENG(RDU) 		8-98161-295-0 01 1 1210- ● ●
11 09.743 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-6 01 1 1207-1209 ● ● ●
11 09.743 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-6 01 1 1210- ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1207-1209 ● ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1210-1212 ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301- ● ● ● ●
151 09.747 CLIP; METER CLUSTER
16.085 		8-98021-271-0 13 1 1207-1209 ● ● ●
151 09.747 CLIP; METER CLUSTER
16.085 		8-98021-271-0 13 1 1210- ● ● ● ●
482 09.772 SEAL; CLUSTER METER 8-98116-842-0 01 1 1207-1209 ● ● ●
482 09.772 SEAL; CLUSTER METER 8-98116-842-0 01 1 1210- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
