6-20 — SIDE PANEL AND STEP (#9429) — 256 parça

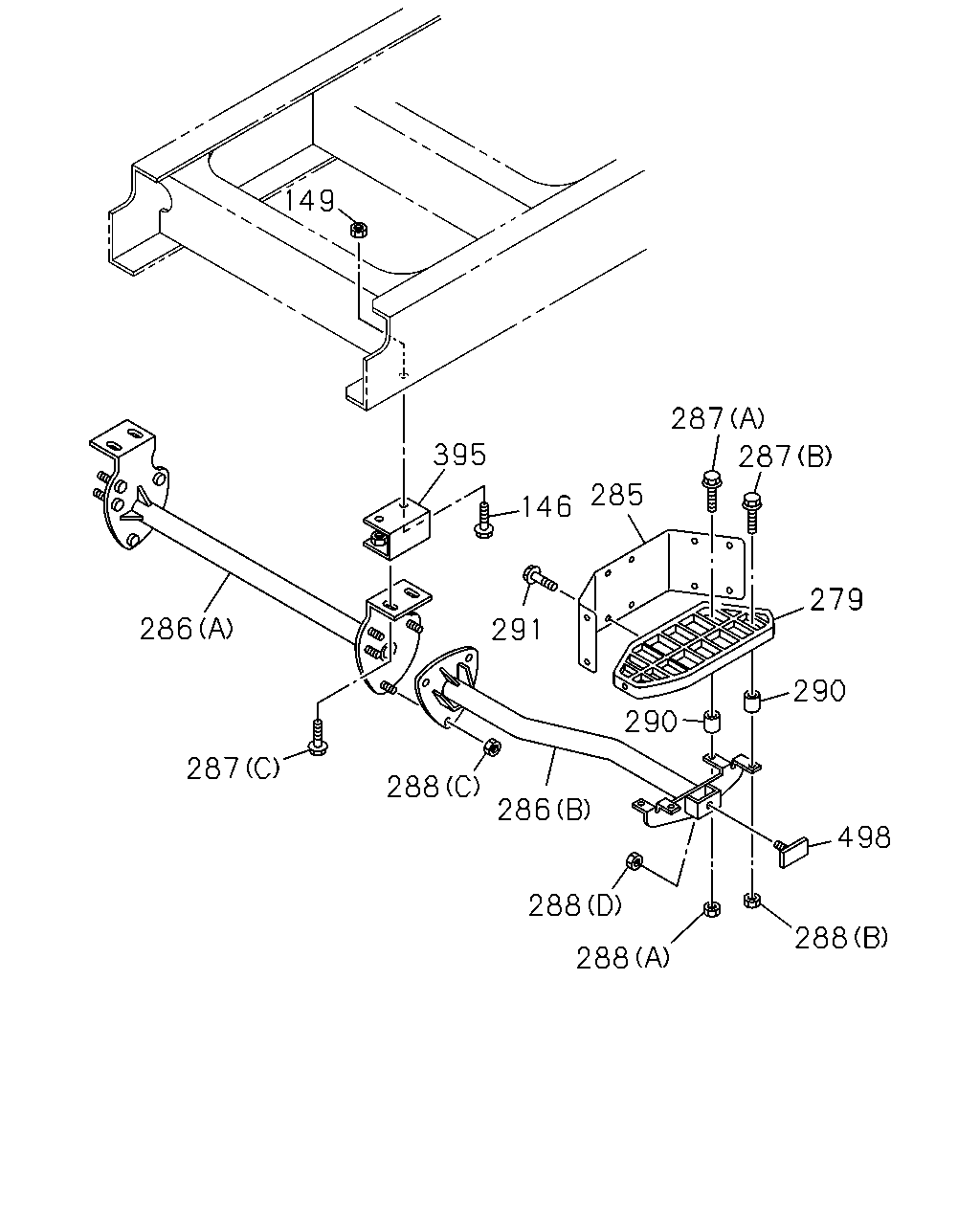

çizim 38556
149 287 395 287 285 146 279 286 291 290 290 287 288 286 498 288 288 288
BalonParca AdiParca NoAdetTipApplied Date A B C D
146 BOLT; STEP BRKT
M12X35 FLANGE 		0-28681-235-0 04 1 0005-0210 ●
146 BOLT; STEP BRKT
M12X30 FLANGE 		0-28681-230-0 04 1 0211-0512 ●
146 BOLT; STEP BRKT
M12X30 FLANGE 		0-28651-230-0 04 1 0601- ●
149 NUT; STEP BRKT
M12 FLANGE 		0-91150-212-0 04 1 0005-0602 ●
149 NUT; STEP BRKT
M12 FLANGE 		0-91180-212-0 04 1 0603- ●
279 BOARD; STEP 1ST 1-65680-801-1 01 1 0005- ●
279 BOARD; STEP 1ST 1-65680-607-0 01 1 0005- ●
279 BOARD; STEP 1ST 1-53414-035-0 02 1 0005- ●
285 PLATE; STEP,1ST STEP 1-53414-066-0 02 1 0010- ●
286 STEP ASM; 1ST
(A) 		1-53414-126-1 01 1 0005-0112 ●
286 STEP ASM; 1ST
(A) 		1-53414-254-0 01 1 0201- ●
286 STEP ASM; 1ST
(B) 		1-53414-130-2 01 1 0005- ●
286 STEP ASM; 1ST
(B) 		1-53414-129-2 01 1 0005- ●
287 BOLT; BOARD STEP
(A) M6X35 FLANGE 		0-28080-635-0 04 1 0005-0512 ●
287 BOLT; BOARD STEP
(A) M6X35 FLANGE 		0-28050-635-0 04 1 0601- ●
287 BOLT; BOARD STEP
(B) M8X35 FLANGE 		0-28080-835-0 04 1 0005-0512 ●
287 BOLT; BOARD STEP
(B) M8X35 FLANGE 		0-28050-835-0 04 1 0601- ●
287 BOLT; BOARD STEP
(C) M12X35 FLANGE 		0-28681-235-0 04 1 0005-0512 ●
287 BOLT; BOARD STEP
(C) M12X35 FLANGE 		0-28651-235-0 04 1 0601- ●
288 NUT; STEP
(A) M6 FLANGE 		0-91150-106-0 04 1 0005-0602 ●
288 NUT; STEP
(A) M6 FLANGE 		0-91180-106-0 04 1 0603- ●
288 NUT; STEP
(B) M8 FLANGE 		0-91150-108-0 04 1 0005-0602 ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 04 1 0603- ●
288 NUT; STEP
(C) M12 FLANGE 		0-91150-212-0 06 1 0005-0602 ●
288 NUT; STEP
(C) M12 FLANGE 		0-91180-212-0 06 1 0603- ●
288 NUT; STEP
(D) M6 		9-09110-406-0 02 1 0005-0512 ●
288 NUT; STEP
(D) M6 		0-91110-506-0 02 1 0601- ●
290 SPACER 1-53414-016-0 08 1 0005- ●
291 BOLT; STEP PLATE
M6X16 FLANGE 		0-28080-616-0 10 1 0010-0512 ●
291 BOLT; STEP PLATE
M6X16 FLANGE 		0-28050-616-0 10 1 0601- ●
395 BRACKET; SIDE STEP 1-53414-199-0 02 1 0005- ●
498 REFLECTOR 1-82290-061-0 02 1 0005- ●

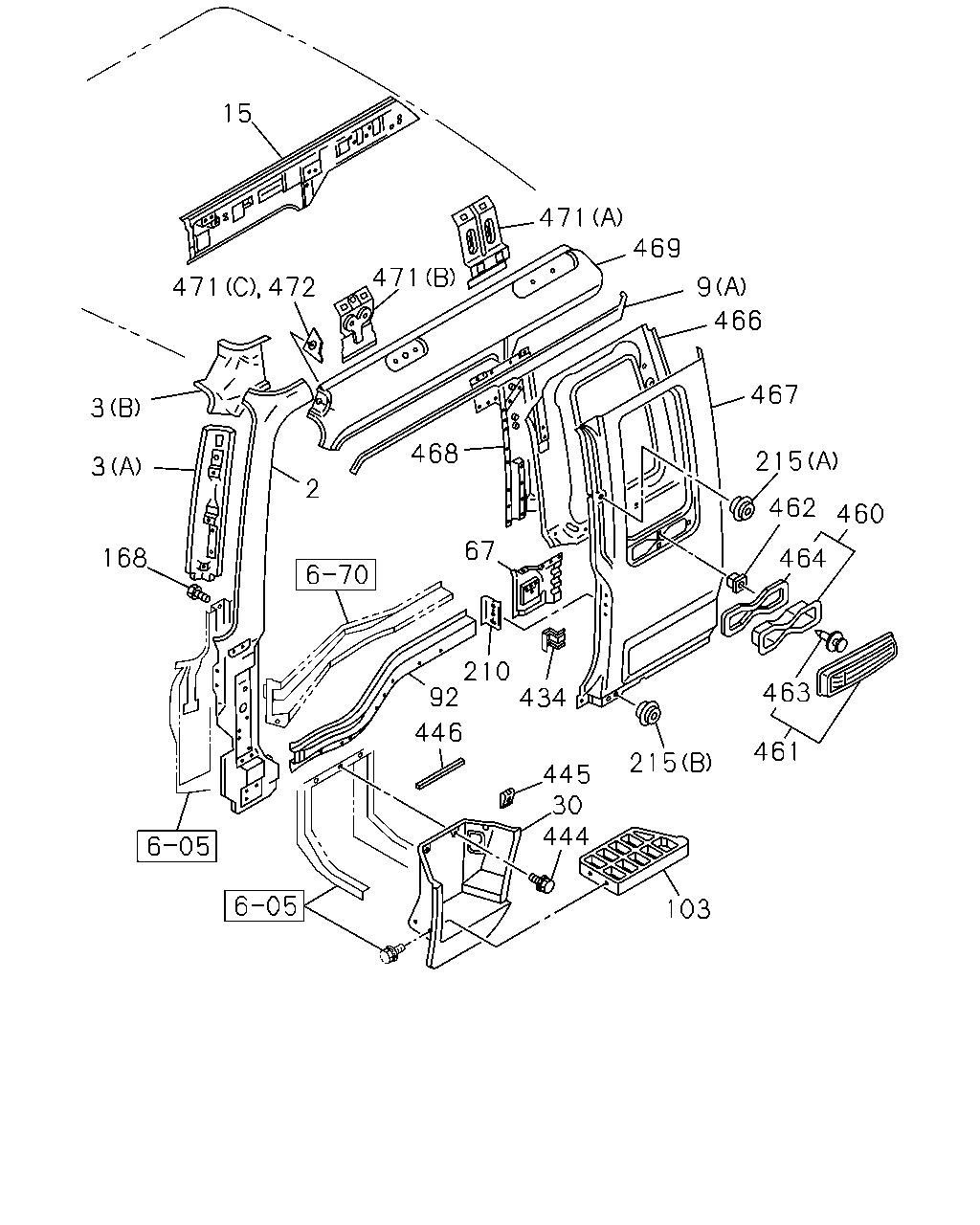

çizim 38599
15 472 471 3 3 168 2 468 67 210 92 446 434 445 30 444 103 215 461 463 464 460 462 215 467 466 9 469 471 471
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 PILLAR; FRT 1-61281-156-4 01 1 0005-0411 ● ● ●
2 PILLAR; FRT 1-61281-156-4 01 1 0412- ● ● ● ●
2 PILLAR; FRT 1-61281-155-4 01 1 0005-0411 ● ● ●
2 PILLAR; FRT 1-61281-155-4 01 1 0412- ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-170-5 01 1 0005-0411 ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-170-5 01 1 0412- ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-344-5 01 1 0005-0411 ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-344-5 01 1 0412- ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-169-5 01 1 0005-0411 ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-169-5 01 1 0412- ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-343-5 01 1 0005-0411 ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-343-5 01 1 0412- ● ● ● ●
9 MOLDING; DRIP,CAB SIDE
(A) 		1-61281-281-5 01 1 0005-0411 ● ●
9 MOLDING; DRIP,CAB SIDE
(A) 		1-61281-281-5 01 1 0412- ● ● ●
9 MOLDING; DRIP,CAB SIDE
(A) 		1-61281-280-5 01 1 0005-0411 ● ●
9 MOLDING; DRIP,CAB SIDE
(A) 		1-61281-280-5 01 1 0412- ● ● ●
9 MOLDING; DRIP,CAB SIDE
(C) 		1-61281-334-4 01 1 0005- ●
9 MOLDING; DRIP,CAB SIDE
(B) 		1-61281-340-6 01 1 0005- ●
9 MOLDING; DRIP,CAB SIDE
(C) 		1-61281-333-4 01 1 0005- ●
9 MOLDING; DRIP,CAB SIDE
(B) 		1-61281-339-6 01 1 0005- ●
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 0005-0411 ● ●
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 0412- ● ● ●
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 0005-0411 ● ●
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 0412- ● ● ●
15 PANEL; CANT RAIL SIDE 1-61281-358-8 01 1 0005- ●
15 PANEL; CANT RAIL SIDE 1-61281-357-8 01 1 0005- ●
30 CLOSING; SIDE STEP 1-71996-093-4 01 1 0005-0411 ● ●
30 CLOSING; SIDE STEP 1-71996-093-4 01 1 0412- ● ● ●
30 CLOSING; SIDE STEP 1-71996-092-4 01 1 0005-0411 ● ●
30 CLOSING; SIDE STEP 1-71996-092-4 01 1 0412- ● ● ●
30 CLOSING; SIDE STEP 1-71998-878-7 01 1 0005- ●
30 CLOSING; SIDE STEP 1-71998-877-7 01 1 0005- ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 0005-0411 ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 0412- ● ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 0005-0411 ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 0412- ● ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61280-862-3 01 1 0005- ●
67 PANEL; INNER,RR PILLAR LWR 1-61280-861-3 01 1 0005- ●
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 0005-0411 ● ● ●
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 0412- ● ● ● ●
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 0005-0411 ● ● ●
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 0412- ● ● ● ●
103 PLATE; STEP 1-71996-174-0 01 1 0005-0411 ● ● ●
103 PLATE; STEP 1-71996-174-0 01 1 0412- ● ● ● ●
103 PLATE; STEP 1-71996-173-0 01 1 0005-0411 ● ● ●
103 PLATE; STEP 1-71996-173-0 01 1 0412- ● ● ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 0005-0411 ● ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 0412-0512 ● ● ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601- ● ● ● ●
210 PANEL; DOOR STRIKER REINF 8-97851-446-1 01 1 0211-0411 ● ●
210 PANEL; DOOR STRIKER REINF 8-97851-446-1 01 1 0412- ● ● ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 0005-0411 ● ● ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 0412- ● ● ● ●
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 0005-0411 ● ● ●
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 0412- ● ● ● ●
434 PATCH; ASSIST GRIP 1-61270-763-1 02 1 0005-0411 ● ●
434 PATCH; ASSIST GRIP 1-61270-763-1 02 1 0412- ● ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0005-0411 ● ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0412-0904 ● ● ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905- ● ● ● ●
445 NUT; CLOSING 8-94279-723-0 04 1 0405-0405 ●
445 NUT; CLOSING 8-94279-723-0 02 1 0405-0411 ●
445 NUT; CLOSING 8-94279-723-0 02 1 0412-0609 ●
445 NUT; CLOSING 8-94279-723-0 02 1 0610- ● ● ● ●
445 NUT; CLOSING 8-94279-723-0 02 1 0005-0404 ● ● ●
445 NUT; CLOSING 8-94279-723-0 02 1 0405-0405 ● ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0005-0411 ● ● ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0412- ● ● ● ●
460 VENTILATOR; BODY SIDE 1-76378-292-4 02 1 0005-0411 ● ●
460 VENTILATOR; BODY SIDE 1-76378-292-4 02 1 0412- ● ● ●
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 0005-0411 ● ●
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 0412- ● ● ●
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 0005-0411 ● ●
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 0412- ● ● ●
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 0005-0411 ● ●
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 0412- ● ● ●
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0005-0411 ● ●
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0412- ● ● ●
464 SEAL; VENTILATOR 1-76378-299-0 02 1 0005-0411 ● ●
464 SEAL; VENTILATOR 1-76378-299-0 02 1 0412- ● ● ●
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 0005-0411 ● ●
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 0412- ● ● ●
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 0005-0411 ● ●
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 0412- ● ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-478-5 01 1 0211-0411 ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-478-5 01 1 0412- ● ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-476-1 01 1 0005-0210 ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-477-3 01 1 0005-0411 ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-477-3 01 1 0412- ● ● ●
467 PANEL; OUTER,BACK CORNER 1-61280-509-8 01 1 0005- ●
467 PANEL; OUTER,BACK CORNER 1-61280-508-7 01 1 0005- ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-418-2 01 1 0005-0411 ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-418-2 01 1 0412- ● ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-417-2 01 1 0005-0411 ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-417-2 01 1 0412- ● ● ●
469 ROOF; SIDE 1-61281-199-5 01 1 0005-0411 ● ●
469 ROOF; SIDE 1-61281-198-5 01 1 0005-0411 ● ●
469 ROOF; SIDE 1-61281-338-6 01 1 0005- ●
469 ROOF; SIDE 1-61281-337-6 01 1 0005- ●
469 ROOF; SIDE 1-61281-199-6 01 1 0412- ● ● ●
469 ROOF; SIDE 1-61281-198-6 01 1 0412- ● ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-201-3 01 1 0005-0411 ● ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-201-3 01 1 0412- ● ● ● ●
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-233-4 01 1 0005-0411 ● ● ●
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-233-4 01 1 0412-0812 ● ● ● ●
471 PATCH; AIR DEFLECTOR
(C) 		8-98132-463-0 01 1 0901- ● ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-200-3 01 1 0005-0411 ● ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-200-3 01 1 0412- ● ● ● ●
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-202-3 02 1 0005-0411 ● ●
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-202-3 02 1 0412- ● ● ●
472 PATCH; STAY,ROOF 1-61270-943-1 01 1 0005-0411 ● ● ●
472 PATCH; STAY,ROOF 1-61270-943-1 01 1 0412- ● ● ● ●

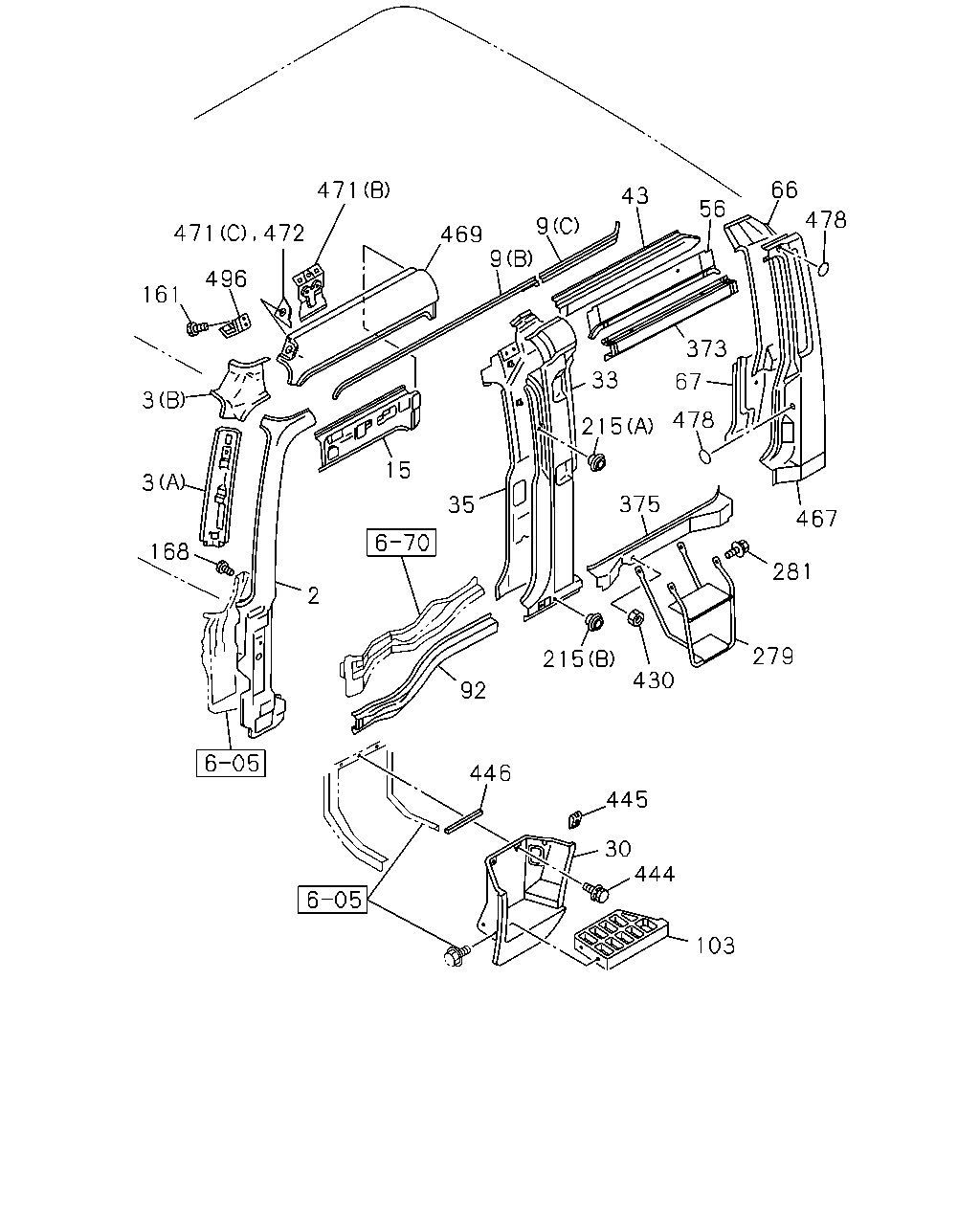

çizim 100445
66 471 43 56 478 9 469 9 496 161 373 33 67 3 478 215 15 3 375 35 467 168 281 2 279 215 430 92 446 445 30 444 103 471 472
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 PILLAR; FRT 1-61281-156-4 01 1 0005-0411 ● ● ●
2 PILLAR; FRT 1-61281-156-4 01 1 0412- ● ● ● ●
2 PILLAR; FRT 1-61281-155-4 01 1 0005-0411 ● ● ●
2 PILLAR; FRT 1-61281-155-4 01 1 0412- ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-170-5 01 1 0005-0411 ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-170-5 01 1 0412- ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-344-5 01 1 0005-0411 ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-344-5 01 1 0412- ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-169-5 01 1 0005-0411 ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-169-5 01 1 0412- ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-343-5 01 1 0005-0411 ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-343-5 01 1 0412- ● ● ● ●
9 MOLDING; DRIP,CAB SIDE
(A) 		1-61281-281-5 01 1 0005-0411 ● ●
9 MOLDING; DRIP,CAB SIDE
(A) 		1-61281-281-5 01 1 0412- ● ● ●
9 MOLDING; DRIP,CAB SIDE
(A) 		1-61281-280-5 01 1 0005-0411 ● ●
9 MOLDING; DRIP,CAB SIDE
(A) 		1-61281-280-5 01 1 0412- ● ● ●
9 MOLDING; DRIP,CAB SIDE
(C) 		1-61281-334-4 01 1 0005- ●
9 MOLDING; DRIP,CAB SIDE
(B) 		1-61281-340-6 01 1 0005- ●
9 MOLDING; DRIP,CAB SIDE
(C) 		1-61281-333-4 01 1 0005- ●
9 MOLDING; DRIP,CAB SIDE
(B) 		1-61281-339-6 01 1 0005- ●
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 0005-0411 ● ●
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 0412- ● ● ●
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 0005-0411 ● ●
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 0412- ● ● ●
15 PANEL; CANT RAIL SIDE 1-61281-358-8 01 1 0005- ●
15 PANEL; CANT RAIL SIDE 1-61281-357-8 01 1 0005- ●
30 CLOSING; SIDE STEP 1-71996-093-4 01 1 0005-0411 ● ●
30 CLOSING; SIDE STEP 1-71996-093-4 01 1 0412- ● ● ●
30 CLOSING; SIDE STEP 1-71996-092-4 01 1 0005-0411 ● ●
30 CLOSING; SIDE STEP 1-71996-092-4 01 1 0412- ● ● ●
30 CLOSING; SIDE STEP 1-71998-878-7 01 1 0005- ●
30 CLOSING; SIDE STEP 1-71998-877-7 01 1 0005- ●
33 PANEL; CENTER PILLAR,OUTER 1-61281-548-3 01 1 0005- ●
33 PANEL; CENTER PILLAR,OUTER 1-61281-485-3 01 1 0005- ●
35 PANEL; CENTER PILLAR,INNER 1-61281-493-2 01 1 0005- ●
35 PANEL; CENTER PILLAR,INNER 1-61281-486-1 01 1 0005- ●
43 CANTRAIL; SIDE OUTER,FRT 1-61181-038-2 01 1 0005- ●
43 CANTRAIL; SIDE OUTER,FRT 1-61181-037-2 01 1 0005- ●
56 CANTRAIL; SIDE 1-61281-114-0 01 1 0005- ●
56 CANTRAIL; SIDE 1-61281-113-0 01 1 0005- ●
66 PANEL; BACK SIDE INNER 1-61280-855-2 01 1 0005- ●
66 PANEL; BACK SIDE INNER 1-61280-854-2 01 1 0005- ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 0005-0411 ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 0412- ● ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 0005-0411 ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 0412- ● ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61280-862-3 01 1 0005- ●
67 PANEL; INNER,RR PILLAR LWR 1-61280-861-3 01 1 0005- ●
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 0005-0411 ● ● ●
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 0412- ● ● ● ●
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 0005-0411 ● ● ●
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 0412- ● ● ● ●
103 PLATE; STEP 1-71996-174-0 01 1 0005-0411 ● ● ●
103 PLATE; STEP 1-71996-174-0 01 1 0412- ● ● ● ●
103 PLATE; STEP 1-71996-173-0 01 1 0005-0411 ● ● ●
103 PLATE; STEP 1-71996-173-0 01 1 0412- ● ● ● ●
161 BOLT; FIX
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0005- ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 0005-0411 ● ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 0412-0512 ● ● ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601- ● ● ● ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 0005-0411 ● ● ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 0412- ● ● ● ●
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 0005-0411 ● ● ●
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 0412- ● ● ● ●
279 BOARD; STEP 1ST 1-65680-801-1 01 1 0005- ●
279 BOARD; STEP 1ST 1-65680-607-0 01 1 0005- ●
279 BOARD; STEP 1ST 1-53414-035-0 02 1 0005- ●
281 BOLT; STEP BOARD TO FLOOR
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 08 1 0005-0904 ●
281 BOLT; STEP BOARD TO FLOOR
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 08 1 0905- ●
373 PANEL; CANTRAIL,CLOSING RR 1-61280-568-2 02 1 0005- ●
375 PANEL; SIDE SILL RR,CAB
PRIMER 		1-61280-636-1 01 1 0005- ●
375 PANEL; SIDE SILL RR,CAB
PRIMER 		1-61280-635-1 01 1 0005- ●
430 NUT; PANEL
M6 		9-09114-086-0 02 1 0005- ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0005-0411 ● ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0412-0904 ● ● ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905- ● ● ● ●
445 NUT; CLOSING 8-94279-723-0 04 1 0405-0405 ●
445 NUT; CLOSING 8-94279-723-0 02 1 0405-0411 ●
445 NUT; CLOSING 8-94279-723-0 02 1 0412-0609 ●
445 NUT; CLOSING 8-94279-723-0 02 1 0610- ● ● ● ●
445 NUT; CLOSING 8-94279-723-0 02 1 0005-0404 ● ● ●
445 NUT; CLOSING 8-94279-723-0 02 1 0405-0405 ● ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0005-0411 ● ● ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0412- ● ● ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-478-5 01 1 0211-0411 ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-478-5 01 1 0412- ● ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-476-1 01 1 0005-0210 ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-477-3 01 1 0005-0411 ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-477-3 01 1 0412- ● ● ●
467 PANEL; OUTER,BACK CORNER 1-61280-509-8 01 1 0005- ●
467 PANEL; OUTER,BACK CORNER 1-61280-508-7 01 1 0005- ●
469 ROOF; SIDE 1-61281-199-5 01 1 0005-0411 ● ●
469 ROOF; SIDE 1-61281-198-5 01 1 0005-0411 ● ●
469 ROOF; SIDE 1-61281-338-6 01 1 0005- ●
469 ROOF; SIDE 1-61281-337-6 01 1 0005- ●
469 ROOF; SIDE 1-61281-199-6 01 1 0412- ● ● ●
469 ROOF; SIDE 1-61281-198-6 01 1 0412- ● ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-201-3 01 1 0005-0411 ● ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-201-3 01 1 0412- ● ● ● ●
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-233-4 01 1 0005-0411 ● ● ●
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-233-4 01 1 0412-0812 ● ● ● ●
471 PATCH; AIR DEFLECTOR
(C) 		8-98132-463-0 01 1 0901- ● ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-200-3 01 1 0005-0411 ● ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-200-3 01 1 0412- ● ● ● ●
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-202-3 02 1 0005-0411 ● ●
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-202-3 02 1 0412- ● ● ●
472 PATCH; STAY,ROOF 1-61270-943-1 01 1 0005-0411 ● ● ●
472 PATCH; STAY,ROOF 1-61270-943-1 01 1 0412- ● ● ● ●
478 SEAL; RR PILLAR
OD=25 BLACK 		1-76798-019-0 07 1 0005- ●
478 SEAL; RR PILLAR
OD=45 T=0.08 BLACK 		8-94291-688-2 01 1 0005- ●
496 SUPPORT ASM 1-72448-324-1 01 1 0005- ●
496 SUPPORT ASM 1-72448-323-1 01 1 0005- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
